How to wire without a NEC violation

Notices

How to wire without a NEC violation

Old 08-30-2019, 04:33 AM
  #1
Senior Member
Thread Starter

Alureing's Avatar

Join Date: Aug 2011
Location: Never ENDING Cold Ct
Posts: 4,067
Likes: 0
Received 399 Likes on 223 Posts
Default How to wire without a NEC violation

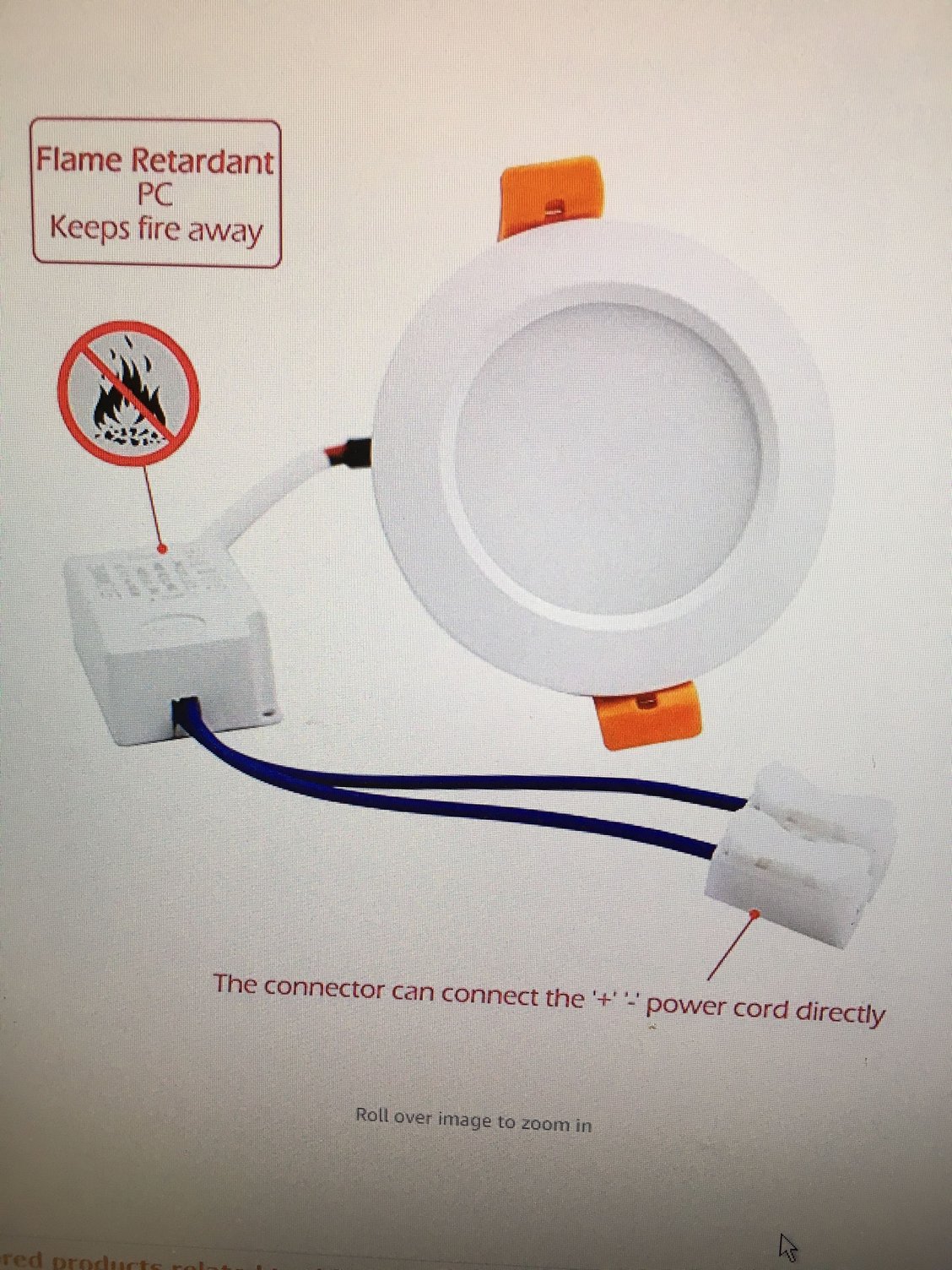

So Im supposed to just use the provided connectors and push in romex to the ends with no box? I think not.. I installed SG boxes at each location and installed the driver inside each box with the high voltage, not the best way but the only one? Thoughts?


Old 08-30-2019, 04:34 AM
  #2
Senior Member
Thread Starter

Alureing's Avatar

Join Date: Aug 2011
Location: Never ENDING Cold Ct
Posts: 4,067
Likes: 0
Received 399 Likes on 223 Posts
Default

YGS-TECH is the name of the company, and no not in my house a customer bought these POS things on amazon.
Old 08-30-2019, 04:37 AM
  #3
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 23,837
Received 4,941 Likes on 3,172 Posts
Default

Originally Posted by Alureing View Post
So Im supposed to just use the provided connectors and push in romex to the ends with no box? I think not.. I installed SG boxes at each location and installed the driver inside each box with the high voltage, not the best way but the only one? Thoughts?

I think we cut the push connector off and wire nut it to the romex.
Old 08-30-2019, 04:58 AM
  #4
Senior Member

Join Date: Feb 2012
Posts: 864
Likes: 0
Received 227 Likes on 131 Posts
Default

Looks to me like it goes to a DC power supply before the AC power. Shows positive and negative, not hot and neutral.
Old 08-30-2019, 05:09 AM
  #5
Senior Member

Join Date: Oct 2012
Location: Virginia Beach Va
Posts: 2,066
Received 1,004 Likes on 457 Posts
Default

With LED's there's not enough currant passing through that connector to cause any problems with it.
Now the push in connections on the back of receptacles is a different story.
Old 08-30-2019, 05:13 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Nov 2016
Posts: 2,350
Received 2,766 Likes on 1,252 Posts
Default

Looks like some cheep mislabeled Chinese stuff. I would at least cut the connector off and wire but in a box.
Old 08-30-2019, 06:05 AM
  #7
Admirals Club Admiral's Club Member

Join Date: Apr 2010
Location: Jax, FL
Posts: 2,128
Received 775 Likes on 406 Posts
Default

That's some cheap chinese junk. Probably would have to cut the connectors off and wire nut to romex in a box.
Old 08-30-2019, 06:16 AM
  #8
Senior Member

Join Date: Jun 2009
Location: Lake Murray, SC
Posts: 4,238
Likes: 0
Received 205 Likes on 113 Posts
Default

That looks like a fuse on fireworks
Old 08-30-2019, 06:21 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 7,790
Likes: 0
Received 3,751 Likes on 2,142 Posts
Default

Originally Posted by Alureing View Post
YGS-TECH is the name of the company, and no not in my house a customer bought these POS things on amazon.
Answer is the same as always, what is code. Electrical work needs to be done to code. Is that type of connector code?
Old 08-30-2019, 06:31 AM
  #10
dev
Admirals Club Admiral's Club Member

dev's Avatar

Join Date: Mar 2017
Location: St. Pete
Posts: 644
Received 974 Likes on 435 Posts
Default

Originally Posted by madhatter1 View Post
Looks to me like it goes to a DC power supply before the AC power. Shows positive and negative, not hot and neutral.
They're 110VAC lights, not DC.
Old 08-30-2019, 06:33 AM
  #11
dev
Admirals Club Admiral's Club Member

dev's Avatar

Join Date: Mar 2017
Location: St. Pete
Posts: 644
Received 974 Likes on 435 Posts
Default

NEC generally mandates that all connections be in a box, and that the box not be buried or inaccessible.

I'd probably tell the customer to pick something else, you can't install those in a cost-effective code-compliant way, unless they want an exposed junction box near each light, or the box can be accessed in some other way. Maybe if these are meant to be under cabinet lights you could do a low-profile box.
Old 08-30-2019, 06:42 AM
  #12
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2005
Location: Kent Narrows, MD
Posts: 7,105
Likes: 0
Received 768 Likes on 360 Posts
Default

Originally Posted by mikefloyd View Post
Answer is the same as always, what is code. Electrical work needs to be done to code. Is that type of connector code?
Close. Is the product UL listed for the intended application ? Is that connector UL listed for direct connection to the branch circuit without a junction box ? My bet would be no, which then makes it a code violation.

Cutting the connector off would void the UL listing (if one exists).

Using non-UL listed material or using material in a manner that it is not UL listed for, is a code violation and creates a liability issue for the installer

Customer supplied ? Is the customer always right ? Not when they request an installation that is a code violation
Old 08-30-2019, 07:46 AM
  #13
Senior MemberCaptains Club MemberPLEDGER

Join Date: Aug 2003
Location: On The Razors Edge
Posts: 10,146
Likes: 0
Received 1,201 Likes on 574 Posts
Default

Originally Posted by dev View Post
They're 110VAC lights, not DC.
You sure about that? That white box sure looks like a transformer to me.

Go to the electric supply house and get some WAC lights, instead. You'll be much happier.
Old 08-30-2019, 07:48 AM
  #14
dev
Admirals Club Admiral's Club Member

dev's Avatar

Join Date: Mar 2017
Location: St. Pete
Posts: 644
Received 974 Likes on 435 Posts
Default

Originally Posted by Just1more View Post
You sure about that?
Yes.

Instead of just randomly speculating, I looked them up on Amazon and read the specs.
Old 08-30-2019, 11:56 AM
  #15
Admirals Club Admiral's Club Member

Join Date: Dec 2011
Location: SW Florida
Posts: 7,552
Likes: 0
Received 999 Likes on 675 Posts
Default

That could be listed as a Despard device in which case it is legal without a box. That is essentially saying the connector covering is a box.
My guess is it is not tho.
Old 08-30-2019, 12:39 PM
  #16
Senior Member

Join Date: Sep 2012
Location: Naples, Florida
Posts: 885
Received 583 Likes on 334 Posts
Default

Originally Posted by Elusive View Post
Close. Is the product UL listed for the intended application ? Is that connector UL listed for direct connection to the branch circuit without a junction box ? My bet would be no, which then makes it a code violation.

Cutting the connector off would void the UL listing (if one exists).

Using non-UL listed material or using material in a manner that it is not UL listed for, is a code violation and creates a liability issue for the installer

Customer supplied ? Is the customer always right ? Not when they request an installation that is a code violation
THIS!

The fact that it says Positive and Negative makes me think that this is not UL listed. Its hard to tell if the white box is the driver, or just the dimming module or RBG control. Most drivers have cooling fins. It may need an actual driver.
Old 08-30-2019, 12:56 PM
  #17
dev
Admirals Club Admiral's Club Member

dev's Avatar

Join Date: Mar 2017
Location: St. Pete
Posts: 644
Received 974 Likes on 435 Posts
Default

Originally Posted by EMC Pursuit View Post
THIS!

The fact that it says Positive and Negative makes me think that this is not UL listed. Its hard to tell if the white box is the driver, or just the dimming module or RBG control. Most drivers have cooling fins. It may need an actual driver.
Not to mention the Chinese stuff that says "UL LIsted" when it's really not. According to its specs, no driver is needed, it is a direct 120V connection, white LED-only.
Old 08-30-2019, 12:58 PM
  #18
Admirals Club Admiral's Club Member

Join Date: May 2010
Location: Merritt Island Fl
Posts: 592
Likes: 0
Received 132 Likes on 54 Posts
Default

Real simple. Throw that POS in the trash. Problem solved. Amazon electrical supplies are total garbage.
Old 08-30-2019, 12:58 PM
  #19
Senior Member

Join Date: Nov 2009
Location: Jax, Fl
Posts: 4,188
Received 554 Likes on 340 Posts
Default

on the Amazon page the pig tailed box is described as a "dimming module". And due to the heat sinks on the back of the fixture, the "driver", if you mean the power supply/ac to dc converter, is built into the unit.
Old 08-30-2019, 07:09 PM
  #20
Admirals Club Admiral's Club Member

Join Date: Dec 2010
Posts: 132
Received 128 Likes on 77 Posts
Default

We purchased the Lithonia Lighting WF6 from Amazon for our house. Same concept light style but a lot more legit on the wiring.
