Electronic Experts - What is this (Bridge Amplifier)?

Notices

Electronic Experts - What is this (Bridge Amplifier)?

Old 06-10-2019, 10:24 AM
  #1
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 119
Likes: 0
Received 484 Likes on 259 Posts
Default Electronic Experts - What is this (Bridge Amplifier)?

I buy surplus lab equipment and sell it on eBay. I have this item that says "Bridge Amplifier" on it. But, when I Google that all I find is how to bridge amplifiers to combine channels. I suspect this is something different. Some kind of test equipment perhaps. Anybody know for sure?
https://www.ebay.com/itm/15351348394...84.m1555.l2649







Old 06-10-2019, 03:25 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Oct 2015
Location: Phoenix, AZ
Posts: 778
Likes: 0
Received 175 Likes on 108 Posts
Default

Just eyeballing (along with my weak electrical engineering 101 memory) it I'd say the top dial is a high pass filter (there is a capacitor on the upper dials), and the selector determines the rolloff frequency of the high pass filter.

the lower selector determines the gain (amplification) on the remaining signal.

So the device would filter out low frequency stuff and boost the signal, for two separate channels.

Again just guessing and I'm a mechanical engineer, not electrical......
Old 06-10-2019, 04:15 PM
  #3
Senior Member

Join Date: Aug 2017
Posts: 125
Likes: 0
Received 63 Likes on 43 Posts
Default

Old 06-10-2019, 04:35 PM
  #4
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,700
Received 2,383 Likes on 1,208 Posts
Default

Yeah, I I've worked in the broadcast arena for the past 30 years. Telephone calls are done with a box called a Hybrid that does all the processing to make crappy phone calls sound better when aired. There's a lot more to it than a high pass filter and a gain control as Ma Bell cuts certain frequencies from the audio of a phone call so it can be handled by a 2 wire, unbalanced system over long distances (more than ~100'). Boradcasters have been using telephone hybrids for 40+ years. Besides, you'd never cut frequencies from a phone call, the signal has already been significantly trimmed - that's why phone audio sounds so crappy.

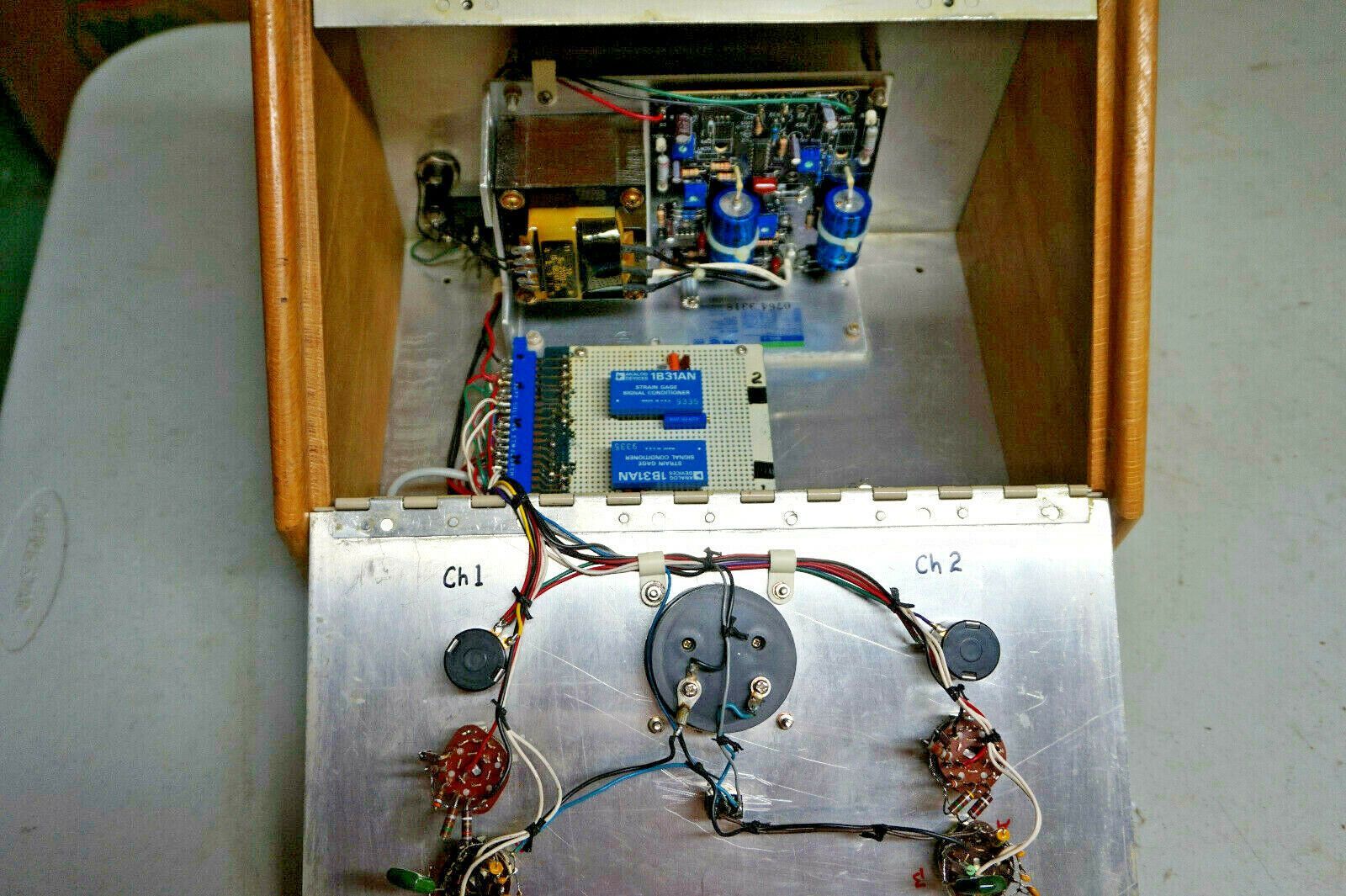

With 2 channels, this thing just looks like an adjustable stereo high pass filter with gain compensation. Could have been used for anything and looking at the back of it, there's a section with a breadboard (home made circuit) in it. No telling what it was used for but a modern DSP is about 100 million times more useful and capable.

Probably a nice conversation piece but otherwise worthless.

Last edited by Back-in-Black; 06-10-2019 at 04:41 PM.
Old 06-10-2019, 04:40 PM
  #5
Senior MemberCaptains Club Member

Join Date: Aug 2002
Location: sebastian FL
Posts: 2,128
Received 286 Likes on 158 Posts
Default

Originally Posted by Splisskin View Post

Correct.
Old 06-10-2019, 04:45 PM
  #6
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,700
Received 2,383 Likes on 1,208 Posts
Default

Originally Posted by Splisskin View Post

didn't see that post - amplifies strain gauge signals which by their very nature are quite small. That makes a lot of sense.
Old 06-10-2019, 05:45 PM
  #7
Senior MemberCaptains Club Member

Join Date: Aug 2004
Location: Raleigh & Harkers Island, NC
Posts: 518
Received 73 Likes on 41 Posts
Default

Originally Posted by Back-in-Black View Post
didn't see that post - amplifies strain gauge signals which by their very nature are quite small. That makes a lot of sense.
Yes and "bridge" refers to a wheatstone bridge which is the type of circuit used with strain gages. For measuring a single gage there would be one strain gage and 3 fixed resistors. Load cells and similar devices have all 4 as active strain gages for both higher signal and temperature compensation.....
Old 06-10-2019, 07:02 PM
  #8
Senior Member

Join Date: Jun 2010
Posts: 843
Received 334 Likes on 167 Posts
Default

Originally Posted by Center Crusher View Post
Yes and "bridge" refers to a wheatstone bridge which is the type of circuit used with strain gages. For measuring a single gage there would be one strain gage and 3 fixed resistors. Load cells and similar devices have all 4 as active strain gages for both higher signal and temperature compensation.....
This.
Old 06-11-2019, 08:24 AM
  #9
Senior Member
Thread Starter

Join Date: Jan 2012
Posts: 119
Likes: 0
Received 484 Likes on 259 Posts
Default

OK. Thanks. The additional keywords may help sell it. Think $99 is too low?
Old 06-11-2019, 12:29 PM
  #10
Senior Member

Join Date: Jun 2014
Location: Virginia
Posts: 2,001
Received 737 Likes on 425 Posts
Default

I have deleted my guess as it was obviously erroneous. Kudos to those who nailed it.
Old 06-11-2019, 03:13 PM
  #11
Senior MemberCaptains Club Member

Join Date: Jul 2004
Location: somewhere over there
Posts: 4,217
Received 1,063 Likes on 583 Posts
Default

They were all wrong. That piece is valuable. The Golden Gate Bridge Authority had bridge amplifiers made to amplify the brightness lights on the bridge during foggy conditions. With LEDS, they were replaced. Probably worth a good tax write off if you donate to a museum.
