Another Privateer

Old 06-13-2019, 05:23 PM
  #101
Admirals Club Admiral's Club Member

Join Date: Oct 2015
Location: South Texas
Posts: 1,333
Received 569 Likes on 383 Posts
Default

Originally Posted by Floatingalong View Post
Personally I wouldn't want to use the CSM for no other reason than how much of a pain it is to work with with epoxy. Even just six or 8-in wide strips of 1708, wet them out on a trash bag and roll them up, jump into to the boat and youd be finished with all of them in the same time as dealing with one section of CSM.
Agreed. Since the epoxy resin doesn't dissolve the binding agent in the CSM it can be a biatch to wet out fully.
Old 06-14-2019, 03:40 AM
  #102
Senior Member

Join Date: Aug 2014
Posts: 2,879
Received 195 Likes on 166 Posts
Default

Originally Posted by slickcav View Post
I've got access to a big roll of CSM, any reason I could get away with that for wrapping over the top? I understand CSM offers no structural integrity, but if its purely for the purpose of wrapping the stringer top cap it would be fine?
Most people cap them with glass like uniglass or biaxial to build strength into the stringer. Think of it like an i-beam. I probably would add a couple extra layers to the cap as well.
Old 06-15-2019, 04:30 AM
  #103
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default




laying out bulkheads, tank, etc the next few days. Will be doing some slight modification with the short center stringer sections to optimize boat storage. In deck flush hatches 22x22(OD) bilge access >bulkhead 22x32 dry storage section >bulkhead>tank>bulkhead>22x46 insulated storage is the plan.

Reached out to privateer and some other builders on my plans and modifications necessary, may foam fill keel and glass over, not 100% decided yet.





Last edited by slickcav; 06-15-2019 at 05:04 AM.
Old 06-15-2019, 05:02 AM
  #104
Senior Member

Join Date: Aug 2016
Posts: 625
Received 243 Likes on 130 Posts
Default

I vote for fill in center stringer, glass over and then run 3"PVC cut in half and then glass over.

Looks good man!
Old 06-15-2019, 07:01 AM
  #105
Admirals Club Admiral's Club Member

Join Date: Oct 2015
Location: South Texas
Posts: 1,333
Received 569 Likes on 383 Posts
Default

My Mako had a wood keel stringer that was rotted to hell. After I cut it out and ground down ugly glass around it, there was a bit of a notch in the hull that did not look like it would accept glass mat very well. I was planning on using 3" PVC cut in half for my replacement keel stringer so I backfilled the notch with thickened resin containing a shit-ton of milled fiber and chopped fiber then applied a layer of 18 oz roving woven over the whole shebang. Came out great.
Likes:
Old 06-15-2019, 09:34 AM
  #106
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

Originally Posted by Sharpest View Post
My Mako had a wood keel stringer that was rotted to hell. After I cut it out and ground down ugly glass around it, there was a bit of a notch in the hull that did not look like it would accept glass mat very well. I was planning on using 3" PVC cut in half for my replacement keel stringer so I backfilled the notch with thickened resin containing a shit-ton of milled fiber and chopped fiber then applied a layer of 18 oz roving woven over the whole shebang. Came out great.
I backfilled on my last privateer, but that's a ton of resin and thickener and have seen foam filled/glassed solutions as well.
Old 06-17-2019, 10:32 AM
  #107
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

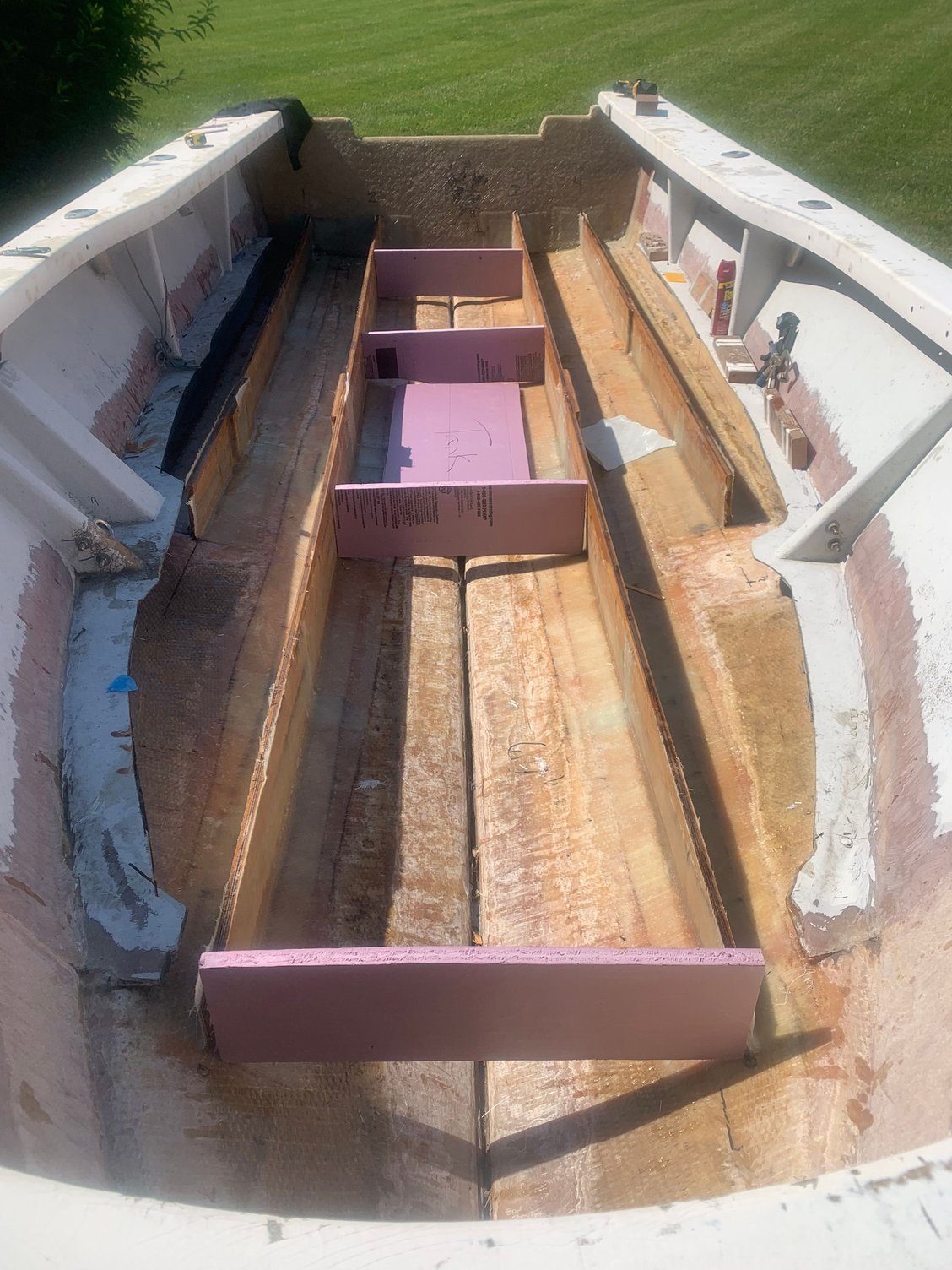

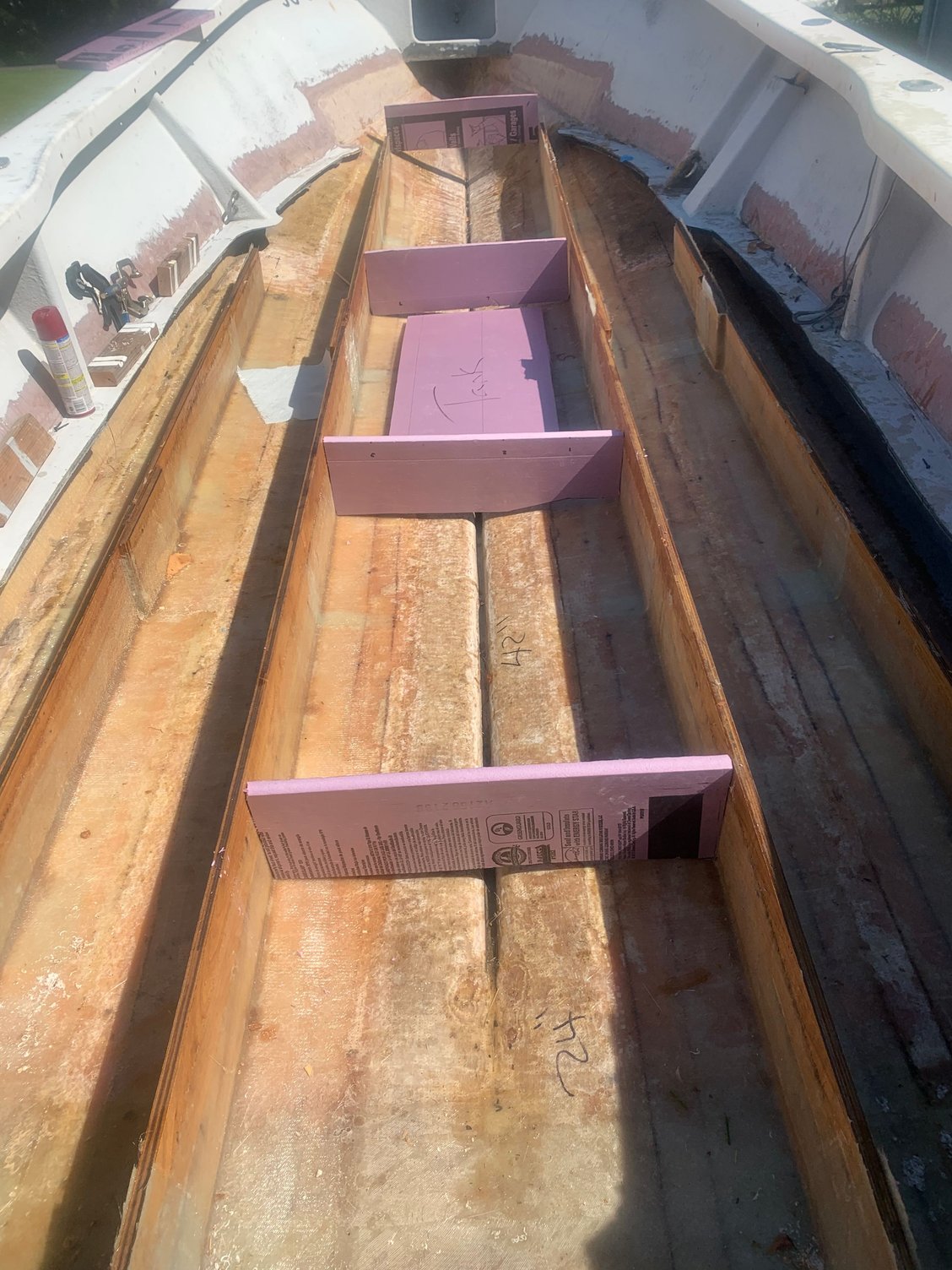

Had some time this morning before work so I laid out a visual tank/bulkheads. Bilge will get a flush in deck professional hatch 22x22OD 18x18ID, dry storage will get 22x32OD 18x28ID, forward fish box hatch 22x42OD 18x38ID.

From the stern to bow my mock up measurements Length wise are 24” (bilge)/bulkhead/42” (dry storage)/bulkhead/tank (measurements 18w42”long 25gal) in a 50” space/bulkhead/62” (fish box-insulated storage)then capped off with a bulkhead. Keep in mind this space is 27 1/4” wide, and approx 7-9” in height depending.

again these are just the center bulkheads. I plan on adding bulkheads to the outer stringers in the same locations and I guess it’s appropropriate to also bulkhead outer stringer to hull as well.

Last edited by slickcav; 06-17-2019 at 11:11 AM.
Old 06-17-2019, 11:15 AM
  #108
Junior Member

Join Date: May 2017
Location: Washington NC
Posts: 4
Likes: 0
Received 2 Likes on 2 Posts
Default

We cut mine out a few inches off the bottom like you are saying. No problem at all. Referring to the side supports under the gunnel cap.
Likes:
Old 06-17-2019, 06:11 PM
  #109
Senior Member

Join Date: Aug 2014
Posts: 2,879
Received 195 Likes on 166 Posts
Default

If you can get away with it allow more room for the bildge. About 36" would be nice, mine is 24" and its a little smaller then I want.
Likes:
Old 07-01-2019, 08:00 AM
  #110
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

another two hours with a grinder prepping and getting things ready for bulkheads, center keel, etc.

Hope to make some moves tomorrow.
Old 07-31-2019, 05:25 AM
  #111
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

slow going, been a busy summer with work and travel.

this week I leveled stringers, epoxy sealed and started to lay out bulkhead templates, drilled drain holes at the transom for the stringers, epoxy sealed. Will be out of town the next 10 days.

One of my biggest snags has been this center stringer issue. Privateer had two short center stringers from the factory, that I am modifying to provide for significant in deck storage. Was going to foam core, was going to pvc glass tube, finally decided I am going to go with a short 3-4" wood cored stringer.

My deck hatches should be on their way shortly, will be ordering tank as soon as the center stringer and bulkheads go in hopefully in the next two weeks. Will also be gluing and epoxy coating 3/4" strips to both sides of the tops of the stringers
Old 08-28-2019, 05:12 PM
  #112
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

I know it’s been a while.... busy summer with fishing/business/family/travel.

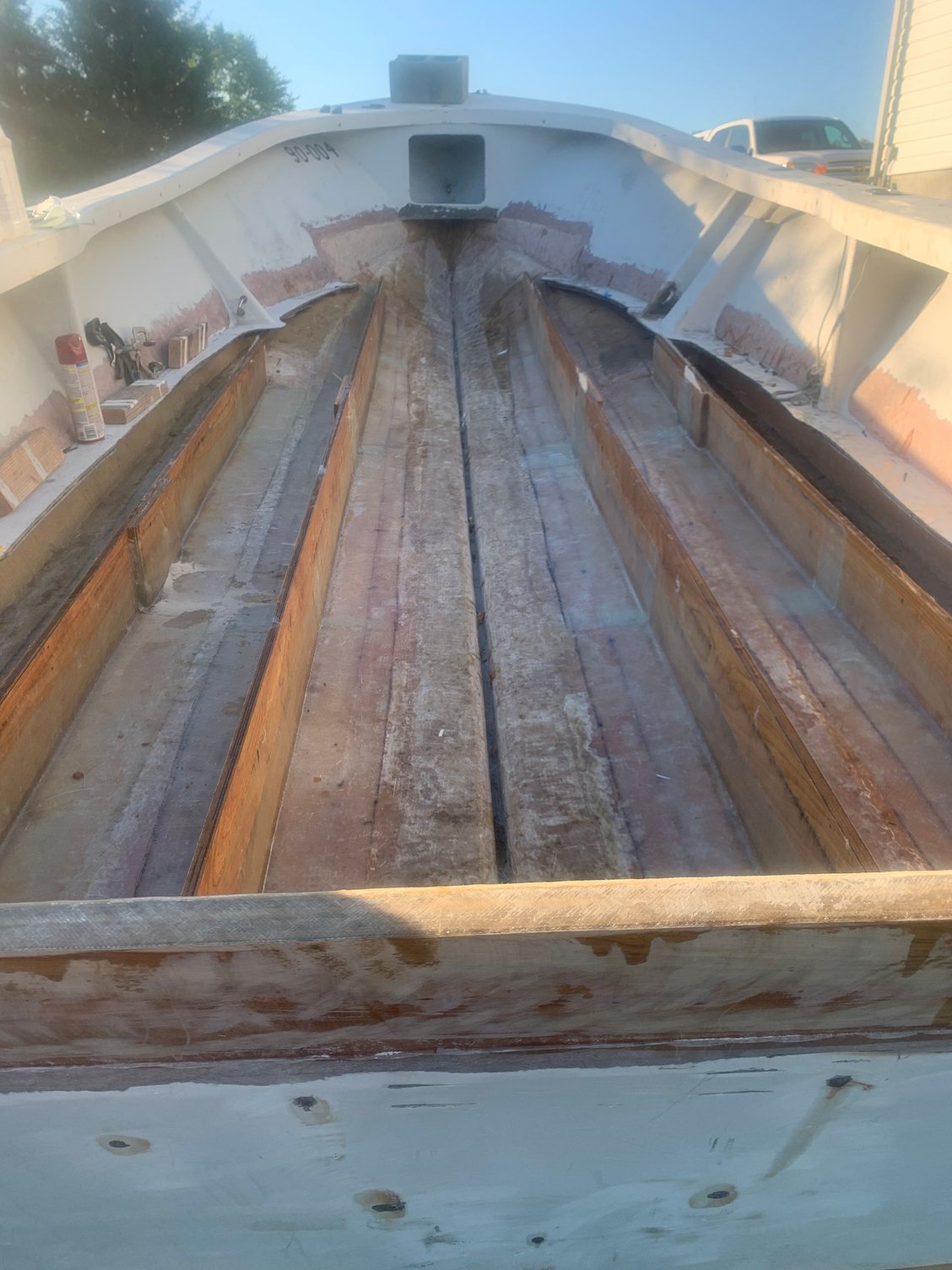

Today I got the center keel stringer in ran a 3” stringer front to back bedded in the keel area then glassed in place x2.

Doesnt seem like much but it really was a big step for me because I wasn’t sure what I was going to do there, some had recc foam pour core, some said I didn’t need anything, some said fill the entire thing with thickened

Tomorrow the bulkheads get installed. My three in deck hatches are here now as well. Tank ordered today. All measurements for deck layout with hatches leaning post console etc all laid out. Special console picked out from a Carolina builder that I am very excited about.

Last edited by slickcav; 08-28-2019 at 05:18 PM.
Old 08-29-2019, 04:41 PM
  #113
Senior Member

Join Date: Oct 2004
Location: RI
Posts: 1,881
Received 404 Likes on 248 Posts
Default

Excellent, glad to see you're back at it!

Let's see some pics when you have a chance.
Old 08-31-2019, 04:42 AM
  #114
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

will do, working this weekend then fishing Monday Tuesday offshore, didn't get to the bulkheads yet..tank came in
Old 09-03-2019, 01:48 AM
  #115
Senior MemberCaptains Club Member

Join Date: Apr 2006
Posts: 8,898
Received 683 Likes on 321 Posts
Default

Dorian is moving faster.

Get to it!
Old 09-10-2019, 07:02 PM
  #116
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

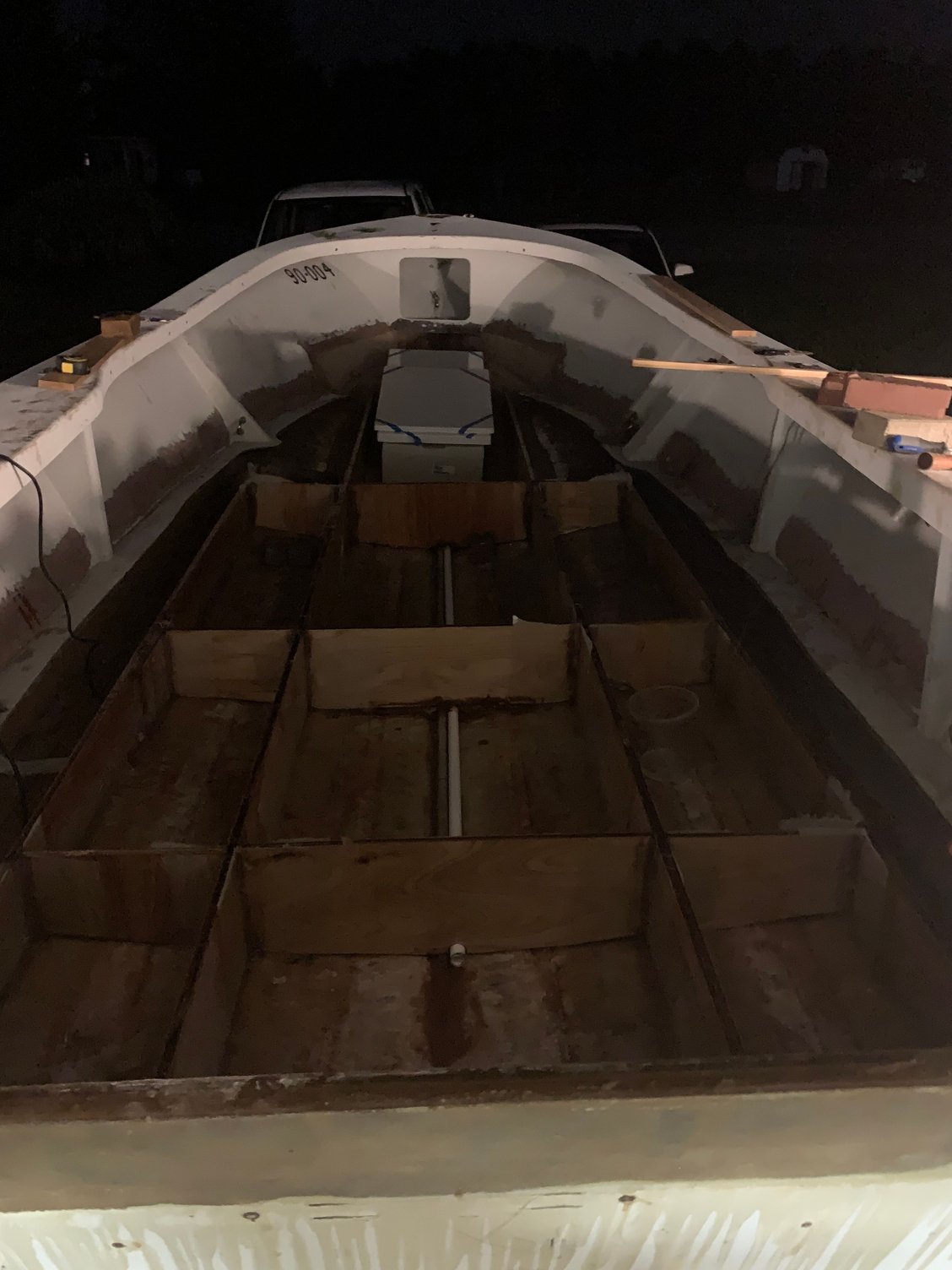

Got after it today, all the bulkheads cut, test fitted, tacked in, then glassed in. Feels good to check that off the list, went back and forth a bunch on console decision which had some of my bulkhead and hatch measurements changing. Ultimately made up my mind and away I went.






Likes:
Old 09-26-2019, 06:03 PM
  #117
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

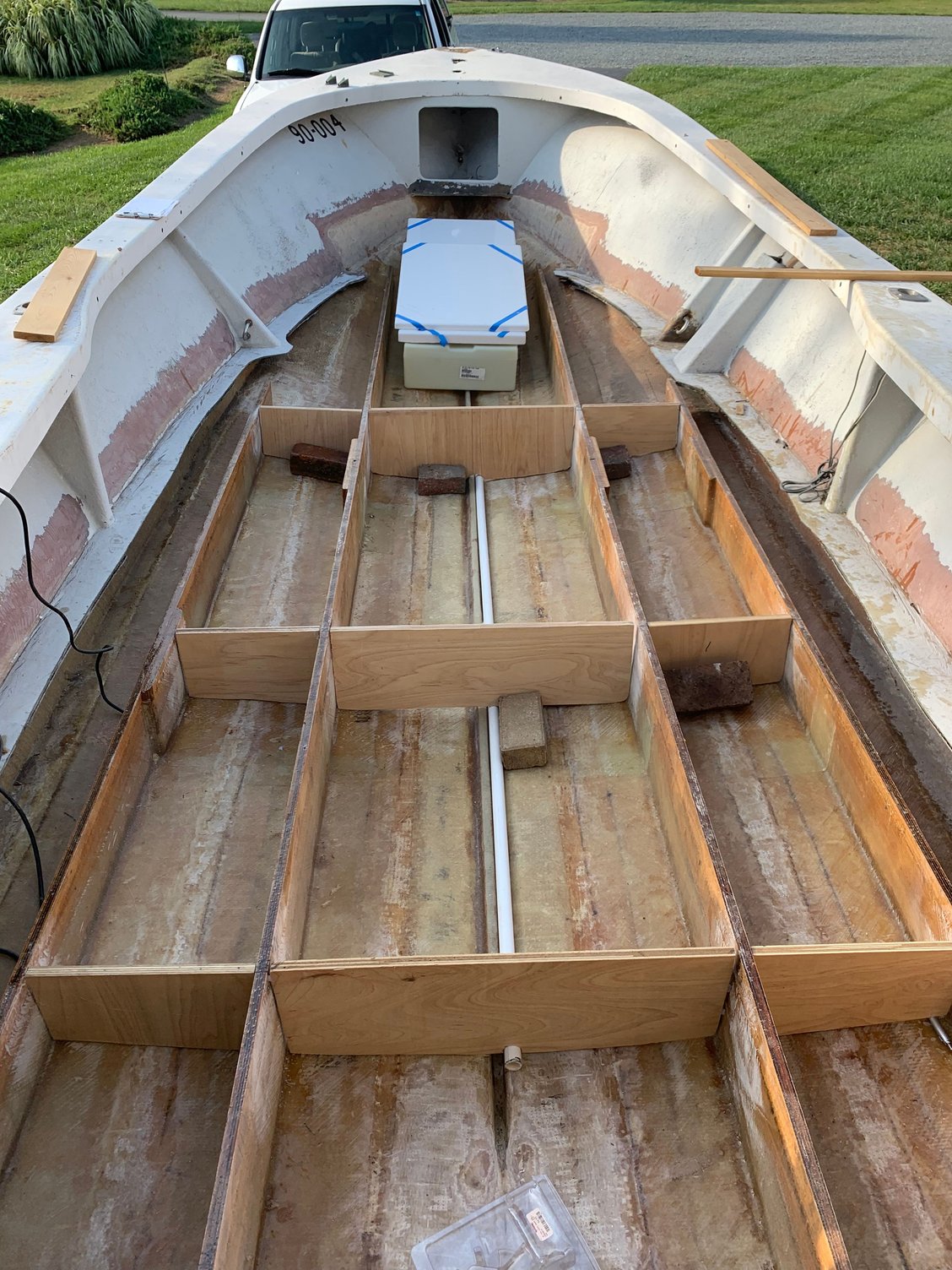

Today I finished up with the bulkheads, glassing/tabbing all of them to the hull. As you can see the bulkheads are laid out for the in deck storage. Bilge>dry storage>tank>forward fish box/storage.

Going to tidy up a few more things tomorrow then it’s either time to pull it off the trailer and flip it over to do the bottom, or pull the cap and start the rebuild there. Haven’t decided yet.







Last edited by slickcav; 09-26-2019 at 06:15 PM.
Old 09-30-2019, 06:19 AM
  #118
Admirals Club Admiral's Club Member

Join Date: Sep 2018
Location: portsmouth, va
Posts: 139
Received 57 Likes on 34 Posts
Default

just curious how are you going to run your rigging tubes?
Old 11-10-2019, 06:07 AM
  #119
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

Not much to update, had a bunch of work stuff going on last handful of weeks.

got out a few days ago, if y’all can recall original pics how brown and nasty and sun rotted the woven roven hull skin was and how much grinding I did to get down to clean glass. Well I went ahead and threw in another layer of 1708 on the entire hull skin.

going to measure and cut the “cleats” or strips that I am going to glue to the stringers tomorrow and finish my final forward bulkhead and then likely install the tank and get rigging tube installed.

to answer your question bayroamer, planning bulkheads on the outter starboard stringer will be notched, lay in a 3” pvc pipe that will angle across and up into the console.
Old 11-11-2019, 01:46 PM
  #120
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Delaware
Posts: 5,192
Received 156 Likes on 110 Posts
Default

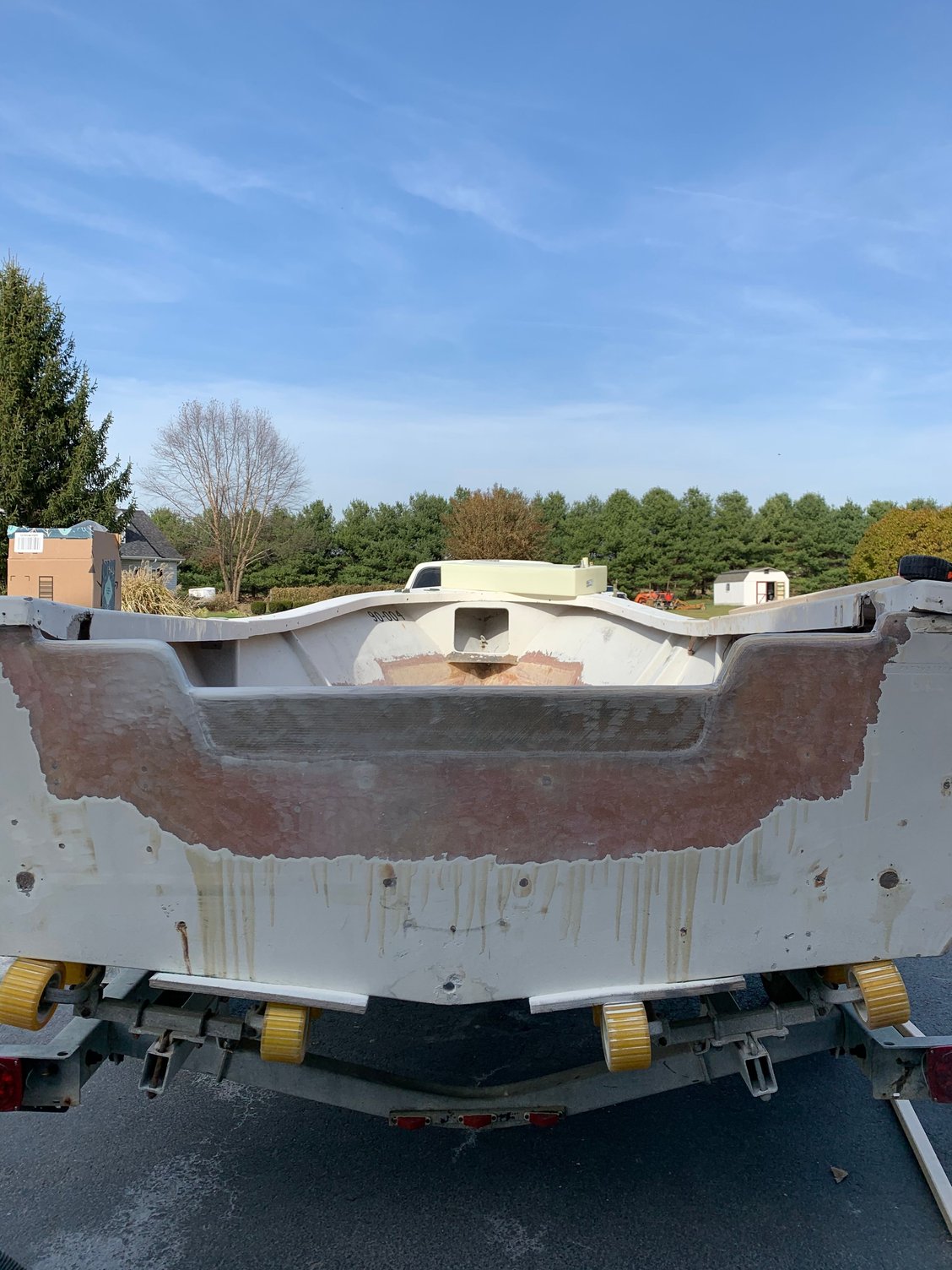

Prepped transom skin today, radiused the transom core so the 1708 could “make the bend”, then laid a sheet of 1708 over top.

previously I had left the aft end of the transom core a strong 90 degree bend with my glass when I installed the transom terminating just before the 90.

this would lead to a nice hairline crack in the future I am sure once the engine was hung, so I took her back and did it right.

only pic I had taken.
