Rewiring my boat- any pointers?

Reply

Old 07-21-2018, 07:53 PM
  #1
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default Rewiring my boat- any pointers?

I have a 2000 Pro-Line. I bought it used and the first time I had electrical problems it was very obvious that the previous owner wasnít into doing or having things done properly. Iím at the point now where fixing individual things just feels like a complete waste of my time. I just rewired the helm switches and now itís time to start the boat itself. Any suggestions? A big part of my plan is to shorten to the actual needed length of any and all hanging wires. That stuff drives me crazy. I plan to label everything and make proper use of terminal blocks and ground bars. I am using proper marine wire and adhesive heat shrink terminals also.

I was was going to write a separate post but Iím thinking of removing the installed wash down pump setup. Itís an 18 ft center console. Is a washdown REALLY needed? It seems like overkill and weíve never used it much anyway. Iím thinking removing the tube in the helm and installing another storage compartment would be a better use of the space. Opinions?
pluginaway is offline
Reply With Quote
Old 07-21-2018, 08:27 PM
  #2
Senior Member

Join Date: May 2018
Location: Deleware
Posts: 103
Default

Go with the Blue sea fuse panel and run (home runs) to everything you have. You will be glad when it’s all over especially if god forbids something goes wrong and it’s tied into something else. I redid a c hawk and 2 privateers that way.
DavenFla likes this.
Delduck is offline
Reply With Quote
Old 07-21-2018, 08:34 PM
  #3
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default Is a fuse panel necessary?

All of my switches have individual circuit breakers. Right now I think the only places that need a fuse are the bilge hot lead, depth finder, power-pole (should already have fuse but I canít remember at the moment), and the jack plate (should also be fused already). Can you expand on ďhome runĒ for me?
pluginaway is offline
Reply With Quote
Old 07-21-2018, 08:44 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Jan 2013
Location: Jupiter
Posts: 615
Default

Recently did this on my 25. check out bestboatwire.com for your supplies. Get a good crimper (i got one off that site) and use marine grade heat shrink butt splices. Also, figure out your runs and order about 30% more wire than you think you need.
pluginaway likes this.
Alexlikestacos is offline
Reply With Quote
Old 07-21-2018, 08:52 PM
  #5
Senior Member

Join Date: May 2018
Location: Deleware
Posts: 103
Default

Can’t agree more with Alex about the heat shrink and the splices. All home runs are is, each unit your running has its own set of wires going from the breaker or fuse directly to the unit, then the next item has its own wire going to its own fuse or breaker. Some people tie the hot wires together with other units then they bring the wire back to a positive terminal. When something shorts or more likely corrodes then everything it’s connected too doesn’t work
Delduck is offline
Reply With Quote
Old 07-21-2018, 09:00 PM
  #6
Senior Member

Join Date: Nov 2013
Posts: 222
Default

Best advice I have is use best boat wire . Com. Great products great service great prices.
Reefermadness is offline
Reply With Quote
Old 07-22-2018, 03:31 AM
  #7
Senior Member

Join Date: Oct 2015
Posts: 921
Default

First, sit down with a coffee, pencil and paper - and plan it out.

then have a beer or three and a few days away from it.

then more coffee and planning.

once you have the plan sorted, then, and only then, sort the shopping list. Wire, connectors, heat shrink, switches etc.

then, at the boat, execute the plan, do it one thing at a time, do it well, then move on.
crispy, buxa, RS3325 and 1 others like this.
mickt243 is offline
Reply With Quote
Old 07-22-2018, 06:00 AM
  #8
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default Got it

Originally Posted by Delduck View Post
Canít agree more with Alex about the heat shrink and the splices. All home runs are is, each unit your running has its own set of wires going from the breaker or fuse directly to the unit, then the next item has its own wire going to its own fuse or breaker. Some people tie the hot wires together with other units then they bring the wire back to a positive terminal. When something shorts or more likely corrodes then everything itís connected too doesnít work
Thanks for the clarification. That is exactly what I intend to do. I want it all done neatly and correctly so any future problems are simple to sort ou and rectify.
pluginaway is offline
Reply With Quote
Old 07-22-2018, 07:50 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Sep 2016
Location: Summerdale Alabama
Posts: 92
Default

Great thread Pluginaway do you mind if people post there wiring pics on this thread. This is a very timely thread for me. Hope your wiring job works out.
pluginaway likes this.
sfmill is offline
Reply With Quote
Old 07-22-2018, 08:28 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Oct 2010
Location: Chesapeake, VA
Posts: 520
Default

Same here man, I am about to tackle my wiring job on my walkaround if i can get a break in the rain.

Just as a "this is what i did"... I drew out a wiring diagram for each accessory, figured out where all my buss bars, fuse blocks and switches are going to be installed. Measured my rough distances and like Alex said added 30%. Sized each wire independently according to length and amp draw.

The game plan is to wire each accessory one at a time. I bought some 3M sticky pyramids that i can run a zip tie through for clean wiring, they are cheap on amazon. Everything will have its own home runs and use nice heat shrink connections.

I have looked at a bunch of the build threads on here for ideas on routing. Try to think a step ahead in terms of how you want to route and bundle the wires.

Good luck with it man, take your time and post some pics when done!
pluginaway likes this.
VBTravisD is offline
Reply With Quote
Old 07-22-2018, 08:41 AM
  #11
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default Pics are cool

Pics would be great and welcomed here. I am planning to post some myself if I can figure it out. I already had a failure trying to upload. I took a panoramic photo of the back of the helm switches before I tore it apart. It doesnít want to load. Maybe itís too big.
pluginaway is offline
Reply With Quote
Old 07-22-2018, 08:46 AM
  #12
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default I split the pano view

I keep getting a fail message saying a security token is missing. I reported that, but does anyone have any ideas?
pluginaway is offline
Reply With Quote
Old 07-22-2018, 09:12 AM
  #13
Senior Member

Join Date: Jul 2011
Location: South FL
Posts: 1,337
Default

I rewired my flats boat two years ago and so far so good, I haven't had any electrical issues since. I bought all my wiring and connectors from genuinedealz.com. Definitely don't go through West Marine...I love that store but they'll charge you 3x as much for anything wiring related. I stripped the boat down to bare fiberglass and re-rigged it from there. New wires, switches, steering tubes, shift cables, pumps, hoses, etc.

I used heat shrink connectors for everything. I purchased a heat gun, a set of ratchet crimpers, and some wire strippers which all made the job very quick and efficient.

Crimpers:
https://www.amazon.com/Titan-Tools-11477-Ratcheting-Terminal/dp/B0069TRKJ0/ref=sr_1_fkmr2_1?ie=UTF8&qid=1532270904&sr=8-1-fkmr2&keywords=vice+ratchet+crimper https://www.amazon.com/Titan-Tools-11477-Ratcheting-Terminal/dp/B0069TRKJ0/ref=sr_1_fkmr2_1?ie=UTF8&qid=1532270904&sr=8-1-fkmr2&keywords=vice+ratchet+crimper
Wire stripper:
https://www.amazon.com/IRWIN-VISE-GRIP-2078300-Self-Adjusting-Stripper/dp/B000OQ21CA/ref=sr_1_3?s=power-hand-tools&ie=UTF8&qid=1532270836&sr=1-3&keywords=wire+stripping+tool https://www.amazon.com/IRWIN-VISE-GRIP-2078300-Self-Adjusting-Stripper/dp/B000OQ21CA/ref=sr_1_3?s=power-hand-tools&ie=UTF8&qid=1532270836&sr=1-3&keywords=wire+stripping+tool

I also purchased zip ties in bulk....think I bought a bag of 500 zip ties or something. I zip tied everything and it helped make it all very neat and organized. Along with that I also bought zip tie screw mounts.

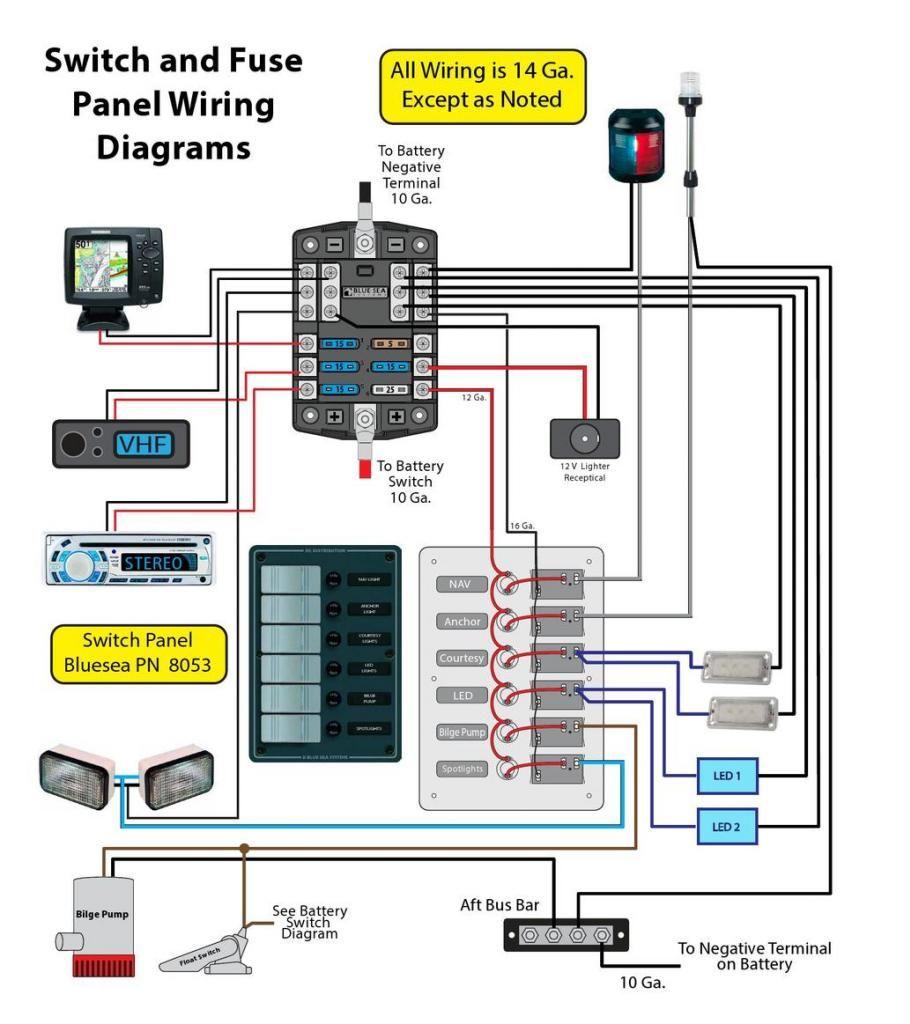

As for the wiring itself....I followed these two wiring diagrams and they were an incredible help. I used Blue Sea's Add a battery kit which I highly recommend.




It's not a bad job at all and if you do it right you'll be incredibly thankful. Its really nice to just do everything at once instead of constantly chasing down new electrical issues.
pluginaway and Matty05 like this.
rhysleo is offline
Reply With Quote
Old 07-22-2018, 09:47 AM
  #14
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default Rain...yay...and boo...

The rain...I have the same issue. I really wish I had a shop or barn I could put the boat in so I could work out of the sun and rain. Iím going to rig up an EZ Up tent but itís not the same, and doesnít cover the whole boat.

I bought new switches from Newwiremarine.com. These guys are EXCELLENT and very friendly. They have links to wiring diagrams on their site too. This is such a learning experience.

Last edited by pluginaway; 07-22-2018 at 09:49 AM. Reason: Additions
pluginaway is offline
Reply With Quote
Old 07-22-2018, 09:54 AM
  #15
Admirals Club Admiral's Club Member

Join Date: Mar 2005
Location: Fairfield, CT
Posts: 230
Default

I just redid all of the wiring on my boat this year. It does takes longer than you think and like everyone else said planning is key.

A couple tips I have are for any butt connectors that may possibly be exposed to water, crimp them and then put dielectric grease in them and then shrink them, make sure to go with duplex wire, change out any lights that arenít already led to led while youíre at it and any old pumps.
poreilly17 is offline
Reply With Quote
Old 07-22-2018, 05:25 PM
  #16
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 26
Default What to cover the switch panel with?

The switch panel itself needs an upgrade too. The original panel is aluminum. I canít tell if it was painted or powder-coated with a clear coat overlay or what. I removed a clear film. Iím guessing the metal was screenprinted. Anyway, how should I bring it back to a new look? Powder-coating (I donít even know if anyone does it locally), automotive paint, the Krylon touch, or vinyl from a sign shop?
pluginaway is offline
Reply With Quote
Old 07-22-2018, 05:31 PM
  #17
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Location: Right Coast of Florida/E.Tennessee
Posts: 6,306
Default

I don't care about abyc wire color, so I use single color and tag everything at termination points. I prefer yellow wire with black numbers.
Riptied likes this.
DavenFla is offline
Reply With Quote
Old 07-23-2018, 08:47 AM
  #18
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: NE Ohio
Posts: 161
Default

Originally Posted by pluginaway View Post
All of my switches have individual circuit breakers. Right now I think the only places that need a fuse are the bilge hot lead, depth finder, power-pole (should already have fuse but I canít remember at the moment), and the jack plate (should also be fused already). Can you expand on ďhome runĒ for me?
Your switches may each have an internal breaker but the wire that feeds them must be protected also .
556guy is offline
Reply With Quote
Old 07-23-2018, 10:07 AM
  #19
Admirals Club Admiral's Club Member

Join Date: Feb 2003
Location: washington d.c.
Posts: 844
Default

bestboatwire cheaper than genuinedealz??
sclancy is offline
Reply With Quote
Old 07-23-2018, 10:19 AM
  #20
Admirals Club Admiral's Club Member

Join Date: Mar 2004
Posts: 1,615
Default

newwire marine is good too, and ship quickly.

just did 90% of my 26cc. Not sure if everyone agrees or not, but here is what I did:
  1. ran a hot wire from the batteries to a selector switch, that way while on the trailer, i can know 100% that there are no phantom loads or things that were forgot to be turned off that will drain my batteries.
  2. selector switch feeds 2 blue seas atc fuse holders
  3. I have a separate fuse for every single thing electrical on the boat (well, things like multiple courtesy lights are on one fuse)
  4. wire leaves the fuse block and goes either to the switch, or directly to the equipment (trim tabs, stereo amp, float switch, etc don't have switches)
  5. wire from switch to each piece of equipment.
  6. Also, everything got its on home run ground wire.
I removed the circuit breakers and carry a bunch of spare fuses. Not sure if the best way, but every circuit is fuse protected as close tot eh batteries as possible.

if you redo the battery cables, NortherTools sells a hydraulic crimper for about $40-50 to use on the terminal lugs. Definitely use tinned marine wire too. When going back to make repairs later (it is a boat), you'll be glad the wire isn't as corroded.
iwhitevt is offline
