1978 Proline 20 Rebuild

Old 07-20-2018, 07:10 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default 1978 Proline 20 Rebuild

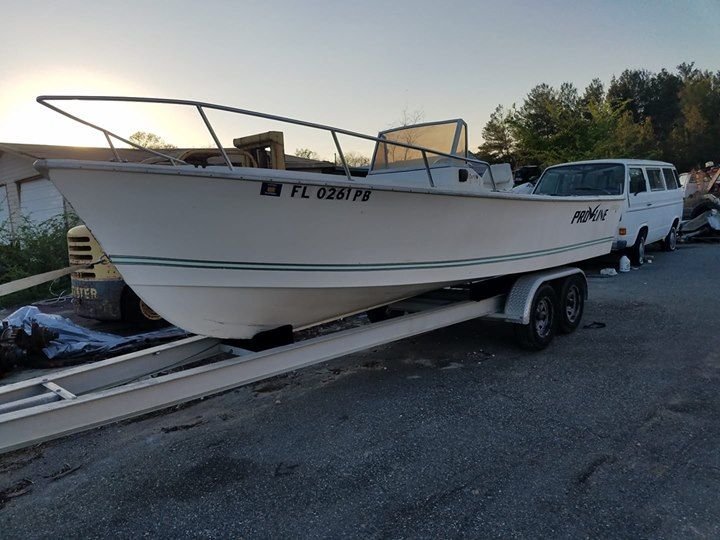

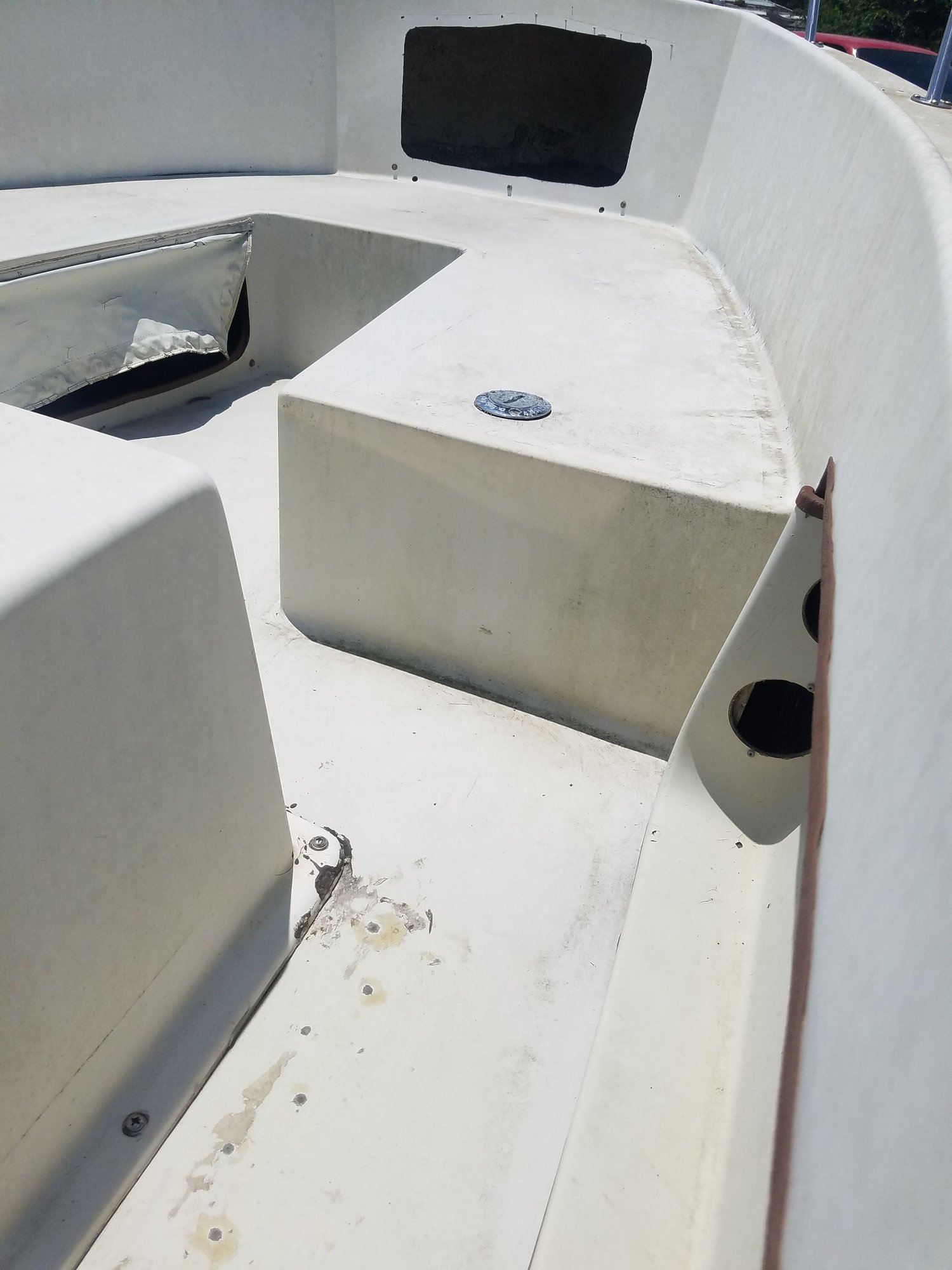

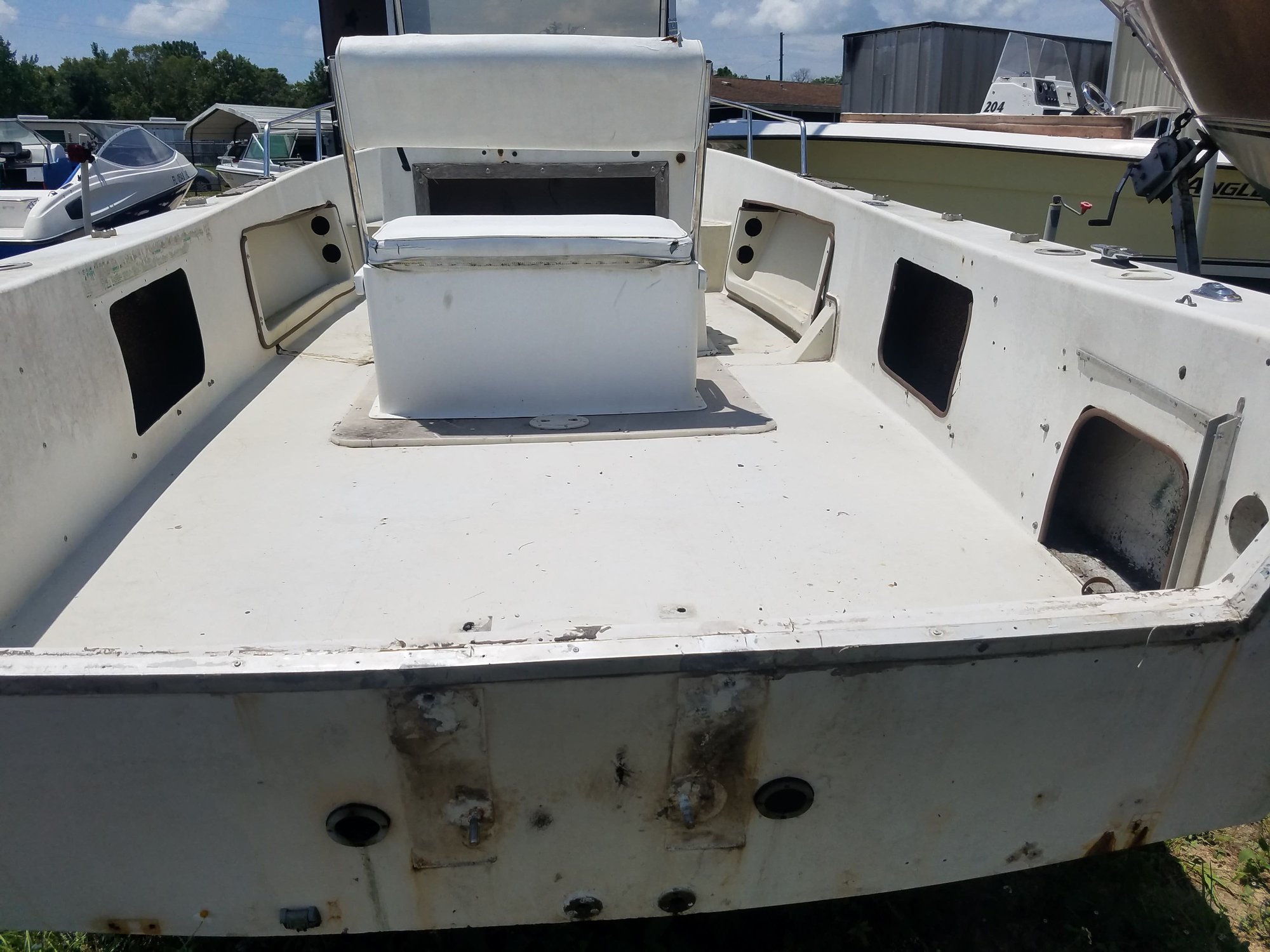

So i purchased a 20 foot Proline and pick it up on Sunday. I have a little knowledge on fiberglass but just enough to get myself in trouble lol. I will be looking for advice along the way. Here is a couple pics I have so far.

A few ideas so far:
- Enclose Transom
- Engine bracket
- forward casting deck/storage
- trim tabs

Any advice on tools and methods for strip down? thanks in advance




Captadam is offline
Old 07-20-2018, 07:19 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Jun 2013
Location: Miami, FL
Posts: 1,945
Default

I'll be following.

Get yourself a Grinder with cutting disks and the sanding disks. That'll be your new favorite tool for tear down
305seahunter is offline
Old 07-20-2018, 07:22 AM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

any prefered brand?
Captadam is offline
Old 07-20-2018, 07:27 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Jun 2013
Location: Miami, FL
Posts: 1,945
Default

I use the Harbor Freight Hercules model. I don't like spending a lot of money on tools that I use for fiberglass. The dust kills them. Surprisingly I can't break that grinder, I never clean out the dust.
305seahunter is offline
Old 07-20-2018, 08:04 AM
  #5
Senior Member

Join Date: Mar 2010
Location: Reading, PA
Posts: 330
Default

Agree with the Harbor Freight option. Did a good job on mine. Also get:
An oscillating saw, nice clean cuts with less dust thrown around
A good sized shop vac with filter bags.
Mask with filters, not just some cheap dust mask - something like this guy
Tons of disposable gloves
A painters suit when the grinding gets heavy
TrybalRage is offline
Old 07-20-2018, 08:18 AM
  #6
Senior Member

Join Date: Aug 2016
Location: West Palm Beach,FL.
Posts: 866
Default

I'll be following I like the older proline hulls. A flexible 36 grit disc will make short work of just about anything. Harbor freight grinder lasted my whole rebuild I also blew it out after each day. Definitely get a good respirator and some latex gloves. I saved all my milk jugs and simple green containers for mixing resin in (I'm cheap). Good luck keep the pics coming.
BUZZMAN4177 likes this.
FL.flatback 222 is offline
Old 07-23-2018, 03:37 AM
  #7
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default


So after one hell of a trip to get the boat, she finally back. Any thoughts on completing the transom first then tackling the stringers. Want to make sure the hull doesnt twist on me during the project. I thought about cutting the floor back a few feet to get to the transom first. then take the rest out. Also would 1 inch coosa 26 be adequate for the transom?
Captadam is offline
Old 07-23-2018, 04:34 AM
  #8
Admirals Club Admiral's Club Member

Join Date: May 2015
Posts: 822
Default

Originally Posted by Captadam View Post
Want to make sure the hull doesnt twist on me during the project. I thought about cutting the floor back a few feet to get to the transom first. then take the rest out. Also would 1 inch coosa 26 be adequate for the transom?
You definitely want to make sure that the hull is well supported during rebuild. It will be easier if you make sure it’s level side to side too. It’s probably best to tackle one project at a time. For example transom first, then stringers. The hull will loose a lot of structure if you gut stringers, transom and floor all at once.

Coosa reccomrnds that you match the laminate thickness of the original transom. So, if your original transom core is 1 1/2” go with the same thickness of Coosa. My Aquasport had 1 1/4” core and I built it with 2 layesrs of 3/4” carbon core (same as Coosa). It’s also a good idea to check with your bracket manufacturer. Armstrong reccomrnds a minimum of 2” total transom thickness for up to 200 HP outboards.

There are many great examples of rebuilds on THT, but you may also want to check out some of the classic sites, like Classic Aquasport, Classic Mako or Classic Seacraft. They tend to have a lot of rebuild threads all in one place. It makes it easy to get ideas.
mshugg is offline
Old 07-23-2018, 07:18 PM
  #9
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

Thanks for the advice. I am looking at getting a trailer for the boat now while I work on it. Going to tackle the transom first. Plan on cutting back 2 feet of flooring away from the transom and start there.
Captadam is offline
Old 07-27-2018, 05:38 AM
  #10
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

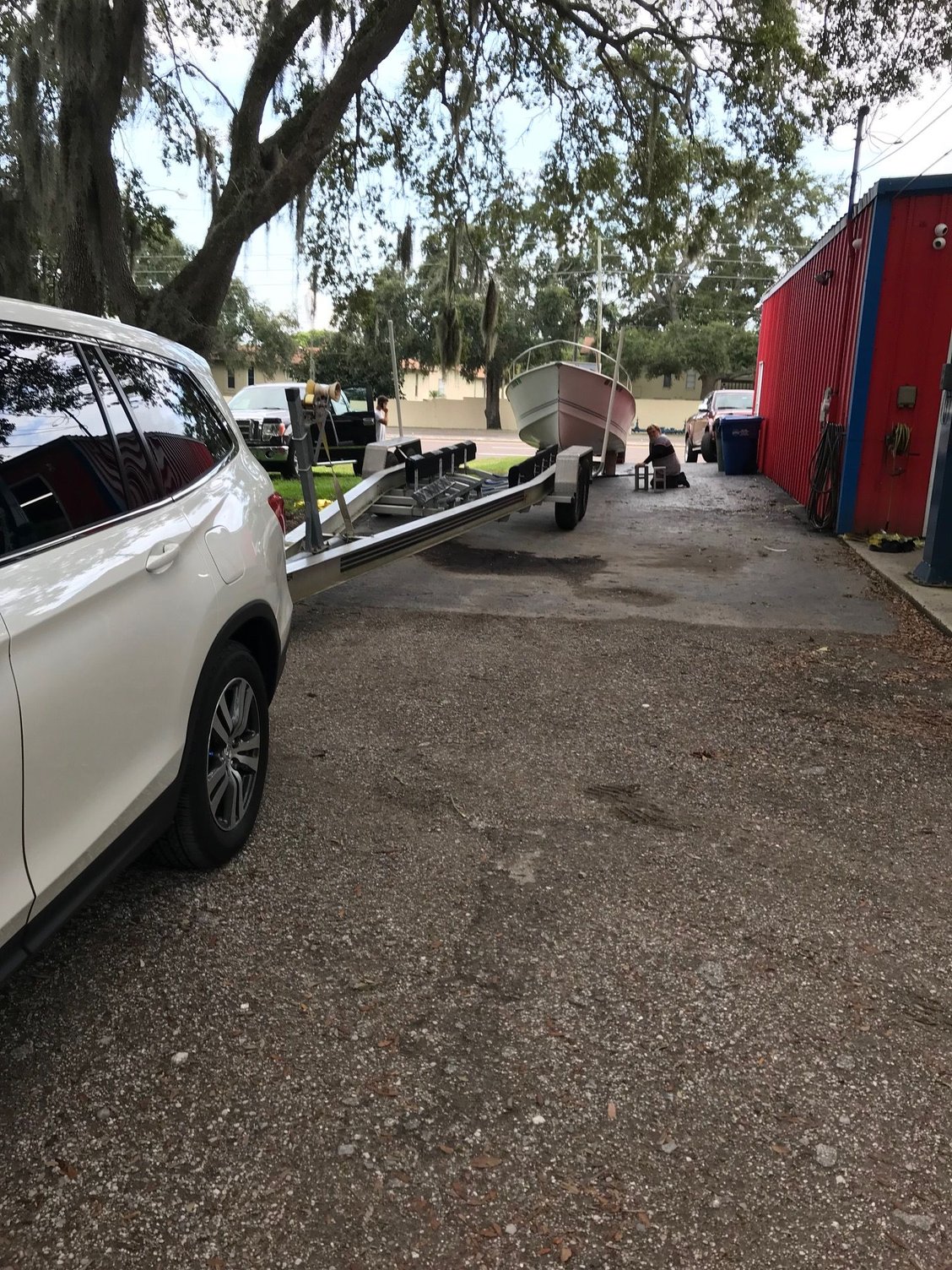

Got the boat home and got it on blocks yesterday. Nice surprise when we pulled an inspection cap was a new looking fuel tank, The also installed a new fuel gauge on the boat so I may have gotten lucky with that one. I will pull the tank and send it for pressure testing then coal tar epoxy.
Captadam is offline
Old 07-27-2018, 06:00 AM
  #11
Senior Member

Join Date: Aug 2016
Location: West Palm Beach,FL.
Posts: 866
Default

That's a good break. Tanks can be expensive not to mention PITA to replace.
FL.flatback 222 is offline
Old 07-27-2018, 06:15 AM
  #12
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

I was planning on replacing anyway and putting new stringers and transom. I dont think they even secured the tank under the deck so we will hoist it out this weekend
Captadam is offline
Old 07-27-2018, 11:27 AM
  #13
Admirals Club Admiral's Club Member

Join Date: Jun 2013
Location: Miami, FL
Posts: 1,945
Default

Nice. Good idea by pulling out the tank and getting it coated. I love boats that have hatches above the tank so it is easy to replace
305seahunter is offline
Old 07-27-2018, 01:06 PM
  #14
Senior Member
THT sponsor

Join Date: Aug 2011
Location: Beaufort NC
Posts: 5,395
Default

Subscribed!
bills106 is offline
Old 07-27-2018, 01:09 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Nov 2011
Location: South East Louisiana
Posts: 10,482
Default

suscribed!
midcap is offline
Old 07-27-2018, 04:11 PM
  #16
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

Wanted to get a consensus. Bow rail or no bow rail. Taking it off tomorrow
Captadam is offline
Old 07-27-2018, 06:54 PM
  #17
Admirals Club Admiral's Club Member

Join Date: Aug 2016
Posts: 714
Default

No bow rail...
my vote
DavenFla likes this.
boatymcboatface1 is offline
Old 07-28-2018, 01:25 PM
  #18
Senior Member

Join Date: Aug 2016
Location: West Palm Beach,FL.
Posts: 866
Default

I vote no on bow rail. Keeps the lines cleaner.
FL.flatback 222 is offline
Old 07-30-2018, 12:37 PM
  #19
Admirals Club Admiral's Club Member

Join Date: Feb 2016
Location: St. Petersburg, FL
Posts: 612
Default

Didn't you have a Mako you started to restore and then sold it? I seem to remember this parking space....
thejeepguy87 is offline
Old 07-30-2018, 12:52 PM
  #20
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

yes i had a 1977 Mako 25 I was going to restore but found the hull to be compromised in many places so I got rid of it.
Captadam is offline
