1978 Proline 20 Rebuild

Old 06-24-2019, 09:07 AM
  #141
Senior Member

Join Date: Aug 2016
Location: West Palm Beach,FL.
Posts: 866
Default

How's she coming along?
FL.flatback 222 is offline
Old 06-24-2019, 07:27 PM
  #142
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

Slow progress, this heat has made it tough to work on. I may fit in some more work this week.
Captadam is offline
Old 06-24-2019, 08:07 PM
  #143
Admirals Club Admiral's Club Member

Join Date: Jul 2014
Location: Stapleton, AL
Posts: 2,925
Default

Originally Posted by Captadam View Post
Slow progress, this heat has made it tough to work on. I may fit in some more work this week.
I heae ya. I haven't touched my boat in almost 3 weeks. Heat has been brutal and it's not going to get done before snapper seasons over so no rushing for me....
mdees88 is offline
Old 06-27-2019, 05:47 AM
  #144
Junior Member

Join Date: Jun 2019
Posts: 1
Default Great thread!

Thanks for this. I am looki g at a 1989 Proline 17' sportsman. I am sure it will require the same attention.
Pnkrck76 is offline
Old 10-02-2019, 02:37 PM
  #145
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

So I made the decision to go with marine ply for my stringer system. I know, i know.... 1/4 the price of Coosa and I feel that my style hull could actually benefit from a little extra weight. Getting them put together as we speak. Using AB Marine 3/4 epoxied together to make 1.5 inch stringers. Of course they will be wrapped in 1700 and tabbed into the floor.



Captadam is offline
Old 10-02-2019, 03:17 PM
  #146
Senior Member

Join Date: Aug 2016
Location: West Palm Beach,FL.
Posts: 866
Default

I was just thinking about this build today. Glad to see the update.
FL.flatback 222 is offline
Old 10-02-2019, 04:24 PM
  #147
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Posts: 956
Default

Nothing wrong with wood if done correctly and care taken to seal mounting points. 3/4” stringers would be enough.
2TDave is offline
Old 10-02-2019, 06:47 PM
  #148
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

im doing 1 1/2 for the two main stringers then 3/4 for the rest. Just so the tank will have the max amount of support
Captadam is offline
Old 10-19-2019, 07:36 AM
  #149
Member

Join Date: Jul 2019
Posts: 51
Default

Just read through, build looks great. I really like the console/leaning post setup going to look great. My console setup choice is what I go to bed thinking about every night lol. Lot of decisions to make in these builds. Good luck and thanks for the info over on my thread. Subd

​​​​​​-Jeff
SEABIRD254 is offline
Old 10-23-2019, 07:55 PM
  #150
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default


Got one stringer tabbed in. Hopefully the weather will cooperate so I can knock out another by Sunday
Captadam is offline
Old 10-29-2019, 11:47 AM
  #151
Junior Member

Join Date: Oct 2019
Posts: 13
Default

Great work so far. Weather is gonna break for the better....i mean it has to, right? Lol...I've got a boat to paint and this 90 degrees and uber high humidity is holding up progress. I just north of you, up in Spring Hill so I feel your pain.
eman6501 is offline
Old 11-03-2019, 05:49 AM
  #152
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

Finally some great weather. Gives me motivation when your not dying of heat exhaustion after 20 minute of work. 2nd main stringer in.


mdees88, 2TDave and eman6501 like this.
Captadam is offline
Old 11-04-2019, 06:41 PM
  #153
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

Fuel tank is on order from Monopoli in Tarpon Springs. Going with 50 gallons.
Captadam is offline
Old 11-05-2019, 06:58 AM
  #154
Senior Member

Join Date: Mar 2018
Location: Saint Petersburg, Florida
Posts: 619
Default

I agree! This weather is much better for wearing a tvek suit and not dying. (well it was for a few days at least. Today is hot again...)

I have not been following this thread as close as I was, We have been totally buried at work and my evenings have been very busy. But I have a few question. I see you staggered the stringers, Why did you not butt them? Were they originally staggered? I would guess that staggered the way you did it may be a stronger bond, and more surface area for flooring...? And you are going to install a poly tank? I have considered this, but worry about them cracking. I am guessing it is not as big a concern as I thought it was? Will you still foam it in? And what are you going to use for flooring?(Also the gator board?)

Thanks! You are doing a lot of hard work and I for one appreciate it.
FL Bill is offline
Old 11-05-2019, 08:45 AM
  #155
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

FL Bill thanks for the comments. I staggered the stringers for a stronger bond and more room between the stringers for a fuel tank. I am getting an aluminum tank custom built as we speak. For the floor I am using nida core 1 inch with 3 layers of 1700 on each side. The 2 center stringers are 1.5 inch and the rest will be 3/4. Templating the other stringers this week.
FL Bill likes this.
Captadam is offline
Old 11-08-2019, 08:53 AM
  #156
Admirals Club Admiral's Club Member

Join Date: Feb 2016
Location: St. Petersburg, FL
Posts: 612
Default

Originally Posted by FL Bill View Post
I agree! This weather is much better for wearing a tvek suit and not dying. (well it was for a few days at least. Today is hot again...)

I have not been following this thread as close as I was, We have been totally buried at work and my evenings have been very busy. But I have a few question. I see you staggered the stringers, Why did you not butt them? Were they originally staggered? I would guess that staggered the way you did it may be a stronger bond, and more surface area for flooring...? And you are going to install a poly tank? I have considered this, but worry about them cracking. I am guessing it is not as big a concern as I thought it was? Will you still foam it in? And what are you going to use for flooring?(Also the gator board?)

Thanks! You are doing a lot of hard work and I for one appreciate it.
BIll, you do not foam in a poly tank as it has to have room to swell. They do a lot more moving around than an aluminum tank does in regards to swelling. They still have mounting brackets like an aluminum tank but they will bow. I put one in my old 21 Mako and was amazed how much room it needed around it. They will crack if they do not have the room to expand.
thejeepguy87 is offline
Old 11-09-2019, 06:39 AM
  #157
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

Got the two outside stringers glassed. Going to trim and tab them in this week. Hopefully fuel tank will arrive next week.


Captadam is offline
Old Yesterday, 08:32 PM
  #158
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2004
Location: Largo/Belleair
Posts: 903
Default

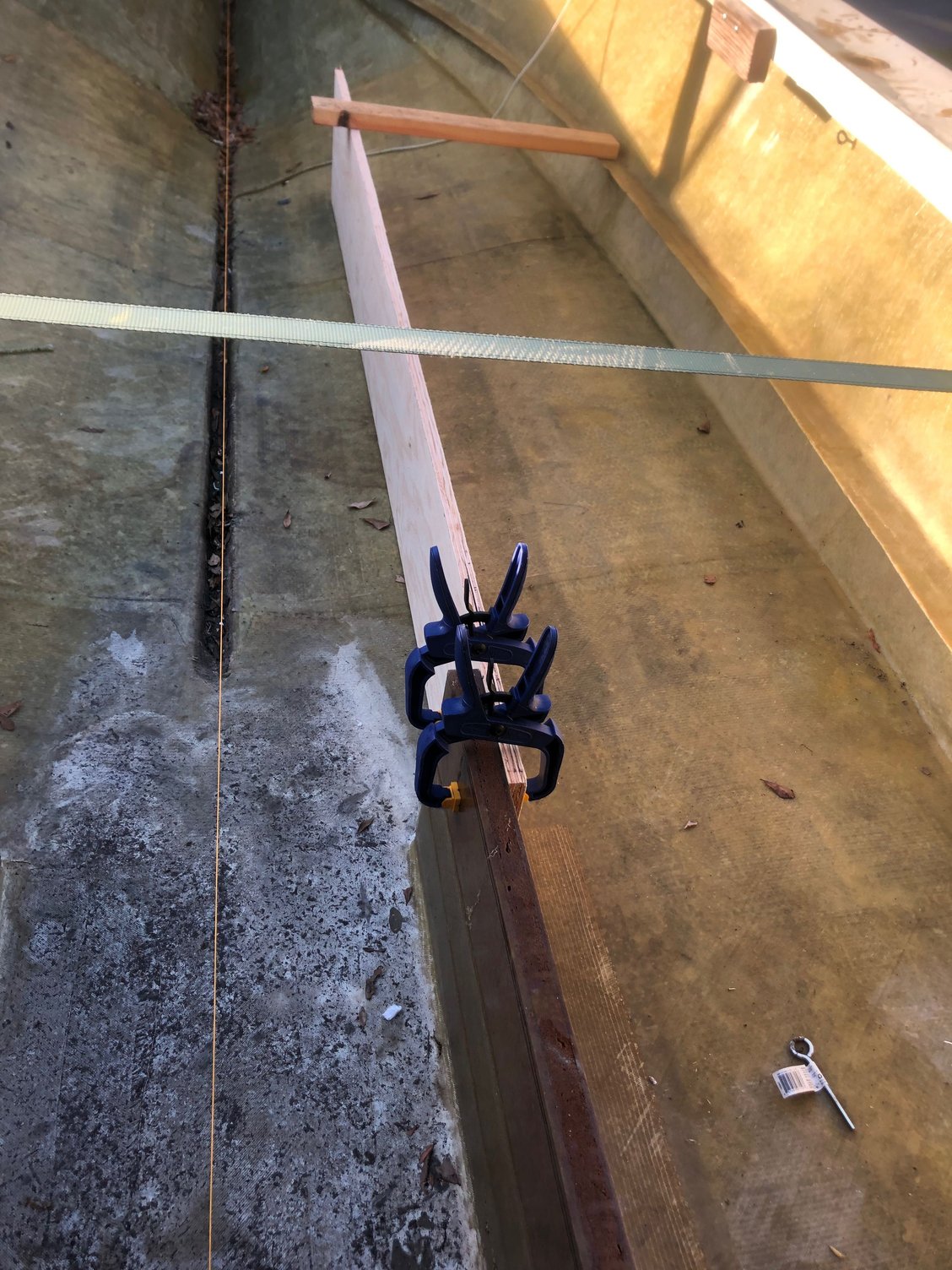

More stringer progress
Captadam is offline
