Water pump/other maintenance?

Reply

Old 05-16-2018, 05:52 PM
  #1
Junior Member
Thread Starter

Join Date: Nov 2016
Posts: 25
Question Water pump/other maintenance?

Hoping for insight from people with more experience than me.

This season my telltale was weak. Motor is a '99 2 stroke 40hp Mercury (3 cyl.). This is my second year owning the boat, so I'm not sure how long since last water pump maintenance. I decided to replace the impeller, should have ordered the complete water pump kit - the gaskets are all shot and everything just needs to be cleaned up in general. I'm curious if there are any other parts in the lower unit THT brain collective would replace (and order while I'm getting the gaskets) while I have the lower unit off? I've attached some pictures for reference on how everything is looking. I changed the LU oil earlier this year and it looked good/not milky.

Should I replace:
The boot in the first picture?
Orange rubber gasket in second and third pictures?
Seal around the driveshaft at the top of the lower unit?

Looks like I'm not taking the boat out this weekend... Appreciate any advice!

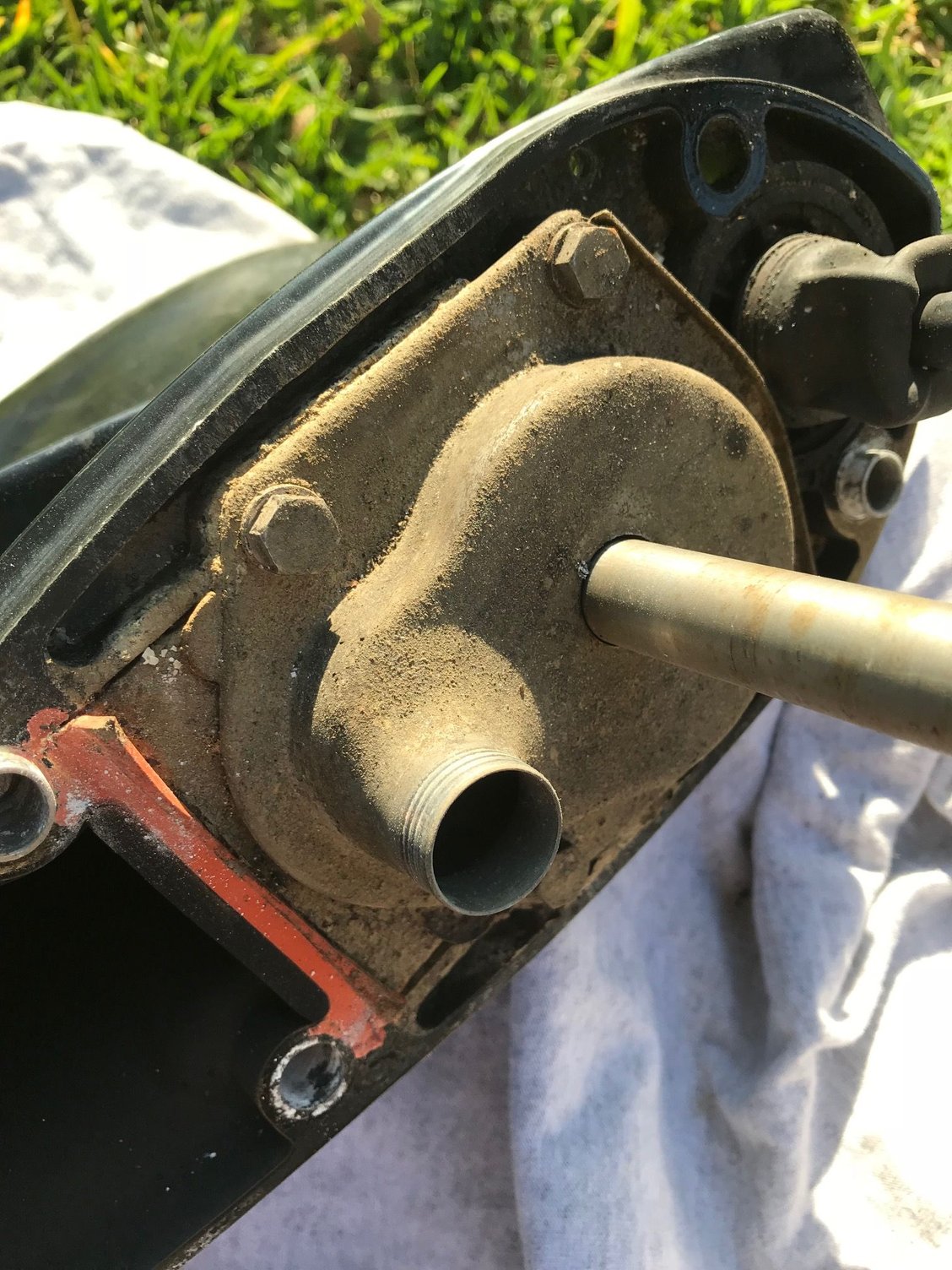

Does this boot need replacing?

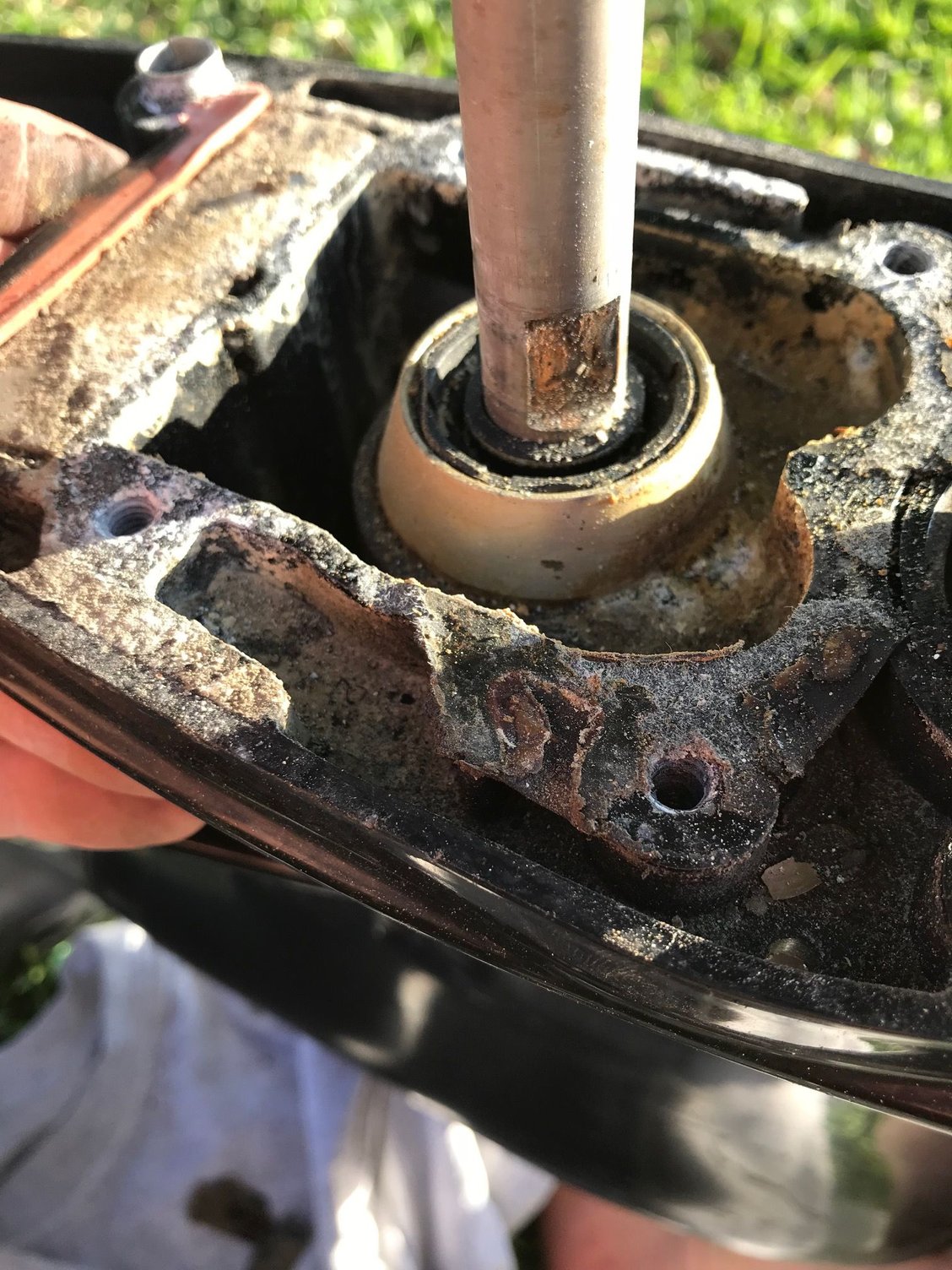

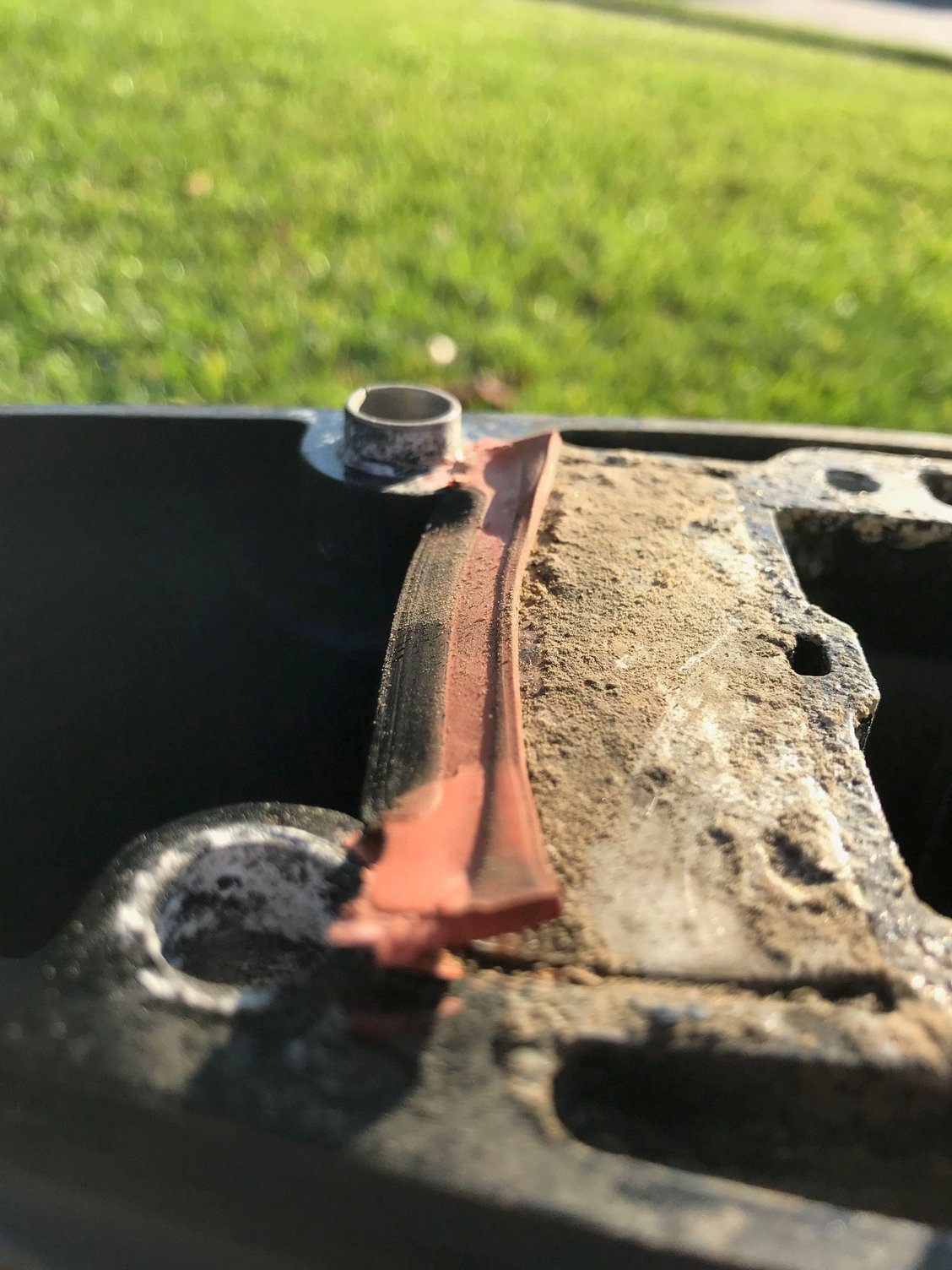

The orange rubber gasket thing on the left wasn't on the parts diagram I was looking at. Any comments on that piece?

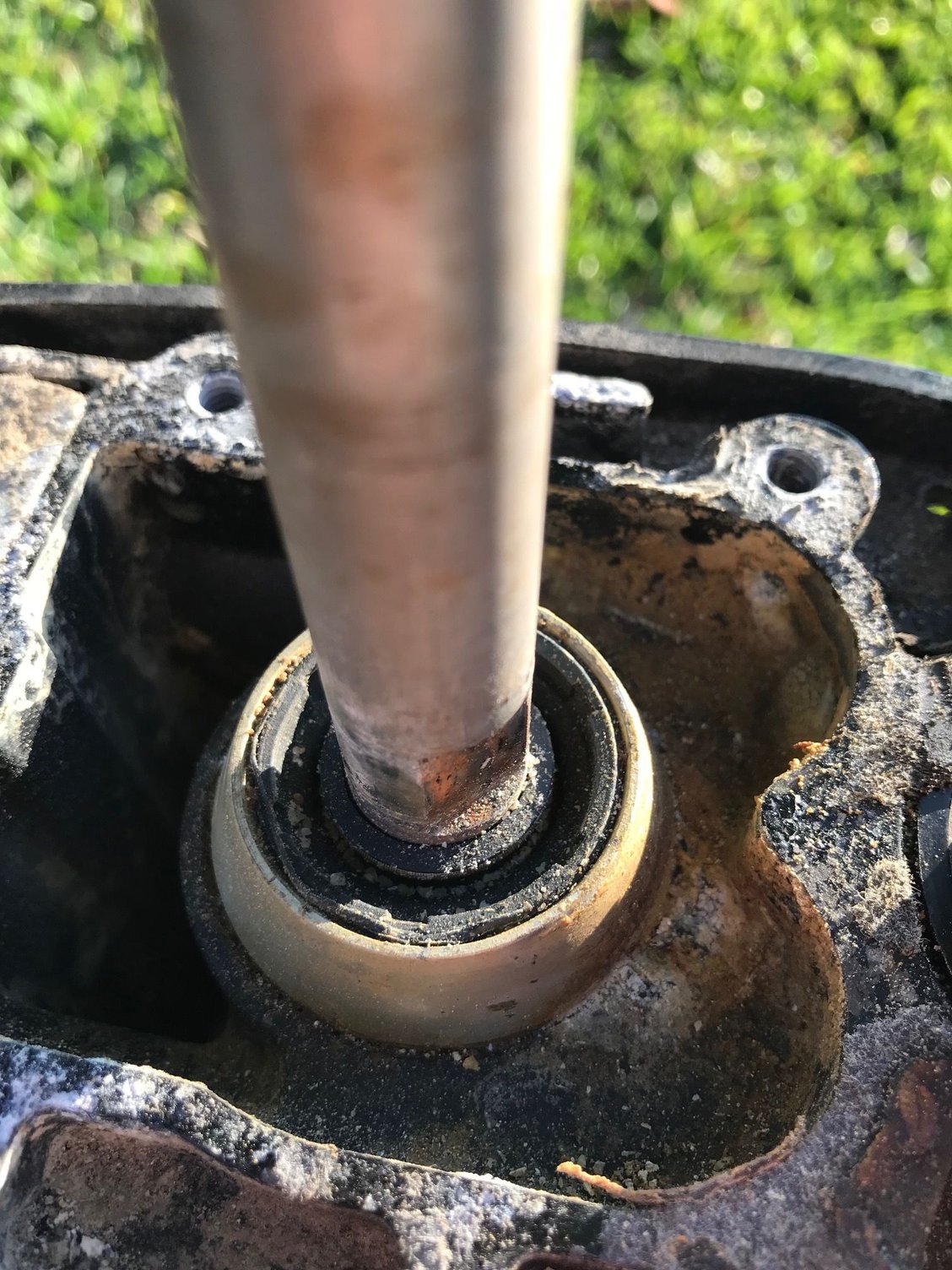

Seal looks a little worn out,

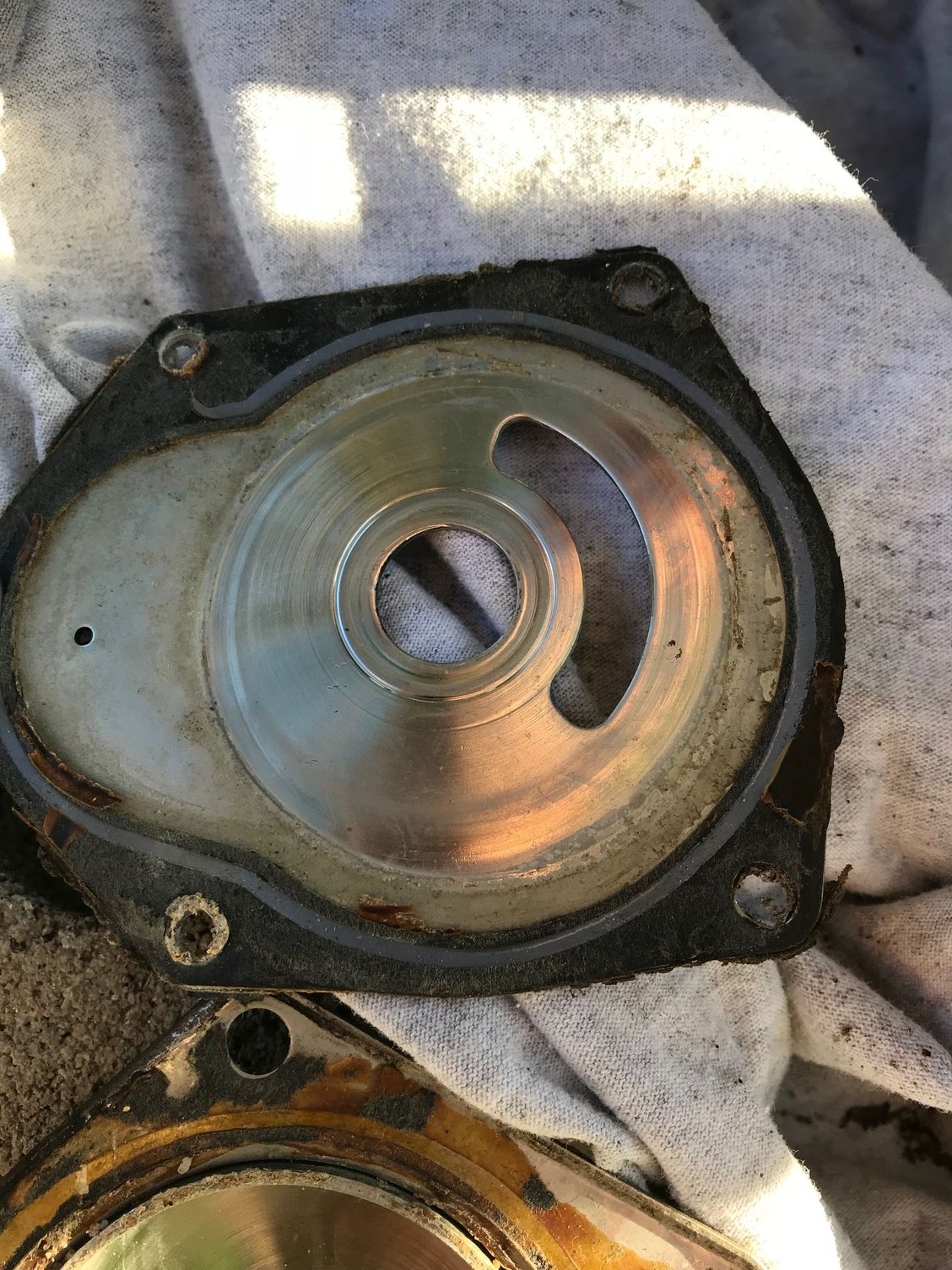

Disgusting looking gaskets. I think the housing and base plate will be fine once I clean them up.
duffish is offline
Reply With Quote
Old 05-16-2018, 06:10 PM
  #2
Senior MemberCaptains Club Member

Join Date: Apr 2002
Location: Virginia Beach, Va
Posts: 5,117
Default

Yes to all. It's cheap insurance and peace of mind.



Last edited by Mud Runner; 05-16-2018 at 06:18 PM.
Mud Runner is offline
Reply With Quote
Old 05-16-2018, 06:12 PM
  #3
Senior Member

Join Date: Sep 2012
Location: Orlando, FL
Posts: 1,289
Default

Yes, replace all sift parts including the pump housing. Cheap preventative maintenance.
lyman24 is offline
Reply With Quote
Old 05-16-2018, 06:14 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Feb 2013
Posts: 675
Default

The Orange gasket won't be on any parts diagrams . It's just rtv. I use black, and a heavy bead.
mcsd63 is offline
Reply With Quote
Old 05-16-2018, 07:31 PM
  #5
Junior Member
Thread Starter

Join Date: Nov 2016
Posts: 25
Default

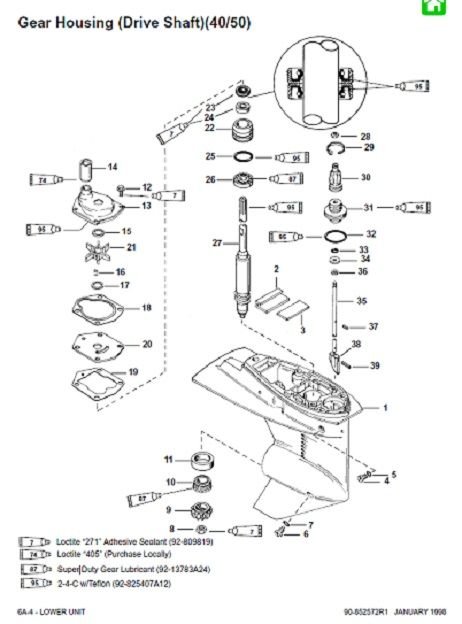

Thanks y'all, I'll put my order in tonight. Looking closer at the diagram I think that orange seal was item 2, website has it listed as seal/plate kit. Since I'm placing an order I'll get it instead of using the rtv, mcsd63!

Is it normal for the inside of the lower unit to be that dirty or does this just look neglected?
duffish is offline
Reply With Quote
Old 05-16-2018, 08:17 PM
  #6
Senior MemberCaptains Club Member

Join Date: Apr 2002
Location: Virginia Beach, Va
Posts: 5,117
Default

Looks like it was never flushed. As far as that gasket goes, I'd still put some RTV at the edges. Don't over do it though. Good luck.
Mud Runner is offline
Reply With Quote
Old 05-17-2018, 04:47 AM
  #7
Senior Member

Join Date: Jul 2006
Location: St George Island, Fl
Posts: 1,865
Default

Make sure you replace the grooved stainless steel base plate. The grooves seriously effect the efficiency of the impeller.
snookwhaler likes this.
Bamaskeetshooter is offline
Reply With Quote
Old 05-17-2018, 05:32 AM
  #8
Senior MemberCaptains Club Member

Join Date: May 2006
Location: Silver Spring, Maryland
Posts: 1,524
Default

I would replace everything and have a fresh start. Some vinegar will dissolve those calcium salt deposits and help clean everything up.
capt_matt is online now
Reply With Quote
Old 05-17-2018, 09:31 AM
  #9
Senior Member

Join Date: Aug 2013
Location: Treasure Coast, FL
Posts: 324
Default

You have it out. Replace that stuff... It's all pretty straight forward. Just a little time consuming. Be sure not to over-torque and strip out the water pump bolts.

That orange gasket wraps around that metal bar. That whole piece lifts out of there (it's a Mercury thing). That piece can be reused.

When you get done with all of that, replace the thermostat. If it looks that bad down there, you will probably be shocked when you see the thermostat.
snookwhaler is offline
Reply With Quote
Old 05-17-2018, 01:55 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Feb 2013
Posts: 675
Default

Originally Posted by duffish View Post
Thanks y'all, I'll put my order in tonight. Looking closer at the diagram I think that orange seal was item 2, website has it listed as seal/plate kit. Since I'm placing an order I'll get it instead of using the rtv, mcsd63!

Is it normal for the inside of the lower unit to be that dirty or does this just look neglected?
now that I look at the diagram again, I think you're right about the plate and seal. Mine doesn't have that from what I can find . Mine had rtv on it when I took it apart , so I put it on there when I put it back together .
mcsd63 is offline
Reply With Quote
