23' Seacraft rebuild/stretch job

Old 02-18-2019, 06:39 PM
  #381
Senior Member

Join Date: Dec 2014
Posts: 308
Default

Nice build sir! Your skills are undeniable I dont care what tunnels says lol. Can you please take a shot from the front I'm not sure if I love the lines yet. I think I do.
AnitaFish22 is offline
Old 02-18-2019, 07:39 PM
  #382
Senior Member

Join Date: Jan 2010
Posts: 4,225
Default

Originally Posted by bills106 View Post
What, are you a mod too??? Sheesh, this place is getting expensive!
Nah, not a Mod....but I try to keep them gainfully employed on a daily basis.....that's a good thing, right?
maxie is offline
Old 02-19-2019, 07:03 AM
  #383
Senior MemberCaptains Club Member

Join Date: Aug 2001
Location: Apex NC
Posts: 1,867
Default

Originally Posted by maxie View Post
Well, if you're giving boats away, I'll take that little 20 footer off your hands...

Let me get mine out of your shop 1st before you start giving boats away .
Holy Smoke is offline
Old 02-19-2019, 08:02 AM
  #384
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,714
Default

You're doing a fine job maxie, keep up the good work!

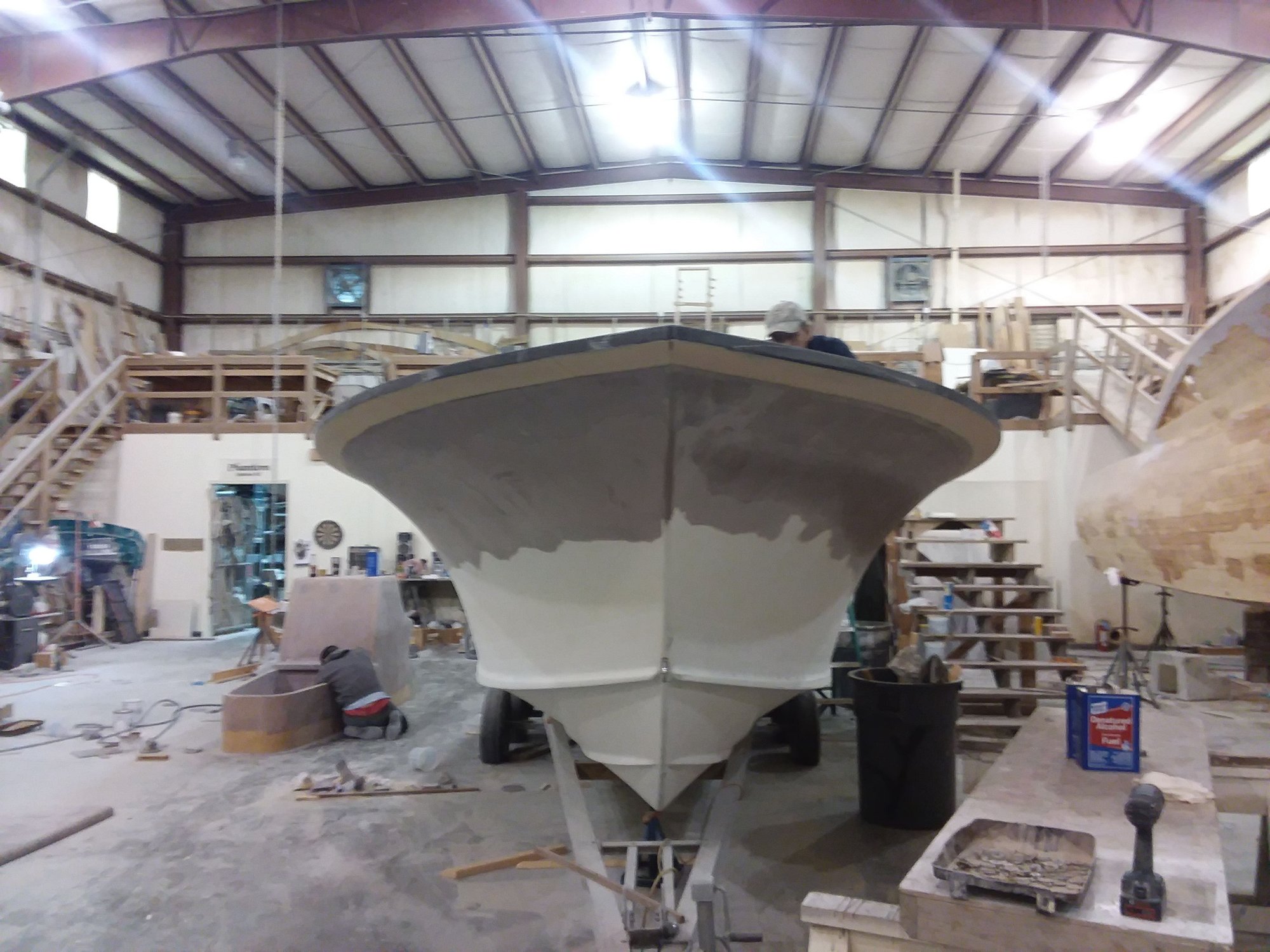

Here's a bow shot anita fish, the least I could do since you're the reason we raised the shear!

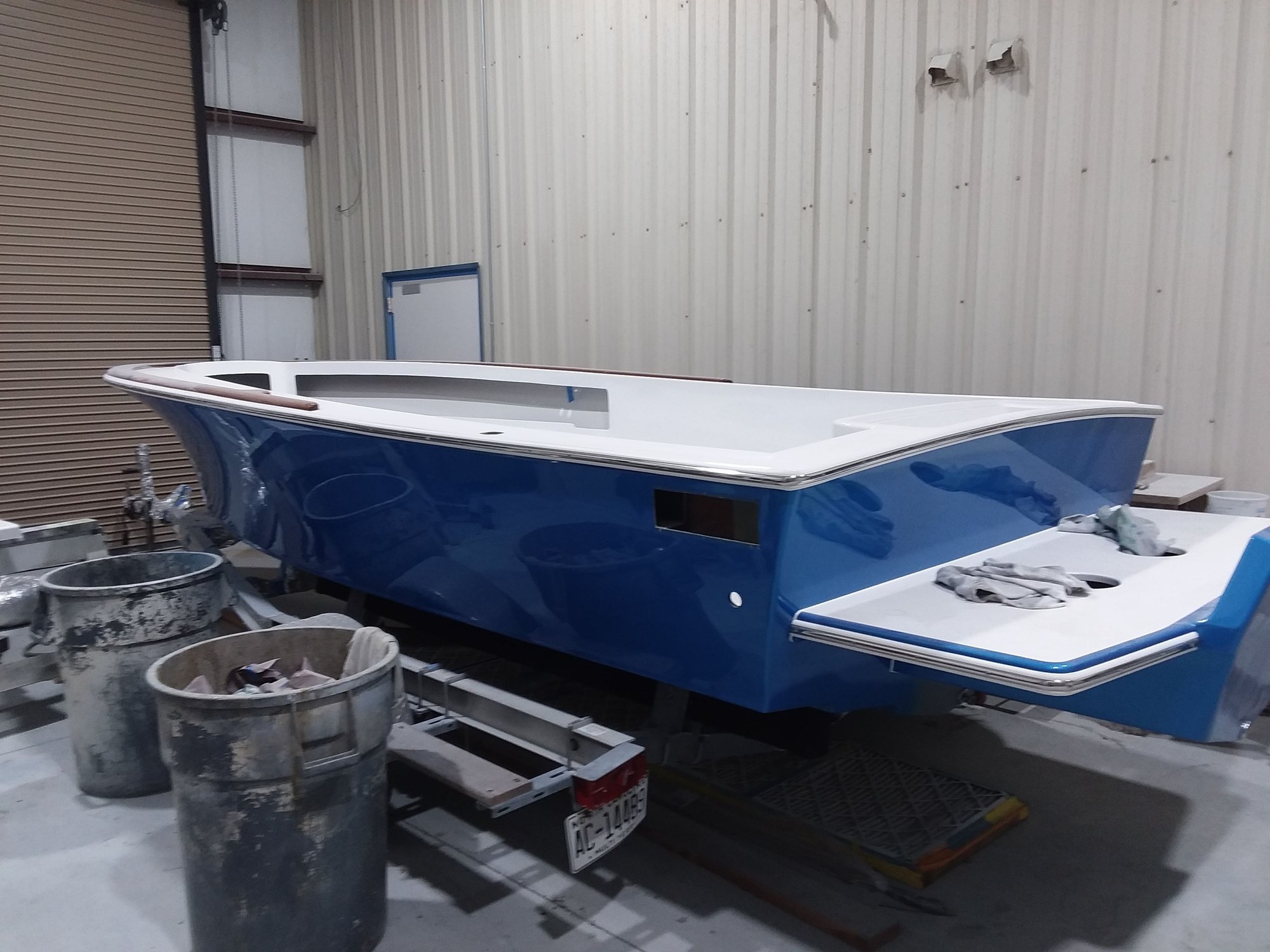

Also one of the 20, its Alexseal Lagoon Blue metallic not Bermuda.

Your safe holy smoke, yours doesnt say Seacraft on the side



bills106 is offline
Old 02-19-2019, 09:40 AM
  #385
Admirals Club Admiral's Club Member

Join Date: Mar 2009
Location: South Florida
Posts: 376
Default

Bill, I'd be curious to see if or how the sheer shape changed with the additional height. Any chance you can get a side profile shot? By the way, that blue on the 20' is absolutely gorgeous.
modernimage is offline
Old 02-19-2019, 09:48 AM
  #386
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Posts: 630
Default

Bill, Is that 1708 your glassing the covering boards with and how are you getting it to wrap around those tight edges?
2TDave is online now
Old 02-19-2019, 11:18 AM
  #387
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,714
Default

We were going to try a broken shear but couldnt get it to look right so just smoothed it down some.

That's 1700 Dave, two layers. 1/4" radius is about all it will turn.


bills106 is offline
Old 02-19-2019, 11:44 AM
  #388
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Posts: 630
Default

Thank you sir!
2TDave is online now
Old 02-19-2019, 12:09 PM
  #389
Senior Member

Join Date: Oct 2009
Posts: 9,173
Default

Hawt
N2theblue is offline
Old 02-19-2019, 12:29 PM
  #390
Senior Member

Join Date: Aug 2014
Posts: 2,555
Default

Looks great both the front and side view!
surv is offline
Old 02-19-2019, 02:55 PM
  #391
Senior Member

Join Date: Mar 2016
Location: Under the sun
Posts: 802
Default

bills106; is that in the bottom of the pic, the notorious mythical panda???
combi_40 is offline
Old 02-19-2019, 03:40 PM
  #392
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,714
Default

Originally Posted by combi_40 View Post
bills106; is that in the bottom of the pic, the notorious mythical panda???
Yeah, he's not so mythical when he's trying to wake you up at 3 am though, other adjectives come to mind. He was bored, our latest 8 werk old Chesapeake puppy wouldmt wake up to play so he was watching daddy and wondering what he was doing.

Later while we were ripping for on the tablesaw they thought the shavings were great and we were just making a playground for them!
combi_40 likes this.
bills106 is offline
Old 02-19-2019, 05:25 PM
  #393
Senior Member

Join Date: Feb 2017
Posts: 903
Default

Originally Posted by bills106 View Post
Yeah, he's not so mythical when he's trying to wake you up at 3 am though, other adjectives come to mind. He was bored, our latest 8 werk old Chesapeake puppy wouldmt wake up to play so he was watching daddy and wondering what he was doing.

Later while we were ripping for on the tablesaw they thought the shavings were great and we were just making a playground for them!

Enjoy the Chessie pup Bill
They get big fast!
Great dogs but very hard headed
Once you have one you will never want to be without one (or 3)



Shoresscow likes this.
Captainbadfinger is offline
Old 02-20-2019, 05:45 AM
  #394
Admirals Club Admiral's Club Member

Join Date: Aug 2003
Location: MD
Posts: 421
Default

I like the rub rail on the bracket of the 20. Thatís a great idea.
bigtahuna is offline
Old 02-20-2019, 05:51 AM
  #395
Senior Member

Join Date: Oct 2009
Posts: 9,173
Default

Originally Posted by bigtahuna View Post
I like the rub rail on the bracket of the 20. Thatís a great idea.
Yeah that's a fantastic touch
N2theblue is offline
Old 02-20-2019, 06:21 AM
  #396
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,714
Default

Originally Posted by bigtahuna View Post
I like the rub rail on the bracket of the 20. That’s a great idea.
As wide as the platform on that bracket is we figured it might help save that almost impossible to repair metallic! I know I'm guilty of accidentally rubbing a bracket on a piling once or twice

We ordered the 60' kit of that "new" Taco semi-rigid flex core vinyl so we'd have enough extra for the bracket. Amazingly the 60' kit plus the 60' of real 3/4" stainless rubrail that finishes it was still cheaper than a kit of the standard black rubrail with the rubber tube insert! The semi rigid was also better than trying to heat/stretch the softer stuff around (which often ends up wavy after it gets out in the sun).

Just got the new rubrail nav LED's in this week for her that match the 3/4" stainless profile. I'll post a pic when we get them installed.
bills106 is offline
Old 02-20-2019, 07:13 AM
  #397
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Posts: 630
Default

Bill Iím going to be doing the same rub rail on my Mako. I used the semi rigid stuff on a Whaler I redid but it had a vinyl insert. Are there any tricks to getting the bends in the stainless hollow back around the bow and stern?
2TDave is online now
Old 02-20-2019, 07:21 AM
  #398
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,714
Default

Originally Posted by 2TDave View Post
Bill I’m going to be doing the same rub rail on my Mako. I used the semi rigid stuff on a Whaler I redid but it had a vinyl insert. Are there any tricks to getting the bends in the stainless hollow back around the bow and stern?
In the past we'd carve out a matching radius with a male shape of the hollow back to pre bend it around but this semi-rigid rubrail has the same shape and was hard enough to bend it in place without kinking. Of course you've got to make sure there's no screw holes in the bend and go gently, working it around. We used dead blow hammers and wooden blocks to persuade it and they did just fine!

A heat gun was also necessary to bend the vinyl around those tight corners. Low and slow heating to heat it all the way through before you start!
2TDave likes this.
bills106 is offline
Old 02-20-2019, 12:11 PM
  #399
Senior Member

Join Date: Mar 2011
Posts: 1,894
Default

any chance anyone could make a plug out of this and make more?! between this and AnitaFish's boat they look amazing!
MUHSFINK07 is offline
Old 02-20-2019, 01:11 PM
  #400
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,714
Default

Originally Posted by MUHSFINK07 View Post
any chance anyone could make a plug out of this and make more?! between this and AnitaFish's boat they look amazing!
With the extra chine it would have to be a two piece mold but it could definitely be done. If I had a couple hundred lying around for a mold set and knew for sure I could sell a hundred or so boats out of it to pay for it, maybe. I think I'll go sweep up the shop and see what I can find!
bills106 is offline
