Replicating a King Starboard panel

Old 11-17-2020, 04:05 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2004
Location: Allentown PA and Sea Bright NJ
Posts: 398
Received 60 Likes on 40 Posts
Default Replicating a King Starboard panel

The cooler lid on my 2007 Hydra Sports in front of the helm was warped and difficult to lift and did not seal properly.
I contacted a company to recreate the 13” X 23” panel and was shocked at the $240 estimate with no hardware.
Being an old time woodworker prior to computerized systems, I have previously used this process to replicate multiple pieces with high accuracy.
So if you are interested, read on. As you can see, I do not have high end equipment as in my prior occupation I had access to all the traditional woodworking machinery as well as CNC routers and never had the need to purchase equipment.

Step 1: you will need a router, either hand held or table mounted, a flush trimming with bearing bit, the original panel or pattern of it and some new material from which you will be making the panel with.

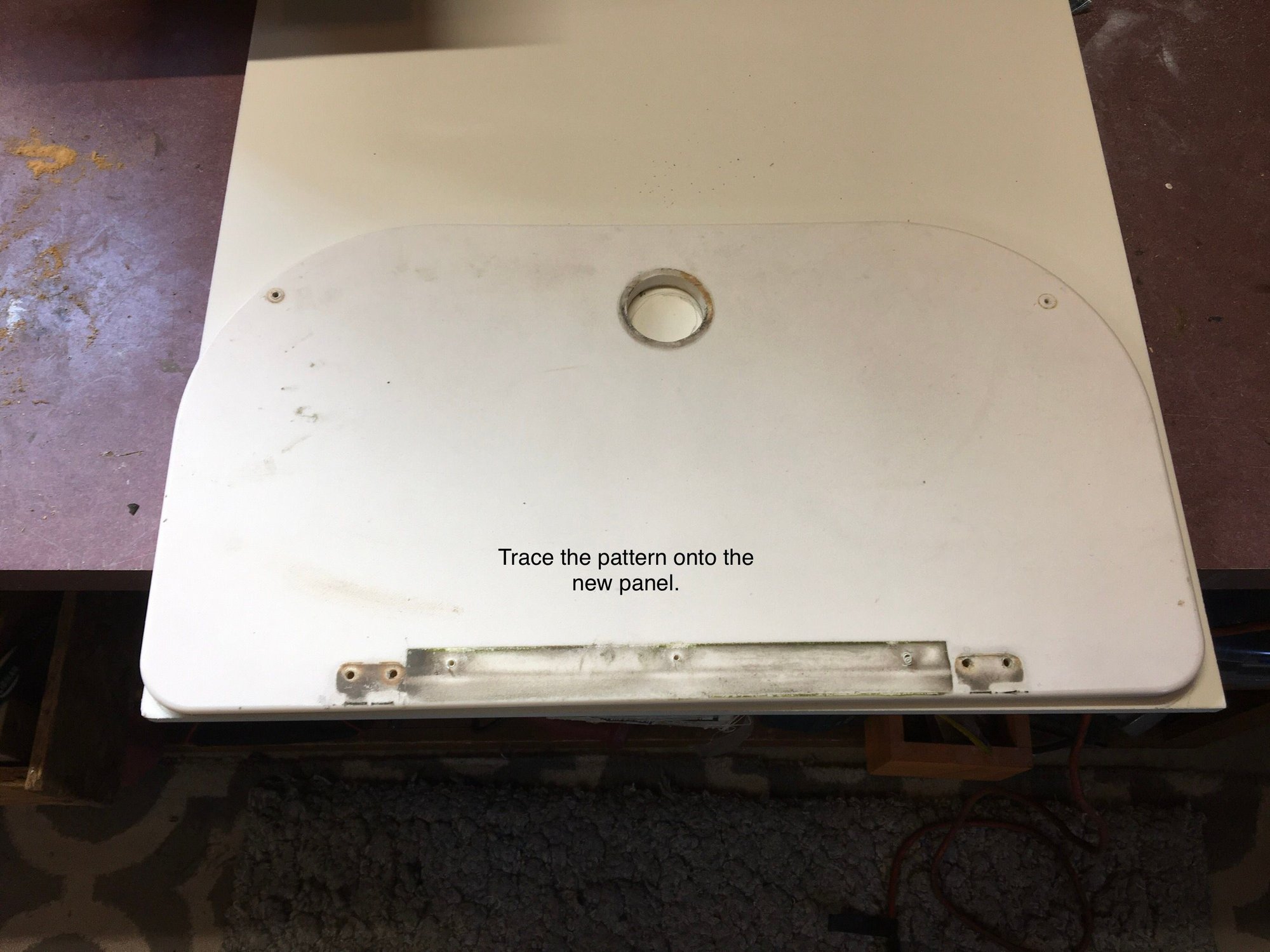

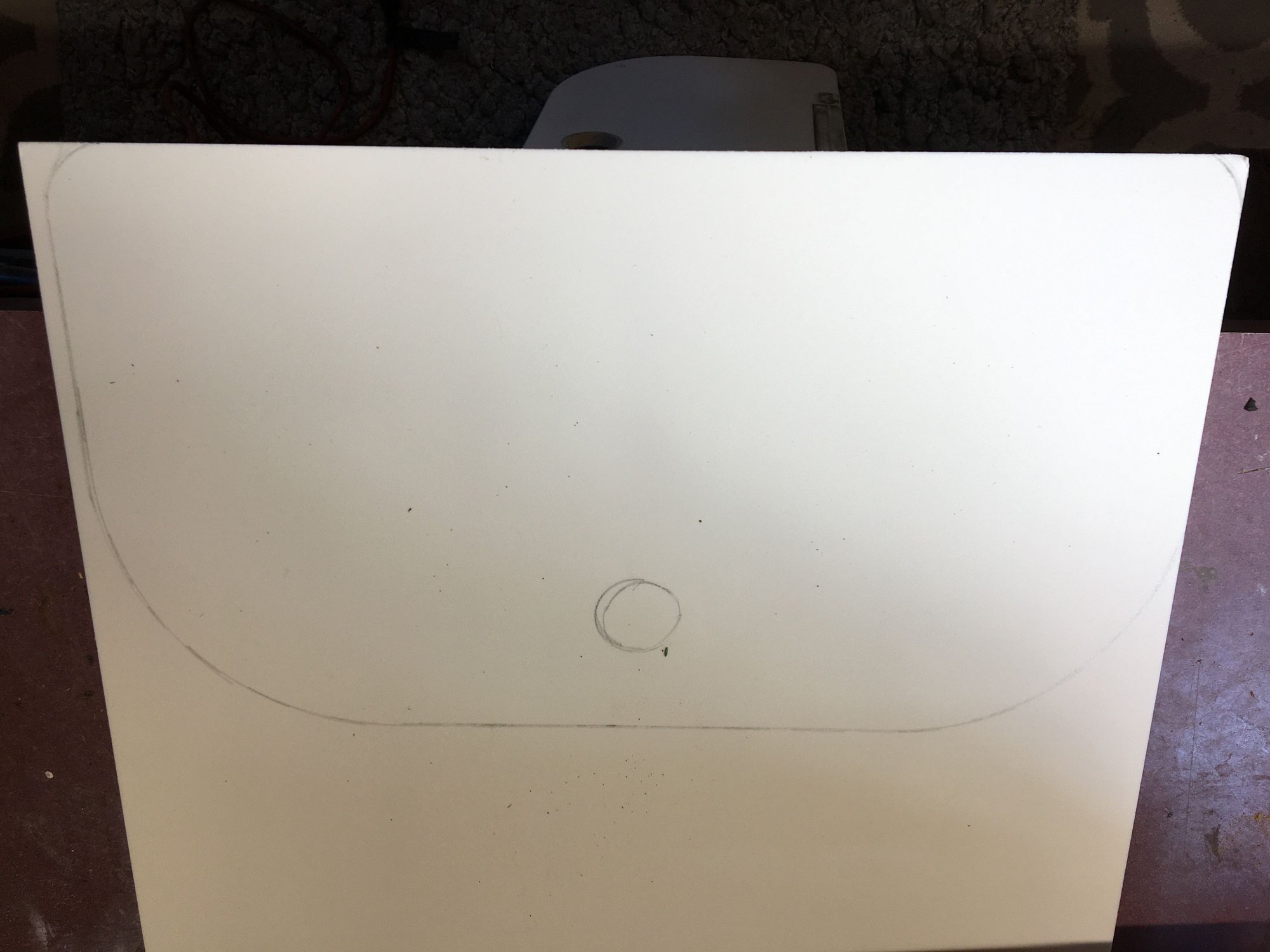

Step 2: Trace the patter onto the new material.

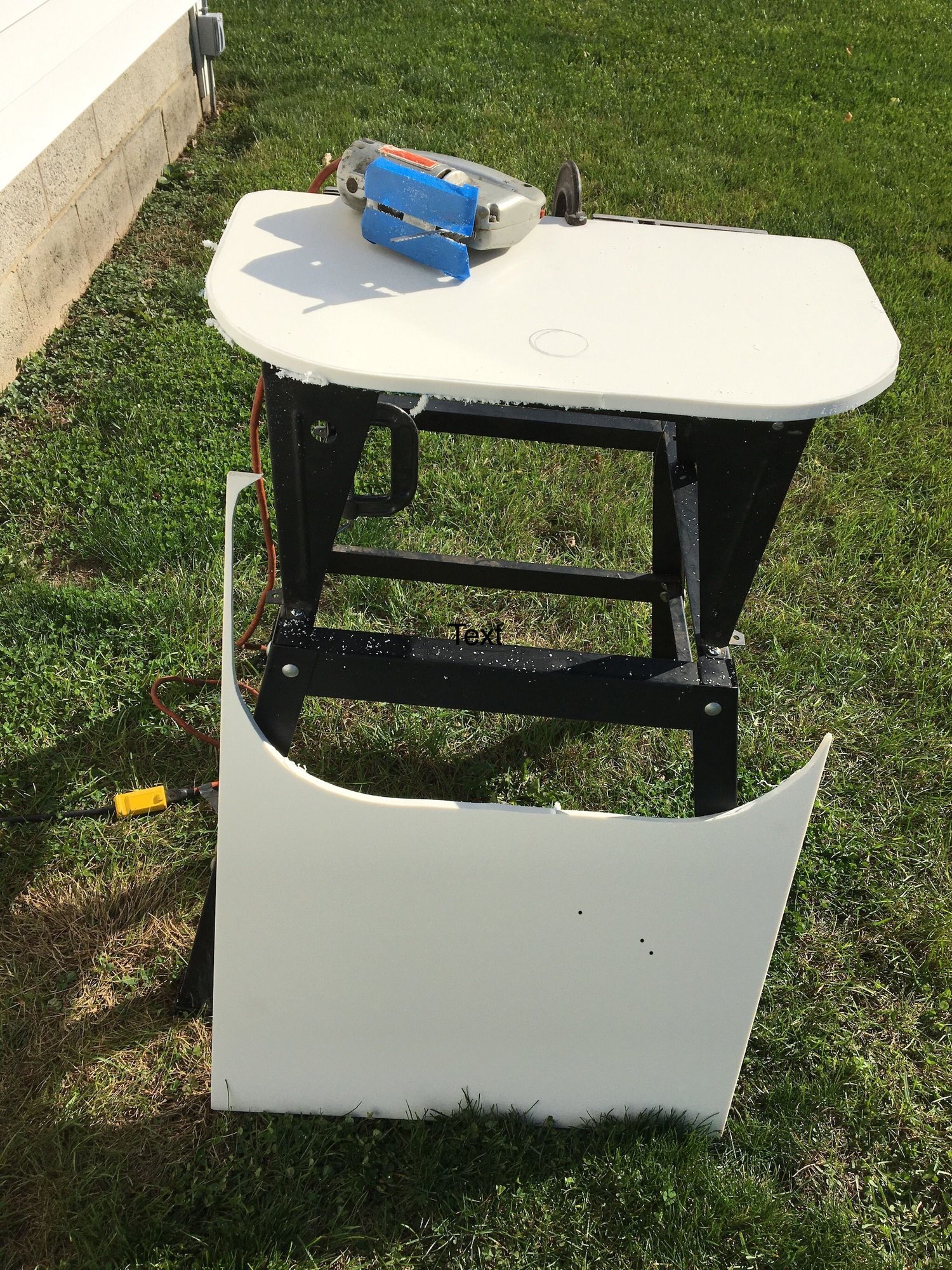

Step 3: Cut the new panel 1/8” -1/4” proud of the traced line.( I used a carpenter pencil which exaggerated the size)

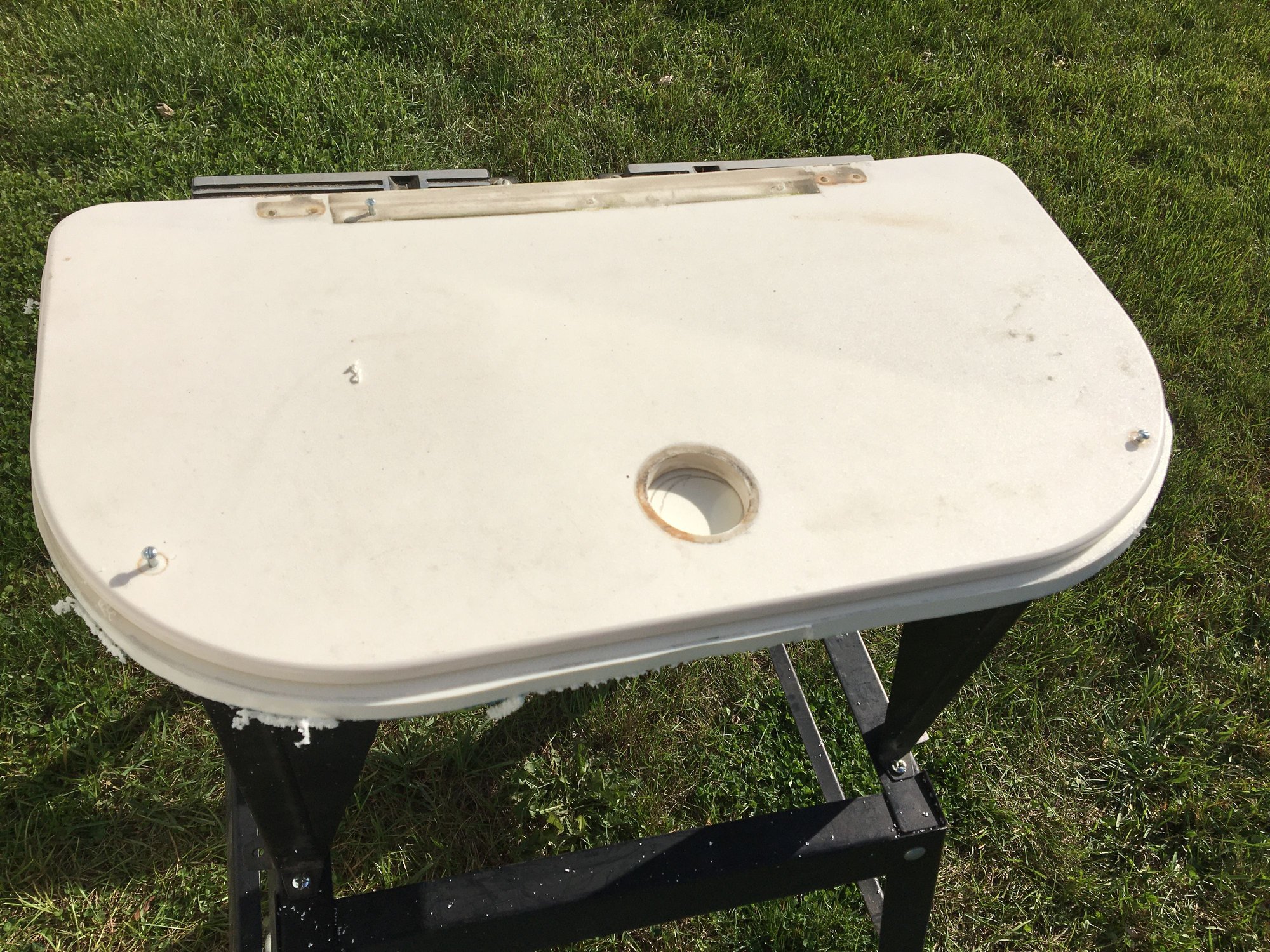

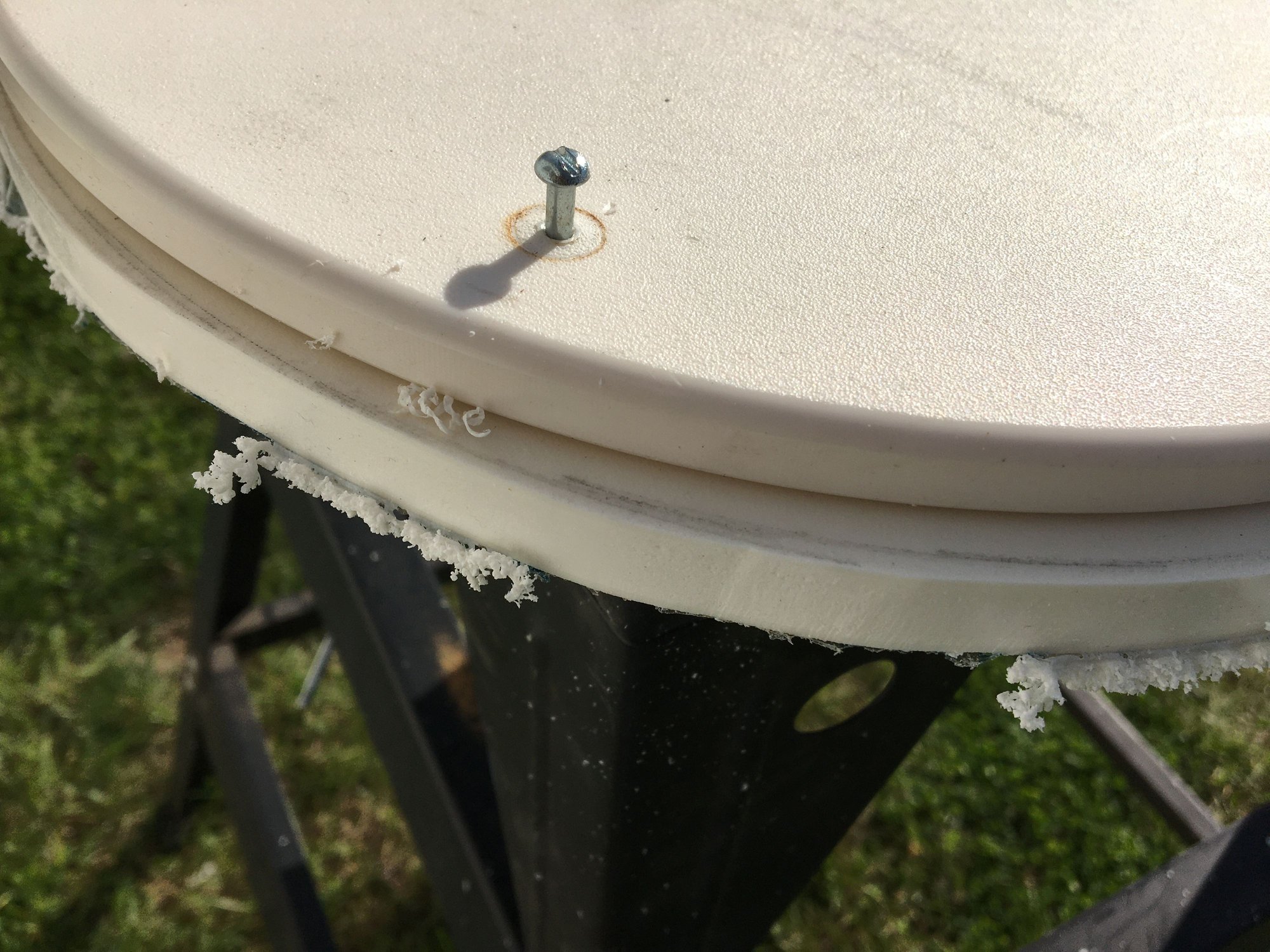

Step 4: Attach both panels together. I used small diameter screws through some of the holes in the original panel which will be transferred to the replacement or can be flipped to the underside.

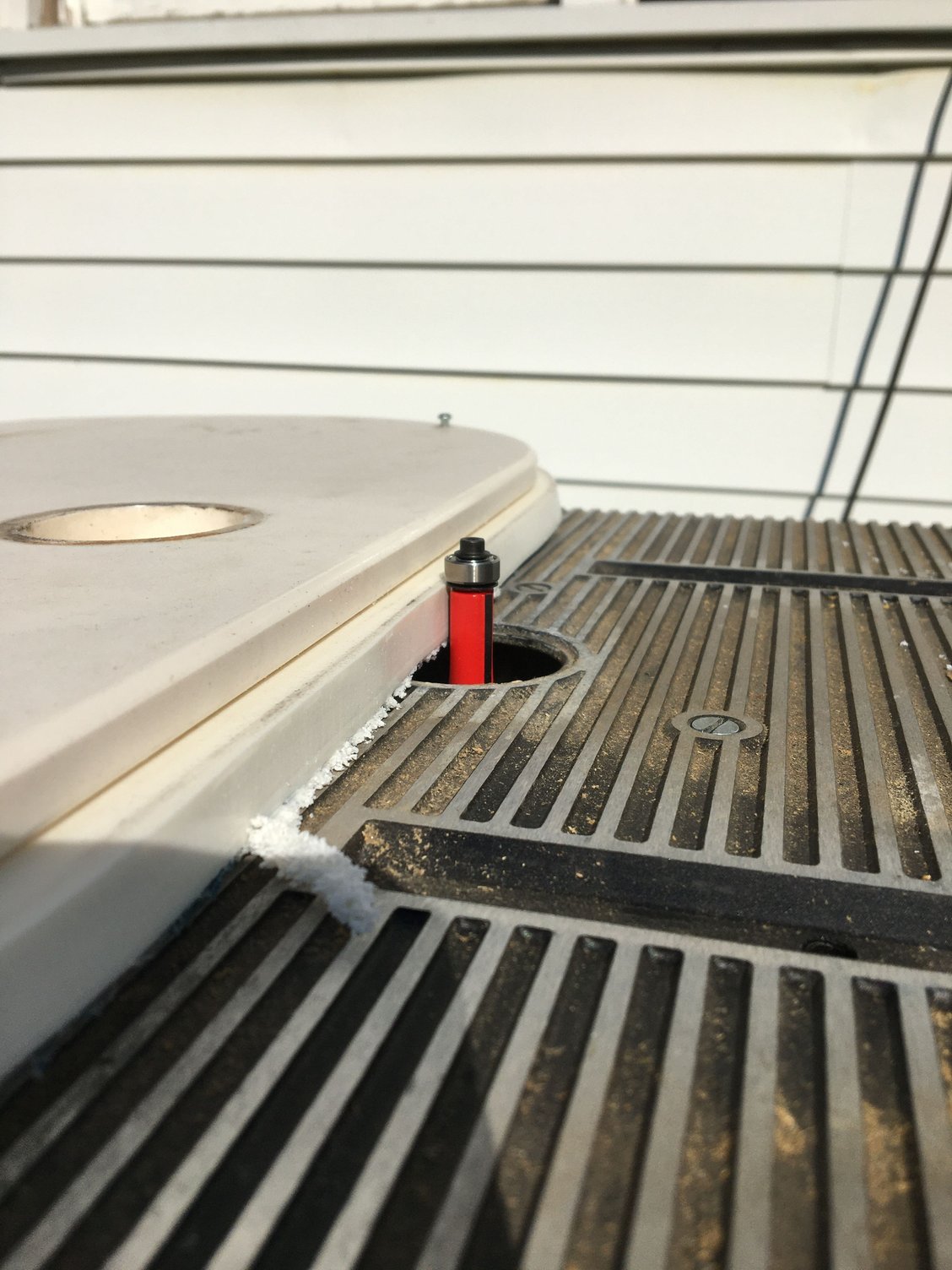

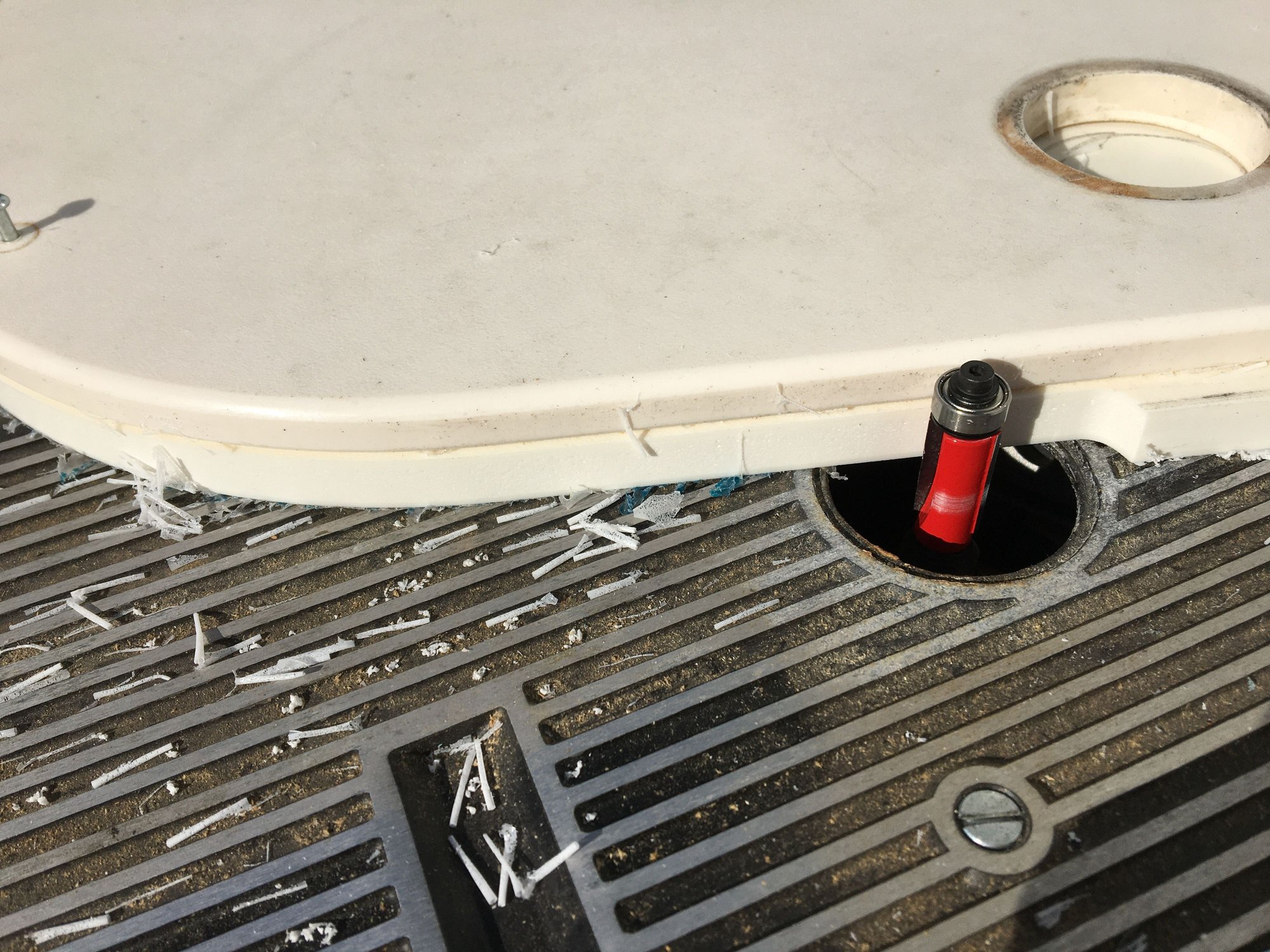

Step 5: Now the rewarding part, using the router with the trimming bit installed to the correct height, start tracing the pattern. Using slow light pressure against the pattern with the bearing. After the initial cut, you can cut again slightly faster but try to move at a constant speed. If you must stop, feed the bit away from the pattern before repositioning.

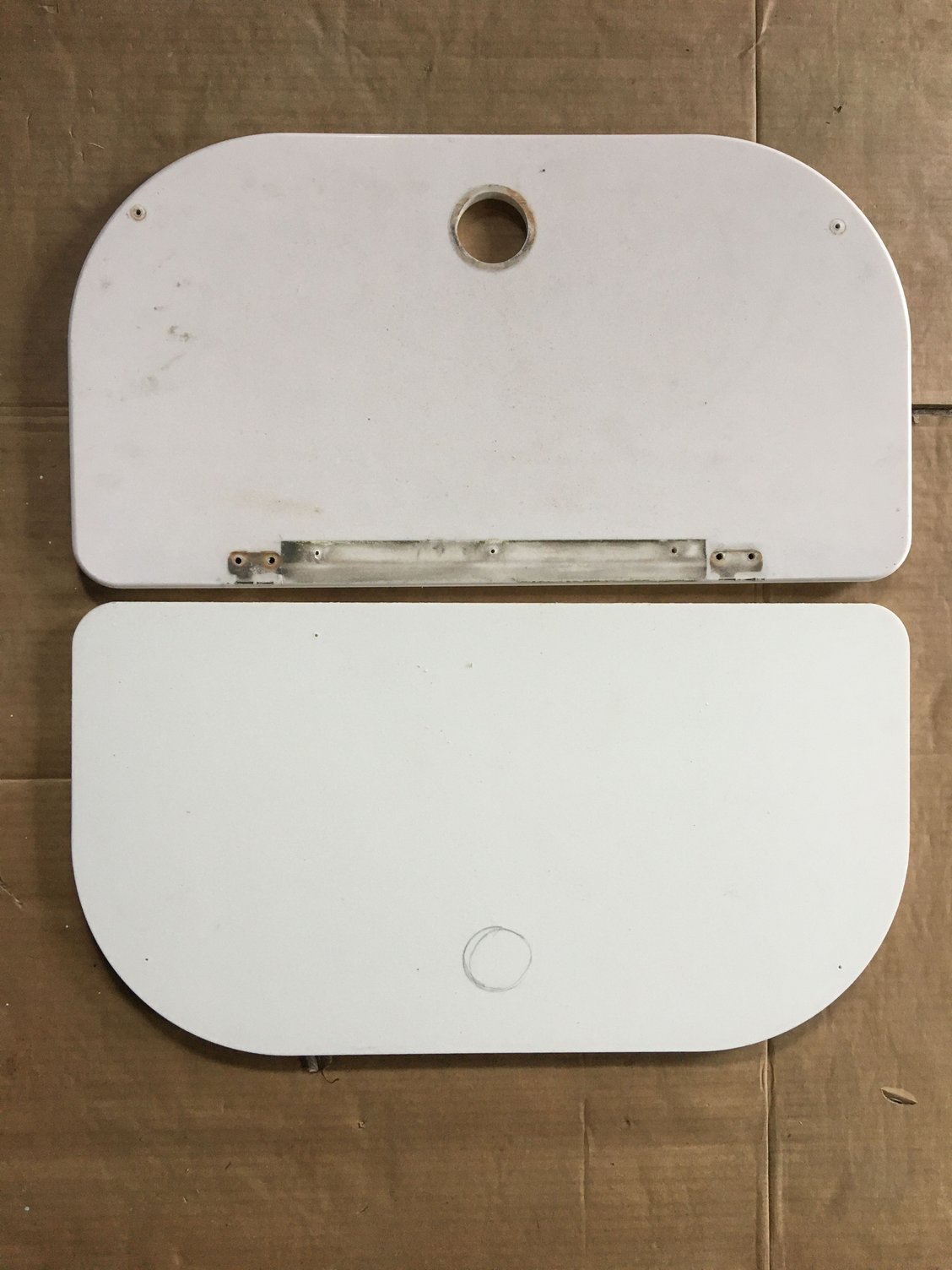

Step 6: Separate the pattern from the new panel and admire your accomplishment. Any irregularities can be smoothed with a smooth file or sand paper. You may also want to use a Round Over bit to smooth the corners if the panel will be exposed to hands. Any hardware will need to be installed as well.
