In over my head. 20' privateer pilothouse rebuild.

Old 11-22-2019, 08:28 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default In over my head. 20' privateer pilothouse rebuild.

What started out as replacing the fuel tank opened up a can of worms. ThiS 1988 hull plagued with rot.

I'll preface that my experience with boat building consists of a 12*10 deck patch and lots of resin/epoxy touch ups.


In one week I was able to go from full deck to 3/4 stringers out and a good chunk of the pilothouse out.

Old 11-22-2019, 08:32 PM
  #2
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

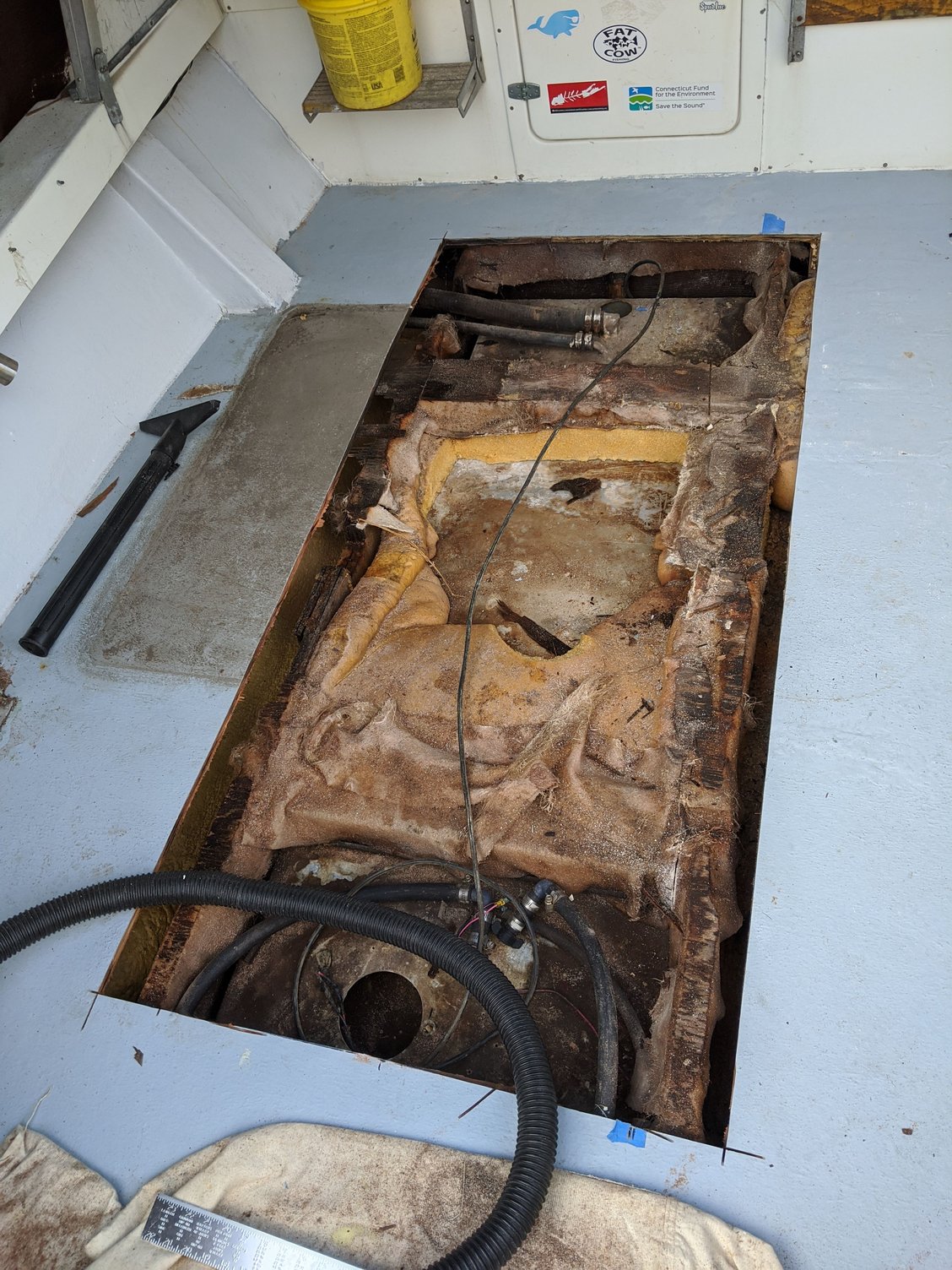

I cut open to expose the tank to see if I could replace it and move on. The wet stringers told.me.otherwise.



I removed the rest of the deck to find this.

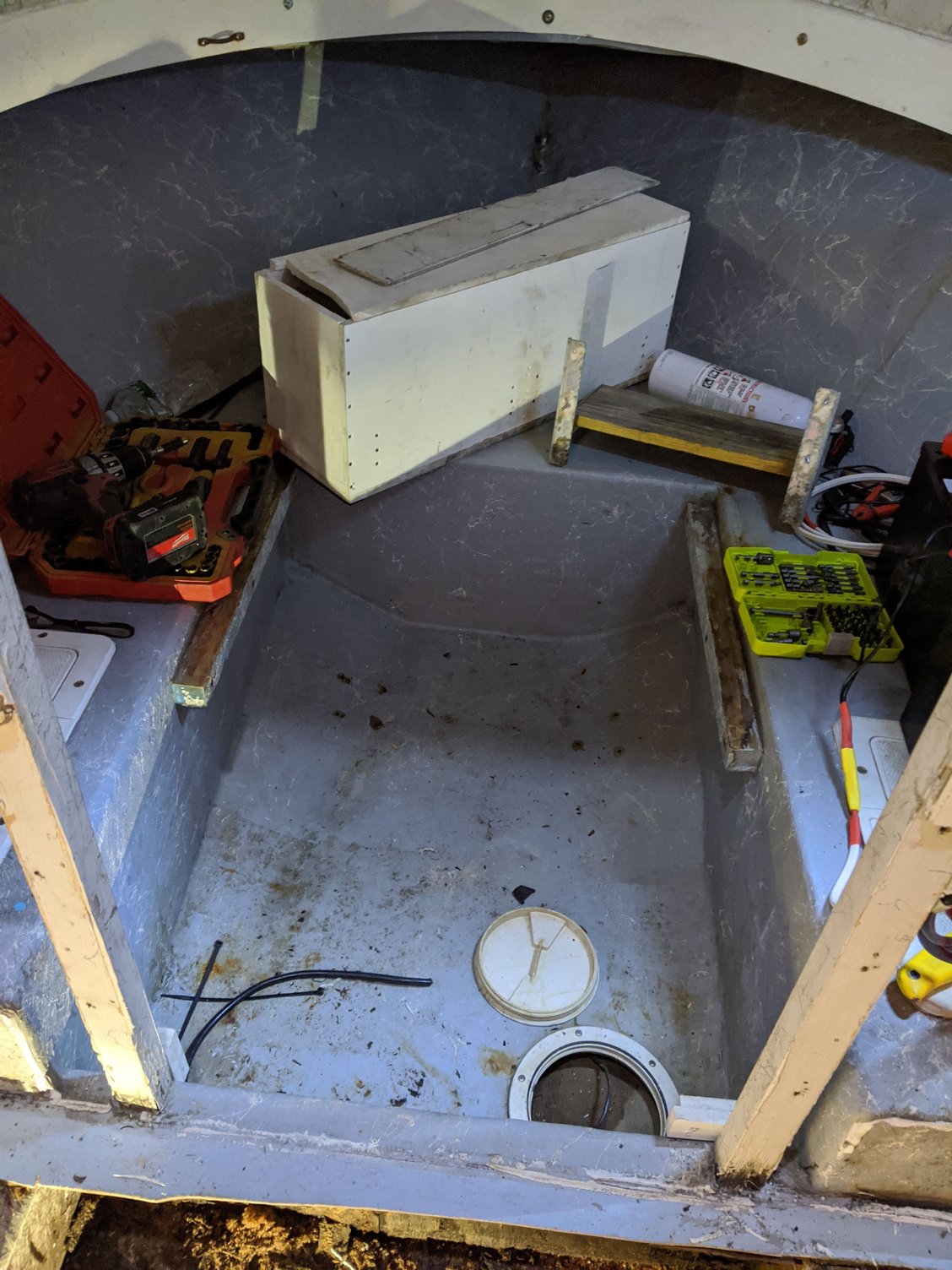

After tank removal.

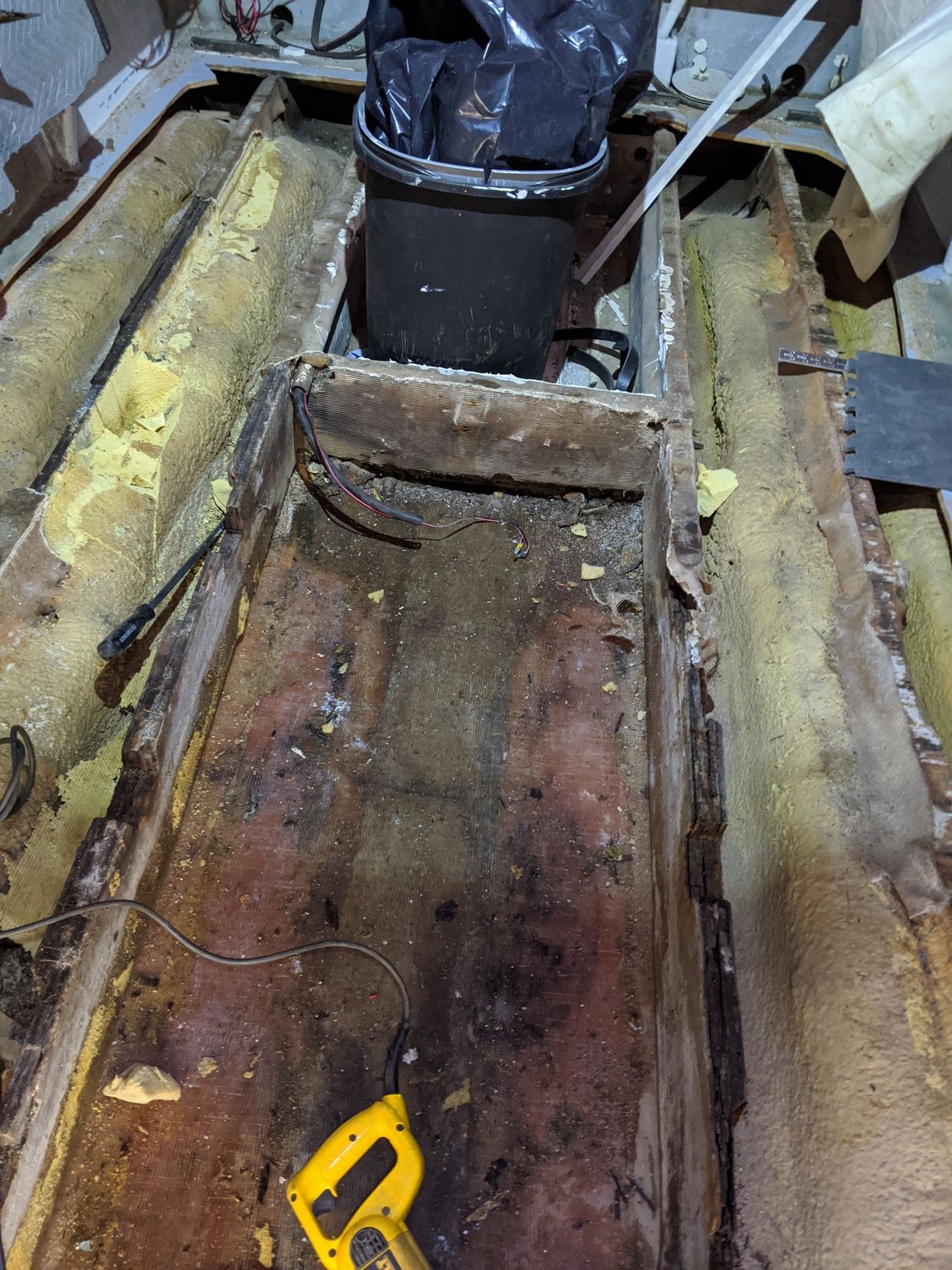

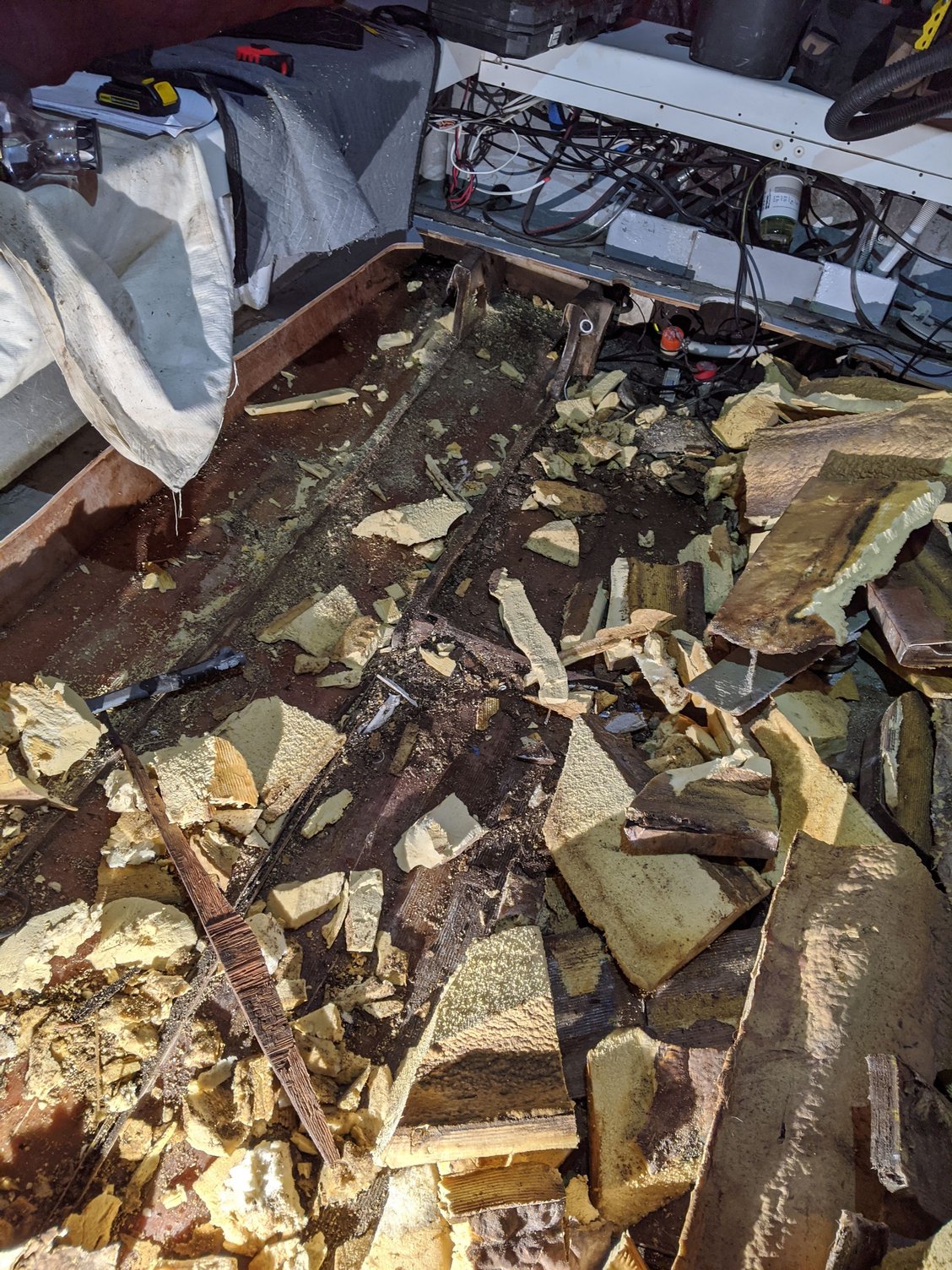

Most of the foam and 3/4 stringers out.
Old 11-22-2019, 08:40 PM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

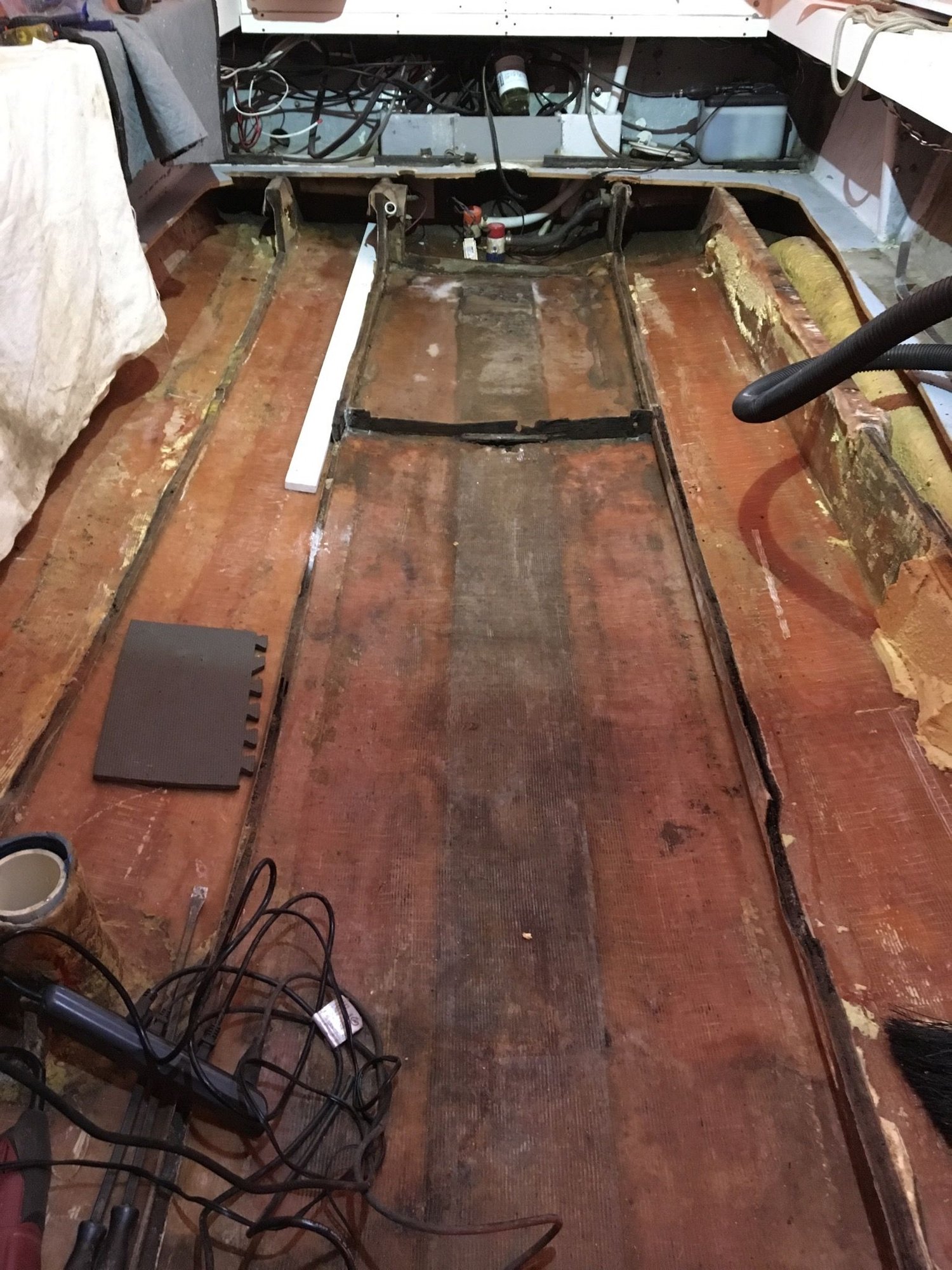

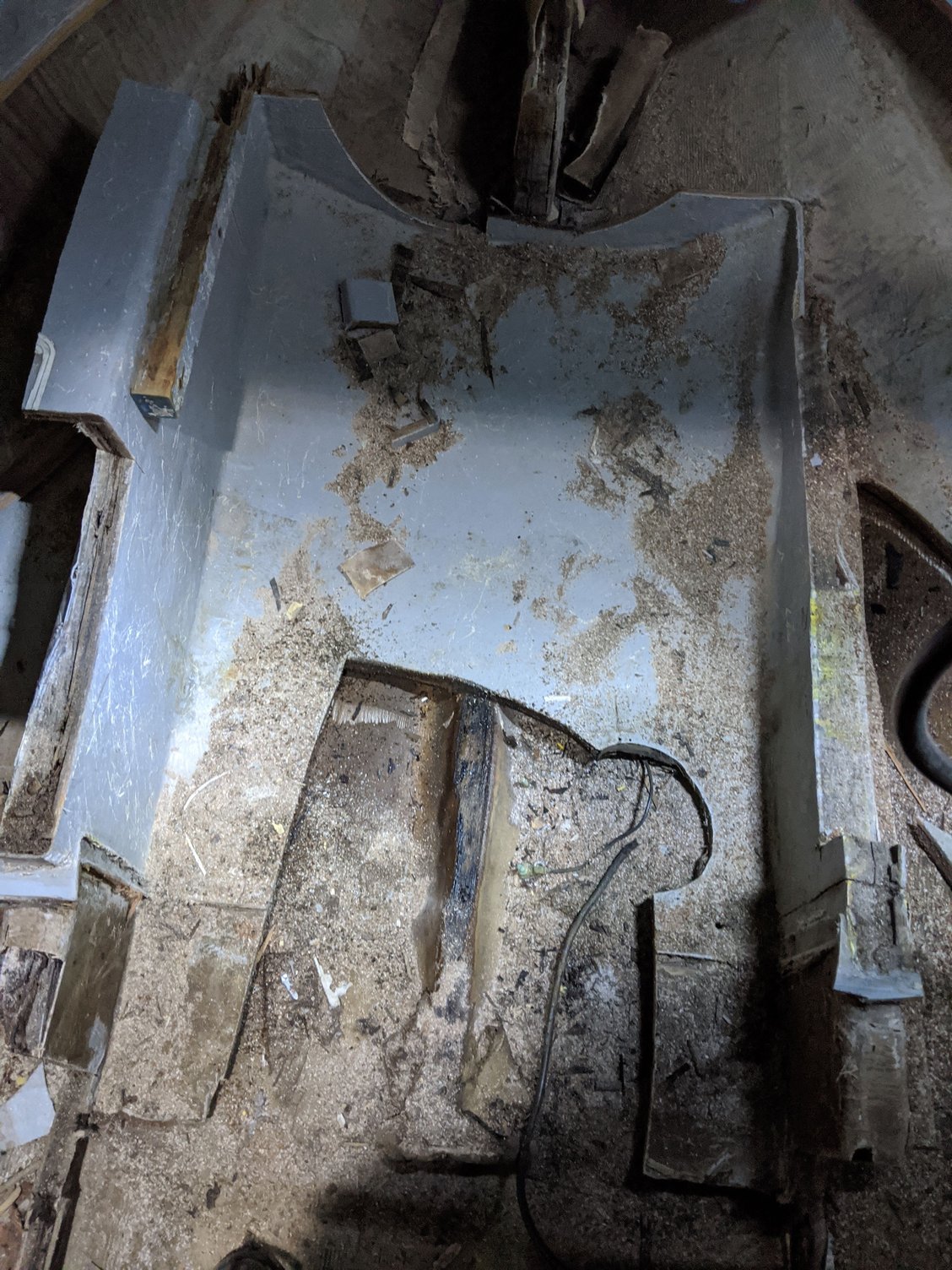

Currently the deck looks like this.



My biggest issue is the transom. With the motor mounted I don't want to take the rest of the deck (8" or so") and stringer out I don't want all the weight of the engine supported by just the transom. I plan on jacking up the bracket and blocking it to relieve the straign, or getting an engine house and suspending it until project complete.

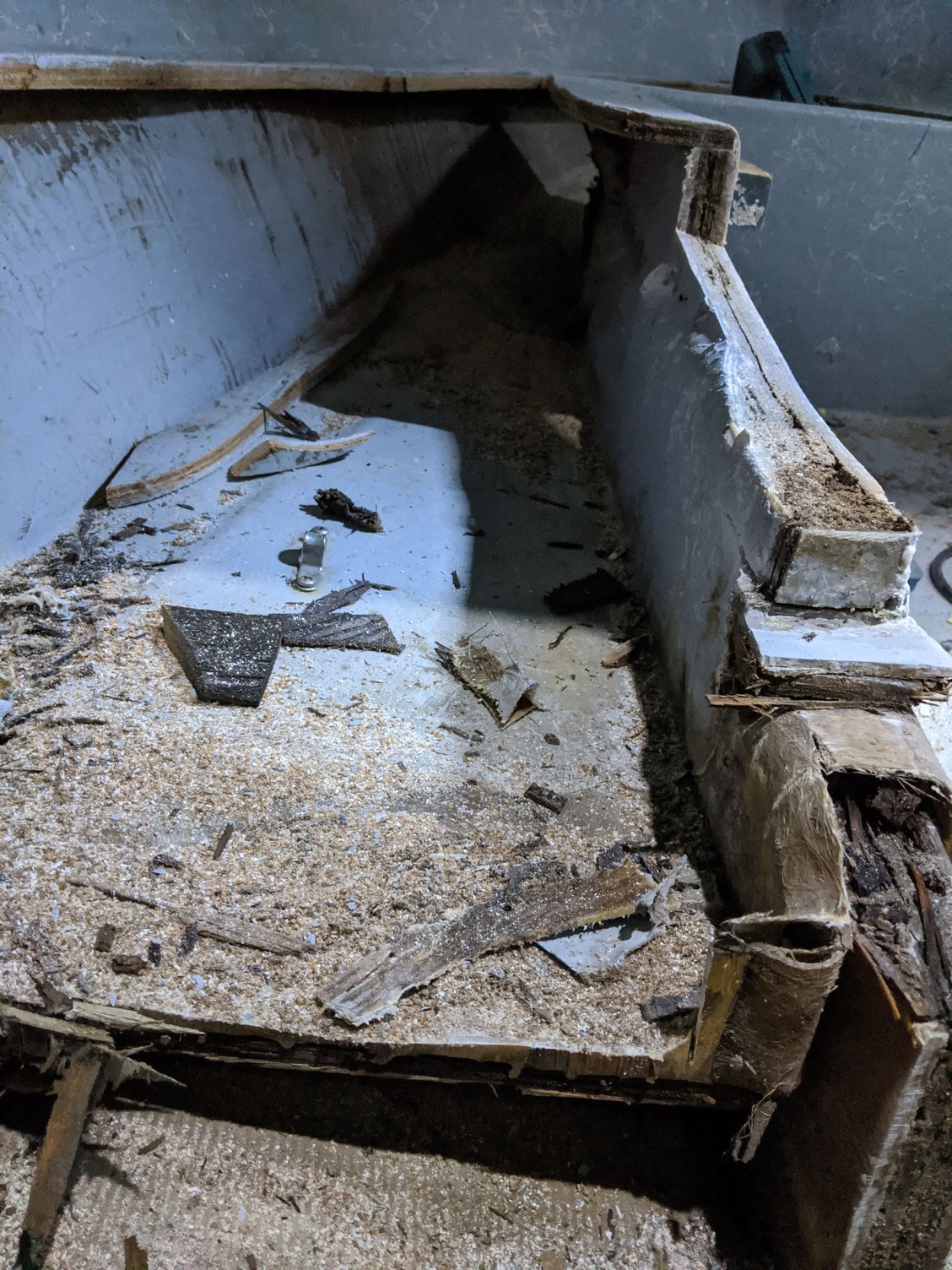

My current mess is the cabin, it's all double 3/4 ply and the cabin itself was in decent shape except the bulkeads and stringers, all mush. The issue is the narrow bow has a lot of glass.



​​​​​​

Old 11-22-2019, 08:42 PM
  #4
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

Also figured a picture of the boat might help.
Likes:
Old 11-23-2019, 08:48 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Sep 2005
Location: Annapolis,Md
Posts: 469
Likes: 0
Received 6 Likes on 6 Posts
Default

has the transom ever been done before? I would try and take a core sample to see if thats in the need of replacing. I would remove the pilot house and remove the rest of the cabin deck and stringers. and redo all of the of the stringers . Maybe you could get an engine lift and hook it up to the motor with slight pressure to take of the transom. if it ends up its good.
Likes:
Old 11-23-2019, 10:34 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,417
Received 1,053 Likes on 541 Posts
Default

You are in pretty deep, may as well go all the way. Taking the pilot house off would make it much easier. I have put a floor jack under the keg on the engine and blocked it up to take pressure off the transom, Sturdy looking boat.
Likes:
Old 11-23-2019, 05:17 PM
  #7
Senior Member

Join Date: Jun 2014
Location: skittleville fl
Posts: 8,582
Received 1,171 Likes on 626 Posts
Default

I would also support the hull from the back corners and make sure you don't rebuild the stringers with a hook in the bottom.
Old 11-24-2019, 08:25 AM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default





Got a good amount of the house out, the outboard bracket is supported below it, this week I'll remove the rest of the stringers.
Old 11-24-2019, 08:26 AM
  #9
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

Originally Posted by Bay boat101 View Post
has the transom ever been done before? I would try and take a core sample to see if thats in the need of replacing. I would remove the pilot house and remove the rest of the cabin deck and stringers. and redo all of the of the stringers . Maybe you could get an engine lift and hook it up to the motor with slight pressure to take of the transom. if it ends up its good.
When I repowered last year we had the bracket off and suprisingly the transom is solid.
Likes:
Old 11-26-2019, 09:39 AM
  #10
Senior Member

Join Date: Oct 2004
Location: RI
Posts: 1,619
Received 318 Likes on 182 Posts
Default

Nice project!

You're in deep now, like others have said, it's like being a dentist going after cavities. Get it all out while you are in there, and build it back up. Will be following, great hull.

Old 11-26-2019, 12:18 PM
  #11
Senior Member

Join Date: Oct 2006
Location:
Posts: 1,173
Received 117 Likes on 92 Posts
Default

Should be a really nice boat when done. I think “In over my head” or just “Over my head” would be a great boat name for your pilot house boat.
Old 11-26-2019, 05:02 PM
  #12
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

Got a lot more grinding done, probably two more days until I am ready to start the stringers.


​​​​​​I picked up four 3/4 sheets of marine ply 5 gallons of vinylester resin, 5 gallons of cabosil, 1 gallon of glass fibers. I plan on cutting is higher than needed, tabbing it in with resin and cabosil with about 1/8" gap. After it cures I was going to make a fillet out of the same and then finish it off with two layers of 1708. Is there anything I'm missing here?

For the center stringer, I hallowed it out and I plan on using a piece of 3/4 ply and glassing until flush with the hull.


Once the stringers are tabbed in the fuel tank (45 or 48 gallon will be fit and bulkheads for the tank and after locker will be cut.

After the tank I will work on assembling the pilothouse cabin. The two "v sections" in the picture are actually solid glass roughed up and plan on doing the same.
Likes:
Old 11-26-2019, 05:13 PM
  #13
Senior Member

Join Date: Aug 2006
Location:
Posts: 115
Received 25 Likes on 23 Posts
Default

Wow just take it apart and have a new boat and no worries. Great job. Keep,posting updates
Old 11-26-2019, 06:16 PM
  #14
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

Originally Posted by leonreno View Post
Should be a really nice boat when done. I think “In over my head” or just “Over my head” would be a great boat name for your pilot house boat.

Wave Slave is her name



​​​​​
​​​​​​
Old 11-26-2019, 06:22 PM
  #15
Senior Member

Join Date: Jul 2016
Location: Stuart FL
Posts: 487
Received 180 Likes on 122 Posts
Default

Sub'd
Old 11-26-2019, 07:05 PM
  #16
Senior Member

Join Date: Aug 2006
Location:
Posts: 115
Received 25 Likes on 23 Posts
Default

In Too Deep to quit
Old 11-27-2019, 07:13 AM
  #17
Member

Join Date: Jul 2019
Posts: 86
Likes: 0
Received 19 Likes on 13 Posts
Default

Love pilot house boats. Definitely worth the work. While your at it you could probably use the excess materials you will have and build a platform for the top of the outboard bracket. Add a lot of utility to the stern.

keep picking away at it, looks good.
Old 11-27-2019, 11:27 AM
  #18
Admirals Club Admiral's Club Member

Join Date: Nov 2006
Location: kitty hawk,nc.
Posts: 4,287
Received 684 Likes on 348 Posts
Default

Muffin man give me a call,junior is finishing up a rebuild on a 24 privateer.
Old 11-29-2019, 06:41 PM
  #19
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

Well I got a bit done the past two days.

Stringers are rough cut and I'll find time them on my smaller table saw.

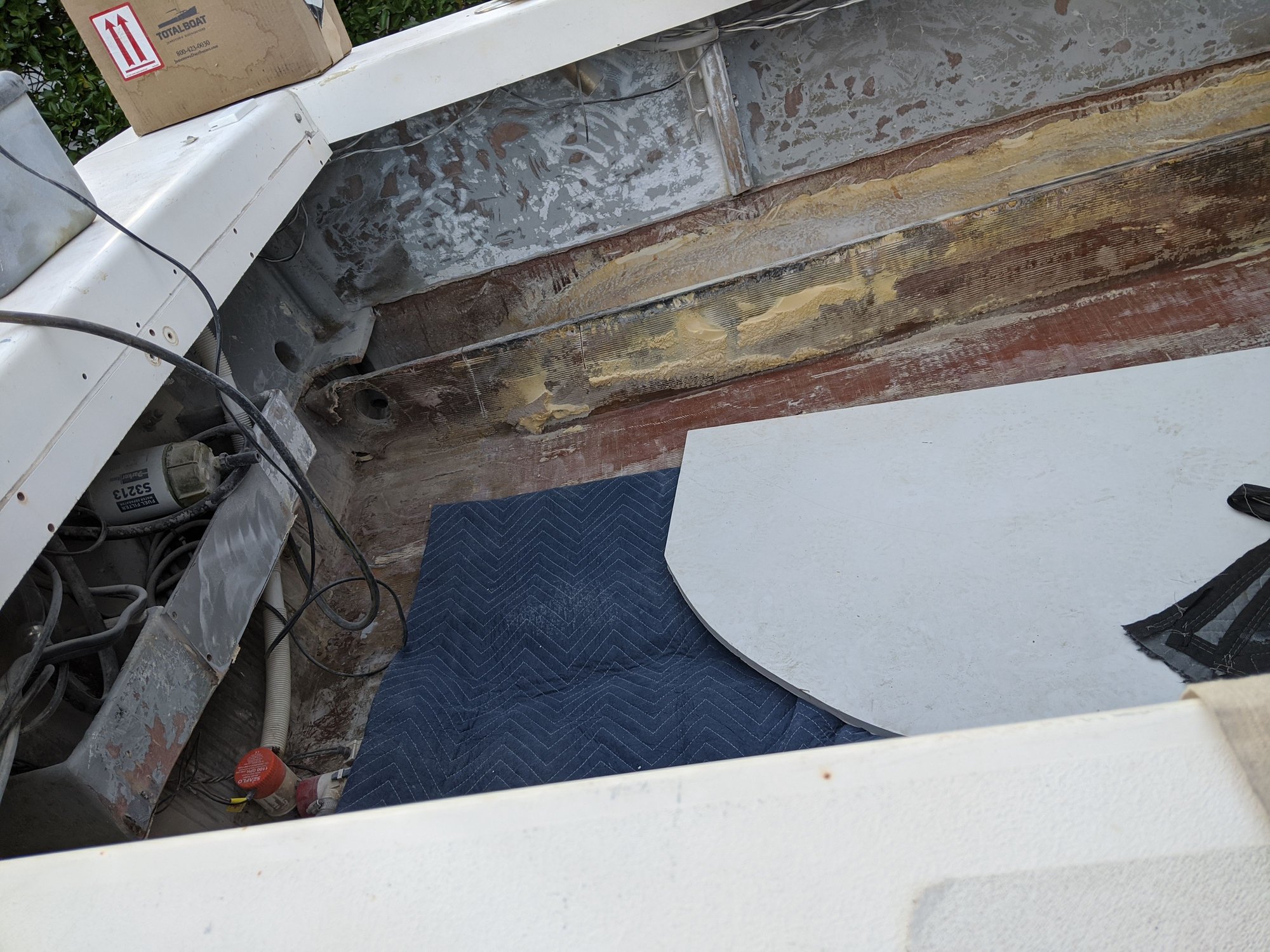

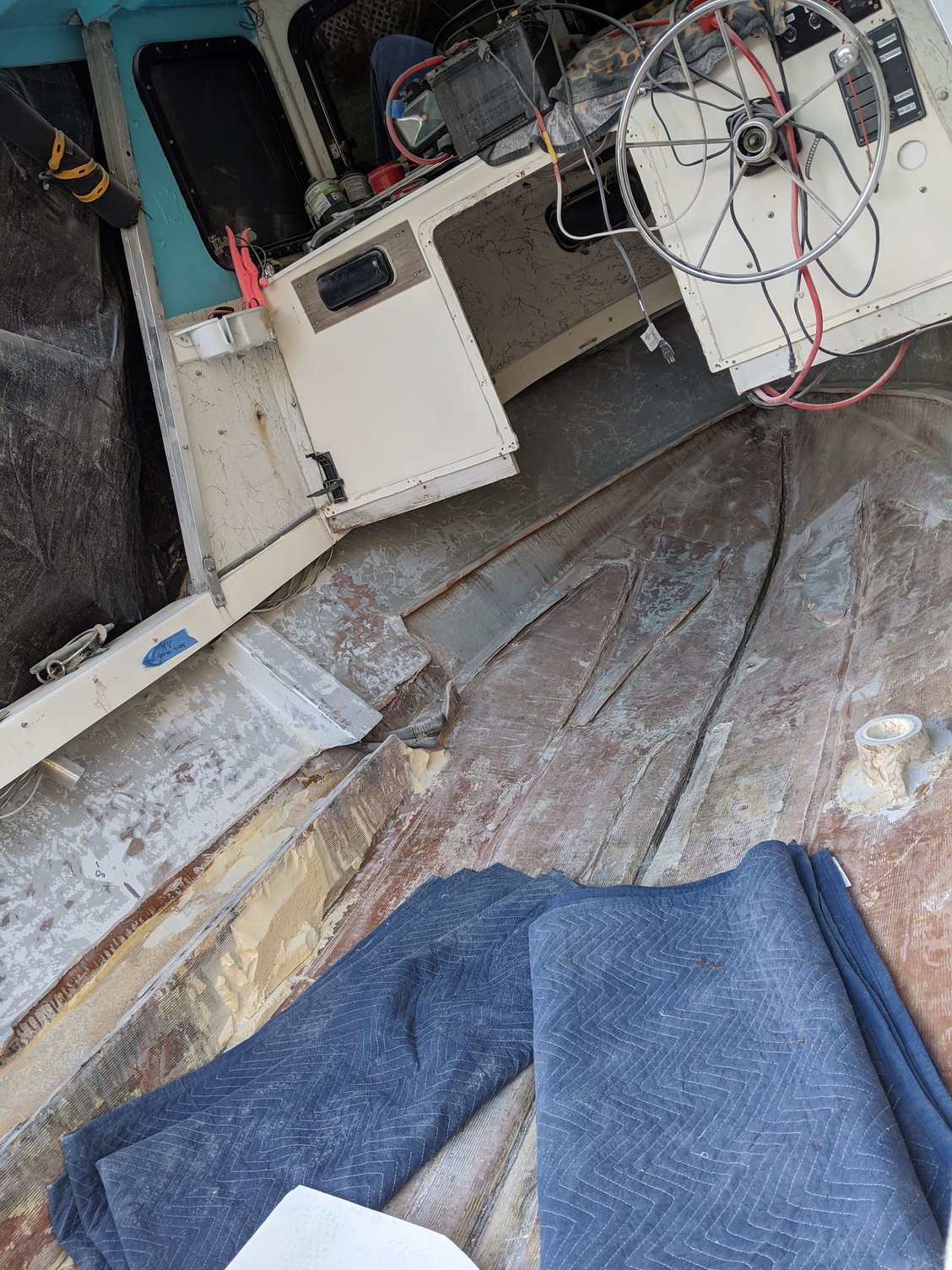

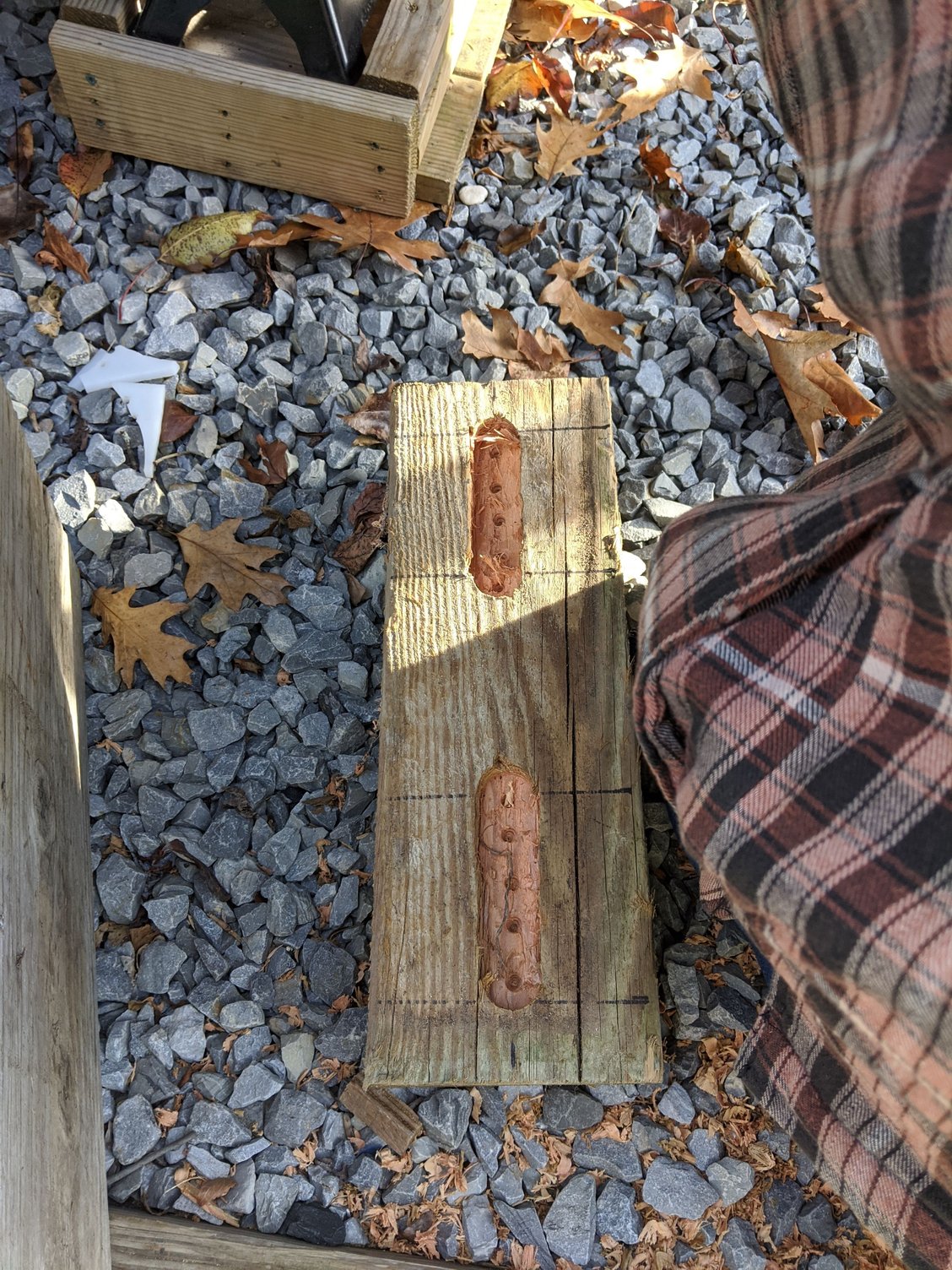

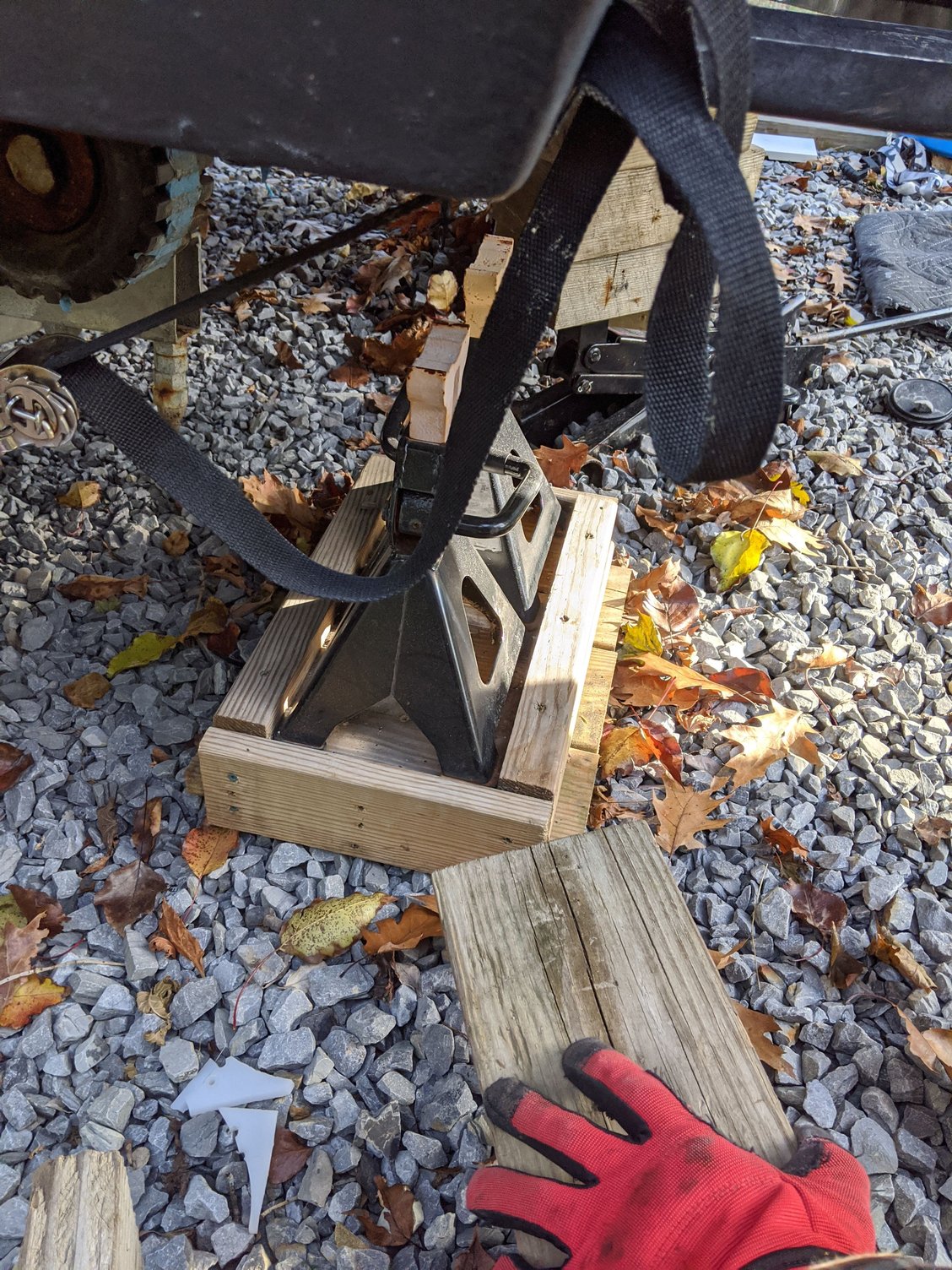

95% of the grinding is done and the boat is blocked.





Old 11-29-2019, 06:50 PM
  #20
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Location: Northport LI
Posts: 2,582
Received 84 Likes on 51 Posts
Default

Originally Posted by jpcanning View Post
Muffin man give me a call,junior is finishing up a rebuild on a 24 privateer.
Just saw this I'll call you tomorrow!
