Bow railing hardware

Old 04-02-2019, 01:24 PM
  #1
Senior Member
Thread Starter

Join Date: May 2008
Location: Jacksonville Beach
Posts: 146
Received 10 Likes on 4 Posts
Default Bow railing hardware

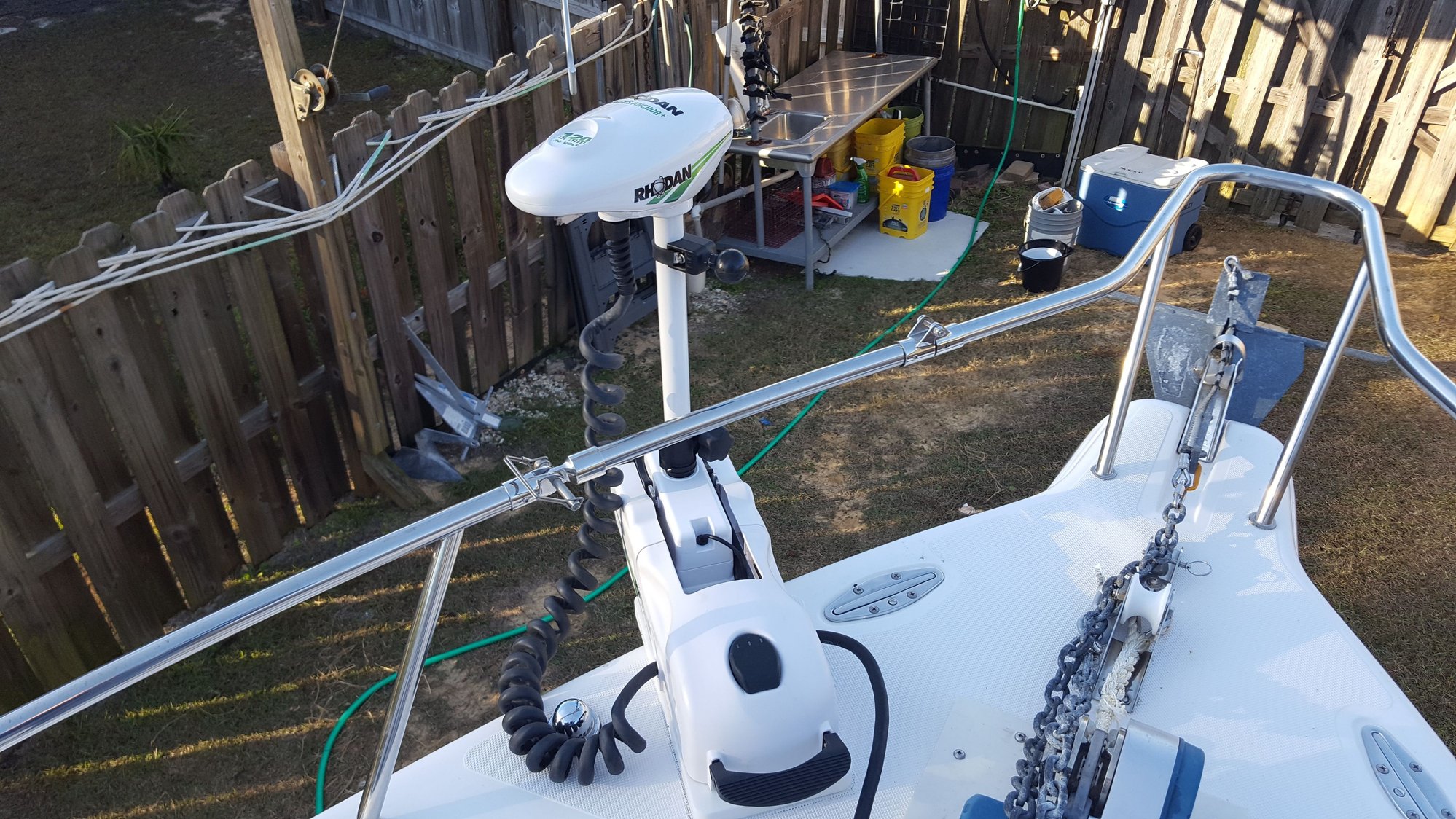

I recently added a trolling motor to the bow of my walkaround. I had to cut my bow rail and want to add a hinged piece that I can swing out of the way for the trolling motor shaft to pass through and then close it back down. I found this picture which is exactly what I want to do but I cannot find this piece I circled. I attached a few pictures for reference. My boat is the one with the big gap on the railing.
I have 7/8" thick stainless railing.
Anyone have any idea where I can find this thing?
Thank you in advance!





Old 04-02-2019, 03:00 PM
  #2
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 8,994
Received 1,502 Likes on 791 Posts
Default

ask a local canvas shop they look alot like bimini top fittings
Old 04-02-2019, 03:47 PM
  #3
Senior MemberCaptains Club Member

Join Date: Jan 2002
Location: Hewitt & Forked River, NJ
Posts: 3,262
Received 388 Likes on 186 Posts
Default

Check the hardware section on sailrite. Those are standard parts with a clip pin through the middle.
Old 04-03-2019, 06:06 AM
  #4
Senior Member
Thread Starter

Join Date: May 2008
Location: Jacksonville Beach
Posts: 146
Received 10 Likes on 4 Posts
Angry

Originally Posted by ReelNauti View Post
Check the hardware section on sailrite. Those are standard parts with a clip pin through the middle.
I've been unable to find that one on the left that has the 2 "knuckles" on it. The one on the right I can find everywhere but even on the sailrite page I could not locate the kind with the double on it.
Old 04-03-2019, 06:32 AM
  #5
Senior Member

Join Date: Feb 2013
Location: Michigan
Posts: 511
Received 243 Likes on 117 Posts
Default

These work?

https://www.unicornstainless.com/pro...ional-top-cap/

https://www.bosunsupplies.com/S3684-0000.html

Last edited by alwhite00; 04-03-2019 at 06:45 AM.
Old 04-03-2019, 07:08 AM
  #6
Senior Member
Thread Starter

Join Date: May 2008
Location: Jacksonville Beach
Posts: 146
Received 10 Likes on 4 Posts
Default

You are awesome!! Thank you so much!
Old 04-03-2019, 07:39 AM
  #7
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 8,994
Received 1,502 Likes on 791 Posts
Default

these are rail to rail mount, not rail to boat mount

if this works for you I can see about getting one its one my trade suppliers and I dont currently have anything else im ordering from them
"tubing hinge"



Name:  O5tZDOH.jpg
Views: 546
Size:  17.3 KB

Name:  HgdxGRU.jpg
Views: 544
Size:  17.6 KB
Old 04-03-2019, 08:12 AM
  #8
Senior Member
Thread Starter

Join Date: May 2008
Location: Jacksonville Beach
Posts: 146
Received 10 Likes on 4 Posts
Default

I actually need one of these too! The other side of the attachment site will be this hinge.

Last edited by pat8839; 04-03-2019 at 09:26 AM.
Old 04-09-2019, 05:46 AM
  #9
Senior Member

Join Date: Apr 2008
Location: Orange Beach and Jaqcksonville AL
Posts: 289
Likes: 0
Received 5 Likes on 4 Posts
Default

Originally Posted by pat8839 View Post
I've been unable to find that one on the left that has the 2 "knuckles" on it. The one on the right I can find everywhere but even on the sailrite page I could not locate the kind with the double on it.
Did you find a vendor for the one on the left? I need one in 1inch SS
Old 04-09-2019, 06:03 AM
  #10
Senior Member
Thread Starter

Join Date: May 2008
Location: Jacksonville Beach
Posts: 146
Received 10 Likes on 4 Posts
Default

I ordered the one from unicorn stainless. They have both a 1in and 7/8in option. I just ordered it yesterday so I can't speak for how it looks in person yet.
Old 04-09-2019, 06:43 PM
  #11
Senior Member

Join Date: Apr 2008
Location: Orange Beach and Jaqcksonville AL
Posts: 289
Likes: 0
Received 5 Likes on 4 Posts
Default

VICTORY #CH3596, 1” TOP CAP FORK END.(I ordered this for my 1 in rail) from the Chandlery online
