Question About 3-Battery/One Outboard Schematic

Old 03-21-2019, 09:16 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Aug 2011
Posts: 1,497
Default Question About 3-Battery/One Outboard Schematic

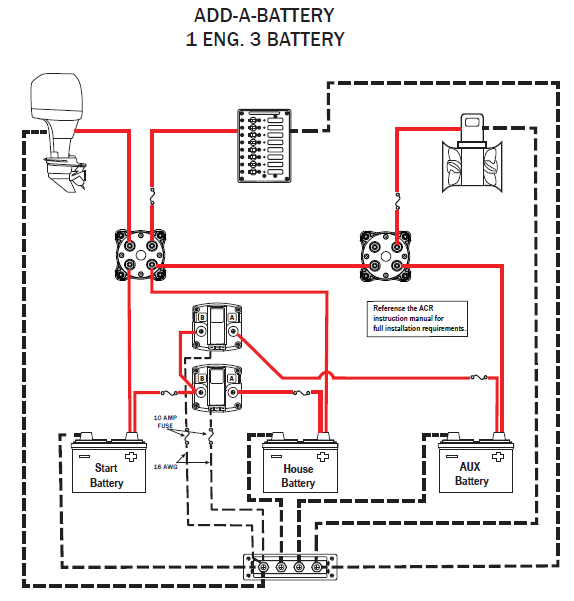

I’m presuming this is a three-bank system—-my question is regarding the battery switch on the right side of the schematic (connected to the “auxiliary” battery)

What is the reasoning behind this switch—-would it allow the “auxiliary” to be 100% isolated from the house battery and the start battery and if so, why would you want to do that?

I would like to add a battery to an existing two bank battery layout to power an electric windlass—-it appears that this schematic is how I should model the addition but I don’t quite understand that second switch—-is it necessary or just a suggested add-on?




marketic is offline
Old 03-21-2019, 09:26 AM
  #2
Senior Member

Join Date: Nov 2006
Location: Kent Island, MD
Posts: 2,105
Default

Looks like they are using the Aux. Bat. to run a high draw item (in this case a bow thruster). Having the extra switch isolates the Aux and at the same time allows to them to tie in the House Bat if needed. Looks like a good option to me.
mikie is offline
Old 03-21-2019, 10:18 AM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Aug 2011
Posts: 1,497
Default

The way this is wired makes it a true “3 bank system”, correct? I have a flooded starter and a flooded house as a 2 bank system (single outboard). I have a brand new AGM I‘d like to use for my windless —-it seems like using this schematic, with the option to isolate the AGM from the starter and house, would make sense? Thanks again for the comments
marketic is offline
Old 03-21-2019, 10:47 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jan 2005
Location: SC
Posts: 11,455
Default

Originally Posted by marketic View Post
The way this is wired makes it a true “3 bank system”, correct? I have a flooded starter and a flooded house as a 2 bank system (single outboard). I have a brand new AGM I‘d like to use for my windless —-it seems like using this schematic, with the option to isolate the AGM from the starter and house, would make sense? Thanks again for the comments
Correct.

Are you running an on board multi bank charger? If so, I would hook the ACR leads up to the load side of the battery switches vs the battery side. This will keep the ACR's from activating when the switches are off, and the chargers on, and allow each bank to charge property according to their specific battery profile. If not running a charger, follow as is. The other option to accomplish the same thing would be to switch your grounds going to the ACR.

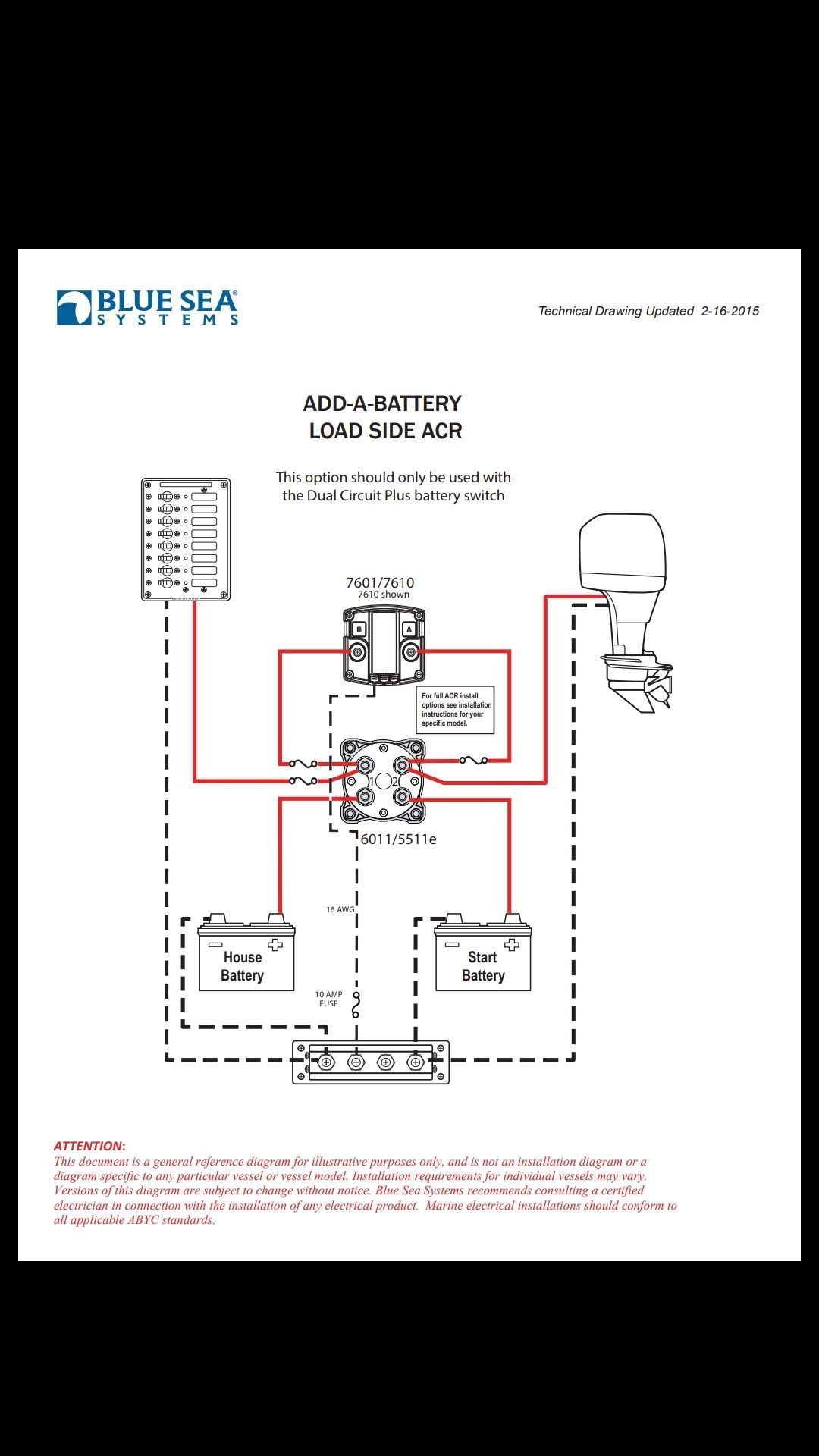

This is the diagram for what I'm talking about, minus the 3'rd bank. It's an approved wiring schematic from blue seas.

autobaun70 is offline
