Should this anode be replaced? (pic)

Notices
Like Tree9Likes

Should this anode be replaced? (pic)

Old 03-15-2019, 09:49 AM
  #1
Senior Member
Thread Starter

Join Date: Jul 2015
Location: SW FL
Posts: 464
Default Should this anode be replaced? (pic)

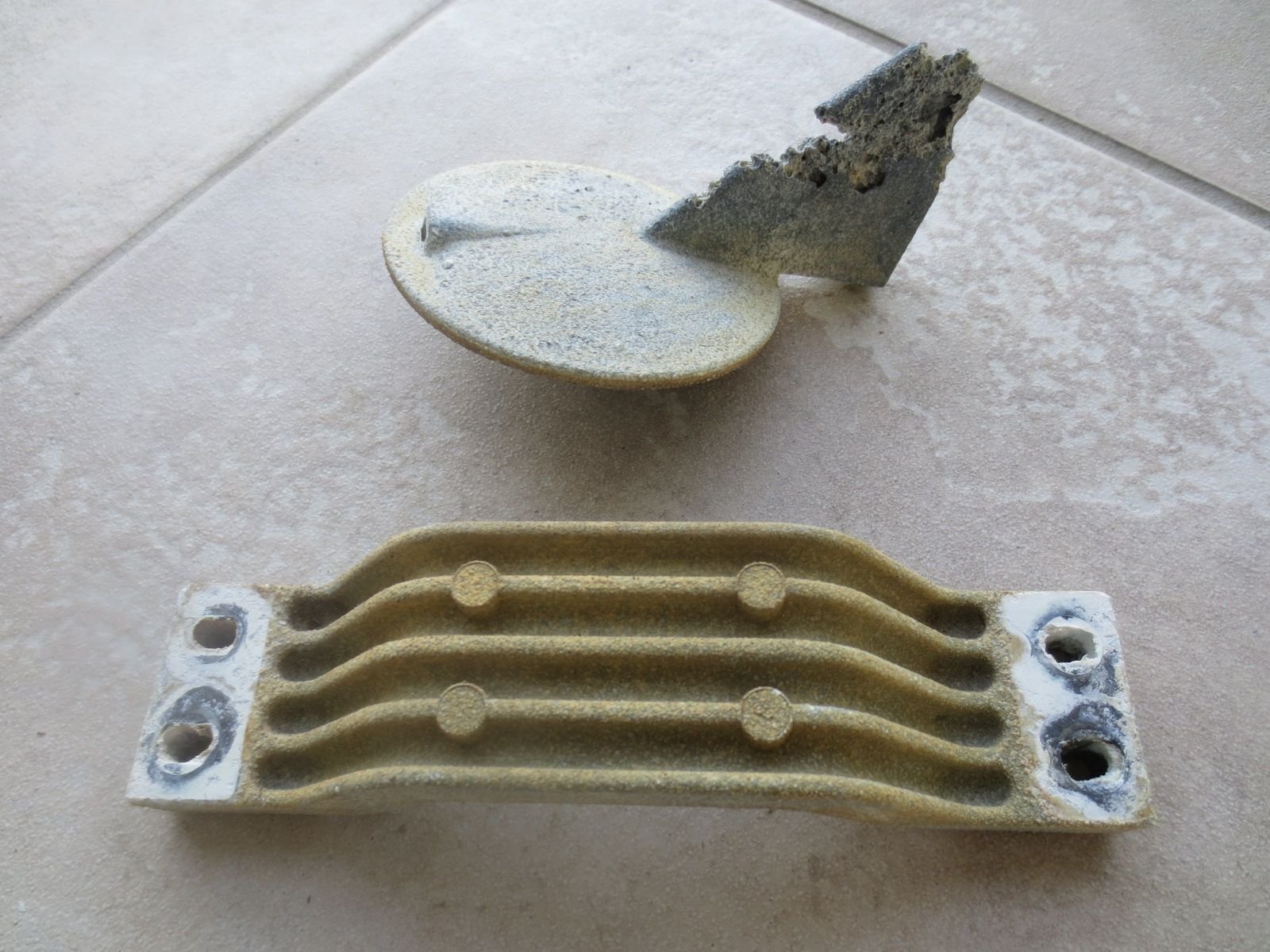

These are my bracket anode and trim tab anode after 2.5 years and 850 running hours in salt water. Strangely, the only wear is where the tab anode hits the water while running. My mechanic said that bracket anode should be replaced when it has that light brown coating because it becomes ineffective and that it wouldn't help to sand or grind it. But it had that coating after the first 100 hours, so I don't understand. Is the bracket anode working, not working after the brown coating, or is there so little potential corrosion that it hasn't worn down yet?
dove72 is offline
Old 03-15-2019, 09:58 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Sep 2008
Location: Satellite Beach, FL
Posts: 1,314
Default

Replace them. Cheap insurance. You already have half the work done since they're off the boat!
ChrisW21 is offline
Old 03-15-2019, 10:00 AM
  #3
Admirals Club Admiral's Club Member

Join Date: Aug 2014
Location: Coastal GA
Posts: 1,869
Default

Try soaking the larger anode in a 50/50 mixture of vinegar and water. If it cleans up, put it back on.
Ric232 is offline
Old 03-15-2019, 10:10 AM
  #4
Senior Member
Thread Starter

Join Date: Jul 2015
Location: SW FL
Posts: 464
Default

We did replace them, but I'm trying to understand if the bracket anode will eventually wear, or whether the light brown coating renders it ineffective. Good idea about the vinegar.
dove72 is offline
Old 03-15-2019, 10:16 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Oct 2017
Posts: 350
Default

It looks like that coating is definitely preventing it from working to me.
Lee Majors is offline
Old 03-15-2019, 10:18 AM
  #6
Senior Member
Thread Starter

Join Date: Jul 2015
Location: SW FL
Posts: 464
Default

By the way, the engine is a 2016 Yamaha 150. Also, my Lenco trim tab anodes look the same as the round part of engine trim tab anode -- no material loss but with a light crusty coating. So can anodes become ineffective when they look like that without losing any material?
dove72 is offline
Old 03-15-2019, 10:21 AM
  #7
Senior MemberCaptains Club Member

Join Date: Jan 2003
Location: Charleston, SC
Posts: 2,890
Default

A mechanic I used to use would sand blast anodes that still had most of the metal left. He had a little booth in his shop and a little dusting and they'd clean right up. He was on a fresh water lake, though, and proper anodes weren't as critical as salt water use.
bobheff1 likes this.
coastboater is offline
Old 03-15-2019, 10:45 AM
  #8
Senior MemberCaptains Club Member

Join Date: Jun 2003
Location: Charlotte / Southport
Posts: 3,328
Default

Be sure you have the right material anode ... and don't mix the zinc and aluminum
Weekend-Hooker is offline
Old 03-15-2019, 11:18 AM
  #9
Senior MemberCaptains Club Member

Join Date: Oct 2004
Location: Ocean City, NJ
Posts: 1,898
Default

Yes it should be replaced. As you can see around the mounting holes, it has degraded similar to the trim tab. In addition, under the brown stain you can see the metal is degraded and no longer smooth like a new Zinc. I can't say I ever seen a completely degraded bracket anode (like the trim anode degradation). Most are usually in even better shape than yours when I've replaced them. As other's have said, cheap insurance. Really cheap insurance when you consider the alternative.
cobraarvey is offline
Old 03-15-2019, 11:22 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Location: California North Coast
Posts: 306
Default

Bob at BoatZincs.com is really friendly and helpful. He's eager to chat about your particular situation and give guidence when it comes to anodes. Especially what type depending on your set up and the water it sits in.
ReelTime3979 is offline
Old 03-15-2019, 11:24 AM
  #11
Junior Member

Join Date: Mar 2019
Location: Scarborough Maine
Posts: 11
Default

If there off, replace them. As others have said its cheap insurance
thedoghouse is offline
Old 03-15-2019, 11:44 AM
  #12
Senior Member

Join Date: Feb 2017
Posts: 259
Default

Don't forget about the internal ones as well.
mitch123 likes this.
4thFin is offline
Old 03-15-2019, 02:59 PM
  #13
Senior Member
Thread Starter

Join Date: Jul 2015
Location: SW FL
Posts: 464
Default Wow!

Check this out. I put the anode half ways into a can of 50% vinegar for a few hours. Good as new??





Esuomm1 and WRRice like this.
dove72 is offline
Old 03-15-2019, 03:04 PM
  #14
Senior Member

Join Date: Sep 2012
Location: Naples, Florida
Posts: 732
Default

Originally Posted by dove72 View Post
Check this out. I put the anode half ways into a can of 50% vinegar for a few hours. Good as new??


Good enough that i would use it. Some here would disagree. I am a nerd and weigh them before I put them on, and at 50% weight reduction I replace them. that looks like you have way over 50% left.
EMC Pursuit is offline
Old 03-15-2019, 03:35 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Aug 2014
Location: Coastal GA
Posts: 1,869
Default

Originally Posted by EMC Pursuit View Post
Good enough that i would use it. Some here would disagree. I am a nerd and weigh them before I put them on, and at 50% weight reduction I replace them. that looks like you have way over 50% left.
Yeah, thatís why I suggested the vinegar. Looks like very little material is missing. I agree that new ones are cheap insurance. I just hate needlessly wasting money.
Ric232 is offline
Old 03-15-2019, 03:38 PM
  #16
Senior Member
Thread Starter

Join Date: Jul 2015
Location: SW FL
Posts: 464
Default

Now I plan to take off my Lenco trim tab anodes and soak them too. Also makes me want to run vinegar through my whole cooling system
dove72 is offline
Old 03-15-2019, 03:40 PM
  #17
Admirals Club Admiral's Club Member

Join Date: Aug 2014
Location: Coastal GA
Posts: 1,869
Default

Originally Posted by dove72 View Post
Check this out. I put the anode half ways into a can of 50% vinegar for a few hours. Good as new??


Careful or youíll end up like me . . . trying vinegar on everything. One tip: Itís not good for enemas.
Ric232 is offline
Old 03-15-2019, 03:51 PM
  #18
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 6,865
Default

I would ohm your anodes to ground on the motor to make sure itís a clean circuit. The bracket anode doesnít seem to be working. You may need a ground wire from the bracket to engine. The mating surface must be clean of paint and corrosion for a good bond.
Dacman is offline
Old 03-15-2019, 03:55 PM
  #19
Admirals Club Admiral's Club Member

Join Date: Oct 2012
Posts: 849
Default

100% replace it.
Another Distraction is offline
Old 03-15-2019, 04:05 PM
  #20
Senior Member
Thread Starter

Join Date: Jul 2015
Location: SW FL
Posts: 464
Default

Originally Posted by Dacman View Post
I would ohm your anodes to ground on the motor to make sure itís a clean circuit. The bracket anode doesnít seem to be working. You may need a ground wire from the bracket to engine. The mating surface must be clean of paint and corrosion for a good bond.
I just checked and there is actually a ground wire already installed on the bracket anode to a screw on the engine. But good idea to test for ground just the same, both now and after it gets another brown coating. If there's a good ground and exposed metal, I'd have to assume it's working.
dove72 is offline
