How did you deal with gap under TM quick release plate

Notices
Like Tree6Likes
  • 1 Post By Bailey Boat
  • 2 Post By rbhankins001
  • 2 Post By acme54321
  • 1 Post By VaporTrail1

How did you deal with gap under TM quick release plate

Old 03-12-2019, 10:18 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2015
Posts: 668
Default How did you deal with gap under TM quick release plate

I'm getting ready to mount a Minn Kota Terrova with an RTA-54 heavy duty QR plate and the area under the plate is curved so two opposite corners have a gap of 1/8 to 3/16". I've googled and searched here for every term you can think of and can't find anywhere that anyone has explained what they've done successfully. I though about grinding the bottom away until it fits the curve. I've seen pictures of washers underneath but then there is no contact. What works?

Last edited by VaporTrail1; 03-13-2019 at 05:37 AM.
VaporTrail1 is offline
Old 03-12-2019, 12:07 PM
  #2
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2004
Location:
Posts: 6,872
Default

If it were me...... I'd use a piece of 3/4" Starboard and contour the bottom to fit the boats contours and leave the top flat to mount the QR plate......
BCPD199 likes this.
Bailey Boat is offline
Old 03-12-2019, 12:22 PM
  #3
Junior Member

Join Date: Apr 2011
Location: ORLANDO
Posts: 13
Default

1/2 starboard beveled 1/2 aluminum 1/2 starboard beveled
Nat55611 is offline
Old 03-13-2019, 03:01 AM
  #4
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Apr 2013
Location: Baton Rouge, LA
Posts: 4,543
Default

Can you provide pictures? Sounds like some sanding/grinding is in your future.
davidwademarine is offline
Old 03-13-2019, 05:28 AM
  #5
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2015
Posts: 668
Default


VaporTrail1 is offline
Old 03-13-2019, 05:30 AM
  #6
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2015
Posts: 668
Default

It’s not much but it needs to be dealt with. This is the large outside plate but the puck looks the same. If I tightened it down with four bolts right now it would pull the holes out of alignment and the stainless rods wouldn’t go through
VaporTrail1 is offline
Old 03-13-2019, 05:39 AM
  #7
Senior Member

Join Date: Oct 2009
Posts: 9,087
Default

Oh man that's frustrating.
N2theblue is offline
Old 03-13-2019, 05:54 AM
  #8
Senior MemberCaptains Club Member

Join Date: Nov 2005
Location: cape coral, fl
Posts: 5,430
Default

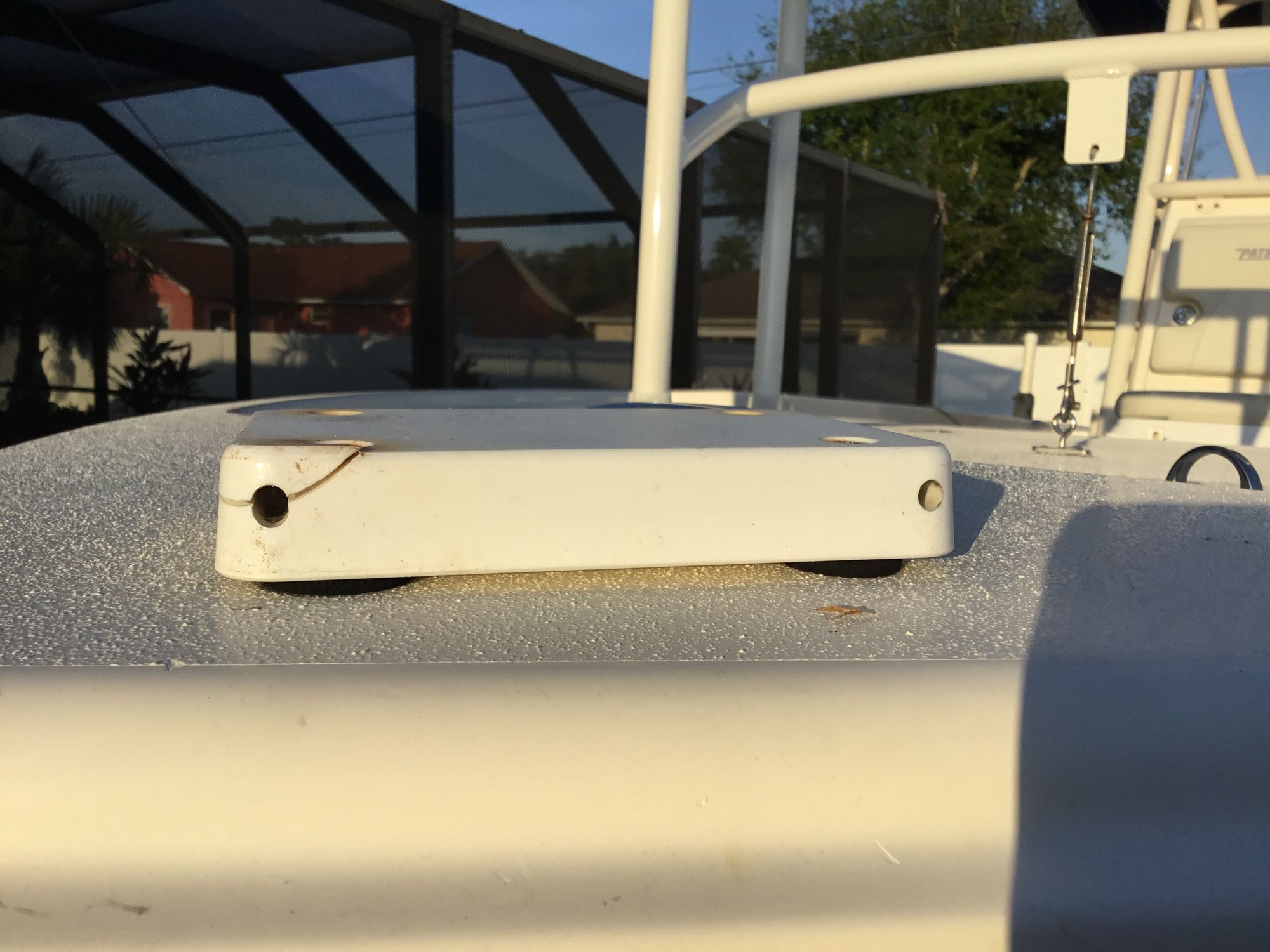

They used hard washers to slightly raise the puck and snugged tight to not distort the puck with nylocs. It works just fine however they used the wrong mount for my motor. I will have to redo this mount the same way they have done it.


bsh102 is offline
Old 03-13-2019, 06:12 AM
  #9
Senior Member

Join Date: Oct 2009
Posts: 9,087
Default

I think I would use softish rubber spacers, personally.

Bumpers on this page
https://www.mcmaster.com/rubber

Or the leveling washers here
https://www.mcmaster.com/standard-washers
N2theblue is offline
Old 03-13-2019, 06:14 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Location: Margate NJ Barnegat light NJ
Posts: 460
Default

Originally Posted by Bailey Boat View Post
If it were me...... I'd use a piece of 3/4" Starboard and contour the bottom to fit the boats contours and leave the top flat to mount the QR plate......
This is exactly what my boat has done, it fits perfectly and tight.
jbros198 is offline
Old 03-13-2019, 06:17 AM
  #11
Senior MemberCaptains Club Member

Join Date: Nov 2005
Location: cape coral, fl
Posts: 5,430
Default

I did not really know how to exactly describe the material by typing. They are very firm but they do flex and squash down once tightened. On my Sterling someone used hard plastic washers and it wore the imprint of the washer into the gel coat.
bsh102 is offline
Old 03-13-2019, 02:21 PM
  #12
Senior Member

Join Date: Mar 2015
Posts: 339
Default

Would it distort the puck if its tightened down all the way as is? If not just use some white caulking like 4200 to fill the gap and hide it.
ole_blue is offline
Old 03-13-2019, 03:14 PM
  #13
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Dec 2006
Location: At the floaters . . .
Posts: 9,284
Default

scribe the base

sand it to the scribe line

done and done
rblochli and VaporTrail1 like this.
rbhankins001 is offline
Old 03-13-2019, 07:10 PM
  #14
Senior Member

Join Date: Dec 2014
Location: Daphne, AL
Posts: 311
Default

Ditch the QR plate. The trolling motor is too useful to ever come off the boat. Albany County Fastners sells ss torx security screws to replace the side panel and mounting bolts
bigtiny is offline
Old 03-13-2019, 07:12 PM
  #15
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2015
Posts: 668
Default

Sorry, not an option for me
VaporTrail1 is offline
Old 03-13-2019, 07:18 PM
  #16
Senior Member

Join Date: Apr 2010
Location: Jax, FL
Posts: 1,650
Default

Originally Posted by bigtiny View Post
Ditch the QR plate. The trolling motor is too useful to ever come off the boat. Albany County Fastners sells ss torx security screws to replace the side panel and mounting bolts
Pretty much everyone I know takes theirs off when covering/storing their boat. IMO there's no good reason NOT to use the quick release.
N2theblue and SHE GONE like this.
acme54321 is offline
Old 03-14-2019, 05:31 PM
  #17
Senior Member

Join Date: Jul 2015
Location: SW FL
Posts: 462
Default

Originally Posted by rbhankins001 View Post
scribe the base sand it to the scribe line done and done
I don't understand your suggestion. How do you mark it so you know exactly how much to sand and where?
dove72 is offline
Old 03-14-2019, 05:55 PM
  #18
Admirals Club Admiral's Club Member

Join Date: Nov 2015
Location: Athens Ga
Posts: 35
Default

I used an aluminum piece under mine to through bolt it.
LBAYERS is offline
Old 03-14-2019, 06:02 PM
  #19
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2015
Posts: 668
Default

Originally Posted by dove72 View Post
I don't understand your suggestion. How do you mark it so you know exactly how much to sand and where?
What you do is get the plate where it goes then find the largest gap to deal with. Find a spacer that high and hold it exactly vertical. Work your way around the whole plate marking the top of the spacer you have and it will follow the contour you need grind out. If you use a scribe it will be more accurate than a marker. The more care you are the better it will turn out. This would only work if you have a small gap or you would take too much away. I’d say a 1/4” or less.
VaporTrail1 is offline
Old 03-14-2019, 06:06 PM
  #20
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2015
Posts: 668
Default

I haven’t decided if I’m going to do this or use washers. To do it right you take the boat out and put a degree level on the deck while floating. When you get it back on the trailer at home you can set the same pitch with the trailer jack and then adjust the QR plate to get the motor shaft plumbed vertical. A lot of people don’t do this and the motor is pointing a weird direction
N2theblue likes this.
VaporTrail1 is offline
