Wiring schematic questions/advice please

Notices
Like Tree12Likes

Wiring schematic questions/advice please

Old 03-10-2019, 01:02 PM
  #21
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 6,737
Default

I would wire the livewell lights to a different circuit than the pump run wire , like the anchor light switch or a dedicated one. You’ll not need it to be on except when the anchor light is on at least.
The bilge pumps, I like an over ride switch to bypass the float switches for a manual run. Ive had a float switch fail open and bypass switch came in handy.
I use a three way auto off on switch on mine but you could leave the float switches wired straight to the house battery and still install a manual run switch.

Just my thoughts.
Surf_spearMex likes this.

Last edited by Dacman; 03-10-2019 at 01:10 PM.
Dacman is offline
Old 03-10-2019, 07:50 PM
  #22
Admirals Club Admiral's Club Member

Join Date: Jan 2018
Location: Central Mass
Posts: 61
Default

I am confused by running the negative from the starting battery to the negative bus bar and running the return from the engine back through it. Unless I am missing something you have tied the negatives of the batteries together but not the positives. I'll ask my DC engineer but I always thought this was frowned on. I may be off in this, but I'd run the return from that engine right back to the battery and not through the negative bus bar.

Great job on documenting all of this, will make life so much easier later when you are trouble shooting future issues. Very well thought out as well. Good luck with your build.
Surf_spearMex likes this.
HughJazz is offline
Old 03-11-2019, 06:58 AM
  #23
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

Originally Posted by Dacman View Post
I would wire the livewell lights to a different circuit than the pump run wire , like the anchor light switch or a dedicated one. You’ll not need it to be on except when the anchor light is on at least.
The bilge pumps, I like an over ride switch to bypass the float switches for a manual run. Ive had a float switch fail open and bypass switch came in handy.
I use a three way auto off on switch on mine but you could leave the float switches wired straight to the house battery and still install a manual run switch.

Just my thoughts.
That is exactly how I will do it I just made a few goofs on the drawing. I'll be using on/off rockers in unison with float switches direct to battery (fused of course)
Surf_spearMex is offline
Old 03-11-2019, 07:01 AM
  #24
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

Originally Posted by HughJazz View Post
I am confused by running the negative from the starting battery to the negative bus bar and running the return from the engine back through it. Unless I am missing something you have tied the negatives of the batteries together but not the positives. I'll ask my DC engineer but I always thought this was frowned on. I may be off in this, but I'd run the return from that engine right back to the battery and not through the negative bus bar.

Great job on documenting all of this, will make life so much easier later when you are trouble shooting future issues. Very well thought out as well. Good luck with your build.

Please do ask him as I was boggled by it too however that is exactly how blue sea recommends setting up with m-acr and 4 post battery switch. Here is the diagram


Surf_spearMex is offline
Old 03-11-2019, 07:51 AM
  #25
Senior Member

Join Date: Jul 2011
Posts: 4,790
Default

Originally Posted by HughJazz View Post
I am confused by running the negative from the starting battery to the negative bus bar and running the return from the engine back through it. Unless I am missing something you have tied the negatives of the batteries together but not the positives. I'll ask my DC engineer but I always thought this was frowned on.
Negatives of all batteries should be common - 'tied together'.
Positives are only 'tied together' when intended to be "paralleled".

But agreed, there is potential disadvantage to splitting up the main engine cranking cable
with that "100 amp bus bar".
The only model I have seen has 10-32 studs -
not the 5/16" or 3/8" typically used for main battery cables.
I'm not sure one could even find that size lug...
Surf_spearMex likes this.
Fwpratt is offline
Old 03-11-2019, 12:29 PM
  #26
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

I just returned the 100a busbar and got a 1/4" post 130a bus bar. Should I reroute negative from engine to starter battery and then common everything else to the busbar? That should take some of the load off of the busbar?
Surf_spearMex is offline
Old 03-11-2019, 12:56 PM
  #27
Senior Member

Join Date: Jul 2011
Posts: 4,790
Default

the busbar ampere rating is for "continuous" - so even the 100A is fine in that respect -
your 'cranking' amps are not 'continuous'

but you still want to get the maximum available amps / lowest voltage drop to the engine while cranking -
that's why you use 'big cable' -
and also maximize the contact surface of the terminal ends - the lugs,
and minimize the number of connections/contact surfaces.

There's no single 'right' way.

Now another factor is potentially using - in extremis - the house battery to crank.
Then you also want a "big" negative connection from the house battery back to the engine.

Are the two batteries going to be next to each other?
Personally, I would run the main engine negative directly to the cranking battery -
from there a short ("big") wire to the house battery negative
and from there another (can be smaller) cable to the negative bus.
Fwpratt is offline
Old 03-11-2019, 01:36 PM
  #28
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

Originally Posted by Fwpratt View Post
the busbar ampere rating is for "continuous" - so even the 100A is fine in that respect -
your 'cranking' amps are not 'continuous'

but you still want to get the maximum available amps / lowest voltage drop to the engine while cranking -
that's why you use 'big cable' -
and also maximize the contact surface of the terminal ends - the lugs,
and minimize the number of connections/contact surfaces.

There's no single 'right' way.

Now another factor is potentially using - in extremis - the house battery to crank.
Then you also want a "big" negative connection from the house battery back to the engine.

Are the two batteries going to be next to each other?
Personally, I would run the main engine negative directly to the cranking battery -
from there a short ("big") wire to the house battery negative
and from there another (can be smaller) cable to the negative bus.
Batteries are right next to each other in console. I'm trying to get a solid plan together but there are so many ways to skin a cat so to speak. I had my old boat wired the way you are saying and it worked great, however I had a guy come aboard and told me everything should be grounded to a bus bar and go to respective units from there. I like your way as it cleans things up and makes it simple with the busbar. One #4 to the bus bar from house battery sounds better than 4 #4's and a few #8s.

On blue sea diagrams they show everything going to bus bar so I was just going to connect dots the way they have it pictured. But in theory both ways would be completely fine...right?

Also, I have the Blu sea 4 post switch that has off/on/emergency. When you need both batteries in emergency position it paralells both for maximum cranking. Otherwise it is always set to on position. Holy cripes I've worked on huge motors for over a decade but this is making me feel like a green horn again. The huge machines I work on come assembled and can easily be diagnosed by process of elimination. This is a scratch project and I've been overthinking it....German blood.....
Surf_spearMex is offline
Old 03-11-2019, 01:59 PM
  #29
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 6,737
Default

Ja, es läuft mir auch im Blut!
Dacman is offline
Old 03-11-2019, 03:38 PM
  #30
Senior Member

Join Date: Feb 2015
Posts: 3,314
Default

Forget running engine negative/starter through bus bar and follow surfspear advice; run dedicated cable to engine with jumper between batteries negative terminals. Cable is expensive but bus bar is higher resistance and potential failure point and battery cable lug will use too much space at bus bar.
Surf_spearMex likes this.
LeakinLena is offline
Old 03-11-2019, 04:09 PM
  #31
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

Originally Posted by Dacman View Post
Ja, es läuft mir auch im Blut!
Jajaja! Deutsches Blut = mehr Arbeit!
Surf_spearMex is offline
Old 03-11-2019, 05:15 PM
  #32
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 6,737
Default

Sehr gut!
Dacman is offline
Old 03-11-2019, 05:25 PM
  #33
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 6,737
Default

Meine Mutter spricht fließend Deutsch, aber ich muss ein bisschen schummeln !
Dacman is offline
Old 03-27-2019, 11:25 AM
  #34
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

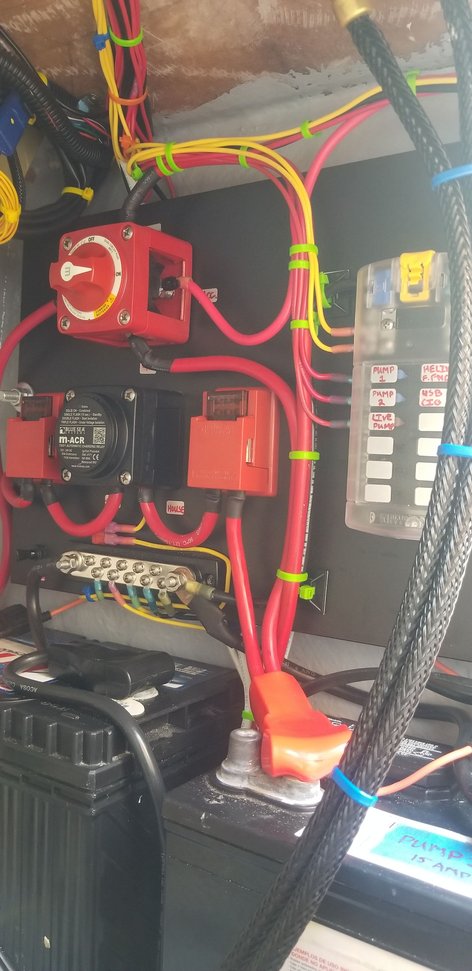

For those of you that are interested I finished wiring today with the exception of the stereo kit I am waiting on. All in all it was a learning experience and a chance at a clean install. Here are a few pics and if you have any questions ask while it is all fresh in my mind. Thank you for all the help and advice.



Still waiting on the breaker for fuse block to come in the mail as well. Will be going with blue sea 50a breaker.
Gnrphil and Dacman like this.
Surf_spearMex is offline
Old 03-27-2019, 11:33 AM
  #35
Senior Member

Join Date: Aug 2016
Location: Ohio
Posts: 1,895
Default

Looks great, nice job.
Surf_spearMex likes this.
Lookinup76 is offline
Old 03-27-2019, 02:19 PM
  #36
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 6,737
Default

Very nice!
Surf_spearMex likes this.
Dacman is offline
Old 03-27-2019, 08:57 PM
  #37
Member
Thread Starter

Join Date: Jan 2018
Posts: 67
Default

Thanks guys, it has been a fun project so far. Not cheap by any means but done correctly!
Surf_spearMex is offline
