Wellcraft 18 Fisherman Rebuild

Old 01-21-2019, 09:10 AM
  #41
Senior Member

Join Date: Sep 2005
Location:
Posts: 971
Received 824 Likes on 366 Posts
Default

One thing that especially impressed me about the boat was coming down off of waves in a following sea. That flare would throw some crazy water. Kept you pretty dry. I never considered that hull was tied in with the V-20's and 21's though.
Likes:
Old 01-21-2019, 05:11 PM
  #42
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

Originally Posted by Badmako View Post


Yes, since I made the deck go to the hull when I removed the cap, I got rid of the broken plastic rod storage and just made Fiberglas flat plates to cover the original hole. I believe I have pictures of that if you would like. Keep up the good work. The boat is totally worth it. I take mine offshore some 30 miles in the gulf. Had to put tabs on because of the 65 gallon tank I installed. Good luck.
Yea i'm interested in seeing some of your pictures. What did you do in the stern? I looks like you made some major changes. Also - what about drainage for the gunnel rod holders? Do you just cap them since any water that goes in them just gets trapped in the hull? I always wondered if those were there from the factory because it doesn't seem like a great idea.

30 miles offshore in a 18fter? I guess if you can outrun a storm @ 50mph it's not that risky haha. Well done.
Likes:
Old 01-21-2019, 06:39 PM
  #43
Senior Member

Join Date: Mar 2016
Posts: 259
Received 63 Likes on 40 Posts
Default

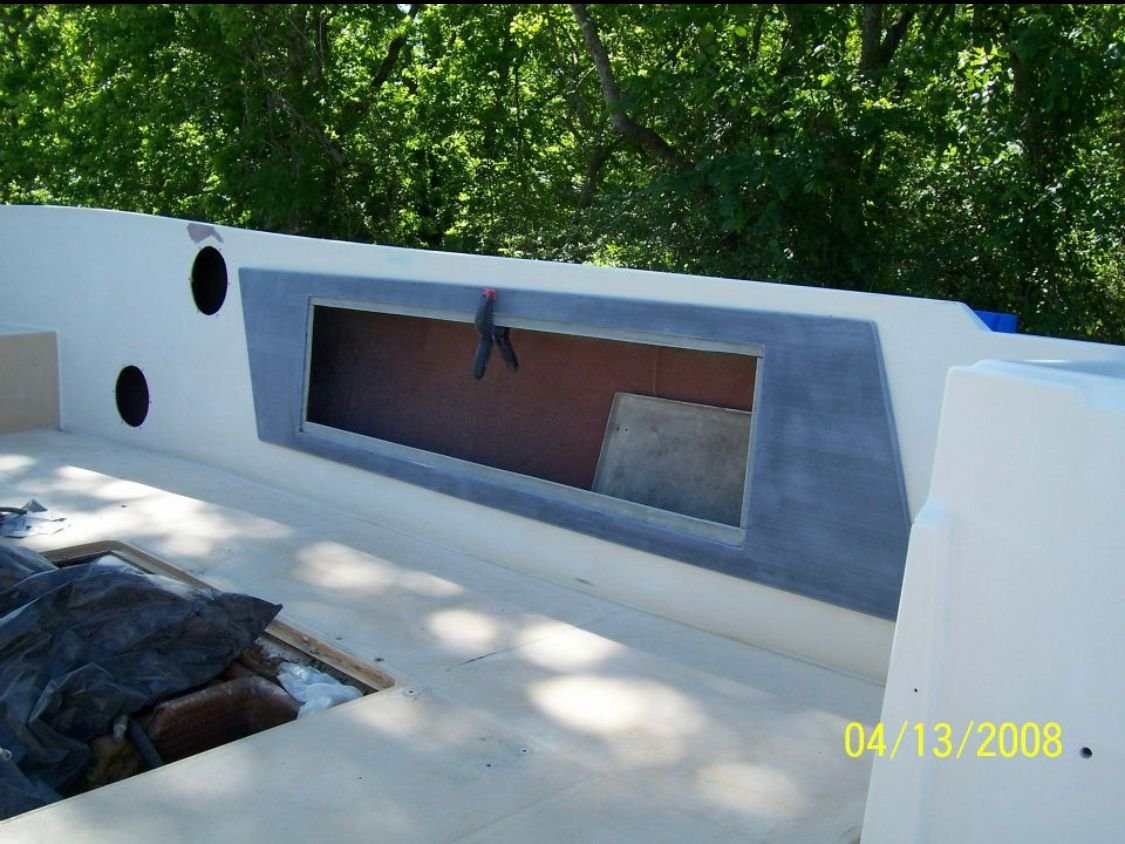

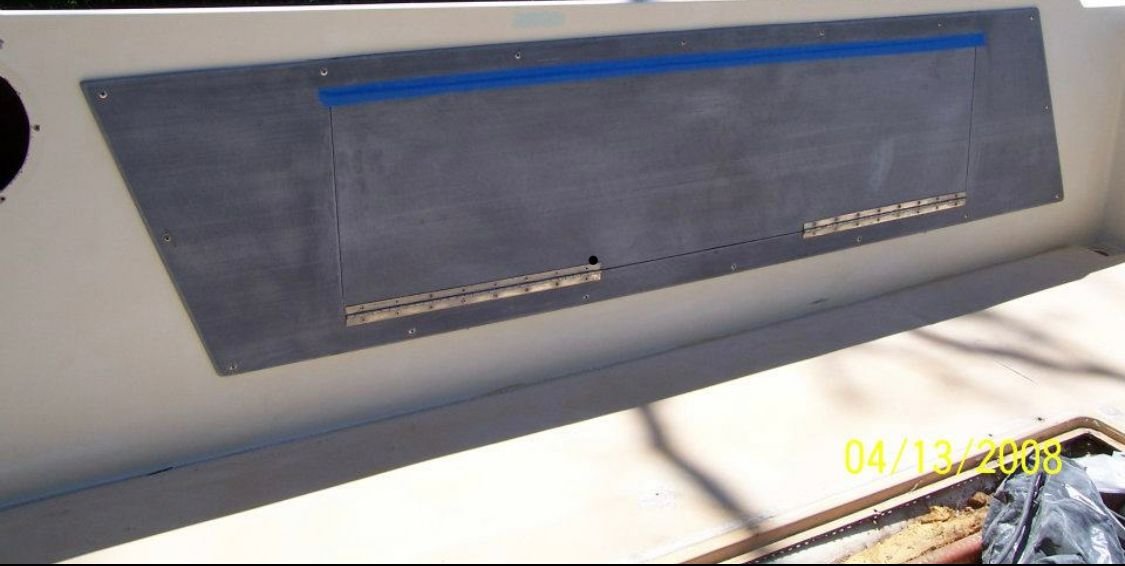

The sheet was premade 1/4Ē fiberglass cut to shape to make the rod lockers. Could have come up with a better design for the hinges but itís what I had so I used it.

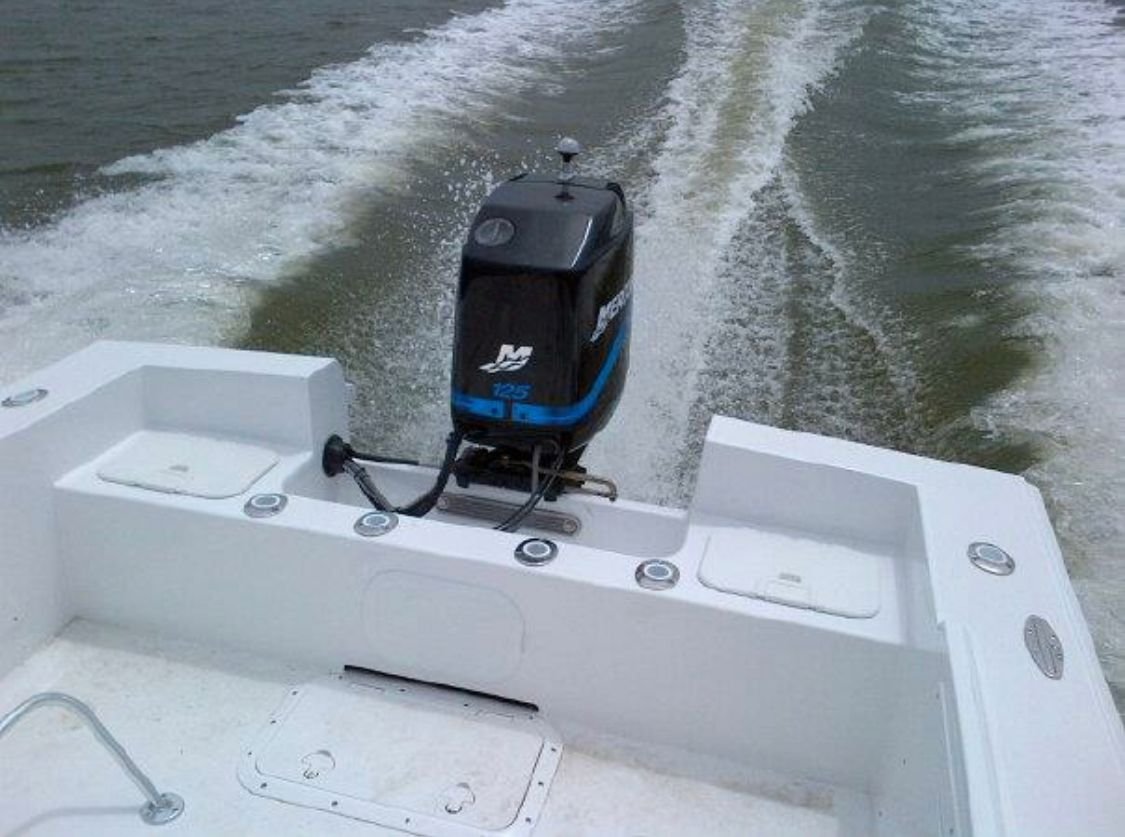

I made a mould and created a splash well so water wouldnít get in while offshore. I got rid of the self draining deck and thru holes. When I stood in the back of the boat with another person, water would begin coming In and hated it.

Access to all wire runs and cables are on the left. Rod holders in the middle made for a nice rocket launcher. Livewell on the right. Also made it for seating. Which it never had. One long drain in the middle for deck water to run to bilge. This was a trial and error and if I had to do it again, it would have been 2 drainage holes on the port and starboard sides instead. Really the only thing I regret the most.

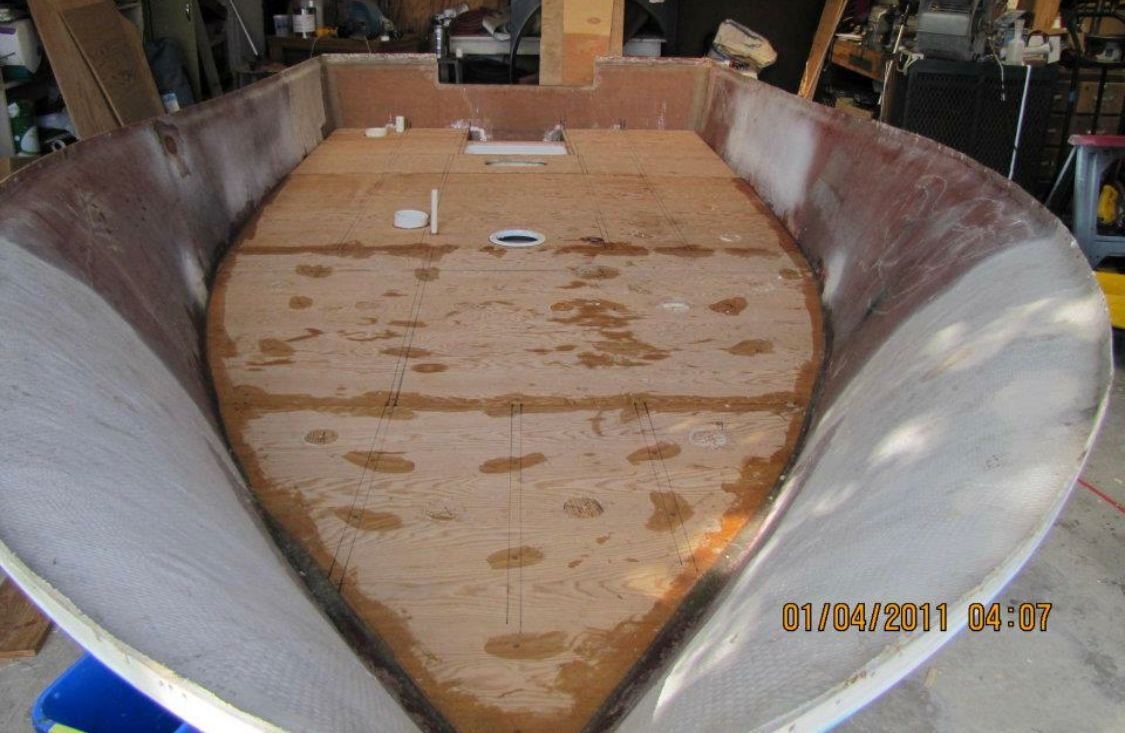

Cap removed and deck all the way to the hull. The rod holders donít have caps because the water hits the deck and travels to the bilge. No issues at all.

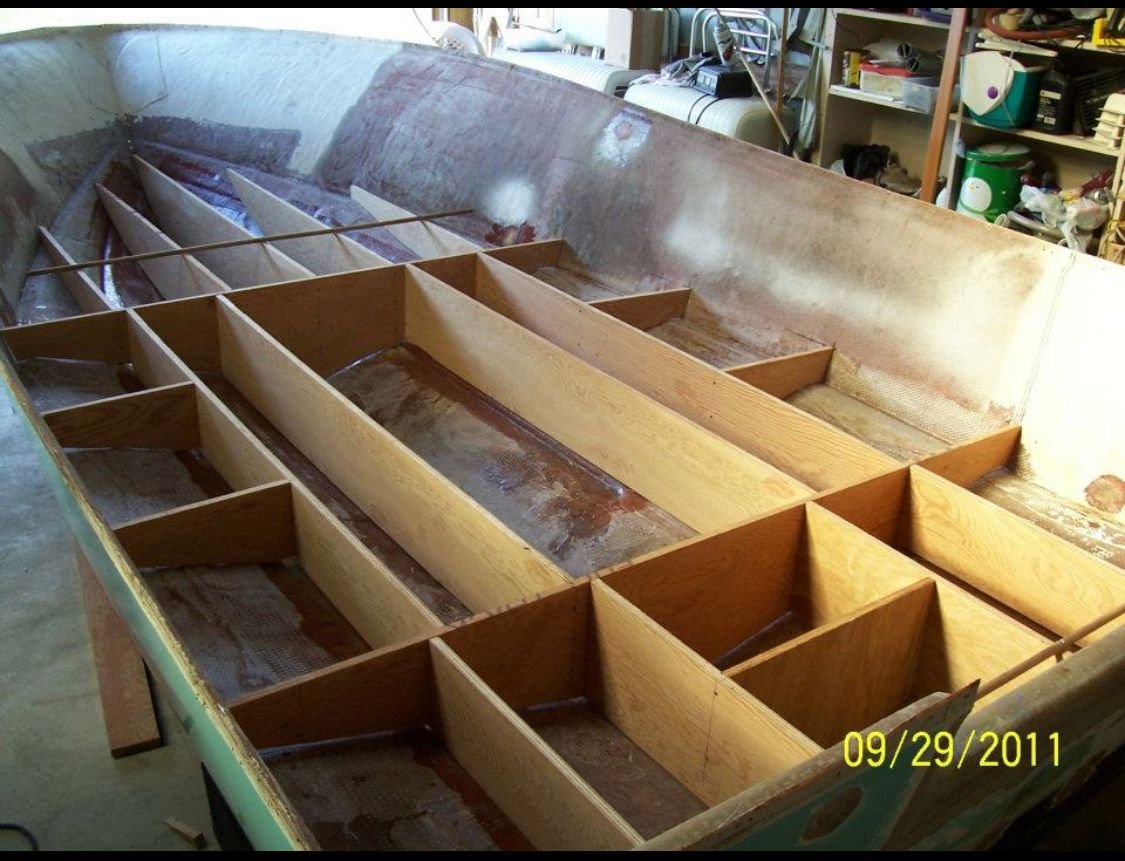

My stringers we rotten to the core. Rebuilt them from scratch marine grade Douglas fir. Completely fiberglassed and foam filled to make an unsinkable boat.

Beginning stages of the rod storage. Before I cut the deck out.
Old 01-21-2019, 06:57 PM
  #44
Senior Member

Join Date: Mar 2016
Posts: 259
Received 63 Likes on 40 Posts
Default

Oh and as far as me taking it 30 plus miles offshore? Yeah, Iím a little crazy at times. But thatís what makes life worth living. 😜
Old 01-22-2019, 12:43 PM
  #45
BTL
Senior Member

Join Date: Jan 2018
Location: Northern VA
Posts: 347
Received 455 Likes on 157 Posts
Default

Man you guys are killing me. My boat looks like junkyard scrap in comparison

Originally Posted by Badmako View Post
Oh and as far as me taking it 30 plus miles offshore? Yeah, Iím a little crazy at times. But thatís what makes life worth living. 😜
What's your top speed with that 125?
Old 01-22-2019, 12:50 PM
  #46
Senior Member

Join Date: Sep 2005
Location:
Posts: 971
Received 824 Likes on 366 Posts
Default

Had a Johnson 120 on mine. Almost hit 50, best possible conditions, flat backwater, lightly loaded, fresh VC Offshore bottom paint. I had a much smaller diameter then too.
Old 01-22-2019, 01:24 PM
  #47
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2001
Location: SE LA
Posts: 5,583
Received 514 Likes on 252 Posts
Default

This place may have replacement horizontal rod storage for you. They have all kinds of stuff.

https://www.fpmarine.com/Default.asp
Old 01-22-2019, 01:30 PM
  #48
Senior Member

Join Date: Sep 2005
Location:
Posts: 971
Received 824 Likes on 366 Posts
Default

Originally Posted by Gmack View Post
This place may have replacement horizontal rod storage for you. They have all kinds of stuff.

https://www.fpmarine.com/Default.asp
Yup - https://www.fpmarine.com/Fishing-Rod...-boxe-s/69.htm

Just wanted to quote you in case I need to find them later.
Old 01-22-2019, 01:40 PM
  #49
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

Originally Posted by Badmako View Post
Oh and as far as me taking it 30 plus miles offshore? Yeah, Iím a little crazy at times. But thatís what makes life worth living. 😜
The boat looks pretty sweet - nice work! You had to rip things apart a bit more than I did, but I really like how you carried the deck under the gunnels instead of just tying it back into the cap. I wish I had done that. The stern section looks good too. I'm a little leary of relying on a bilge pump for drainage since the boat will possibly sit unattended for weeks so I had to keep the scuppers. Lucky, they didn't seem to draw water with 2 guys back there when I had it out.
Originally Posted by Gmack View Post
This place may have replacement horizontal rod storage for you. They have all kinds of stuff.

https://www.fpmarine.com/Default.asp
Yea I think they do, but I'm going to make something myself.

Originally Posted by catch232 View Post
Had a Johnson 120 on mine. Almost hit 50, best possible conditions, flat backwater, lightly loaded, fresh VC Offshore bottom paint. I had a much smaller diameter then too.
That's much faster than I expected. Mine should move pretty good then with a 150 ocean runner.
Old 01-22-2019, 01:52 PM
  #50
Senior Member

Join Date: Sep 2005
Location:
Posts: 971
Received 824 Likes on 366 Posts
Default

Originally Posted by silverbullet87 View Post
That's much faster than I expected. Mine should move pretty good then with a 150 ocean runner.
This was back around 95. Kind of pre gps then. I had either a Loran or a fishfinder, w/paddlewheel, but I do remember having a digital display for speed. The VC Offshore bottom paint was just done by the previous owner, (I just bought the boat). That stuff really makes a difference. Later, I bottom painted with regular, salt water BP. Slowed the boat down to under 45. 150 should move that badboy really well. I'd think 50 every day.
Old 01-22-2019, 01:52 PM
  #51
Senior Member

Join Date: Mar 2016
Posts: 259
Received 63 Likes on 40 Posts
Default

Originally Posted by BTL View Post
Man you guys are killing me. My boat looks like junkyard scrap in comparison



What's your top speed with that 125?
2 people, full of gas at 65 gallons. Full of gear and what not, WOT right at 40. I cruise about 25-28. When I had the 150 it would run 55 WOT. But man did that thing suck gas. Plus, I overbuilt the boat like a tank. Itís heavier than before.
Old 05-03-2019, 09:05 AM
  #52
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

It's been a while since I last updated this project.

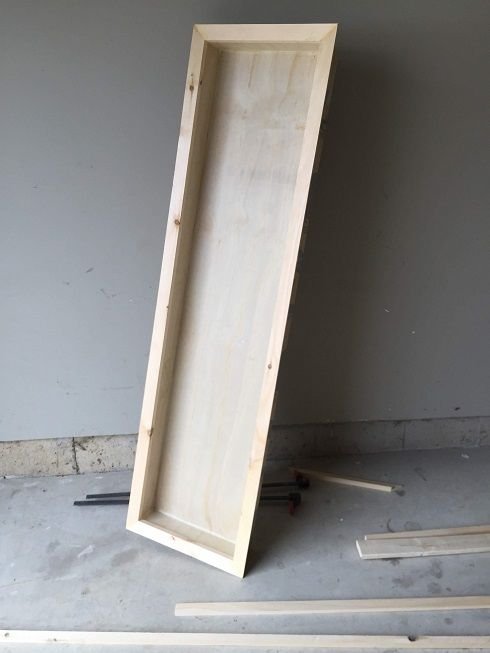

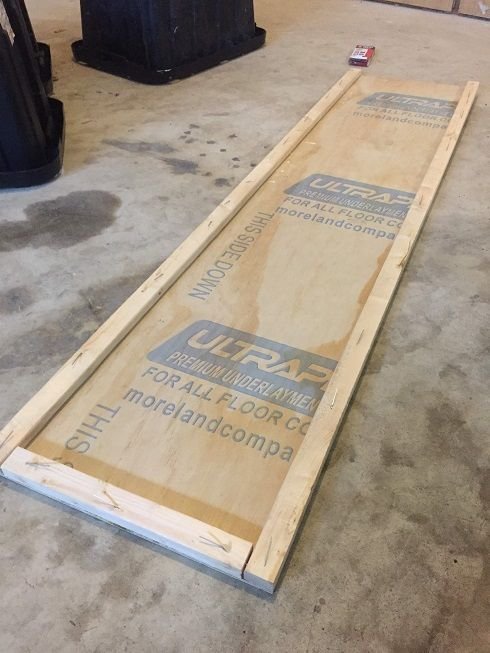

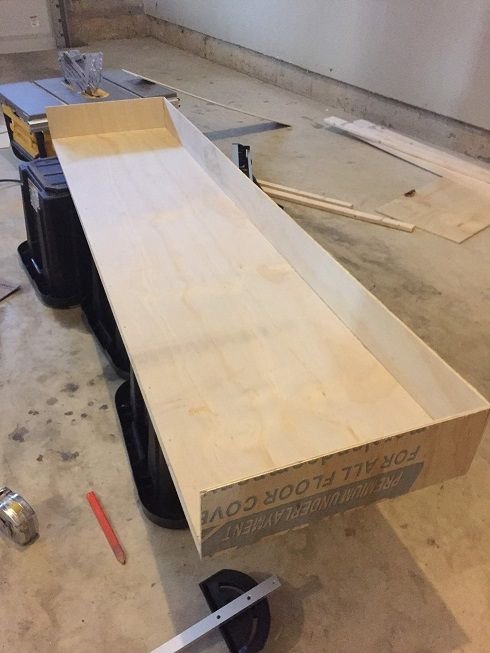

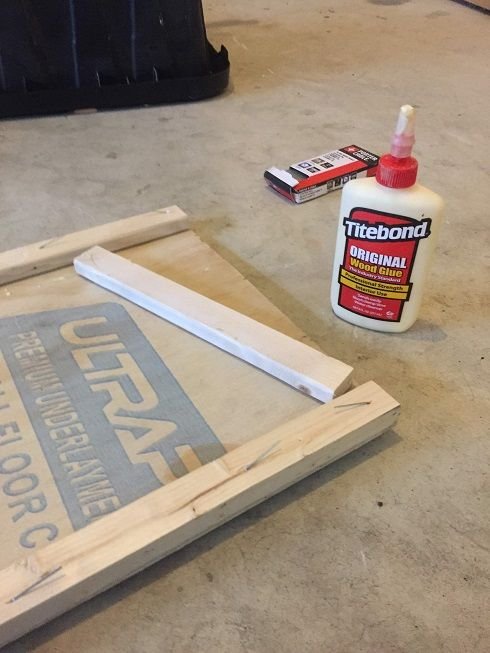

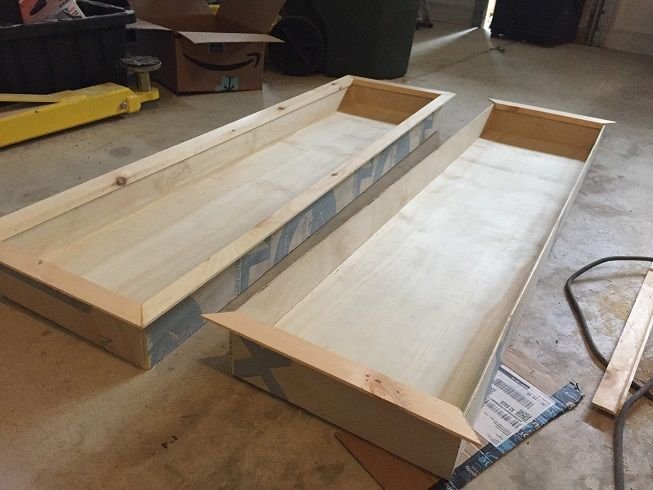

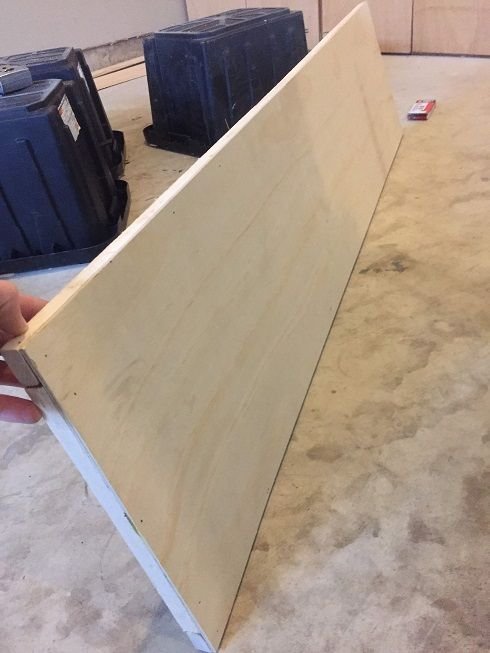

Starting to build the side panels here - I ended up not using them for rod storage. Nothing too fancy.







Painted them white like the rest of the boat but I don't seem to have any more pics of them. They turned out acceptable.



Old 05-03-2019, 09:13 AM
  #53
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

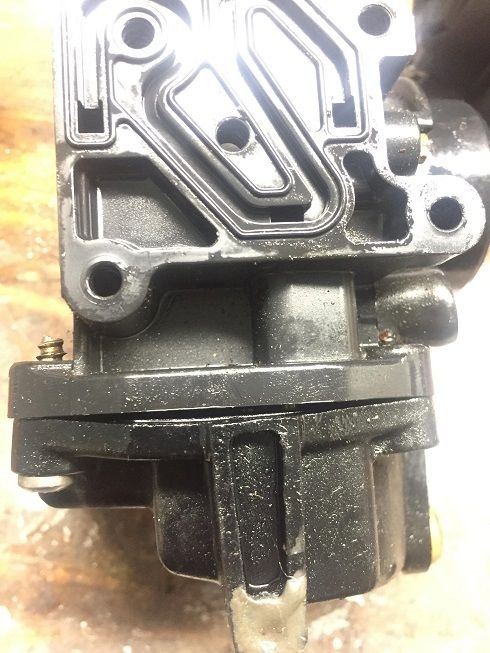

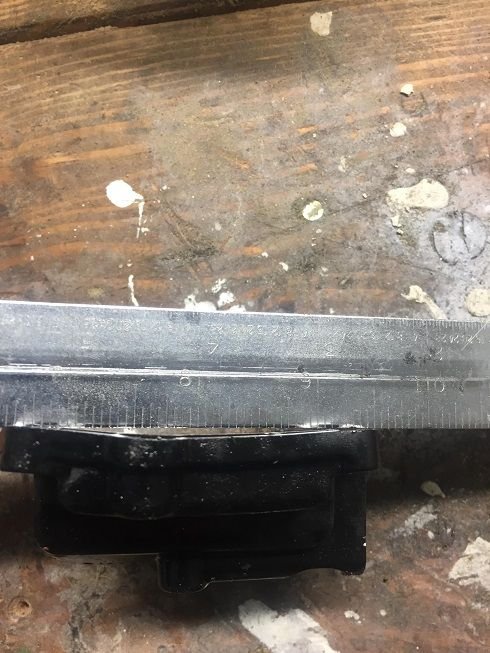

Then I rebuilt the carbs. All of the bowls were warped and needed to be replaced.


That was pretty straight forward.

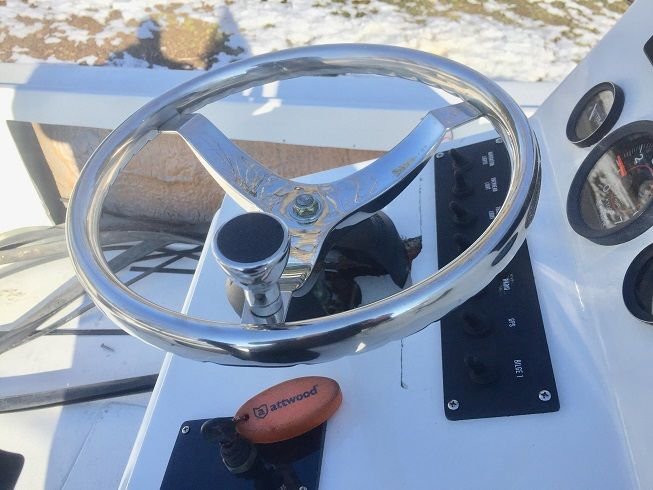

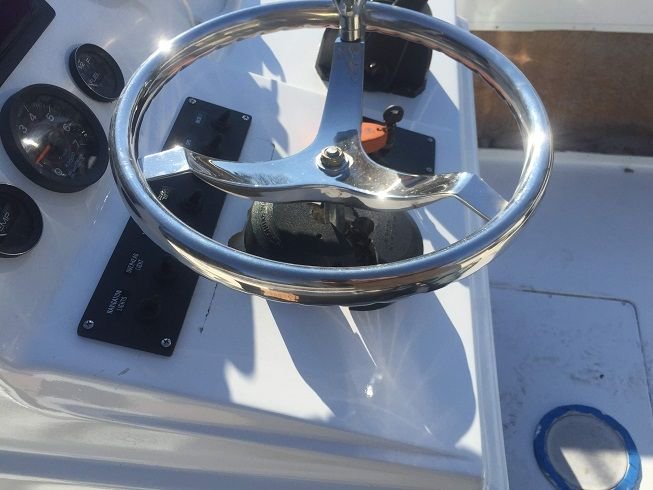

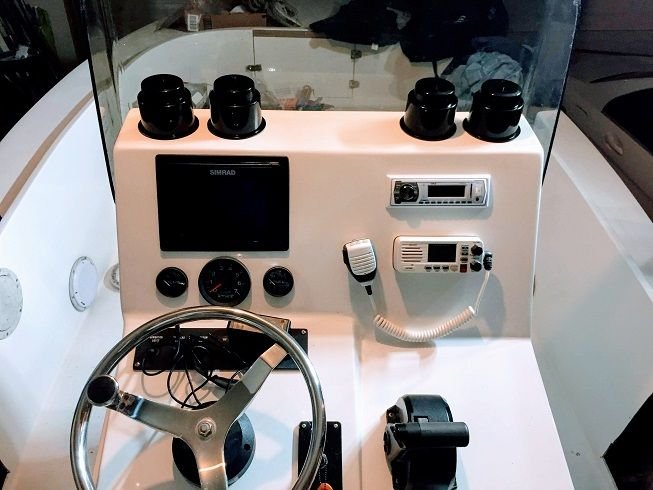

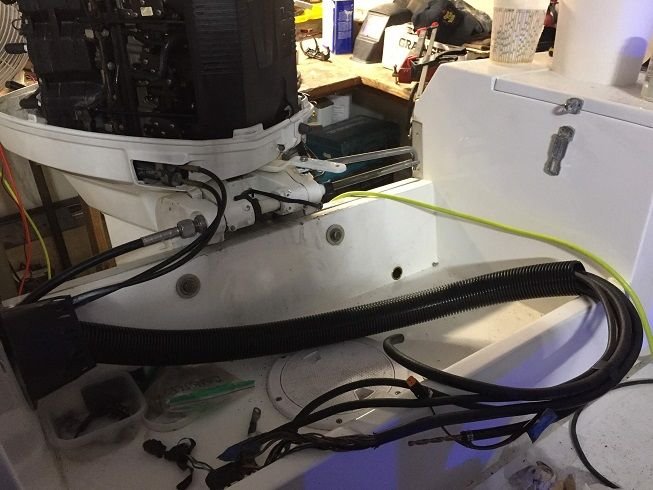

Time to finish up some rigging and add cup holders.

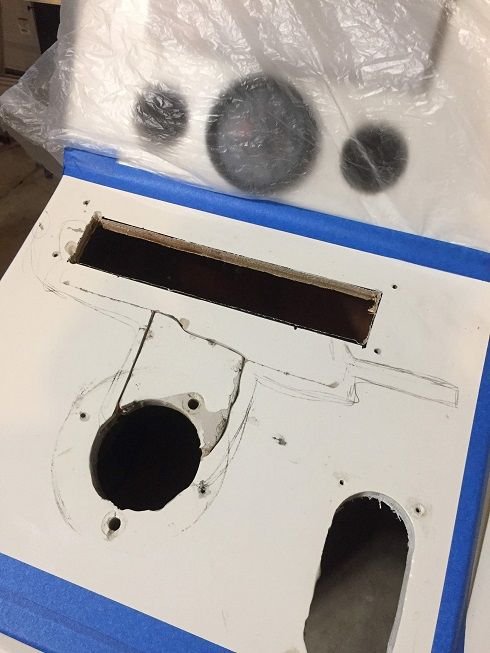

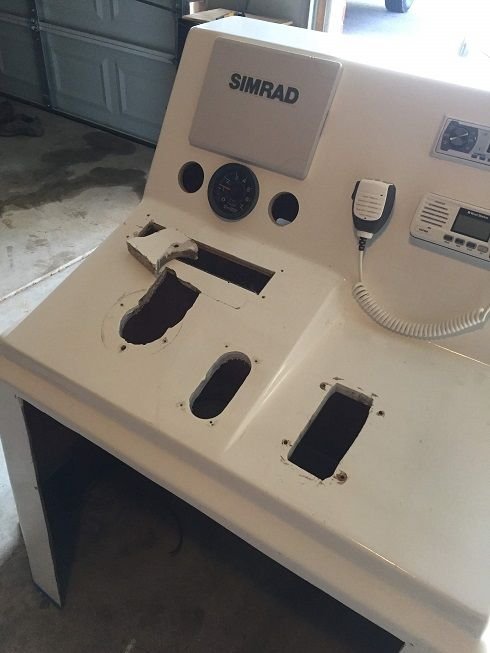

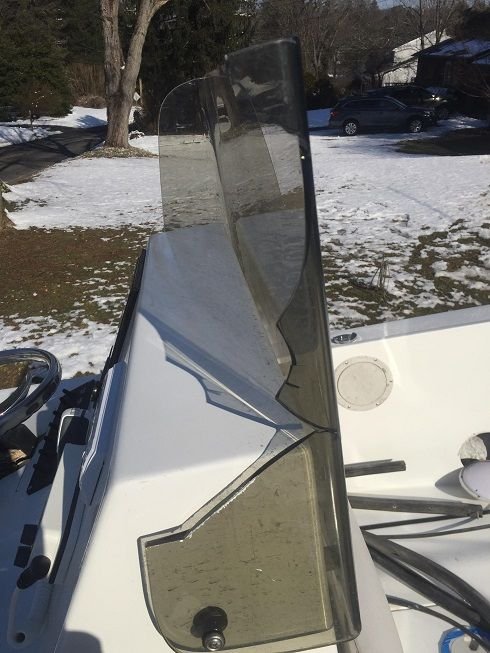

Then I hit a major setback. While trailering to install my t-top... the whole console flipped backwards smashing the steering wheel / breaking the freshly painted dash / and shattering the wind screen.

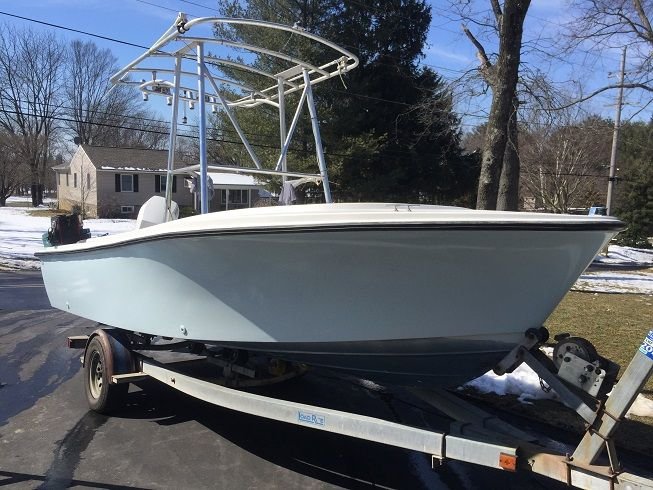

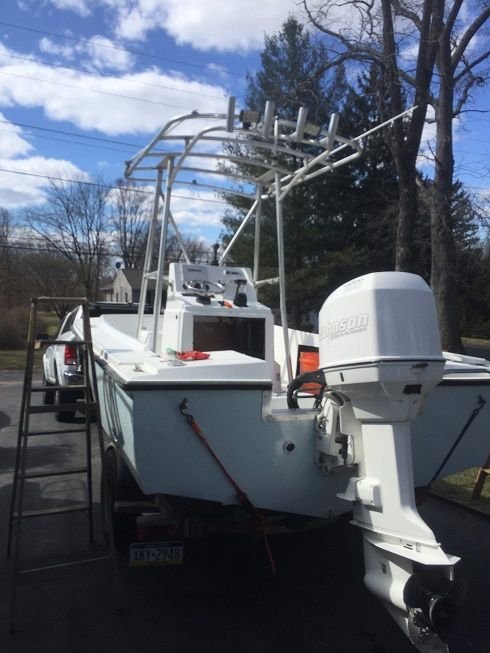

I did push forward that day and got the t-top installed.

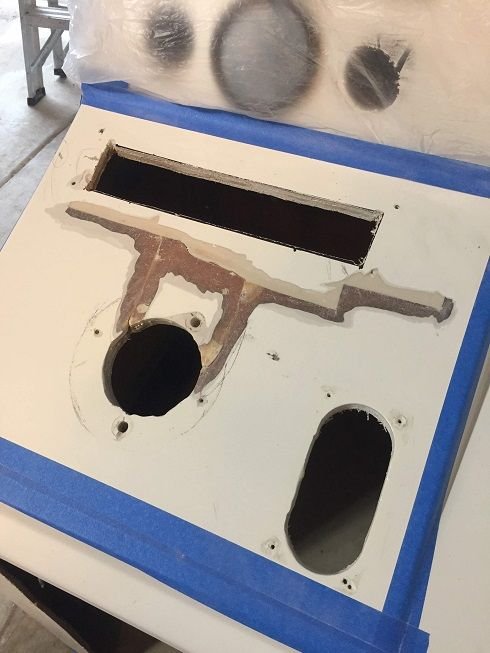

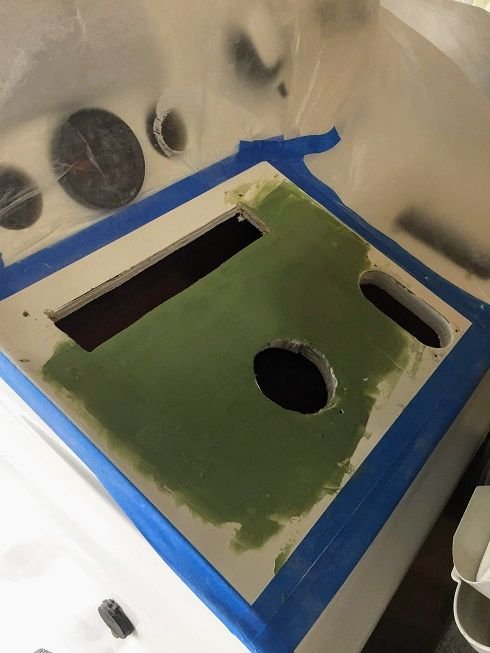

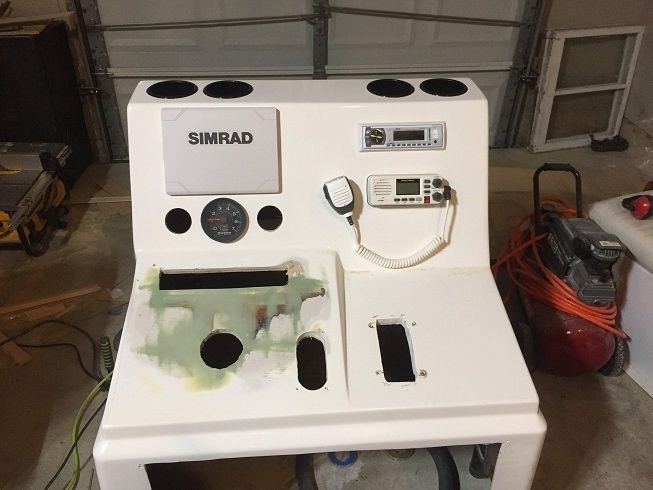

Time to start the repairs... everything comes back out.





These pictures skipped a bunch of steps (fiberglass work) I seem to rarely take pictures during the fiberglass stages because it's a sticky mess.
Old 05-03-2019, 09:20 AM
  #54
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

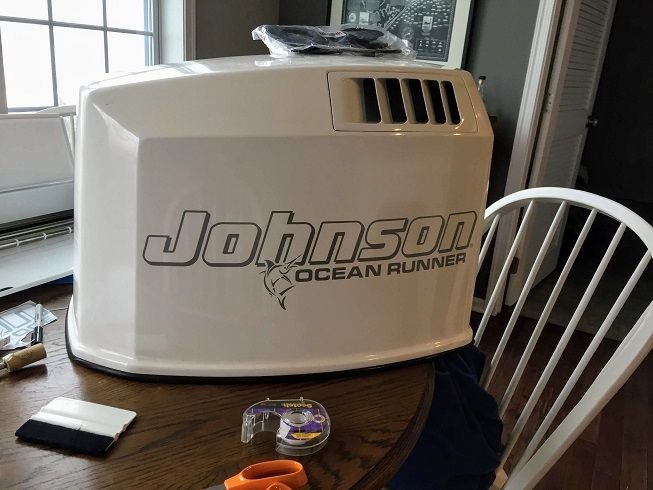

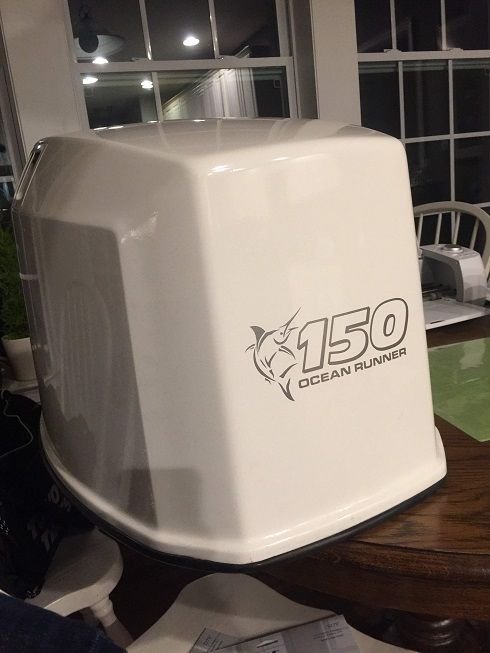

The wife made some awesome decals for the motor.

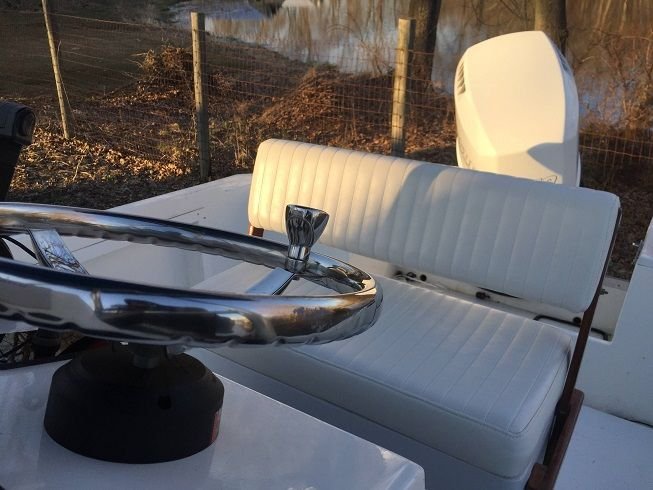

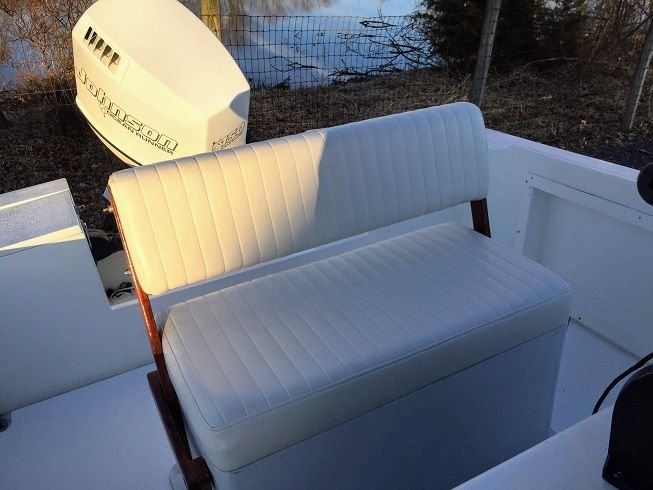

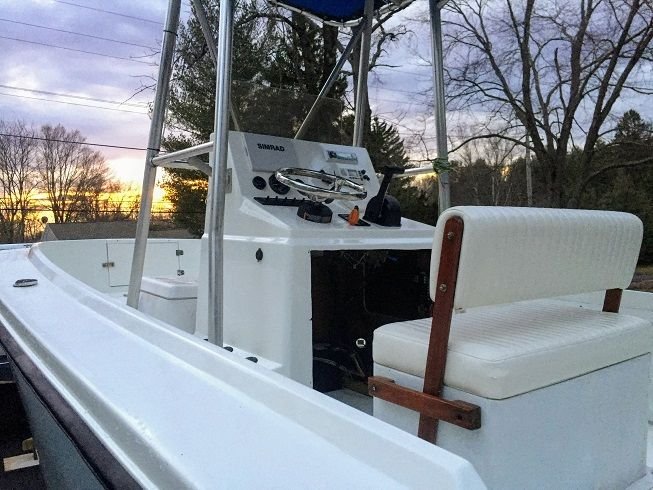

New Todd bench seat installed.

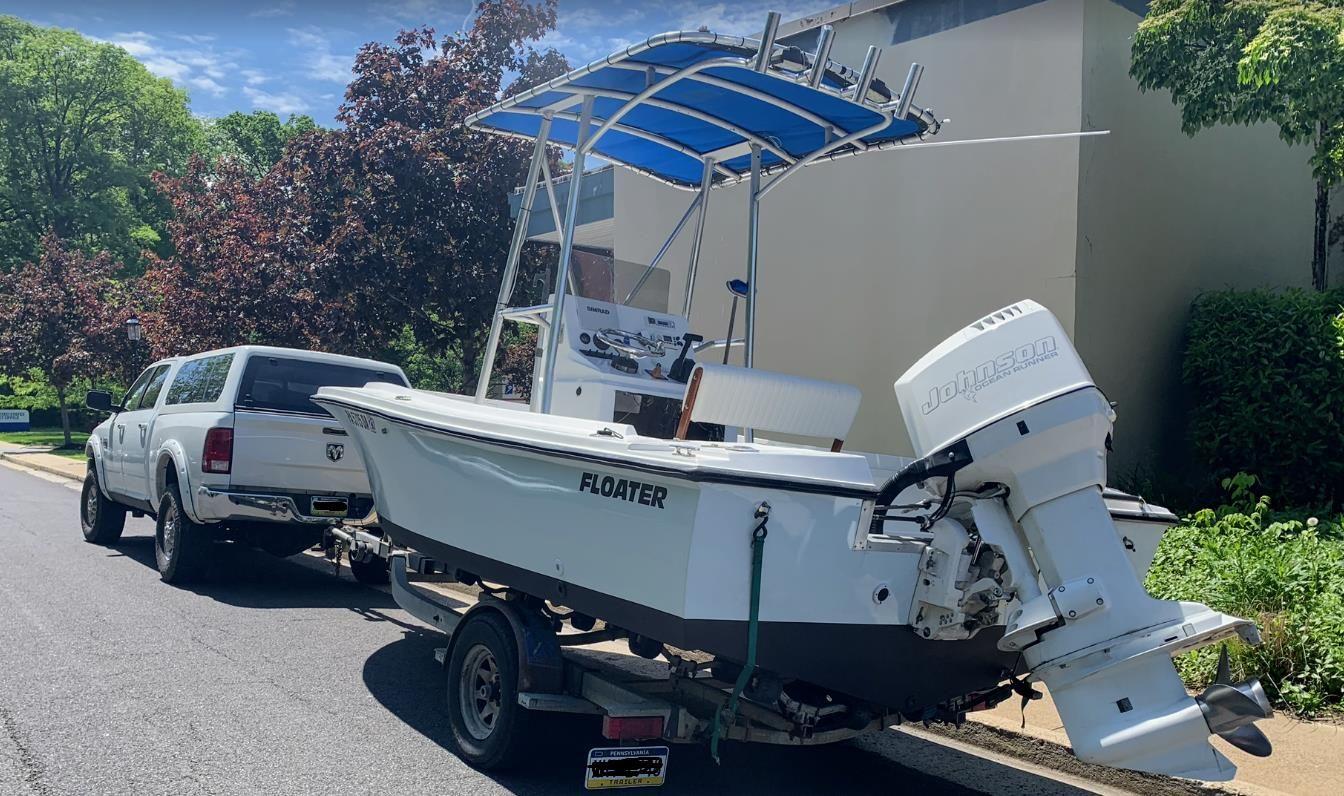

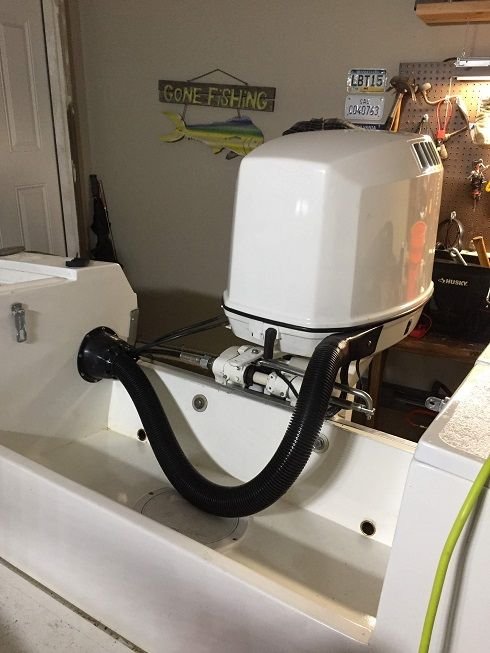

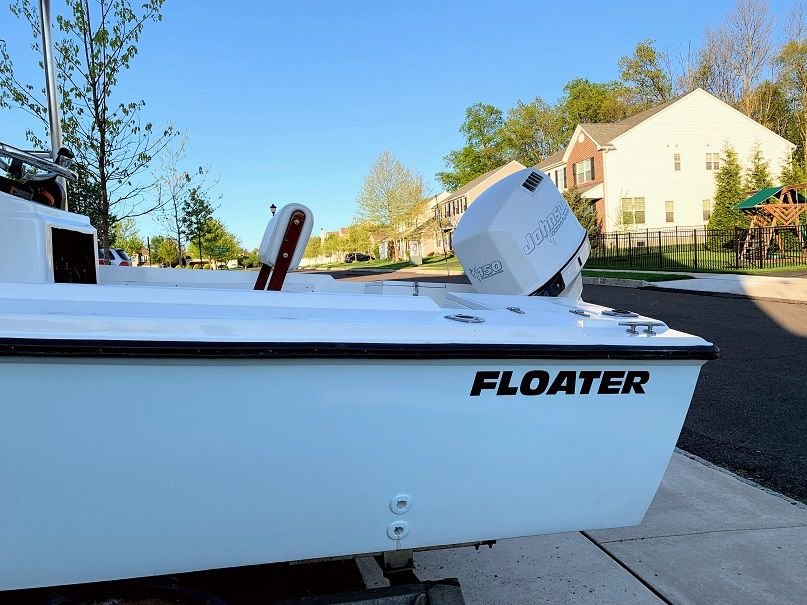

All ready to roll for a test run, and officially named "FLOATER".


First fish - wasn't even expecting to catch anything this trip so i'll take it.



Likes:
BTL
Old 05-03-2019, 09:40 AM
  #55
BTL
Senior Member

Join Date: Jan 2018
Location: Northern VA
Posts: 347
Received 455 Likes on 157 Posts
Default

It's a work of art. Great stuff.

How did the console fall over? I assume the screws just ripped out?
Old 05-03-2019, 09:47 AM
  #56
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

Originally Posted by BTL View Post
It's a work of art. Great stuff.

How did the console fall over? I assume the screws just ripped out?
Thank you. Yea I should have explained that some more. I was an idiot and only had 4 screws holding it down in the corners and they pulled out. It was a short tow - but it was the wind @ highway speeds that flipped it backwards. I was pisssssed.
Old 06-04-2019, 07:33 AM
  #57
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

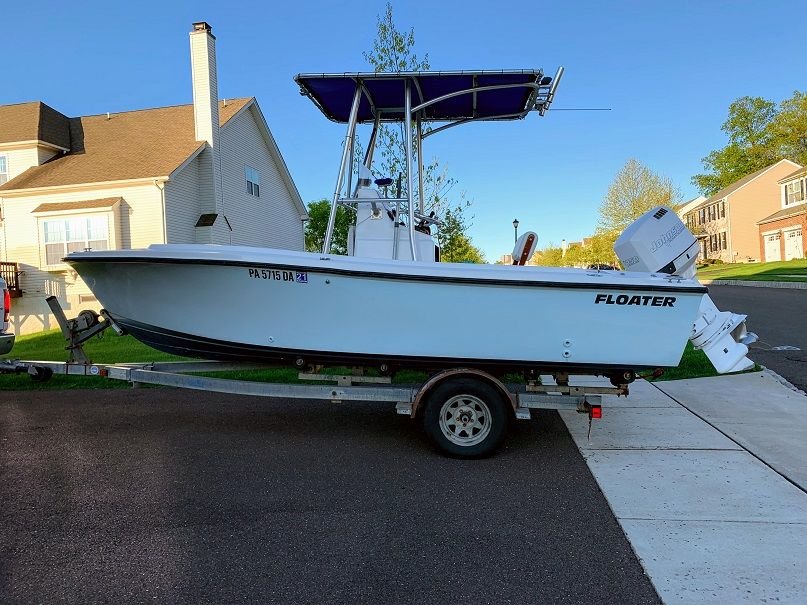

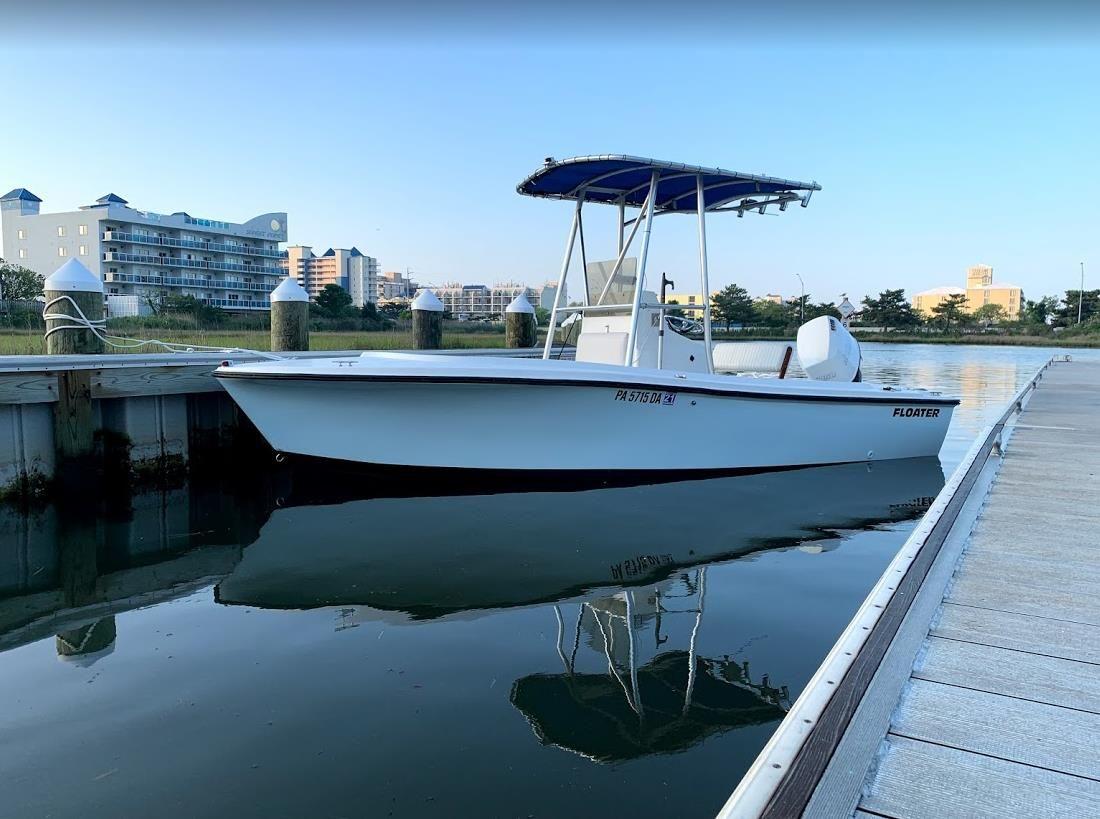

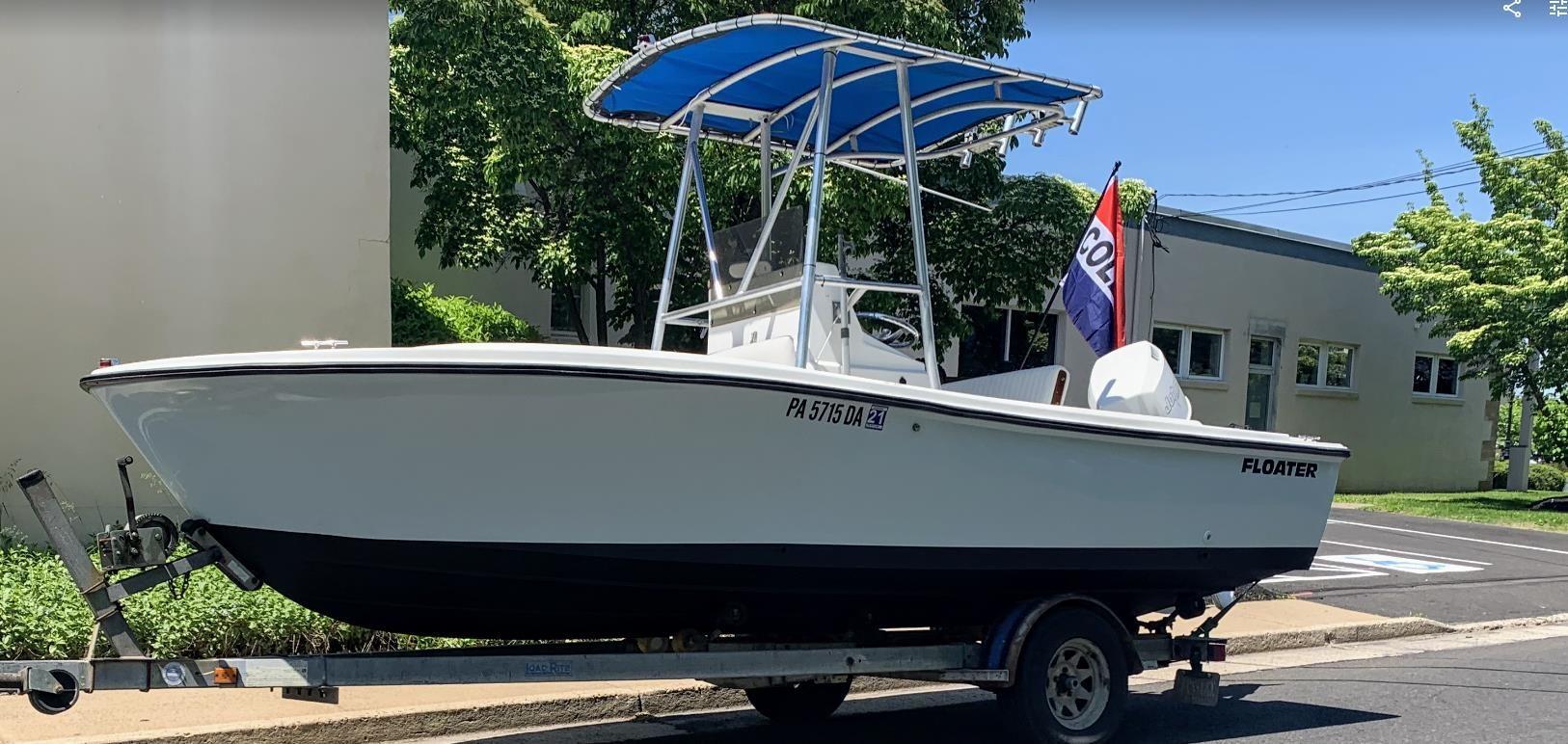

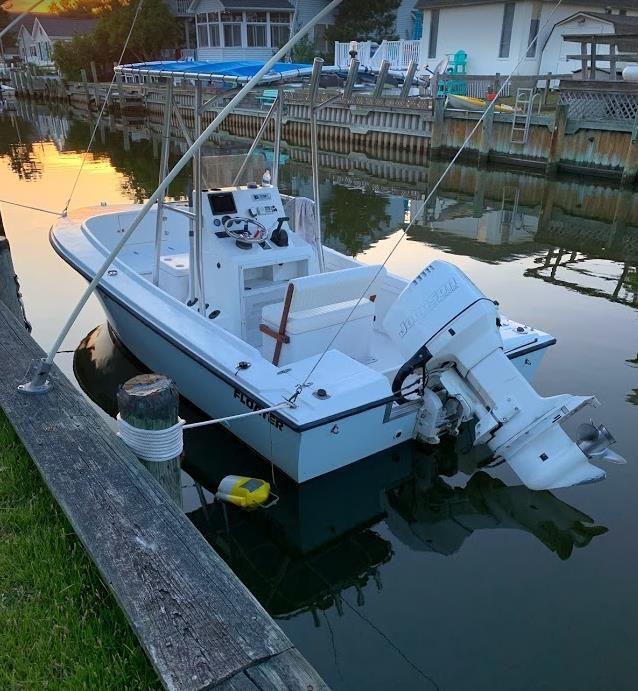

All finished - for this season at least.

Bottom paint done.



Full of fuel it sits lower than I anticipated so i'll have to bring up the bottom paint next year. With 1/2 a tank it's acceptable though.

Old 06-04-2019, 09:29 AM
  #58
Admirals Club Admiral's Club Member

Join Date: Aug 2007
Location: Encinitas, CA
Posts: 215
Received 59 Likes on 37 Posts
Default

Awesome job!
Old 06-04-2019, 11:07 AM
  #59
Senior Member
Thread Starter

Join Date: Mar 2014
Posts: 227
Likes: 0
Received 21 Likes on 19 Posts
Default

Originally Posted by Chilio View Post
Awesome job!
Thank you.
Old 06-04-2019, 07:05 PM
  #60
Senior Member

Join Date: Aug 2014
Posts: 2,988
Received 216 Likes on 186 Posts
Default

Looks great. I like the decals for the motor.
