Beautiful Plywood Boats.

Old 12-16-2018, 08:26 PM
  #61
Senior Member

Join Date: Jul 2013
Posts: 519
Default

Originally Posted by Otseg View Post
Message me what you are looking for. I have hundreds of small boat plans from the 1930's to the 1990's, many with details for the first time builder.
Thank you!

I will pm you tomorrow.
duckfish is offline
Old 12-17-2018, 06:25 AM
  #62
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 21,761
Default

Otseg:

My buddy raced a Ravenau down there in Miami..neatest boat I've seen recently he had was a Winged Switzer with 2 Mercurys. He ran it at Mt. Dora a couple times recently (last few years).
billinstuart is offline
Old 12-29-2018, 03:20 PM
  #63
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 1,881
Default

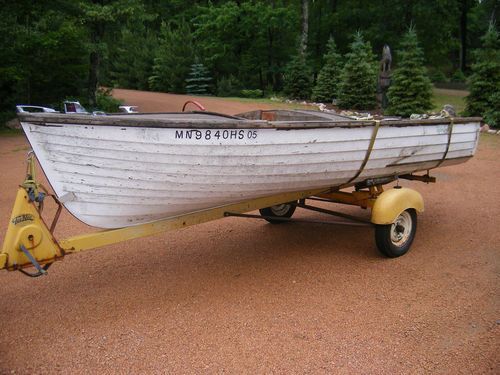

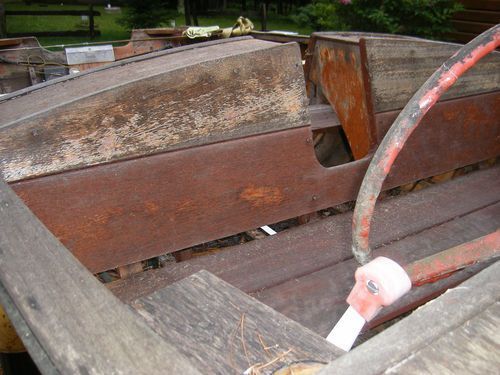

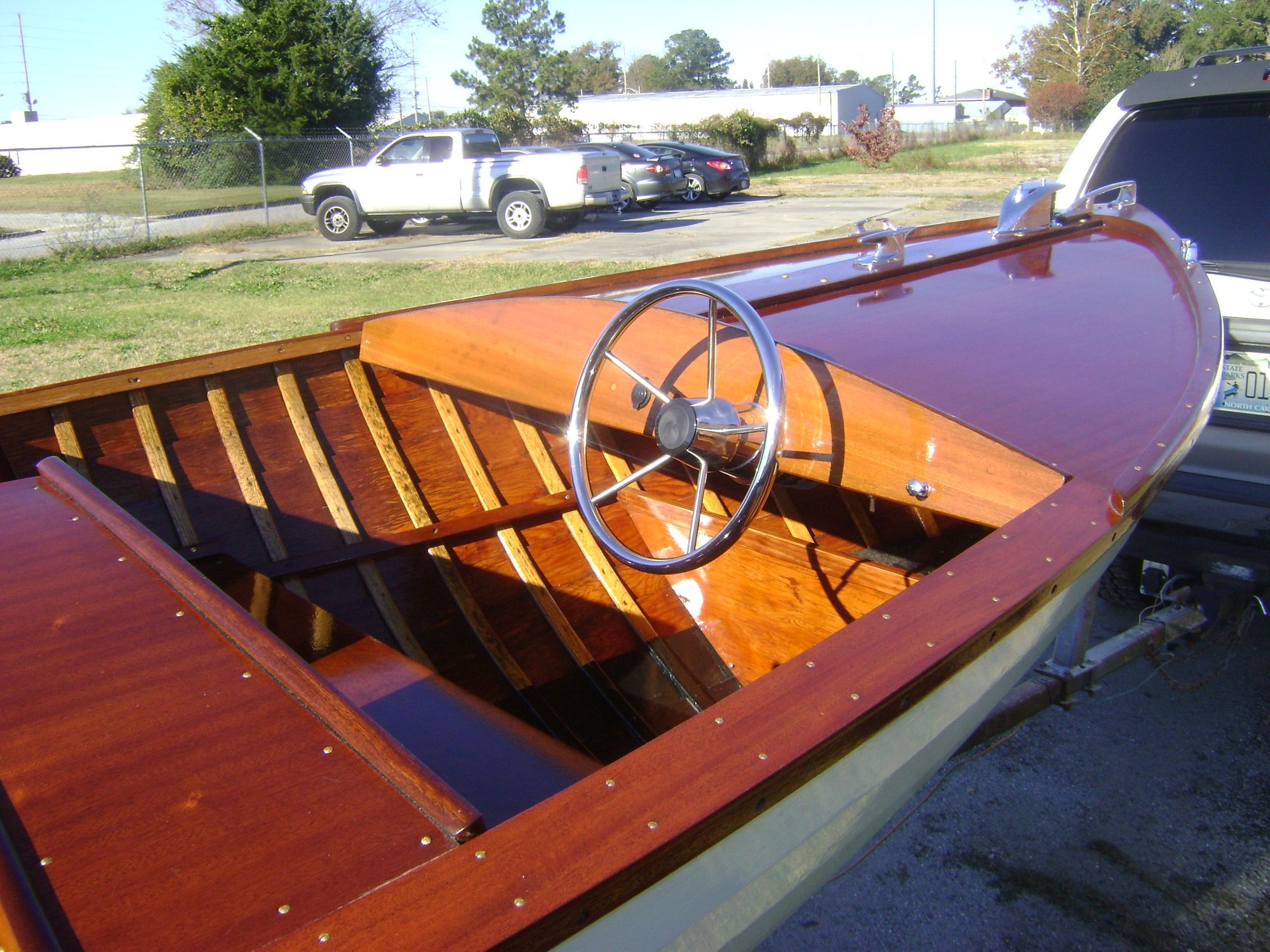

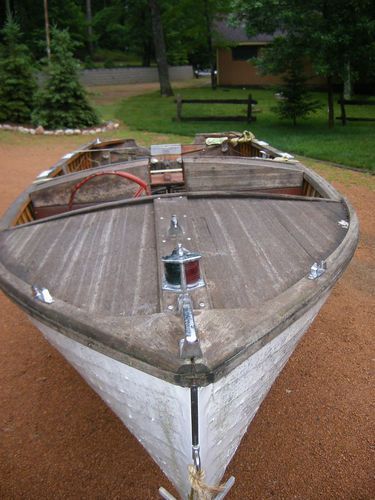

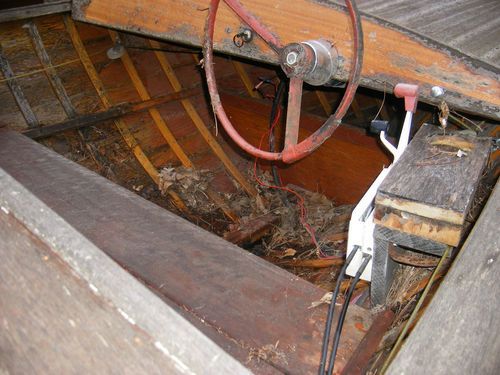

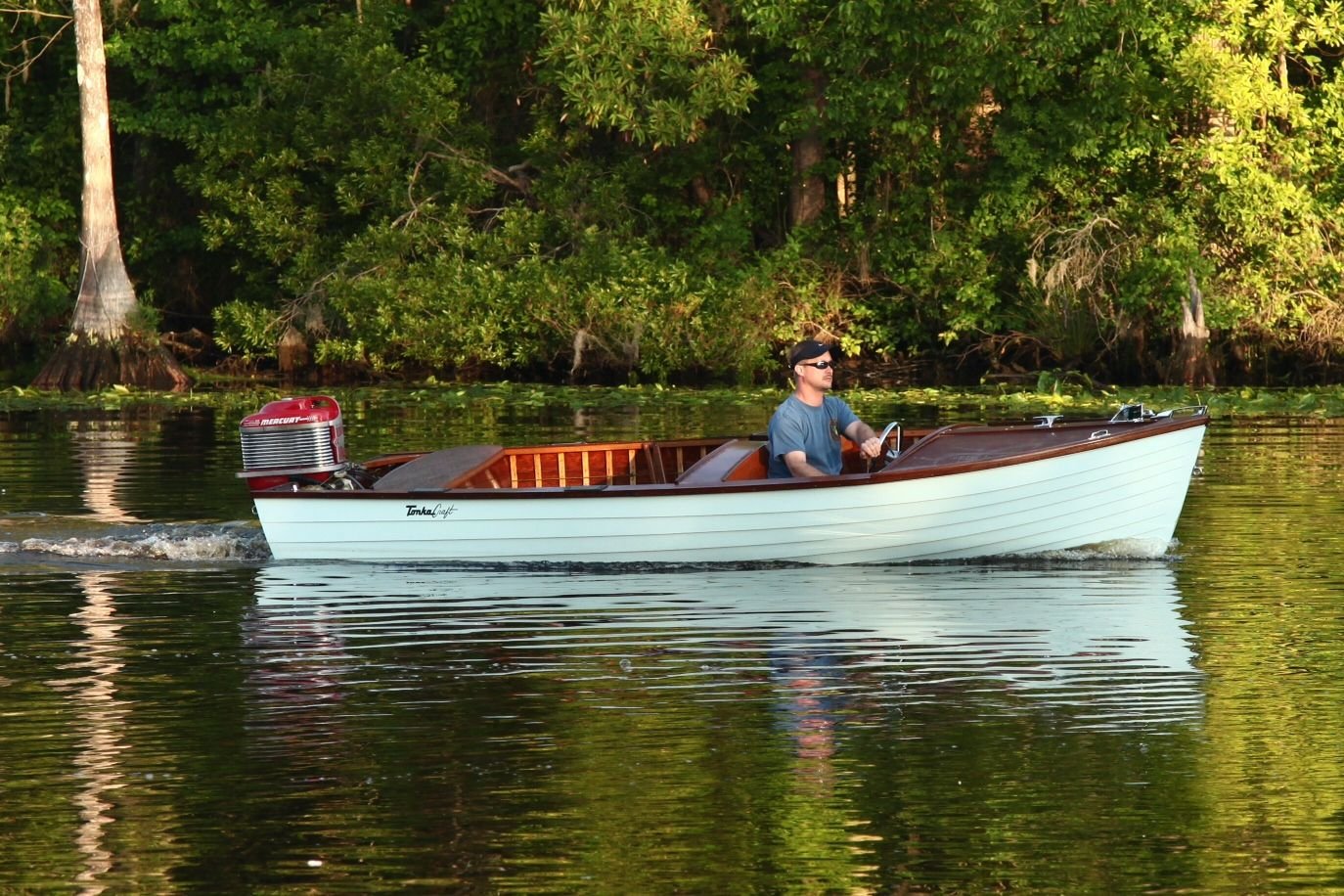

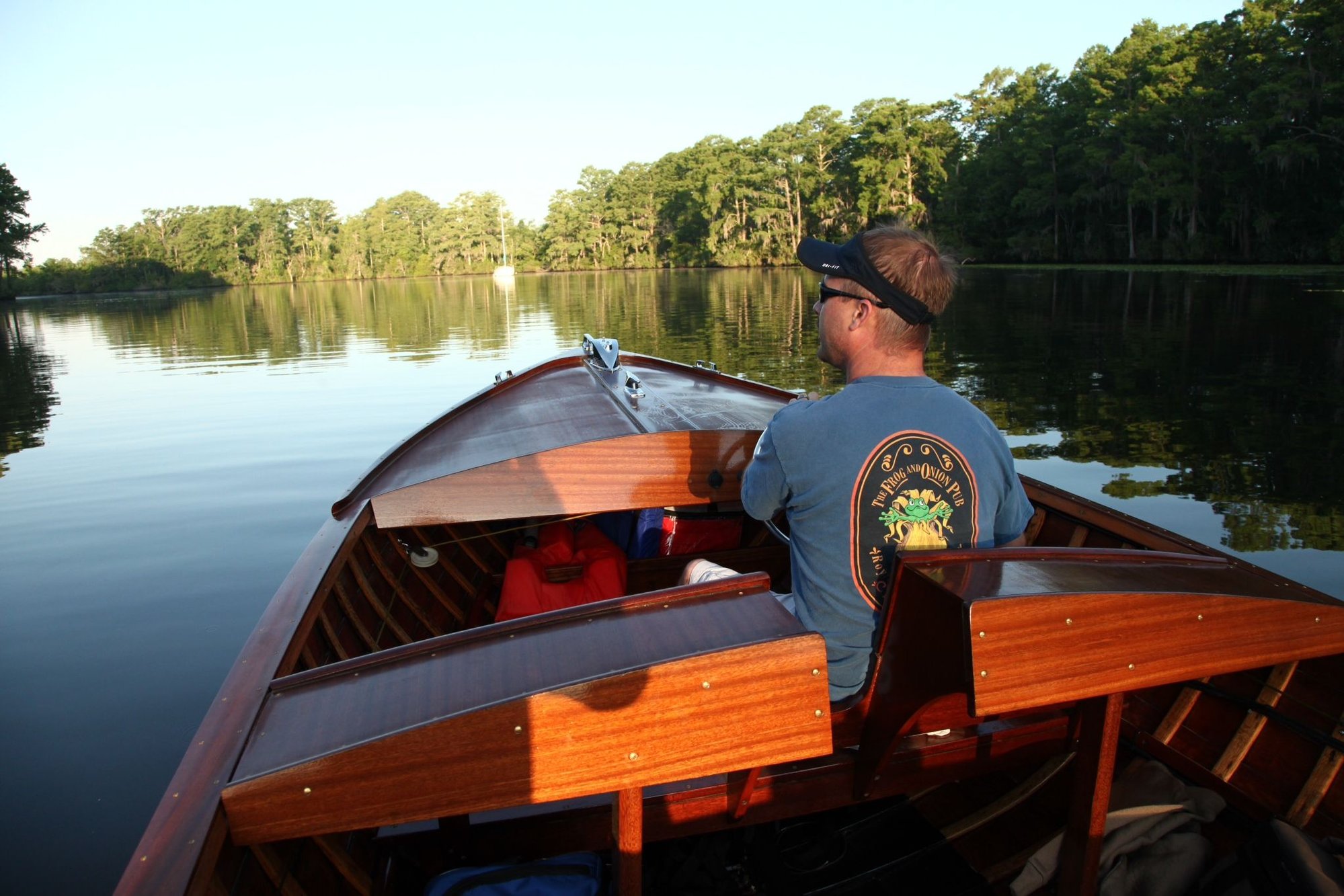

A Tonka Craft I bought from Very Northern Wisconsin, although it was built where my Mother grew up on Lake Minnetonka Mn.
Of all the "Lap Streak" plywood boats I have ever owned this one was most Beautiful.








Otseg is offline
Old 12-29-2018, 04:43 PM
  #64
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 21,761
Default

Wow..what a labor of love!
billinstuart is offline
Old 12-30-2018, 09:14 AM
  #65
Senior Member

Join Date: Jul 2012
Posts: 365
Default

That is a beautiful little boat!
Pineapple Express is offline
Old 12-30-2018, 10:49 AM
  #66
Senior Member

Join Date: Sep 2004
Location: Massachusetts
Posts: 808
Default

Originally Posted by westbootie View Post
I'm going to Home Depot right now to pick up a couple of sheets of their best!
give me a couple of months and I'll post up some pictures of mine
gorgeous little boats
Be selective purchasing plywood. I believe A/C uses waterproof glue but! There will be numerous internal voids caused by unplugged knot holes in the interior plys. For example, they sell undrlayment 1/4” plywood that does NOT have interior voids. I don’t know if underlayment stuff is constructed with waterproof glue
foggysail is offline
Old 12-30-2018, 11:19 AM
  #67
Senior Member

Join Date: Oct 2014
Location: N.E. CT
Posts: 2,217
Default

Originally Posted by foggysail View Post


Be selective purchasing plywood. I believe A/C uses waterproof glue but! There will be numerous internal voids caused by unplugged knot holes in the interior plys. For example, they sell undrlayment 1/4” plywood that does NOT have interior voids. I don’t know if underlayment stuff is constructed with waterproof glue
Regular AC would not use waterproof glue. You would want ACX.
The “X” denotes exterior = waterproof glue.

The difference between construction grade plywood and marine plywood is the filling of interior voids on marine.
What are you doing with it? If this is going to be the skin on a traditionally framed and plywood skinned boat I would recommend marine ply if there will be much bending involved. The voids in exterior ply may not allow it to bend fairly.



For many applications today (in plastic boats) exterior grade is just fine.

Last edited by NedLloyd; 12-30-2018 at 11:28 AM.
NedLloyd is offline
Old 01-12-2019, 01:00 AM
  #68
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: South Creek Village
Posts: 4,825
Default

Blasphemy, I'm aware, but if one wanted to build a Spitfire and "modernize" it with an 80s or early 90s 2-stroke, what would max hp be? 15" shaft over 20"?
TurnMeLooseFLKeys is online now
Old 01-12-2019, 07:32 AM
  #69
Senior Member

Join Date: Mar 2011
Location: Algonac michigan
Posts: 5,344
Default

2 of the most famous and successful lake boats of all time were plywood boats.Chris Craft Sea Skiffs and Lyman boats.Plywood is stronger than planking.
muskamoot is offline
Old 01-12-2019, 10:08 AM
  #70
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 1,881
Default

Originally Posted by TurnMeLooseFLKeys View Post
Blasphemy, I'm aware, but if one wanted to build a Spitfire and "modernize" it with an 80s or early 90s 2-stroke, what would max hp be? 15" shaft over 20"?
That Mercury KG-7 the Spitfire had is about 17 hp stock, 80 lbs 15" shaft leg and has the gas tank integral. Its not the hp, its the weight. and the weight of 6 gallon remote tank compared to 1 or 2. A 15" is what you want. minimum 15 hp to 25. A 30 hp Yamaha is 120 lbs and that is two heavy. A dead man throttle or the use of the ignition kill lanyard or both is mandatory.

I had a dream; ....... that as a teenager I performed a flyby in my minimax to impress a cute girl sunbathing. A miscalculation in trajectory caused me to T bone her dock near where she lay. My new trajectory was over the dock towards the beach. It didn't hurt.............as much as her mother who was raking the beach and then laid into my back and head a couple good whacks before I could get the motor restated.

Be safe.
smccormick likes this.
Otseg is offline
Old 01-12-2019, 03:39 PM
  #71
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: South Creek Village
Posts: 4,825
Default

I figured a 20 or 25 OMC or Merc would be the ticket, but we all know what assumptions are. Thanks for the response.

I have yet to really tackle a redo or build project. I've only done a freshen up of current boats. First project was at 12 years old, sanded down my 12' Starcraft's hull and applied Steelflex. It wasn't until years later that I had my next project. Redid most of the hardware on my current flats boat. I've never done anything structural. Figured I'd start with a 13 Whaler, like most do, but now I'm moving to the mountains of NC in a few months. No longer have the need for a "fishing" boat. I'd love to occupy my free time by building that Spitfire.

Are these the plans I'd need?
HydroPlanes spitfire
TurnMeLooseFLKeys is online now
Old 01-12-2019, 06:25 PM
  #72
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 1,881
Default

Those are the plans. William Jackson uses the same motor board detail on all of his hydroplanes and runabouts. There is a much better detail I use that is lighter/stronger so if you get serious I would be happy to sketch and walk you through it. Same with the step. It needs to have a notch for the air to ventilate the step, to relieve suction when at low speed and getting on plane.
I have a number of KG-7's stashed away. As long as its not in salt water I would be happy to lend you one for a spin and a photo opp. A ride in a hydro with a good KG-7 is akin to a MILF and a Couger all rolled into one.
Otseg is offline
Old 01-12-2019, 08:53 PM
  #73
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: South Creek Village
Posts: 4,825
Default

I'll be moving to Western NC, closest body of water is Lake Lure. When the time comes, I'll be contacting you.
TurnMeLooseFLKeys is online now
Old 01-13-2019, 05:37 AM
  #74
Senior MemberCaptains Club Member

Join Date: Apr 2007
Location: Stuart, Florida
Posts: 3,464
Default

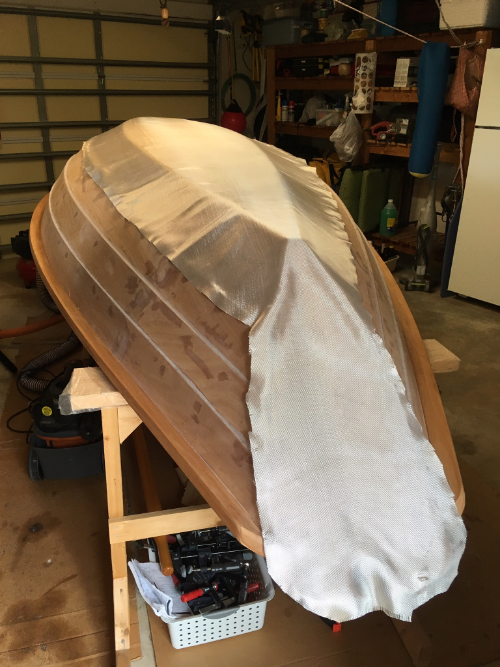

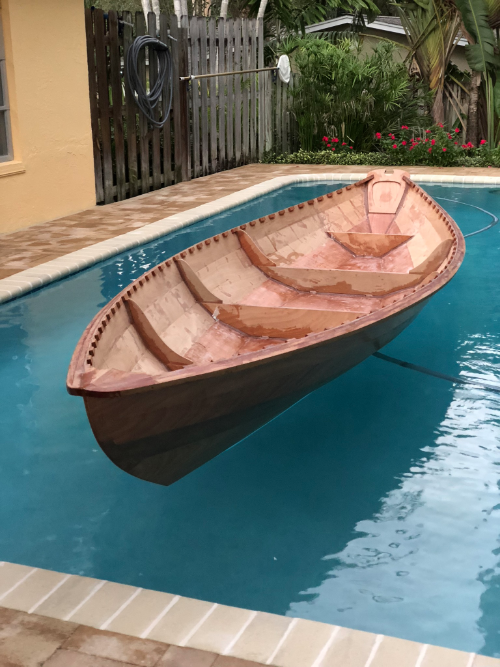

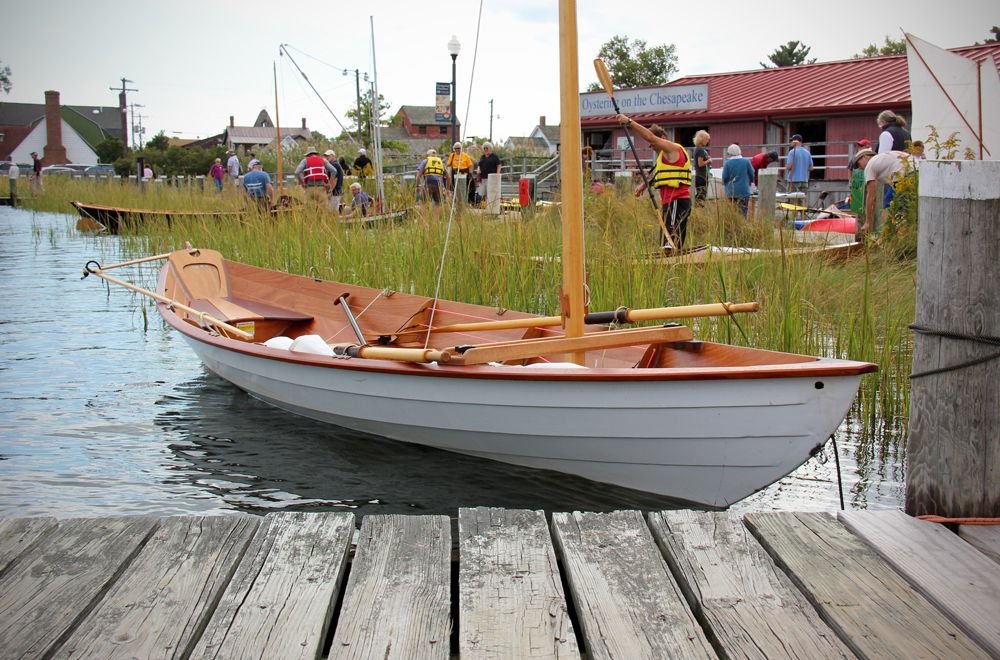

Here are a few pictures of my plywood Northeastern Dory project which I am slowly working on, plus two of what she will look like when finished.





NedLloyd and smccormick like this.

Last edited by oceanluvr30; 01-13-2019 at 05:47 AM.
oceanluvr30 is offline
Old 01-13-2019, 05:51 AM
  #75
Admirals Club Admiral's Club Member

Join Date: Aug 2005
Location: Jupiter, Florida
Posts: 5,869
Default

Otseg,
Can I get the plans for the original plywood Egret?
TurnMeLooseFLKeys likes this.
manitunc is offline
Old 01-13-2019, 07:49 AM
  #76
Senior Member

Join Date: Oct 2014
Location: N.E. CT
Posts: 2,217
Default

Originally Posted by oceanluvr30 View Post
Here are a few pictures of my plywood Northeastern Dory project which I am slowly working on, plus two of what she will look like when finished.





Very nice!!!
NedLloyd is offline
Old 01-13-2019, 07:54 AM
  #77
Admirals Club Admiral's Club Member

Join Date: Dec 2003
Location: Westbrook, CT USA
Posts: 1,275
Default

Heres one for you.

14’ Brockway. 1/2” AC plywood sides. 3/4” Bottom. Two layers 3/4” in transom.





NedLloyd likes this.
Bryan A. is offline
Old 01-13-2019, 08:53 AM
  #78
Senior Member

Join Date: Oct 2014
Location: N.E. CT
Posts: 2,217
Default

Originally Posted by Bryan A. View Post
Heres one for you.

14’ Brockway. 1/2” AC plywood sides. 3/4” Bottom. Two layers 3/4” in transom.





Love the outboard on it too!
NedLloyd is offline
Old 01-13-2019, 08:59 AM
  #79
Admirals Club Admiral's Club Member

Join Date: Dec 2003
Location: Westbrook, CT USA
Posts: 1,275
Default

1958 10hp Johnson
NedLloyd likes this.
Bryan A. is offline
