Fully Infused Carbon Pathfinder 2300HPS

Notices
Like Tree90Likes

Fully Infused Carbon Pathfinder 2300HPS

Old 12-08-2018, 01:24 PM
  #41
Senior MemberCaptains Club Member
Thread Starter

Join Date: Mar 2001
Location: Ft. Pierce, FL, USA
Posts: 822
Default

Originally Posted by ziess21 View Post
Any concerns about durability/repairability down the line? Carbon doesn't have the best abrasion resistance and does funky things when abraded.
Good question! Yes, the Carbon material does not cut well, we did a layer of matted material behind the gelcoat which makes it “repairable”.

Skip
slyshon is offline
Old 12-08-2018, 02:05 PM
  #42
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: South Creek Village
Posts: 4,823
Default

Being that this boat is getting an F300, and I personally think a 250 SHO is a better all around match, I'm gonna say 70. Hell, I'm pretty sure Rick Murphy's 23HPS is running 66 or 67 with a 250 SHO and that boat doesn't have the weight savings this one does. His is just setup light when it comes to batteries and trolling motor, plus no t-top.
TurnMeLooseFLKeys is offline
Old 12-08-2018, 02:24 PM
  #43
Senior Member

Join Date: Mar 2006
Location:
Posts: 293
Default

What material did you use for the matting? I'm looking at building a one off duck hunting boat and building it nearly the same way you guys have with this one.
ziess21 is offline
Old 12-08-2018, 07:05 PM
  #44
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Location: Tarpon Springs
Posts: 4,163
Default

Can’t wait to see how this one comes out, I’m guessing 71-72
76 Mako 23 is offline
Old 12-08-2018, 08:26 PM
  #45
Admirals Club Admiral's Club Member

Join Date: Jun 2006
Location: Palm Coast, FL
Posts: 897
Default

Originally Posted by teamchasintail View Post
I’m excited to see the results Skip. The 2300 is definitely on my list when it comes time to upgrade.
Hopefully this goes well and the 2500 gets the carbon treatment next ��
X2! Definitely looking forward to this Especially with the 300 XCA on the stern!
BCPD199 is offline
Old 12-09-2018, 05:58 AM
  #46
Senior MemberCaptains Club Member

Join Date: Jan 2005
Location:
Posts: 3,151
Default

Originally Posted by slyshon View Post


The Carbon materials and the Resin used in this are really expensive, much more than a standard lay up. We are working on costs now, if this all works out we might make this an option on some models like the Maverick skiffs and the step hull Pathfinders? Not for everyone as the Carbon alone is more than 5x more than standard glass.

Skip
So the carbon material is 5X more, what about labor? I assume labor is a large percent of total cost. If this process could be optimized cost wise some of the large CC's with trip and quad engines may be able to run with one engine less, saving in engine costs and fuel costs long term.

Jim
jfwireless is offline
Old 12-09-2018, 06:06 AM
  #47
Senior Member
THT sponsor

Parker Yacht's Avatar

Join Date: Jan 2009
Location: Ft Lauderdale
Posts: 6,467
Default

What type of resin are you using to infuse the carbon and bond with the gelcoat?
Parker Yacht is offline
Old 12-09-2018, 07:28 AM
  #48
Senior MemberCaptains Club Member
Thread Starter

Join Date: Mar 2001
Location: Ft. Pierce, FL, USA
Posts: 822
Default

Originally Posted by Parker Yacht View Post
What type of resin are you using to infuse the carbon and bond with the gelcoat?
To be honest I don’t know and will have to ask. I know we ordered it in special for this build. We have 2 types of bulk resin on site, one for close molded and another type for open layup, this resin was brought in for this build only.

Skip
slyshon is offline
Old 12-10-2018, 08:24 AM
  #49
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 1,881
Default

Great photos. Your structure looks like you could go head to head with a tank.
You may soon find out that the ride of two boats from the same mold can feel remarkably different when each is made from different materials.
20biminitwist likes this.
Otseg is offline
Old 12-10-2018, 11:17 AM
  #50
Senior MemberCaptains Club Member
Thread Starter

Join Date: Mar 2001
Location: Ft. Pierce, FL, USA
Posts: 822
Default

Originally Posted by Parker Yacht View Post
What type of resin are you using to infuse the carbon and bond with the gelcoat?
Got the answer although it means nothing to me, we are using a new type of resin on this build, it is a Urethane Acralite resin.

Stay tuned, should have the Console and the Hardtop fiberglass completed soon.

Skip
slyshon is offline
Old 12-10-2018, 11:30 AM
  #51
Senior Member
THT sponsor

Parker Yacht's Avatar

Join Date: Jan 2009
Location: Ft Lauderdale
Posts: 6,467
Default

Originally Posted by slyshon View Post
Got the answer although it means nothing to me, we are using a new type of resin on this build, it is a Urethane Acralite resin.

Stay tuned, should have the Console and the Hardtop fiberglass completed soon.

Skip
Hmmm, means the same to me, nuttin.
Was just curious as to how, I know Carbon likes epoxy and Gelcoat is not epoxy, so was curious how you got the two to work together.
Will do some research and thank you for inquiring, (minds want to know).
Parker Yacht is offline
Old 12-11-2018, 09:10 AM
  #52
Senior MemberCaptains Club Member
Thread Starter

Join Date: Mar 2001
Location: Ft. Pierce, FL, USA
Posts: 822
Default

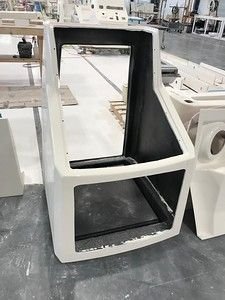

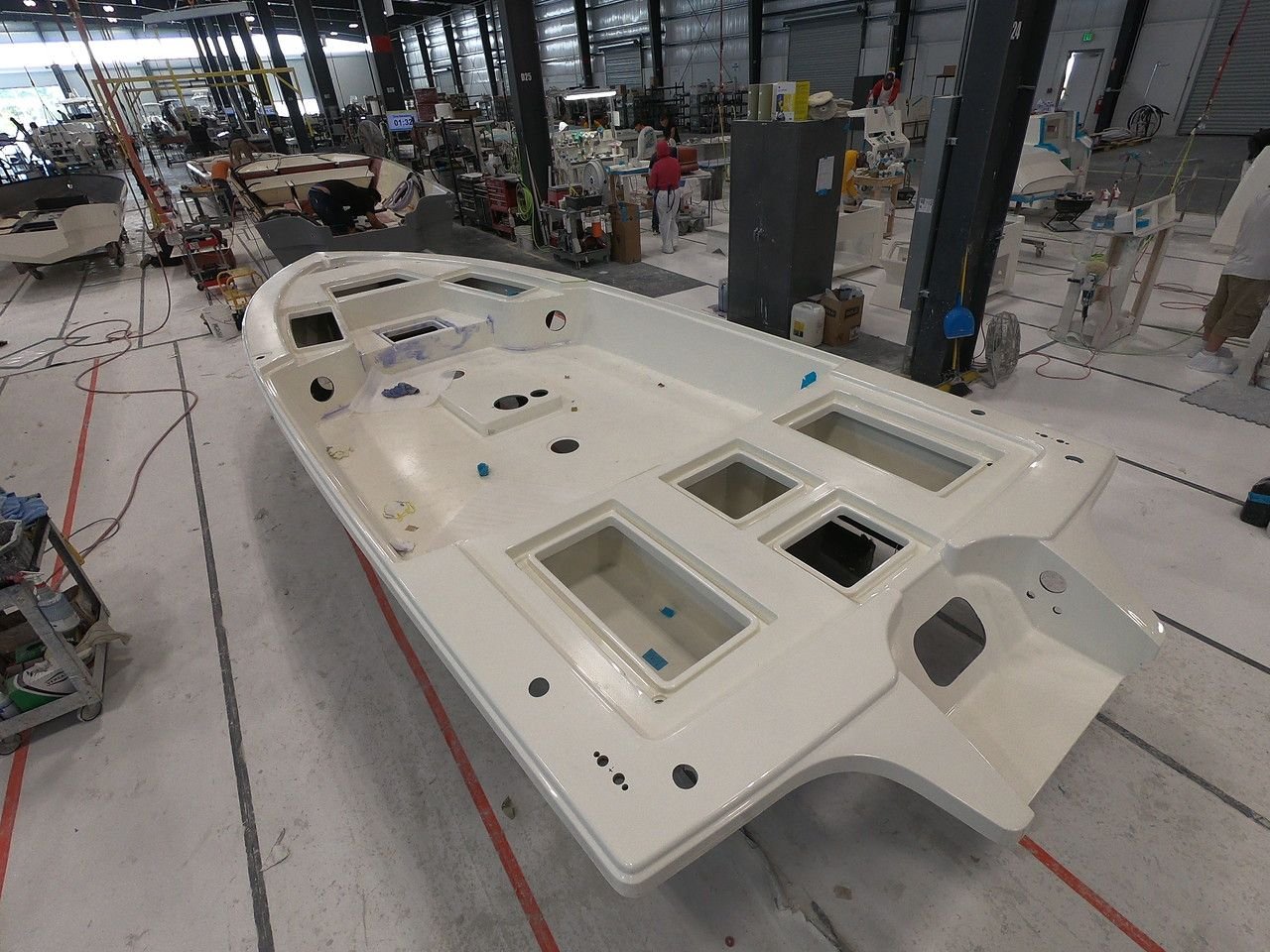

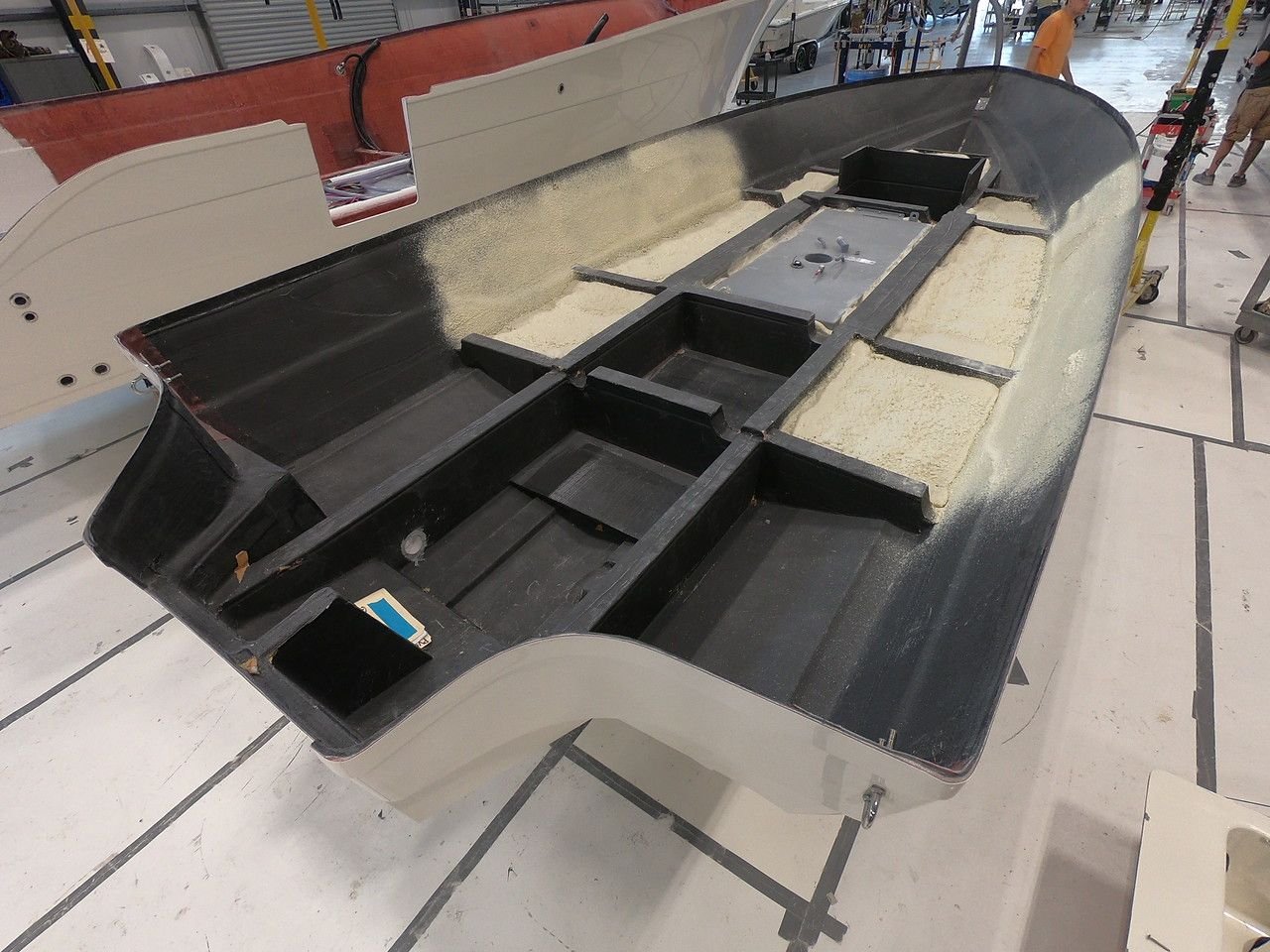

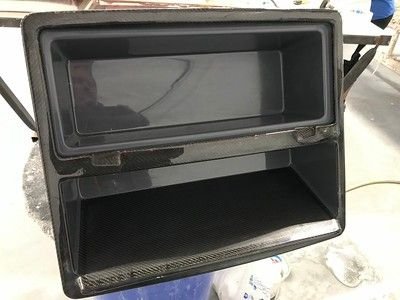

Making progress... Work continues on the hull and deck while the console and the console footrest insert are out of the molds. You can see the clear gelcoat on the footrest insert, the console face is being built with clear as well.

Skip




slyshon is offline
Old 12-11-2018, 10:37 AM
  #53
Senior Member

Join Date: Jan 2015
Posts: 442
Default

Something about this is screaming 400R Carbon Edition.
mmccull5 and aswaff400 like this.
Perf40 is offline
Old 12-11-2018, 01:27 PM
  #54
Senior Member

Join Date: Apr 2015
Posts: 149
Default

Seriously. I’d go 400R and also clear gel coat on the whole thing so the fiber showed through.
chrisguga is offline
Old 12-11-2018, 02:59 PM
  #55
Senior Member

Join Date: Apr 2017
Location: Eh?
Posts: 728
Default

Originally Posted by chrisguga View Post
Seriously. I’d go 400R and also clear gel coat on the whole thing so the fiber showed through.
Ok, you sit your behind on it then.
Blazer7420 is offline
Old 12-11-2018, 03:05 PM
  #56
Senior Member

Join Date: Apr 2017
Location: Eh?
Posts: 728
Default

Originally Posted by linesider 159 View Post
Sign me up. Im no stranger to making a pathy fly
I was talking about the clear coated carbon.
Blazer7420 is offline
Old 12-11-2018, 03:10 PM
  #57
Admirals Club Admiral's Club Member

Join Date: May 2013
Location: Clearwater Fl
Posts: 5,202
Default

Originally Posted by Blazer7420 View Post
I was talking about the clear coated carbon.
Got it! Id like to see clear gel on the hull sides if that is even possible. Would look pretty cool
linesider 159 is offline
Old 12-11-2018, 03:53 PM
  #58
Admirals Club Admiral's Club Member

Join Date: Sep 2011
Location: St. Pete, FL
Posts: 554
Default

Clear gel hull, with a 400r would be so sick. I think the only thing that would make it faster is a padded and blue printed bottom. I would love a ride on one.

We had a race boat at my marina for a few months, it had a carbon/Kevlar layup, clear gel running surface, it looked bad a$$
aswaff400 is offline
Old 12-12-2018, 05:39 PM
  #59
Junior Member

Join Date: Dec 2018
Posts: 1
Default Urethane Acrylate

Originally Posted by slyshon View Post
Got the answer although it means nothing to me, we are using a new type of resin on this build, it is a Urethane Acralite resin.

Stay tuned, should have the Console and the Hardtop fiberglass completed soon.

Skip
UA’s (Urethane Acrylate) are a class of specialty resin which bond extremely well with carbon and specialty fabrics transferring toughness to the laminate schedule. These resins are compatible with polyester and vinyl ester systems (gel coat, adhesive, topcoat, etc.) and removing the secondary bonding issues you will always encounter using epoxy systems.
slyshon likes this.
WhoisJohnGalt is offline
Old 12-12-2018, 07:05 PM
  #60
Admirals Club Admiral's Club Member

Join Date: Oct 2012
Location: Tampa, FL
Posts: 1,376
Default

Boat should def get a merc 400 or the new 300r. If your building a hull for performance put a motor on it to match. You are possibly missing out on 10mph not going with a merc!
Buttapollock1010 is offline
