1977 44' Buddy Davis refit

Old 09-28-2018, 08:56 PM
  #41
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2008
Location:
Posts: 399
Likes: 0
Received 74 Likes on 42 Posts
Default

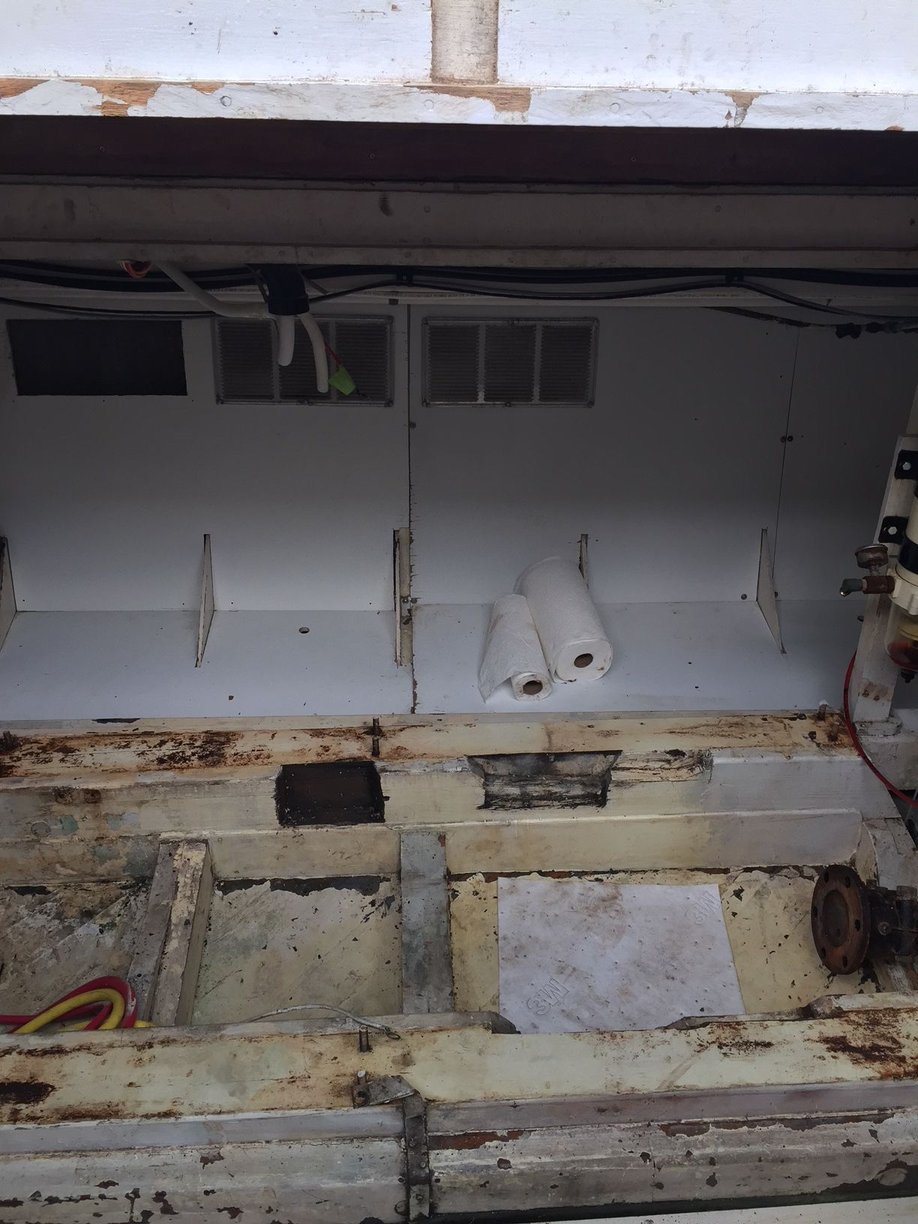

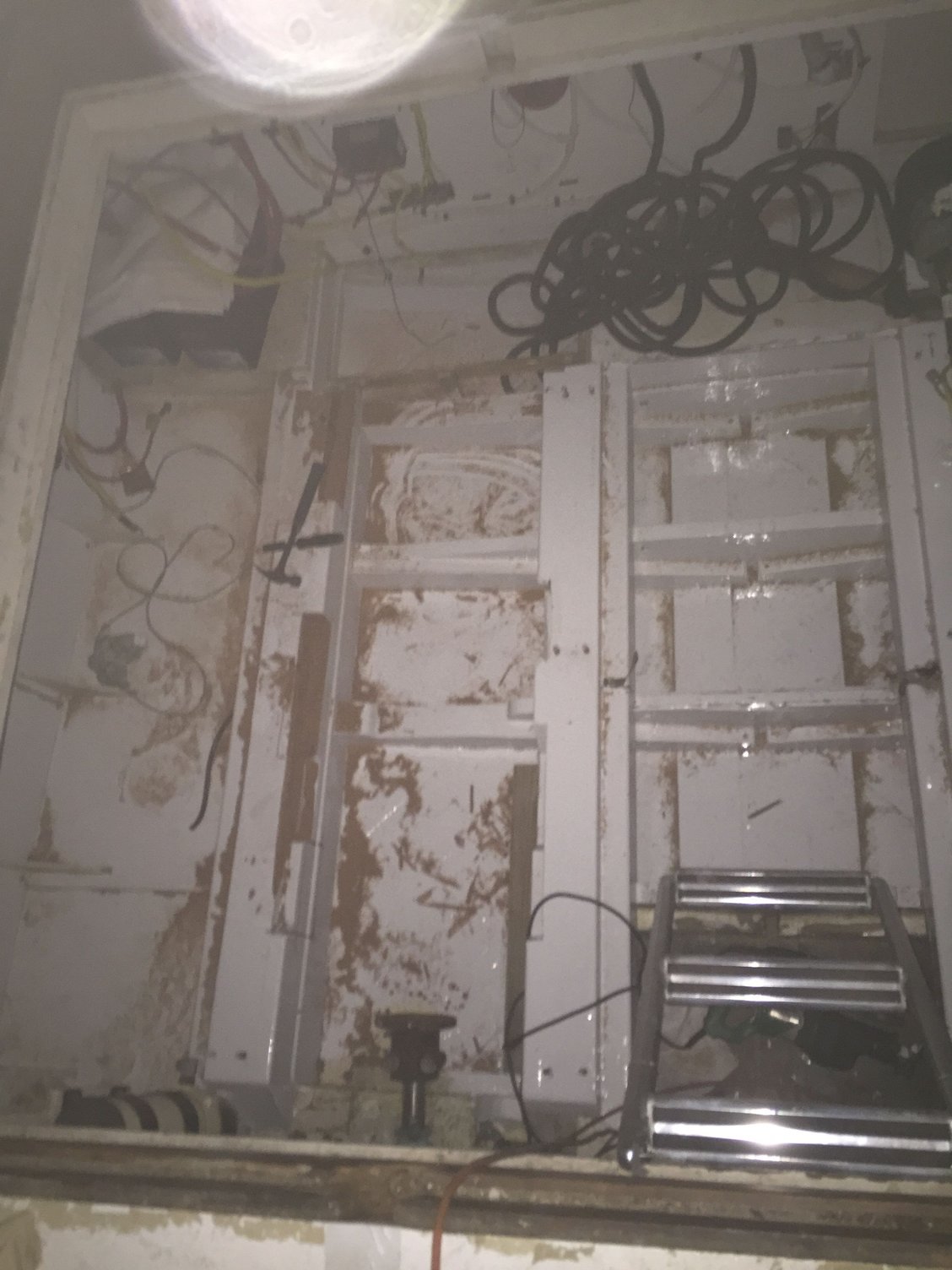

Some progress this week keel area in engine room has been awlgripped as well as areas under engine beds, 24 volt charger removed and all nasty plumbing got gone. We ground off all the nasty glass and epoxy that was done by “The Hack” on the starboard sprayrail as well as half the port side sprayrail
I picked up the first qsm today and will start fabricating the bed rails next week. I will post more pics tomorrow. We will begin to fabricate the bed rails from stainless steel by next weekend. Once done we will finish filling in the old notches and fill in the existing engine rails and pull out all the old gauges and harnesses and replace with new.
looks like the new Genset will be a 9.0 super compact from Cummins as well.

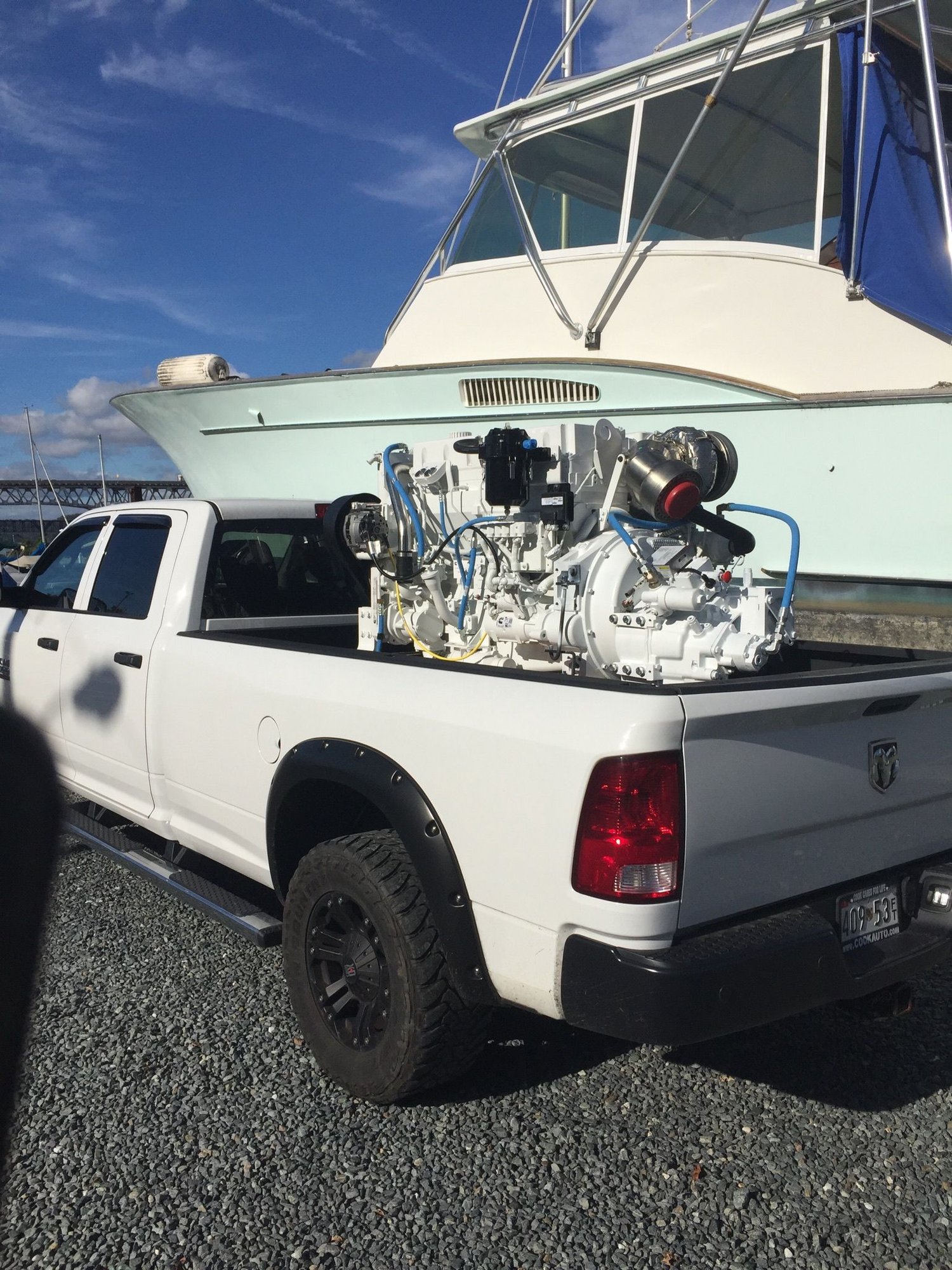

I found a heart donor!!, I decided to pick up the first qsm11 today in my buddies Dodge Cummins Not a wise move, bot is jacked up and motor is crated a foot and a half high on pallet! I got seasick on the ride home.
Likes:
Old 09-28-2018, 09:19 PM
  #42
Admirals Club Admiral's Club Member

Join Date: Dec 2010
Location: Florida
Posts: 585
Likes: 0
Received 72 Likes on 47 Posts
Default

That's going to be a sweet boat again!!
Old 10-01-2018, 09:25 AM
  #43
Admirals Club Admiral's Club Member

Join Date: Nov 2013
Location: NJ
Posts: 387
Received 49 Likes on 20 Posts
Default

this is going to be one of the coolest builds I've seen on here. It will be worth it in the end. A custom buddy to your liking and touches. A forever boat
Old 10-01-2018, 11:26 AM
  #44
Admirals Club Admiral's Club Member

Join Date: Jul 2017
Location: West Coast, FL
Posts: 566
Received 194 Likes on 134 Posts
Default

Definitely looking forward to this build!
Old 10-09-2018, 05:41 PM
  #45
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2008
Location:
Posts: 399
Likes: 0
Received 74 Likes on 42 Posts
Default One down

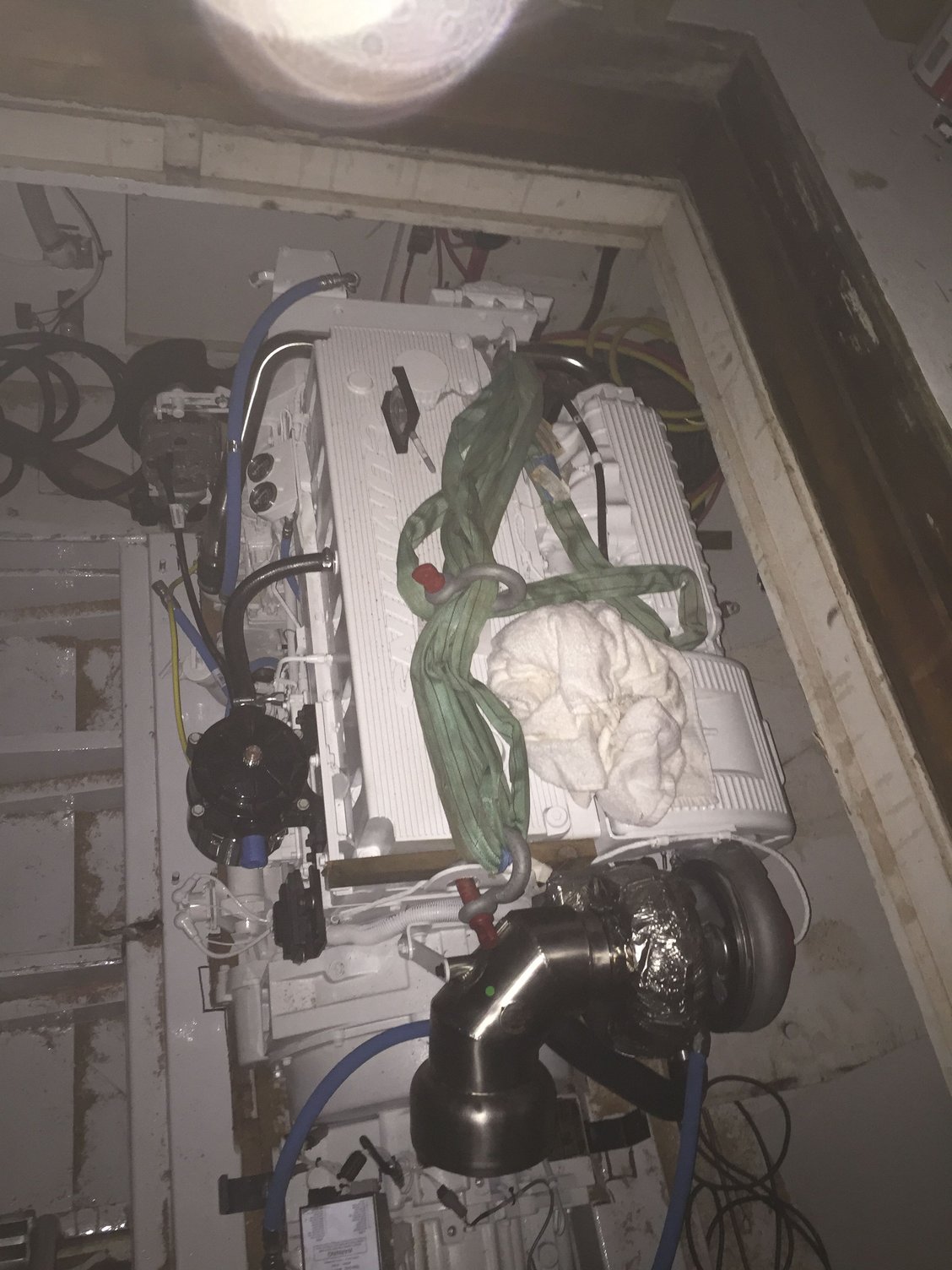

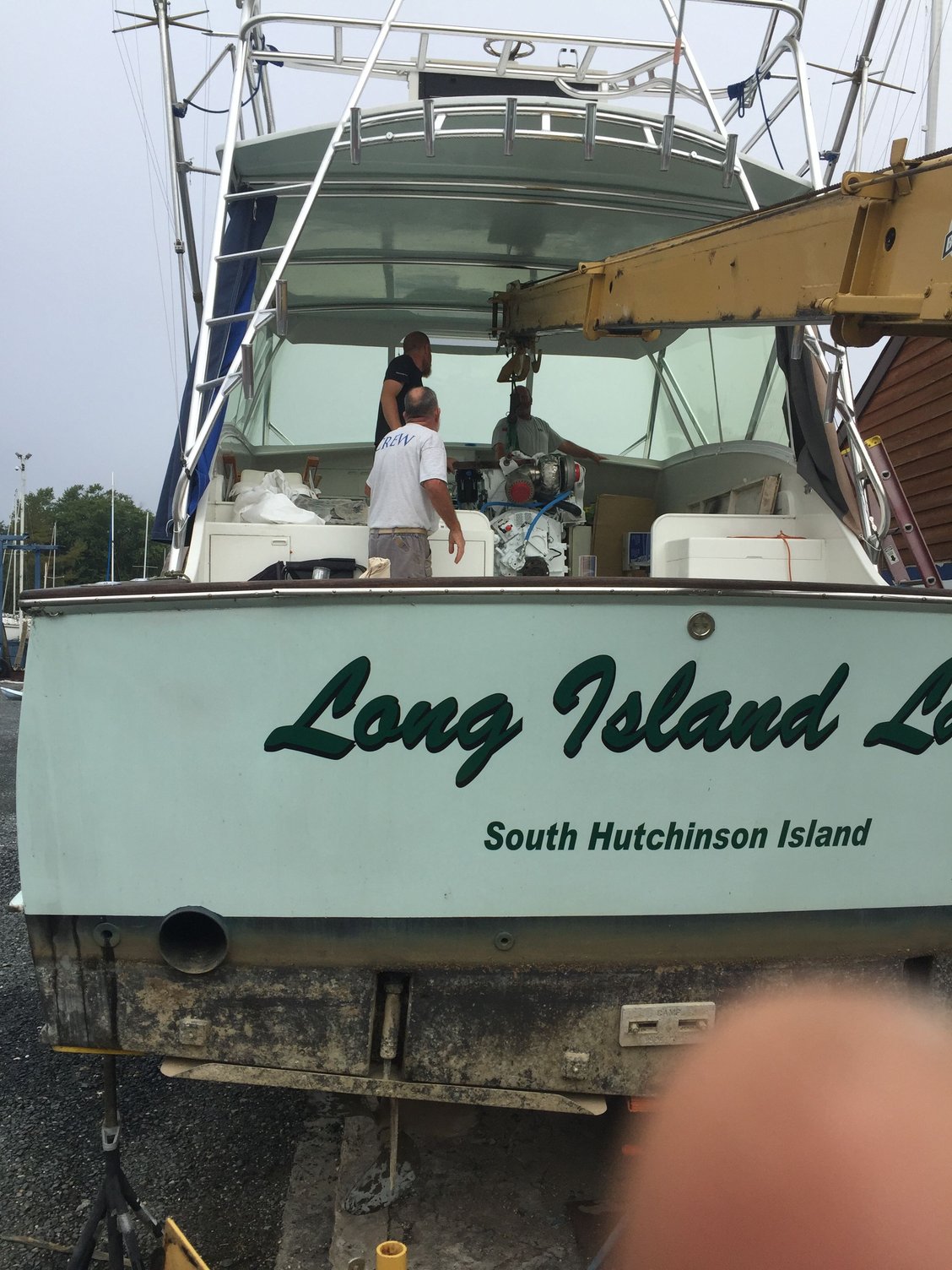

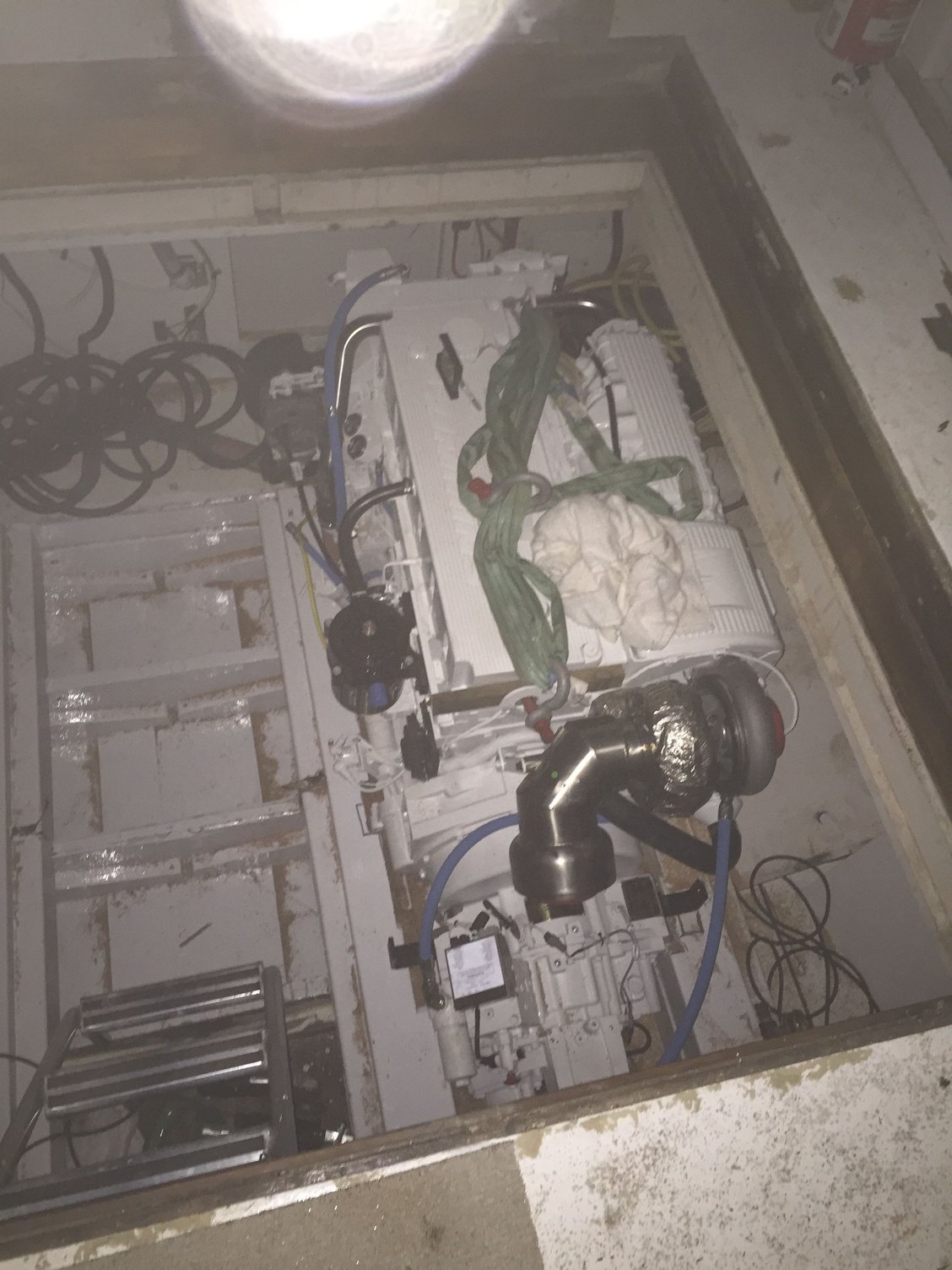

first engine is dry fit with lots of snipping and tucking.
Port bed almost ready but ran out of daylight.
I boriught the one engine home in my buddies jacked up Dodge. Not a good move.
Old 10-09-2018, 07:51 PM
  #46
Senior MemberCaptains Club Member

Join Date: Aug 2006
Location: New Port Richey, Fl
Posts: 2,168
Received 196 Likes on 102 Posts
Default

Awesome
Old 10-09-2018, 08:37 PM
  #47
Senior Member

Join Date: Oct 2015
Location: South Texas
Posts: 1,009
Received 477 Likes on 310 Posts
Default

How much do those engines weigh?? Seems like a lot for a jacked up dodge!
Old 10-09-2018, 11:54 PM
  #48
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2008
Location:
Posts: 399
Likes: 0
Received 74 Likes on 42 Posts
Default Weight

Originally Posted by Sharpest View Post
How much do those engines weigh?? Seems like a lot for a jacked up dodge!
that was the not a good idea part!!!! They only weigh about 3000 pounds crates but with those crazy ass tires it swayed back and forth on the way home. No biggie tho, we just stayed at around fifty and all was good. I’m not far from the Cummins distributor.
Old 10-10-2018, 08:52 AM
  #49
Senior Member

Join Date: Feb 2009
Posts: 396
Likes: 0
Received 24 Likes on 19 Posts
Default

Totally Sub'd
Old 10-10-2018, 12:36 PM
  #50
Admirals Club Admiral's Club Member

Join Date: Jun 2012
Location: Vero Beach, Fl
Posts: 3,261
Received 234 Likes on 153 Posts
Default

Sweetness
Old 10-10-2018, 01:31 PM
  #51
Senior Member

Join Date: Feb 2003
Location: Franklin MA
Posts: 374
Received 59 Likes on 38 Posts
Default

Way cool. Worked on a wooden Davis way back in the day. Nice to see one again.
Old 10-10-2018, 05:39 PM
  #52
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2008
Location:
Posts: 399
Likes: 0
Received 74 Likes on 42 Posts
Default

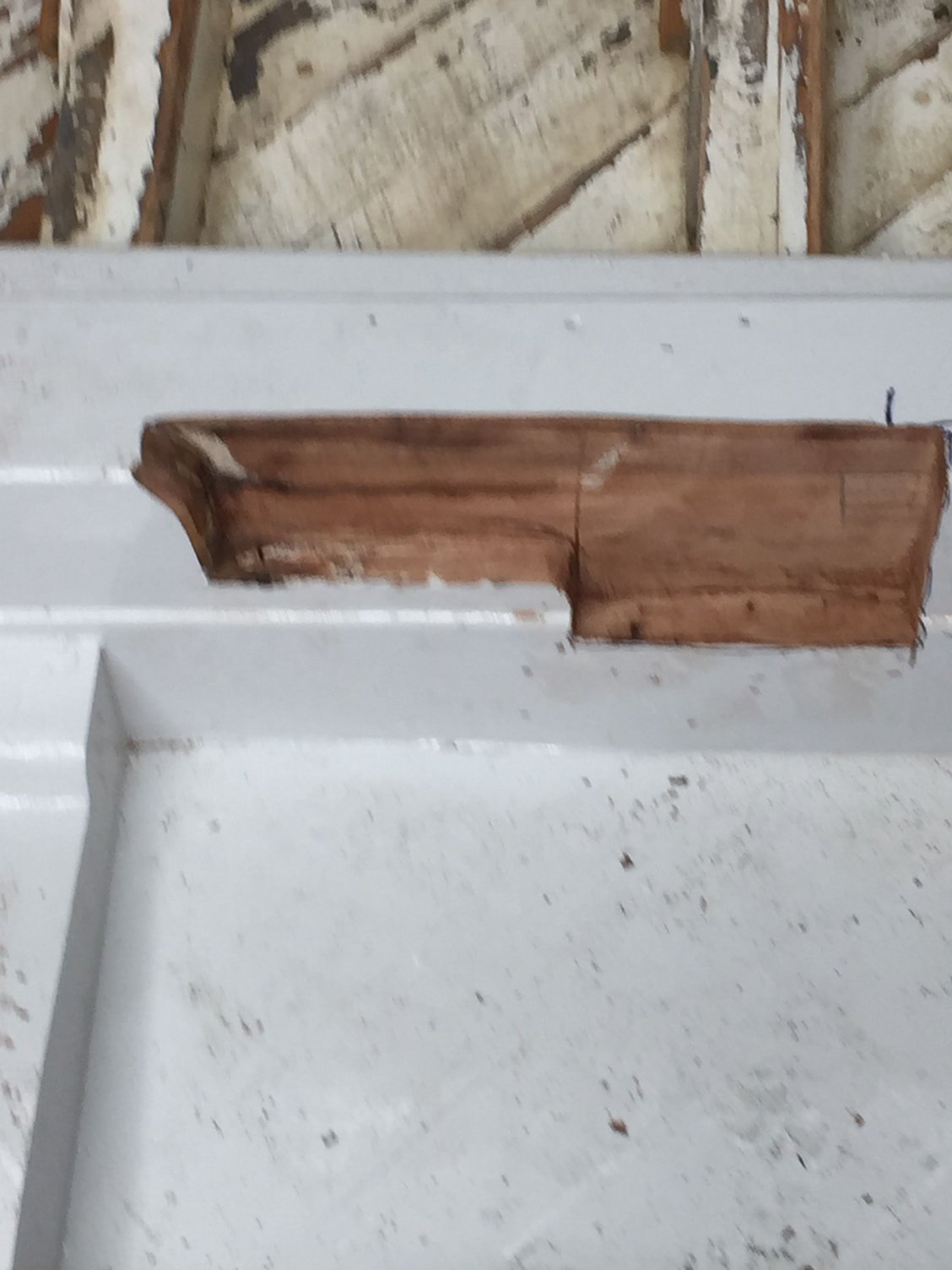

Today and yesterday were productive but she drew first blood on one of my coworkers. Those grinders are mean with a chainsaw disc on them but they do grind some wood in a hurry. We got the port side all notched out as well and all the notched areas are sanded and ready for paint. Side panels are pulled off and I just ordered the mist eliminators to be cut into the panels. Tomorrow more painting and clean up and prep to swap out shafts. I will post pics this weekend.
Old 10-10-2018, 05:55 PM
  #53
Admirals Club Admiral's Club Member

Join Date: Jan 2017
Posts: 68
Likes: 0
Received 18 Likes on 16 Posts
Default

In for sure
Old 10-10-2018, 06:09 PM
  #54
Senior Member

Join Date: Aug 2016
Posts: 1,056
Received 238 Likes on 170 Posts
Default

Great Project! Please include some pictures of the wood, and hope your friends fingers are healing.
Old 10-11-2018, 06:11 PM
  #55
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2008
Location:
Posts: 399
Likes: 0
Received 74 Likes on 42 Posts
Default Making way

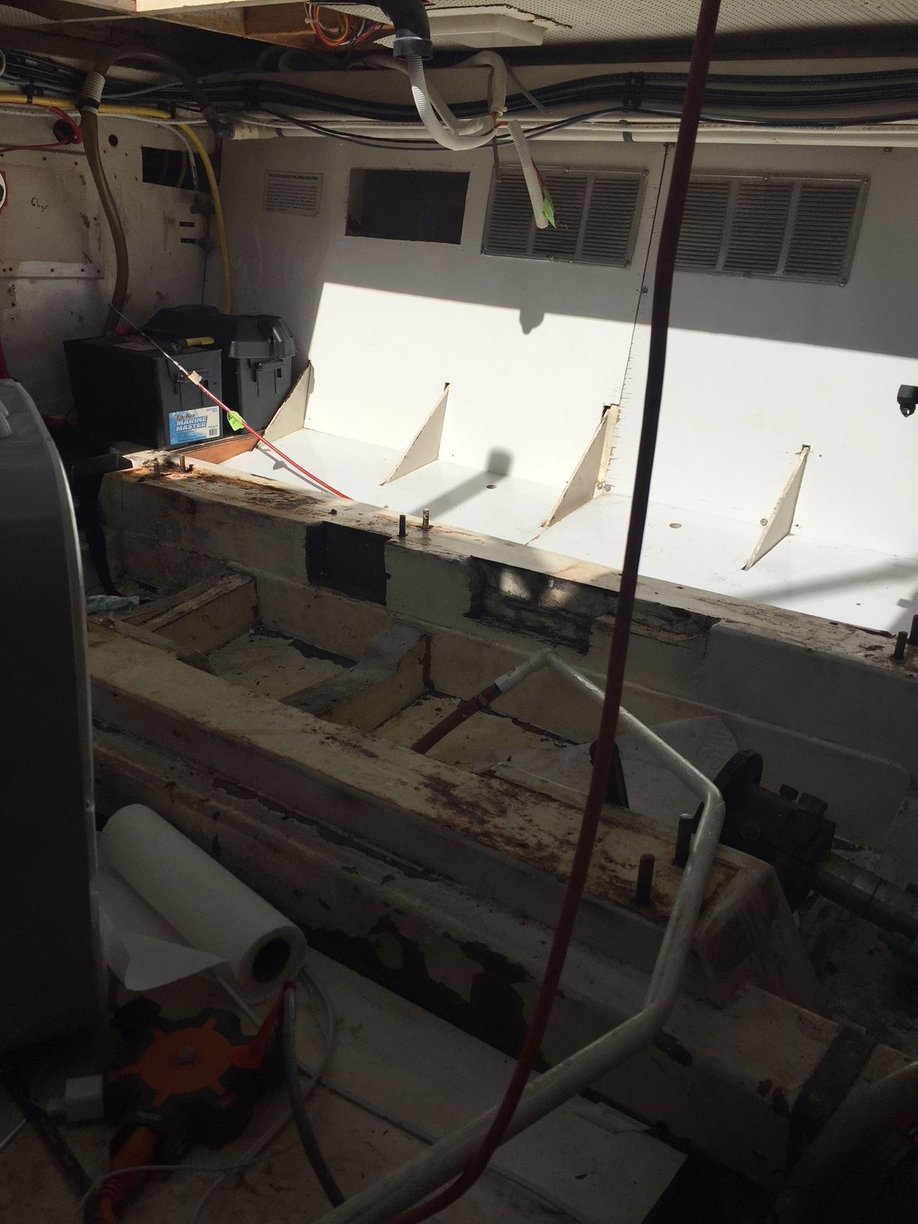

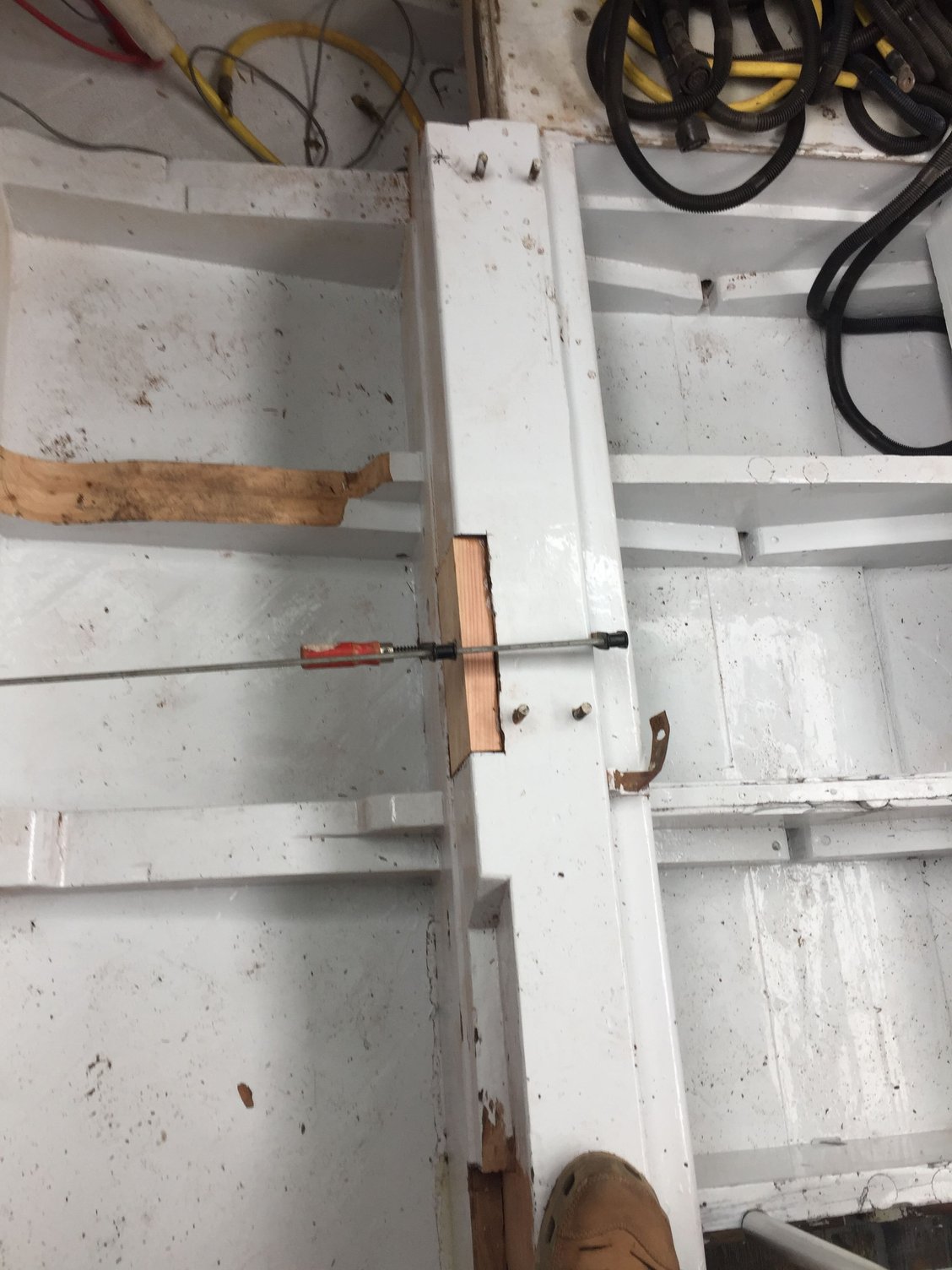

Today we had a chance to start finish sanding the notches needed to make the new engines fit. A long and daunting process nipping and clipping. We had four of us squeezing the pigs in and out to cut a little and put back. Also got a chance to start filling in the spots that are no longer needed to be notched.
Waiting on prices and availibility on 6” and 8” stainless channel to use as new engine beds. Way overkill but why not. If not readily available we will move on with plain old steel.
I decided to move the batteries to the aft in the engine compartment to help with cg from moving engines forward. Pics will show them tomorrow as I decided to build in the battery boxes
generator was ordered today and mist eliminators have been selected and will be arriving in a week.
Long stories in mist eliminators and different methods but the amount of water they remove coming in the engine room is unbelievable. 2 14/14 mist eliminators require a minimum of 2- 1” drains. I never had any idea as to the amount of spray entering the boat.
Lastly, I’m looking at Dripless shaft seals and ask opinions, Lois like I’m leaning towards kiwi or chatwick marines bluewater I think it is.



Likes:
Old 10-11-2018, 07:55 PM
  #56
Admirals Club Admiral's Club Member

Join Date: Dec 2010
Location: Florida
Posts: 585
Likes: 0
Received 72 Likes on 47 Posts
Default

1/2" Aluminum channel will work fine too & is still overkill. It's lasted 33 years on the Monterey we had & showed no signs of wear. Powder coat or Awlgrip it & forget about it!!
Old 10-12-2018, 10:08 AM
  #57
Senior Member

Join Date: Feb 2015
Posts: 2,356
Received 648 Likes on 344 Posts
Default

A few pieces of bar stock and a wirefeed welder set up for ss = channel any size you would like.
Old 10-12-2018, 12:57 PM
  #58
Senior MemberCaptains Club Member

Join Date: Oct 2004
Location: Cape Cod
Posts: 620
Likes: 0
Received 3 Likes on 3 Posts
Default

where are you and how much ss channel do you need? what size? length I might know a guy.......................... if you can use galv channel it will be much cheaper and easier to find,
Old 10-12-2018, 03:27 PM
  #59
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2008
Location:
Posts: 399
Likes: 0
Received 74 Likes on 42 Posts
Default

Originally Posted by HANNAH GRADY View Post
where are you and how much ss channel do you need? what size? length I might know a guy.......................... if you can use galv channel it will be much cheaper and easier to find,
I am in balti more area, I think I am just going to use flat bar as most of the ears are going to be notched out anyway. I just dont like inside corners to gather crud
Old 10-12-2018, 03:53 PM
  #60
Admirals Club Admiral's Club Member

Join Date: Jan 2018
Posts: 208
Likes: 0
Received 32 Likes on 22 Posts
Default

Awesome! sub’d
