1977 44' Buddy Davis refit

Old 09-14-2018, 06:37 PM
  #21
Senior MemberCaptains Club Member

Join Date: Sep 2004
Location: Jax Beach, FL
Posts: 2,103
Default

Originally Posted by keezdisease View Post


Bypass surgery phase 1 ,,,,,,can,t beat a way an old wood boat rides
when you ride on certain boats you will understand why, boat is solid and have yet to find the nail in the coffin, but here on hull truthI would expect nothing less! engines are out and measured up today to buy the right transmissions, waiting to here availability of twin disc 5085a or 5085 straight drop.
The logic is this, I have less than a hundred in the boat, for less than 325k I'll be all in all done, new electronics, new engines, new paint, new auto pilot and new tower with new EZ4U2Sea enclosure. No rot in a 44' boat that does well over 30 knots at cruise at damn near a gallon a mile. Its the widest boat I can handle in my marina so it fit the bill. The guy i bought it from is a hack at best and so full of shit his eyes are brown, but it had some good bones and nothing near the speed or ride qualitry can be had for under 400k or 500k and when she is done she will be done like I would build one out. No fluff but AC on the bridge with sleeping bunks for 4 and set up as a no nonsense no expense shared battlewagon. I have no need to take a 3 bedroom condo out to the fishing grounds, I had this same style boat in a 40' Blackwell and she rode better than most 50.s and passed them on the way home.
Old engines are out and one pic of the engine room YUK!!!
Good luck on a great project! You describe the previous owner perfectly. I'm looking forward to your finished boat.
mlaco is offline
Old 09-14-2018, 06:38 PM
  #22
Senior MemberCaptains Club Member

Join Date: Sep 2004
Location: Jax Beach, FL
Posts: 2,103
Default

Originally Posted by ed d View Post
wait till you see the Tillet finished..... She was far from done in this pic
mlaco is offline
Old 09-15-2018, 12:37 AM
  #23
Senior Member

Join Date: Oct 2013
Posts: 1,914
Default

Hello, that is totally sweet! I am a big fan of the Glenndinning controls, the Cummins engines should give few problems, if you want they are relatively easy to interface with MFD´s for digital representation. Ive seen a lot of photos of Jarrett Bay work, looks top notch. Subbed.
keezdisease likes this.
buxa is offline
Old 09-15-2018, 01:04 AM
  #24
THT Sponsor
THT sponsor
Thread Starter

Join Date: Dec 2008
Location:
Posts: 379
Default Sizzlin

Originally Posted by mlaco View Post
wait till you see the Tillet finished..... She was far from done in this pic
you guys have done an awesome job with her. I appreciate the help through this engine selection progress. I can’t wait to hear the true numbers when the props come in.
keezdisease is offline
Old 09-15-2018, 05:25 AM
  #25
Senior Member

Join Date: Aug 2011
Location: Palm City, FL
Posts: 2,176
Default

This is going to be awesome to watch. What a beaut!
Ahoy Vay is offline
Old 09-15-2018, 06:52 AM
  #26
Senior Member

Join Date: Feb 2017
Location: Panama City, Fl
Posts: 355
Default

Subscribed. Gotta love wood!
N2boats is offline
Old 09-16-2018, 12:27 PM
  #27
Admirals Club Admiral's Club Member

Join Date: Sep 2012
Location: Cape Cod
Posts: 3,325
Default

Subscribed ! Love it
OIReelKeeper is online now
Old 09-16-2018, 03:48 PM
  #28
THT Sponsor
THT sponsor
Thread Starter

Join Date: Dec 2008
Location:
Posts: 379
Default Progress in the belly of the beast

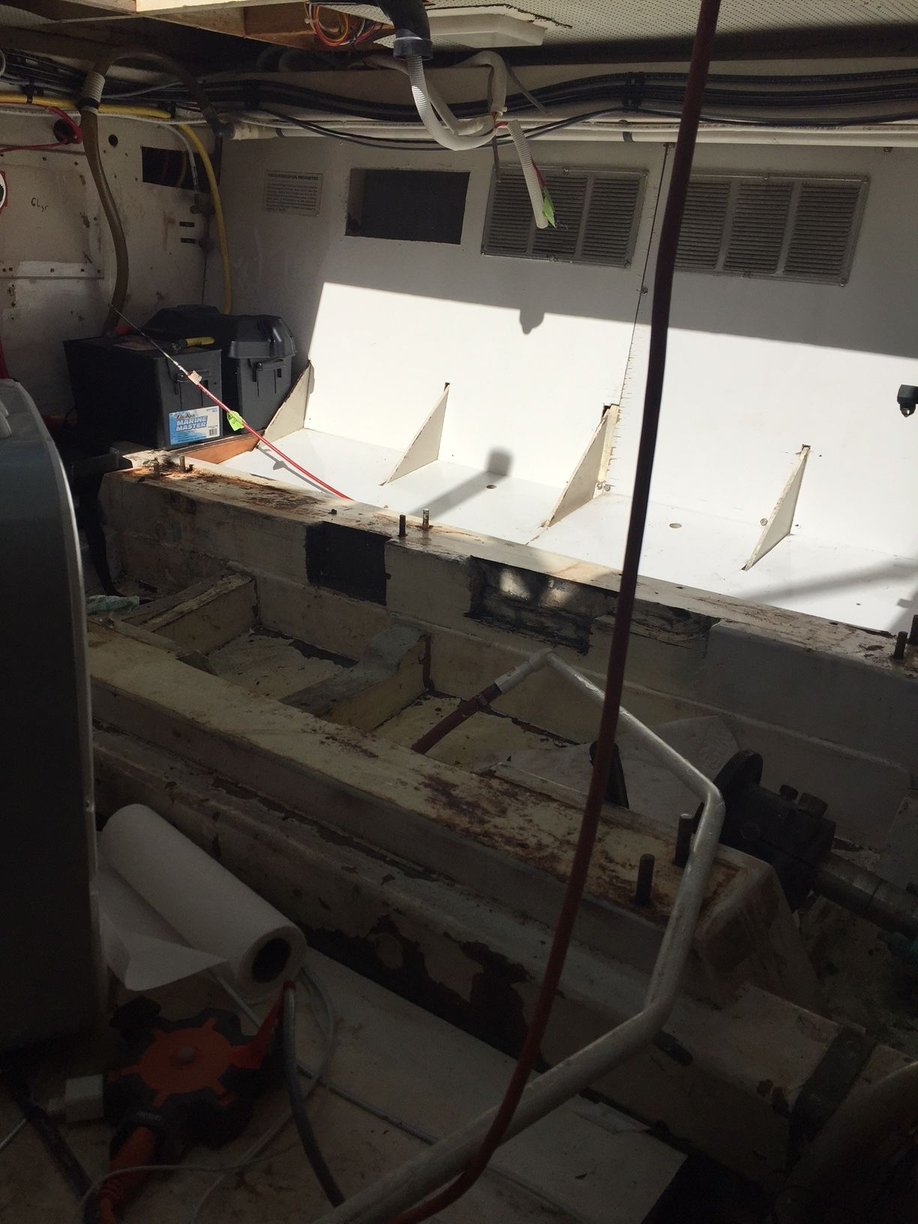

hoping to have paint on by end of week if we can get it all sanded . Next step is to fab the engine beds. Last ride I think so gonna make them out of stainless steel.

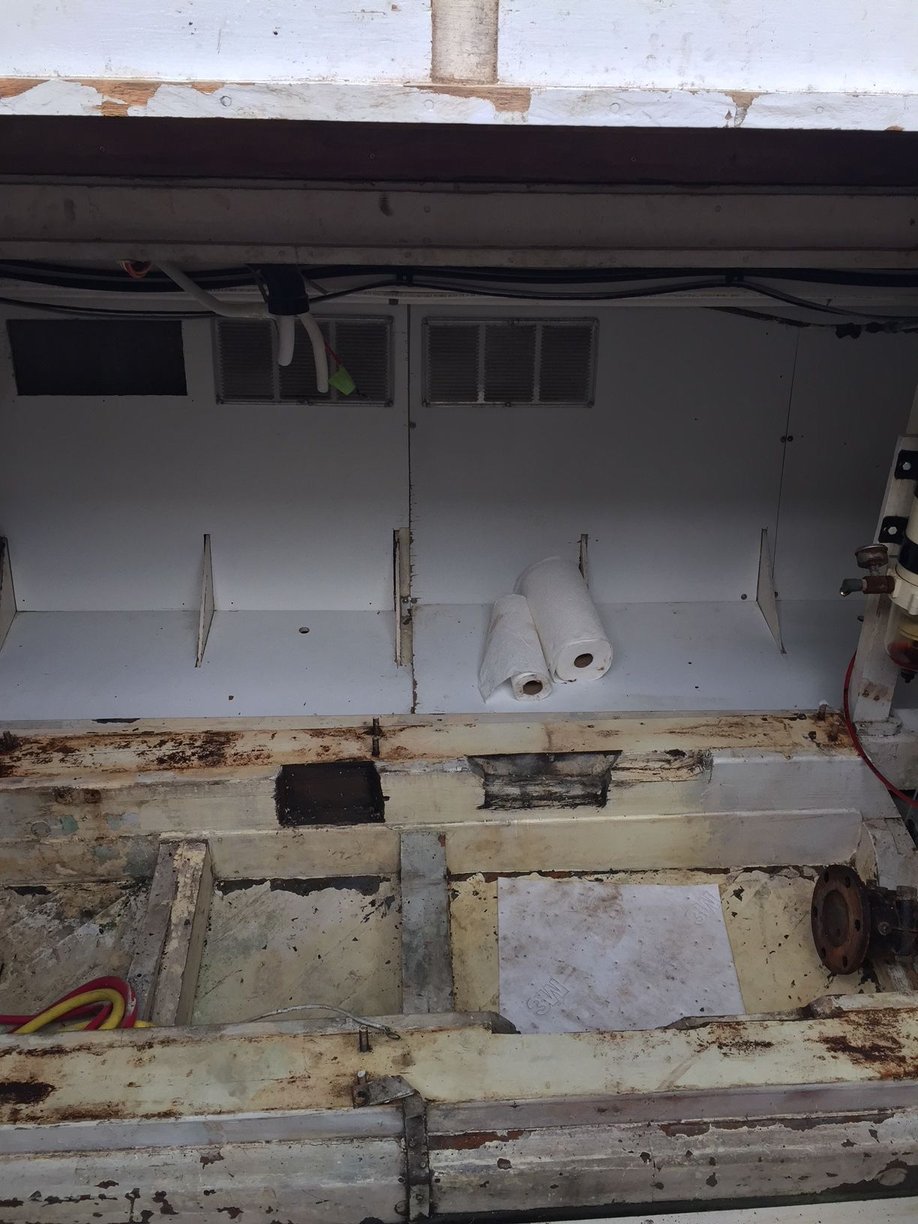

Another 6 hours and ready to sand and repaint areas. I am amazed that there are no signs of rot in the engine room. Gotta be something somewhere!


8 hours of cleaning. Making progress

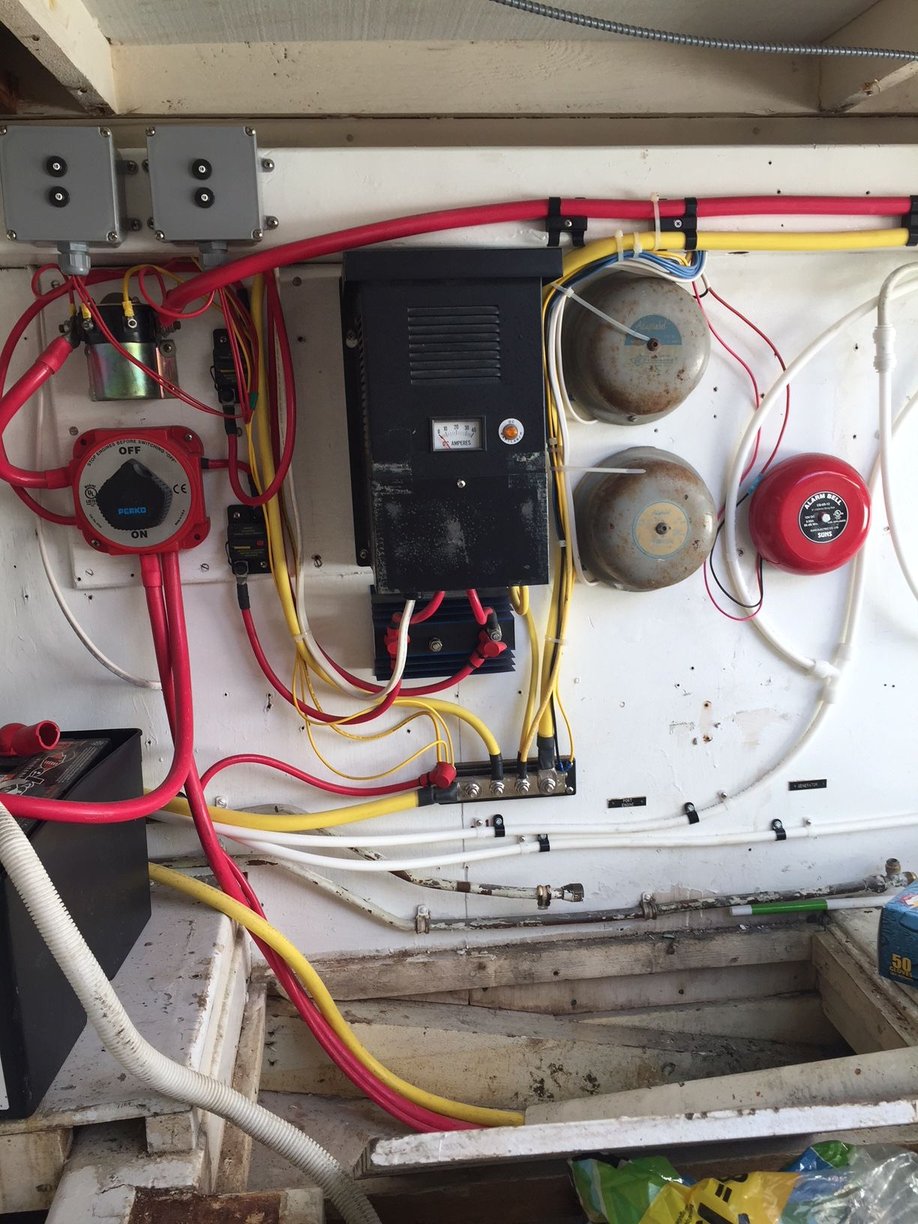

Ironically the wiring is ALL new. This pic has the 24 volt charger that is going away. The boat has both 24 and 12colt systems as the old engines were 24 volt start and so are all the bilge pumps. Old school bells are staying hopefully thru a relay. New bell is high boil he alarm. All the old copper water lines have been removed as well as side thru hulls for grey water and drains. Will be putting dual 2 1/2 or 3” pipes out the back as a main line for drains.
fishnhunter likes this.
keezdisease is offline
Old 09-17-2018, 04:20 AM
  #29
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jul 2010
Location: On the Flats
Posts: 7,204
Default

In
Flatout71 is online now
Old 09-17-2018, 04:23 AM
  #30
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,025
Default

Subd
duke460 is offline
Old 09-17-2018, 02:43 PM
  #31
THT Sponsor
THT sponsor
Thread Starter

Join Date: Dec 2008
Location:
Posts: 379
Default

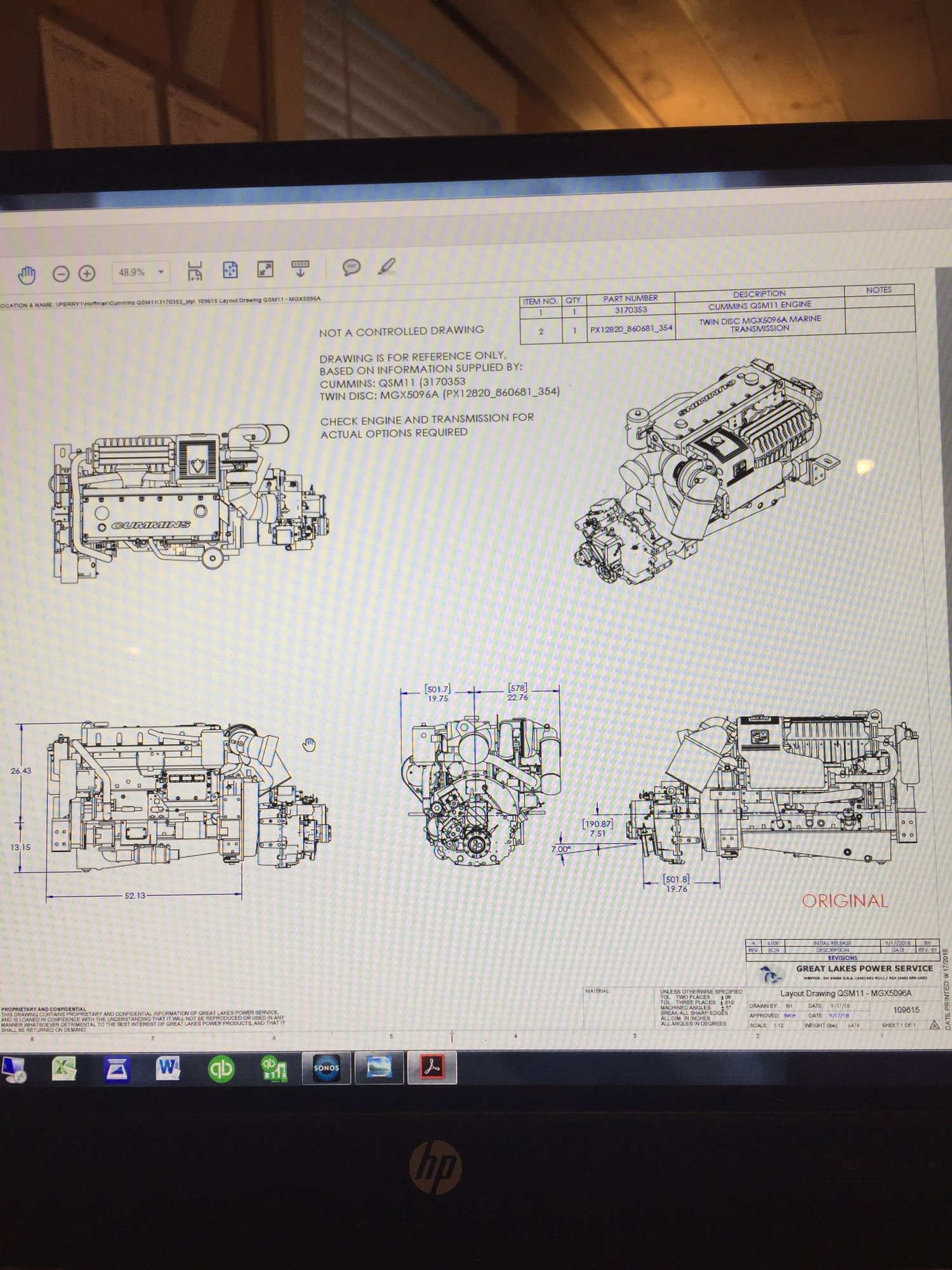

the drop offset was too short on the td 5082a and so was the zf 325a, so the choice was this trans with 7 degree offset flange or stright drop coupler. this allows me to set engines level or parallel to the engine bed.
I ordered engines today. I ended up having to go with a set of Twin Disc MGX 5096A so I could get a deeper offset to set the engines level. The good thing is they are rated for 900 hp on pleasure rating so I have a medium duty rating on that end which should provide some extra insurance
Attached Images

Last edited by keezdisease; 09-17-2018 at 03:06 PM. Reason: added content
keezdisease is offline
Old 09-17-2018, 03:08 PM
  #32
Admirals Club Admiral's Club Member

Join Date: Jul 2009
Location: FL
Posts: 44
Default

Very nice project and progress! Subd
TIG-it is offline
Old 09-17-2018, 03:23 PM
  #33
Admirals Club Admiral's Club Member

Join Date: Jul 2010
Location: Texas
Posts: 655
Default

Hell of a project! Going to be BA when done.
DirtKat is online now
Old 09-17-2018, 04:04 PM
  #34
Admirals Club Admiral's Club Member

Join Date: Dec 2015
Location: South Jersey
Posts: 139
Default

goodluck with it. Awesome. subd
2011skiff is online now
Old 09-21-2018, 09:08 AM
  #35
THT Sponsor
THT sponsor
Thread Starter

Join Date: Dec 2008
Location:
Posts: 379
Default Enclosure

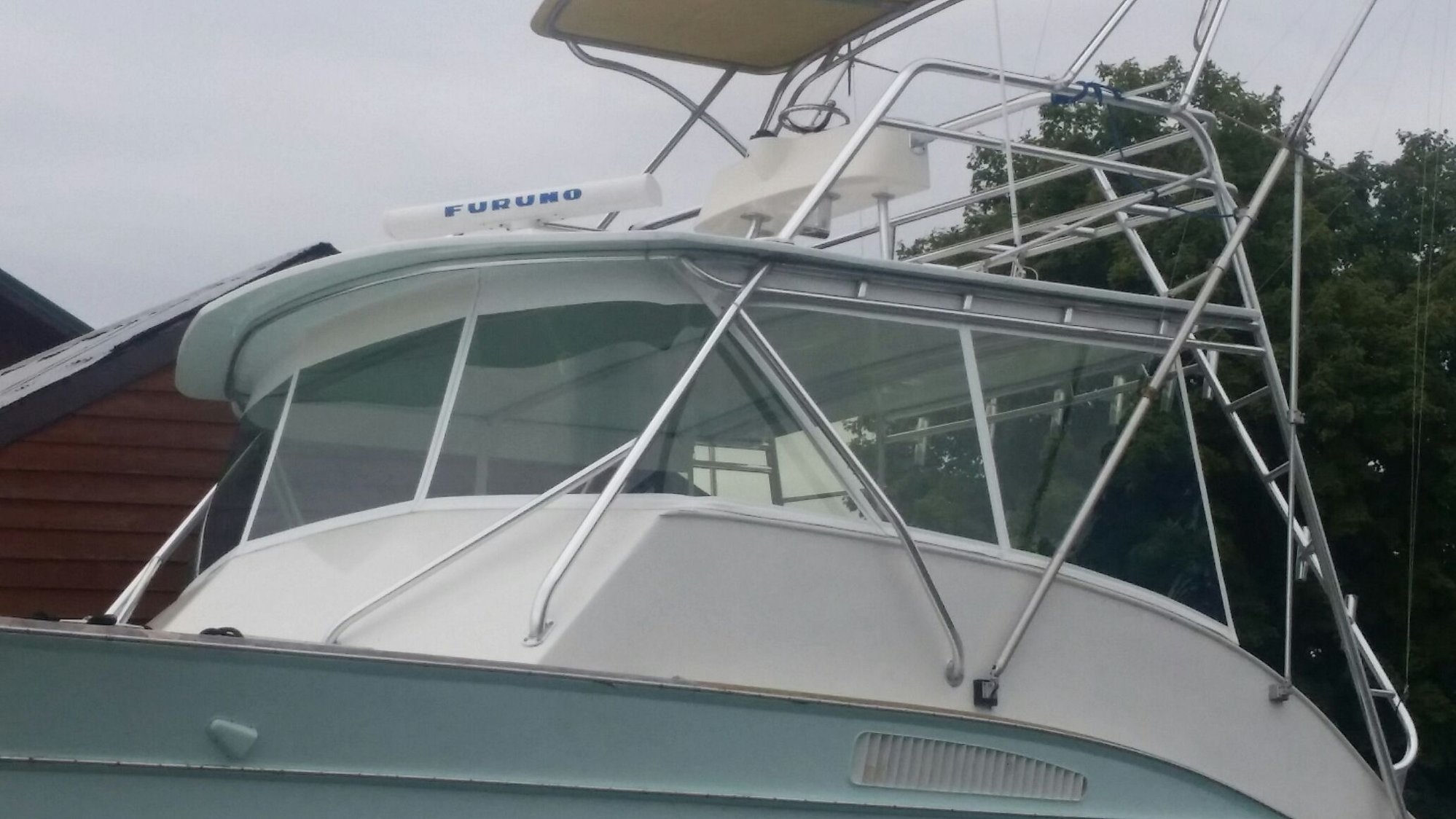

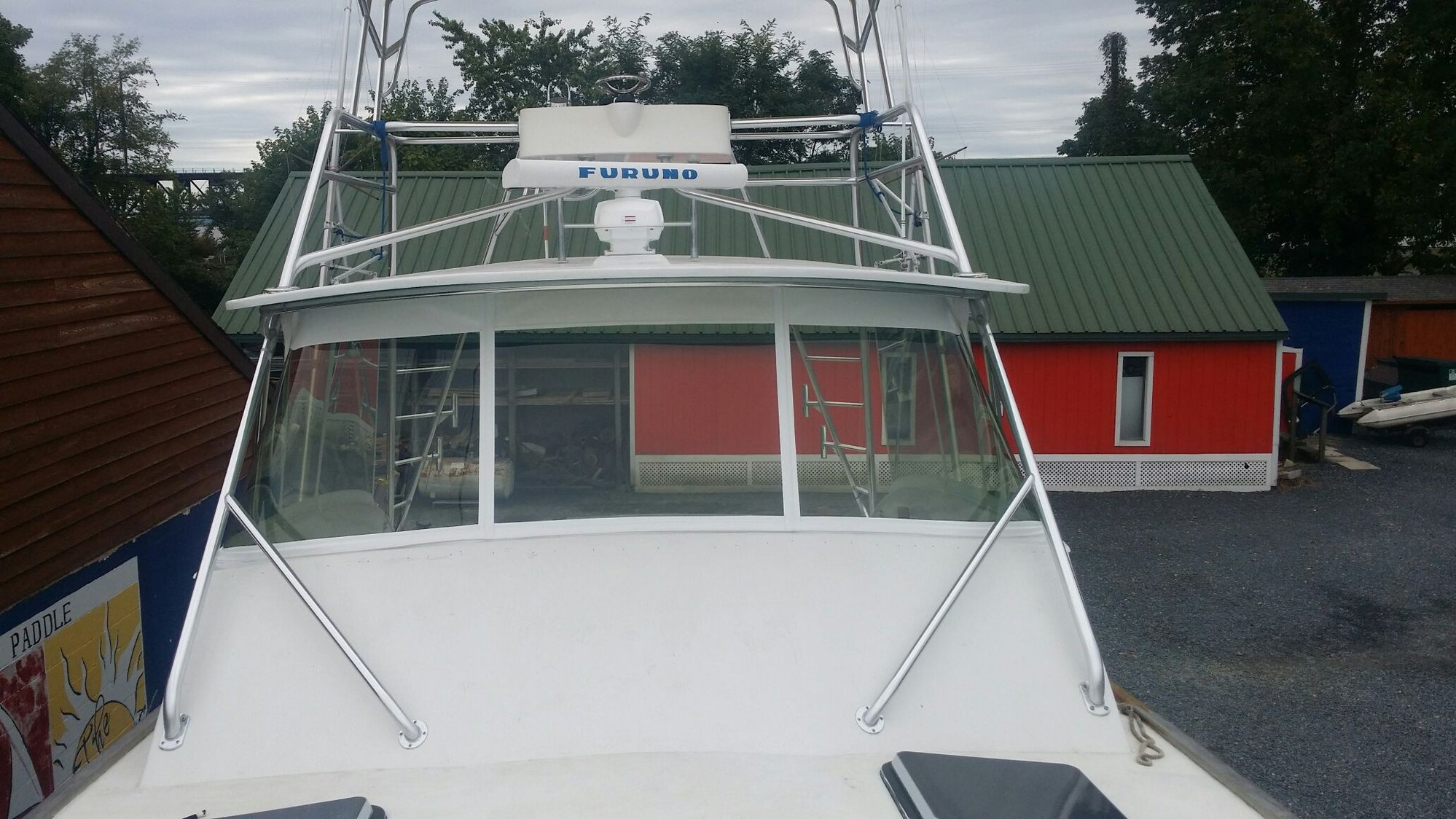

an item off the list. We fabricated and installed the EZ4U2SEA tinted enclosure. Love the clean lines and worth 15 degrees cooler temps inside with the tinted windows.

jheiii likes this.

Last edited by keezdisease; 11-10-2018 at 06:21 PM.
keezdisease is offline
Old 09-21-2018, 09:15 AM
  #36
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Posts: 3,175
Default

Love this project. Good friend of mine has a 1987 47' Buddy Davis, flybridge, but fiberglass and I've spent a lot of time on it.

Good luck, keep us posted.
Avid 24 is offline
Old 09-21-2018, 09:47 AM
  #37
Senior Member

Join Date: Mar 2011
Posts: 1,894
Default

in!
MUHSFINK07 is offline
Old 09-21-2018, 11:44 AM
  #38
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Fleming island, FL
Posts: 2,248
Default

So in!!! Don't cheat us on any pics of progress, you know we all need our fix..... Great resto project sir.
keezdisease likes this.
hensleyfish is offline
Old 09-21-2018, 07:23 PM
  #39
Senior Member

Join Date: Aug 2017
Location: Wilmington NC
Posts: 511
Default

I’m in! Beautiful boat. “No floating condo” lol. Love it.
MaseTime is online now
Old 09-21-2018, 07:53 PM
  #40
Admirals Club Admiral's Club Member

Join Date: Aug 2009
Location: VA
Posts: 5,938
Default

Great project! Sounds like you've got a great plan for that classic. Sub'd!
Buoy Scout is offline
