Started Building a Boat Today

Old 05-21-2018, 07:45 PM
  #1
HTJ
Senior Member
Thread Starter

Join Date: Jun 2013
Location: Baytown, TX
Posts: 9,751
Default Started Building a Boat Today....Got Her Wet!

And no 425 Yam V-8's will be harmed in the making...

I've wanted to do this for a while, is mostly a project to entertain my 14 year old and myself, and a boat might even result. The only plans are in my head with LYS (ish) techniques and materials to be used, and certainly with my own twists along the way. She should finish up around 15'6" with a max beam amidships of perhaps 6' or a skosh less. Power will be whatever 20 - 30 HP motor I stumble across when the time comes. Anyways...

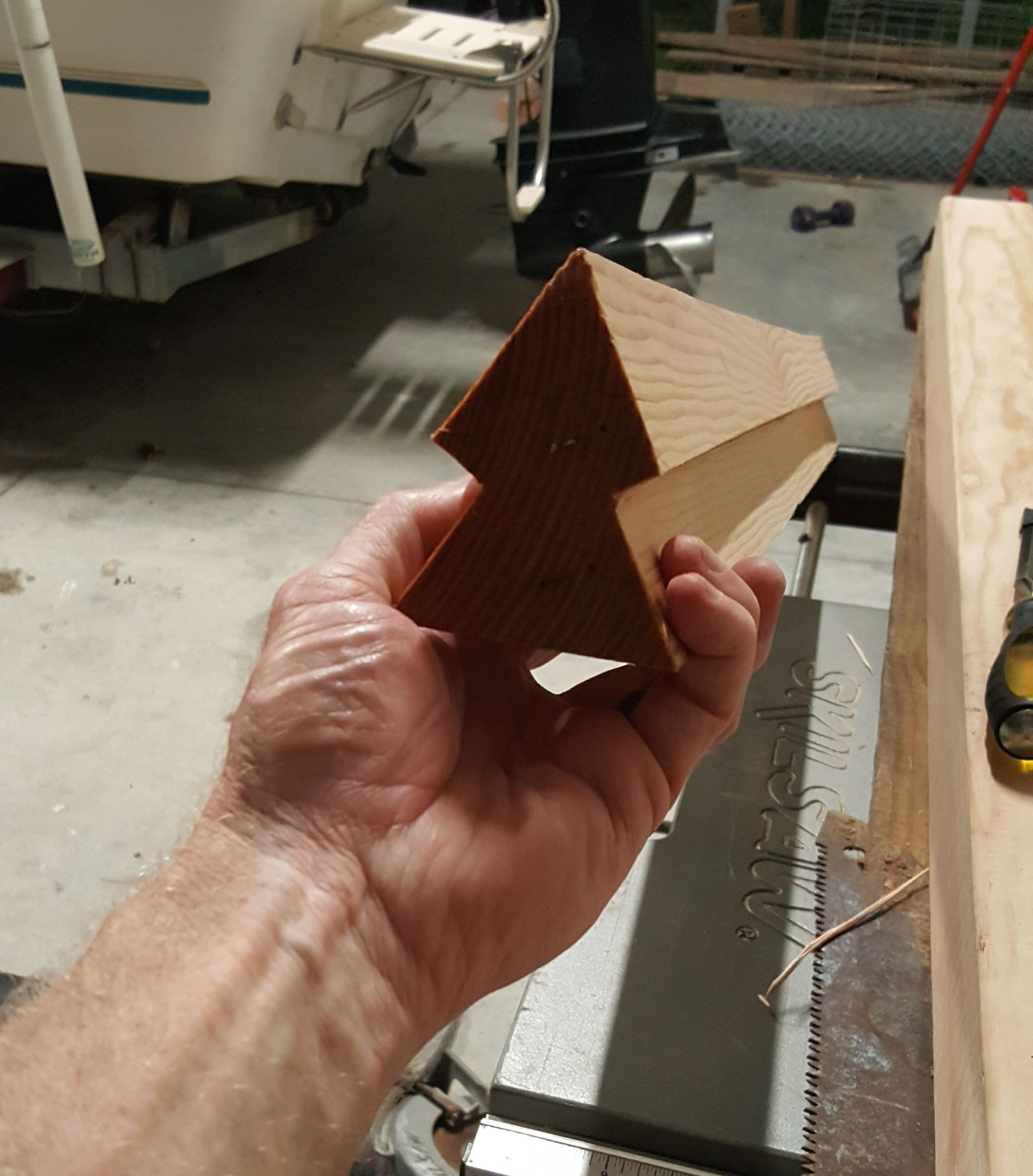

First order of business was the stem and my local Lowe's served up a plenty fine chunk of Doug Fir, a few quick minutes on the table saw and done

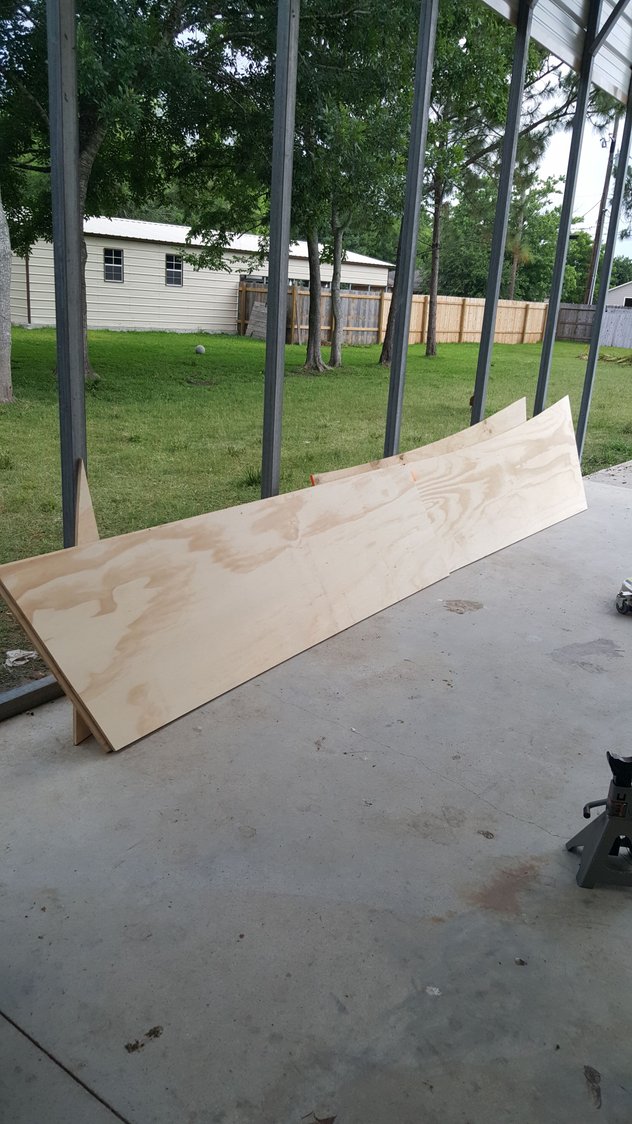

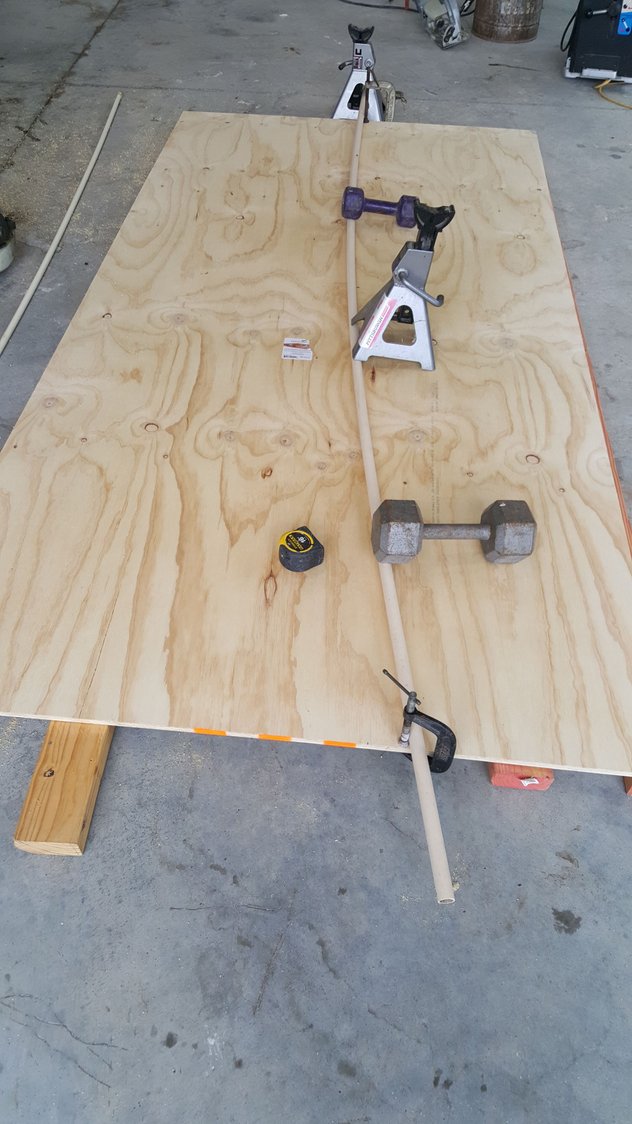

Next was the side panels and feel free to borrow my uber ghetto CPVC batten, a little tweaking, pulling and eyeballing and soon something resembling a fair curve was born. And yes I am planning for some sheer adjustment after the panels are bent into place. We dogged it off after this, the transom being next and I've yet to find the 2 particular 2 x 12's I want. I may have to cave in and build a ply transom but I'm holding out hope for clear dimension lumber
flbassjag and Jeffh40 like this.

Last edited by HTJ; 06-19-2019 at 12:51 PM.
HTJ is offline
Old 05-21-2018, 08:03 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Nov 2011
Location: South East Louisiana
Posts: 10,460
Default

tagged!
midcap is offline
Old 05-22-2018, 03:53 AM
  #3
Senior Member

Join Date: Feb 2018
Location: Watâ'gi Lake...TN
Posts: 277
Default

Ost
bansil is online now
Old 05-22-2018, 03:57 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,091
Default

Congratulations on working with your son on a project. Regardless of the outcome it will be a remembered experience. Keep us posted.
duke460 is offline
Old 05-22-2018, 04:04 AM
  #5
Senior Member

Join Date: Aug 2016
Posts: 435
Default

Count me in
Floatingalong is offline
Old 05-22-2018, 04:08 AM
  #6
Senior Member

Join Date: Jul 2013
Posts: 1,308
Default

this program can help with the lofting. It can also be used to visualize the boat in your head.

Carlson's Hull Designer program
jcassara is offline
Old 05-22-2018, 04:18 AM
  #7
Senior Member

Join Date: Jul 2016
Location: Stuart FL
Posts: 372
Default

I'm in....love these builds.
Rundeep is offline
Old 05-22-2018, 04:55 AM
  #8
Senior Member

Join Date: Mar 2009
Posts: 434
Default

No better way to spend time with your youngin. Subscribed.
Scotsman is offline
Old 05-22-2018, 06:56 AM
  #9
Senior Member

Join Date: Aug 2016
Location: West Palm Beach,FL.
Posts: 768
Default

I'm in
FL.flatback 222 is offline
Old 05-22-2018, 08:04 AM
  #10
HTJ
Senior Member
Thread Starter

Join Date: Jun 2013
Location: Baytown, TX
Posts: 9,751
Default

Originally Posted by jcassara View Post
this program can help with the lofting. It can also be used to visualize the boat in your head.

Carlson's Hull Designer program
Thanks, I've been looking for something like this. And to everyone else thank you for the kind words. I should have pointed out my plywood material of choice is Arauco ply - I bought a sheet of 3/4" for other reasons last year and it is pretty fine stuff, at least for a homebrewed throw down skiff - equal thickness plys (5 in the 1/2" and 7 in the 3/4"), minimal to no core voids and the piece I boiled for 20 minutes didn't even blink.

With butt blocks really hurting my feelings I have quasi talked myself into scarfing the side panels together so my pea brain has been busy inventing a scarfing jig, if the honey do list doesn't rear it's ugly head that will be this afternoons venture. PL premium glue and ABYC approved decking screws will handle most of the fastening chores.
HTJ is offline
Old 05-22-2018, 08:20 AM
  #11
Senior Member

Join Date: Mar 2009
Location: Pacific NW
Posts: 439
Default

Looks like a fun project with the son.

When I was a teen my dad had a 15 foot plywood flat bottom skiff. 25 Johnson. I put many an hour in the boat, catching red drum, speckled trout, and lots of other fish around Saint Simons Island, GA, in the rivers and creeks. Kept me off the street and out of trouble!
Altamaha is offline
Old 05-22-2018, 08:29 AM
  #12
Senior Member

Join Date: Mar 2009
Location: Pacific NW
Posts: 439
Default

Google Learned Dories. Or Terry Learned, dory builder. There are several articles and you tube videos on the net showing his dories and building techniques. I have seen photos of his scarfing jig, you may be able to find it with some good searching.

Terry Learned is the premier builder of the Pacific City Dory, a 22 footer used by sport and commercial fishermen off the coast of Oregon. Flat bottom, the videos of the beach landings are impressive!
Altamaha is offline
Old 05-22-2018, 09:54 AM
  #13
HTJ
Senior Member
Thread Starter

Join Date: Jun 2013
Location: Baytown, TX
Posts: 9,751
Default

Originally Posted by Altamaha View Post
Google Learned Dories. Or Terry Learned, dory builder. There are several articles and you tube videos on the net showing his dories and building techniques. I have seen photos of his scarfing jig, you may be able to find it with some good searching.

Terry Learned is the premier builder of the Pacific City Dory, a 22 footer used by sport and commercial fishermen off the coast of Oregon. Flat bottom, the videos of the beach landings are impressive!
Very interesting, I have quite the soft spot for these hull types - We would all be in a Tolman if not for the "need" to run 50MPH. The idea has been back burnered for a while but a 23' - 24' vee bottom doryish hull really appeals to me as an economical and very capable do it all platform.
starbright55 and NC_Native like this.
HTJ is offline
Old 05-22-2018, 10:27 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Aug 2014
Location: Hanahan, SC
Posts: 7,975
Default

Good luck! Always wanted to build my own boat...may attempt it one of these days.
schoolsout1 is online now
Old 05-22-2018, 10:31 AM
  #15
Senior Member

Join Date: Jul 2010
Posts: 869
Default


Is this the style boat?
sway21 is offline
Old 05-22-2018, 11:42 AM
  #16
Senior Member

Join Date: Mar 2009
Location: Pacific NW
Posts: 439
Default

Originally Posted by sway21 View Post

Is this the style boat?
No, similar but not the classic flat bottom of the plywood Pacific City Dory. That one looks like a fiberglass Harvey Dory.

I will post a photo of a Learned Dory in the next post.
Altamaha is offline
Old 05-22-2018, 11:46 AM
  #17
Senior Member

Join Date: Mar 2009
Location: Pacific NW
Posts: 439
Default

. Learned Dory at Pacific City Oregon: Stout plywood construction with thick fiberglass on the bottom and sides.


Fiberglass Harvey Dory:
Lprizman likes this.
Altamaha is offline
Old 05-22-2018, 12:24 PM
  #18
HTJ
Senior Member
Thread Starter

Join Date: Jun 2013
Location: Baytown, TX
Posts: 9,751
Default

Originally Posted by sway21 View Post
Is this the style boat?
Of the 23'/24' I mentioned wanting - yes, in center console layout but yes that hull form. The little one I'm building will be a flat bottom along the lines of.....

Lprizman likes this.
HTJ is offline
Old 05-24-2018, 04:10 PM
  #19
HTJ
Senior Member
Thread Starter

Join Date: Jun 2013
Location: Baytown, TX
Posts: 9,751
Default

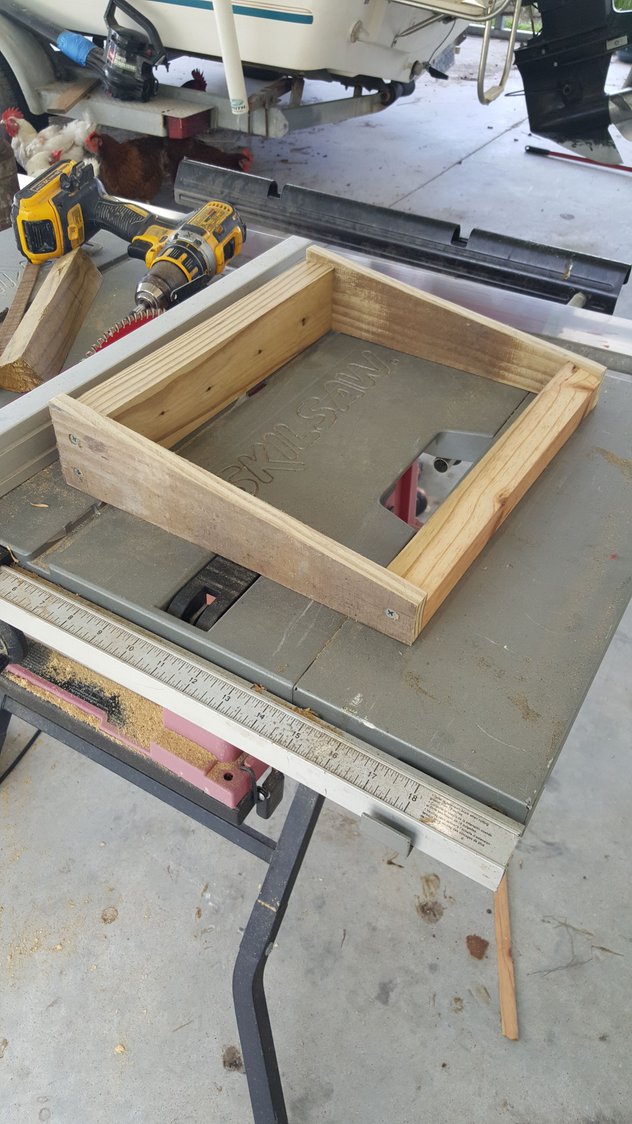

No boat progress to report today (I am pals with Midcap after all) but a few quick minutes with some scrap and I have this super sporty 8:1 scarfing jig ready to roll. Not pictured I have some 2" aluminum angle to mount my router on and I even sprang for a new 3/4" bit. I'm hoping tomorrow to put it to use on the side panels.
ed d likes this.
HTJ is offline
Old 05-24-2018, 05:22 PM
  #20
Admirals Club Admiral's Club Member

Join Date: Nov 2011
Location: South East Louisiana
Posts: 10,460
Default

Originally Posted by HTJ View Post
No boat progress to report today (I am pals with Midcap after all) but a few quick minutes with some scrap and I have this super sporty 8:1 scarfing jig ready to roll. Not pictured I have some 2" aluminum angle to mount my router on and I even sprang for a new 3/4" bit. I'm hoping tomorrow to put it to use on the side panels.


you accomplished more in this week on your boat than I have in almost a year on my boat.
Lprizman likes this.
midcap is offline
