Magnum 40 re build and conversion

Old 06-25-2019, 04:40 AM
  #141
Admirals Club Admiral's Club Member

Join Date: Aug 2014
Location: Cudjoe Key
Posts: 836
Default

Wow is an understatement! This thing is amazing
1design likes this.
Lowerkeys is offline
Old 06-25-2019, 05:00 AM
  #142
Senior MemberCaptains Club Member

Join Date: Jul 2004
Posts: 4,462
Default

Holy crap amazing!!!!!
1design likes this.

Last edited by THE BARRACUDA; 06-25-2019 at 07:37 AM.
THE BARRACUDA is offline
Old 06-25-2019, 09:42 AM
  #143
Senior Member

Join Date: Oct 2017
Posts: 101
Default

Wow is a understatement this build is off the charts. I can't imagine just trying to keep the deck clean while working on the this beauty. Kingston grey is the color I painted my boat it really looks sharp imo !
1design likes this.
Shoresscow is offline
Old 06-25-2019, 05:56 PM
  #144
Admirals Club Admiral's Club Member

Join Date: Mar 2012
Location: The Sunshine State
Posts: 687
Default

Please pop a mold from the hardtop and start selling them. If it's a standard 9-10 feet wide it would fit a wide cross section of 30' plus boats out there. The skin cancer survivor crowd (I'm a member) needs them.
Docked Wage is offline
Old 06-25-2019, 07:30 PM
  #145
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default


Thanks to everyone for all the words of encouragement!!! Iím glad you guys like the work so far. It has not been easy, and the conditions could be better. The abandoned lychee farm my brother in law has let me used has hundreds of pound of rotting fruit on the grounds and cow manure gently blowing in from the neighboring farm. I canít wait to finishing with the paint so we can move to the side of my house to start the rigging and other fun stuff!!!

Hoping to shoot this Thursday if weather permits.




I have been using weather underground app. And itís really amazing. You can set specific thresholds Like humidity % on a specific point on the map. Iíve been tracking its predictions and it has been pretty accurate at least for rain
1design is offline
Old 06-25-2019, 07:36 PM
  #146
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

Originally Posted by Docked Wage View Post
Please pop a mold from the hardtop and start selling them. If it's a standard 9-10 feet wide it would fit a wide cross section of 30' plus boats out there. The skin cancer survivor crowd (I'm a member) needs them.
check out Chiungís hardtop on his magnum. In retrospect I think his looks better, lighter and probably cheaper. Just use epoxy instead of polyester and you donít get any smell when your glassing
1design is offline
Old 06-25-2019, 07:37 PM
  #147
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

Originally Posted by Shoresscow View Post
Wow is a understatement this build is off the charts. I can't imagine just trying to keep the deck clean while working on the this beauty. Kingston grey is the color I painted my boat it really looks sharp imo !
how hot is it? Can you walk on it barefoot?

so... No, you can not walk on it barefoot

Last edited by 1design; 07-01-2019 at 07:52 PM.
1design is offline
Old 06-29-2019, 09:35 PM
  #148
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

Tuesday seems to be the new day for painting

took some more pics...




.

.

.

.

.
1design is offline
Old 06-30-2019, 03:08 AM
  #149
Senior Member

Join Date: Jan 2011
Location: Northern Burbs of the Motor City
Posts: 6,317
Default

Can't wait to see how the upper turns out.
1design likes this.
magua is offline
Old 06-30-2019, 04:16 AM
  #150
Senior MemberCaptains Club Member

Join Date: Nov 2004
Location:
Posts: 1,659
Default

Your work is looking mighty fine. There is simply no comparison in the amount of effort that goes in to redoing a cabin boat versus a center console. By my estimate, a CC of similar size is less than half of the work for sure.

Have you managed to reduce any weight through the rebuilding process? Stick with it, looking really good.
1design likes this.
Jaizzen is offline
Old 07-01-2019, 07:50 PM
  #151
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

Originally the cabin was itís own mold that they popped into the hull before screwing in the deck/cap. It was really heavy fiberglass and marine ply. Not only was it heavy, but it took up incredible amounts of space. If you see the earlier pictures youíll see we removed the entire thing piece by piece. We also took out the original stringers that were also fiberglass over plywood and replaced them with divincel and did 6 layers of high quality American fiberglass 45 degree stitched 1708 biaxial and epoxy.

To to answer your question, I think we have netted a 2000 -3000 pounds in weight reduction, but We wonít really know until we take it to the weight station.

magua likes this.
1design is offline
Old 07-02-2019, 06:04 AM
  #152
Admirals Club Admiral's Club Member

Join Date: Dec 2009
Posts: 127
Default

Hey 1 going to echo what others are saying regarding the quality of work you are doing. And yes, I can imagine what a PIA it is to spray outside in FL during the summer - was it a timing thing (virtually all projects take longer than originally calculated) and you just got caught? I especially admire your color combination - Very tasteful imo .

Taste/tasteful. Something not always easy to achieve and something that has very little to do with money...made a bit more difficult with the amount of real estate you are dealing with. Definitely turning out to be a beautiful space to spend time on. Enjoying your thread and will be following the next phase as well.

BTW, in addition to a beautiful boat, I have to admire your mango tree on posts # 126 & 148... Lol you must be in a jungle as I can't imagine those pieces not joining the NFL (not for long)/surviving with So Fl's prying eyes...Keep it going you're doing great - mv
1design likes this.
MarkV is offline
Old 07-02-2019, 06:33 AM
  #153
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: plimoth ma
Posts: 218
Default

Awesome build! This is taking things to the next level.
1design likes this.
jgren is offline
Old 07-02-2019, 06:13 PM
  #154
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

prepped from 7:00 am to noon. Painting was finished at 6:00 PM

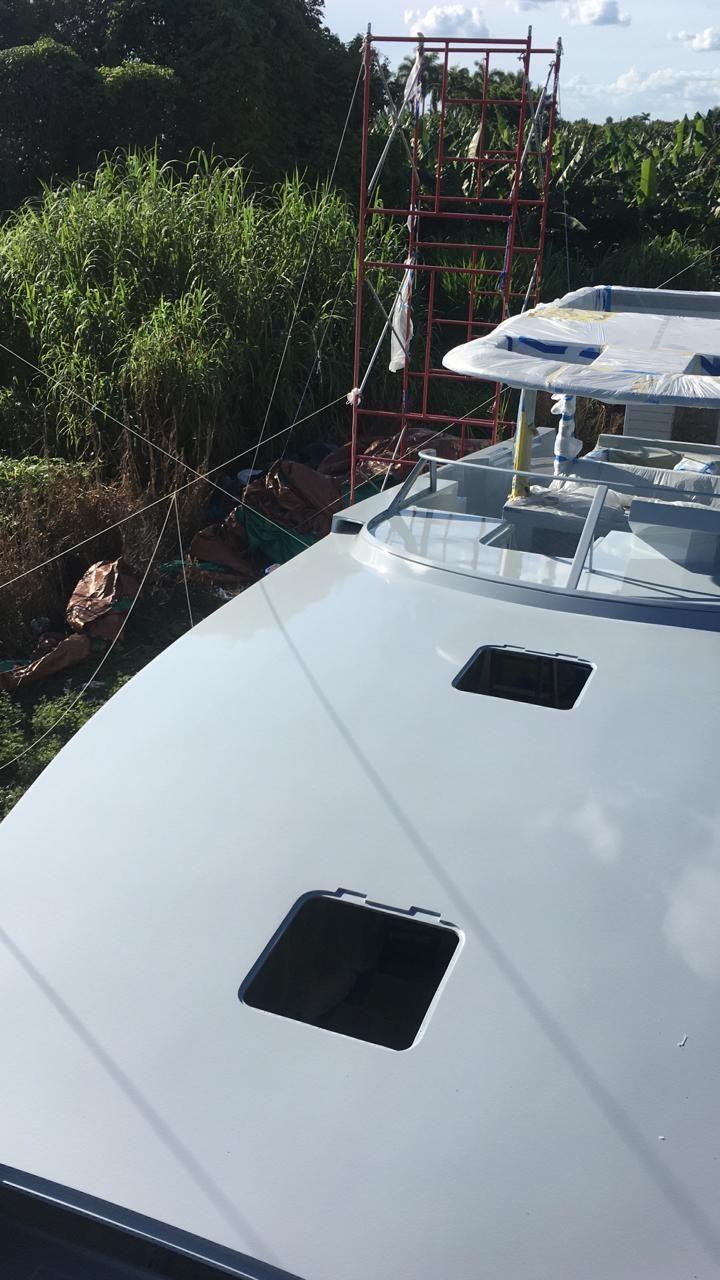

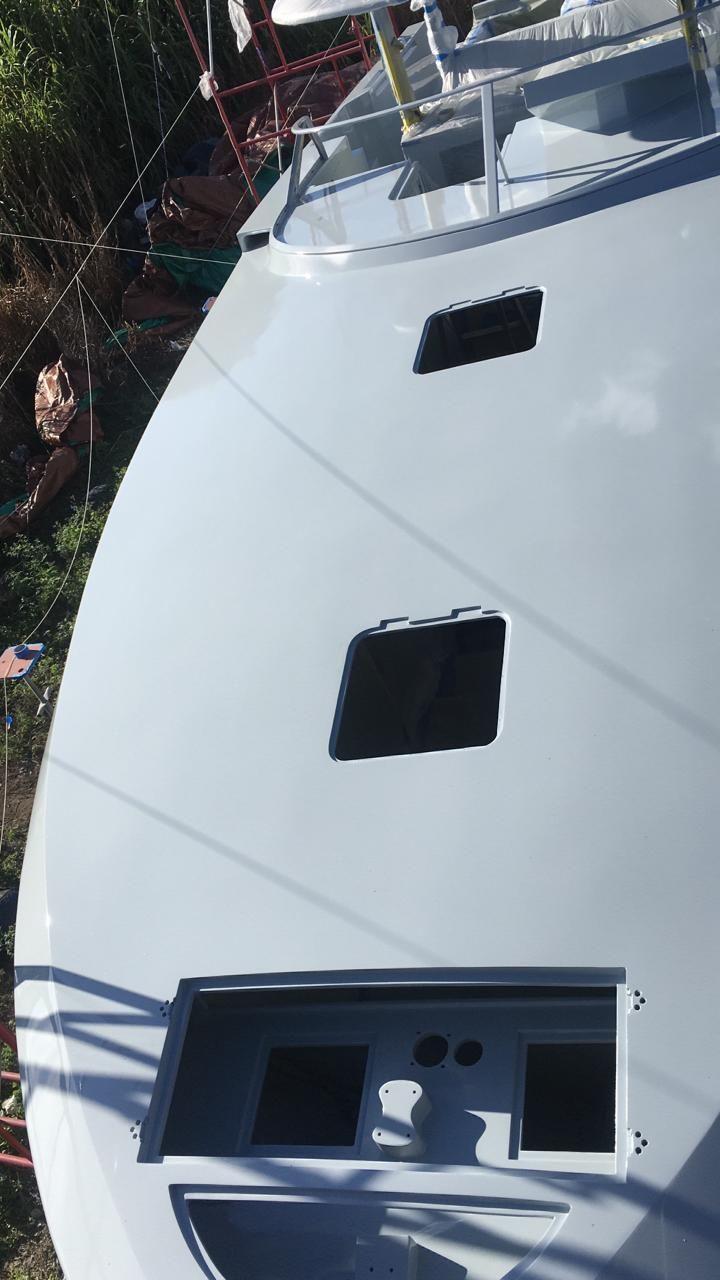

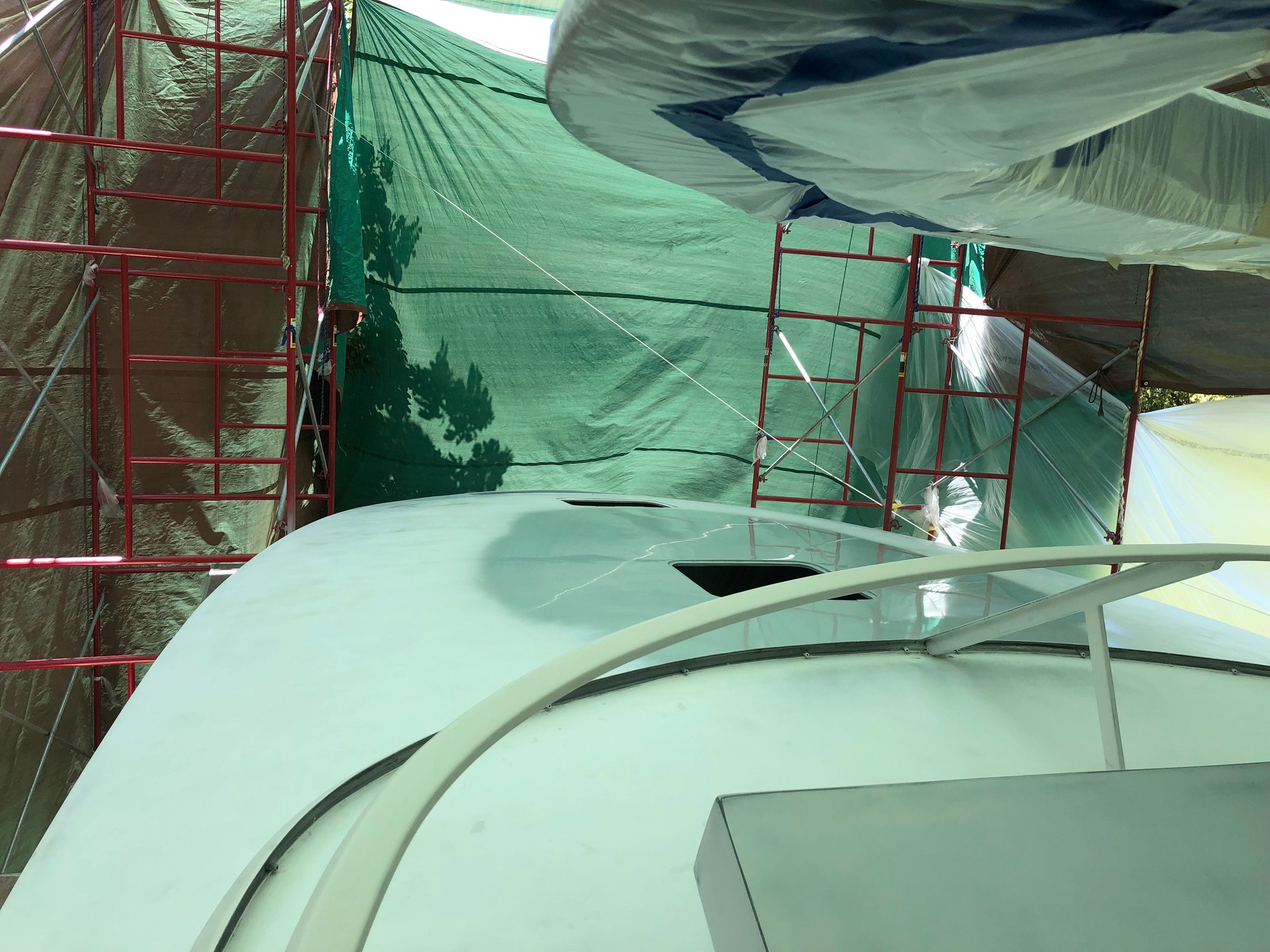

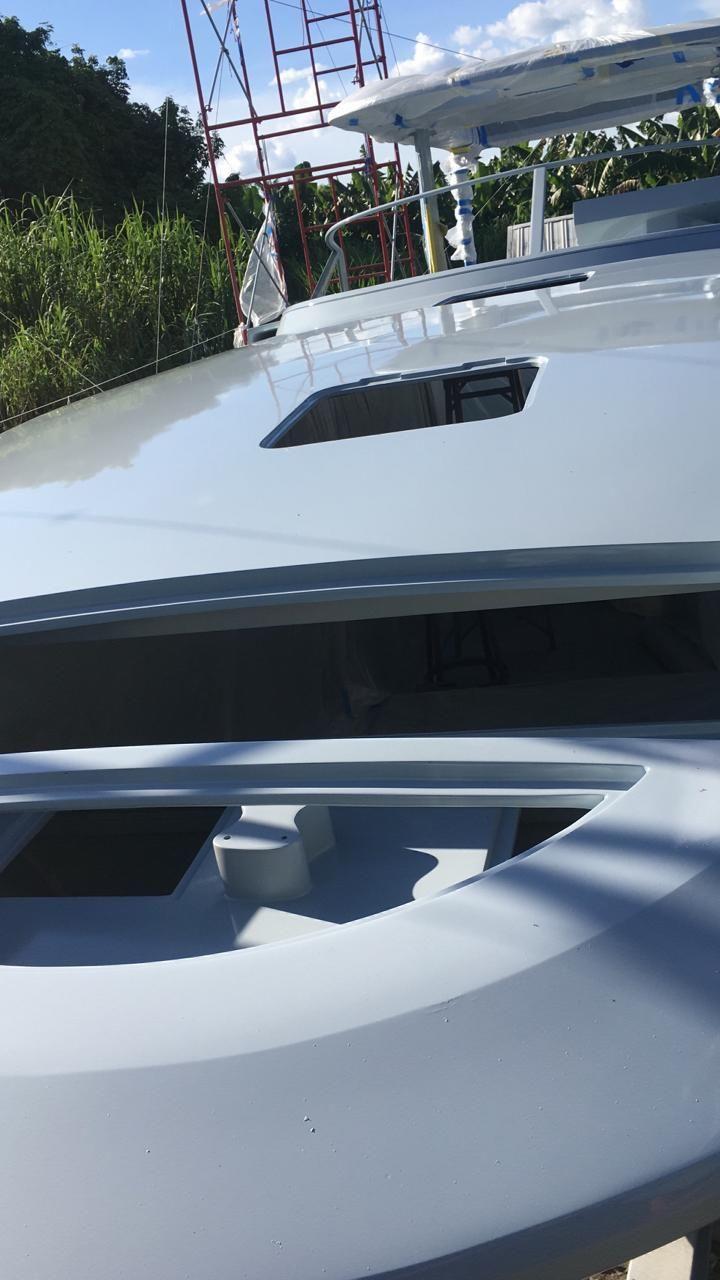

First bit of grey around the hatches and anchor locker

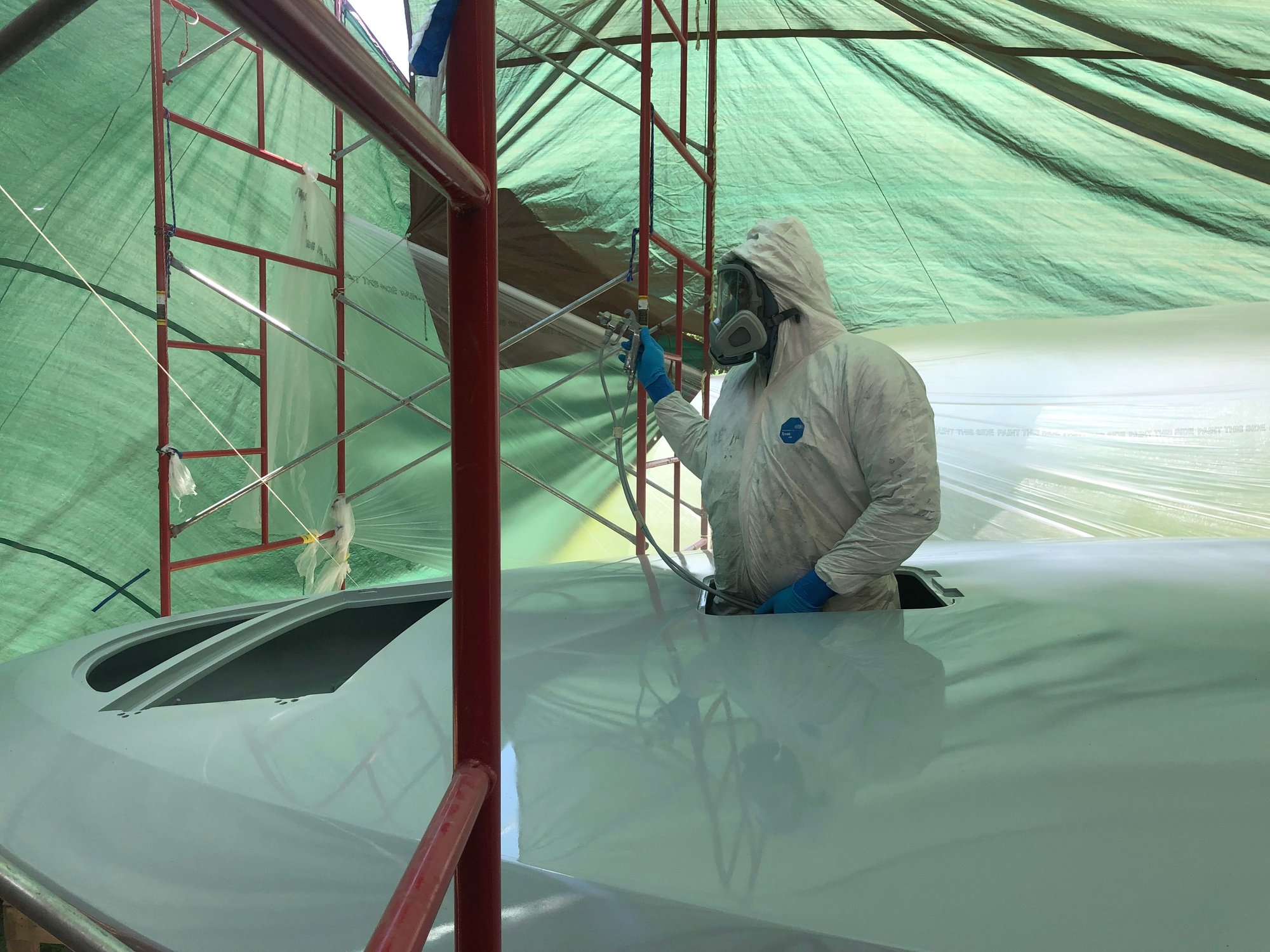

Kenston is 6í4Ē which is definitely a plus

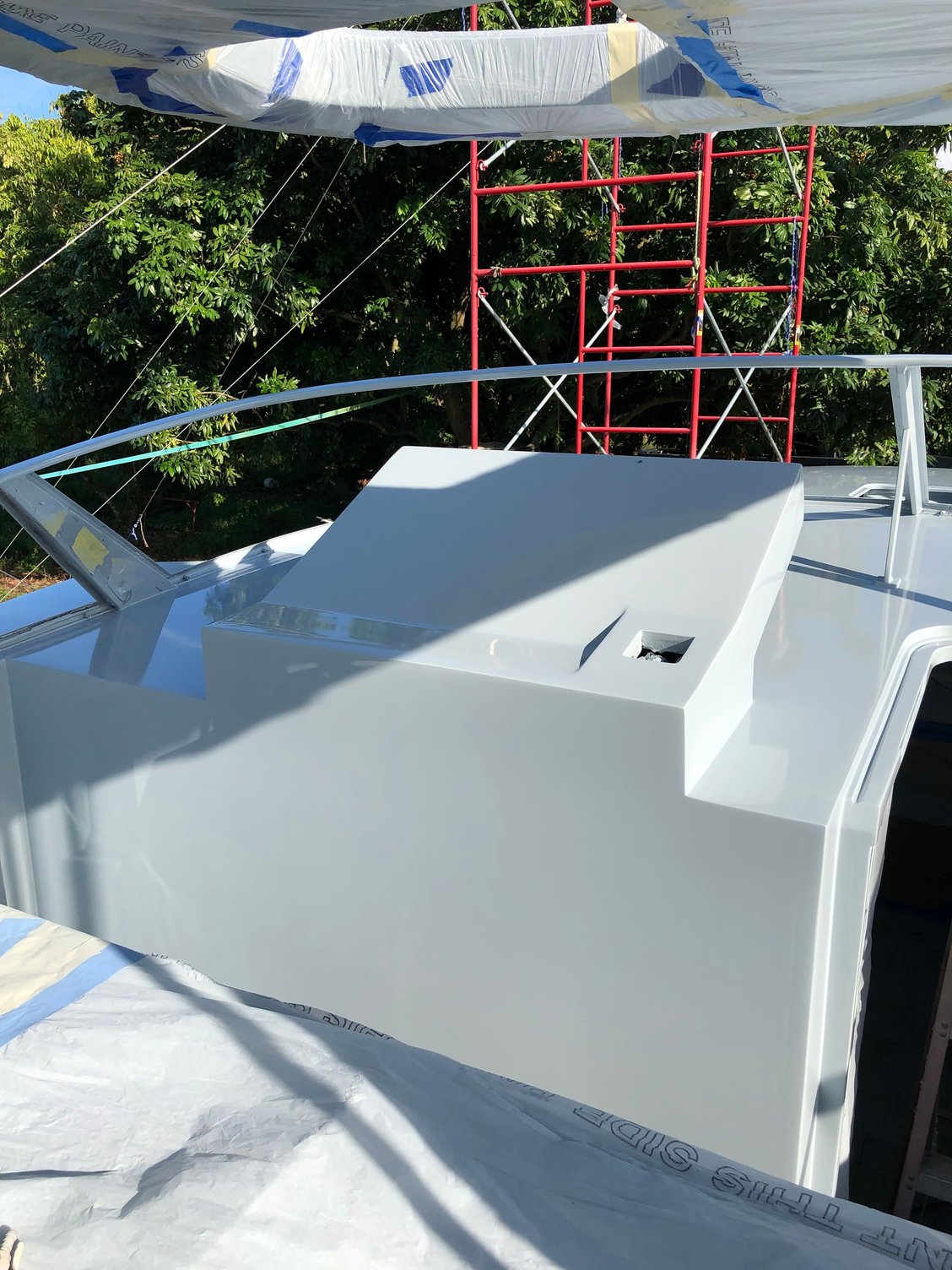

Back side helm

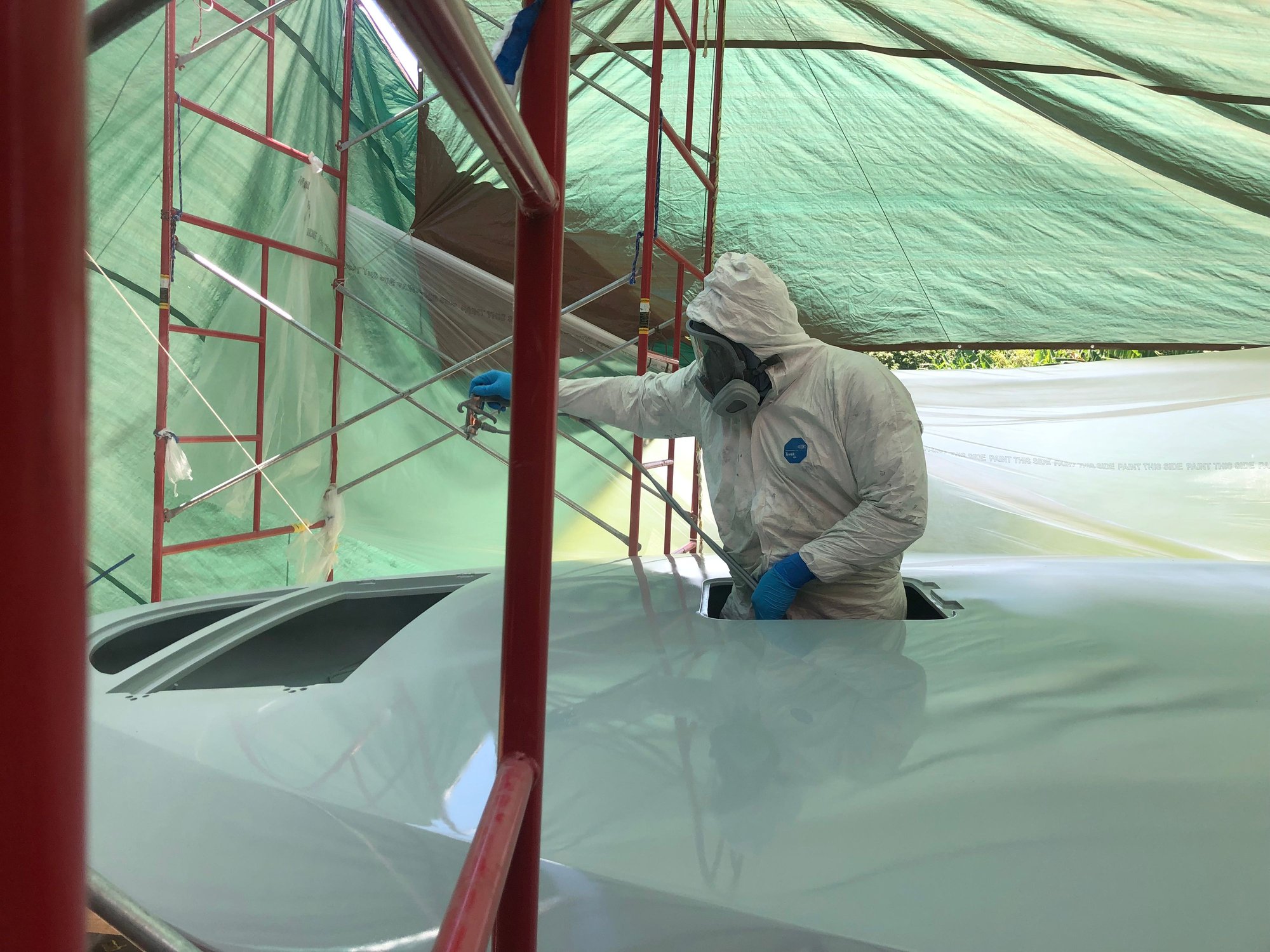

He lays paint and watches to see what it does. It was over 100 degrees inside our makeshift booth. Cant imagine being in the suit. After the second and third coat he just laid flat on the ground. We did the deck and gunnels, but he also had to respray the hull on both sides because the tarp and plastic messed up 20 feet on either side

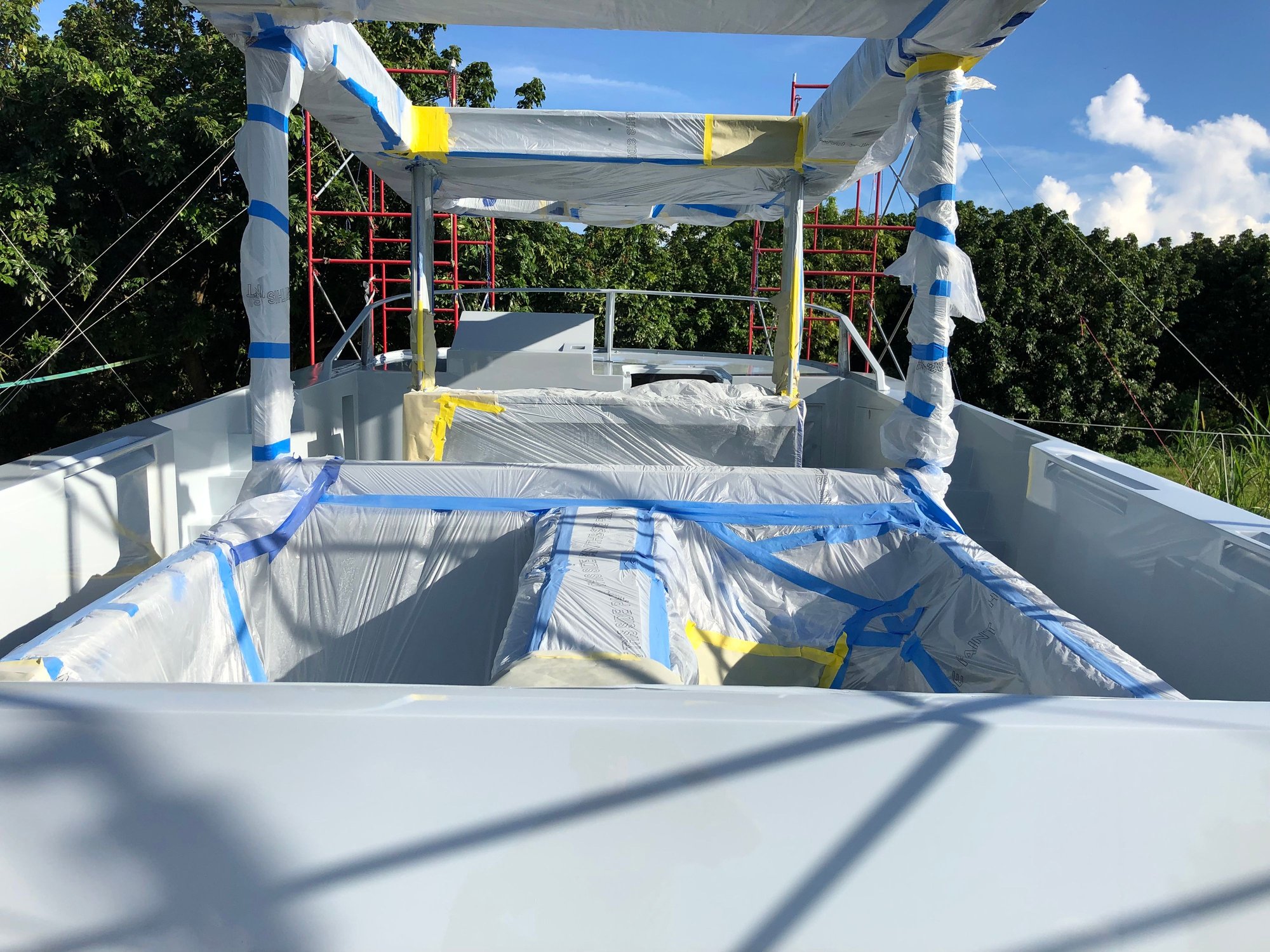

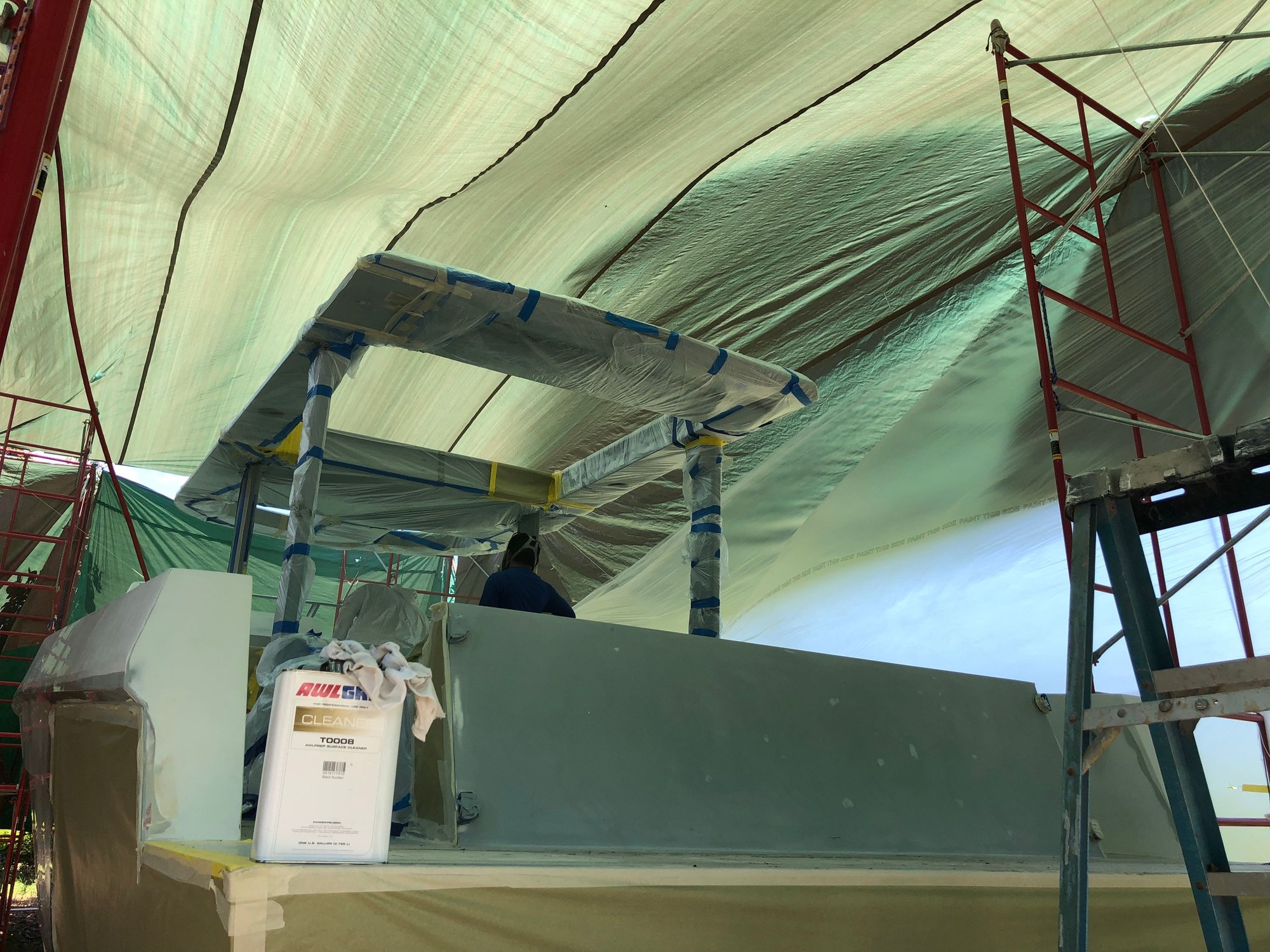

Kept most of the dust out

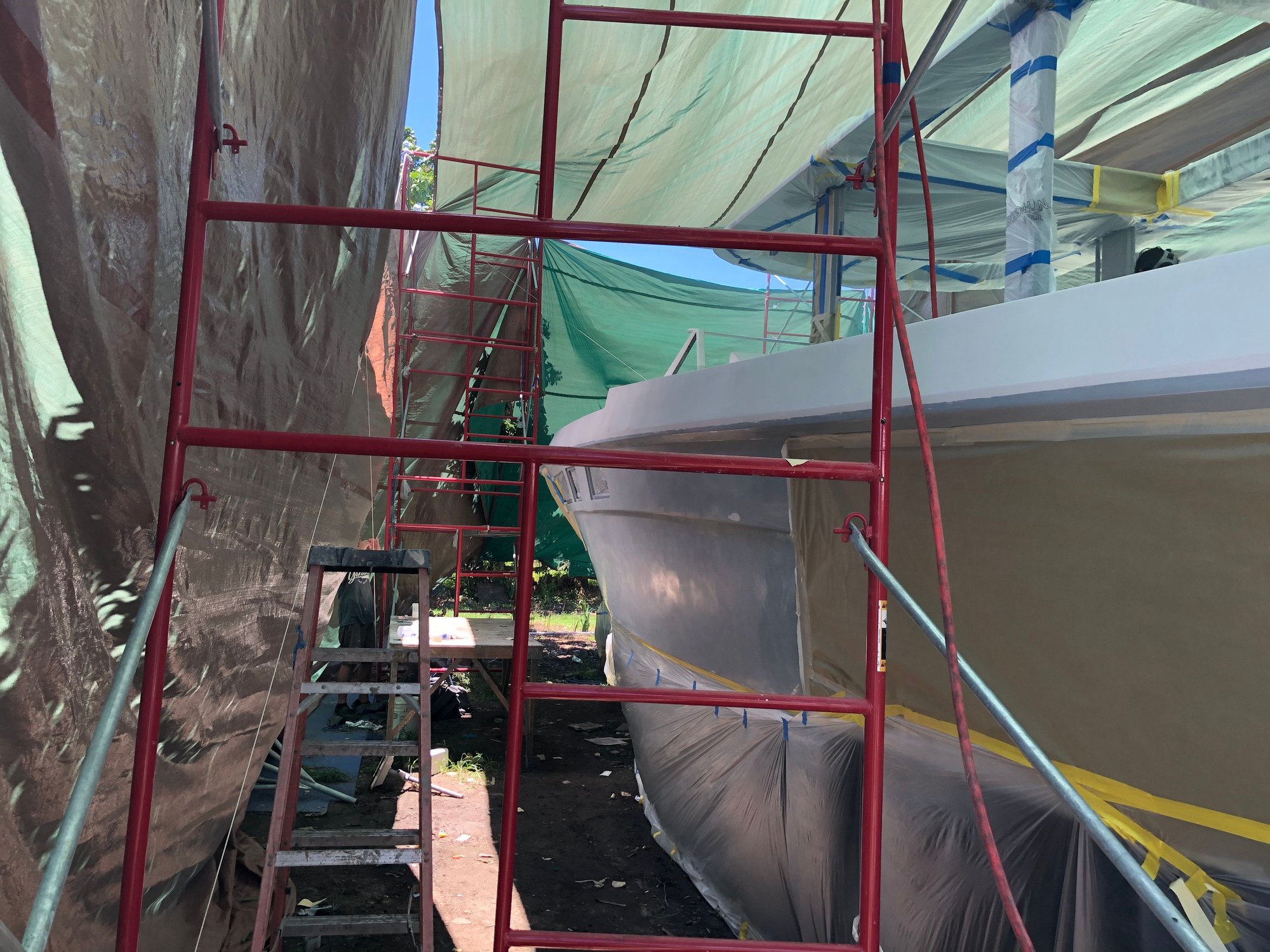

The blue area is transparent plastic sheeting

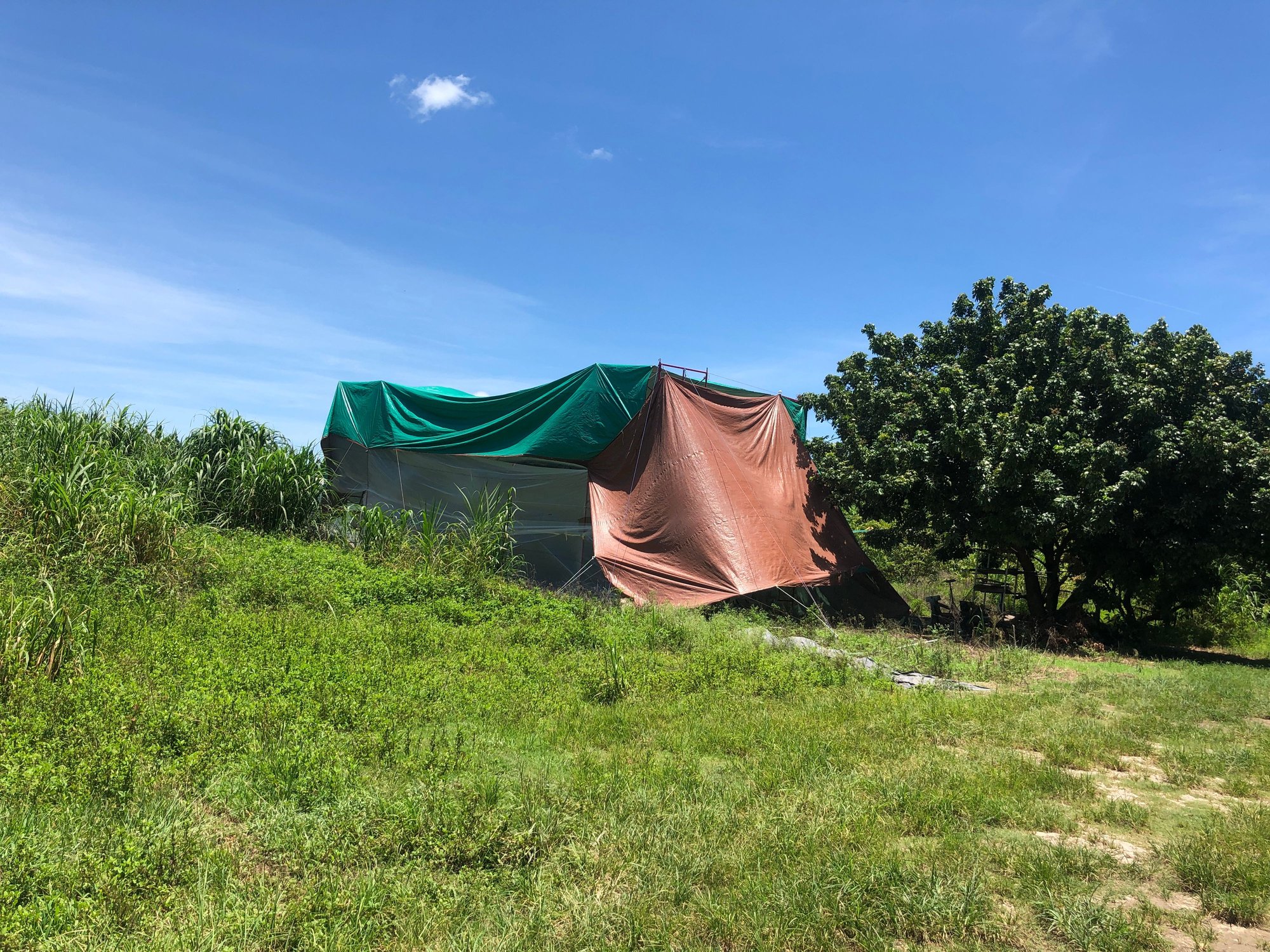

Our circus tent
1design is offline
Old 07-02-2019, 06:34 PM
  #155
Senior Member

Join Date: Jan 2011
Location: Northern Burbs of the Motor City
Posts: 6,317
Default

You guys are machines
1design likes this.
magua is offline
Old 07-02-2019, 06:35 PM
  #156
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default


Also painted today: 2 Anchor locker hatches 2 Cabinet doors under captain seat 2 Foldable helm seat back 2 stainless steel windshield inserts 2 transom doors

Some overspray here and there, but the blending on all the parts we had to redo were fine. 400 grit and 2000 for the blend area

: :

Anchor locker is kind of a show piece that you can see from inside the cabin. And since the hull curves down in the bow, you can almost see forward when your sitting down inside

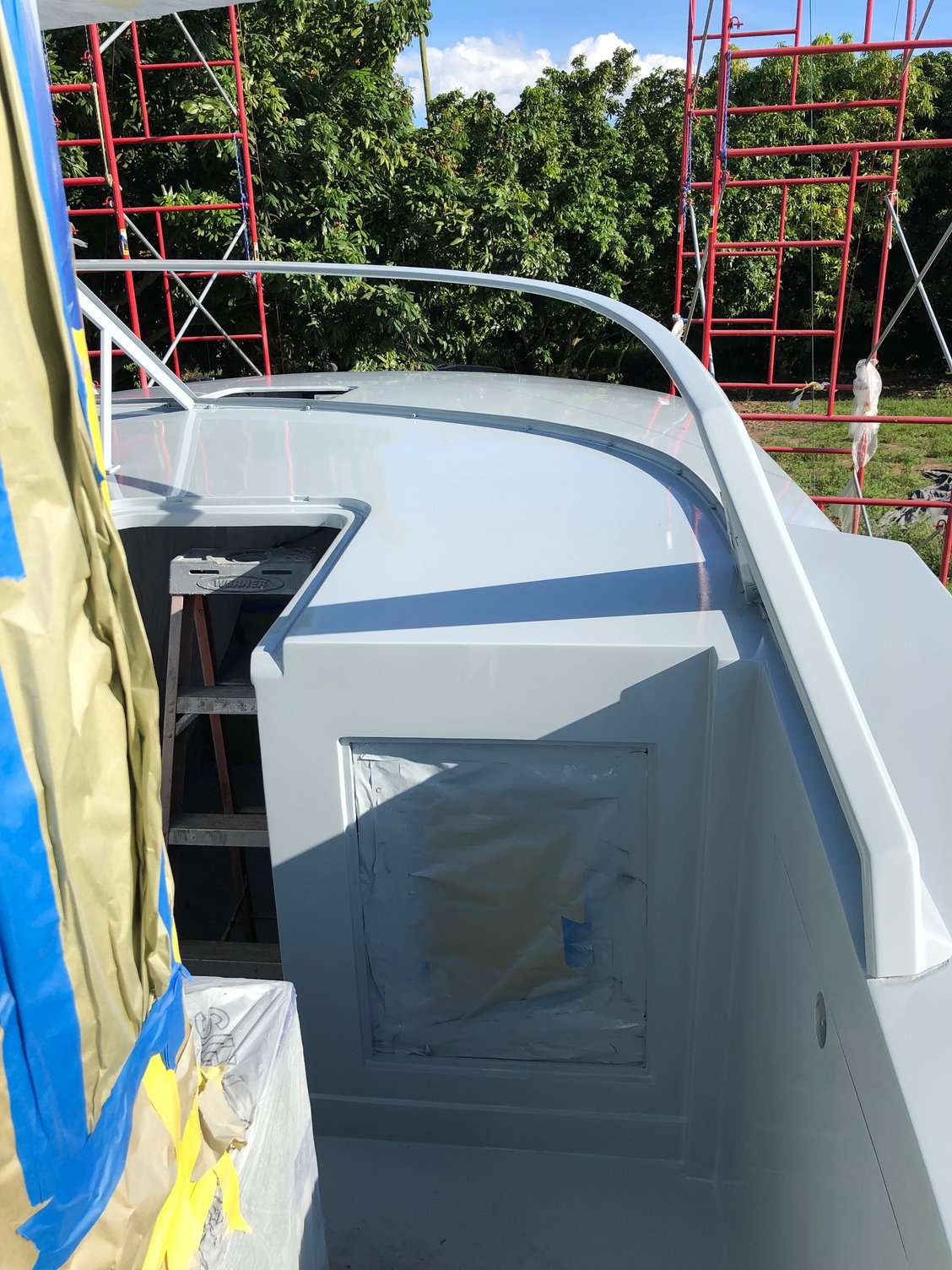

Side of helm station. Might end up going black... not sure yet

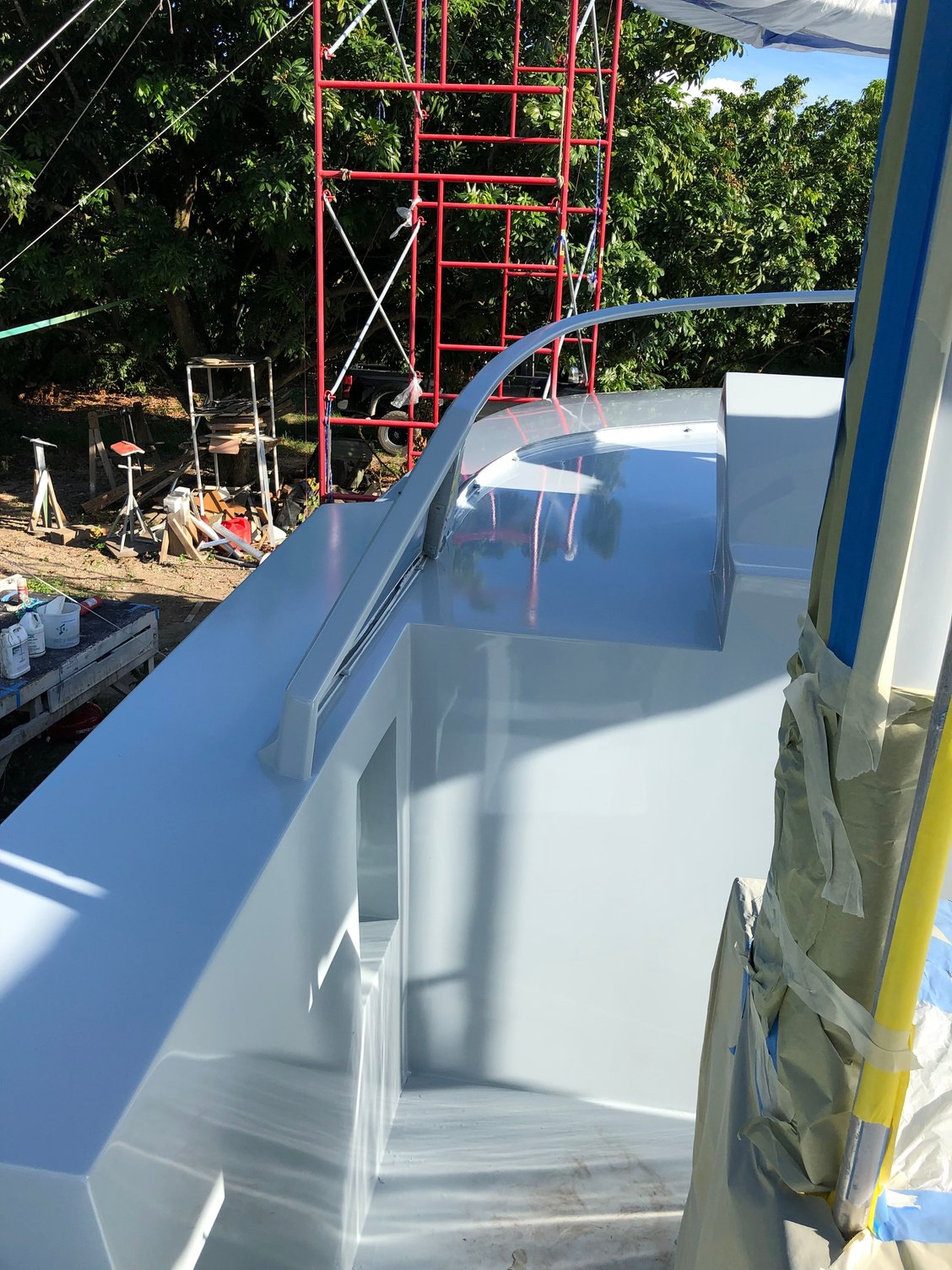

I wanted an integrated look for the grab rails, but doing 4 by hand and making sure they are perfectly straight is something I donít think I will do again

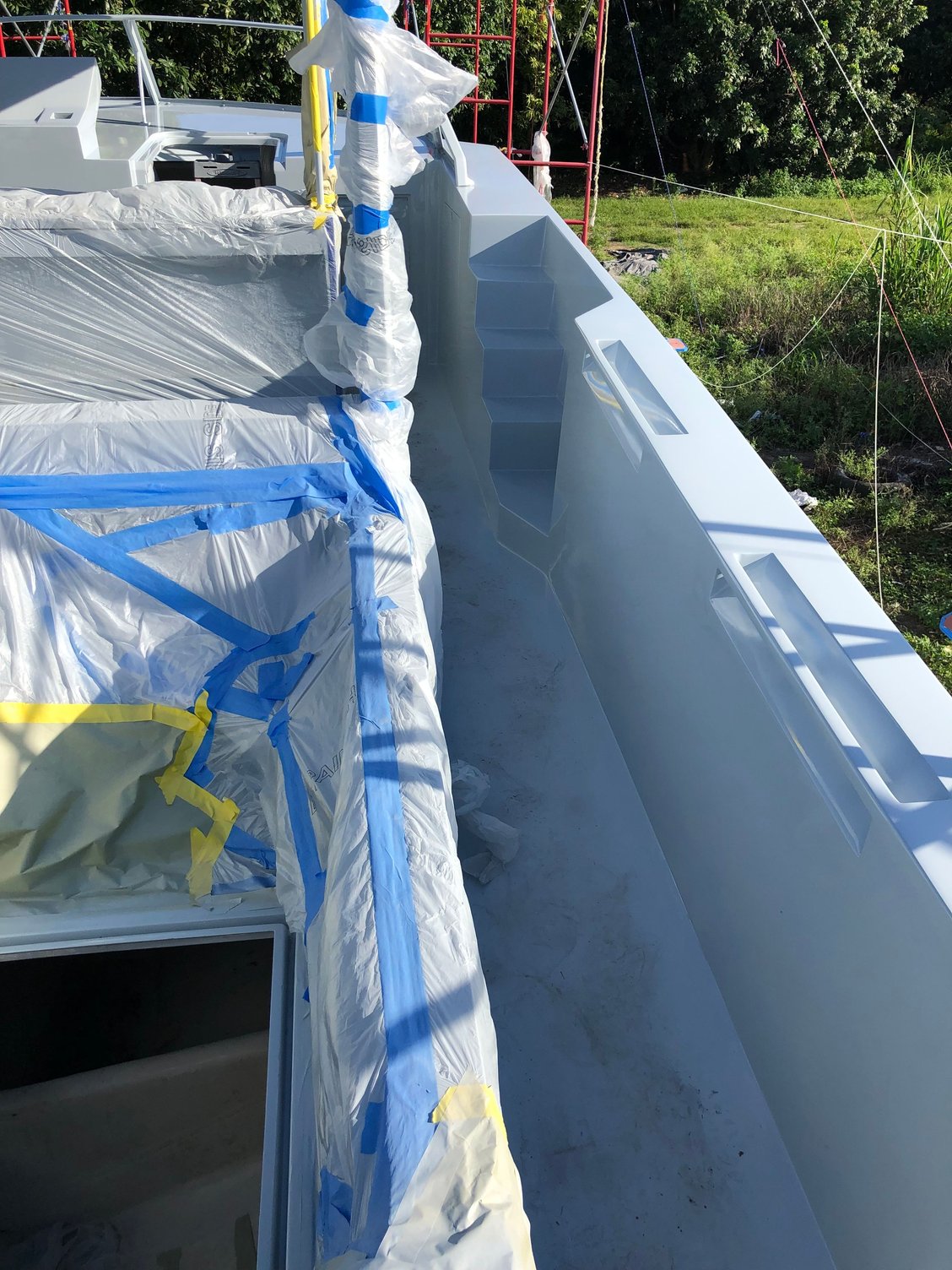

Gunnel

fire extinguisher out of the way, but at reach for the captain

: :

: :

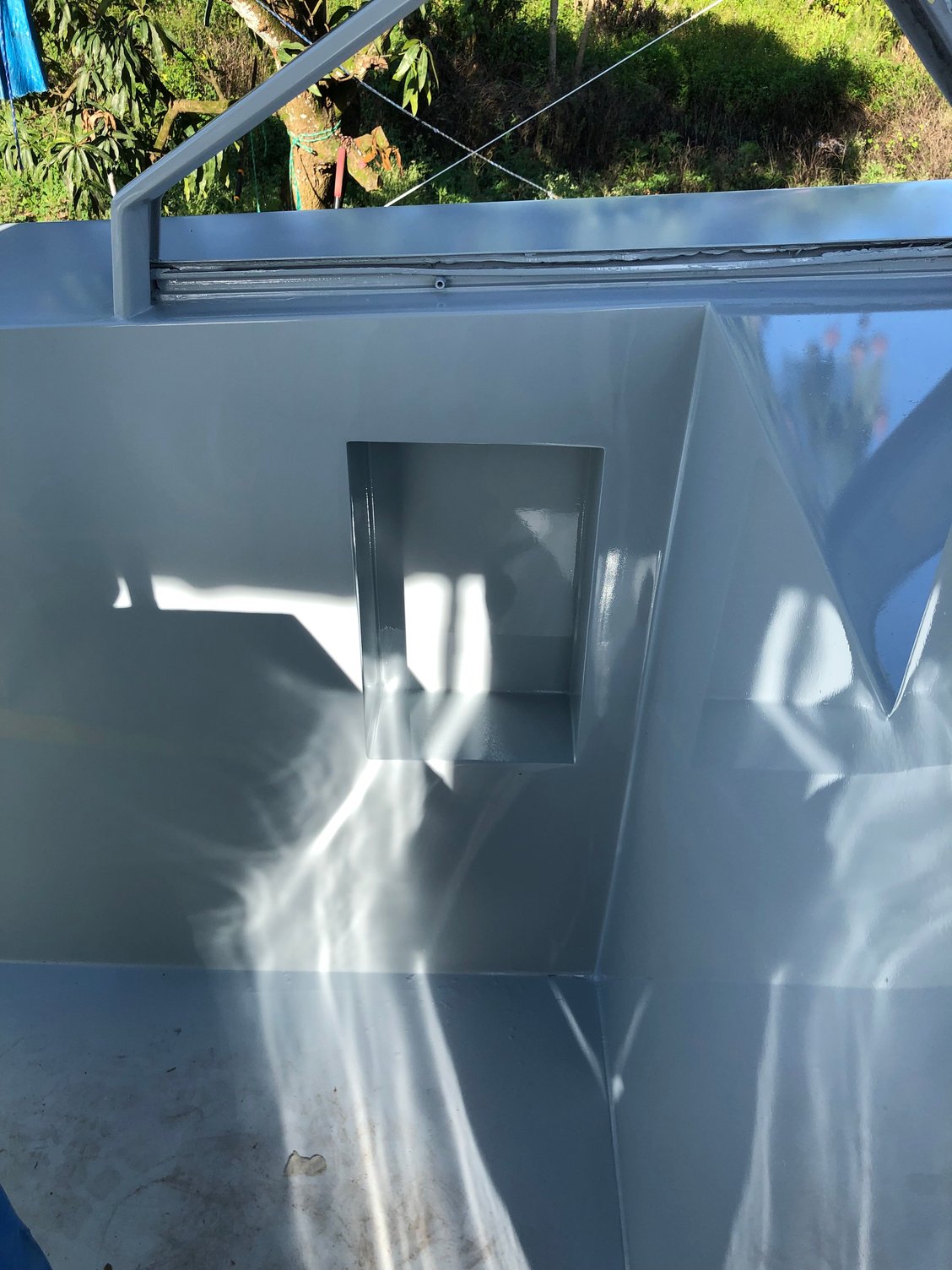

Garbage door is of to the side. Boats never seem to have enough space for empty beer bottles Gangway gets plexi on both the horizontal and vertical side Made sure to line up the kitchen window to the same height as the vertical gangway pocket door

Two hours of covering an area for 6 minutes of spraying

: :

: :
1design is offline
Old 07-02-2019, 06:46 PM
  #157
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

Originally Posted by MarkV View Post
Hey 1 going to echo what others are saying regarding the quality of work you are doing. And yes, I can imagine what a PIA it is to spray outside in FL during the summer - was it a timing thing (virtually all projects take longer than originally calculated) and you just got caught? I especially admire your color combination - Very tasteful imo .

Taste/tasteful. Something not always easy to achieve and something that has very little to do with money...made a bit more difficult with the amount of real estate you are dealing with. Definitely turning out to be a beautiful space to spend time on. Enjoying your thread and will be following the next phase as well.

BTW, in addition to a beautiful boat, I have to admire your mango tree on posts # 126 & 148... Lol you must be in a jungle as I can't imagine those pieces not joining the NFL (not for long)/surviving with So Fl's prying eyes...Keep it going you're doing great - mv
Thanks for the comment on the build.


Funny story about the 5 acre farm, which is abandoned. The owner just lets me use it but doesnít really take care of it in any way, itís mainly leeches, but has some beautiful mango and guava trees as well. A month ago, someone was breaking in repeatedly during the night. I knew because each night a ladder would go missing. To my surprise, they didnít try to pry open the sheds, that have thousands of dollars of tools and marine hardware. They would steel my ladders to get up to the trees and take the leeches! they could have just asked for them. Miami...
MarkV likes this.

Last edited by 1design; 07-03-2019 at 04:05 PM.
1design is offline
Old 07-02-2019, 07:04 PM
  #158
Senior Member

Join Date: Jan 2011
Location: Northern Burbs of the Motor City
Posts: 6,317
Default

what they use leeches for?
magua is offline
Old 07-02-2019, 07:13 PM
  #159
Senior Member
Thread Starter

Join Date: May 2017
Location: Miami FL
Posts: 131
Default

Originally Posted by magua View Post
what they use leeches for?

Itís an Asian fruit, it has the consistency of a grape, wrapped in a hard red spiked shell with a single seed. They are delicious.
1design is offline
Old 07-03-2019, 04:15 PM
  #160
Senior Member

Join Date: Mar 2016
Location: Under the sun
Posts: 861
Default

Lychee... those are lychee...
delicious BTW...

amazing work sir. boat is massive, looks great.
1design likes this.
combi_40 is offline
