Old 08-22-2018, 09:21 PM
  #621
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: South Creek Village
Posts: 4,947
Default

Sure it doesn't have chit to do with this thread, but anybody have a clue what kind of boat that was? 33' Step hulled boat from 1985...Miami builder?
TurnMeLooseFLKeys is offline
Old 08-23-2018, 07:41 AM
  #622
Senior Member

Join Date: Jan 2013
Location: Peoria, IL and St. Pete Beach
Posts: 252
Default

Originally Posted by TurnMeLooseFLKeys View Post
Sure it doesn't have chit to do with this thread, but anybody have a clue what kind of boat that was? 33' Step hulled boat from 1985...Miami builder?
Never heard of a triple step 33 from 85. Did he add the steps? Fountain was one of the earlier adopters and he had some single step boats in the mid 90s.
hogie.roll is offline
Old 08-23-2018, 07:54 AM
  #623
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

Originally Posted by hogie.roll View Post


Never heard of a triple step 33 from 85. Did he add the steps? Fountain was one of the earlier adopters and he had some single step boats in the mid 90s.

I just hope the bottom held up, especially with 500hp!!! Redoing a fire damaged boat, and that looked like a massive fire, just didn't make sense to me, he built 95 percent of the boat from scratch, but the 5 percent that he reused was the very bottom. I would think that would be the most important part... Props to the guys for all the work they did though, that was a HUGE project, not trying to be one of the trolls that always goes after me, but wow.
SailFishQuepos is offline
Old 08-23-2018, 08:39 AM
  #624
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Ramrod Key, FL
Posts: 2,620
Default

Originally Posted by SailFishQuepos View Post
I just hope the bottom held up, especially with 500hp!!! Redoing a fire damaged boat, and that looked like a massive fire, just didn't make sense to me, he built 95 percent of the boat from scratch, but the 5 percent that he reused was the very bottom. I would think that would be the most important part... Props to the guys for all the work they did though, that was a HUGE project, not trying to be one of the trolls that always goes after me, but wow.
That video was insane. Your work makes so much more sense to me than rebuilding a fire damaged boat, they pretty much started with a keel.
burningdaylight is online now
Old 08-23-2018, 08:41 PM
  #625
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: South Creek Village
Posts: 4,947
Default

Per the description on Youtube...

Construction of an old 1985 boat that was burnt down in 1997 and was removed from the mangroves by myself and my two son's in March 2015. It was completed on May 12th 2016.
TurnMeLooseFLKeys is offline
Old 08-26-2018, 05:23 AM
  #626
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,035
Default

Wow! Burnt to the waterline and restored.
duke460 is offline
Old 08-28-2018, 10:45 PM
  #627
Senior Member

Join Date: Sep 2015
Location: Papua New Guinea
Posts: 146
Default

Goes to show anything can be repaired provided you have time, money and a serious stubborn streak by the looks of things.
Cam Mundy is offline
Old 09-08-2018, 04:50 PM
  #628
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

Well, this week is that week of the year where i take out my 1983 coldmolded Gamefishermen and start poking the bottom to see how bad we beat it up. This year I found a good one! Oh the joys of owning a wood boat! But man it raises fish, and we'll be done in about a week or less so I guess I can't complain, but man this was the worst wet spot I have seen so far...

Here's what it looked like when we took off the layer of glass on the outside:
Name:  bert8A.jpg
Views: 3399
Size:  249.4 KB

Bill106 puts this 1700 biaxial kevlar on the bottom of his boats. This is what he prevents...I sure wish I could get that stuff here..

Anyways, so we took out the bad wood and then are opening up each layer a little bit bigger than the last. Tomorrow we will put removable jigs/ribs behind the damages spot and then put some laurel wood in there. This boat has 3 layers at 1/4 inch ish. Today i had to make a trip into the mountains to find a farmer that had laurel in the top of his barn that was dry. Anyway, here is the MASSIVE hole we made in the bottom of the boat today. This thing has a trip next Friday, this is going to be close...
Name:  bert8B.jpg
Views: 3468
Size:  169.7 KB

And then while it's out, we are changing out some tubes in the tower. Since we don't have enough to do with the hull. But I'm really happy with how this is looking, the original tube was 1 inch and was always breaking, so I got some nice thick walled 2 inch tube from Western Extrusions in Florida (the only company that will deliver to my freight forwarder) and so we are going back with twice as thick new tubing.

Name:  bert8C.jpg
Views: 3447
Size:  167.3 KB


And then we did a little bit of work to the Bertram Hull too. Got most of the fairing done, and then I remember that we took the mold from below the aluminum bumper, so i lost 2.5 inches. So we setup little sticks and we are going to make the mold 2.5 inches taller so it's like the original. Here's a couple pictures of that progress...

Name:  bert8D.jpg
Views: 3414
Size:  239.2 KB
SailFishQuepos is offline
Old 09-08-2018, 05:00 PM
  #629
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

And something extra the original didn't have, we are offsetting the hull where the guides go. Should pick up at least .1 knots, right? Either way, smooth is better and it doesn't cost anything extra. I know most boats nowadays do this, but the original did not.


Name:  bert8E.jpg
Views: 3432
Size:  105.5 KB
Attached Images
The Woo likes this.
SailFishQuepos is offline
Old 09-08-2018, 05:14 PM
  #630
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Posts: 2,233
Default


Won't Buff out . Sorry John , don't mean to laugh at your pain , boats always have their (money) meter running .
ed d is offline
Old 09-08-2018, 06:01 PM
  #631
Senior Member

Join Date: Jan 2013
Location: Lincoln Park, NJ
Posts: 1,374
Default

You guys never cease to amaze with your projects.
81Malibu is offline
Old 09-08-2018, 06:15 PM
  #632
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

Originally Posted by ed d View Post

Won't Buff out . Sorry John , don't mean to laugh at your pain , boats always have their (money) meter running .
Yeah this is a record. Most years there is no damage, the boat must have knicked the hull the first day out of the shop last year to have this much damage. Not a huge deal, but it is nasty looking! It'll be good as new by Tuesday...
SailFishQuepos is offline
Old 09-08-2018, 09:27 PM
  #633
Senior Member

Join Date: Aug 2014
Posts: 2,577
Default

I like how you cut each layer of the core back a little farther to spread out the repair, good thinking.
surv is offline
Old 09-08-2018, 09:28 PM
  #634
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

Originally Posted by surv View Post
I like how you cut each layer of the core back a little farther to spread out the repair, good thinking.
Straight out of the West System book! Cold Molded 101
ChrigelKarrer likes this.
SailFishQuepos is offline
Old 09-09-2018, 05:54 PM
  #635
Admirals Club Admiral's Club Member

Join Date: Jan 2015
Location: St. Petersburg FL
Posts: 689
Default

That’s one hell of a hole you got there man!! But I know you will have it under control. Rag’s

Last edited by Ragtop409; 09-10-2018 at 02:58 PM.
Ragtop409 is offline
Old 09-10-2018, 12:42 PM
  #636
Member

Join Date: Jan 2007
Location:
Posts: 66
Default

So which one is relaxing at the casa- John W or Junior?
cuzn dave is offline
Old 09-11-2018, 05:16 PM
  #637
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

John W has taken a fishing vacation! He went out to Lake Arenal to try some fresh water. He only got two small fish, but he loves being on the water. Hopefully tomorrow I'll have my wood patch done, and I'll post some pictures!
smccormick and flatsfactory like this.
SailFishQuepos is offline
Old 09-15-2018, 08:06 AM
  #638
Admirals Club Admiral's Club Member
THT sponsor
Thread Starter

Join Date: Mar 2010
Location: Quepos Costa Rica
Posts: 3,726
Default

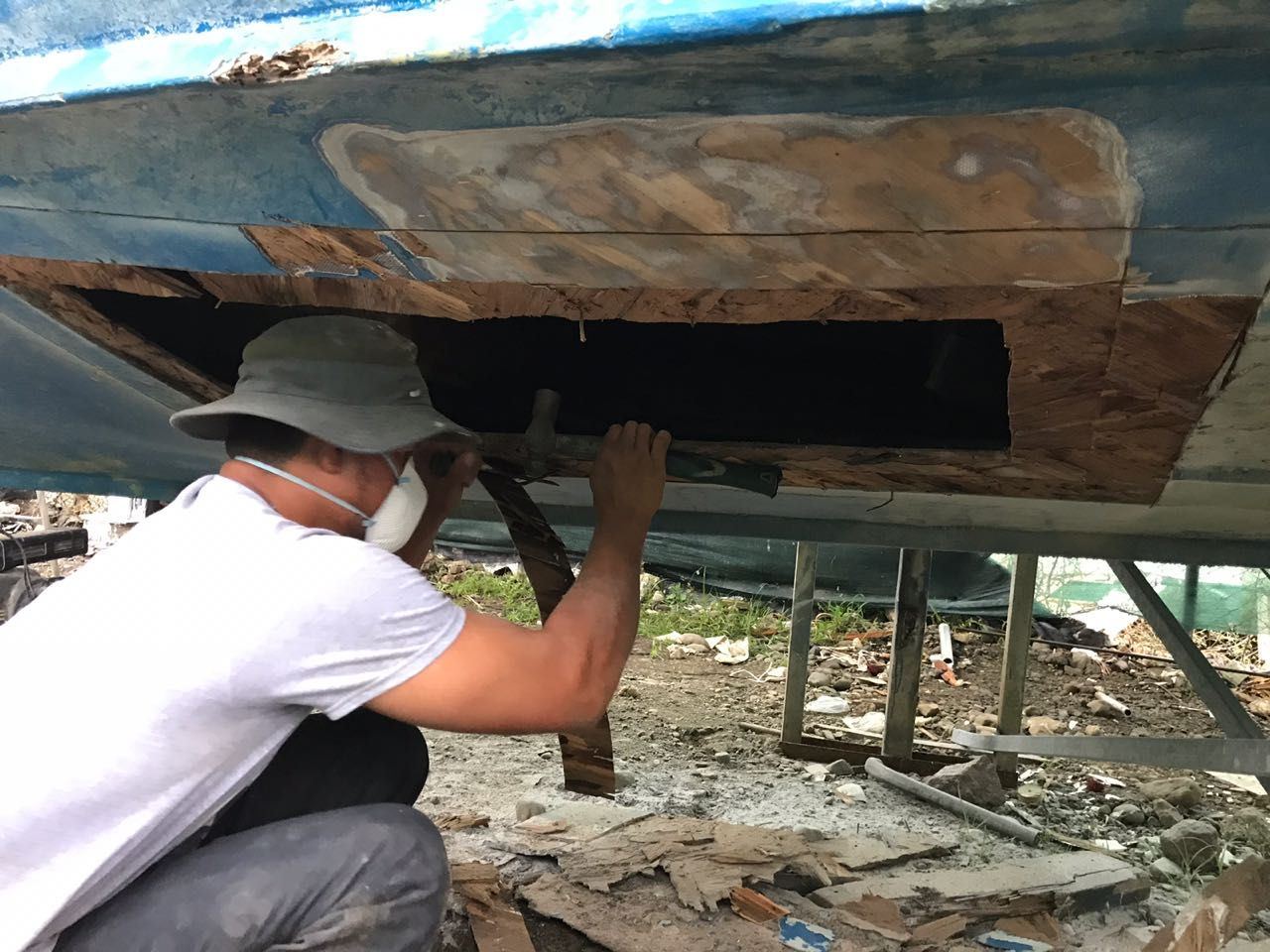

Here's the hull patch. This is when we cleaned up the hole:

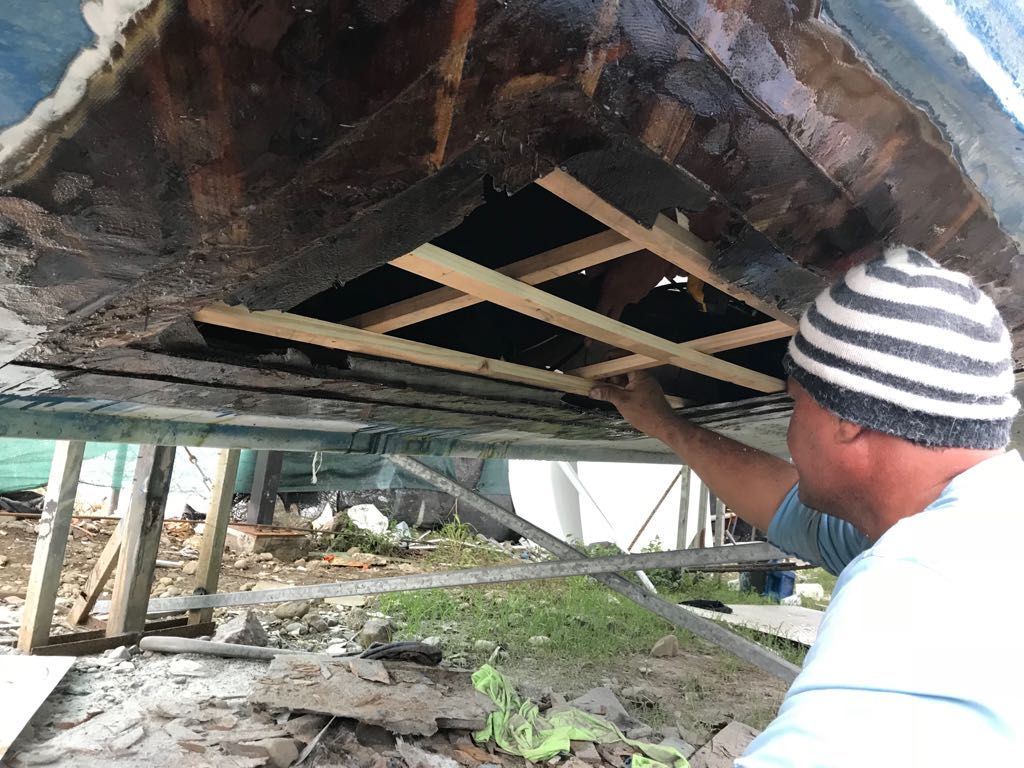

And then we made a frame and did the first two layers together





Here is after the second layer:

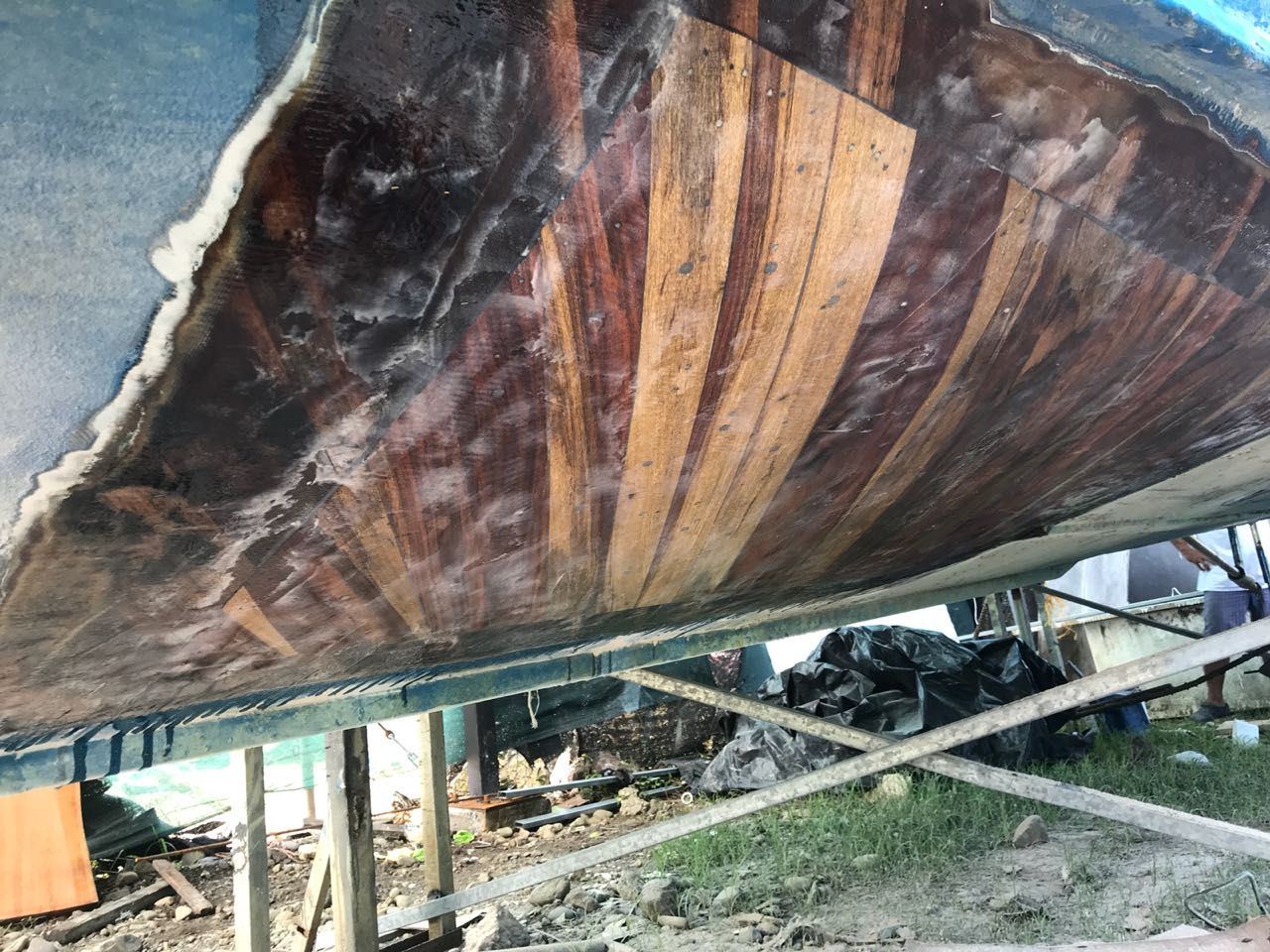

And this is after the third layer. The middle layer has opposing grains, and all the layers are stuck down with cabosil/resin mix, and we screw them in with weep holes, and then pull the screws and fill the holes with the same mix.

SailFishQuepos is offline
Old 09-15-2018, 11:52 AM
  #639
Admirals Club Admiral's Club Member

Join Date: Mar 2015
Location: Charleston, SC
Posts: 324
Default

subed
nb1214 is online now
Old 09-15-2018, 07:21 PM
  #640
Admirals Club Admiral's Club Member

Join Date: Jan 2015
Location: St. Petersburg FL
Posts: 689
Default

Amazing work you and the guys do John. Rag’s
