New boarding ladder

Old 04-20-2016, 05:39 PM
  #1
Senior MemberCaptains Club Member
Thread Starter

Join Date: May 2004
Location: Savannah, Ga
Posts: 418
Default New boarding ladder

Ok so I bought my first boarding ladder to make it easier to get back into boat from the beach, I just don't have the vertical jump I used too....

Anyway it's a collapsible Armstrong type because I have limited storage. The issue is transom mount will be too close to the trim tabs, but I could squeeze between the motor and the tab, just not sure if that would be too low.

Any creative suggestions that don't involve cutting my trim tab or mounting on the side of the boat.

Thanks
Chris
Onebadhabit is offline
Old 04-20-2016, 06:34 PM
  #2
Senior MemberCaptains Club Member

Join Date: Nov 2006
Location: New Smyrna Beach
Posts: 8,336
Default

Originally Posted by Onebadhabit View Post
Ok so I bought my first boarding ladder to make it easier to get back into boat from the beach, I just don't have the vertical jump I used too....

Anyway it's a collapsible Armstrong type because I have limited storage. The issue is transom mount will be too close to the trim tabs, but I could squeeze between the motor and the tab, just not sure if that would be too low.

Any creative suggestions that don't involve cutting my trim tab or mounting on the side of the boat.

Thanks
Chris

Mount a swim platform and then the ladder. I would not put it between the trim tabs and motor. I'm assuming this is an outboard since you didn't give us any info about the boat.
C Skip R is offline
Old 04-20-2016, 06:51 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: Hinesville GA
Posts: 4,933
Default

Pic of boat and where you want to mount it would help. I agree with C Skip R on the swim platform I use the crap out of mine.
Gnrphil is online now
Old 04-21-2016, 07:20 PM
  #4
Senior MemberCaptains Club Member
Thread Starter

Join Date: May 2004
Location: Savannah, Ga
Posts: 418
Default

Thanks guys. Just not a big fan of the swim platform because it gets in the way when fishing. Unless someone makes one that doesn't stick out as far. Yes its an outboard with notched transom. 1950 Pursuit CC and the one I bought is removable/ storable.

Don't really have a good picture will try to take one this weekend and post.

Thanks

Chris
Onebadhabit is offline
Old 04-21-2016, 08:11 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: Hinesville GA
Posts: 4,933
Default

Maybe one of these extended mounts would get out past the tabs
http://www.marineparts.com/p-11668-a...xtra-long.aspx
http://www.marinesupplydock.com/Gare...-GLK-99181.htm
Gnrphil is online now
Old 04-22-2016, 06:18 AM
  #6
Senior MemberCaptains Club Member

Halfmoon's Avatar

Join Date: Jun 2005
Location: Annapolis, MD
Posts: 3,501
Default

I used a Windline DLB-9 Breakaway Dive Ladder Bracket. When you forget to remove the ladder it saves it from being damaged.






[IMG][/IMG]



[/IMG]



Halfmoon is offline
Old 04-26-2016, 06:50 PM
  #7
Senior MemberCaptains Club Member
Thread Starter

Join Date: May 2004
Location: Savannah, Ga
Posts: 418
Default

Originally Posted by Halfmoon View Post
I used a Windline DLB-9 Breakaway Dive Ladder Bracket. When you forget to remove the ladder it saves it from being damaged.


Name:  312sy7Qj04L.jpg
Views: 1201
Size:  12.5 KB



[IMG]Name:  DSCN2467_zps5eccecbc.jpg
Views: 3721
Size:  74.3 KB[/IMG]



[/IMG]



Name:  DSCN2470_zps2536d225.jpg
Views: 1188
Size:  49.9 KB
That may work. Thanks. Just wonder if my ladder will fit in mount
Onebadhabit is offline
Old 05-03-2016, 11:20 AM
  #8
Senior MemberCaptains Club Member
Thread Starter

Join Date: May 2004
Location: Savannah, Ga
Posts: 418
Default

Half-moon- What kind of a ladder are you using?
Onebadhabit is offline
Old 05-03-2016, 12:36 PM
  #9
Senior MemberCaptains Club Member

Halfmoon's Avatar

Join Date: Jun 2005
Location: Annapolis, MD
Posts: 3,501
Default

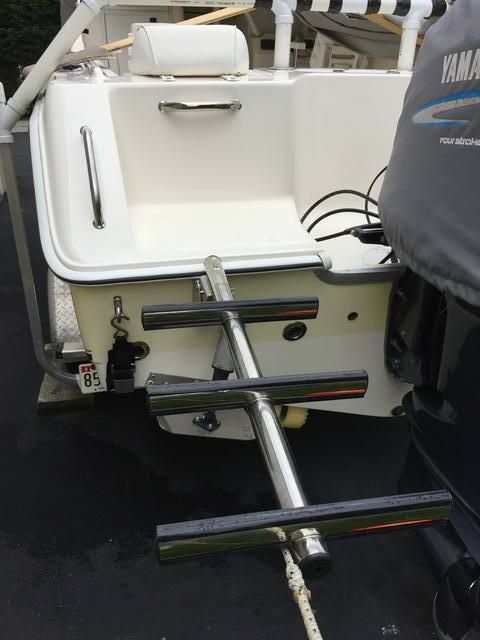

I think it is a Dive N Dog brand. I think it the same mounting as Windline, Armstrong, or Garelick transom mount dive ladders.


[IMG]Name:  IMG_0780_zpsatjlcsaw.jpg
Views: 1467
Size:  240.7 KB[/IMG]




[IMG]Name:  IMG_0778_zps2jmgczse.jpg
Views: 1316
Size:  160.0 KB[/IMG]







.
Halfmoon is offline
Old 05-08-2019, 09:51 PM
  #10
Junior Member

Join Date: May 2019
Posts: 1
Default

Halfmoon, how did you get the trim tab controller that far up in the Windline DLB-9 bracket? I have the same setup on my boat and I am trying to replicate your installation. Did you mount the trim tab control arm through the Windline bracket or make new holes or something?
teeroy97 is offline
Old 05-09-2019, 05:38 AM
  #11
Senior Member

Join Date: Jan 2007
Location: See screen name
Posts: 5,461
Default

I strongly recommend that whatever you get, make it something you can deploy when swimming in the water, Major safety item regardless of what kind of boat.
RIDE2GETHER likes this.
caltexflanc is offline
Old 05-09-2019, 06:33 AM
  #12
Senior MemberCaptains Club Member

Halfmoon's Avatar

Join Date: Jun 2005
Location: Annapolis, MD
Posts: 3,501
Default

Originally Posted by teeroy97 View Post
Halfmoon, how did you get the trim tab controller that far up in the Windline DLB-9 bracket? I have the same setup on my boat and I am trying to replicate your installation. Did you mount the trim tab control arm through the Windline bracket or make new holes or something?
It's not inside the bracket.











.
Halfmoon is offline
