23'CC 3D Model

Old 11-02-2015, 02:46 PM
  #1
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default 23'CC 3D Model

Hey guys, I just got some new 3d modeling software and so I am playing with it trying to learn it and of course one of the first things I made an attempt at was a boat. Let me start off by saying that I am not claiming to be a naval architect or anything of the sort. This boat is drawn with my eyeballs only. I didn't perform any hydrostatics or any other mathematical calculations. If this boat were built I can almost guarantee that it wouldn't run right. The more I get into it the more I can see where and how the hull would need to change if I were actually going to attempt to build it. With all of that said, I still thought it was cool and wanted to share it.
Attached Images
Old 11-02-2015, 03:01 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Oct 2012
Location: Palm Beach County, FL
Posts: 1,509
Received 31 Likes on 19 Posts
Default

what software is that.
Thanks for posting it.
Old 11-02-2015, 03:05 PM
  #3
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

Originally Posted by LouTiffs View Post
what software is that.Thanks for posting it.
Thanks, software is Solid Edge by Siemens.
Old 11-02-2015, 03:16 PM
  #4
Senior Member

DJWILLIAMS's Avatar

Join Date: Feb 2008
Location: Eastern, NC
Posts: 5,124
Likes: 0
Received 1 Like on 1 Post
Default

She has some flair!

It would be cool to get some opinions from one's who may "know" how to draw a boat.
Old 11-02-2015, 08:44 PM
  #5
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

Originally Posted by DJWILLIAMS View Post
She has some flair! It would be cool to get some opinions from one's who may "know" how to draw a boat.
Yes that would be cool. I will continue to add screen shots as I progress with it. I probably should have put it in the pictures forum rather than the boating forum.
Old 11-03-2015, 08:42 PM
  #6
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

Worked on it a little more tonight and got a console and leaning post in.
Attached Images
Old 11-04-2015, 04:54 PM
  #7
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Nov 2005
Location: Ocracoke, NC
Posts: 3,150
Received 398 Likes on 151 Posts
Default

She looks too much like a spoon from the overhead. Also when you look down the side of her she shouldn't flare out like she does at the breakshear. Sorry but it looks like a cartoon of a Carolina boat. There is something funky going on in the bow at the chine .... It needs to be tilted out more up there. Pinch in the chines up forward so she is a little sharper. Keep designing and have fun with it. Pretty good job so far.
Old 11-05-2015, 05:28 PM
  #8
Senior Member

Join Date: Mar 2012
Location: Beaufort NC
Posts: 5,067
Likes: 0
Received 28 Likes on 26 Posts
Default

Originally Posted by Tarbaby View Post
She looks too much like a spoon from the overhead. Also when you look down the side of her she shouldn't flare out like she does at the breakshear. Sorry but it looks like a cartoon of a Carolina boat. There is something funky going on in the bow at the chine .... It needs to be tilted out more up there. Pinch in the chines up forward so she is a little sharper. Keep designing and have fun with it. Pretty good job so far.
The upper and lower sheers need to be changed. The lower runs uphill to much and the upper sheer doesn't run up enough.

What the profile shows is that the space between the upper and lower sheers become narrower as they move towards the bow, and it should increase.

The shape as drawn would be almost impossible to build in plywood. To extreme to plank.

Chine is to straight and to level, and she is way to full forward, the bottom would also be almost impossible to plank.

Even in 4 mm ply you couldn't get her to plank.

These computer programs can draw anything, but, they can't put one plank on a hull. And they will let you draw stuff that can't be planked.

Keep playing and having fun. I have seen far worse from people that put themselves out there as designers, and charge good money for it, but couldn't build a old wooden fishbox.
Old 11-05-2015, 05:50 PM
  #9
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Nov 2005
Location: Ocracoke, NC
Posts: 3,150
Received 398 Likes on 151 Posts
Default

The motor looks great.
Old 11-05-2015, 06:15 PM
  #10
Senior Member

Join Date: Oct 2013
Location: southeast, PA
Posts: 1,373
Likes: 0
Received 4 Likes on 3 Posts
Default

Find someone with a 3d printer and have them print it for you would look cool on a desk.
Old 06-03-2019, 10:35 PM
  #11
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

Made another attempt at drawing a Carolina boat.







Old 06-03-2019, 11:32 PM
  #12
Senior Member

Join Date: Jun 2019
Location: S.FL
Posts: 167
Likes: 0
Received 18 Likes on 14 Posts
Default

Software and technology have come so far! Used to mess with Maya back in the day but nothing like this
Old 06-04-2019, 11:37 AM
  #13
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

Originally Posted by Reel1Fishing View Post
Software and technology have come so far! Used to mess with Maya back in the day but nothing like this
I've never heard of Maya. I learned on AutoCad in the early 2000's, then a little bit of Solid Works. This particular program is Solid Edge made by Siemens.
Old 06-04-2019, 12:15 PM
  #14
Senior MemberCaptains Club Member

Join Date: Mar 2002
Location: Bluffton,SC
Posts: 1,153
Likes: 0
Received 62 Likes on 39 Posts
Default

Thread makes me a little sad due to Hugh's previous post.

Great new design, agree on getting a 3D printer to do tests.
Old 06-04-2019, 04:25 PM
  #15
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

Originally Posted by big bite View Post
Thread makes me a little sad due to Hugh's previous post.

Great new design, agree on getting a 3D printer to do tests.

I agree, I would love to be able to hear his opinion on this one verses the first one.
Old 06-04-2019, 07:52 PM
  #16
Senior MemberCaptains Club Member
Thread Starter

Join Date: Jan 2006
Posts: 686
Likes: 0
Received 8 Likes on 5 Posts
Default

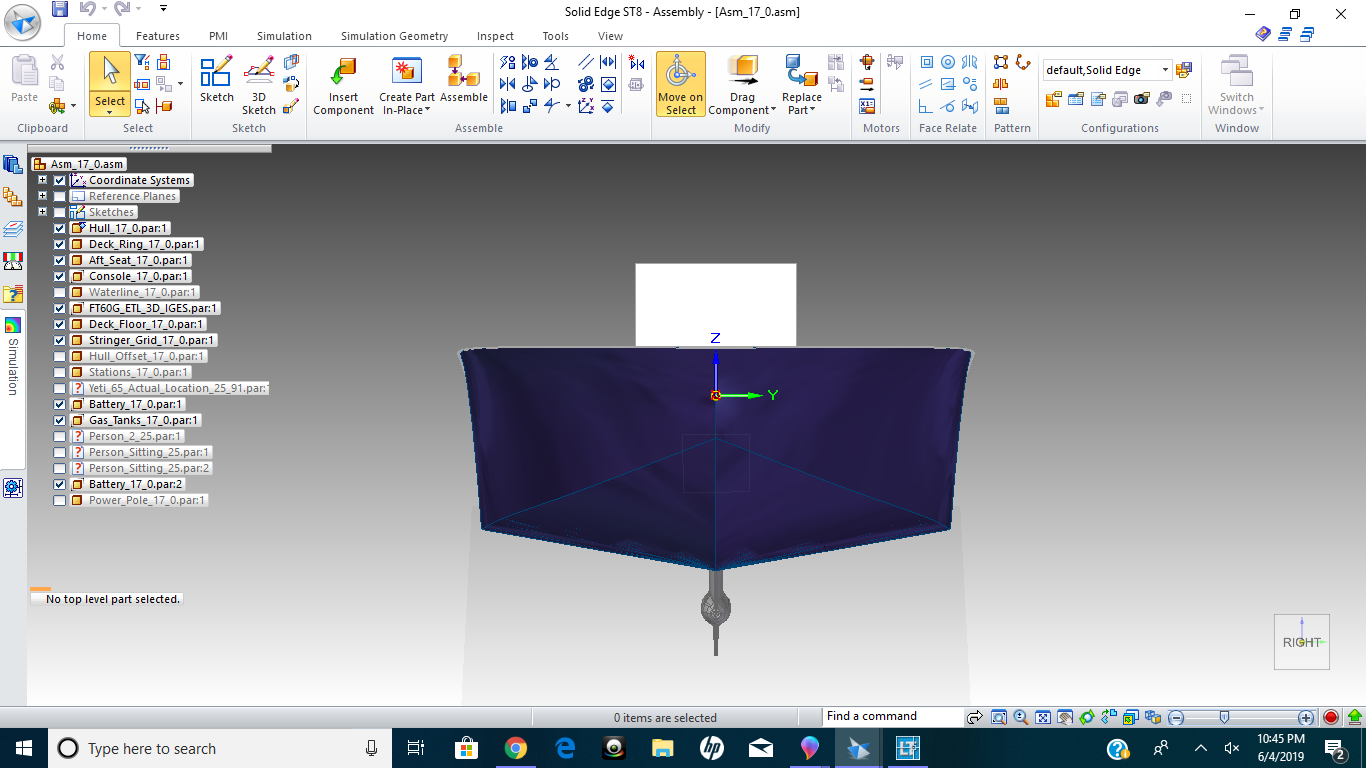

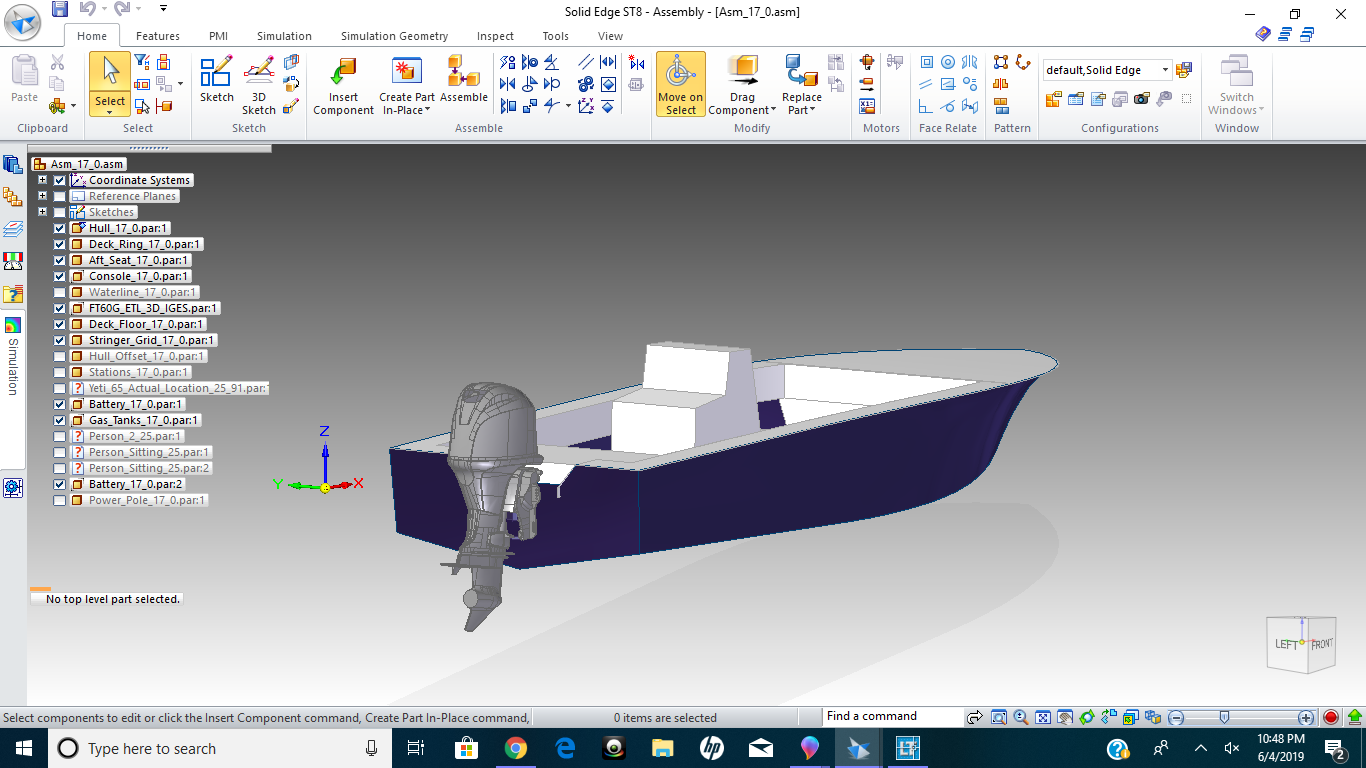

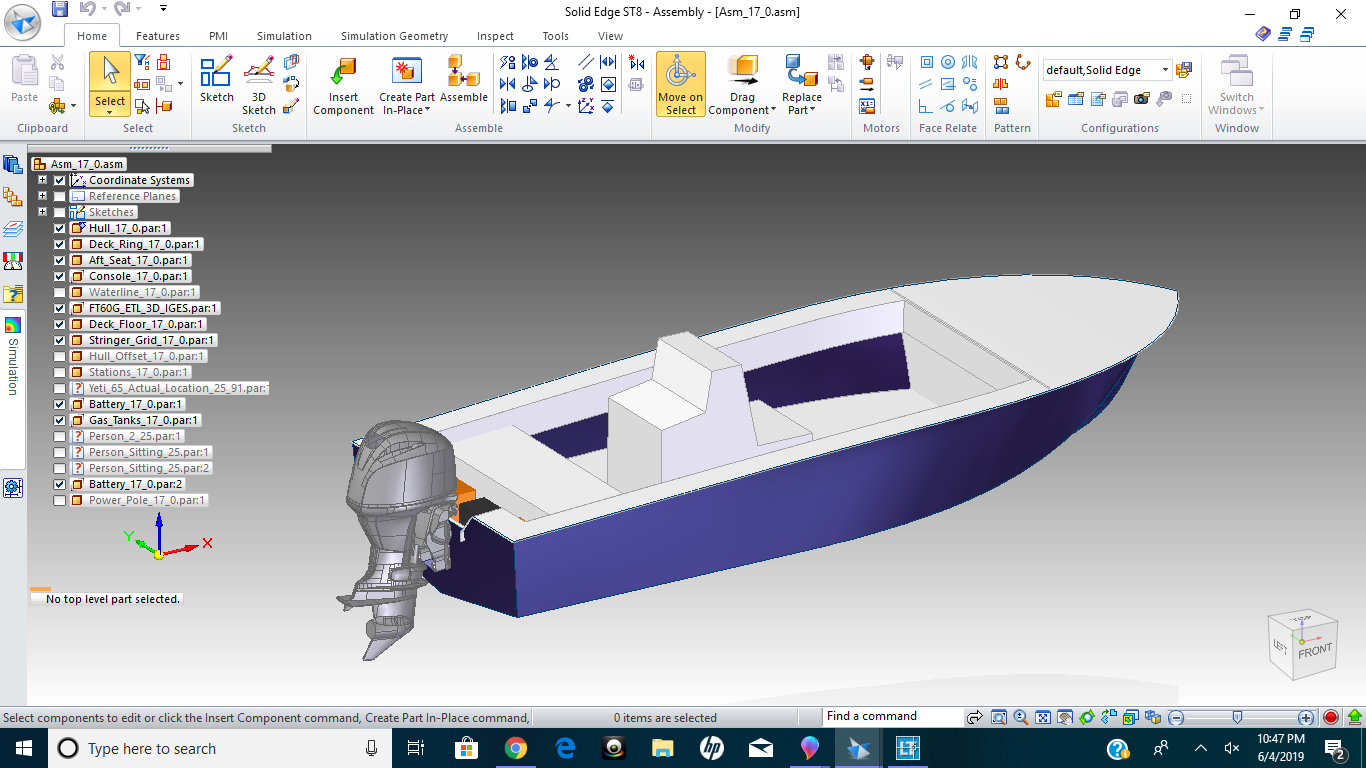

Here is a 17 footer that i have also been working on. I actually intend to build this one with my father once i get past some health conditions going on. What are everyone's thoughts?
