23' center console renovation

Old 02-08-2019, 06:48 PM
  #681
Admirals Club Admiral's Club Member

Join Date: Oct 2010
Posts: 3,429
Default

I’m very interested to see you build your leaning post. I am planning on making one is that I can tie some pipe work from it to my hard top, when I make a hard top.
Big Iron is offline
Old 02-12-2019, 04:13 AM
  #682
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

Almost hard top time!

big iron, I had initially planned to do exactly the same but given the size of my doghouse, the hard top will have more than enough support.
I actually think I'm going to pull a mold from the part for the leaning post so I can make more of them. Its a perfect size for any 19' to 26' boat
HarvestTime is offline
Old 02-12-2019, 04:16 AM
  #683
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default



C Dave likes this.
HarvestTime is offline
Old 02-13-2019, 08:46 AM
  #684
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

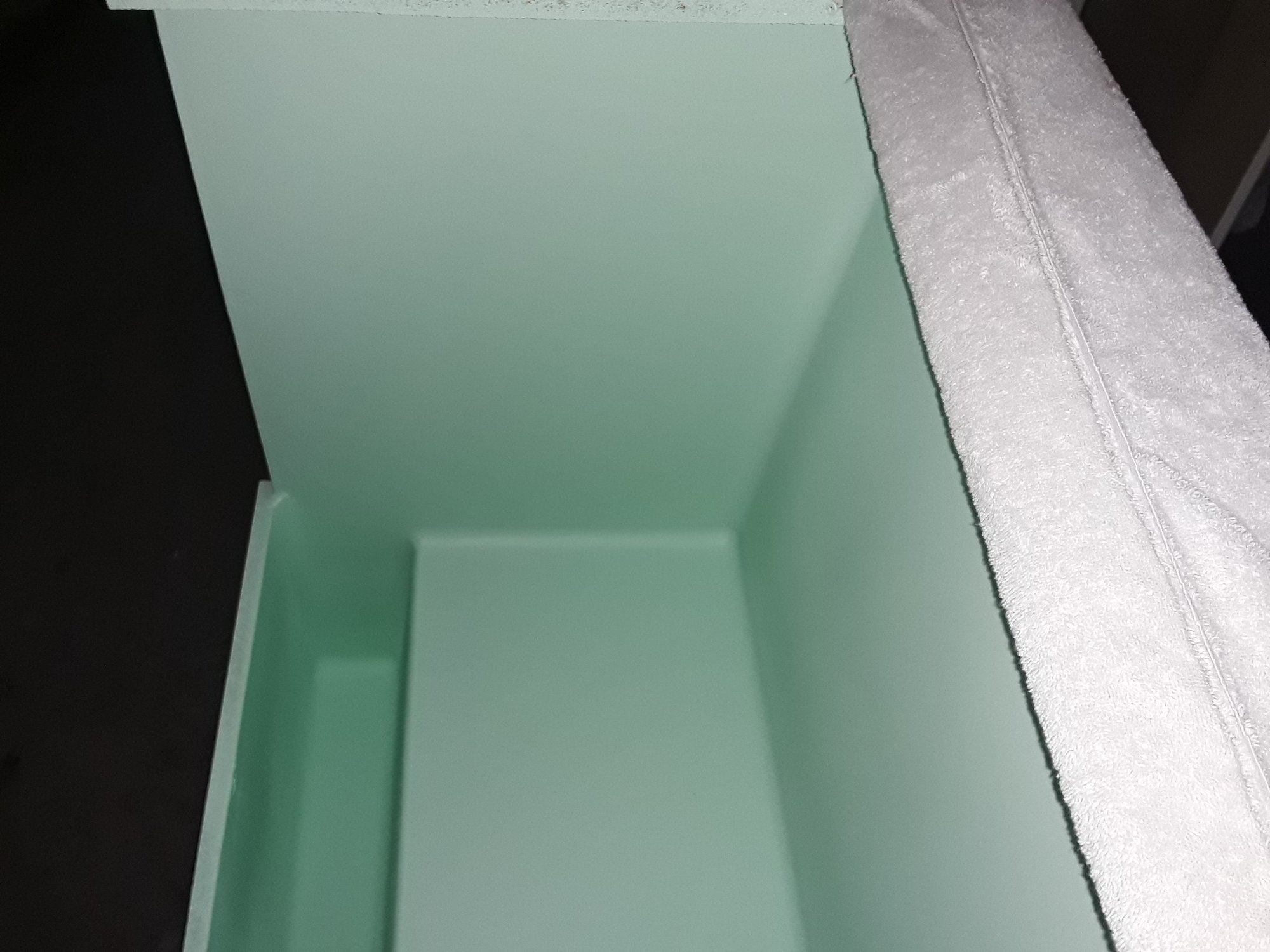

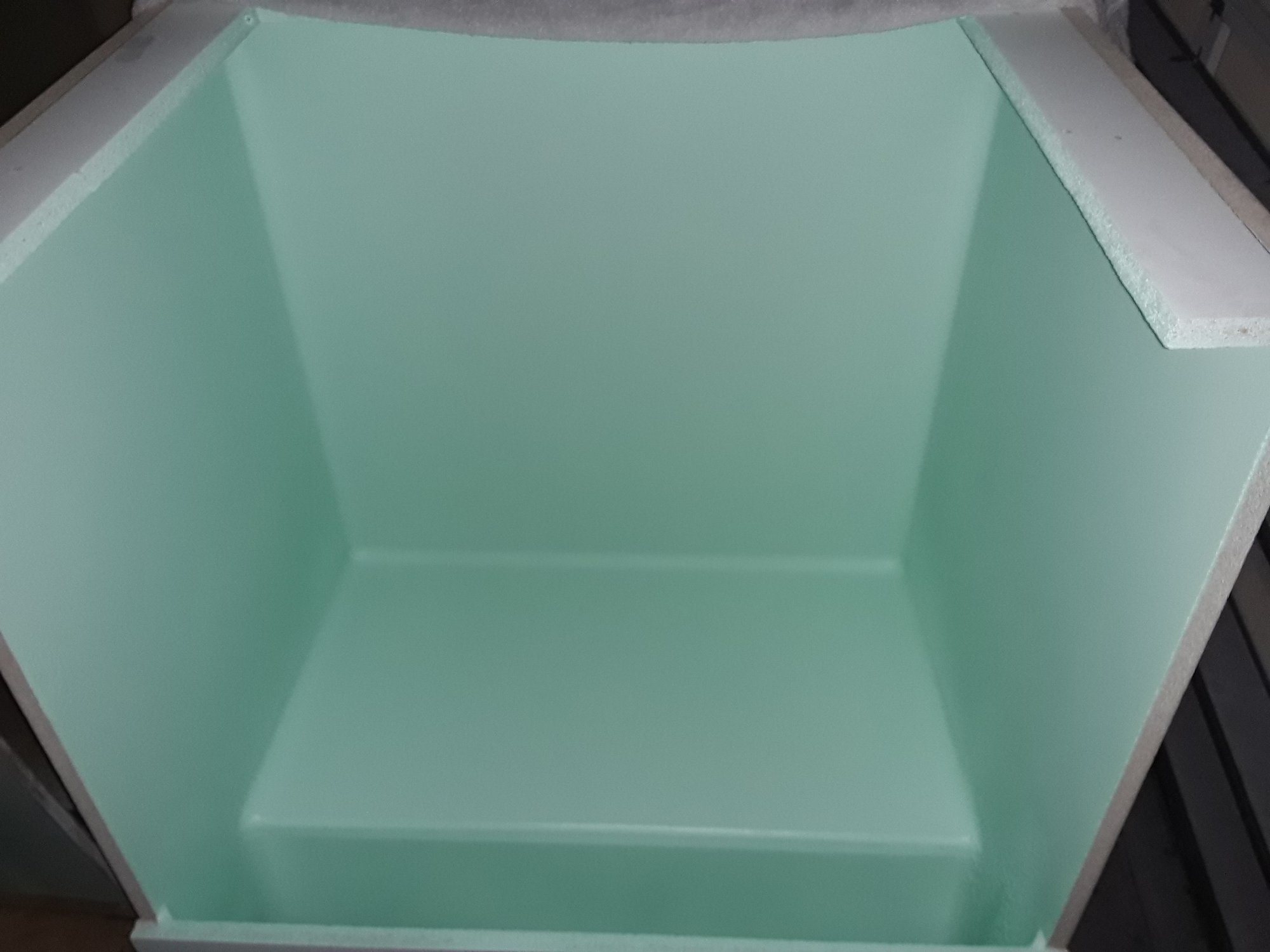

Got the mold sprayed yesterday evening before the front came thru. Had a couple spots where the gel gatored because that's right where gel in my gun kicked off on the first batch out of a new freshly mixed up gallon of gel. I mixed it at exactly 1 percent and I didnt spray for 4 minutes before it set up on me. Usually 1 percent has been a safe number for me even in the dead of summer would give me 15-20 minutes before gel.
I kicked the next batch literally at .5% and that was more like normal. Not terribly thrilled about it but oh well, fix it when it comes out.


HarvestTime is offline
Old 02-13-2019, 09:50 AM
  #685
Senior Member

Join Date: Mar 2018
Location: Saint Petersburg, Florida
Posts: 507
Default

I had the same problem with gel coat setting before I was done and wondered if the propellant caused it to kick faster. I managed to break it out of my container in chunks before it was a rock.

Thanks for sharing your adventure.
FL Bill is offline
Old 02-13-2019, 01:59 PM
  #686
Senior Member

Join Date: Oct 2014
Location: North Palm Beach Florida
Posts: 563
Default

Cut the gators out with a razor blade and touch it up. You don’t care about scratches in the mold.
Daytrip01 is offline
Old 02-13-2019, 02:03 PM
  #687
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

That's a good idea! Thanks jim
HarvestTime is offline
Old 02-13-2019, 02:07 PM
  #688
Senior Member

Join Date: Oct 2014
Location: North Palm Beach Florida
Posts: 563
Default

I just want you to get done and come help me with my motors!
Daytrip01 is offline
Old 02-13-2019, 02:19 PM
  #689
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

Call me
HarvestTime is offline
Old 02-13-2019, 06:49 PM
  #690
Admirals Club Admiral's Club Member

Join Date: Oct 2010
Posts: 3,429
Default

Yeah save that mold, we may happen to have a conversation about it next winter.

What at are you going to core the leaning post with, and are you going to screw it or glass it to the boat?
Big Iron is offline
Old 02-14-2019, 03:52 AM
  #691
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

I actually was pretty set on no core at all. I figured if I can get the glass to about 1/4in thick the shape should be plenty sufficient to hold 2 people, also I have no plans of mounting anything to it really except for rod holders and cup holders on the top.
I would like to glass it down but I may just screw it down so I can remove it if needed. The flange is on the inside so no screws would show
HarvestTime is offline
Old 02-14-2019, 06:58 PM
  #692
Admirals Club Admiral's Club Member

Join Date: Oct 2010
Posts: 3,429
Default

What kind of seats are you going to put on it?
Big Iron is offline
Old 02-15-2019, 04:02 AM
  #693
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

Going to have 2 cushions made. One to sit on and one for the back rest part
HarvestTime is offline
Old 02-15-2019, 03:53 PM
  #694
Junior Member

Join Date: Dec 2015
Posts: 25
Default

Royce I have a question about spraying gel, not in a mold.

Do you do multiple coats in a day?
I read you do 1/3 duratec/ 2/3 gel, but do you cut it with styrene?
what pressure do you run your gun at?
What do you think is better 1.8 or 2.0 mil tip?

Btw, I almost bought guide green today, but did not want to copy you. Lol
Jupcv is offline
Old 02-16-2019, 05:16 AM
  #695
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

Lol I was in fiberglass Florida yesterday, they told me!
the bigger the tip the better on the gun
1/3 duratech 2/3 gel
I dont regulate the air pressure on the compressor. I just use the air control knob on the gun. Really depends on what compressor you have. Mine because I dont regulate it has alot of pressure for about a minute, then the tank starts running down then it stays pretty good but the compressor runs non stop. Hasn't been a problem. Mine is 26 gal 185 psi 2 stage
HarvestTime is offline
Old 02-16-2019, 05:19 AM
  #696
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

Got the part skinned with 2 layers of 1.5oz csm last night


2TDave likes this.
HarvestTime is offline
Old 02-18-2019, 08:28 AM
  #697
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default





2TDave likes this.
HarvestTime is offline
Old 02-18-2019, 08:30 AM
  #698
Junior Member

Join Date: Feb 2019
Location: NW Florida
Posts: 10
Default

Nice boat, thanks for posting!
dyoung2777 is offline
Old 02-18-2019, 08:40 AM
  #699
Member

Join Date: Sep 2016
Posts: 50
Default

Is that left over wax/mold release on the last photo?
cjones1991 is offline
Old 02-18-2019, 09:00 AM
  #700
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,064
Default

No, unfortunately that's where the gelcoat alligatored because the gel kicked off too fast and that area was too thin. Easy fix though
HarvestTime is offline
