23' center console renovation

Old 11-20-2015, 08:44 PM
  #41
Admirals Club Admiral's Club Member

Join Date: Feb 2014
Location: Islamorada, FL
Posts: 651
Default

dam now I guess I need to start my restoration thread. Looking good!
Nomad15 is offline
Old 11-25-2015, 07:24 PM
  #42
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Picked up my transom coring, 5 gallons of resin, a roll of 1708, and a bunch of miscellaneous stuff. Should keep me pretty busy over my 4 day weekend
HarvestTime is offline
Old 11-26-2015, 11:16 AM
  #43
Senior Member

Join Date: May 2015
Posts: 2,085
Default

Welcome, Stuart huh! I have been working in Palm city for the last 24 years. Fiberglass Florida for supplies? Thats who I have been using. I know where all those builders are you referenced. Great hull, love to see it sometime. Good luck.
BWP
bluewaterposer is offline
Old 11-26-2015, 01:01 PM
  #44
Senior Member

Join Date: Jan 2014
Location: Tuckerton Beach, N.J.
Posts: 989
Default

Sounds like a convenient place for resto work HarvestTime. I have never floated my boat but there is bottom paint on it. The paint comes up just shy of 5" in the rear chine corner. I remember hearing that the rear deck on these boats was actually below the water line. Hope this helps.
Clamdigger II is offline
Old 11-26-2015, 04:03 PM
  #45
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Yea , fiberglass florida lol

Clam, yea it's my understanding they weren't self bailing decks.
5 inches up the chine seems like alot. I've seen formula 233's at rest and they were about 2 inches above the chine. (No one in it), with a bracket and single 3.3l yamaha f250
HarvestTime is offline
Old 11-26-2015, 06:04 PM
  #46
Senior Member

Join Date: May 2015
Posts: 2,085
Default

Im in. Stalking you till I see your boat. To dumb to display emoticons. Im watching you!.
Subscribed.
Bwp
Gattafish likes this.
bluewaterposer is offline
Old 11-27-2015, 07:23 PM
  #47
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Worked on the boat all day today. Spent a couple hours making a really nice template to trace my transom core on. I perferred using the post sheet fiberwood boards over paper or cardboard because it's only $8 , you can grind on it for a very close fit and it's rigid, I will use it later to spec out my cuts on my sheets of glass for the layup as well.
HarvestTime is offline
Old 11-27-2015, 07:24 PM
  #48
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Name:  20151127_210532.jpg
Views: 3983
Size:  180.9 KB
HarvestTime is offline
Old 11-27-2015, 07:25 PM
  #49
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Got the pieces of coring cut as well, and just like the template, they are very snug fitting, close to perfect
HarvestTime is offline
Old 11-27-2015, 07:27 PM
  #50
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Name:  20151127_170950.jpg
Views: 3989
Size:  209.2 KB
HarvestTime is offline
Old 11-27-2015, 07:28 PM
  #51
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

And to end the night , I got the 2 pieces of coring bonded together.
F350 flywheels are good for something lol
HarvestTime is offline
Old 11-27-2015, 07:30 PM
  #52
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Name:  20151127_210450.jpg
Views: 3793
Size:  462.1 KB
HarvestTime is offline
Old 11-27-2015, 07:32 PM
  #53
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Hopefully tomorrow , weather permitting I will get the coring bonded to the transom skin and the voids in the edges filled and ready for layup day
HarvestTime is offline
Old 11-28-2015, 02:59 PM
  #54
Senior Member

Join Date: Jan 2014
Location: Tuckerton Beach, N.J.
Posts: 989
Default

HarvestTime what are you using for coring? It looks like two pieces of 3/4"? Looking good, keep at it. The paint on the water line of my boat looks high, but like I said I have never floated mine.
Clamdigger II is offline
Old 11-28-2015, 05:00 PM
  #55
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

I'm using marine grade pvc board (26 pd density)
For the cost I really like it, bonds well and holds a screw well. Coosa and Penske are not in the budget haha.

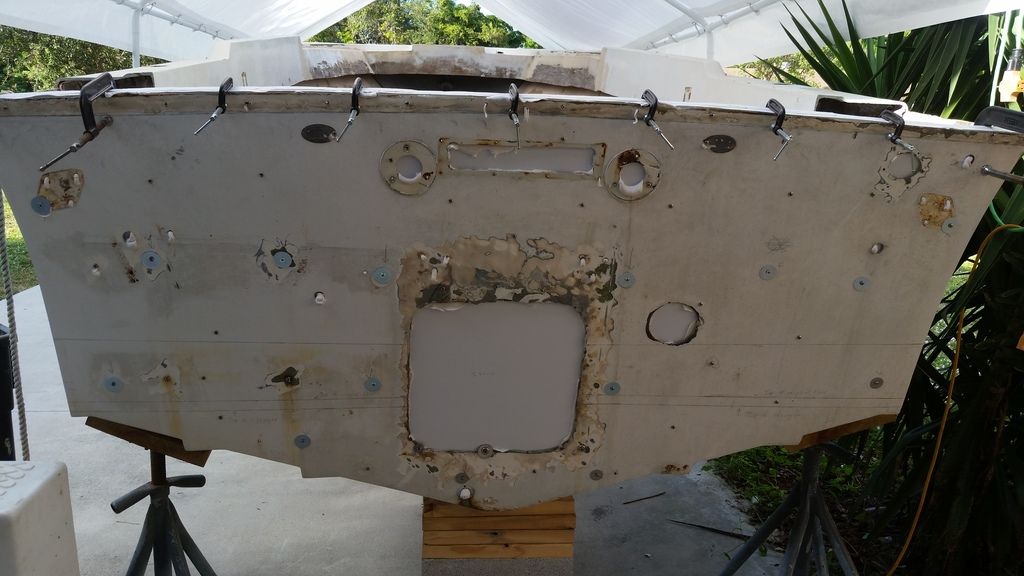

I got the transom core bonded into the hull skin, and then radiused the corners for the glass layup. I was really happy with the squeeze put I got bonding the core in. 9 clamps and 35 screws sucked it up niceName:  20151128_150740.jpg
Views: 3982
Size:  224.6 KB
HarvestTime is offline
Old 11-28-2015, 05:01 PM
  #56
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Name:  20151128_184809.jpg
Views: 3979
Size:  188.8 KB
HarvestTime is offline
Old 11-28-2015, 07:36 PM
  #57
Senior MemberCaptains Club Member

Join Date: Feb 2002
Location: Orange Park, FL
Posts: 1,636
Default

Originally Posted by HarvestTime View Post
I'm using marine grade pvc board (26 pd density)
For the cost I really like it, bonds well and holds a screw well. Coosa and Penske are not in the budget haha.

I got the transom core bonded into the hull skin, and then radiused the corners for the glass layup. I was really happy with the squeeze put I got bonding the core in. 9 clamps and 35 screws sucked it up nice
Where do you get "marine grade pvc"?
Shel is offline
Old 11-28-2015, 07:41 PM
  #58
Senior Member

Join Date: Sep 2014
Posts: 257
Default

Looks good, coming along.
Allan W is offline
Old 11-28-2015, 08:33 PM
  #59
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 883
Default

Fiberglass/composites suppliers should all have it. The biggest difference is its pre sanded and the pound per square inch density is different than say the pvc board that sign companies use.
HarvestTime is offline
Old 11-29-2015, 06:45 AM
  #60
RDL
Member

Join Date: Nov 2015
Posts: 69
Default Awesome

Subscribed
RDL is offline
