1989 231 Mako Re-do - Getting Close

Notices
The Boating Forum

1989 231 Mako Re-do - Getting Close

Old 02-18-2012, 10:05 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Nov 2008
Location: South Florida
Posts: 926
Received 29 Likes on 24 Posts
Default 1989 231 Mako Re-do - Getting Close

Bought this 231 Mako back in May of 2011. Pretty much started the tear down just a couple months of owning the boat. I had a plan in mind as well as a budget to turn this boat into something that fit my idea of the perfect boat for me and how I use it. Its been a process, and some bumps and forks in the road have had to be over come, but nearing completion it has definitely been exciting to put it all together. He are some pictures of where things started to where they are now and a list of some of the changes made...Enjoy

-Brand new Fuel tank
-Closed in transom
-30" Twin Floatation Bracket set up for a Single outboard
-T-top mounted straight to console with internal support
-Suzuki DF250 4 stroke
-All new Hydraulic Steering
-Custom starboard base under console, more starboard to be added in place of old teak trim.
-Bottom paint removed - VC Performance Epoxy sprayed on hull bottom
-Awlgrip Ice Blue blended for a shade darker for hull sides
-Awlgrip Snow White for all interior/nonskid

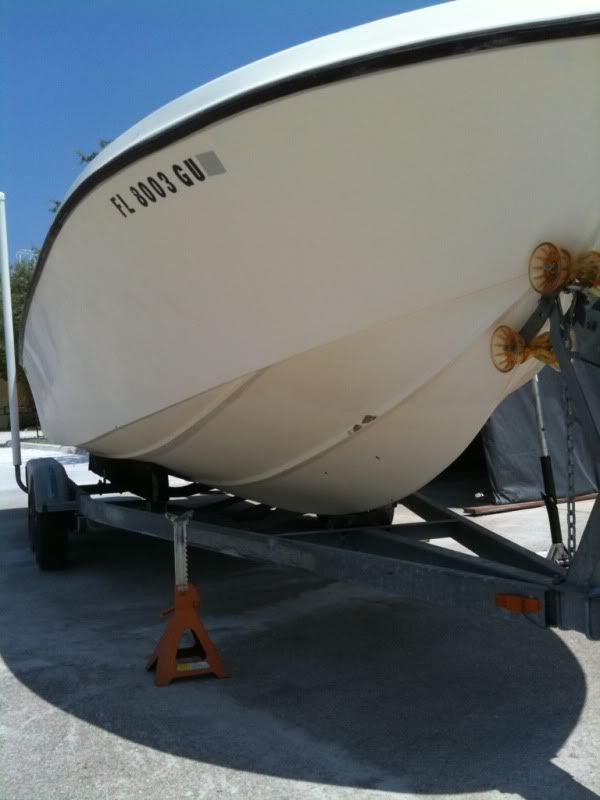

Started with this...



Soda Blasted bottom paint away...



Filled, primed, sanded bottom smooth



VC Performance Epoxy bottom...

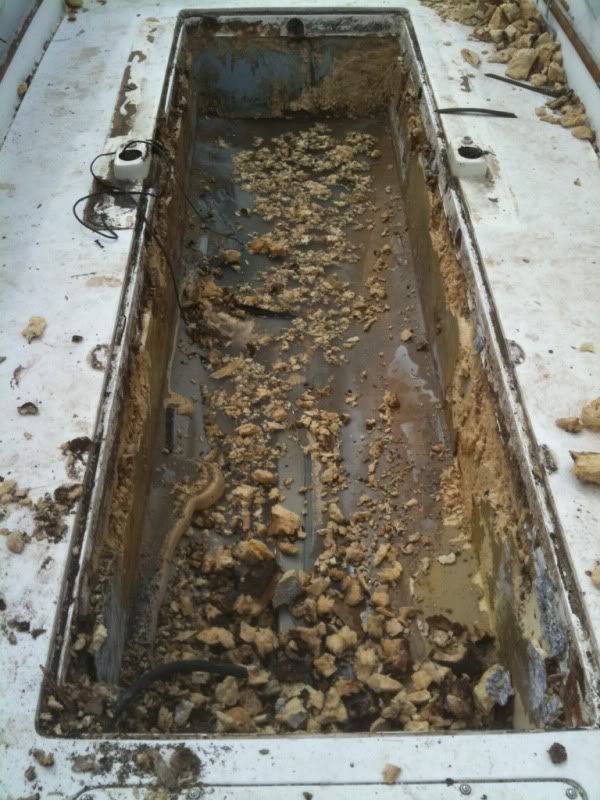

Old Fuel Tank Removal..



Used this wood across gunnels and a come along to get out tank...

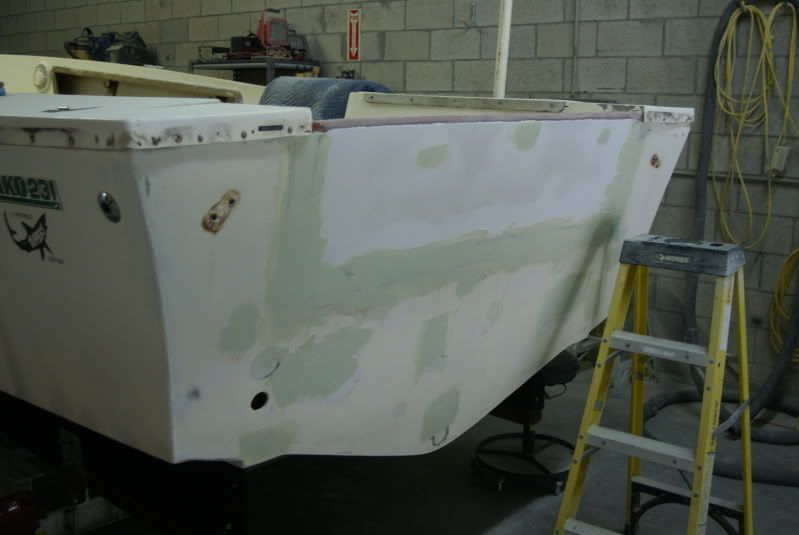

Transom filled...



Cap and Transom Enclosed...



Bought a used trailer and installed Keel bunks



New Fuel tank coal tarred and foamed in...



Bracket installed.. (Thanks Don Hermco)

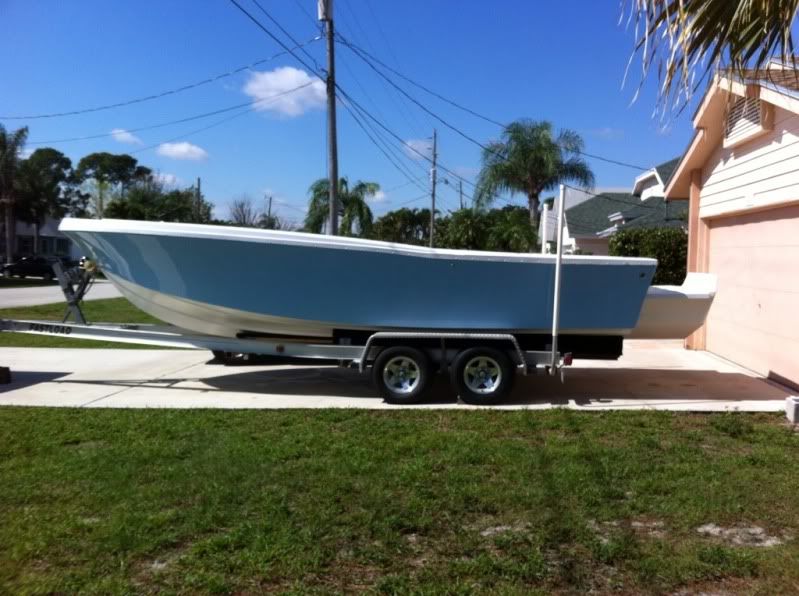

Boat Painted....



Console Down Tight...

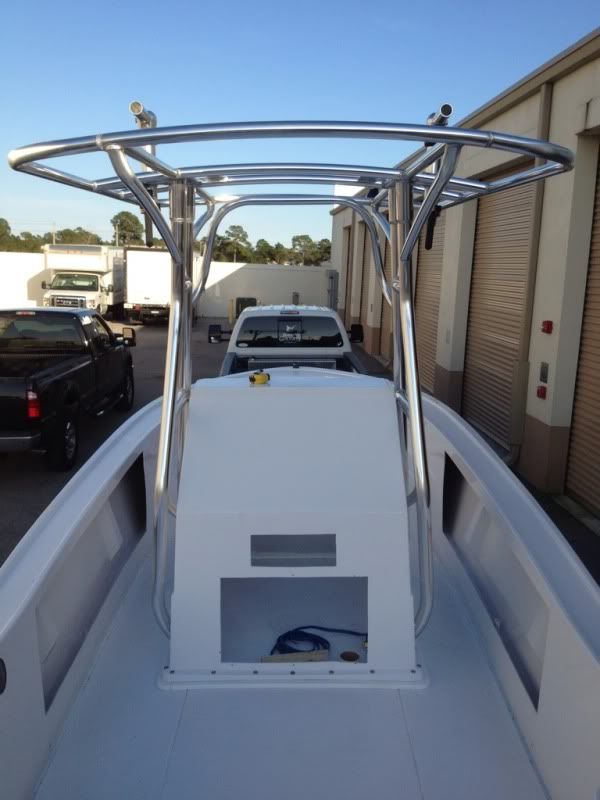

T-Top Installed - Mounted to console...







LED Lights under electronics box to shine down on console at night



Suzuki DF250 Waiting to be bolted on...



Cory
Old 02-18-2012, 10:43 AM
  #2
Senior Member

Join Date: Oct 2009
Location: Ft Lauderdale Fl
Posts: 6,042
Received 178 Likes on 111 Posts
Default

That is coming along real nice.
Old 02-18-2012, 01:17 PM
  #3
Senior MemberCaptains Club Member

Join Date: Feb 2006
Location: North NJ & Barnegat Bay
Posts: 6,316
Likes: 0
Received 7 Likes on 6 Posts
Default

nice
Old 02-18-2012, 01:27 PM
  #4
Senior MemberCaptains Club Member

Join Date: Nov 2005
Location: North Florida
Posts: 721
Likes: 0
Received 12 Likes on 11 Posts
Thumbs up Makeover

Very nice indeed !!
Old 02-18-2012, 01:30 PM
  #5
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jun 2007
Location: Houston/Sargent, Texas
Posts: 5,437
Likes: 0
Received 736 Likes on 383 Posts
Default

wow!!!

I am always amazed by the talent of some of you guys. That's one heck of a project.

Great Job!!!
Old 02-18-2012, 03:53 PM
  #6
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Nov 2008
Location: South Florida
Posts: 926
Received 29 Likes on 24 Posts
Default

Thanks guys. Hopefully it works out exactly as it was planned in my mind. I still have some work left to do, but most of the work left is the fun stuff!
Old 02-18-2012, 03:59 PM
  #7
Senior Member

Join Date: Sep 2009
Location: TORONTO,CANADA
Posts: 577
Likes: 0
Received 6 Likes on 5 Posts
Default

Looking real good,can't wait to see some blood on the deck.
Old 02-18-2012, 04:06 PM
  #8
Admirals Club Admiral's Club Member

Join Date: Oct 2009
Location: FL Gulf Coast & NYC
Posts: 2,669
Received 237 Likes on 114 Posts
Default

Originally Posted by BigNiner19 View Post
Transom filled...
Nice job!

Just curious...the existing transom wasn't rotted?

Tipsy
Old 02-18-2012, 05:19 PM
  #9
Senior Member

Join Date: Jul 2011
Location: East Coast
Posts: 4,978
Likes: 0
Received 130 Likes on 32 Posts
Default

Originally Posted by TipsyMcStagger View Post
Nice job!

Just curious...the existing transom wasn't rotted?

Tipsy
I would like to know this as well
Old 02-18-2012, 05:37 PM
  #10
Senior Member

Join Date: Jul 2011
Location: NOLA
Posts: 246
Received 16 Likes on 13 Posts
Default

Great job. I have an 87 22 ft Mckee hammer head that is in good shape, but would like to refit it one day too. Would it be rude if me to ask how much u have invested in the refit? Minus the cost of the motor.
Old 02-18-2012, 05:39 PM
  #11
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Nov 2008
Location: South Florida
Posts: 926
Received 29 Likes on 24 Posts
Default

The existing transom was very solid. Drilled holes all around and was dry. Had one spot I let dry out that was questionable, but all in all, solid and dry.
Old 02-18-2012, 06:11 PM
  #12
Senior MemberCaptains Club Member

Join Date: Apr 2004
Location: Raleigh, NC & Hampstead, NC
Posts: 3,031
Received 167 Likes on 104 Posts
Default

With a lot of these older boats and re-habs, I would like to know why so many put a bracket on instead of bolting the engine to the transom? Is there a performance difference or floatation issue?
Thanks in advance for the help.
Old 02-18-2012, 07:33 PM
  #13
Senior Member

Join Date: Jul 2011
Location: East Coast
Posts: 4,978
Likes: 0
Received 130 Likes on 32 Posts
Default

Originally Posted by aftergolf View Post
With a lot of these older boats and re-habs, I would like to know why so many put a bracket on instead of bolting the engine to the transom? Is there a performance difference or floatation issue?
Thanks in advance for the help.
For me its 2 reasons

Reason No.1(the major one for me)......
If for whatever reason you get water below deck and pumps arnt working just right or whatever ...... and you don't realize it the boat is prob gonna deep six before you can properly address the issue.The older cut out Seacrafts are known for this so I was told.If you have closed transom it buys you time.

Reason No.2
IMO it makes the boat look a whole lot cleaner and I just don't like looking back there and seeing the water that close to the deck. And you have much dryer feet with a full transom boat. If your feet get wet on a full transom boat you have a WHOLE lot of other things to be thinking about
Old 02-18-2012, 09:08 PM
  #14
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Nov 2008
Location: South Florida
Posts: 926
Received 29 Likes on 24 Posts
Default

It can extend the hull some and create a better ride. Some have had poor results with brackets saying the ride got worse. But like mentioned above, the look of it is nice too. It cleans up the stern of the boat. In all honesty one of the reasons I did it was to open up the deck area some more to have a little more room to fish and kind of give it more of a modern appeal.

Lets not forget these older hulls were not designed with heavier 4 stroke motors in mind. These floatation brackets are the ticket to help offset the extra added weight of a 4 stroke versus an older 2 stroke.

Cory
Old 02-18-2012, 10:40 PM
  #15
Senior Member

Join Date: Jun 2011
Location: Ocean Isle Beach NC
Posts: 439
Likes: 0
Received 1 Like on 1 Post
Default

Looks great!
Old 02-19-2012, 06:05 AM
  #16
Senior MemberCaptains Club Member

Join Date: Apr 2004
Location: Raleigh, NC & Hampstead, NC
Posts: 3,031
Received 167 Likes on 104 Posts
Default

Thanks for the info, did not think about the extra 4-stroke weight on the transom. I was thinking if you were fishing how difficult it would be to leader a fish in with the extension the bracket creates, but with all things you adapt.
Old 02-19-2012, 07:04 AM
  #17
Senior Member

Join Date: Feb 2010
Posts: 190
Likes: 0
Received 2 Likes on 2 Posts
Default

BigNiner,
That thing looks sexy! Great job, you're going to have a very cool, one-of-a-kind mako.
Where did you find those mini-LED lights for under the electronics box? I"m looking for something like that myself.
Thanks and good luck!

B
Old 02-19-2012, 08:24 AM
  #18
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Nov 2008
Location: South Florida
Posts: 926
Received 29 Likes on 24 Posts
Default

Originally Posted by No Excuses View Post
BigNiner,
That thing looks sexy! Great job, you're going to have a very cool, one-of-a-kind mako.
Where did you find those mini-LED lights for under the electronics box? I"m looking for something like that myself.
Thanks and good luck!

B
Those are the Hella Marine flush mount LED's most boat supply stores have them in stock or can order them. They have white, red, blue, purple
Old 02-19-2012, 11:58 AM
  #19
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Nov 2008
Location: South Florida
Posts: 926
Received 29 Likes on 24 Posts
Default

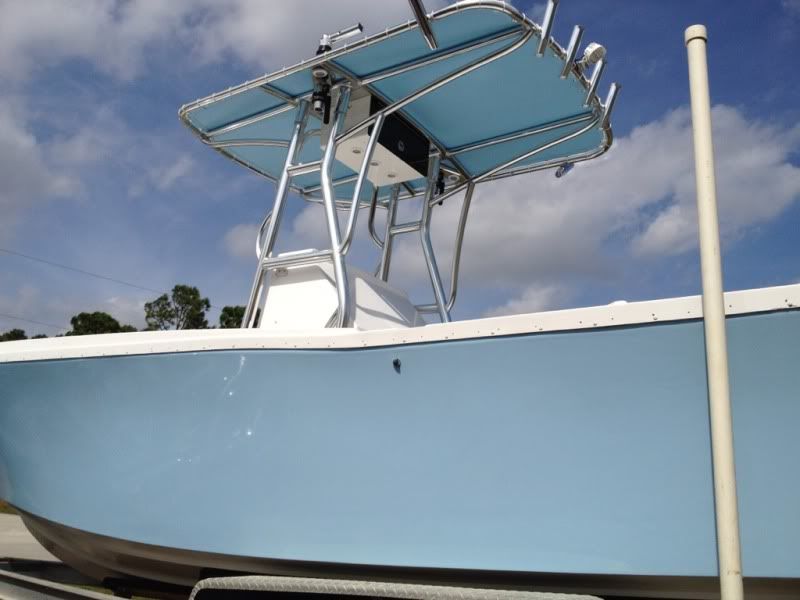

Got the T-top finished up. LED Lights in the top, pre-wired and ready to go. Time to start rigging the rest of the boat.





LED Lights in t-top





Here you can see where I have added support to the t-top legs coming to the console. These L brackets mount to the floor and to each main leg of the top for additional support.





Enjoy
Old 02-19-2012, 12:40 PM
  #20
Senior Member

Join Date: Mar 2006
Location: Long Island, NY
Posts: 6,497
Likes: 0
Received 30 Likes on 25 Posts
Default

Awesome job!
