Is this a bilde and float or bilge and abandone bilge

Notices
The Boating Forum

Is this a bilde and float or bilge and abandone bilge

Old 11-24-2020, 06:40 AM
  #1
Member
Thread Starter

Join Date: Aug 2019
Posts: 89
Received 5 Likes on 5 Posts
Default Is this a bilde and float or bilge and abandone bilge

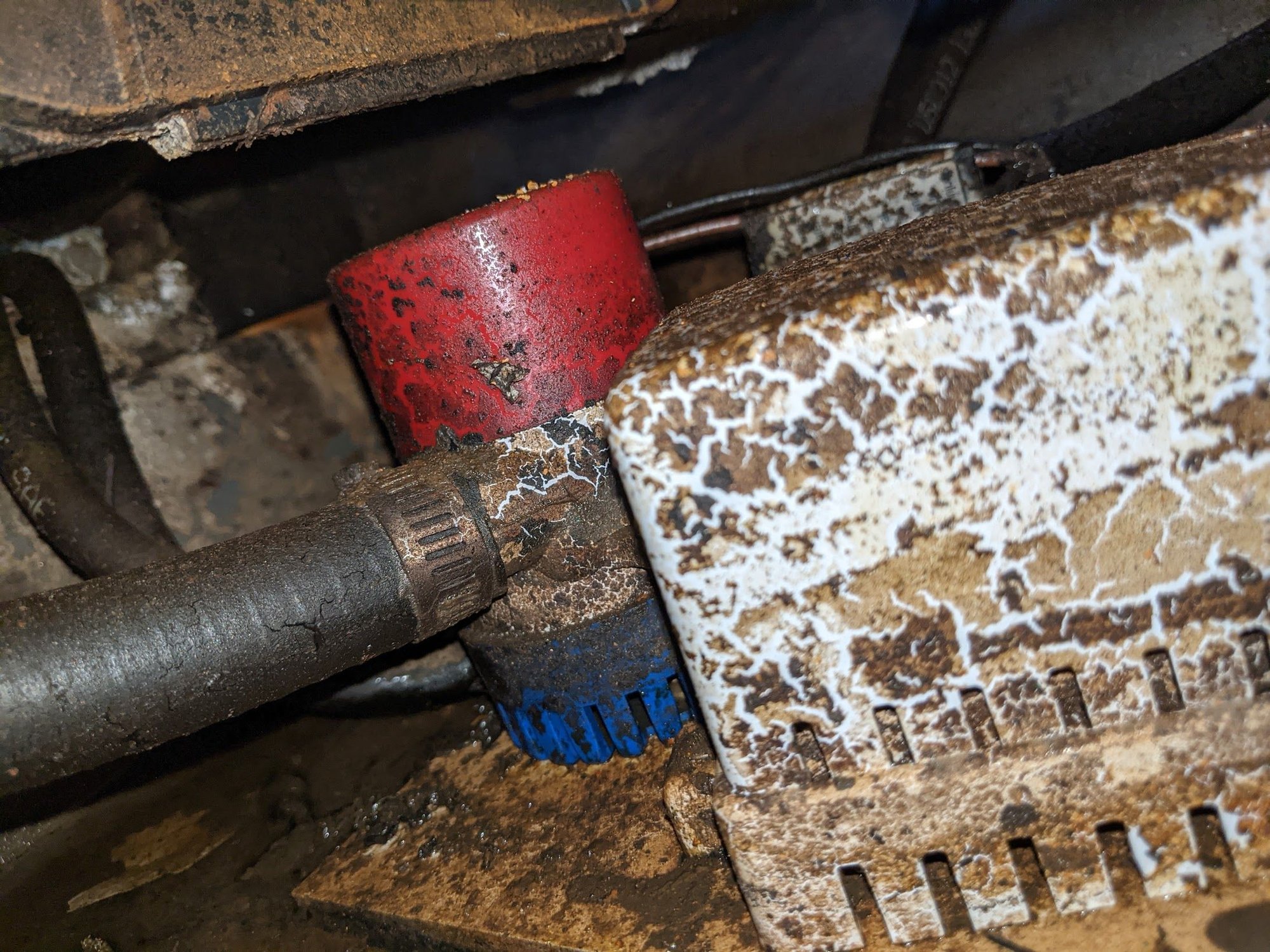

Near end of season the auto switch on my bilge pump started to fail. Pump still works totally fine if you flip the manual switch. I shoved the camera phone under the engine and that is what I see. The red/white/blue device likes like a Rule 360 pump but I cant find the switch. When I was under the boat I thinking the white box was an old bilge but thinking now that might be the switch? If so, is there any chance I can clean this out? Do I try to just shooting it with a hose or is there a way to remove and clean? I dont mind replacing it, the part I dont like is the wires for pump and switch seem to come in on one wire loom so if I replace there doesnt seem to be an easy way to replace and keep the connections out of the water.

Old 11-24-2020, 06:47 AM
  #2
Senior Member

Join Date: Sep 2019
Location: Connecticut
Posts: 562
Received 111 Likes on 82 Posts
Default

https://www.amazon.com/Rule-40A-Matic-Switch-Moisture/dp/B000O8DA0K/ref=asc_df_B000O8DA0K/?tag=hyprod-20&linkCode=df0&hvadid=312177424933&hvpos=&hvnetw=g&hvrand=17803773223265824017&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9014163&hvtargid=pla-574196784892&psc=1&tag=&ref=&adgrpid=64958377347&hvpone=&hvptwo=&hvadid=312177424933&hvpos=&hvnetw=g&hvrand=17803773223265824017&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9014163&hvtargid=pla-574196784892
Old 11-24-2020, 06:47 AM
  #3
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 17,904
Received 2,938 Likes on 2,082 Posts
Default

yikes
Old 11-24-2020, 07:02 AM
  #4
Senior MemberCaptains Club Member

Join Date: Aug 2002
Location: Baltimore,Maryland
Posts: 6,352
Received 808 Likes on 535 Posts
Default

Think the first thing I would do is a real good Bilge cleaning. It may work after that.
Likes:
Old 11-24-2020, 07:05 AM
  #5
Senior MemberCaptains Club Member

Join Date: Mar 2003
Location: United States
Posts: 10,758
Likes: 0
Received 2,611 Likes on 1,179 Posts
Default

The white box is the float switch. In the picture on the left side under the blue strainer of the bilge pump is a little white tab. That is the manual trigger for the float. Use your hand to move it and the pump should go on. Those older rules are bulletproof.

Judging by the output hose, it is either a 750 or 1100 Rule.
Old 11-24-2020, 07:06 AM
  #6
Member

Join Date: Apr 2018
Location: Brielle, NJ
Posts: 38
Received 11 Likes on 8 Posts
Default

That big box what was white is the auto switch. Clean clean clean. My vessel blew a trim tab hose and blew that oil all in the bilge. The aft pump would stick on. Float switch fouled. Just one more thing this winter. Not a biggie. Bilge pumps and switches need evaluation and replacement at times.
Old 11-24-2020, 08:41 AM
  #7
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 17,904
Received 2,938 Likes on 2,082 Posts
Default

no just clean, replace hoses. they look cracked.
Likes:
Old 11-24-2020, 09:16 AM
  #8
Member
Thread Starter

Join Date: Aug 2019
Posts: 89
Received 5 Likes on 5 Posts
Default

Originally Posted by mystery View Post
no just clean, replace hoses. they look cracked.
Yeah I saw that hose looked cracked as well. Going to certainly replace that
Old 11-24-2020, 09:19 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 17,904
Received 2,938 Likes on 2,082 Posts
Default

How high is the scum line? Was the boat sunk?
Old 11-24-2020, 09:22 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 9,884
Received 1,545 Likes on 936 Posts
Default

Some clean water & Dawn should do a decent job of scum removal. Fill the bilge and go for a short ride with plenty of stops/starts to give it a good sloshing.
Old 11-24-2020, 09:34 AM
  #11
Admirals Club Admiral's Club Member

Join Date: Sep 2005
Location: Jacksonville, FL
Posts: 2,889
Received 649 Likes on 411 Posts
Default

Originally Posted by personalt View Post
Yeah I saw that hose looked cracked as well. Going to certainly replace that
If you're going to replace the hose you might as well replace the pump and switch while you're at it.
Likes:
Old 11-24-2020, 09:42 AM
  #12
TDL
Senior Member

Join Date: Jul 2010
Posts: 1,048
Received 94 Likes on 74 Posts
Default

In the picture you can see both bilge pump and float switch are mounted on a King Starboard; normally that Starboard is either glued to the hull or bolted to something. Try to remove the whole thing together which will be much easier to replace the pump, switch and the hose if needed.
Also, very high possibility that the butt connectors from the switch to the pump is the culprit. If you find the butt connectors are serverly oxidized, you might want to cut a few inches of on all lines to get rid of all black coppers; otherwise the same thing would happen next year.
With regards to the Rule switch, the original ones on my boats were 20 years old when I replaced them out of precaution. However the new ones (mercury free) never last longer than 2 years.
Old 11-24-2020, 12:43 PM
  #13
Member
Thread Starter

Join Date: Aug 2019
Posts: 89
Received 5 Likes on 5 Posts
Default

Originally Posted by mystery View Post
How high is the scum line? Was the boat sunk?
No... water line never got any higher then top of float.
Old 11-24-2020, 01:44 PM
  #14
Senior Member

Join Date: Mar 2019
Posts: 1,064
Received 504 Likes on 311 Posts
Default

Holy Gadzookzzzzzzzz!!!!!!
