1994 Volvo penta 290 dp prop shaft gasket

Notices
The Boating Forum

1994 Volvo penta 290 dp prop shaft gasket

Old 11-16-2020, 10:20 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2018
Location: College Station, Texas
Posts: 43
Received 10 Likes on 8 Posts
Default 1994 Volvo penta 290 dp prop shaft gasket

Replacing a prop on my Volvo 290 dp. Going back in with a b6. Found a nice spool of high quality fishing line wrapped around the prop shaft.

Need to find the seal or gasket that goes on the prop shaft, between the first and second props. Where is the best place to buy one. Does anyone know the part number for the kit?

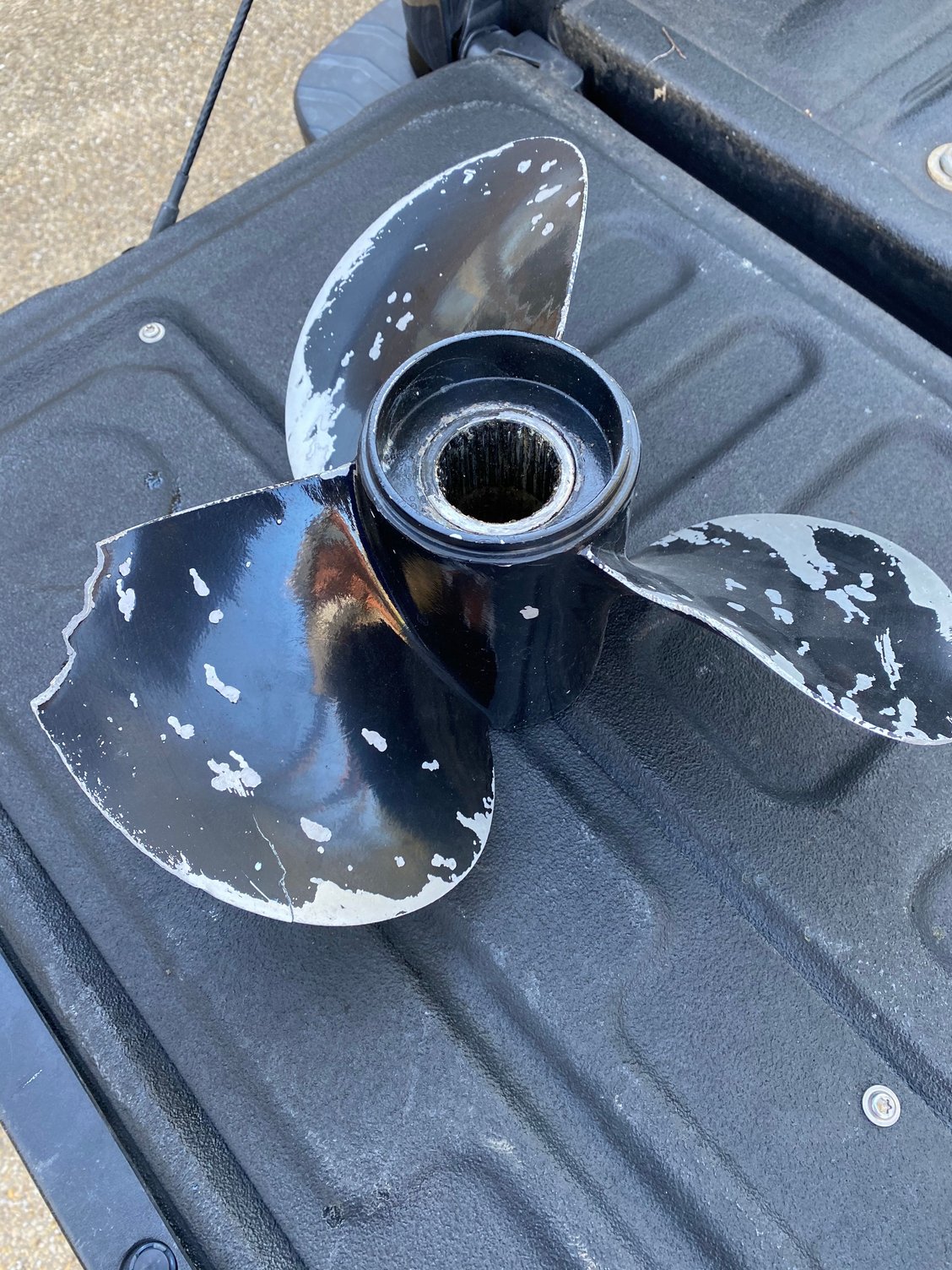

attached is a picture of the prop that I am replacing. Works great as a depth sounder.

Old 11-16-2020, 12:23 PM
  #2
Senior Member

Join Date: Jan 2011
Location: Pgh Pa
Posts: 16,167
Received 1,329 Likes on 1,003 Posts
Default

Me thinks it's a bushing not a gasket or seal

volvo penta Bushing 3851534

Propeller DP-C1, DP-D1 - 7316 - 7749309 - volvopentastore.com



http://www.volvopentastore.com/Engin...--store_id.366

Last edited by Thalasso; 11-16-2020 at 12:30 PM.
Old 11-16-2020, 12:43 PM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2018
Location: College Station, Texas
Posts: 43
Received 10 Likes on 8 Posts
Default

Thank you for the part number. Didn’t know that it was called a bushing.

The fishing line worked everything over. First time for everything.


Last edited by Tumble Weed; 11-16-2020 at 12:56 PM.
Old 11-16-2020, 01:01 PM
  #4
Senior Member

Join Date: Jan 2011
Location: Pgh Pa
Posts: 16,167
Received 1,329 Likes on 1,003 Posts
Default

Originally Posted by Tumble Weed View Post
Thank you for the part number. Didn’t know that it was called a bushing.

The fishing line worked everything over. First time for everything.

Don't hold me to it.
Just showing you what the parts schematic shows
Old 11-16-2020, 01:17 PM
  #5
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2018
Location: College Station, Texas
Posts: 43
Received 10 Likes on 8 Posts
Default


One more pic. It still has the tangled mono on it but you can see the size. Starting to wonder if it is just a bunch of melted mono.
Old 11-16-2020, 01:35 PM
  #6
Admirals Club Admiral's Club Member

Join Date: Jul 2018
Location: Wilmington NC
Posts: 737
Likes: 0
Received 306 Likes on 161 Posts
Default

Looks like just a bunch of melted mono. The seal would be black with metal impregnated. There’s actually two back to back seals on each prop shaft
Old 11-16-2020, 02:40 PM
  #7
Senior Member

Join Date: Jul 2012
Posts: 1,074
Received 367 Likes on 216 Posts
Default

Are you talking about the seal for the inner propshaft? If so, there are two, you will need to remove the bearing carrier and outer shaft, so you would also replace the bearing carrier O rings, and outer shaft seals as well.
Old 11-16-2020, 02:48 PM
  #8
Senior Member

Join Date: Jul 2007
Location: SWFL
Posts: 2,754
Received 472 Likes on 273 Posts
Default

You might also try marinepartsexpress.com.
Old 11-16-2020, 03:14 PM
  #9
Senior Member

Join Date: Jan 2011
Location: Pgh Pa
Posts: 16,167
Received 1,329 Likes on 1,003 Posts
Default

Originally Posted by hotwire_marine View Post
Looks like just a bunch of melted mono. The seal would be black with metal impregnated. There’s actually two back to back seals on each prop shaft

between the first and second props.
Old 11-16-2020, 05:29 PM
  #10
Senior Member

Join Date: Jul 2012
Posts: 1,074
Received 367 Likes on 216 Posts
Default

Originally Posted by Thalasso View Post
between the first and second props.
Yeah, that's where the inner prop shaft seals are.
Old 11-17-2020, 06:59 AM
  #11
Senior Member

Join Date: Jan 2011
Location: Pgh Pa
Posts: 16,167
Received 1,329 Likes on 1,003 Posts
Default

Originally Posted by brendanm View Post
Yeah, that's where the inner prop shaft seals are.
He said he was looking for the piece that goes between the props. Not seals. There is a spacer (thrust ring) that goes between them
Will depend on which props he is using

Name:  ZmMylXX.png
Views: 29
Size:  87.5 KB
thrust ring superseded from a rope cutter that is now discontinued

https://propshopinc.com/volvo-penta-...eries-3858458/



280DP, 290 DP thrust ring, Part Number 3858458


Name:  POc7LmD.jpg
Views: 25
Size:  17.7 KB

Last edited by Thalasso; 11-17-2020 at 07:04 AM.
Old 11-17-2020, 01:32 PM
  #12
Senior Member

Join Date: Jul 2012
Posts: 1,074
Received 367 Likes on 216 Posts
Default

I see. Thought op was just confused on terminology. I'd personally be worried about the seals with that much line flapping about in there.
Old 11-17-2020, 03:05 PM
  #13
Senior Member

Join Date: Jan 2011
Location: Pgh Pa
Posts: 16,167
Received 1,329 Likes on 1,003 Posts
Default

Originally Posted by brendanm View Post
I see. Thought op was just confused on terminology. I'd personally be worried about the seals with that much line flapping about in there.
Don't know what props he had but he mentioned going back to B6's. He will need the right spacer for that
Old 11-17-2020, 03:30 PM
  #14
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2018
Location: College Station, Texas
Posts: 43
Received 10 Likes on 8 Posts
Default

Originally Posted by brendanm View Post
I see. Thought op was just confused on terminology. I'd personally be worried about the seals with that much line flapping about in there.
I am confused on the terminology. I am going to take some more pictures and make a more detailed post. I appreciate places like tht, where members readily help each other out.
Old 11-18-2020, 07:33 AM
  #15
Senior Member

Join Date: Mar 2003
Location: North Carolina
Posts: 711
Received 147 Likes on 89 Posts
Default

Post some more pics of the part. That looks like the original fishing line cutter (discontinued and replaced by thrust washer) that goes between the props and over the forward prop nut. If the fishing line cut a shaft seal you will probably have gear oil leaking around the seal. That can cause bad things to happen.
