Garmin Autopilot GHC20 Helm Control Questions

Notices
The Boating Forum

Garmin Autopilot GHC20 Helm Control Questions

Old 10-13-2020, 11:52 AM
  #1
Junior Member
Thread Starter

Join Date: Aug 2017
Location: Wellington, FL
Posts: 25
Received 4 Likes on 3 Posts
Default Garmin Autopilot GHC20 Helm Control Questions

Having an autopilot installed on my 2020 Cobia 280CC -- questions for anyone who has installed a Garmin Autopilot (post build)....

1. Did you install the GHC 20 Helm Control? (Installer is telling me the controller is a redundancy because my Garmin charplotter (1242xsv) will have all the same data available directly on the screen).
2. Where did you place the helm controller? pics if possible
3. Do you use the helm controller or use your chartplotter as you controller?

Appreciate any advice anyone can provide.
Thanks
Old 10-13-2020, 12:03 PM
  #2
Senior MemberCaptains Club Member

Join Date: Oct 2005
Location: Key West
Posts: 12,667
Received 2,883 Likes on 1,343 Posts
Default

I installed mine along with my Garmin MFDs.
It is on the dash.
I use the chartplotter to initiate routes, but I use the GHC for small course changes while running.
I like having separate screens for everything.
Old 10-13-2020, 12:07 PM
  #3
Junior Member
Thread Starter

Join Date: Aug 2017
Location: Wellington, FL
Posts: 25
Received 4 Likes on 3 Posts
Default

Appreciate the quick response! I think I like the idea of having separate screens too.
Old 10-13-2020, 12:10 PM
  #4
Senior MemberCaptains Club Member

Join Date: Oct 2005
Location: Key West
Posts: 12,667
Received 2,883 Likes on 1,343 Posts
Default

Garmin MFDs are not in the pic, but are in front of the wheel basically.

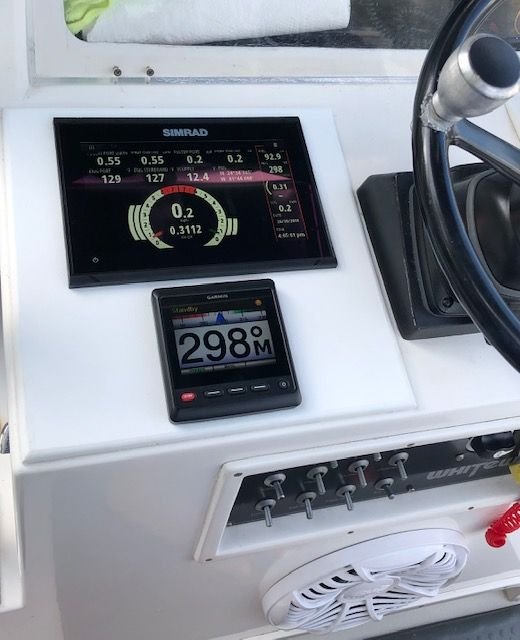

Here's my GHC location.

Likes:
Old 10-13-2020, 12:21 PM
  #5
Senior Member

Join Date: Aug 2011
Location: Apex NC
Posts: 238
Received 85 Likes on 49 Posts
Default

I have the autopilot running solely through my 1242xsv. I don't miss the separate screen at all even though I thought I would.

When engaged, a ribbon appears at the top of the MFD screen with all the relevant controls for the A/P, including a compass with the current heading, heading set point, pattern controls, and course adjustment buttons (1 degreee or 10 degree).

There is always the "Engage" button showing at the bottom of the MFD. When egaged, this button changes to "Standby".
Likes:
Old 10-13-2020, 12:21 PM
  #6
Senior MemberCaptains Club Member

Join Date: Feb 2009
Location: Sarasota, FL
Posts: 3,187
Received 353 Likes on 186 Posts
Default

I'm same as Coores. I always have the data on my screen but I like to have the GHC20 to not only see the large heading numbers but easier to make corrections to course
Old 10-13-2020, 12:33 PM
  #7
Junior Member
Thread Starter

Join Date: Aug 2017
Location: Wellington, FL
Posts: 25
Received 4 Likes on 3 Posts
Default

Originally Posted by mrjulian_1970 View Post
I have the autopilot running solely through my 1242xsv. I don't miss the separate screen at all even though I thought I would.

When engaged, a ribbon appears at the top of the MFD screen with all the relevant controls for the A/P, including a compass with the current heading, heading set point, pattern controls, and course adjustment buttons (1 degreee or 10 degree).

There is always the "Engage" button showing at the bottom of the MFD. When egaged, this button changes to "Standby".
mrjulian_1970 Any chance you have a pic of the screen with the autopilot engaged?
Old 10-13-2020, 01:39 PM
  #8
Senior Member

Join Date: Aug 2011
Location: Apex NC
Posts: 238
Received 85 Likes on 49 Posts
Default

I'll be out on the boat later today or sometime tomorrow. I'll take a few.
Old 10-13-2020, 01:40 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Mar 2008
Location:
Posts: 570
Received 146 Likes on 70 Posts
Default

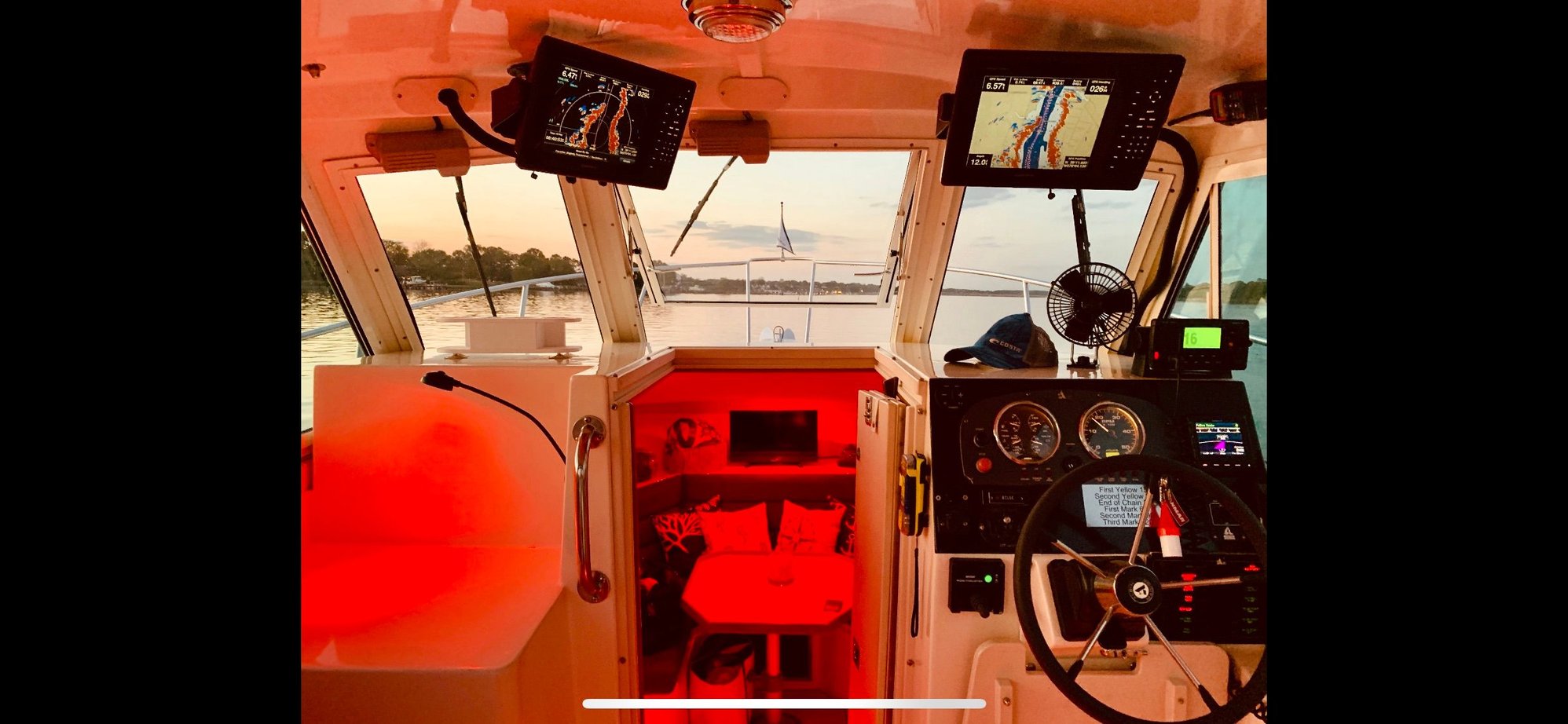

Hope this helps



Likes:
Old 10-13-2020, 01:44 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Sep 2016
Location: CT
Posts: 1,257
Received 292 Likes on 191 Posts
Default

I also find it easier to pause and restart a route using the controller, too many buttons to go through on the MFD IMO
Likes:
Old 10-13-2020, 03:49 PM
  #11
Senior MemberCaptains Club Member

Join Date: Jun 2005
Location: Winter Garden, FL/ Tiger, GA/ Ft. Pierce, FL
Posts: 3,019
Received 522 Likes on 275 Posts
Default

I’m in the process of installing 2 8612’s and the controller for autopilot. I figured it would be easier to make fours changes.
Old 10-13-2020, 03:57 PM
  #12
Senior Member

Join Date: Aug 2011
Location: Apex NC
Posts: 238
Received 85 Likes on 49 Posts
Default

Here it is in standby mode. Note the "engage" button at the bottom left. Also the button in the top ribbon with the little boat bow and upward arrow will engage the heading hold function.

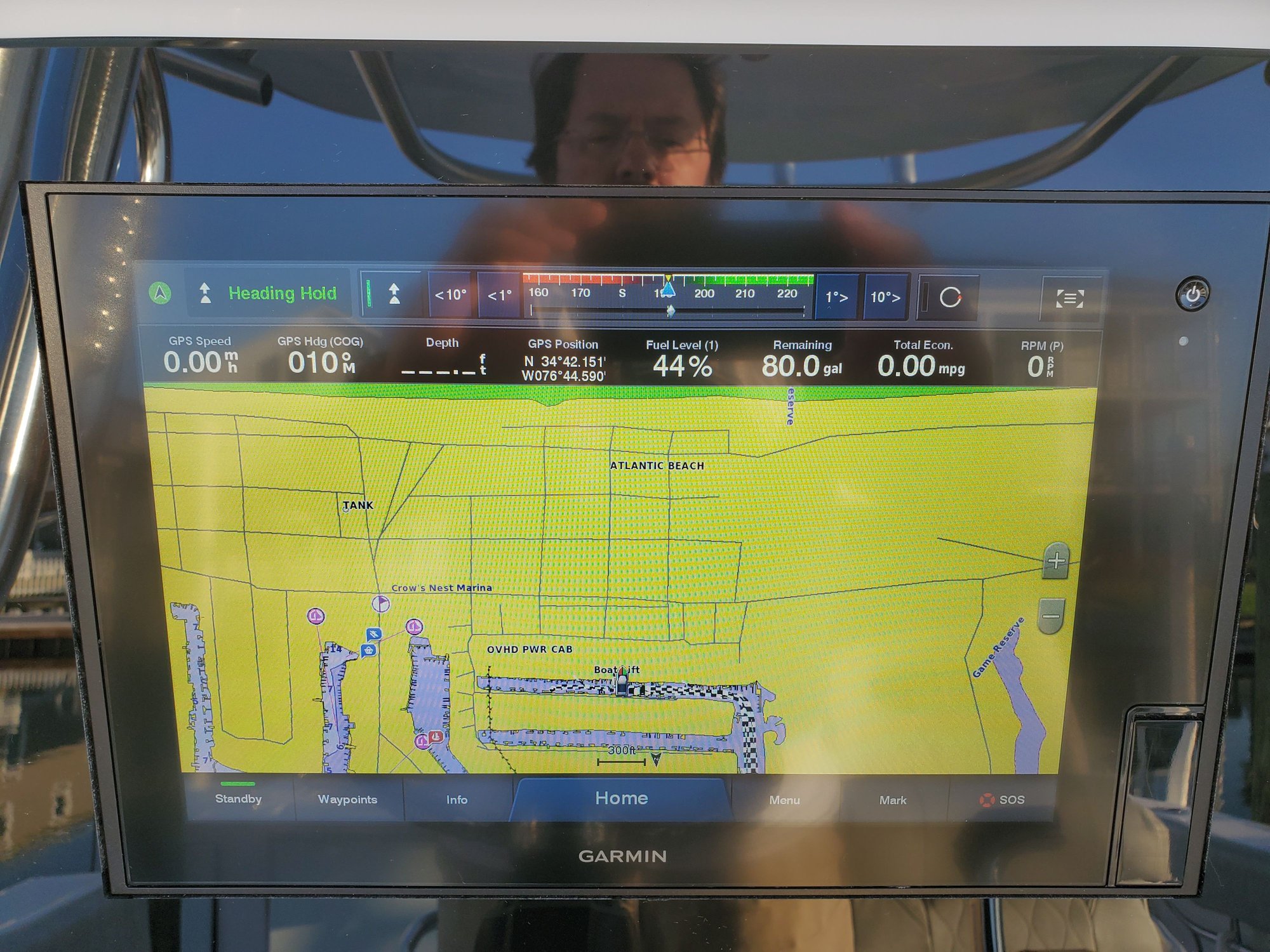

Here it is engaged in "heading hold". Note the 1/10 degree adjustments in the upper ribbon. If you hit the circle button to the right of the ribbon it will switch to the circle pattern you have set up. Tapping either the "standby" in the lower left or the "boat bow with upward arrow" in the top left will return the system to standby.

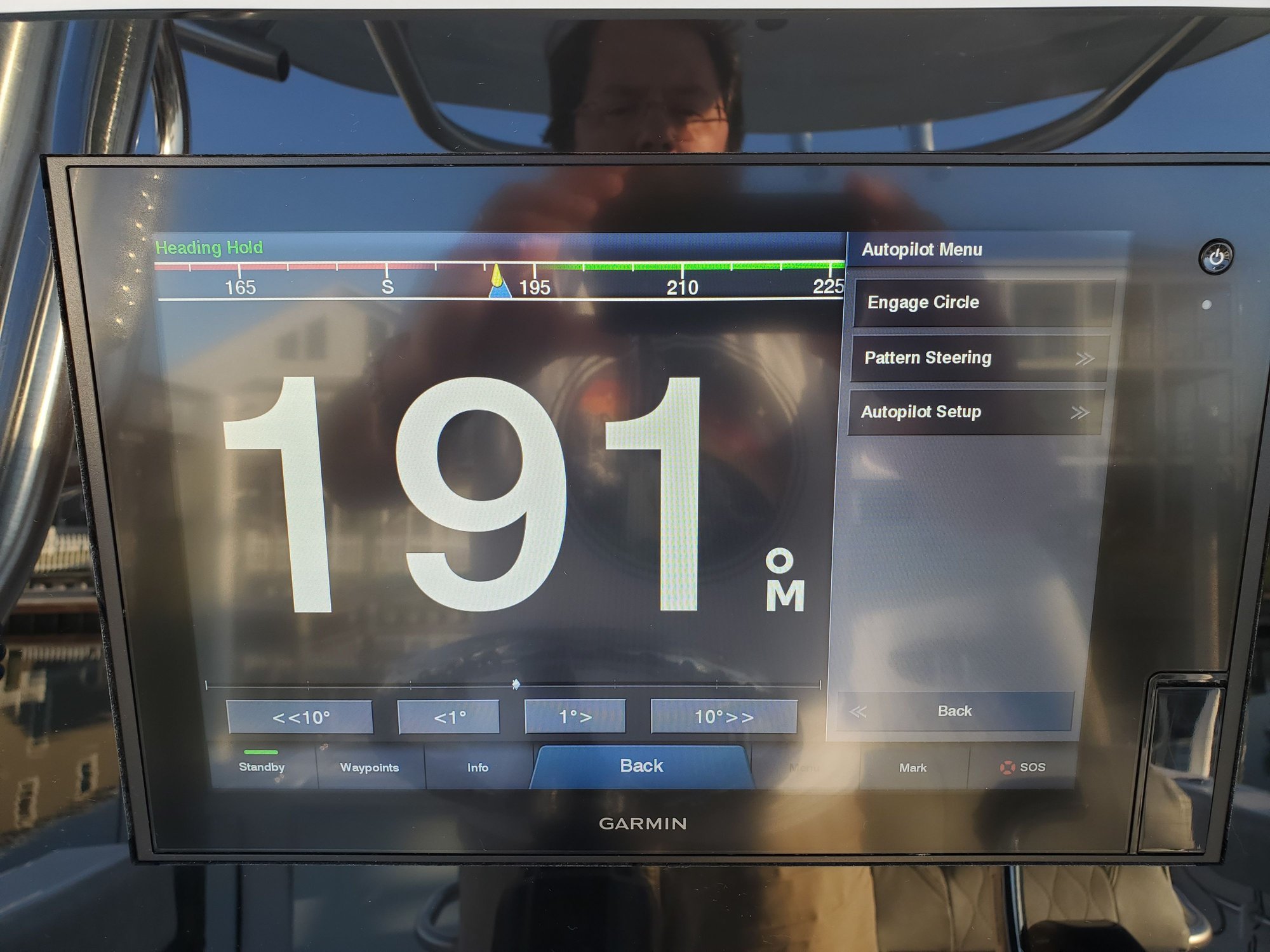

If you hit that menu button in the very top right you get this screen, which probably looks familiar to the users of the separate control module. From here you can define the various pattern options and so on...



Likes:
Old 10-13-2020, 04:01 PM
  #13
Senior Member

Join Date: Jan 2012
Location: Australia
Posts: 1,377
Received 132 Likes on 68 Posts
Default

Yeah it’s all on the screen/s too, but personally, I use the GHC a lot as I mounted it as the hand falls from the wheel for course corrections.

screens are use a lot for “go to” while trolling.

Why the GHC doesn’t dim with all the other screens on the network I have no clue..... it’s annoying.
Likes:
Old 10-13-2020, 06:47 PM
  #14
Senior Member

Join Date: Aug 2017
Location: Stuart, Florida
Posts: 150
Received 139 Likes on 65 Posts
Default


I had the controller mounted between the two screens. We use the screens to set a route but the controller makes quick course changes easy.
Likes:
