Dorado 30 Rebuild

Old 09-28-2020, 10:07 AM
  #1
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default Dorado 30 Rebuild

Hello all,
I am nearing completion of my Dorado 30 rebuild so I would like to post some pictures of the process. I would also like to say that THT has been a great resource for this project from the wealth of knowledge of it's members to the purchasing of parts and products. special shout out to Daytrip01 for the custom deck hatches and his support. I would highly recommend him for any hatch products.

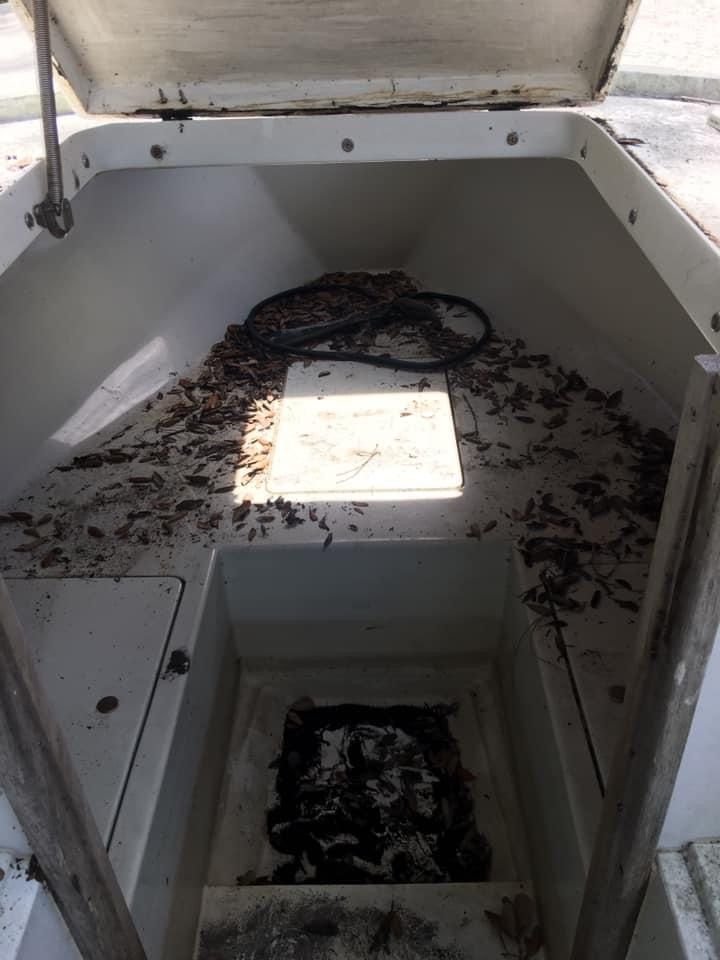

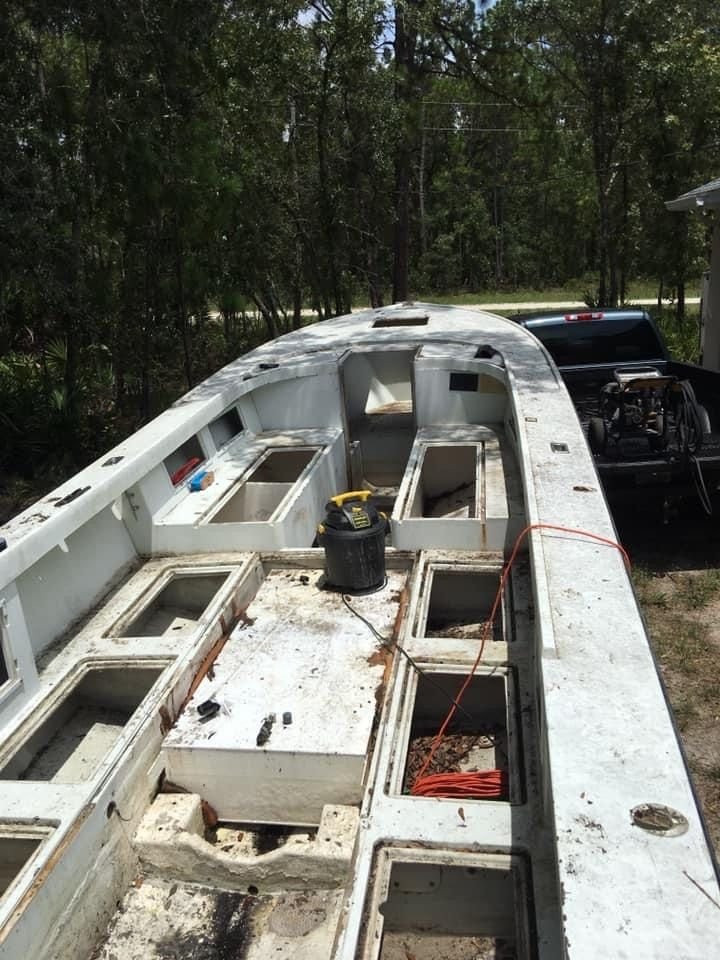

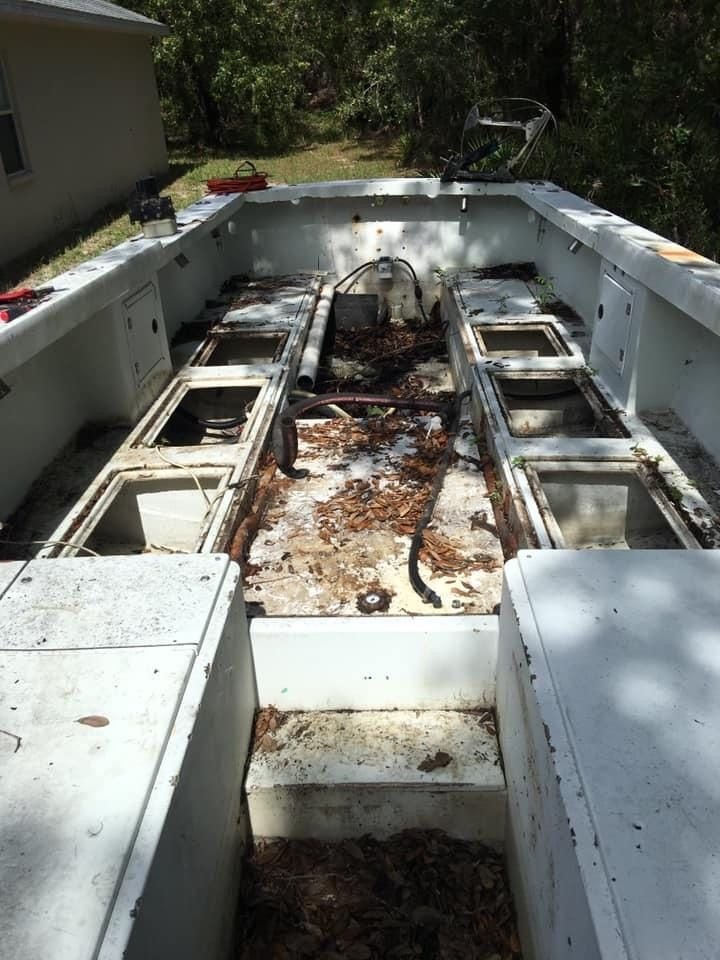

As for my hull its a 1995 Dorado 30 that was purchased new by a friend. It was his personal fishing boat for the first five years or so then he transitioned it into a commercial fishing and stone crab boat. The Hull has approximately 30,000 hours on it, The original Volvo diesel engine had 10,000 hours on it when it was replaced. The hull was repowered four times before I got it, From new it has had 3 diesel engines and 2 outboards, the boat then sat under a tree in a lot for two years. The one thing that is amazing about this hull is quality of the original build. This boat has lived a really hard life and structurally the hull, stringers, and bulkheads were still in great shape. This entire boat is cored with what i believe is divinycell to keep the weight down, the original dry weight with a diesel engine and outdrive was 4900# that's pretty light for a 30 foot boat.

As for the rebuild, the goal was to use the best components while keeping every thing as simple as possible.

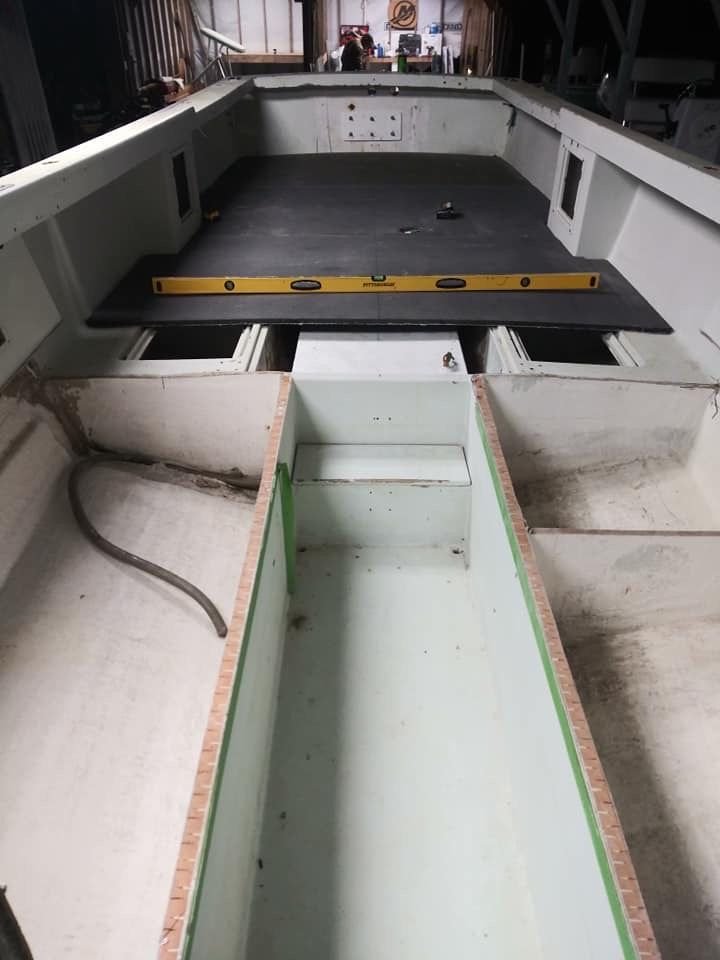

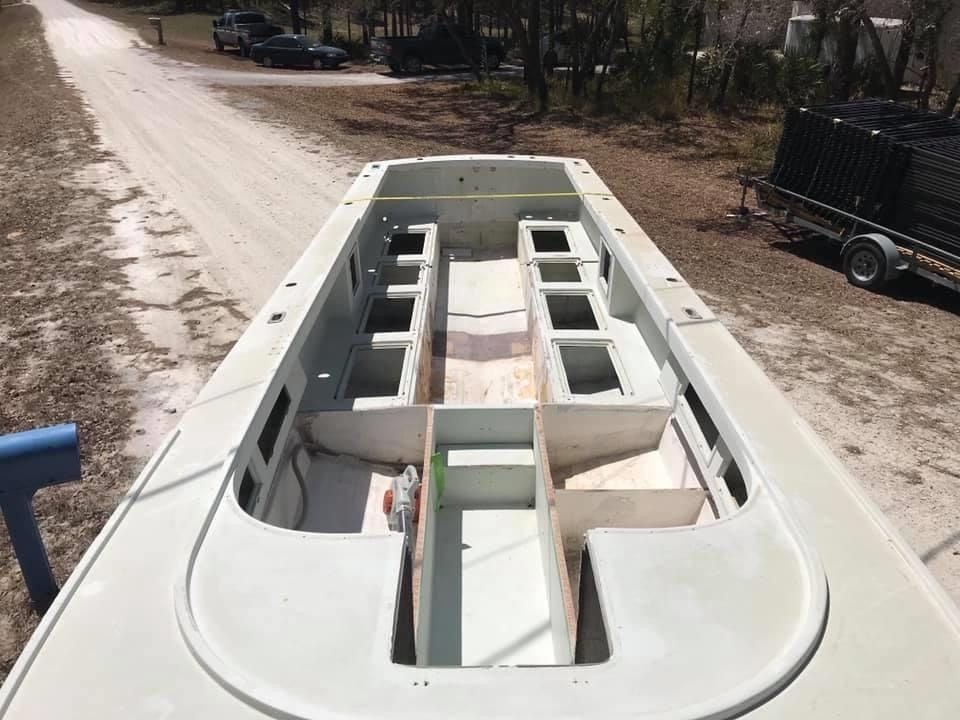

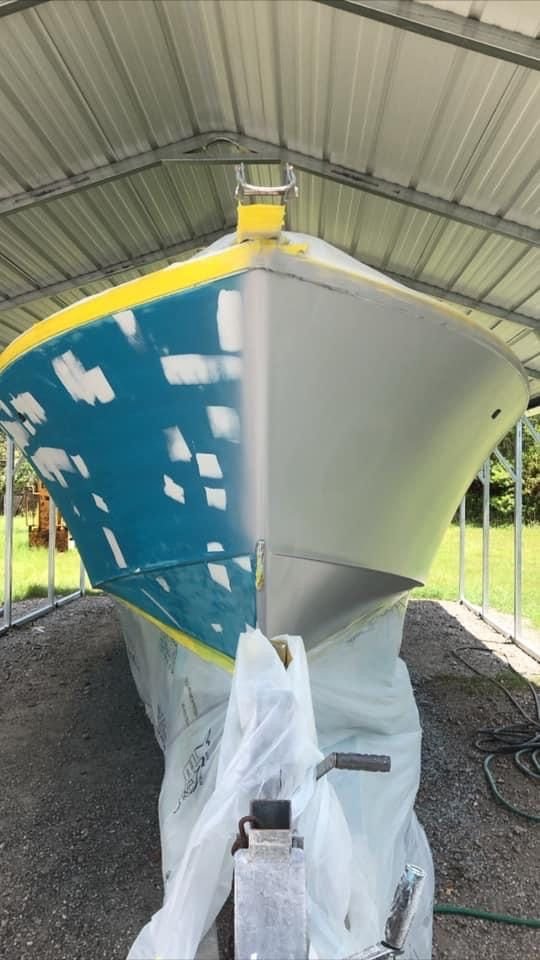

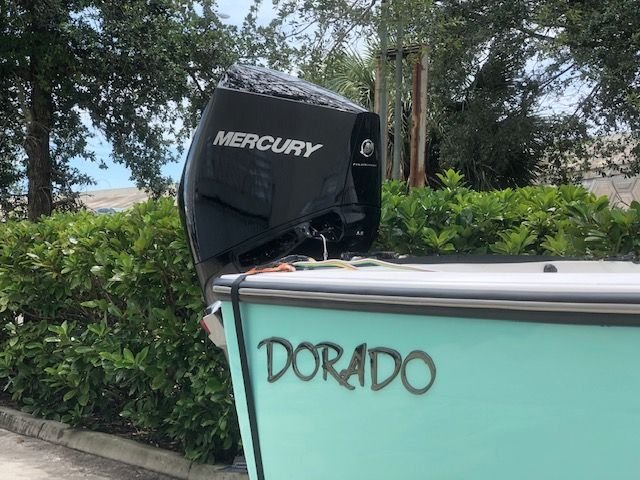

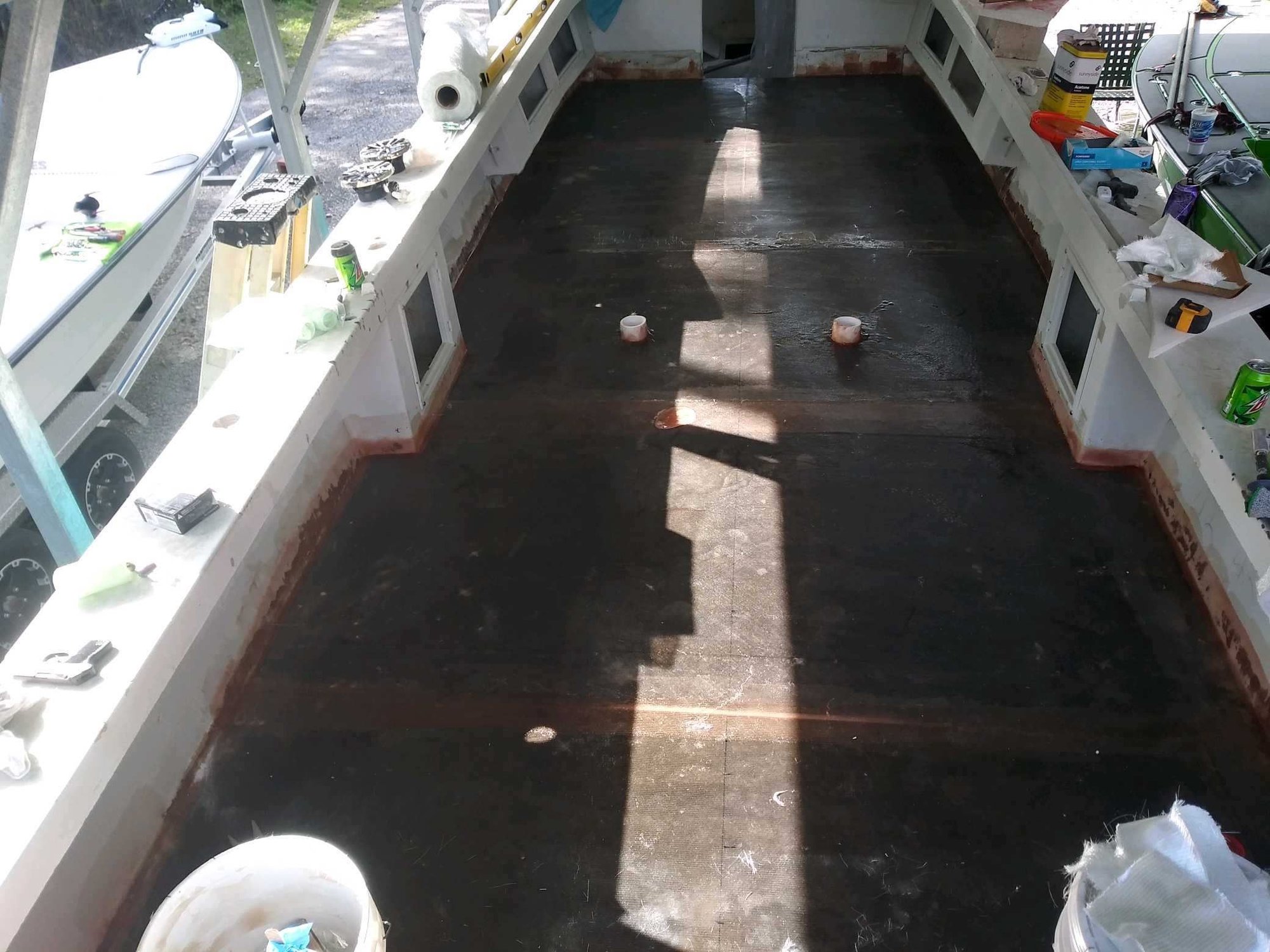

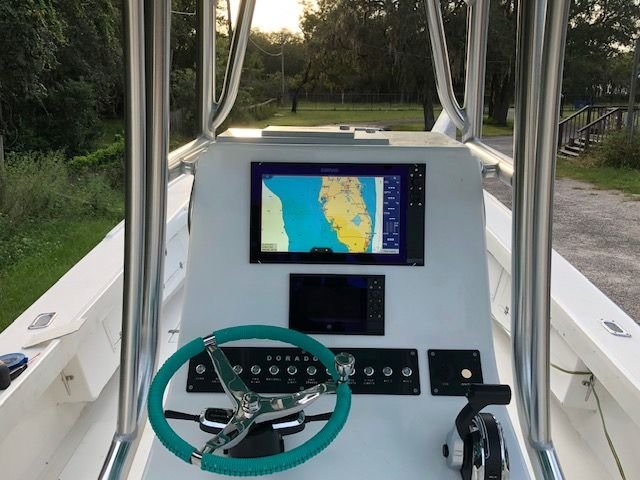

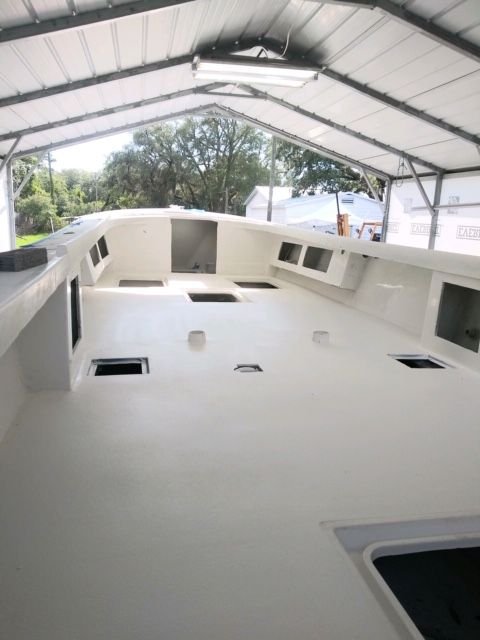

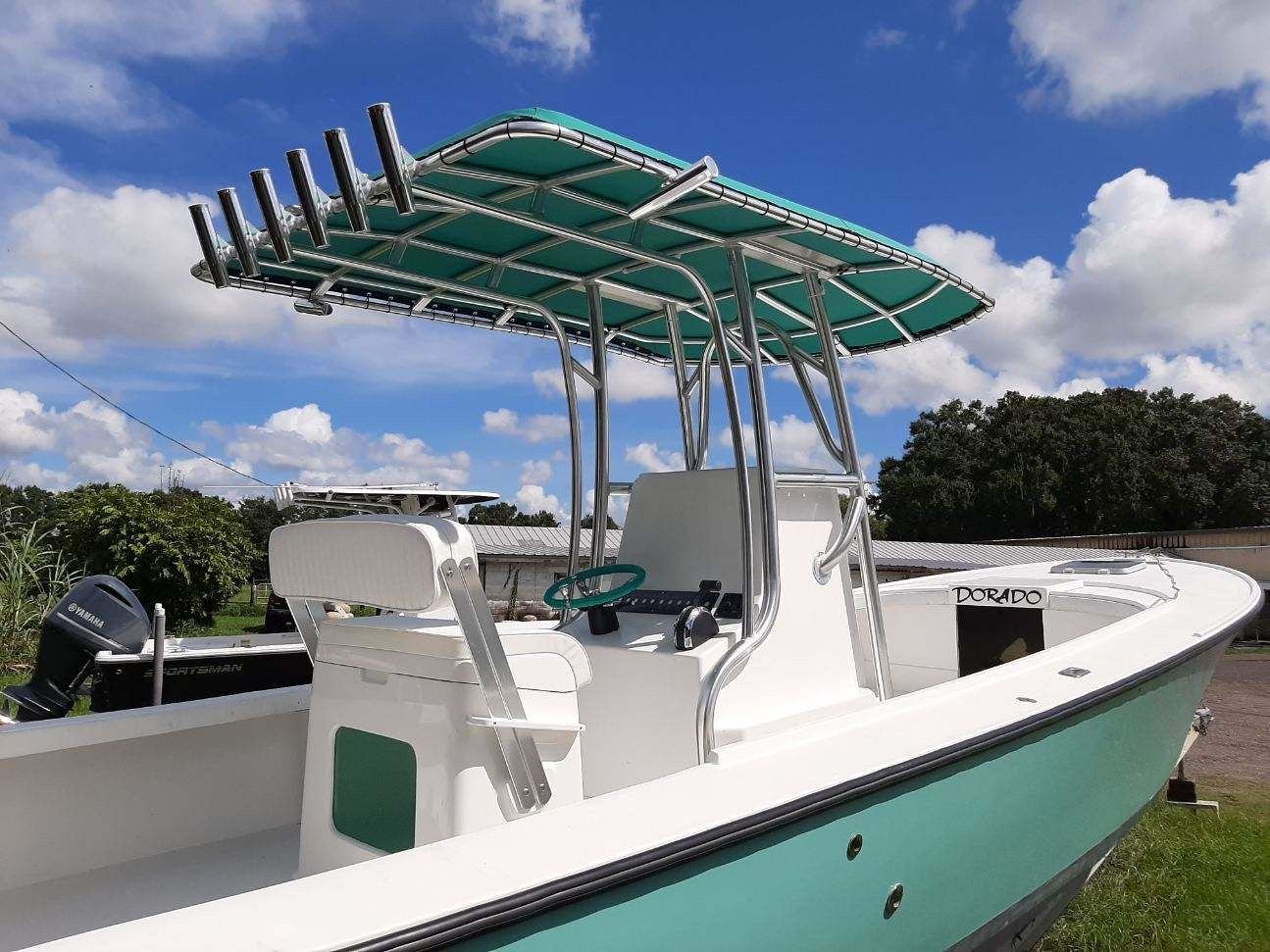

I planned on going with a new Mercury V8 300 hp outboard and a Porta bracket. I wanted to remove the raised front boxes and have a flat deck from the transom to the cabin. Some of the basic details are as follows, the decks are 3/4 Coosa 26 laminated on both sides with 2 layers of each 1708 and 1.5oz CSM. The interior is all gelcoat with Awlgrip gripTex the outside is done with Awlcraft products. The console was purchased from Competition boats, the T-top was done by Sanchez brothers and the leaning post was done by Composite marine.

The rebuild has taken just under two years and countless hours on the internet doing research and sourcing parts. With me doing most of the grunt work and having a close friend helping me with the more complex processes I have been able to save a ton of money but its still an expensive process.

For those interested in a project like this, I valued my labor at 0 and I sourced all of the parts myself to save money. I am right around 60K into this rebuild.

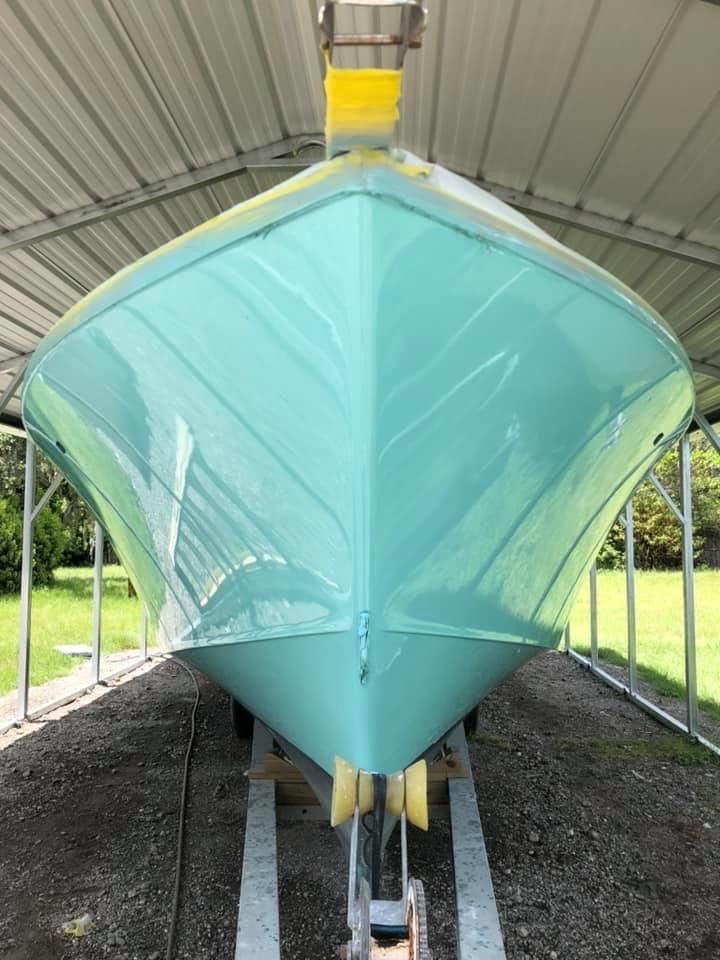

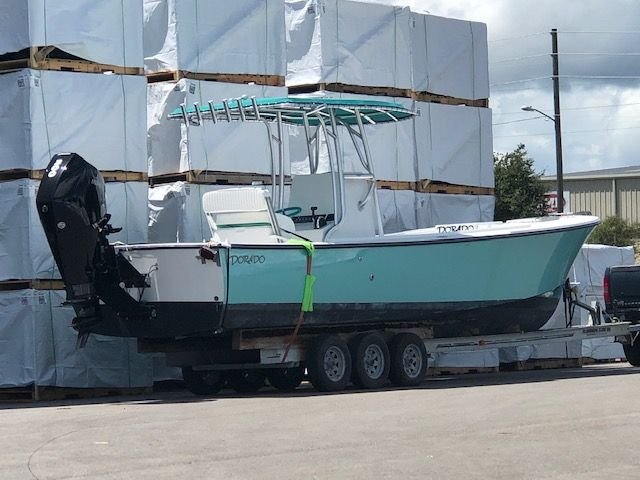

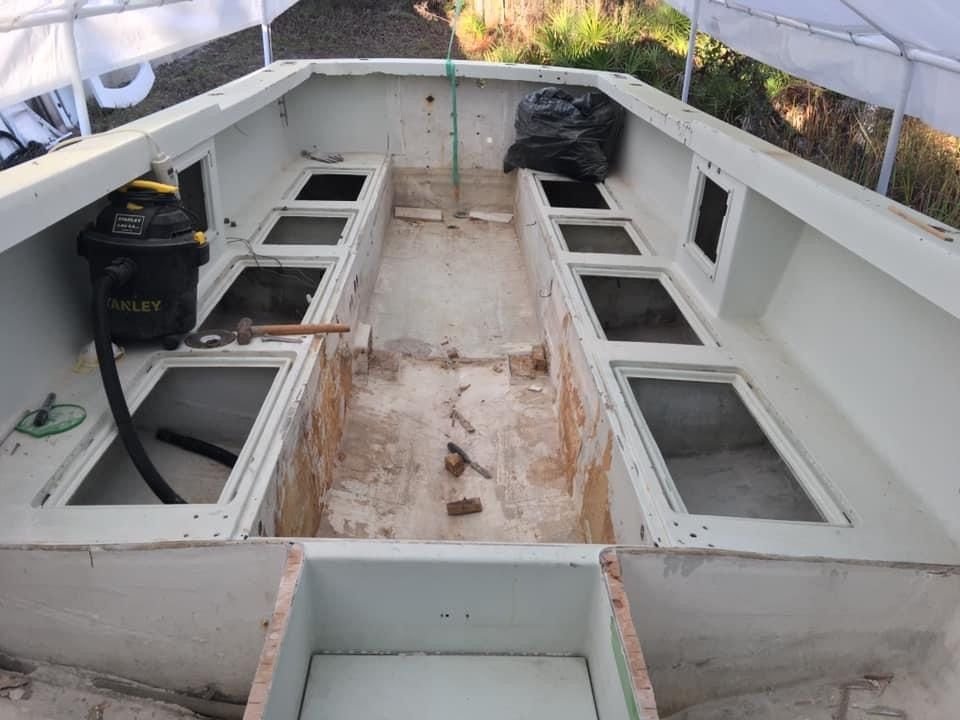

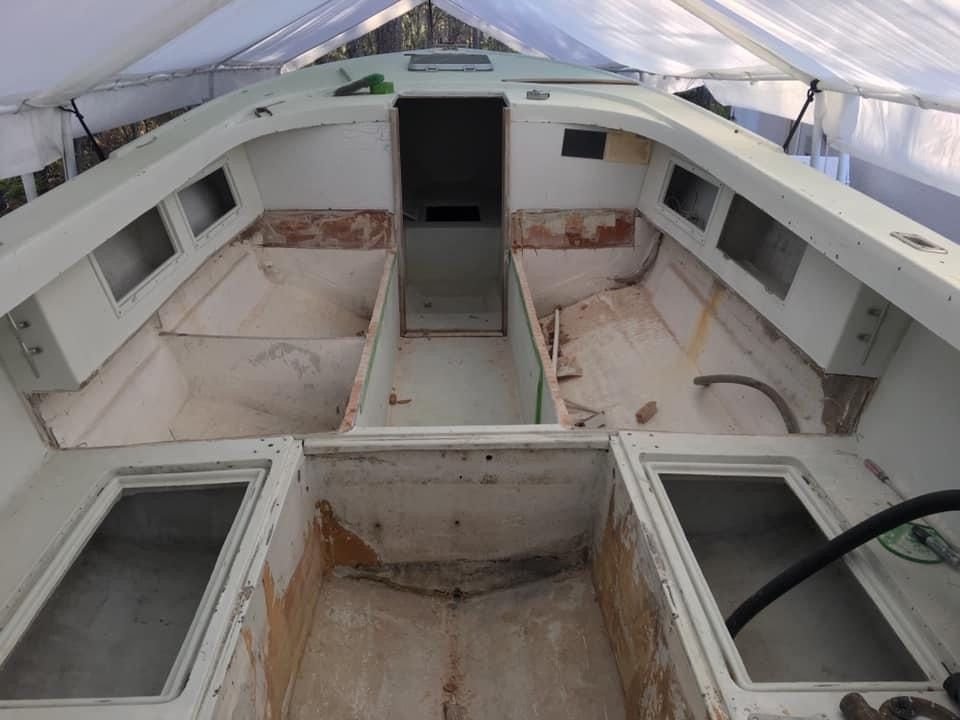

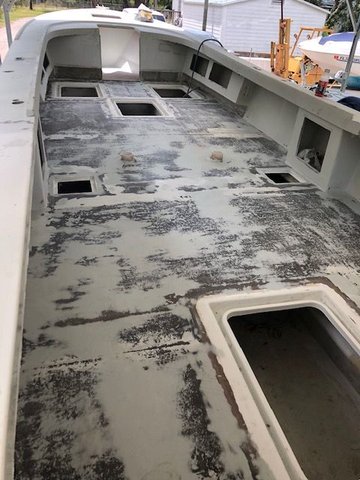

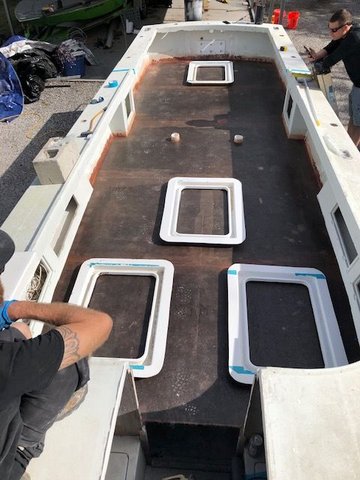

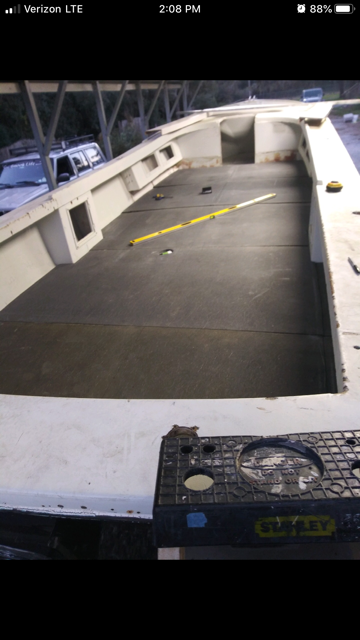

I have hundreds of pictures of the process, here's just a few.




















Last edited by weeki wachee life; 09-28-2020 at 12:03 PM.
Likes:
arctic_f250, Gunner38, Load&Go, Mako1114, MDMako25, MrWesson, ono loco, Ray G, SpiritoftheReel, starbright55, trustafari and 6 others liked this post. (Show less...)
Old 09-28-2020, 10:28 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Aug 2016
Posts: 63
Likes: 0
Received 19 Likes on 11 Posts
Default

Wow, great job! Love the 30 Dorado and what you did to yours is awesome. Great color too. Nice console and livewell. The new Mercury 4 strokes seem to be really good so far. I repowered my 23 Dorado last December. I had the 225 2 stroke Pro XS and repowered it with the Mercury 225 Pro XS 4 stroke and am super happy with the motor. O.K. going back to look at your pictures again!
Old 09-28-2020, 10:42 AM
  #3
Senior Member
THT sponsor

Join Date: Jul 2010
Location: On the Flats
Posts: 7,923
Received 1,450 Likes on 657 Posts
Default

Great work and boat for the $$$ you have in it for sure. The 30 Dorado is a nice hull.

How is it running with the Merc 300?
Old 09-28-2020, 10:46 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Nov 2018
Posts: 509
Received 444 Likes on 182 Posts
Default

Looks awesome, where’d you get that leaning post live well set up? Coolest one that I’ve seen.
Old 09-28-2020, 10:50 AM
  #5
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by Flatout71 View Post
Great work and boat for the $$$ you have in it for sure. The 30 Dorado is a nice hull.

How is it running with the Merc 300?
I actually haven't had it out yet. I am finishing all of the wiring and rigging now, should be one to two weeks. My expectation is 25-30 cruise at 2.5-2.75 MPG and a low 40's top end. That seems to be inline with most of the 300hp outboard conversions on this hull.
Old 09-28-2020, 11:04 AM
  #6
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by jason8251 View Post
Looks awesome, whered you get that leaning post live well set up? Coolest one that Ive seen.
I had the leaning post made by a company called Composite Marine Inc. they are in Ruskin FL you can find them on FaceBook. The leaning post is really cool and well engineered.
Old 09-28-2020, 11:20 AM
  #7
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by weeki wachee life View Post
I had the leaning post made by a company called Composite Marine Inc. they are in Ruskin FL you can find them on FaceBook. The leaning post is really cool and well engineered.

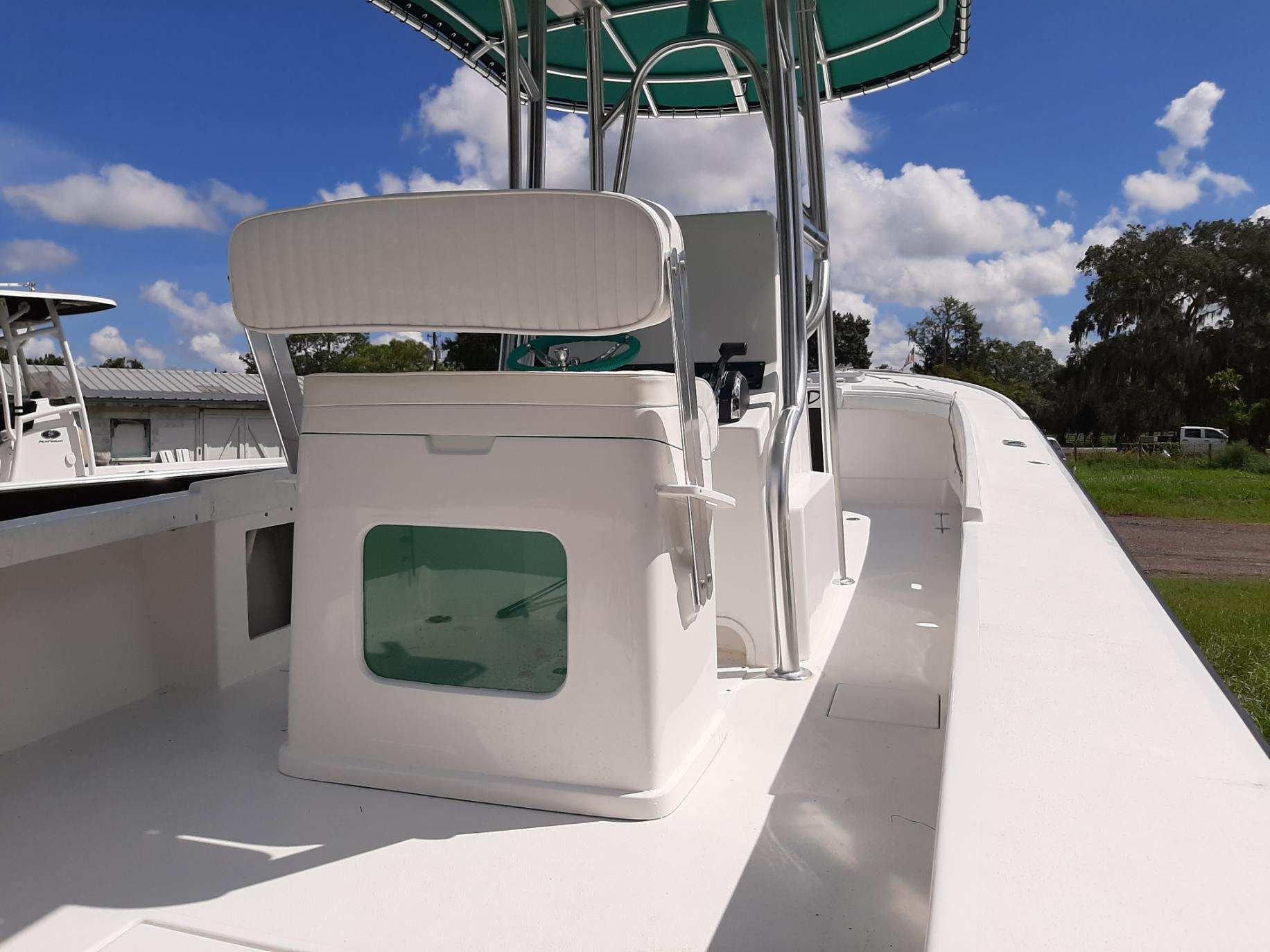

Here are a few more pictures of the Leaning Post.





Old 09-28-2020, 11:23 AM
  #8
Senior Member
THT sponsor

Join Date: Jul 2010
Location: On the Flats
Posts: 7,923
Received 1,450 Likes on 657 Posts
Default

Originally Posted by weeki wachee life View Post
I actually haven't had it out yet. I am finishing all of the wiring and rigging now, should be one to two weeks. My expectation is 25-30 cruise at 2.5-2.75 MPG and a low 40's top end. That seems to be inline with most of the 300hp outboard conversions on this hull.
I would agree those numbers seem like a reasonable expectation.
Old 09-28-2020, 12:00 PM
  #9
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Here is one more picture of the finished hatches that I got from Daytrip01.

Old 09-28-2020, 12:22 PM
  #10
THT Sponsor
THT sponsor

Join Date: Oct 2014
Location: North Palm Beach Florida
Posts: 1,159
Received 496 Likes on 235 Posts
Default

Boat looks great weeki!
Thanks for the shout out on the hatches!
Likes:
Old 09-28-2020, 12:24 PM
  #11
Admirals Club Admiral's Club Member

Join Date: Jan 2016
Posts: 196
Likes: 0
Received 48 Likes on 33 Posts
Default

Nice work!!, excellent color choice , hope to see you out on it soon.
Old 09-28-2020, 04:17 PM
  #12
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by Daytrip01 View Post
Boat looks great weeki!
Thanks for the shout out on the hatches!
Thanks for your help! Its been a long process but I have enjoyed it.
Old 09-28-2020, 04:48 PM
  #13
Admirals Club Admiral's Club Member

Join Date: Jun 2018
Location: The Big Bend, FL
Posts: 551
Received 121 Likes on 76 Posts
Default

Beautiful boat, and great work.
Old 09-28-2020, 06:37 PM
  #14
Senior Member

Join Date: Feb 2012
Location: Treasure Coast FL
Posts: 994
Received 118 Likes on 91 Posts
Default

Boat looks great!

Dorado 30s have become too popular, really hard to find them sitting under a tree these days. Id like to convert one to OB powered pilot house configuration.
Old 09-29-2020, 04:50 AM
  #15
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by Matt Gent View Post
Boat looks great!

Dorado 30s have become too popular, really hard to find them sitting under a tree these days. Id like to convert one to OB powered pilot house configuration.
Thanks
I have seen one with a pilot house its a cool setup.
Old 09-29-2020, 05:46 AM
  #16
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by Matt Gent View Post
Boat looks great!

Dorado 30s have become too popular, really hard to find them sitting under a tree these days. Id like to convert one to OB powered pilot house configuration.

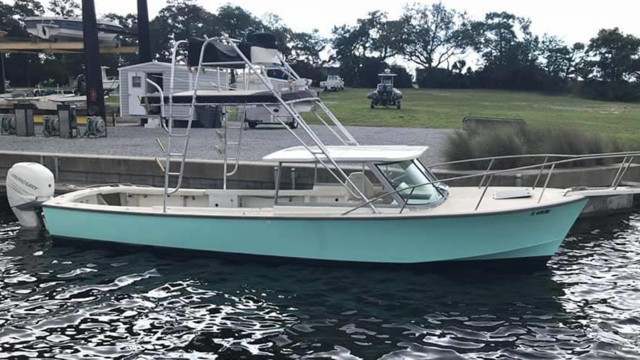

Here's one that sold recently that had a very unique setup. I am not sure how the ride would be with the helm that far forward but it looks awesome with all that open deck space.


Old 09-29-2020, 06:09 AM
  #17
Admirals Club Admiral's Club Member

Join Date: Nov 2018
Posts: 509
Received 444 Likes on 182 Posts
Default

Originally Posted by Matt Gent View Post
Boat looks great!

Dorado 30s have become too popular, really hard to find them sitting under a tree these days. Id like to convert one to OB powered pilot house configuration.
With the current prices of new boats what they are, and with no signs of slowing down these cool old boats are going to become even more scarce. I priced a new Seavee 290 with trailer OTD was $258K, don't get me wrong I'm glad the market supports it but I don't wanna do it. I'm now looking for an older Seavee 290 inboard to make my ultimate fishing boat.
Old 10-03-2020, 06:36 PM
  #18
Senior Member
Thread Starter

Join Date: May 2017
Location: Weeki Wachee FL
Posts: 335
Received 215 Likes on 102 Posts
Default

Originally Posted by jason8251 View Post
With the current prices of new boats what they are, and with no signs of slowing down these cool old boats are going to become even more scarce. I priced a new Seavee 290 with trailer OTD was $258K, don't get me wrong I'm glad the market supports it but I don't wanna do it. I'm now looking for an older Seavee 290 inboard to make my ultimate fishing boat.
I suspect that a new Dorado 30 would be in the $250K range. So finding a tired one and doing the rebuild was the only option for me.
Old 10-04-2020, 05:24 AM
  #19
Senior MemberCaptains Club Member

Join Date: Jul 2002
Location: NE North Carolina
Posts: 2,138
Received 726 Likes on 419 Posts
Default

Very nice. Thanks for posting the pics.
Old 10-04-2020, 07:57 AM
  #20
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Location: Tarpon Springs
Posts: 6,110
Received 1,276 Likes on 756 Posts
Default

What a cool platform. Absolutely one of my favorites. If I was going to do another stringer up rebuild this would be it. Great job and congrats!
