Which direction do I turn this handle?

Notices
The Boating Forum

Which direction do I turn this handle?

Old 09-09-2020, 03:31 PM
  #1
Senior Member
Thread Starter

Join Date: Oct 2019
Posts: 123
Received 35 Likes on 19 Posts
Default Which direction do I turn this handle?

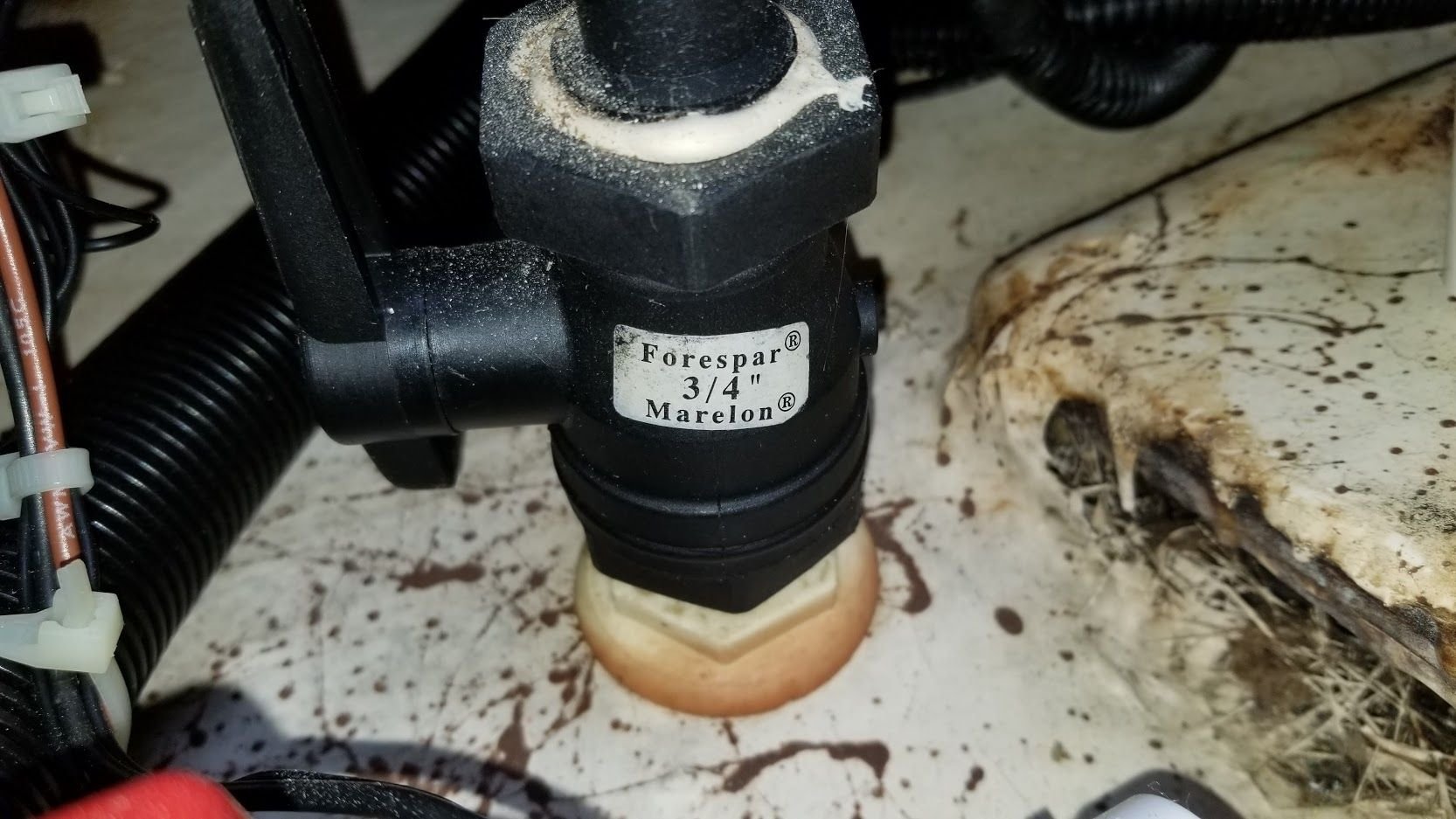

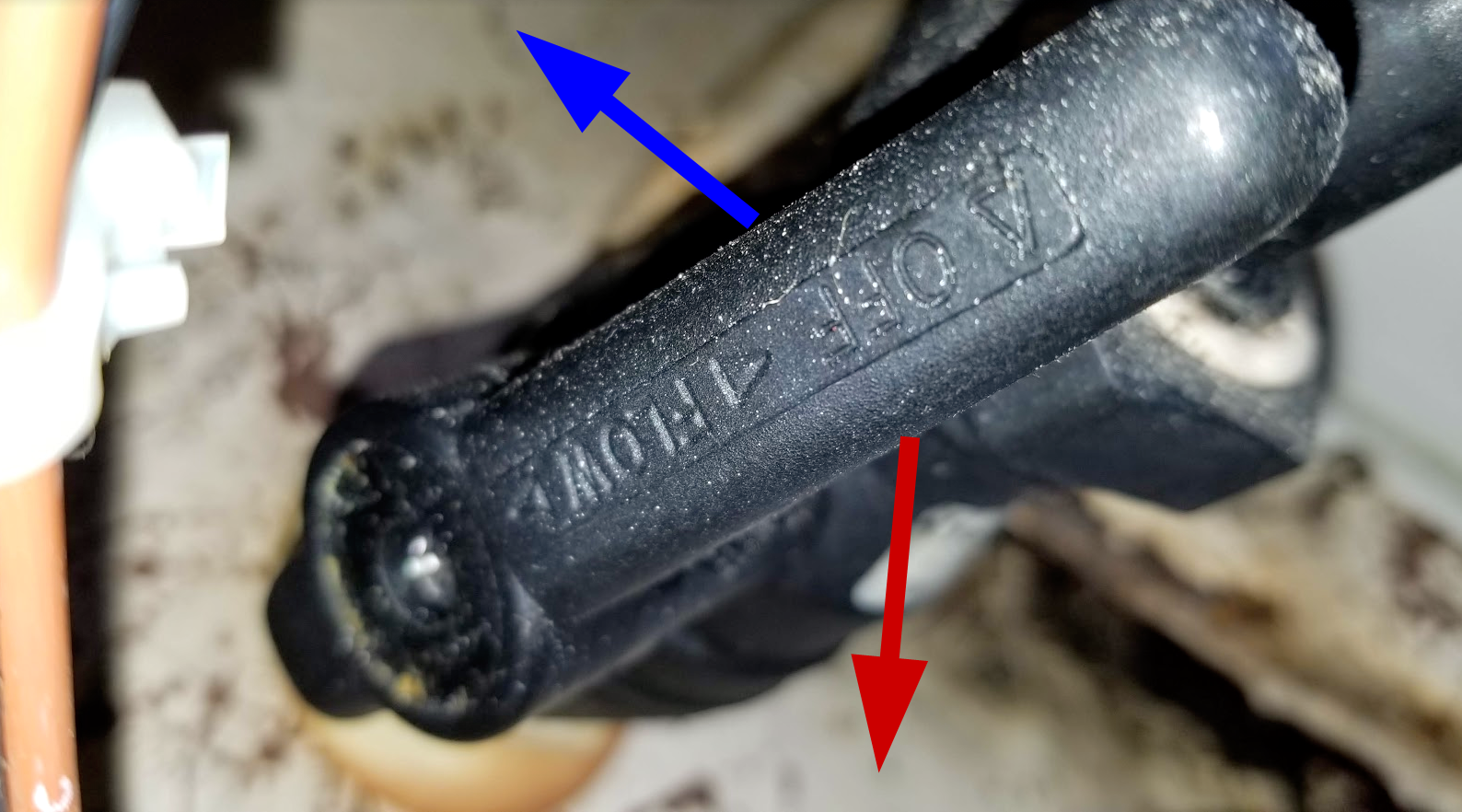

I have a Forespar Marelon seacock under the head for seawater toilet flush that I want to close since we use fresh water to flush. I can't find the exact Forespar part number, but another Forespar valve diagram showed to turn the handle LEFT (blue arrow) to close, and that makes sense with the word OFF being "upright" even though these could be mounted anywhere. The arrow triangle in the molded handle points to the RIGHT (red arrow), but I assume that arrow is showing direction of operation when it is in the OFF position. This is plastic and the boat is in the water and I don't want break anything. What do you think?




Last edited by Tim71; 09-09-2020 at 03:47 PM.
Old 09-09-2020, 03:35 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Jul 2011
Posts: 3,640
Received 58 Likes on 32 Posts
Default

Jesus, is that a plastic seacock?
Old 09-09-2020, 03:37 PM
  #3
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,879
Received 1,994 Likes on 1,055 Posts
Default

your second picture should be the open position
Old 09-09-2020, 03:37 PM
  #4
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,879
Received 1,994 Likes on 1,055 Posts
Default

Originally Posted by agallant80 View Post
Jesus, is that a plastic seacock?
that brand and type of plastic is approved for below water line use, the install itself looks like trash though lol
Likes:
Old 09-09-2020, 03:45 PM
  #5
Senior Member
Thread Starter

Join Date: Oct 2019
Posts: 123
Received 35 Likes on 19 Posts
Default

Originally Posted by Raybo Marine NY View Post
that brand and type of plastic is approved for below water line use, the install itself looks like trash though lol
Yeah, that is why I am a bit worried about operating it, but the inspector turned it during inspection. I don't know what that white stuff is, I am hoping thread sealant, and not 5200 holding two incompatible parts together.

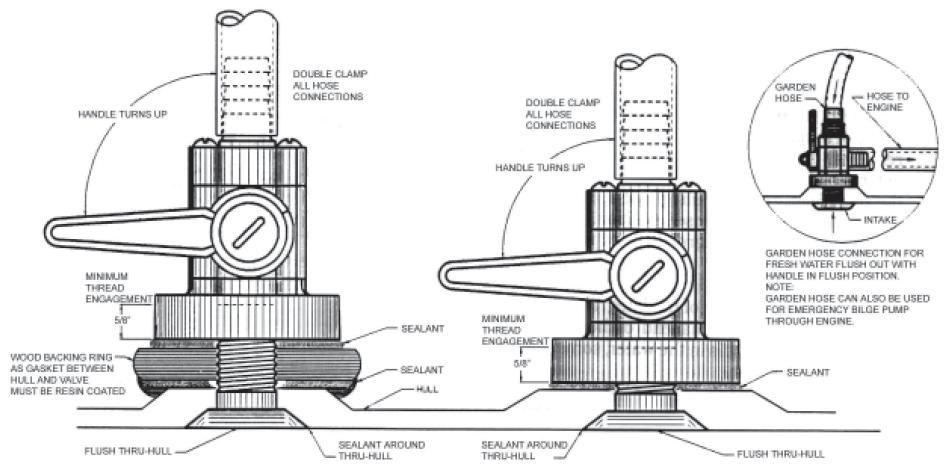

Do you think left is off? Here is another Forespar valve:


Old 09-09-2020, 04:00 PM
  #6
Senior MemberCaptains Club Member

Join Date: Nov 2002
Location: Pompano Beach, FL, USA
Posts: 5,004
Likes: 0
Received 344 Likes on 188 Posts
Default

That should definitely be replaced, but Is it so tight that you do not want to turn it both ways just to see which way it will move? I think it should go in the direction of the blue arrow, but not positive.




Originally Posted by Raybo Marine NY View Post
your second picture should be the open position
It is in the open position in both photos.
Likes:
Old 09-09-2020, 04:02 PM
  #7
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,879
Received 1,994 Likes on 1,055 Posts
Default

i would be more worried about the install- as per the diagram above there should be a threaded fitting going through a backing block and a flanged valve attached to it. not a floating valve like you have there threaded onto a thru-hull

someone puts a little pressure on that or kicks it and it may just snap off- that is why they specify a backing black and a flanged valve
Likes:
Old 09-09-2020, 04:03 PM
  #8
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,879
Received 1,994 Likes on 1,055 Posts
Default

if you are not going to use saltwater flush ever and thats the only thing that fitting feeds take the whole thing out and have a fiberglass guy fiberglass the whole thing over
probably cost you about the same as installing the proper components
Likes:
Old 09-09-2020, 04:26 PM
  #9
Senior Member
Thread Starter

Join Date: Oct 2019
Posts: 123
Received 35 Likes on 19 Posts
Default

Originally Posted by Raybo Marine NY View Post
if you are not going to use saltwater flush ever and thats the only thing that fitting feeds take the whole thing out and have a fiberglass guy fiberglass the whole thing over
probably cost you about the same as installing the proper components
Thank you, it is under an access panel so it shouldn't get kicked, but it is still a worry. I will plan on addressing it the next time we haul it out. I will carefully close it for now and keep toilet bowl wax on board and some plugs.
Old 09-09-2020, 05:12 PM
  #10
Senior MemberCaptains Club Member

Join Date: Jul 2008
Location: Bahrain/Houma,LA
Posts: 288
Likes: 0
Received 32 Likes on 24 Posts
Default

The handle clearly shows an arrow and the word "off" along with a two additional arrows showing the open position with "flow". Currently it is in the open position. Turn the handle in the red direction as indicated by the arrow above "off".
Old 09-09-2020, 05:34 PM
  #11
Member

Join Date: Apr 2018
Location: Brielle, NJ
Posts: 38
Received 11 Likes on 8 Posts
Default

I’ve read about these....
https://www.forespar.com/products/bo...hru-hull.shtml
Not sold. Curious. Curiosity killed the kat though right.
Old 09-09-2020, 05:39 PM
  #12
MemberCaptains Club Member

Join Date: Nov 2004
Location: Barnegat Bay, NJ
Posts: 79
Likes: 0
Received 3 Likes on 2 Posts
Default

My Rampage came with Forespar thru hulls and it didn't matter which way you turned them. They are ball valves and if you wanted to close them, turn right or left. Just remember straight up is open.
Old 09-09-2020, 05:50 PM
  #13
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,879
Received 1,994 Likes on 1,055 Posts
Default

Originally Posted by Tim71 View Post
Thank you, it is under an access panel so it shouldn't get kicked, but it is still a worry. I will plan on addressing it the next time we haul it out. I will carefully close it for now and keep toilet bowl wax on board and some plugs.
regardless of the lack of Flange that’s not a good install. Was the salt portion of it installed after the boat left the factory?

I’m sure it will be fine for now

imagine a gorilla turning that and snapping it off. If it’s a bottom painted boat (be cheaper than no paint ) just remove it and have it glassed over and have one less below waterline connection to worry about.
Likes:
Old 09-10-2020, 06:02 AM
  #14
Senior Member

Join Date: Jun 2012
Location: Downingtown, PA
Posts: 1,359
Received 337 Likes on 174 Posts
Default

Sea cocks open up and close down. Handle up= open. Down= closed.
Likes:
Old 09-10-2020, 06:10 AM
  #15
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 25,362
Received 5,451 Likes on 3,483 Posts
Default

The convention with any ball valve is..

When the handle is perpendicular to the directionof flow it is closed
When the handle lines up with the the flow it is open.
Old 09-10-2020, 06:14 AM
  #16
Senior Member

Join Date: May 2001
Location: Rowley, MA
Posts: 1,080
Received 98 Likes on 50 Posts
Default

Originally Posted by billinstuart View Post
The convention with any ball valve is..

When the handle is perpendicular to the directionof flow it is closed
When the handle lines up with the the flow it is open.
This.

In regards to the concerns about plastic, does that valve go through your hull, or into a holding tank?

sam
Old 09-10-2020, 06:43 AM
  #17
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,879
Received 1,994 Likes on 1,055 Posts
Default

Originally Posted by sams View Post
This.

In regards to the concerns about plastic, does that valve go through your hull, or into a holding tank?

sam
it feeds his toilet through the hull, if it were going to a holding tank discharge it would need a lock on it to be legal in coastal waters of the US
Old 09-10-2020, 06:59 AM
  #18
Junior Member

Join Date: Nov 2019
Posts: 4
Likes: 0
Received 2 Likes on 1 Post
Default

Originally Posted by getusummm View Post
The handle clearly shows an arrow and the word "off" along with a two additional arrows showing the open position with "flow". Currently it is in the open position. Turn the handle in the red direction as indicated by the arrow above "off".
I thought that looked pretty obvious also.
Old 09-10-2020, 07:10 AM
  #19
Senior Member

Join Date: May 2009
Location: St Petersburg, FL
Posts: 5,091
Likes: 0
Received 399 Likes on 226 Posts
Default

"OFF" is in the orientation of your RED ARROW.

FWIW: it may be more appropriate if handle indicated OPEN / CLOSED
Old 09-10-2020, 07:13 AM
  #20
Senior Member

Join Date: Jul 2011
Location: Annapolis
Posts: 520
Received 38 Likes on 29 Posts
Default

Valve is Marelon which is approved and what I have on my Sabre, the through hull however is plastic and not an approved install.
