Transom separating ??

Old 08-24-2020, 05:27 PM
  #1
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default Transom separating ??

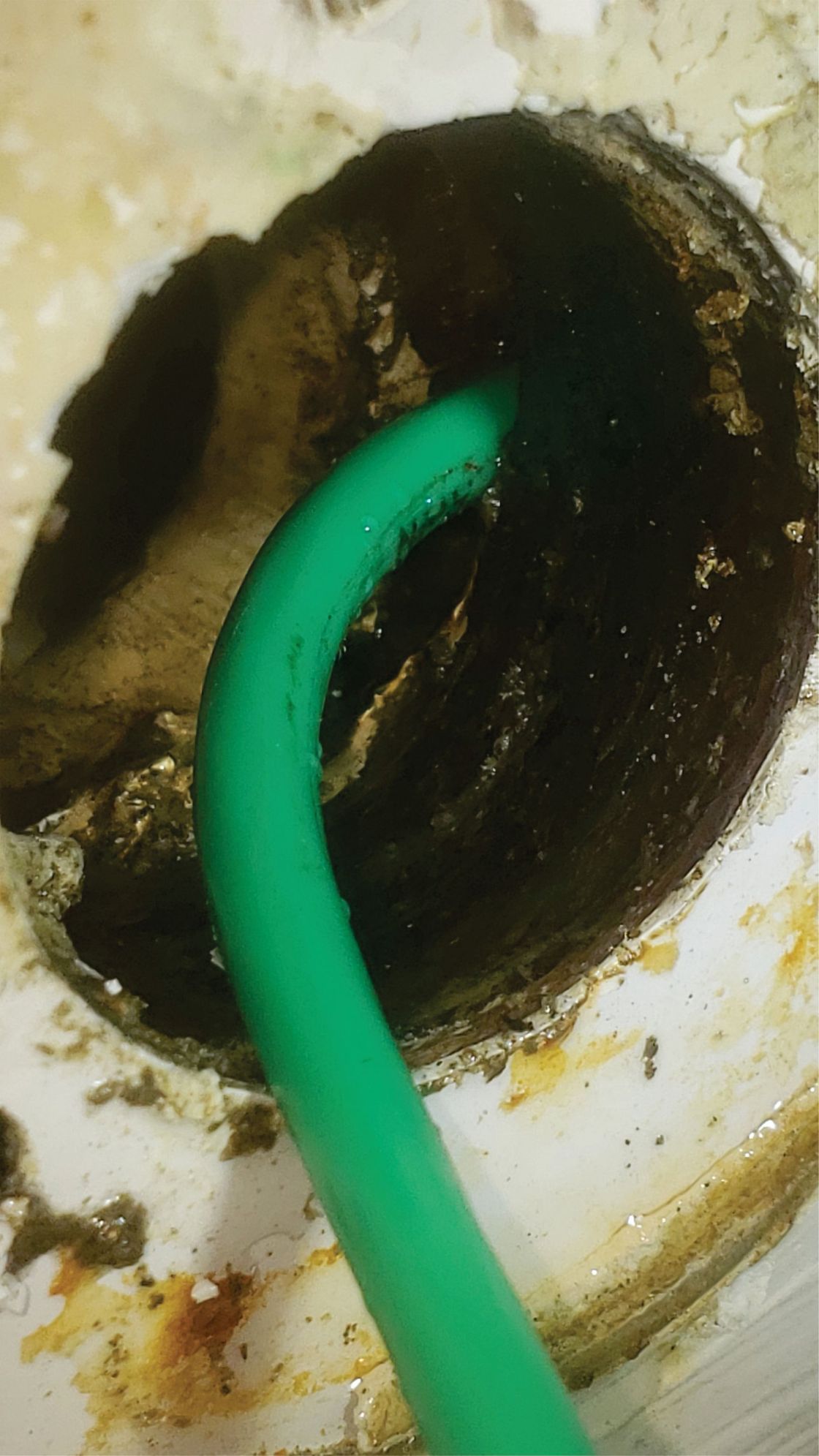

I was patching some screw holes in the transom from moving transducer and had water dripping out and also noticed if i blow air into one hole it comes another. I ended up pulling out the drain plug housing and there is about 3/4 of transom then a small space (you can see a piece of wire i stuck in there) then about another 3/4 of transom. Are these 2 sheets of fiberglass ?, plywood? supposed to be bonded together ? It seems to holding water in that space, it was dry inside where the plug goes in but when i took the bottom screws out of the drain plug housing water started dripping out. Its a 2001 proline with a donzi hull (so i have been told).


Thanks
Old 08-24-2020, 06:54 PM
  #2
Senior Member

Join Date: Aug 2017
Location: Stuart, Florida
Posts: 151
Received 139 Likes on 65 Posts
Default

I think that is a problem
Likes:
Old 08-24-2020, 09:13 PM
  #3
Senior Member

Join Date: Oct 2014
Location: N.E. CT
Posts: 3,974
Received 1,714 Likes on 853 Posts
Default

Originally Posted by gmcc View Post
I think that is a problem
I was thinking the same thing a while ago, but figured Id leave it to someone else to say first.
Old 08-24-2020, 11:24 PM
  #4
Senior Member

Join Date: Jan 2016
Location: Annapolis, MD
Posts: 735
Received 62 Likes on 42 Posts
Default

Unfortunately, you have a rotten transom.
Old 08-25-2020, 06:37 AM
  #5
cdp
Senior Member

Join Date: Apr 2010
Posts: 461
Received 61 Likes on 41 Posts
Default

Prolines have been wood-free since 1996 I believe.

Looks concerning but hard to tell whats going on but no wood so not rotten.

Any cracking visible on transom?
Old 08-25-2020, 02:01 PM
  #6
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by cdp View Post
Prolines have been wood-free since 1996 I believe.

Looks concerning but hard to tell whats going on but no wood so not rotten.

Any cracking visible on transom?
nothing visible as far as cracking anywhere on the transom
Old 08-25-2020, 02:02 PM
  #7
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default

i guess i need to find someone that works on that kind of repairs and see what they recommend, if its wood free i shouldn't be rotted

Last edited by demj1308; 08-25-2020 at 02:23 PM.
Old 08-25-2020, 02:48 PM
  #8
Junior Member

Join Date: Jun 2020
Posts: 4
Received 0 Likes on 0 Posts
Default

After separation comes divorce...
Old 08-25-2020, 03:16 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Aug 2006
Location: Mt Laurel NJ
Posts: 1,092
Received 232 Likes on 131 Posts
Default

That was wood that turned to soil or it was foam that is now mush.
Likes:
Old 08-25-2020, 03:24 PM
  #10
Senior Member

Join Date: Apr 2019
Location: Central Florida, East Coast
Posts: 416
Received 92 Likes on 66 Posts
Default

Is is mushy or just wet? Looks soiled, but hard to tell if that is from the material degenerating or if it just has algae or mold on it.
Likes:
Old 08-25-2020, 03:31 PM
  #11
Senior MemberCaptains Club Member

Join Date: Jan 2002
Location: Ocean Isle Beach, NC
Posts: 1,968
Received 712 Likes on 315 Posts
Default

That era boat was frequently wood free except wood in the transom. Wood is cheaper than Coosa. I would not be surprised if your Proline was wood free except in the transom. Contenders, for example, used to be wood free except in the transom. Now they have balsa wood core like Yellowfins, but that is another topic.
Likes:
Old 08-25-2020, 03:41 PM
  #12
cdp
Senior Member

Join Date: Apr 2010
Posts: 461
Received 61 Likes on 41 Posts
Default

Get it checked out but Im almost certain there is no wood in that boat including transom.


Im on my third proline (a 97, 04 and now an 06). No wood in any of those transoms.

Any cracking visible on the inside of the transom?
Old 08-25-2020, 03:47 PM
  #13
cdp
Senior Member

Join Date: Apr 2010
Posts: 461
Received 61 Likes on 41 Posts
Default

What model boat is it? What engine(s)?

did you just buy or have you had a while?

Im no expert but it is hard to tell whats going on with the one picture, and to be honest I dont ever recall taking the drain plug out of a boat like that to inspect.

Can get it checked out but if no visible signs of failure at all and if transom sounds solid Im not sure Id worry about it (easy for me to say I know!).
Old 08-25-2020, 03:52 PM
  #14
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,507
Received 1,819 Likes on 950 Posts
Default

i was also under the impression they were foam
Old 08-25-2020, 04:10 PM
  #15
Senior MemberCaptains Club Member

Join Date: Nov 2008
Location: Southeast Alaska
Posts: 6,515
Received 1,651 Likes on 694 Posts
Default

Blowing high pressure air into a screw hole can be a very bad idea and could potentially delaminate a relatively large area quickly.
Gerald
Old 08-25-2020, 06:05 PM
  #16
Senior Member

Join Date: Jan 2016
Location: Annapolis, MD
Posts: 735
Received 62 Likes on 42 Posts
Default

Originally Posted by demj1308 View Post
i guess i need to find someone that works on that kind of repairs and see what they recommend, if its wood free i shouldn't be rotted
Foam rots as easily or more easily than wood.
Old 08-25-2020, 06:12 PM
  #17
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by gotboostedvr6 View Post
That was wood that turned to soil or it was foam that is now mush.
outside part is definitely solid fiberglass, inside im not sure its solid to touch but i can dig into with a screwdriver a little bit
Old 08-25-2020, 06:15 PM
  #18
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by frogbite View Post
Is is mushy or just wet? Looks soiled, but hard to tell if that is from the material degenerating or if it just has algae or mold on it.
Its not mushy outside is solid, inner part is solid to the touch but i dig a screwdriver tip (about jus the first 1/4") into it and. Really cant break off any part of it with the screwdriver.
Old 08-25-2020, 06:17 PM
  #19
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by frogbite View Post
Is is mushy or just wet? Looks soiled, but hard to tell if that is from the material degenerating or if it just has algae or mold on it.
Originally Posted by cdp View Post
Get it checked out but Im almost certain there is no wood in that boat including transom.


Im on my third proline (a 97, 04 and now an 06). No wood in any of those transoms.

Any cracking visible on the inside of the transom?
Ill have to check when i get back to the boat in a few days
Old 08-25-2020, 06:19 PM
  #20
Member
Thread Starter

Join Date: Jul 2015
Posts: 83
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by cdp View Post
What model boat is it? What engine(s)?

did you just buy or have you had a while?

Im no expert but it is hard to tell whats going on with the one picture, and to be honest I dont ever recall taking the drain plug out of a boat like that to inspect.

Can get it checked out but if no visible signs of failure at all and if transom sounds solid Im not sure Id worry about it (easy for me to say I know!).
its a 2001 pro-line 23 sport with a 225 optimax, i have had it for a few years
