Identify this part, win $10

Old 08-19-2020, 04:14 PM
  #1
Junior Member
Thread Starter

Join Date: Aug 2020
Posts: 29
Received 5 Likes on 4 Posts
Default Identify this part, win $10

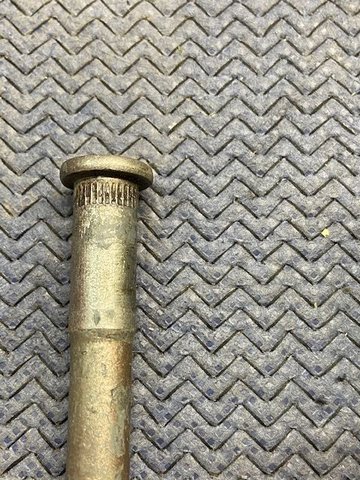

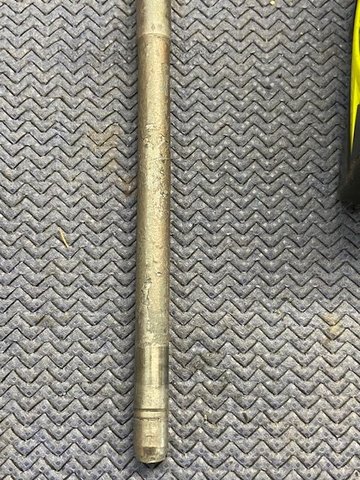

Ok, first off, I can be an idiot. I have practiced long enough and have really gotten good at it.

I replaced an impeller a year ago on my ‘99 Mercury Optimax 150 and I now have this part left over. To be honest, I’ve run the boat over a year without it due to just finding it in my battery compartment today. I must have set it on the rail and it fell down there. My guess is it had to come from when I did the impeller as I’ve done no other major work to the boat or motor.

I’ve done some research and can’t find it on a parts diagram. I’ll give the first person who correctly identifies the part and tells me where it goes $10 through Venmo or PayPal, or by mail, etc. Let the contest begin................

Last edited by Casey6404; 08-19-2020 at 04:15 PM. Reason: Forgot info
Old 08-19-2020, 04:24 PM
  #2
Admirals Club Admiral's Club Member

Join Date: May 2016
Location: Poquoson, VA
Posts: 232
Received 152 Likes on 88 Posts
Default

I don't know exactly what it is but at inch 1 and at inch 5 it has been worn down some. It is a pin of some sort... Maybe to tilt the motor up and secure it? how about for your trailer breaks? No need for $$ if I'm right =-)
Likes:
Old 08-19-2020, 04:33 PM
  #3
Senior Member

Join Date: Oct 2019
Posts: 123
Received 35 Likes on 19 Posts
Default

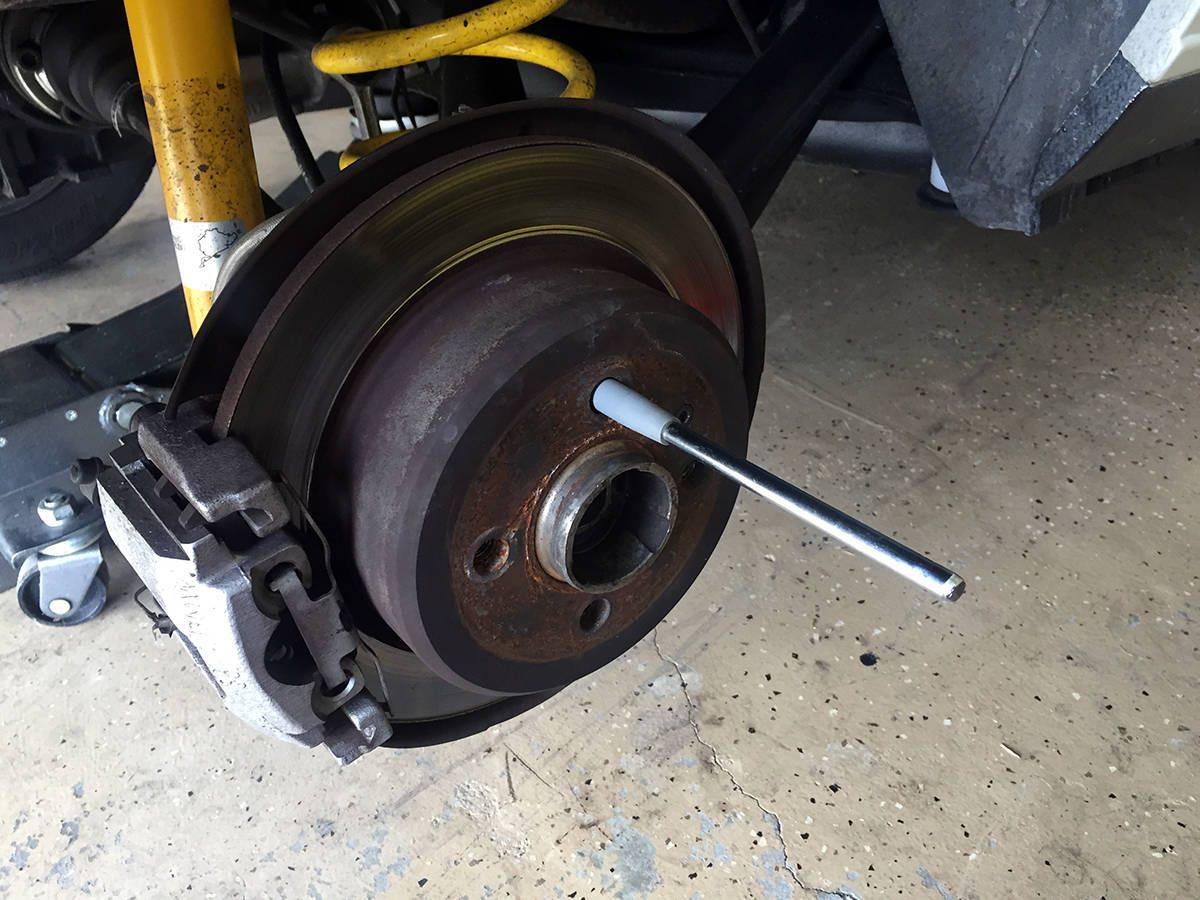

It does look wheel related since it looks like a lug nut stud that gets pressed in, with the ridges around the head. I am guessing some type of wheel alignment tool like shown below. It can be tough to get a heavy tire onto all of the lugs, maybe this helps, or maybe it is for a specific make like the BMW one below.

Likes:
Old 08-19-2020, 04:36 PM
  #4
Senior Member

Join Date: Apr 2020
Posts: 292
Received 107 Likes on 63 Posts
Default

100% the knurled section is for press fit to something
Likes:
Old 08-19-2020, 04:43 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Holden Beach, North Carolina
Posts: 3,271
Received 890 Likes on 497 Posts
Default

Pin to limit tilt/trim going all the way down?
Likes:
Old 08-19-2020, 04:48 PM
  #6
Senior MemberCaptains Club Member

Join Date: Jun 2005
Location: Winter Garden, FL/ Tiger, GA/ Ft. Pierce, FL
Posts: 3,058
Received 541 Likes on 289 Posts
Default

That is an automotive hinge pin. Looks real similar to one used in a Chevy truck
Old 08-19-2020, 04:49 PM
  #7
Senior Member

Join Date: Oct 2018
Location: Southern NJ
Posts: 398
Received 616 Likes on 262 Posts
Default

door hinge pin
Likes:
Boat Hound, Casey6404, hottoddie, HuntersDad, KrazyKona, proline34, wahoossi and 2 others liked this post. (Show less...)
Old 08-19-2020, 05:04 PM
  #8
Senior Member

Join Date: Sep 2016
Location: 42°
Posts: 217
Received 93 Likes on 65 Posts
Default

I asked the wifey and she had no clue.
Likes:
Old 08-19-2020, 05:08 PM
  #9
Senior Member

Join Date: Nov 2016
Location: Stuart Fl
Posts: 576
Received 1,305 Likes on 446 Posts
Default

Originally Posted by maintenanceguy View Post
door hinge pin
Times two , pay the man !
Likes:
Old 08-19-2020, 05:09 PM
  #10
Senior Member

Join Date: Oct 2014
Posts: 884
Received 200 Likes on 93 Posts
Default

It’s the adjuster pin for how low the motor will go when fully trimmed down. (Posted above also)
Likes:
Old 08-19-2020, 05:13 PM
  #11
Admirals Club Admiral's Club Member

Join Date: Oct 2010
Location: Weymouth, Ma.
Posts: 2,380
Received 474 Likes on 300 Posts
Default

Originally Posted by Smitty 45 View Post
Times two , pay the man !
Agree X2. Hinge pin that got mixed in with the motor parts. Pay the man his $10
Likes:
Old 08-19-2020, 05:14 PM
  #12
Senior Member

Join Date: Dec 2017
Location: North of Cuber, South of Jawga
Posts: 1,022
Received 690 Likes on 371 Posts
Default

Brass door hinge pin, similar to lots of these shown here.
Could of got in the boat in a jillion different ways........including a crow dropping it in there.
https://www.homedepot.com/b/N-5yc1v/...e%2Bpin?NCNI-5
Likes:
Old 08-19-2020, 05:24 PM
  #13
Senior Member

Join Date: Feb 2017
Posts: 2,744
Received 2,758 Likes on 1,718 Posts
Default

I'd go with the hinge pin thing too.... but then I looked closer... Near the bottom is that a machined grove for something like a "C" clip?
Likes:
Old 08-19-2020, 05:27 PM
  #14
Admirals Club Admiral's Club Member

Join Date: May 2016
Location: Poquoson, VA
Posts: 232
Received 152 Likes on 88 Posts
Default

It certainly looks like a door hinge pin, (thanks other posters) they make for a great improvised punch tool.
Likes:
Old 08-19-2020, 05:30 PM
  #15
Senior Member

Join Date: Feb 2018
Posts: 189
Received 204 Likes on 76 Posts
Default

Originally Posted by 757SeaHunt View Post
It certainly looks like a door hinge pin, (thanks other posters) they make for a great improvised punch tool.
I've never seen a door hinge pin with the serrated end like that. They are usually just true "pins."

Last edited by Cheesesteak; 08-19-2020 at 05:36 PM.
Old 08-19-2020, 05:55 PM
  #16
Admirals Club Admiral's Club Member

Join Date: May 2016
Location: Poquoson, VA
Posts: 232
Received 152 Likes on 88 Posts
Default

Originally Posted by Cheesesteak View Post
I've never seen a door hinge pin with the serrated end like that. They are usually just true "pins."
I would have agreed with you 100% until 10 minutes ago.


Likes:
Old 08-19-2020, 05:58 PM
  #17
Senior Member

Join Date: Nov 2016
Location: Stuart Fl
Posts: 576
Received 1,305 Likes on 446 Posts
Default

Originally Posted by 757SeaHunt View Post
I would have agreed with you 100% until 10 minutes ago.

Nope , it's a house door pin .
Likes:
Old 08-19-2020, 06:27 PM
  #18
Senior Member

Join Date: Jan 2011
Location: Pgh Pa
Posts: 16,152
Received 1,329 Likes on 1,003 Posts
Default

Originally Posted by Smitty 45 View Post
Nope , it's a house door pin .

House door hinge pins don't have a shoulder on it much less a knurled section?
Likes:
Old 08-19-2020, 06:29 PM
  #19
Senior Member

Join Date: Feb 2017
Posts: 2,744
Received 2,758 Likes on 1,718 Posts
Default

I don't think it's a house hinge pin. I could use a better picture, but it looks like it's machined thinner in the middle. Household door hinge pins are the same diameter the whole length, with the exception of the knurl on one end.

It is more similar to the auto door hinge pin, but I think longer than any of those that I know.
Old 08-19-2020, 06:47 PM
  #20
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 9,846
Received 1,531 Likes on 925 Posts
Default

It's an alignment stud for his lower unit. Must have fallen out during disassembly. Pay up.
Likes:
