Thermostat leaking - vacation Friday - HELP

Notices
The Boating Forum

Thermostat leaking - vacation Friday - HELP

Old 06-15-2020, 08:46 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2010
Posts: 196
Received 10 Likes on 7 Posts
Default Thermostat leaking - vacation Friday - HELP

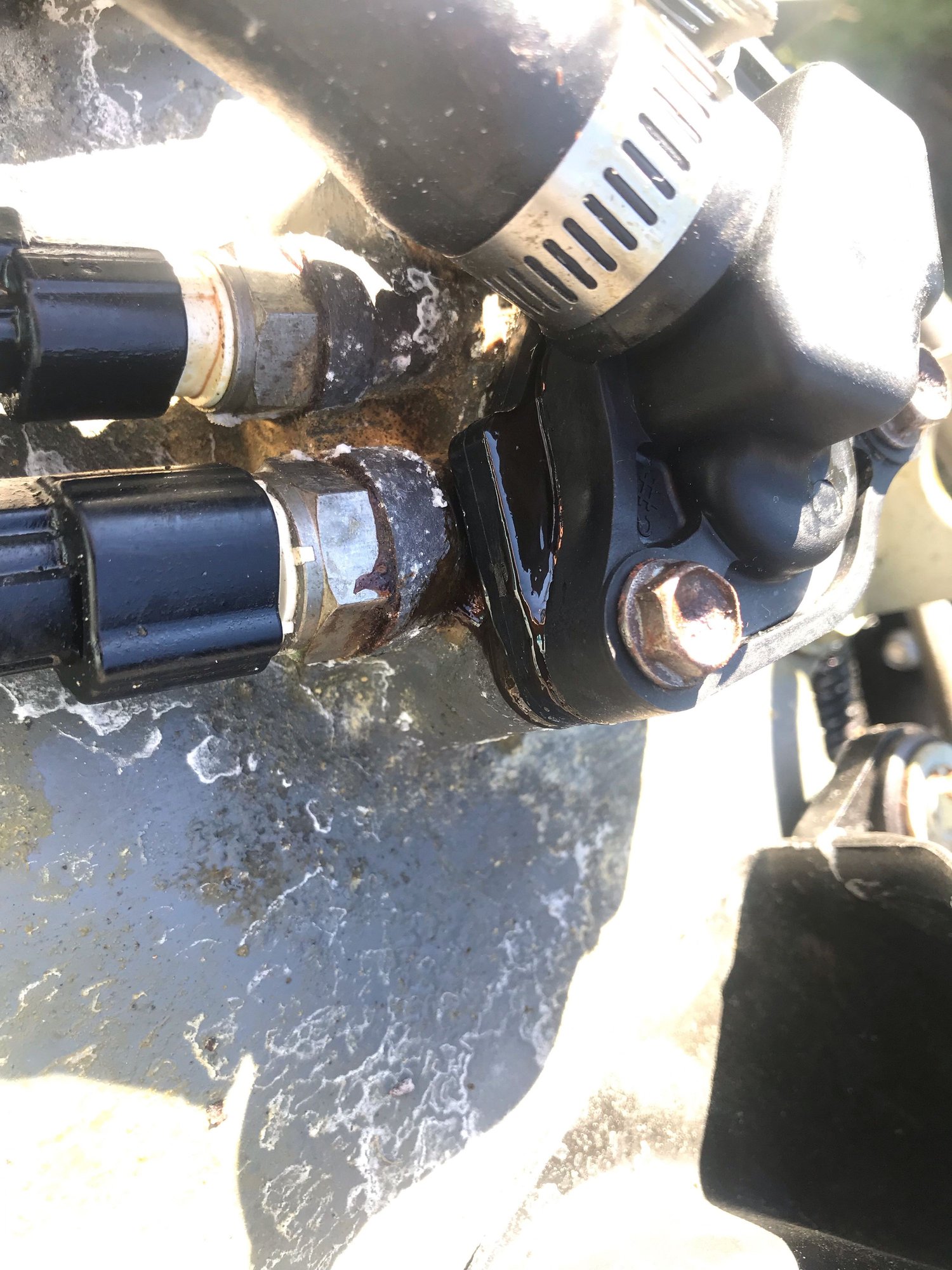

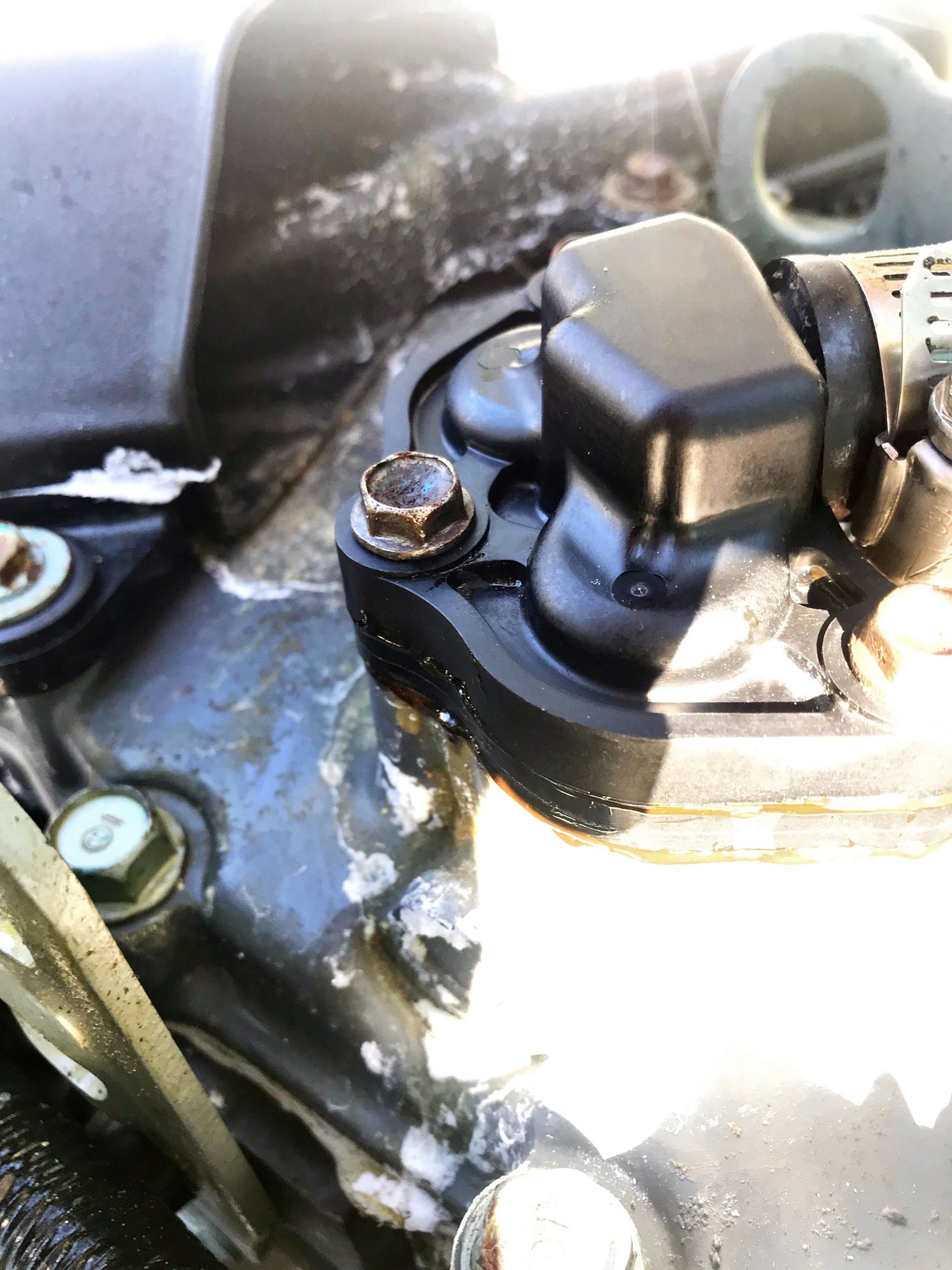

So I have a pair of Honda BF150's on my boat, and one of the thermostat housings is leaking like a sieve, appears to be at the gasket where the housing meets the block. I had this issue "repaired" by a local shop before my recent fishing trip, who felt pretty good that they had made a good repair and it would not be an issue. I went fishing Saturday, and the housing is still leaking. One would think this might be a relatively minor problem, but the air intake is a few inches from the housing, and it is sucking salt water mist into the engine, fouling the plugs (and who knows what else) and then the motor is shutting off.
In order to try and repair, the shop indicates they removed the housing, smoothed and cleaned the metal surface, placed a liquid sealant, and then torqued the bolts that hold the housing in place. All seems like the right steps to me based on reading other threads. I have called the shop to tell them that I still have a problem, and am waiting a reply as to what I could try. I'm handy, so I want to try and fix this myself since I'm leaving for a trip end of week. Any suggestions on how to approach the repair differently?
It seems like this should be a relatively easy thing to fix, I've never heard of this sort of issue not being able to be repaired. It does not appear visually that the metal mounting surface itself or the thermostat housing have defects that would make them leak, although it makes sense to go ahead and replace the housing itself. Only thing I can think to do is make sure and use Permatex for the seal and make sure bolts are torqued correctly. Thanks for any suggestions.

Old 06-15-2020, 08:50 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Nov 2013
Location: Sarasota, Fl
Posts: 544
Received 70 Likes on 55 Posts
Default

Is that a plastic housing? Im not familiar with your specific application, but in the automotive world, its not uncommon for the housing to get distorted from heat. if it were mine, I would just replace the housing
Old 06-15-2020, 08:53 AM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2010
Posts: 196
Received 10 Likes on 7 Posts
Default

Originally Posted by ktroyer2265 View Post
Is that a plastic housing? Im not familiar with your specific application, but in the automotive world, its not uncommon for the housing to get distorted from heat. if it were mine, I would just replace the housing
Yes, the thermostat housing is plastic and was replaced about 3 seasons ago. If there was a source for an after market metal housing, I would certainly switch to that but haven't found one.
Old 06-15-2020, 09:32 AM
  #4
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2010
Posts: 196
Received 10 Likes on 7 Posts
Default

Originally Posted by ktroyer2265 View Post
Is that a plastic housing? Im not familiar with your specific application, but in the automotive world, its not uncommon for the housing to get distorted from heat. if it were mine, I would just replace the housing
So I went online and ordered every part I can see that might be a problem. The assembly comes with a gasket that fits in a groove on the underside of the thermostat cover. Sort makes me wonder if I should leave off the Permatex liquid gasket since it is not part of the required assembly from the manufacturer......?
Old 06-15-2020, 09:40 AM
  #5
Senior MemberCaptains Club Member

Join Date: Mar 2004
Location: Boynton Beach Islamorada(VRBO49422)
Posts: 3,147
Received 1,130 Likes on 591 Posts
Default

ask the shop for their opinion first
Old 06-15-2020, 10:00 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Feb 2012
Location: St. Augustine, FL
Posts: 1,627
Received 445 Likes on 210 Posts
Default

On my car I used gasket with sealant, what will it hurt?
Old 06-15-2020, 10:19 AM
  #7
Senior Member

Join Date: Nov 2002
Location: Long Island, NY
Posts: 8,707
Received 904 Likes on 690 Posts
Default

If the surface of the block/head where the thermostat housing bolts up to is anything but perfect use the Permatex. Often on raw water cooled engines you will see pitting on sealing surfaces like this and a bit of Permatex Aviation or OMC/Evinrude gasket sealer or Merc Perfect seal will make it seal fine. I put the sealer on the threads of the bolts too and have not had seizing problems even in salt water.
About the plastic housing, put a straight edge across the sealing surface after cleaning it up and see if there is any daylight showing through. I use OMC gasket sealer on thermostat housings, bolts, impeller housing gaskets, all the bolts on the outdrive etc. Even when I replaced the water pump on our '98 Jeep about 10 years ago and when I replaced the thermostat about 3 years ago.
Likes:
Old 06-15-2020, 10:33 AM
  #8
Senior Member

Join Date: Dec 2003
Location: NorCal
Posts: 3,107
Received 222 Likes on 150 Posts
Default

That isn't under any pressure, the leak is likely due to corrosion on the thermostat housing. A good RTV sealant like Permatex Ultra Black with adhesive and gap filling properties should fix leaks from corrosion. Take the cover off and clean off everything the "shop" put on there and re-assemble using Ultra Black.
Old 06-15-2020, 11:43 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Dec 2011
Location: SW Florida
Posts: 7,932
Received 1,145 Likes on 753 Posts
Default

+1 on the ultra black. I had to swap a thermostat on my boat out on the water. The gasket was trashed and I used that. It worked great.
I am not sure how long it is supposed to cure but we were running about a half hour later.
Old 06-15-2020, 12:15 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Sep 2008
Location:
Posts: 267
Received 1 Like on 1 Post
Default

I’ve had two sets of Honda’s 2006 and 2016. They always had this problem even new. I use Honda bond under the spacer block to head and a new gasket for the cover. Make sure to grease the rubber gasket for cover. Use Honda bond for base spacer block. Let it set up for a day and you should be good.
Old 06-16-2020, 08:19 AM
  #11
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2010
Posts: 196
Received 10 Likes on 7 Posts
Default

Originally Posted by jayyy View Post
That isn't under any pressure, the leak is likely due to corrosion on the thermostat housing. A good RTV sealant like Permatex Ultra Black with adhesive and gap filling properties should fix leaks from corrosion. Take the cover off and clean off everything the "shop" put on there and re-assemble using Ultra Black.
Originally Posted by gfretwell View Post
+1 on the ultra black. I had to swap a thermostat on my boat out on the water. The gasket was trashed and I used that. It worked great.
I am not sure how long it is supposed to cure but we were running about a half hour later.
Originally Posted by capecod26 View Post
I’ve had two sets of Honda’s 2006 and 2016. They always had this problem even new. I use Honda bond under the spacer block to head and a new gasket for the cover. Make sure to grease the rubber gasket for cover. Use Honda bond for base spacer block. Let it set up for a day and you should be good.
Thanks for the guidance! Going to start tackling this tonight. I have the Permatex and will be sure to grease the Honda gasket. I really hope I can get this fixed and enjoy vacation!
Likes:
Old 06-16-2020, 09:11 AM
  #12
Admirals Club Admiral's Club Member

Join Date: Nov 2013
Location: Sarasota, Fl
Posts: 544
Received 70 Likes on 55 Posts
Default

Ultra black is great for metal to plastic and ultra grey is great for metal to metal. As stated before, I would still add some ultra black to the new housing and gasket
