28 bertram outboard bracket build

Old 04-09-2020, 07:49 AM
  #1
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default 28 bertram outboard bracket build

A good friend of mine bought a 28 after seeing the success Daytrip01 has had with these boats. My friend is leaving his a flybridge but were converting it to outboards, and doing a flat deck from the salon door back.
I got roped into building the bracket, and somehow I roped Daytrip01 into helping me build the mold as hes already built a few and his design and lamination is proven. Unfortunately for me I'm going to be building this one on the boat. My back isnt thanking me but it isnt "that bad".. As luck would have it it hasn't rained here in 2 months. But the day i build a mold outside that cant get wet, it's got to rain the next day haha.

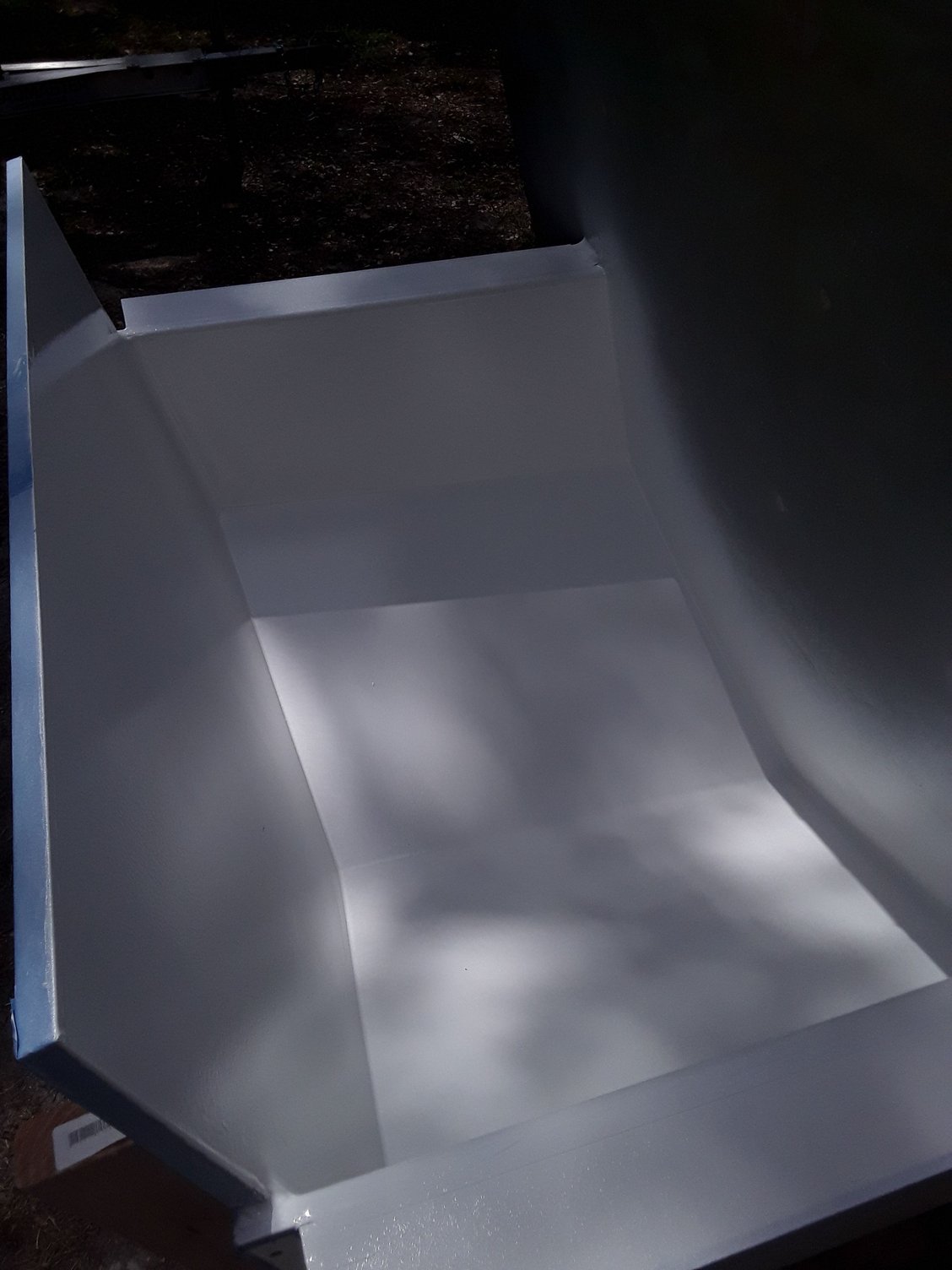

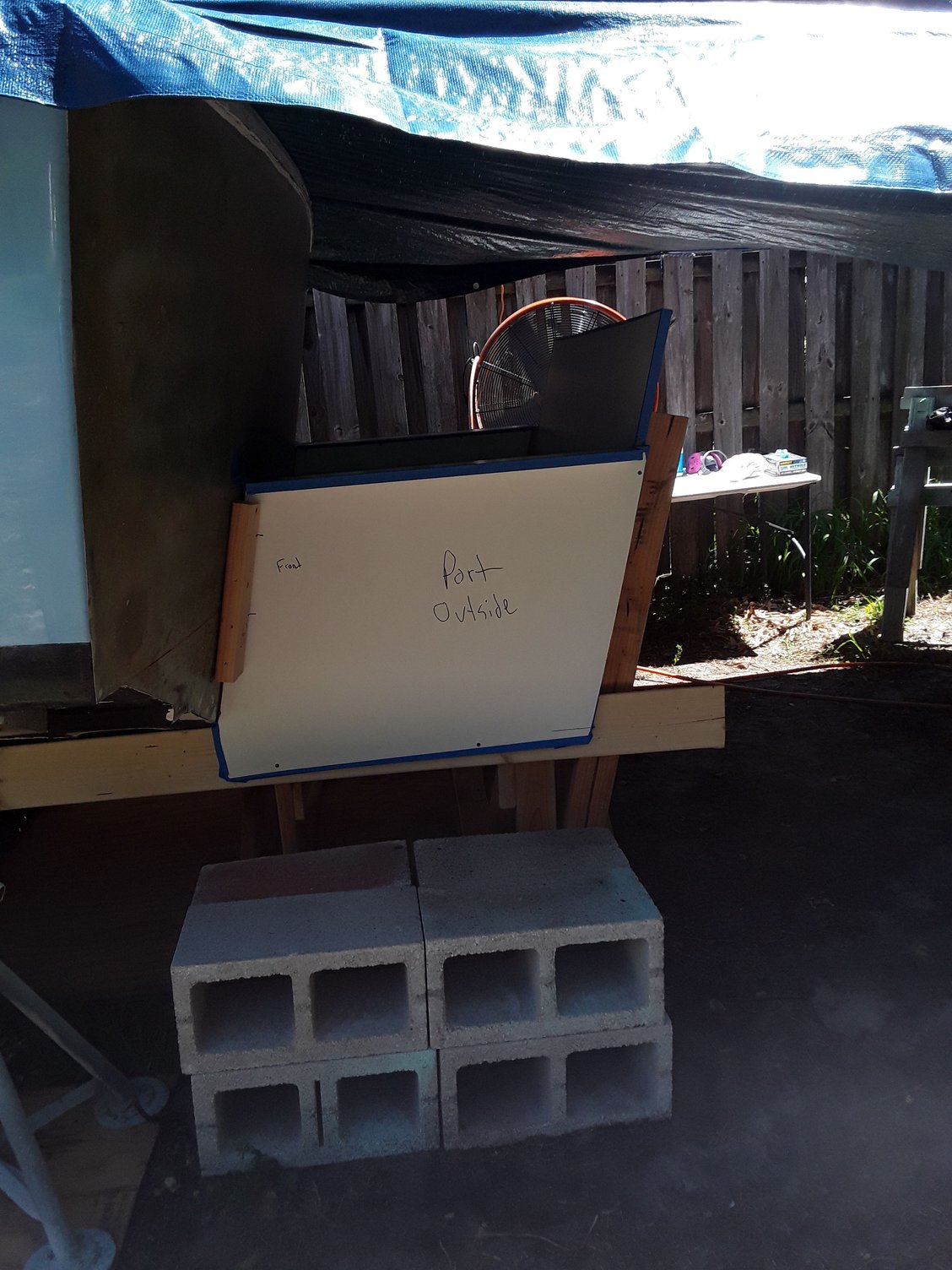

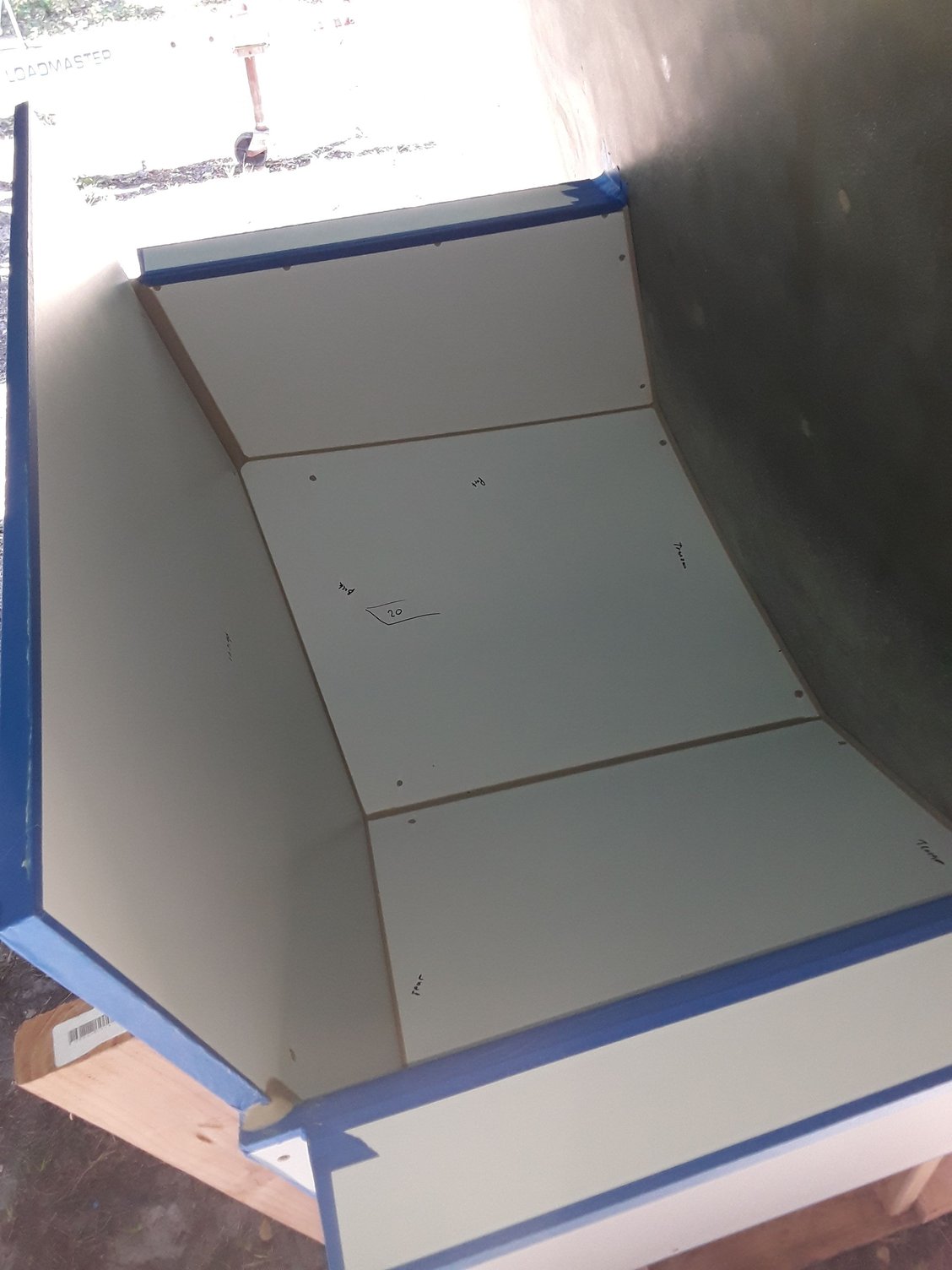

here's where i am at with it up to this point, progress is determined by my day job and the rain schedule.






Old 04-09-2020, 07:57 AM
  #2
Senior MemberCaptains Club Member

Join Date: Aug 2005
Location: Cape Cod/Marathon
Posts: 1,774
Received 515 Likes on 315 Posts
Default

Nice work !
Old 04-09-2020, 09:42 AM
  #3
Senior MemberCaptains Club Member

Join Date: Mar 2003
Location: United States
Posts: 10,663
Likes: 0
Received 2,544 Likes on 1,143 Posts
Default

I believe their is demand for that bracket. Lots of 28 Bertram’s out there that are prime candidates.
Old 04-09-2020, 01:45 PM
  #4
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

Originally Posted by captbone View Post
I believe their is demand for that bracket. Lots of 28 Bertram’s out there that are prime candidates.
There sure is! That being said, it's not as easy as bolt a bracket on and hang some motors. The transom still needs to be cored properly, which means cutting into the floor, which means finding issues with the stringers, etc etc. But if you or your checkbook isnt afraid of the work it's a Solid candidate of a hull.
Old 04-09-2020, 01:56 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Dec 2018
Location: North FL
Posts: 273
Received 94 Likes on 58 Posts
Default

Curious, what is the advantage of fabricating this bracket vs. having Armstrong, Stainless or Dusky build you one and then bolting it on?
Old 04-09-2020, 02:08 PM
  #6
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Jun 2006
Location: Galveston, Tx.
Posts: 1,123
Received 58 Likes on 34 Posts
Default

Glass is absolutely the way to go in terms of rigidity if you have the time and money to do it correctly, tie it into the stringers, etc. Not knocking aluminum brackets, I have had both ( 26 Regulator for example). Have a custom all glass bracket now and it’s bomb proof.
Likes:
Old 04-09-2020, 02:24 PM
  #7
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

Aluminum ones are solid too, but they pit out, corrode etc, especially in boats that are left in the water. The rest of the boat is glass, why not the bracket?
Old 04-09-2020, 02:44 PM
  #8
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Jun 2006
Location: Galveston, Tx.
Posts: 1,123
Received 58 Likes on 34 Posts
Default

Good project. High volume hull. Can add fuel, gen. Make a good GOM runner to go to the floaters and spend the night.
Likes:
Old 04-09-2020, 02:47 PM
  #9
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

We plan on doing some anchoring out in the Bahamas with this boat as he is adding a gen and a/c.
His dream is to take it to the Canaveral bouy for tuna. And he will lol. He makes corner trips all the time in a 23 intrepid so this bertram will be night and day
Old 04-09-2020, 02:52 PM
  #10
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Jun 2006
Location: Galveston, Tx.
Posts: 1,123
Received 58 Likes on 34 Posts
Default

Had one. Repowered it with 350 Crusaders, new 220 gallon aluminum tank, custom black lexan one piece side glass, painted like a Blackfin. Got crushed during Ike when the old paint shop fell down on top of it. Fuel tank survived it though.
Old 04-09-2020, 02:56 PM
  #11
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

That's a bummer.
my friend is aiming to get 300-350 gallons of fuel in the boat.
Personally I would start a build on one but I just finished a 4 year build , and I'm not exactly rearing to jump back into another build
Old 04-09-2020, 03:02 PM
  #12
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Jun 2006
Location: Galveston, Tx.
Posts: 1,123
Received 58 Likes on 34 Posts
Default

Keep posting pics. I may get motivated. Lots of abandoned 28s around here.
Old 04-09-2020, 03:05 PM
  #13
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

I have a few more , but they are pretty much the same as the others I posted. So far I have only the first2 layers of 1.5oz chopped strand Matt down as the "skin coat".
I will keep the thread updated until it's done, dont worry
Old 04-10-2020, 06:51 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Mar 2015
Posts: 851
Received 196 Likes on 113 Posts
Default

Cool project, I was so close to building my own on my current project but ended up finding a used one but I have a feeling I will build one in the future.
Old 04-10-2020, 07:45 AM
  #15
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

They really aren't too hard to build, especially if you can do it off of the boat. Considering my friend got a quote from Armstrong for north of $8k for a bracket , were going to end up well under that.
Old 04-10-2020, 03:22 PM
  #16
Member

Join Date: Jun 2017
Location: Jupiter
Posts: 53
Likes: 0
Received 11 Likes on 9 Posts
Default

HarvestTime,
You sir are a machine and a craftsman.
Old 04-14-2020, 06:27 PM
  #17
Senior Member

Join Date: Oct 2014
Location: North Palm Beach Florida
Posts: 1,092
Received 459 Likes on 214 Posts
Default

Now that is a good looking mold! Royce is a mad man BUT he needs to advanced course in carpenters square use....it’s not just a straight edge its a computer too.

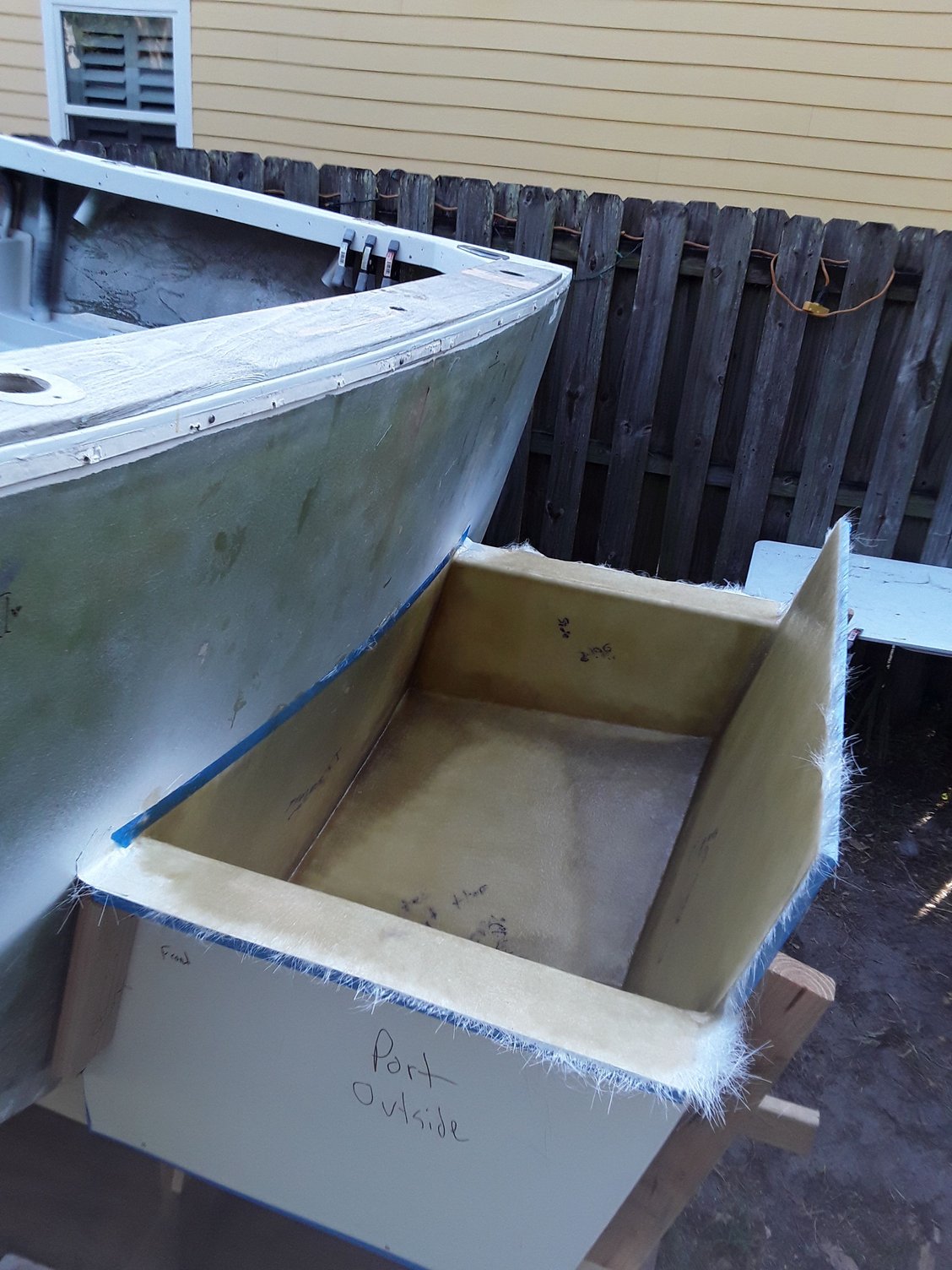

Part number two waiting to be built. Just put first two skins on the other bertram project tonight.
Old 04-14-2020, 06:52 PM
  #18
Senior Member

Join Date: Feb 2010
Posts: 938
Likes: 0
Received 77 Likes on 20 Posts
Default

How much for the 23 intrepid
Old 04-15-2020, 09:42 AM
  #19
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

I'll ask my bud
Old 04-15-2020, 09:53 AM
  #20
Senior Member
Thread Starter

Join Date: Oct 2015
Location: stuart fl
Posts: 1,678
Received 694 Likes on 372 Posts
Default

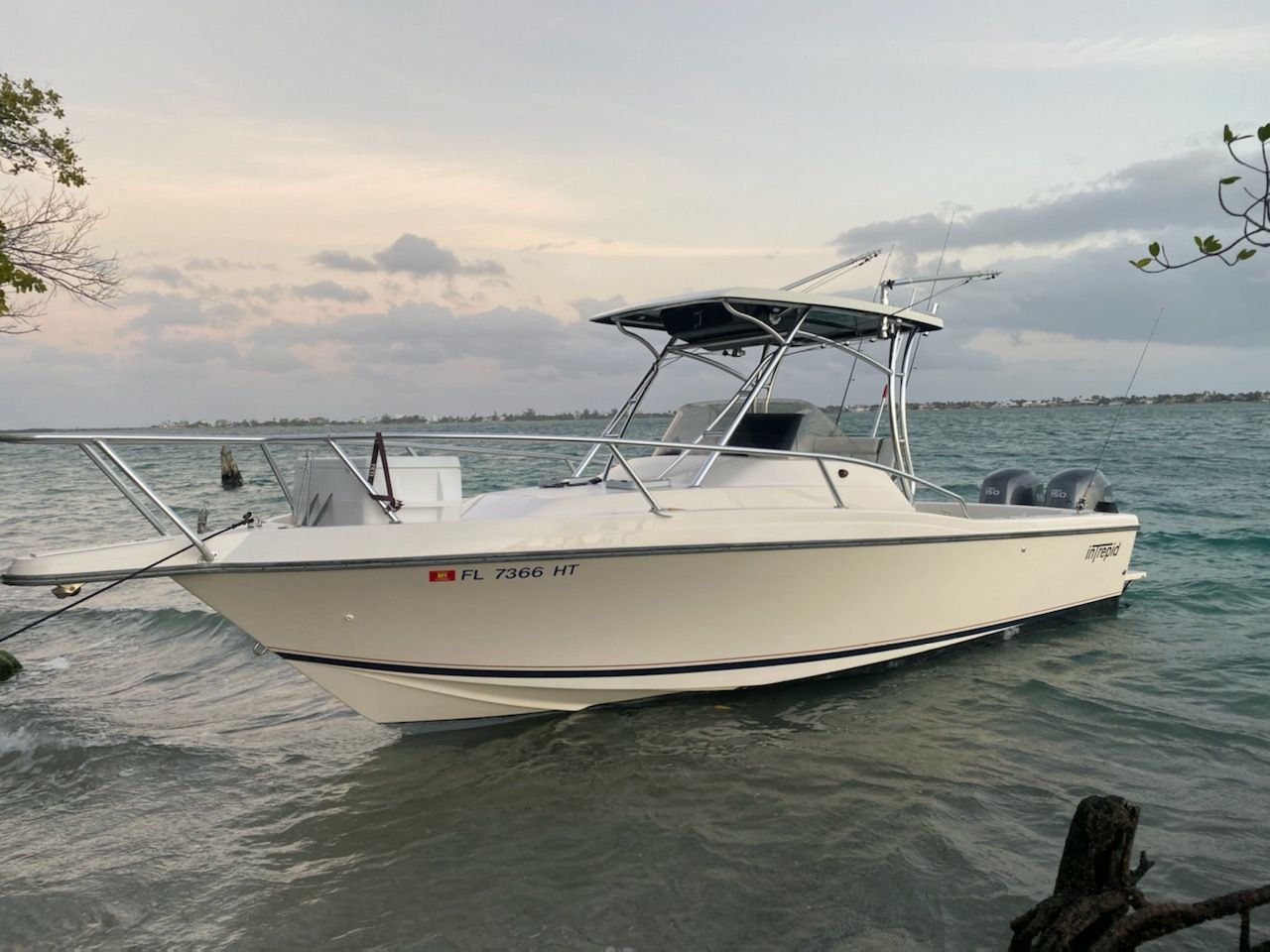

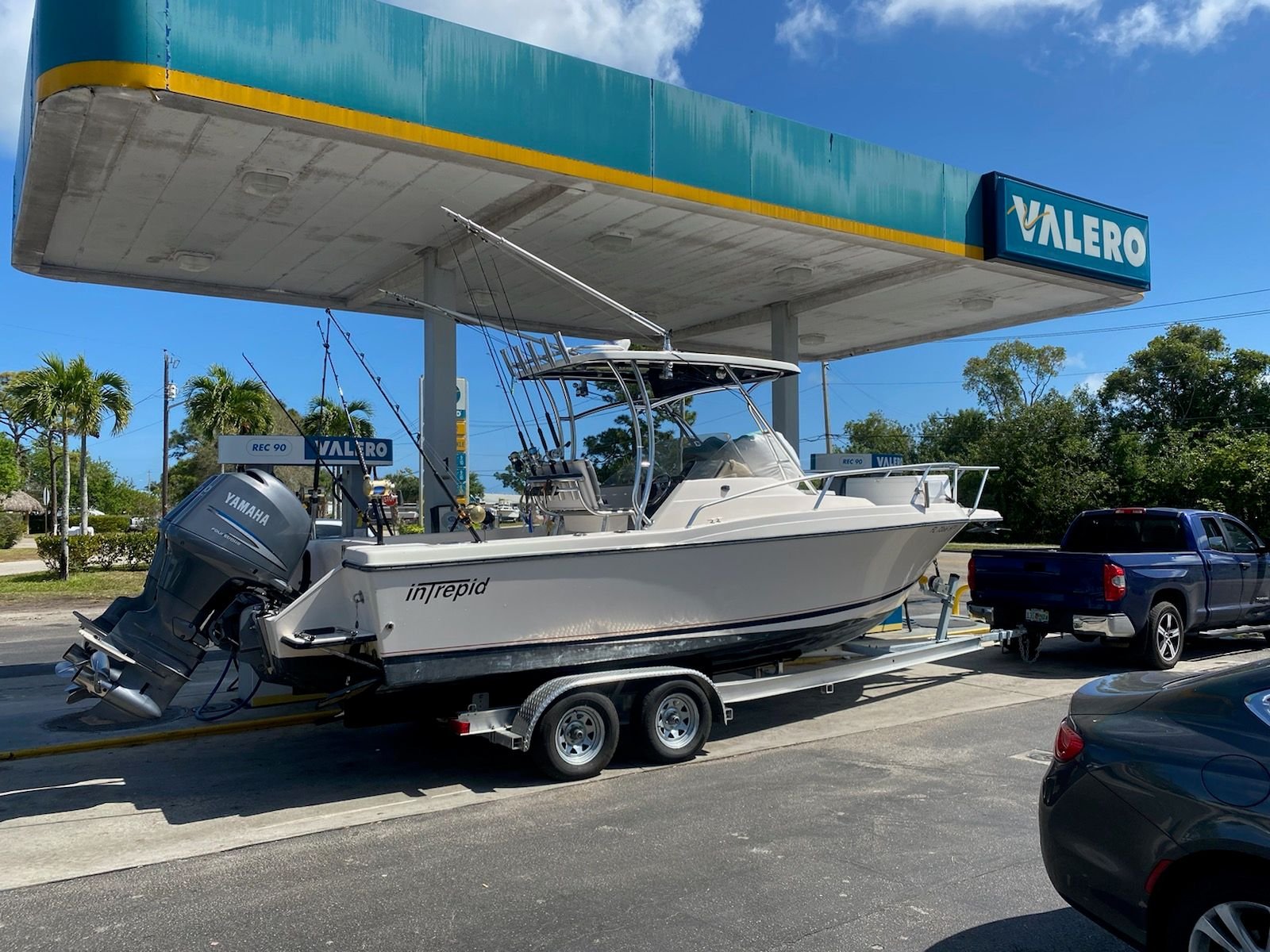

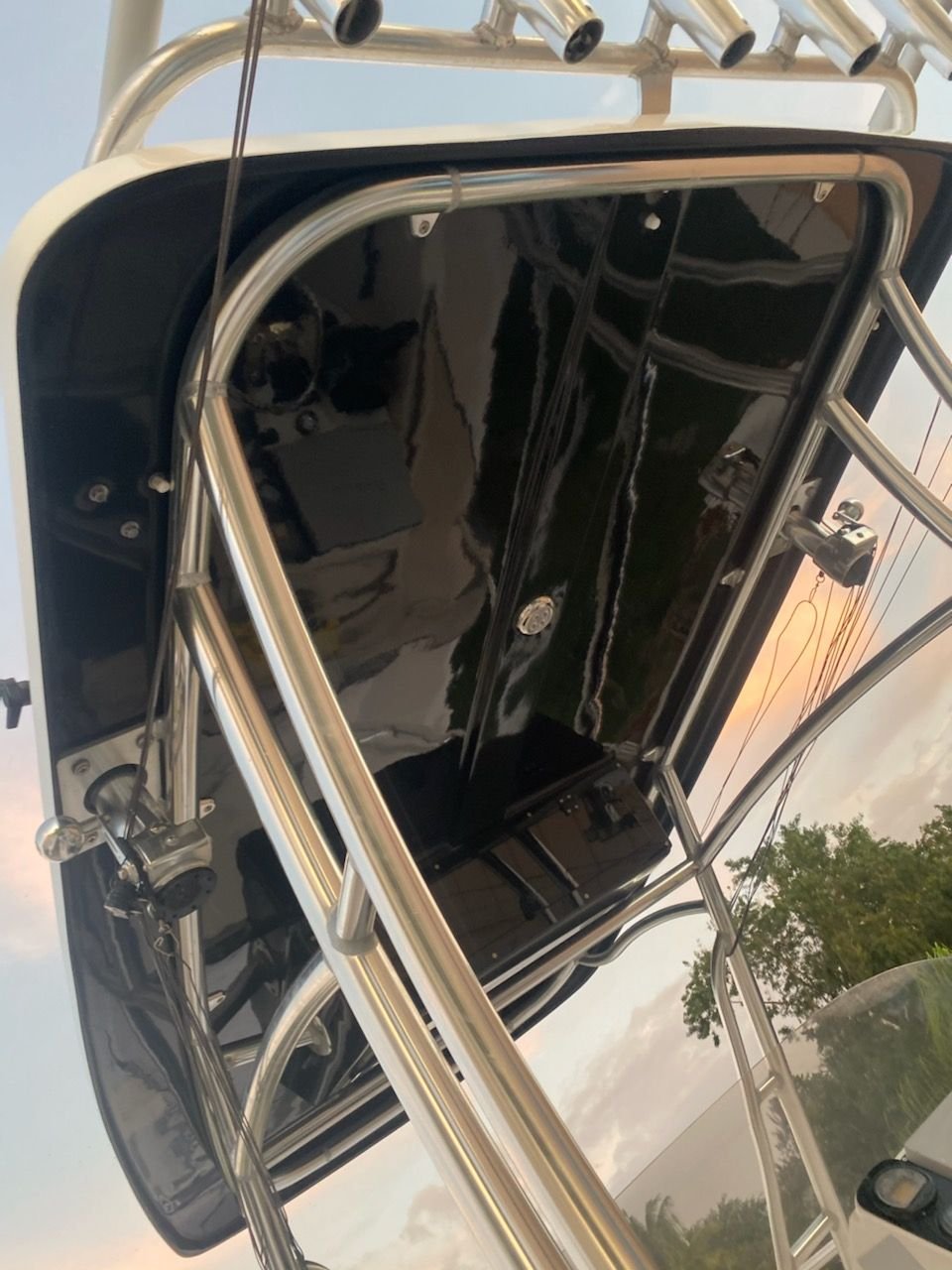

He wants 30 for it. Has a literally brand new trailer, brand new aluminum top, hard top redone. Complete rewire, jl audios,new garmin, premium Rupp riggers..etc the whole deal, hes a marine tech like me.
