Battery boxes - why not?

Old 03-07-2020, 04:26 AM
  #1
Member
Thread Starter

Join Date: Nov 2019
Location: Mandeville, LA
Posts: 36
Received 4 Likes on 3 Posts
Default Battery boxes - why not?

I’ve noticed almost all threads I have read regarding batteries mounted under the center console do not have them in battery boxes. The black plastic type. Why not?

They provide protection from dirt on the battery and also contains any acid that may escape. The also keep any stray objects from touching the battery terminals.

Any rationale for not using them?
Old 03-07-2020, 05:01 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Location: Keller Texas
Posts: 309
Received 177 Likes on 81 Posts
Default

The only negative off the top of my head would be that they trap moisture. Water and electricity are never a good mix. Most new batteries today are sealed so unless you don’t have them anchored properly leaking isn’t a problem. I’ve really never had a battery get dirty on my boat. Mine get changed every 36 months. A box would just be an added pain to deal with when I R&R.
Old 03-07-2020, 05:09 AM
  #3
Senior Member

Join Date: Mar 2009
Posts: 564
Received 194 Likes on 96 Posts
Default

I have both batteries in boxes in the console. The rational of limiting movement and not having something short the terminals were the main reasons. With lids on its pretty tidy as all wires are routed out the side of the box tops.

H.
Old 03-07-2020, 05:14 AM
  #4
Member

Join Date: Feb 2020
Location: Cape May NJ
Posts: 66
Received 17 Likes on 10 Posts
Default

I myself an not a fan of battery boxes , and removed them in favor of trays with restraints , the terminals are covered to prevent any unwanted contact
Old 03-07-2020, 05:28 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,662
Received 1,178 Likes on 612 Posts
Default

I have found you can limit movement with a tray. When I had batteries near the transom they were in boxes. When I moved them to the console used trays. Since people can’t sit on the front console seat without flying around, assumed batteries take the same bouncing.
Old 03-07-2020, 05:34 AM
  #6
Senior MemberCaptains Club Member

Join Date: May 2002
Location: Ayaz Beach
Posts: 1,267
Received 302 Likes on 177 Posts
Default

I found a plastic storage tub that fit my 4 group 24's perfectly. Contained any mess, breathed just fine and kept the batts from sliding around.
Old 03-07-2020, 05:36 AM
  #7
Senior Member

Join Date: Jun 2012
Location: South Florida
Posts: 952
Received 381 Likes on 192 Posts
Default

A tray makes for easier maintenance of a conventional lead acid battery. One where you have to check electrolyte. Make sure your positive terminal has a cover. I would not use this set up if it were in a splash zone. In a console, it works fine.
Old 03-07-2020, 06:10 AM
  #8
Senior Member

Join Date: Jan 2011
Location: englewood, florida
Posts: 5,876
Received 685 Likes on 428 Posts
Default

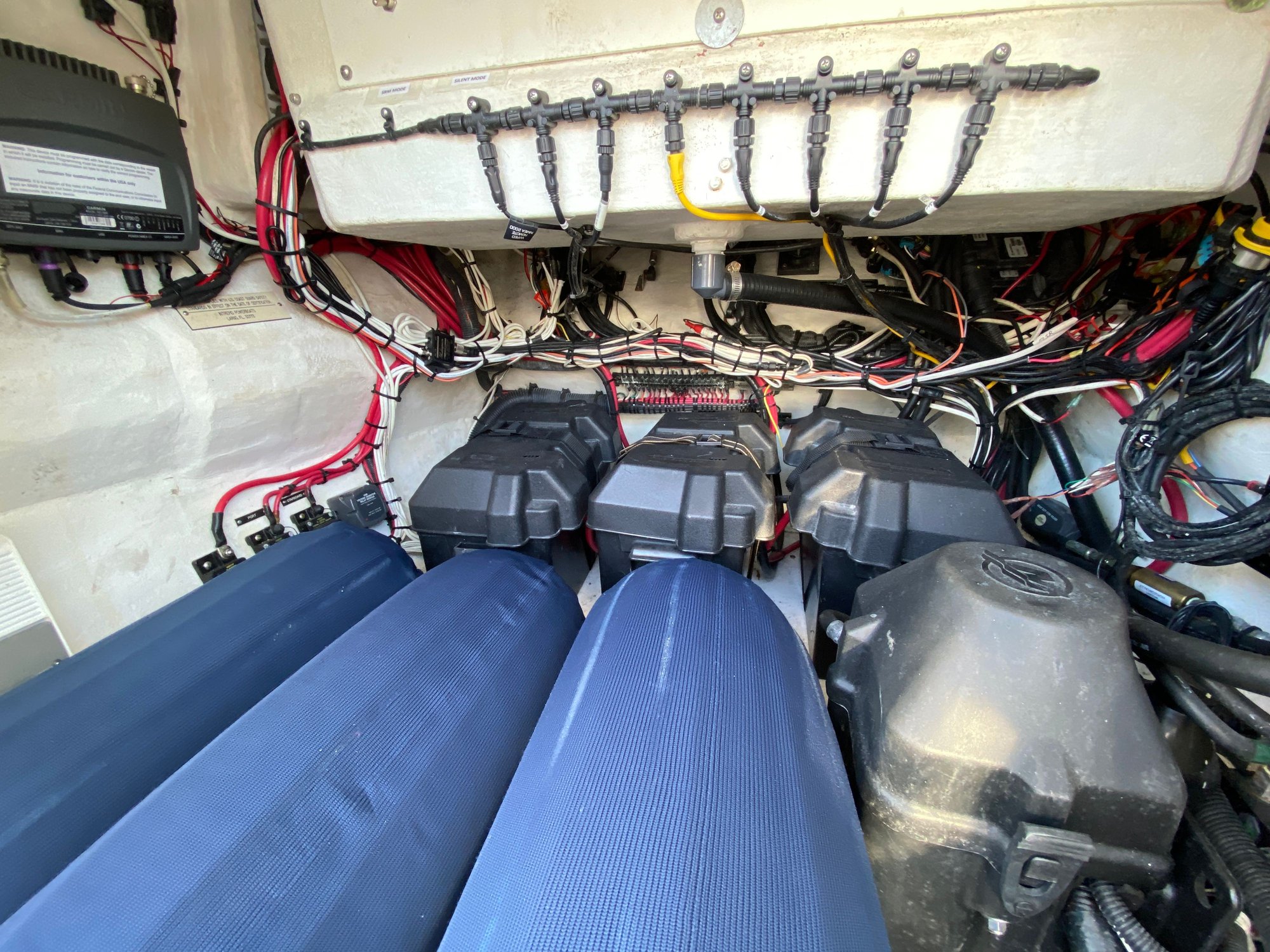

because this would be a real pain in the ass with boxes...

Likes:
alloyboy, bhales, champc1, fritz423, Joe, kgs365, S_Prater, vman24 and 3 others liked this post. (Show less...)
Old 03-07-2020, 07:18 AM
  #9
Senior MemberCaptains Club Member

Join Date: Jun 2003
Location: Palmetto Bay, FL
Posts: 909
Received 28 Likes on 20 Posts
Default

IMO, much easier to check terminal connections if battery is not in a box. Still should have a flexible terminal cover to protect against accidental shorts.

Battery boxes went away when sealed batteries became the norm and consequently, less fumes and leakage to worry about and contain. Also, it was a pain to replace a battery that was in a box in tight spaces.
Likes:
Old 03-07-2020, 07:41 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Mar 2009
Location: Port St. Lucie, FL
Posts: 743
Received 151 Likes on 108 Posts
Default

Never seen any battery boxes I like. Seems they all bend the cables, stressing the lugs and studs.
Likes:
Old 03-07-2020, 07:47 AM
  #11
Senior Member

Join Date: May 2010
Posts: 562
Received 51 Likes on 21 Posts
Default

Originally Posted by bladenbullet View Post
because this would be a real pain in the ass with boxes...

that’s pretty sharp. Homemade or commercially available?
Old 03-07-2020, 09:40 AM
  #12
Senior Member

Join Date: Jun 2015
Location: Miami/Coral Gables, Key Colony Beach (Islamorada, Abaco, GHC, Lucaya)
Posts: 1,642
Received 807 Likes on 447 Posts
Default

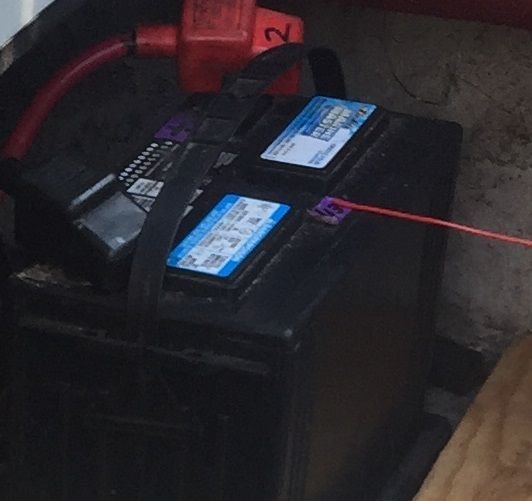

Easy access in 5-10 seconds for each battery. They keep dry and always look new. No reason for the cables to come loose so I check and spray them once a year and change every three years.



Old 03-07-2020, 10:16 AM
  #13
Senior Member

Join Date: Feb 2015
Posts: 2,448
Received 732 Likes on 386 Posts
Default

Batteries in boxes have an inch or more of space to move so there is potential for compounded shock loading. Think battery coming down when boat is going up. Loose stuff breaks.
Likes:
Old 03-07-2020, 10:24 AM
  #14
Senior Member

Join Date: Nov 2002
Location: Long Island, NY
Posts: 8,783
Received 934 Likes on 707 Posts
Default

I used battery boxes with my gp 27s for years, what I did not like:
battery would slide around so I had to make up shims to keep it from moving
battery box strap always got loose over time
this just made it a pain to maintain batteries...I switched to trays with secure hold downs (just like what you’d use in a vehicle) and insulators for the terminals and like that much better.
Only advantage of boxes is it would protect the engine compartment from acid if one exploded.

If some company makes a box that:
fits the standard size(s) batteries exactly
has a solid hold down method
Then I might go back to boxes, as they are they are more trouble than they are worth the way they are made now....

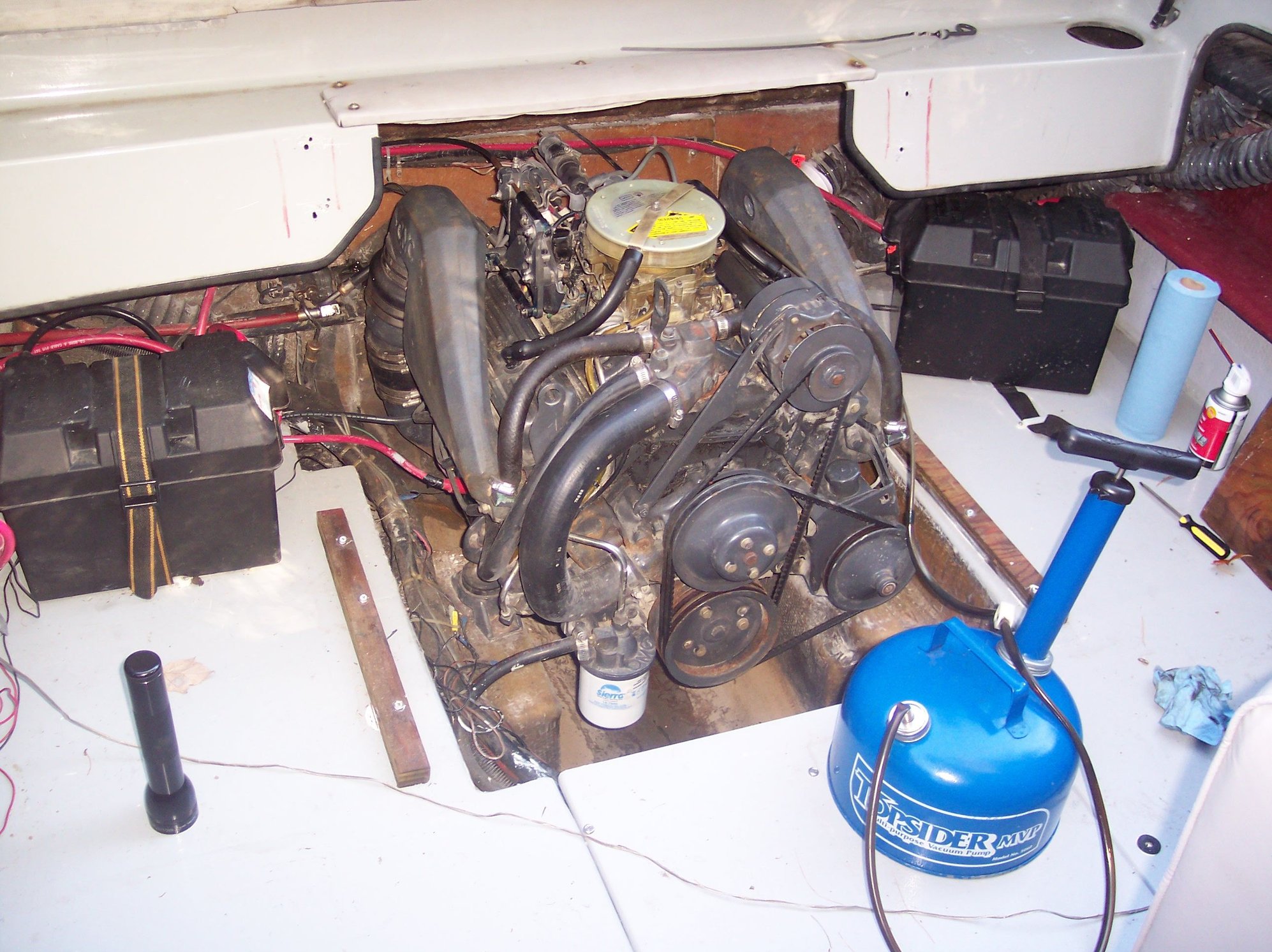

Battery boxes....

tray with rubber insulators....

Last edited by LouC; 03-07-2020 at 01:15 PM.
Old 03-07-2020, 10:40 AM
  #15
Senior Member

fireisland1's Avatar

Join Date: Jun 2011
Posts: 6,077
Received 3,381 Likes on 1,474 Posts
Default

It is possible gas could collect in the box and boom. I use boxes with the battery is in the weather.
Likes:
Old 03-07-2020, 02:49 PM
  #16
Senior Member

Join Date: Aug 2011
Posts: 1,771
Received 202 Likes on 123 Posts
Default

If you have the luxury of real estate, boxes are fine. My batteries are in port and starboard cabinets tucked up against the transom. Having them in battery boxes would make access a PITA. Just getting them out of the trays is an ordeal due to lack of space
Old 03-07-2020, 06:08 PM
  #17
Admirals Club Admiral's Club Member

Join Date: May 2019
Location: Sturgeon Bay, Wisconsin
Posts: 799
Received 271 Likes on 179 Posts
Default

Originally Posted by K-dawg View Post
Never seen any battery boxes I like. Seems they all bend the cables, stressing the lugs and studs.
Yup
Old 03-07-2020, 06:15 PM
  #18
Senior Member

Join Date: Oct 2014
Location: N.E. CT
Posts: 4,096
Received 1,788 Likes on 891 Posts
Default

Originally Posted by fireisland1 View Post
It is possible gas could collect in the box and boom. I use boxes with the battery is in the weather.
every commercial battery box I have ever seen is vented. Lead acid batteries give off hydrogen gas when they are charged. Hydrogen is lighter than air and float up out of the vented covers.
Likes:
Old 03-07-2020, 06:33 PM
  #19
Senior Member

Join Date: Aug 2009
Location: CT
Posts: 5,971
Received 3,770 Likes on 1,812 Posts
Default

If the battery is in an isolated compartment, designed to hold batteries and nothing else, I have no issue with a tray and the battery being uncovered.

Anywhere else, BATTERY BOX. Would never happen to a THT Hero but for the mortals like me, I can picture something like a forgotten screw driver or other random metal object figuring out a way to somehow get itself from + to - with one end still touching the +.
Old 03-07-2020, 07:58 PM
  #20
Senior Member

Join Date: Sep 2005
Location:
Posts: 1,115
Received 325 Likes on 219 Posts
Default

Battery boxes are designed to prevent water from flooding them, even if submerged. If the boat were flooded (rogue wave, broken thru hull etc), the terminals would remain dry and the battery functional. On a tray, a flooded compartment means no power to motor, vhf, etc. A well designed battery box is a safety feature. I always have all batteries in a strapped down battery box.
