The Boating Forum

bocatech

Old 01-11-2020, 02:36 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2012
Posts: 169
Received 14 Likes on 10 Posts
Default bocatech

Hello, Does anyone have a picture of a converted Everglade 290 pilot to Bocatech switches? Thinking of Changing out my switches.
Old 01-11-2020, 02:39 PM
  #2
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jan 2005
Location: SC
Posts: 13,672
Received 8,973 Likes on 4,811 Posts
Default

Talk to New Wire Marine. They have done a ton of different setups, and may have pics of what you are looking for. Just got in a new dash for my boat a few weeks ago, and couldn't ask for a better transaction/customer service.
Likes:
Old 01-11-2020, 03:30 PM
  #3
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Boston Ma & Cape Cod
Posts: 914
Received 88 Likes on 64 Posts
Default

how's the rewiring process ?....I dashes always look great but then I cringe on wiring them up
Old 01-11-2020, 04:04 PM
  #4
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2012
Posts: 169
Received 14 Likes on 10 Posts
Default

Originally Posted by autobaun70 View Post
Talk to New Wire Marine. They have done a ton of different setups, and may have pics of what you are looking for. Just got in a new dash for my boat a few weeks ago, and couldn't ask for a better transaction/customer service.
Thank you. I will reach out. How was the wiring?
Old 01-11-2020, 05:36 PM
  #5
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jan 2005
Location: SC
Posts: 13,672
Received 8,973 Likes on 4,811 Posts
Default

Originally Posted by vfalcon7 View Post
Thank you. I will reach out. How was the wiring?

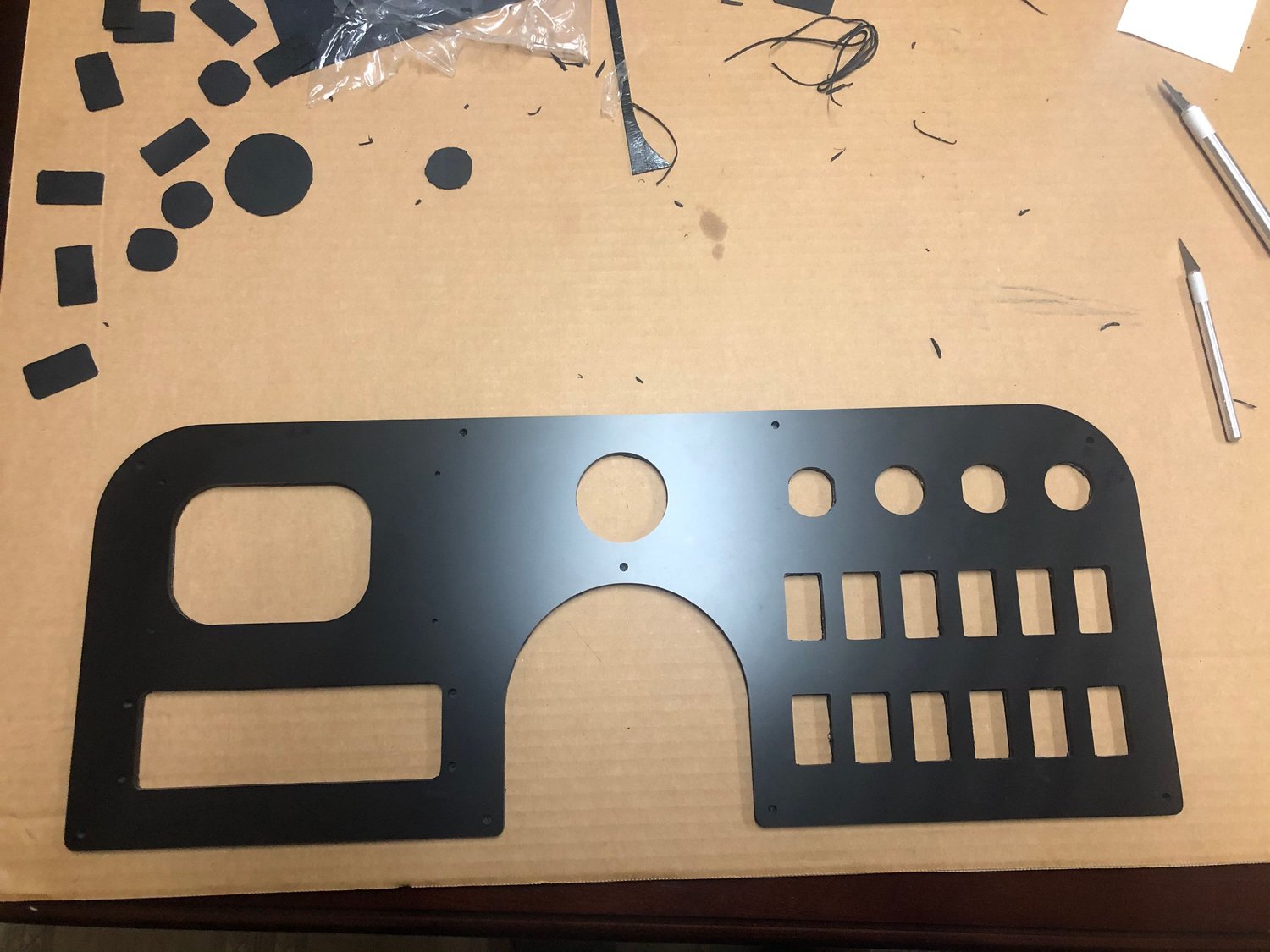

I went unwired on purpose, wanted to do it myself. Part of a much larger project, repowering the boat. Main reason I needed a new panel was to go from an array of individual gauges to a single MFD. Old switches are 20 years old and worn out.

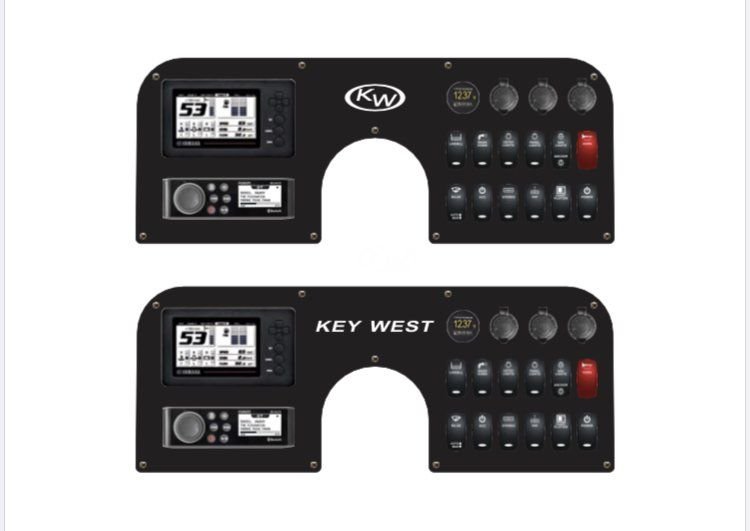

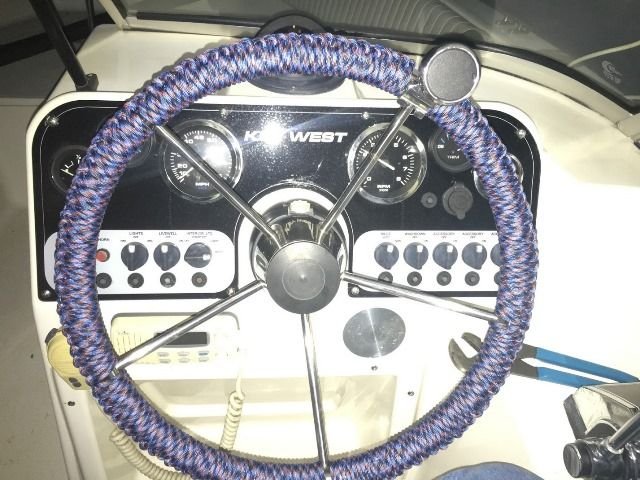

Old dash and artist rendering. I was looking at Bocatech but decided not to go that route just from a $ standpoint, but very happy with the result and New Wire. Only thing I changed between the rendering and the final was to kill the Key West logos and put a cutout there for a Fell Marine kill switch there.







Old 01-11-2020, 07:30 PM
  #6
Senior MemberCaptains Club Member

Join Date: Jul 2006
Location: RI
Posts: 6,862
Received 1,080 Likes on 605 Posts
Default

Originally Posted by kgs365 View Post
how's the rewiring process ?....I dashes always look great but then I cringe on wiring them up
It’s a job. I rewired 20 circuits when switching to bochatech going from breaker switches and added a new terminal bar and bus bar. Terminal bar fed the 20 circuits and bus bar powered the accessories. I also wired the led bezel to be lit when the switch was powered and otherwise off. I laid out my plan, labeled everything and added two mini fuse panels for the powered accessories (mfd, vhf, radar, Sirus, etc) Start to finish was 50 hours give or take and a couple grand in materials the majority of which was the new switches. Did come out nice.
Likes:
Old 01-12-2020, 06:50 AM
  #7
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jan 2005
Location: SC
Posts: 13,672
Received 8,973 Likes on 4,811 Posts
Default

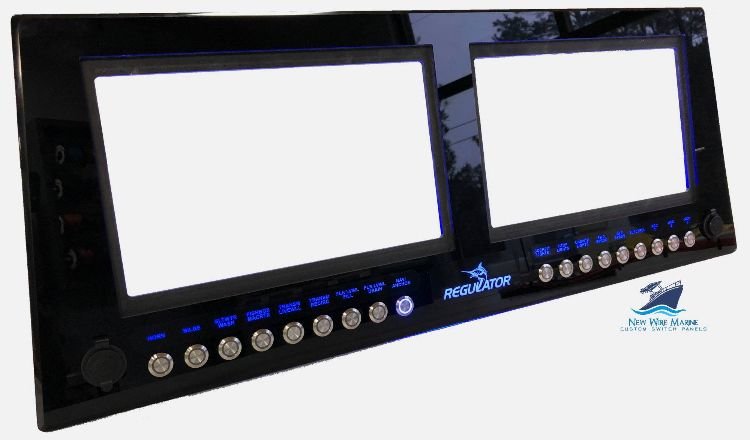

Example from New Wire they posted today.



Old 01-12-2020, 12:46 PM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2012
Posts: 169
Received 14 Likes on 10 Posts
Default

Thank you.
Old 01-12-2020, 06:10 PM
  #9
Senior Member

Join Date: Jun 2018
Posts: 395
Received 118 Likes on 64 Posts
Default

Originally Posted by autobaun70 View Post
Example from New Wire they posted today.


What does something like this typically cost?
Old 01-12-2020, 06:41 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Dec 2005
Location: Palm City, FL
Posts: 803
Received 239 Likes on 111 Posts
Default

Not nearly as much as the actual Bocatech switches...

Here was mine, pretty basic removing the old Contender switch panel, if I recall it ran me $200.


Old 01-12-2020, 06:56 PM
  #11
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2012
Posts: 169
Received 14 Likes on 10 Posts
Default

What kind of switches are the? Did you have to run any relays?
Old 01-12-2020, 07:10 PM
  #12
Admirals Club Admiral's Club Member

Join Date: Dec 2005
Location: Palm City, FL
Posts: 803
Received 239 Likes on 111 Posts
Default

Originally Posted by vfalcon7 View Post
What kind of switches are the? Did you have to run any relays?
The standard Bocatech.

Don’t have any pics of inside console on my phone.

- All switches have their own homerun (+) to a common bus, which is fed off the battery switch (with a circuit breaker between switch and bus)

- Each switch has a negative for the LED ring, which is tied to Common negative bus

- The load side of the switch runs to a terminal block, connecting to the corresponding accessory

- Switches have built if resettable breakers at various stated amp rating (you have to select this based on the accessory)

Wiring was really simple, but took quite a bit of time to route all the wires, heat shrink connections, etc.

Last edited by phigamfsu; 01-13-2020 at 03:55 AM.
Old 01-13-2020, 06:01 AM
  #13
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jan 2005
Location: SC
Posts: 13,672
Received 8,973 Likes on 4,811 Posts
Default

Originally Posted by OliMiami View Post
What does something like this typically cost?
No clue on that. My project was completely different in type and scope, so I won't even attempt to guess. I would recommend sketching out what you are thinking and sending it to sales@newwiremarine.com. They can quickly throw together a overall concept for you and give ballpark pricing. Going to vary quite a bit depending on options and how much of the wiring you wish for them to do for you. Can also go through their website. https://newwiremarine.com/custom-swi...-buyers-guide/

Main thing with them, they had really great communication, and over delivered on every timeline. Absolute pleasure to do business with.
Likes:
Old 01-13-2020, 09:01 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Apr 2010
Location: Jax, FL
Posts: 2,477
Received 1,009 Likes on 503 Posts
Default

Originally Posted by OliMiami View Post
What does something like this typically cost?

A lot, like $1500-2000
Old 01-13-2020, 05:33 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Dec 2005
Location: Palm City, FL
Posts: 803
Received 239 Likes on 111 Posts
Default

The acrylic panel is cheap (ish, relative term). The expensive part is the switches at $85 per.
Old 01-13-2020, 06:50 PM
  #16
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: Galveston
Posts: 727
Received 121 Likes on 68 Posts
Default

We got a quote for 11 or 12 Bocatech switches on a black acrylic panel with a small contender logo, wired with heat shrink and ready to install for a good amount less than $1500-$2k from new wire.
Old 01-13-2020, 08:51 PM
  #17
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2012
Posts: 169
Received 14 Likes on 10 Posts
Default

Originally Posted by WestEnd1 View Post
We got a quote for 11 or 12 Bocatech switches on a black acrylic panel with a small contender logo, wired with heat shrink and ready to install for a good amount less than $1500-$2k from new wire.
where did you get yours from?
Old 01-13-2020, 08:51 PM
  #18
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2012
Posts: 169
Received 14 Likes on 10 Posts
Default

Is there anywhere that sells these cheaper than $85 a switch?
Old 01-13-2020, 08:54 PM
  #19
Senior Member

Join Date: May 2005
Location:
Posts: 1,312
Received 479 Likes on 232 Posts
Default

How about those indicators that go right on the bexel, so you don’t even have to have a panel? Are those Bocatech (or can the indicators be used on Bocatech’s?)
Old 01-14-2020, 04:04 AM
  #20
Admirals Club Admiral's Club Member

Join Date: Jun 2002
Location: Chesapeake, VA
Posts: 179
Likes: 0
Received 27 Likes on 23 Posts
Default

Originally Posted by vfalcon7 View Post
Is there anywhere that sells these cheaper than $85 a switch?
I believe they are $65 at the BOCATECH web site, but well worth it. especially when you consider that the breaker is self contained and the wiring is potted in to the switch. Apart from eliminating the need for a separate circuit breaker or fuse, the self contained breaker eliminates additional wiring and two connectors per switch. The potted wiring eliminates a source of corrosion and four connectors per switch.
