Outboard stand for bigger outboards (150+)

Notices
The Boating Forum

Outboard stand for bigger outboards (150+)

Old 12-04-2019, 09:51 AM
  #1
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Jan 2005
Location: Suburb of Sugar Tit SC
Posts: 14,139
Received 9,166 Likes on 4,937 Posts
Default Outboard stand for bigger outboards (150+)

Anyone have plans for one. Looking for something easy to move around with a forklift. Needs to be fairly open as I will be painting the motor with it on the stand. I see a ton out there for portables, but nothing for a 450 - 500lb motor.
Old 12-04-2019, 09:52 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 16,771
Received 2,647 Likes on 1,890 Posts
Default

build one?
Old 12-04-2019, 09:57 AM
  #3
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Jan 2005
Location: Suburb of Sugar Tit SC
Posts: 14,139
Received 9,166 Likes on 4,937 Posts
Default

Originally Posted by mystery View Post
build one?
Thinking I can do something out of wood, just seeking plans or a cut sheet if anyone has done one before for the sake of saving time. I have one sitting at work that is for smaller motors I could probably modify, but it's a bit too short. May just modify it a bit.



Old 12-04-2019, 10:00 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Dec 2009
Posts: 1,079
Received 108 Likes on 80 Posts
Default

Stop in at any boat dealer. The new motors all come on stands that are meant to be moved with a fork lift. Im sure they just throw them away.
Old 12-04-2019, 10:30 AM
  #5
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Jan 2005
Location: Suburb of Sugar Tit SC
Posts: 14,139
Received 9,166 Likes on 4,937 Posts
Default

Originally Posted by HighTechRedneck View Post
Stop in at any boat dealer. The new motors all come on stands that are meant to be moved with a fork lift. Im sure they just throw them away.

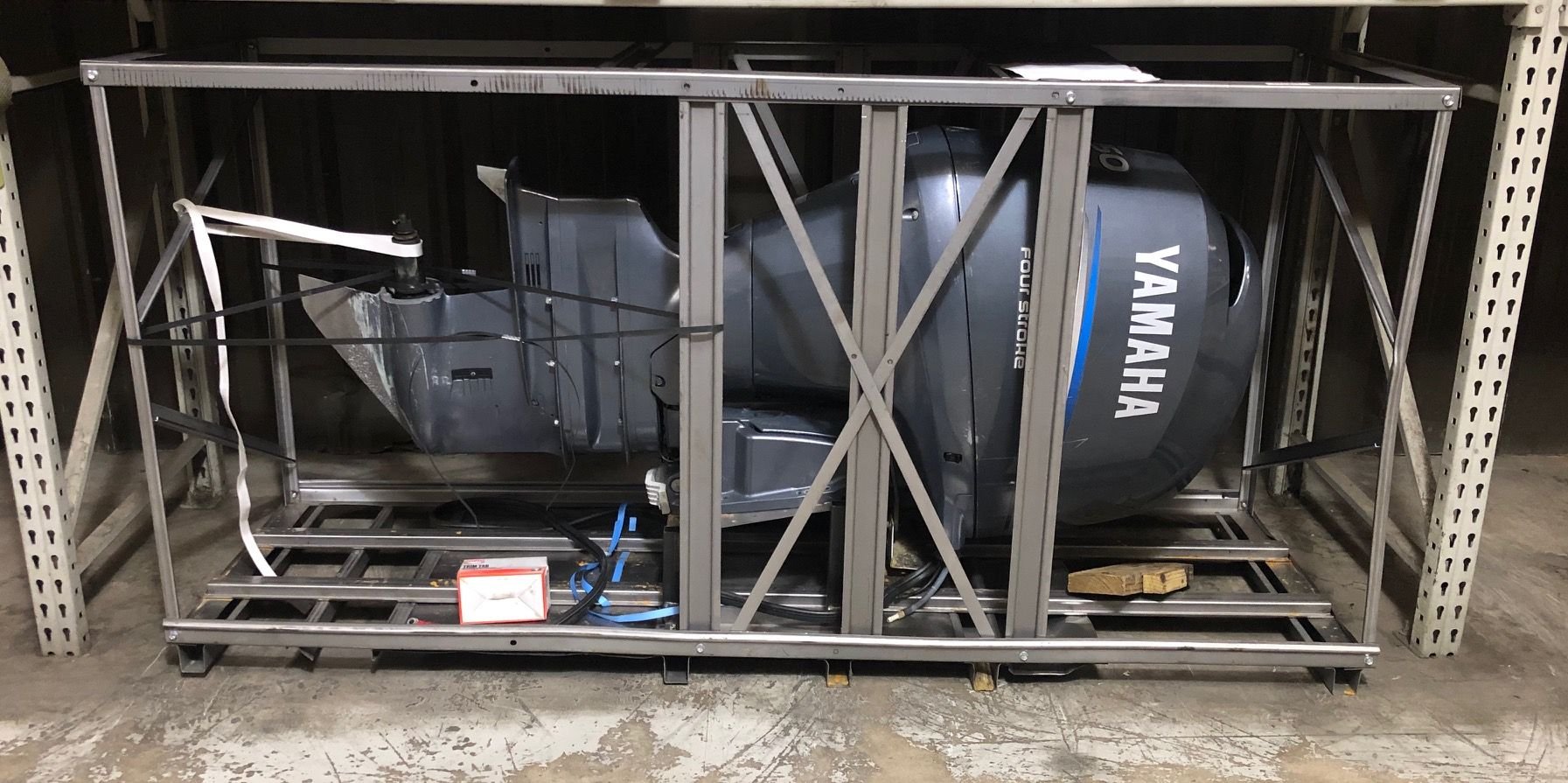

It's sitting on a factory Yamaha crate currently. Those sit horizontally, and don't have space to tilt the motor away from the mounting bracket. Need it to be able to stand up and tilt the motor while its on the stand so I can get to the entire lower unit to paint it.





Old 12-04-2019, 10:52 AM
  #6
Senior Member

Join Date: Jul 2016
Location: Perth WA
Posts: 2,917
Received 623 Likes on 389 Posts
Default

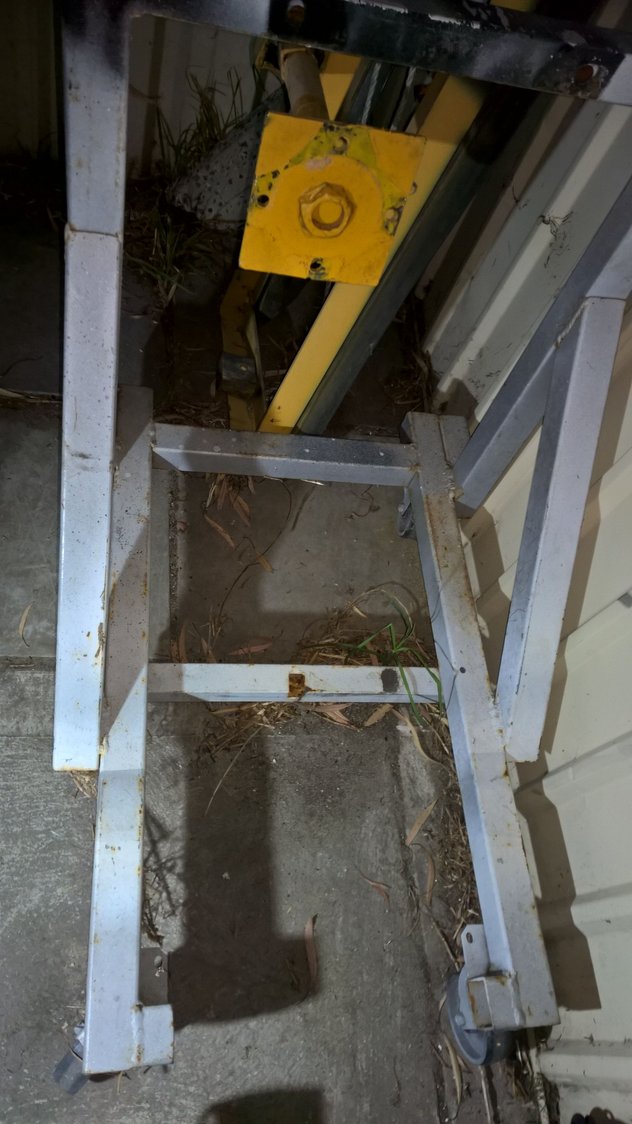

i hang 250 4 strokes off these , they take about an hour to build.
made from 50x50 x 1mm box ,

its a bit sketchy when i trim a 30" 250 four stoke too high but i know the point where its starting to get a bit wobbly.

they wheel easy on the casters , use quality ones not cheap shit .

PM me and i will get some measurements if you want.


Last edited by 1breakinit; 12-04-2019 at 10:59 AM.
Likes:
Old 12-04-2019, 11:12 AM
  #7
Admirals Club Admiral's Club Member

Join Date: Sep 2019
Location: NE FL
Posts: 610
Received 414 Likes on 212 Posts
Default

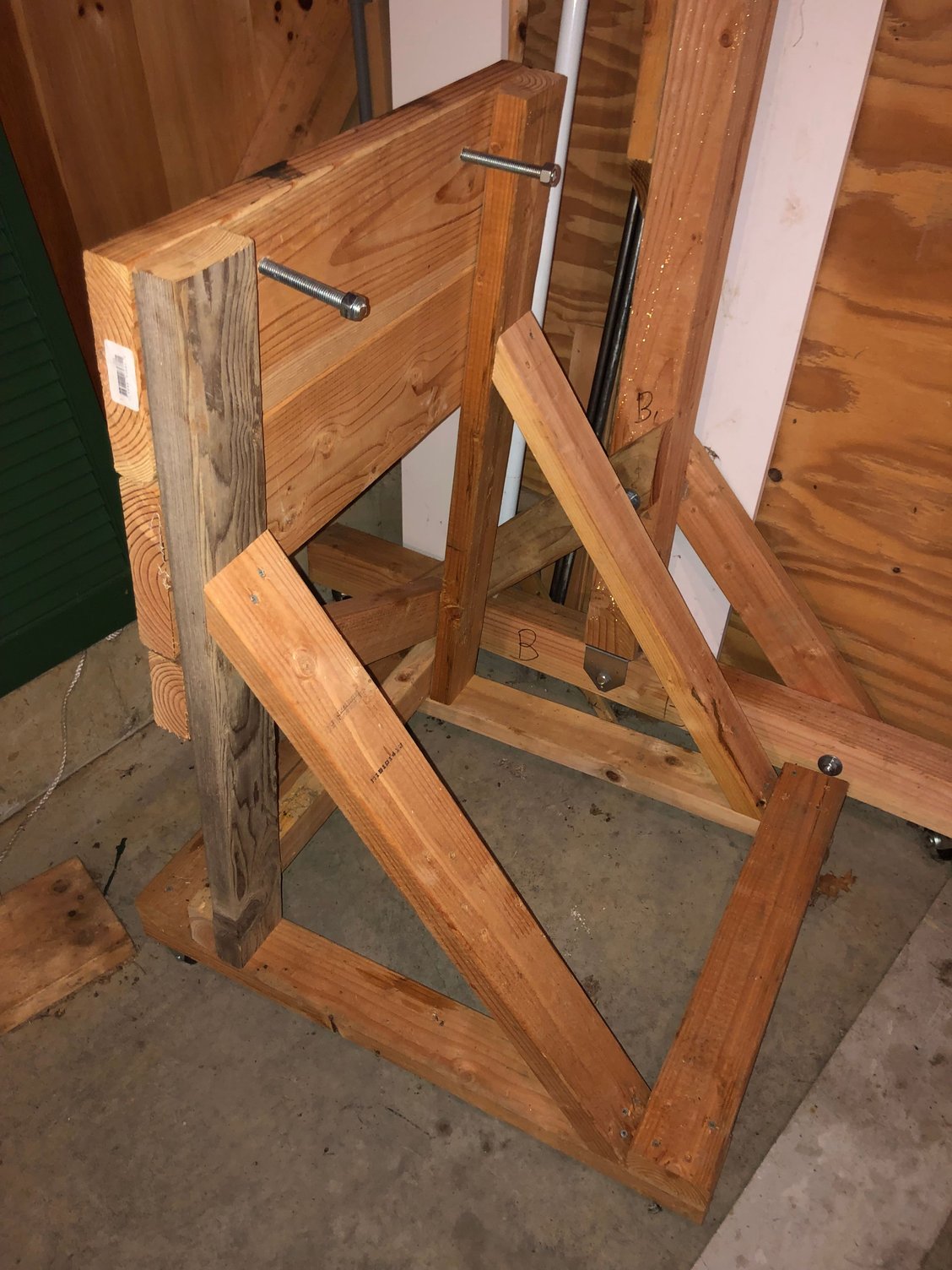

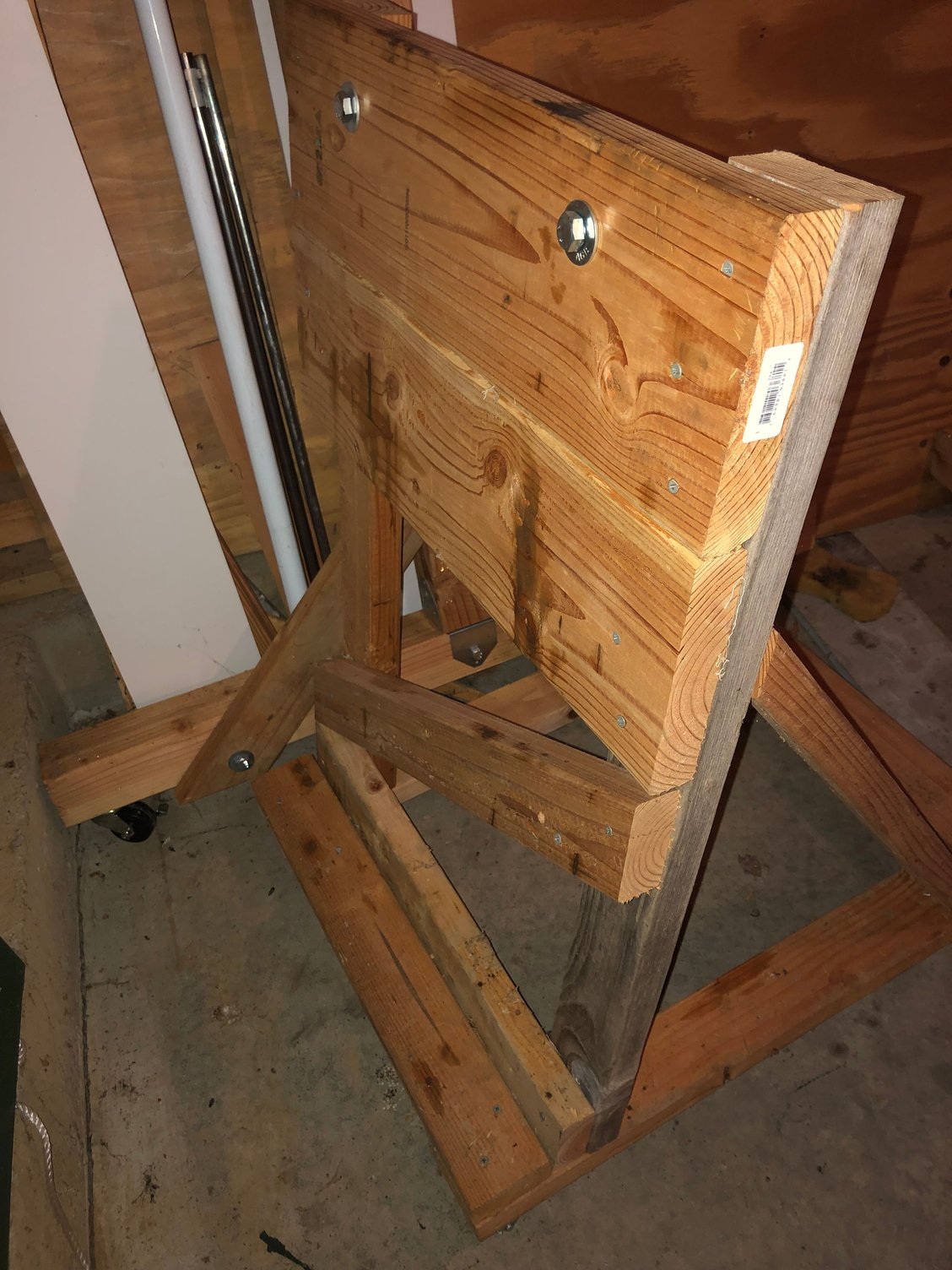

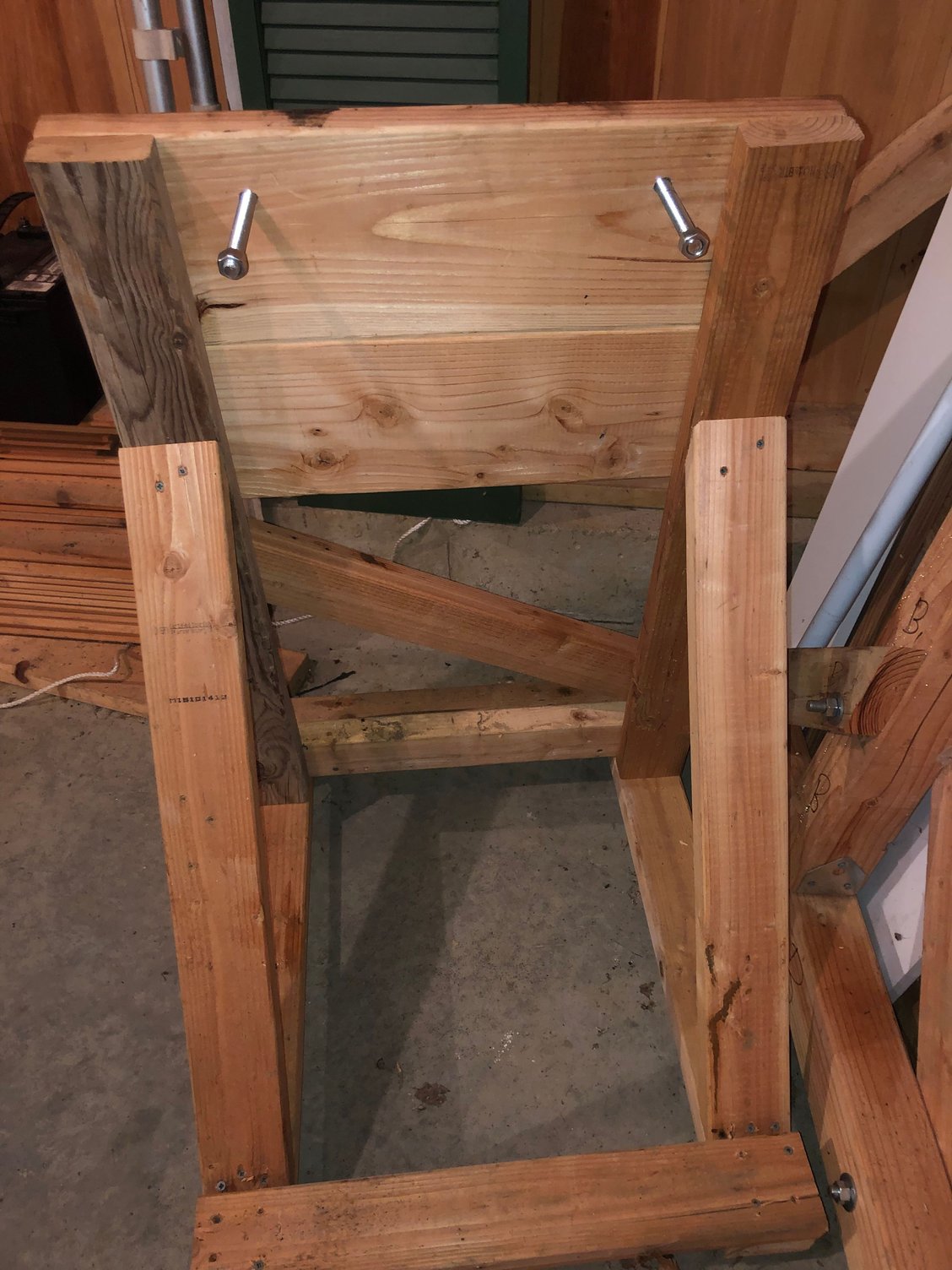

I made this out of scrap wood for a 200. Rock solid but I did end up buying castors to move it around the shop easily.






Old 12-04-2019, 12:02 PM
  #8
Senior Member

Join Date: Sep 2012
Location: Bonita Springs, Florida
Posts: 974
Received 618 Likes on 362 Posts
Default

Originally Posted by Lifeislarge View Post
I made this out of scrap wood for a 200. Rock solid but I did end up buying castors to move it around the shop easily.





I made one almost exactly like this one, casters and all..... It worked on my Ox66 225s
Likes:
Old 12-04-2019, 01:53 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Aug 2018
Posts: 267
Received 30 Likes on 24 Posts
Default

Harbor Freight engine stand like for a car worked perfectly for my 225 Mercury.

Old 12-04-2019, 01:57 PM
  #10
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Jan 2005
Location: Suburb of Sugar Tit SC
Posts: 14,139
Received 9,166 Likes on 4,937 Posts
Default

Originally Posted by Lvnspeed View Post
Harbor Freight engine stand like for a car worked perfectly for my 225 Mercury.
hadnt thought about that. I think I have an engine stand somewhere.
Old 12-04-2019, 01:58 PM
  #11
Admirals Club Admiral's Club Member

Join Date: Aug 2018
Posts: 267
Received 30 Likes on 24 Posts
Default

^^^^^ that's why I used it I had it laying around.
Old 12-04-2019, 02:00 PM
  #12
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Jan 2005
Location: Suburb of Sugar Tit SC
Posts: 14,139
Received 9,166 Likes on 4,937 Posts
Default

Originally Posted by Lvnspeed View Post
^^^^^ that's why I used it I had it laying around.
now I just have to find the thing. Used it to rebuild a Pontiac 400 back around 2004 or so, and have no clue where I put the thing. I’m sure it’s in one shed or another down at the farm.
Old 12-04-2019, 02:28 PM
  #13
Senior MemberCaptains Club Member

Join Date: Dec 2004
Posts: 2,642
Received 200 Likes on 137 Posts
Default

Originally Posted by EMC Pursuit View Post
I made one almost exactly like this one, casters and all..... It worked on my Ox66 225s

Ditto, only difference I bolted mine together so I can dissemble and store away.
Likes:
Old 12-04-2019, 03:47 PM
  #14
Admirals Club Admiral's Club Member

Join Date: Apr 2008
Location: Annapolis, MD
Posts: 996
Received 358 Likes on 193 Posts
Default

Build one out of pressure treated 2x4 and 4x4, with a 2x12 mounting board like the one in post #7. I made a similar one and found if you angle the vertical component that the 2x12 is mounted about 5 degrees back towards the engine, tilting the engine up will not de-stable the stand. And use 3" diameter urethane caster wheels. I have a spare OX66 250 that I can roll around with one hand. Cheap, easy, solid...
Old 12-04-2019, 04:15 PM
  #15
Senior MemberCaptains Club Member

Join Date: Oct 2003
Posts: 7,672
Received 590 Likes on 384 Posts
Default

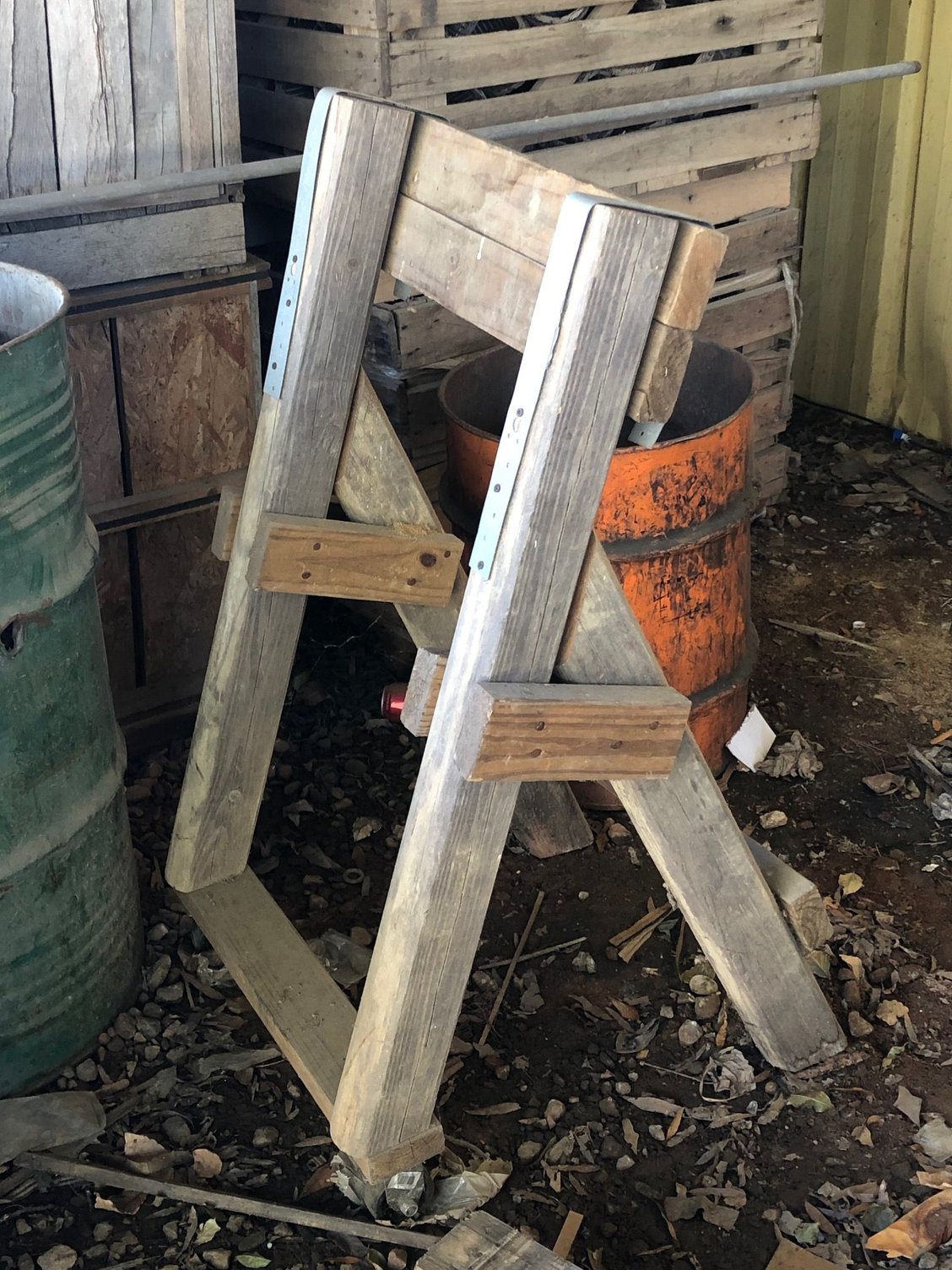

This one was built in a couple of hours out of scrap wood to hold a 250 lb 3 cylinder 2-stroke with a 20 inch leg. I'm sure it can hold more weight but would be too short for a 25 inch shaft.



Old 12-04-2019, 04:40 PM
  #16
Senior Member

Join Date: Dec 2009
Location: Western Australia
Posts: 345
Received 187 Likes on 119 Posts
Default

You could also use a auto motive engine lift by using the factory eye bolt in the top of the motor, then you’ll have 360• access to paint.
Old 12-04-2019, 09:04 PM
  #17
Admirals Club Admiral's Club Member

Join Date: Jan 2017
Posts: 1,367
Received 392 Likes on 235 Posts
Default

Originally Posted by Lvnspeed View Post
Harbor Freight engine stand like for a car worked perfectly for my 225 Mercury.
Good thinking
Old 12-04-2019, 09:28 PM
  #18
Senior MemberCaptains Club Member

Join Date: Aug 2002
Location: Onset, MA
Posts: 4,692
Received 390 Likes on 258 Posts
Default

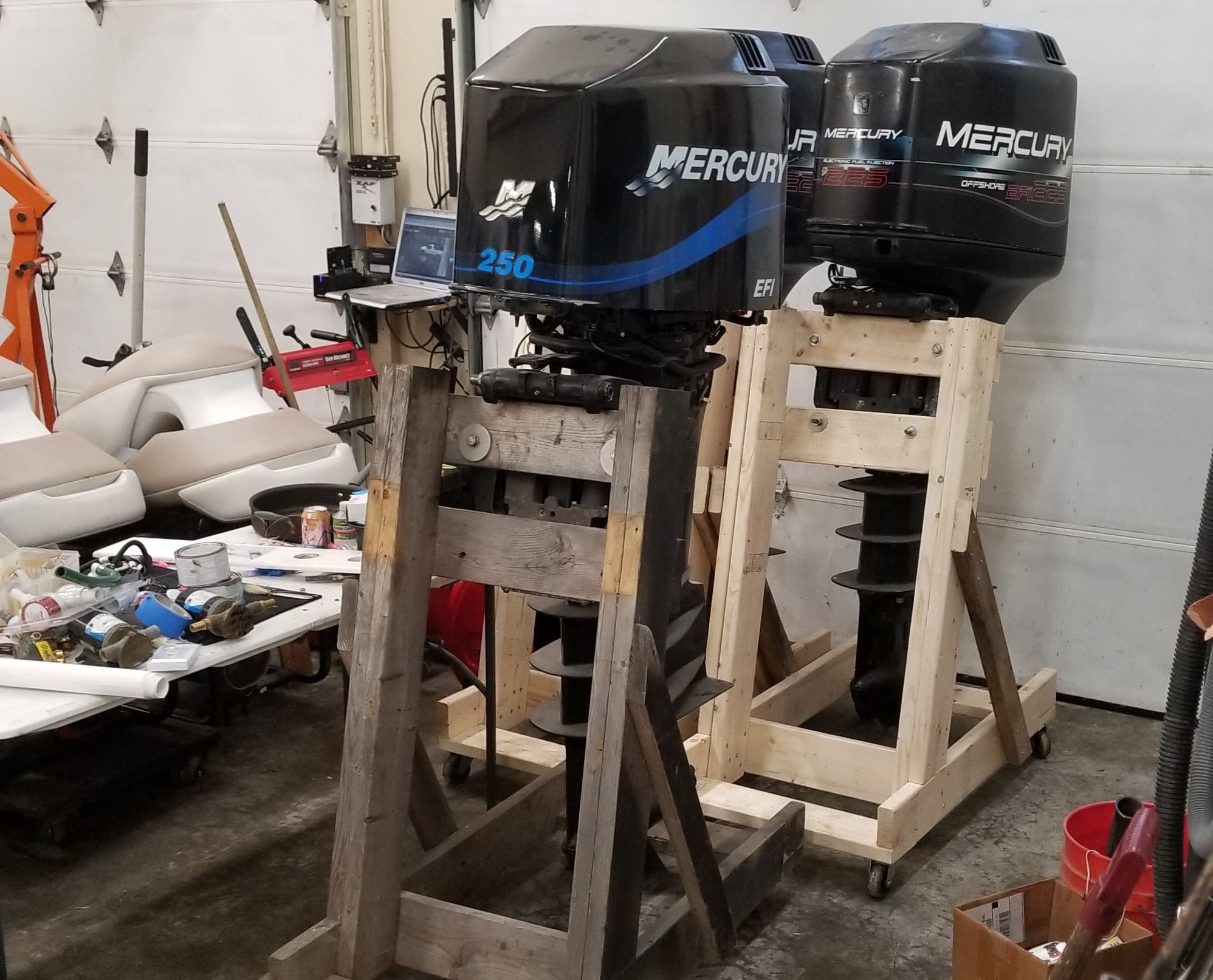

These are easy to build and you can wheel them outside to fire up the motors.
