Boat radar arch build thread

Old 11-29-2019, 08:24 AM
  #1
Senior Member
Thread Starter

Join Date: May 2015
Posts: 889
Likes: 0
Received 176 Likes on 97 Posts
Default Boat radar arch build thread

Anyone interested in a boat arch build thread ? I was gonna do a video but got a bit lazy. Do have pics though and its still a work in progress.

Likes:
Old 11-29-2019, 09:26 AM
  #2
SVG
Junior Member

Join Date: Jan 2019
Location: MT
Posts: 26
Received 22 Likes on 11 Posts
Default

I'd like to see it.
Likes:
Old 11-29-2019, 10:19 AM
  #3
Admirals Club Admiral's Club Member

Join Date: Apr 2016
Location: Little Rock, AR
Posts: 16
Received 3 Likes on 2 Posts
Default

Same here. I'd like to see it too.
Likes:
Old 11-29-2019, 10:23 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,612
Received 1,141 Likes on 594 Posts
Default

I am in for it. Would be good
Likes:
Old 11-29-2019, 10:39 AM
  #5
Member

Join Date: Jan 2018
Posts: 58
Received 10 Likes on 3 Posts
Default

I’m in, pipe or fiberglass?
Old 11-29-2019, 11:27 AM
  #6
Senior Member
Thread Starter

Join Date: May 2015
Posts: 889
Likes: 0
Received 176 Likes on 97 Posts
Default

ok since there is some interest.
it will be all aluminum powder coated welded pipes and some flat sections. since im redoing my electronic stack anyway, it will house the power/data/video distribution for the boat. halo 20+ radar up top, consolidated network via ethernet, forwardscan sonar pass thru and some other night vision/searchlight stuff etc.
also plan to put some stuff to hold fishing rods and crab traps and a mosquito net for the boat.
.
Old 11-29-2019, 11:43 AM
  #7
Senior Member

Join Date: Apr 2013
Location: Sandy Hook Area, NJ
Posts: 488
Received 189 Likes on 126 Posts
Default

How much interest do you need before you post up some of those pictures you said you had in your OP? Are you going to make us beg? If YOU think they are worthwhile then post them up.
Old 11-30-2019, 08:06 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Jun 2011
Posts: 898
Likes: 0
Received 158 Likes on 63 Posts
Default

Just a piece of advice FWIW. Use Awl-Grip (or similar paint), not Powder Coat. I had an arch for many years with Awl-Grip. repainted once in 30 years and looks great. When I decided to install a hard top, I researched Awl-Grip VS Powder Coat. Several good tower shops recommended AGAINST Powder COat & offered to show me some T-Tops & Arches, & Towers with failed Powder Coat. One guy had a big pile of stuff with failed powder coat that was 2-4 years old and was warranty replaced from a well known high-end builder.

So we went with Awl_grip coating for a bit more money. Used same color as boat so I can touch up from same can. We are 3 years on this top and no flaws in paint anywhere. I did chip it a couple times with a rod butt & was easy touch up.

Just my $.02.




Old 11-30-2019, 09:24 AM
  #9
Senior Member

Join Date: Apr 2015
Location: Northern British Columbia
Posts: 1,342
Received 204 Likes on 141 Posts
Default

We did a bunch of custom aluminum pipe and checker plate work with on our boat as well. Arch, swim platform and ER covers. It's nice to be able to fit it to the boats lines and contours.
Old 11-30-2019, 03:16 PM
  #10
Admirals Club Admiral's Club Member

Join Date: May 2007
Location: Pensacola FL
Posts: 65
Received 30 Likes on 15 Posts
Default

Send it!
Old 12-01-2019, 02:22 PM
  #11
Senior Member
Thread Starter

Join Date: May 2015
Posts: 889
Likes: 0
Received 176 Likes on 97 Posts
Default

Day 1:

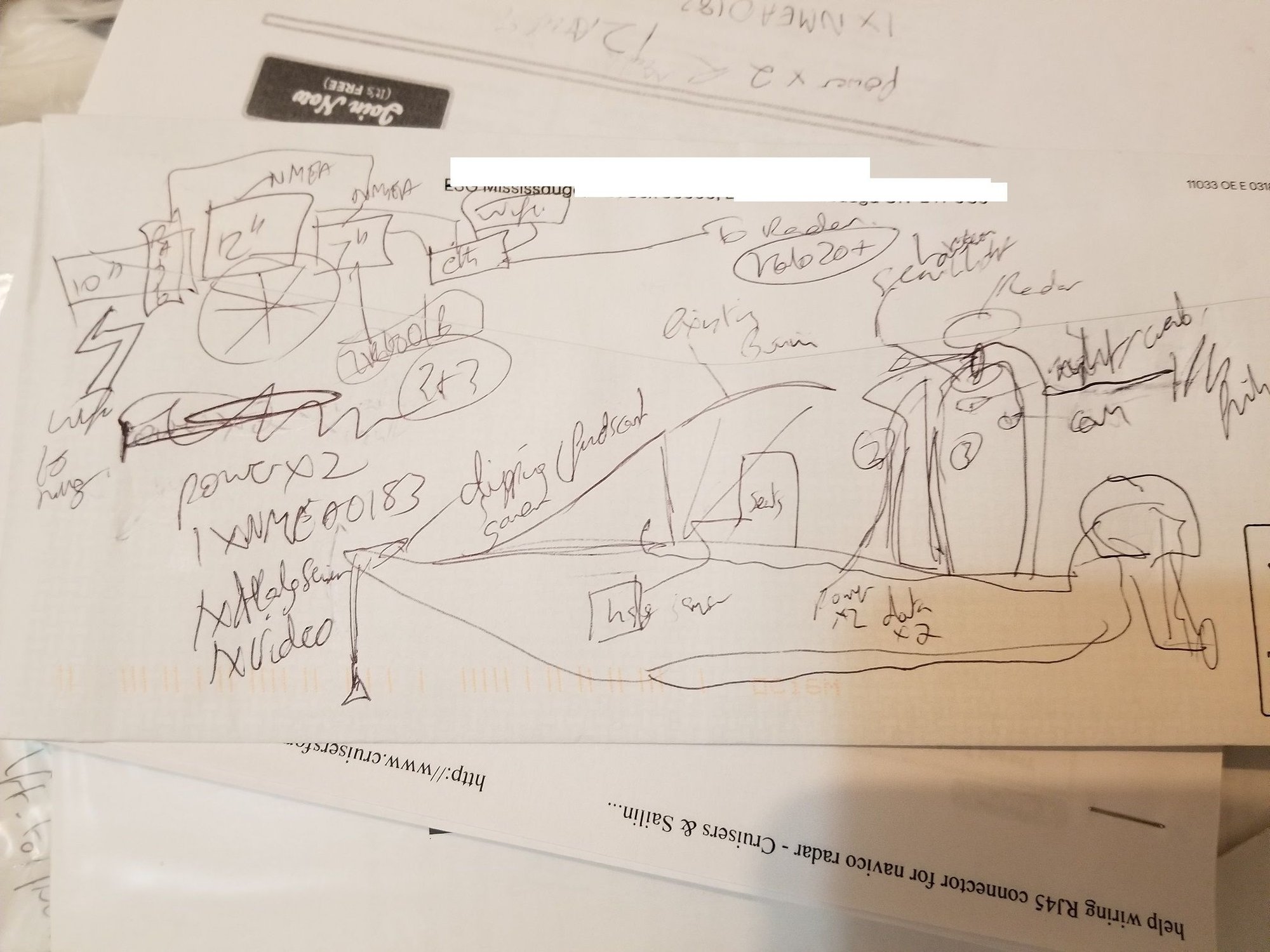

Literal back of the envelope sketching for all the parts in the project. Front will be the dipping sonar, 6 wires through the arch pipes.


Back of the envelope

Likes:
Old 12-01-2019, 02:35 PM
  #12
Senior Member

Lprizman's Avatar

Join Date: May 2009
Location: Rhode island
Posts: 6,914
Received 4,737 Likes on 2,096 Posts
Default

I'm in!!
Old 12-01-2019, 03:58 PM
  #13
Admirals Club Admiral's Club Member

Join Date: Apr 2009
Location: Florida
Posts: 18,028
Received 2,811 Likes on 1,521 Posts
Default

Why not.
In.
Old 12-01-2019, 04:30 PM
  #14
Senior MemberCaptains Club Member

Join Date: Feb 2005
Location: Falmouth, MA
Posts: 6,080
Received 614 Likes on 387 Posts
Default

if it's going to be anything like you're electronics install thread, I'm in!
Old 12-01-2019, 05:43 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,612
Received 1,141 Likes on 594 Posts
Default

Sounds good. Got my support.
Old 12-02-2019, 09:25 PM
  #16
Senior Member
Thread Starter

Join Date: May 2015
Posts: 889
Likes: 0
Received 176 Likes on 97 Posts
Default

Day 2 :
Better drawing of final arch design Radar is actually a halo 20+ now. :


Fired up the old CNC machine for cutting 1" thick aluminum for the transducer for the dipping sonar arm :

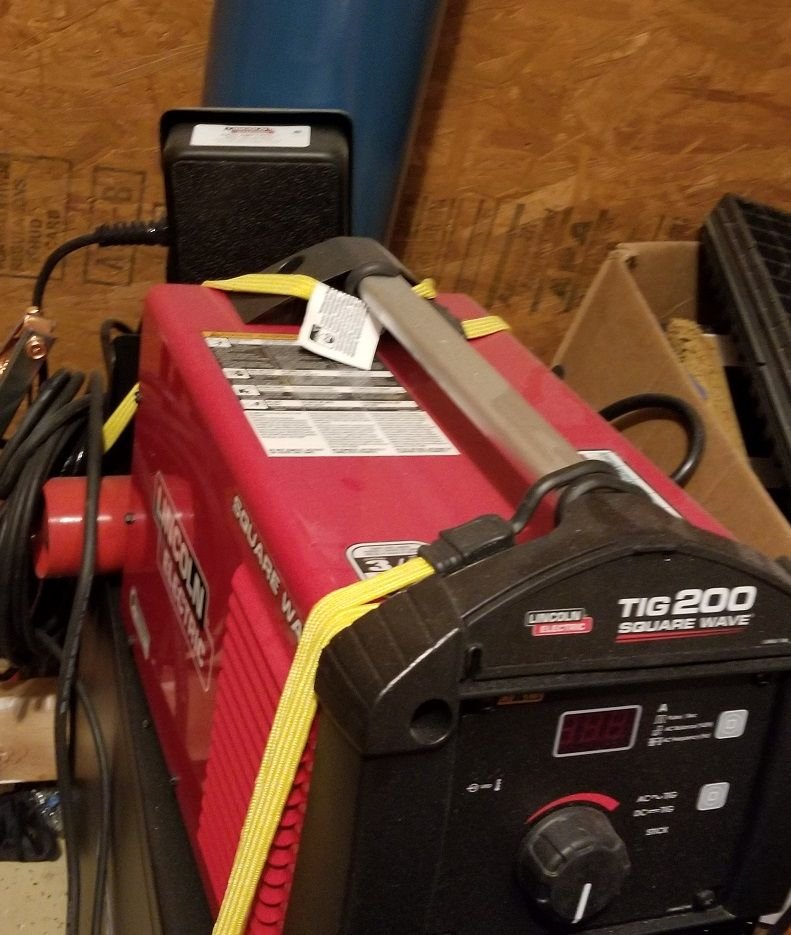

Fired up the old welder :


Ordered stuff from St. Martin off a disused sailboat to get some of the components cheap :

Likes:
Old 12-03-2019, 01:21 PM
  #17
Senior Member
Thread Starter

Join Date: May 2015
Posts: 889
Likes: 0
Received 176 Likes on 97 Posts
Default

Day 3:
Some of the parts arrived :


Welded arch to match drawing and sent off for powder coating. 32 lbs of aluminum pipe/mesh etc used :




Old 12-03-2019, 01:39 PM
  #18
Senior Member

Join Date: Apr 2013
Location: Sandy Hook Area, NJ
Posts: 488
Received 189 Likes on 126 Posts
Default

Looking good so far!
Likes:
Old 12-03-2019, 06:06 PM
  #19
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,612
Received 1,141 Likes on 594 Posts
Default

Nice start.
Likes:
Old 12-03-2019, 07:26 PM
  #20
Member

Join Date: May 2016
Location: CW, FL
Posts: 93
Received 17 Likes on 12 Posts
Default

What type of bender did you use?
