Cayo Boatworks 264 HC Build Thread

Old 10-30-2019, 08:08 AM
  #1
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Dallas, TX
Posts: 1,673
Received 848 Likes on 419 Posts
Default Cayo Boatworks 264 HC Build Thread

Build Sheet
Stars and Stripes Hull with Matterhorn white cap and liner

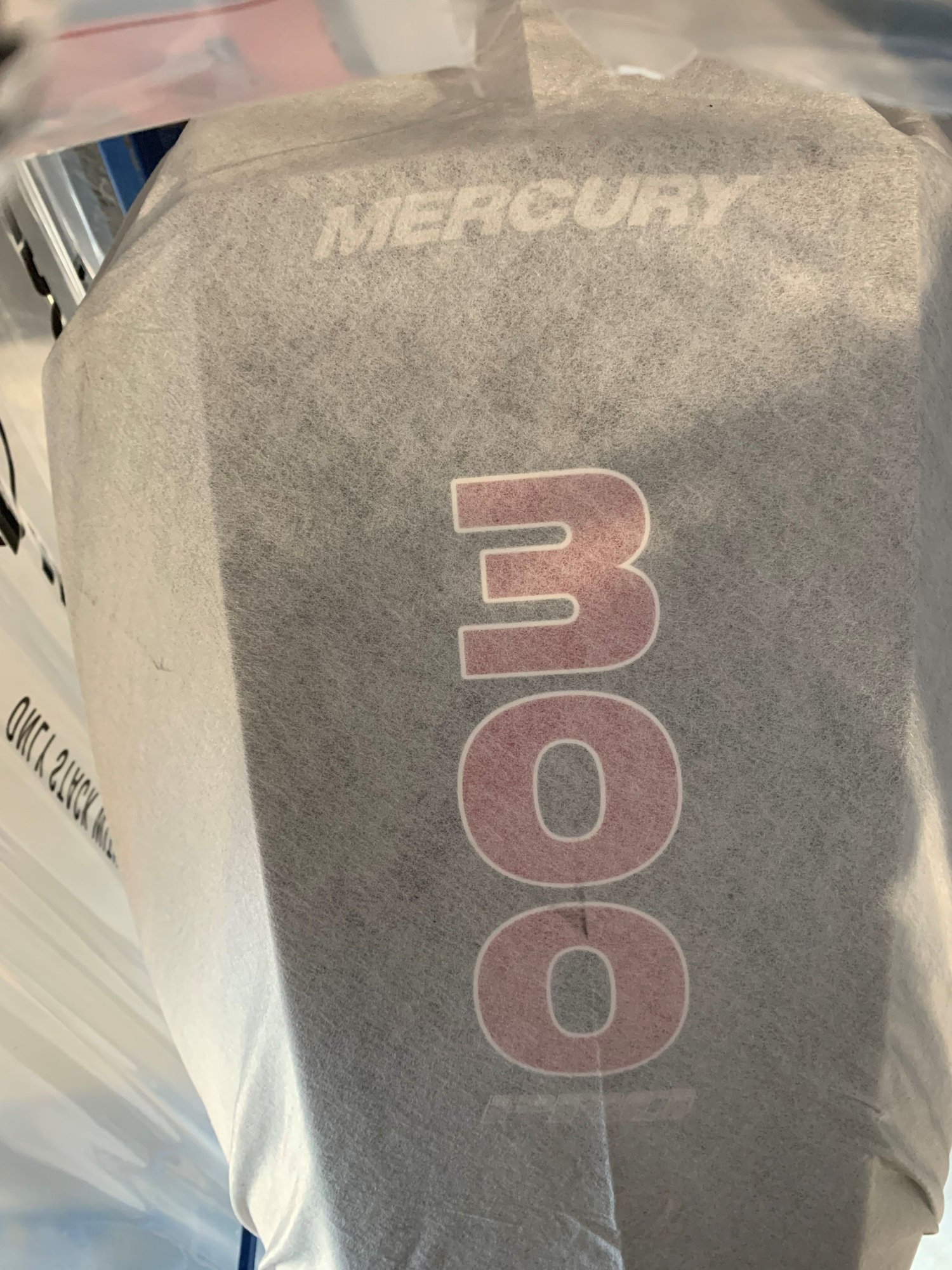

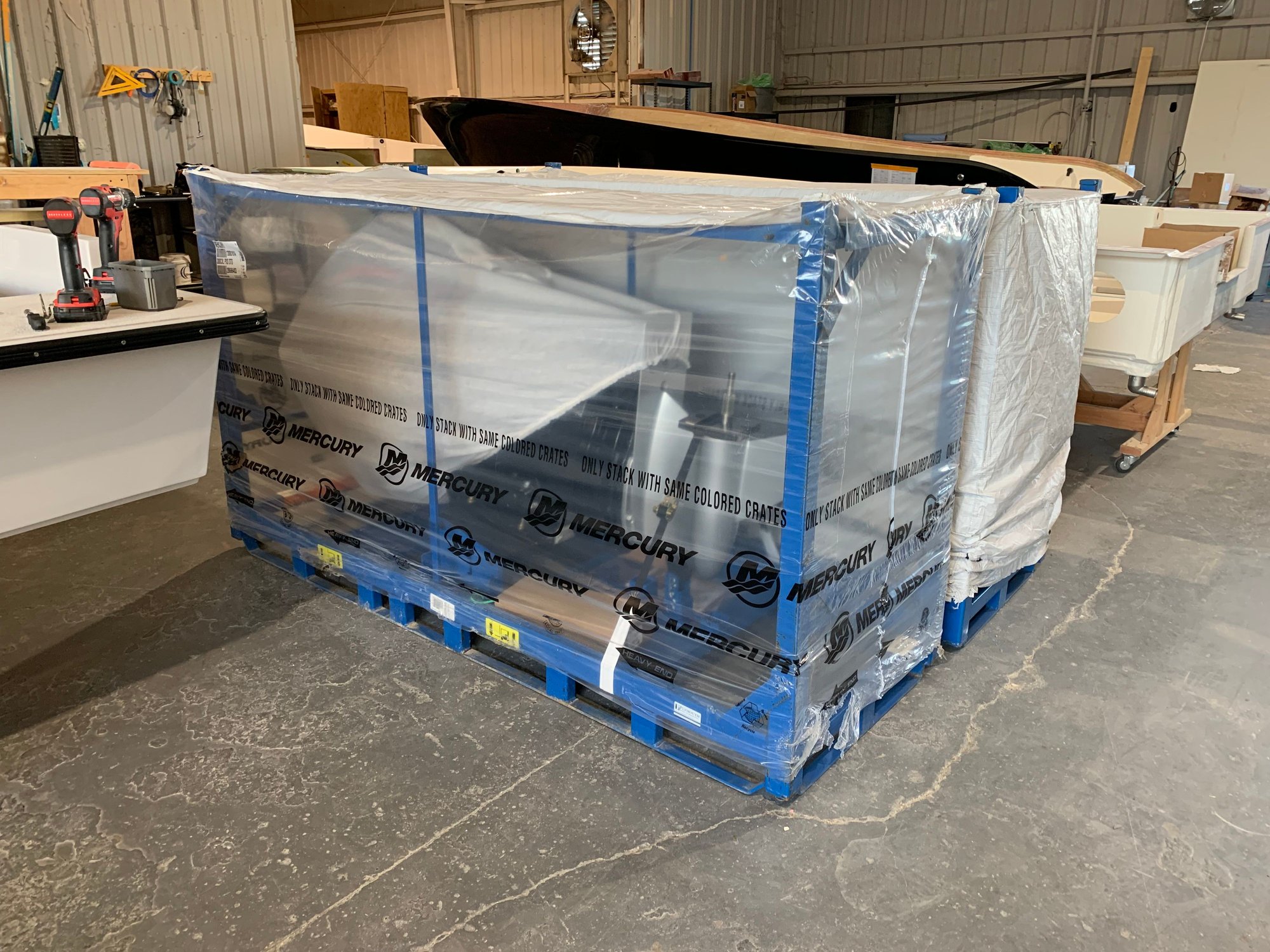

Twin Mercury 300 Pro XS
Optimus Steering
6" setback SeaStar jack plates
Twin 12' Talons Talons will not fit on the sponsons so going with 10ft PowerPoles
Twin 12" Simrad NSS Evo 3 MFDs
B175HW, B175L and Total Scan Transducers
Black LineX Ultra on metal work
Onboard chargers for all batteries
Premium Audio Package - (4) 6.5 M6, (6) 8.8 M6, (2) 10" M6 Subs, 8 channel 800 amp, sub amp, media master 101 Head Unit and separate battery
Custom Tackle Station
Hard Top with Stars and Stripes lower and Matterhorn Upper
Extra Row of 4 rocket launchers on back legs of top
Under gunnel lights
white LED lights in all compartments
(2) Blue/White under water lights
Combing Bolsters about half way back from the front
SeaChest with 3 pumps Going without a sea chest, Cayo's new high speed pickup doesn't seem to need one.
VHF with 4' Antenna
72" Motorguide Xi5 with Gateway to Simrad link
Simrad Halo 24 Radar
(4) extra Gemlux HD 30 degree rod holders in gunnels
LED Light bar on TTop.
LineX Keel Protectors for beaching (Black) Cant make this work. Going to have Hamby's keel protectors installed locally
Ameritrail Trailer with spare hub and wheel and electric over hydraulic brakes




Ponies

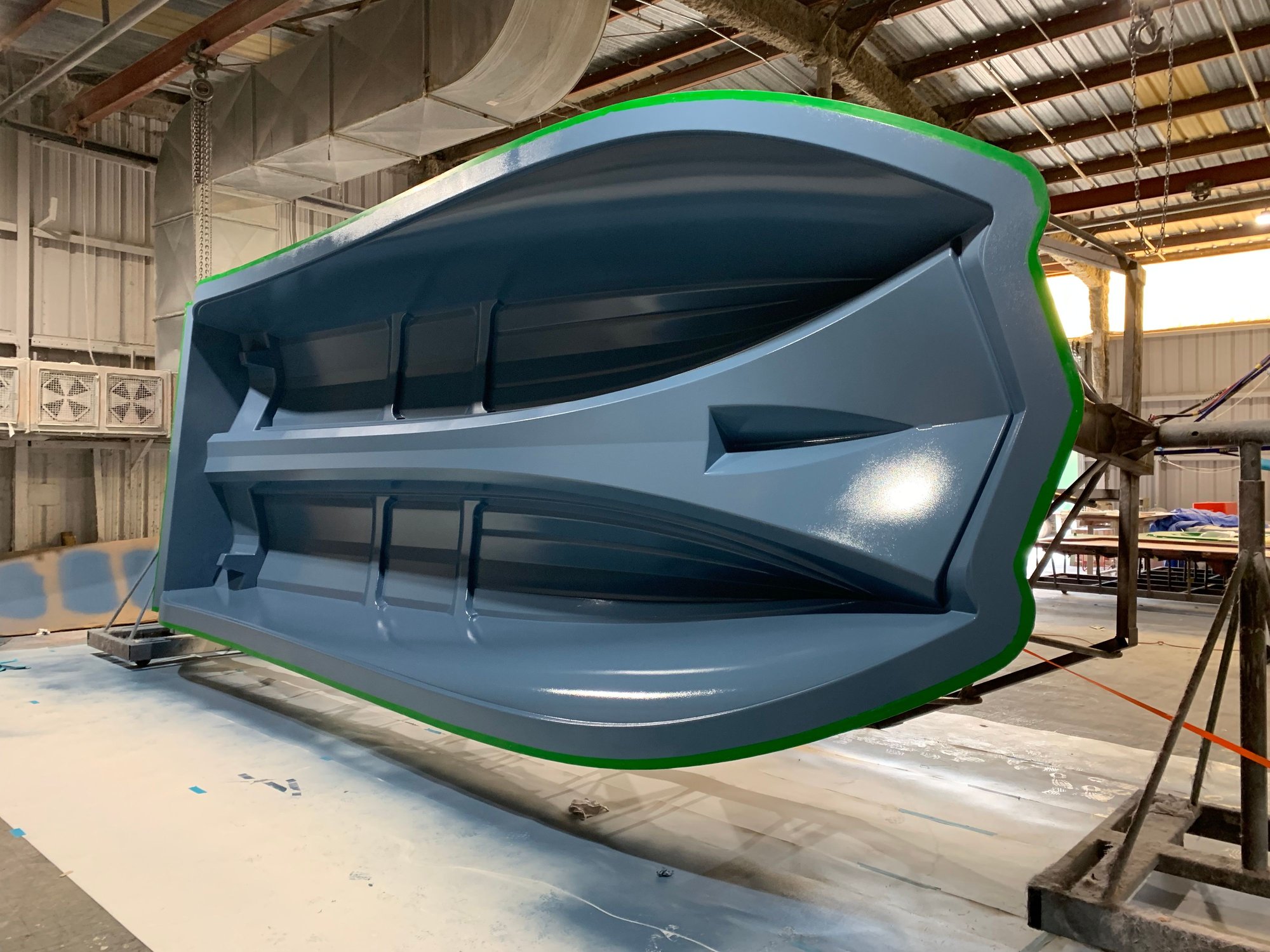

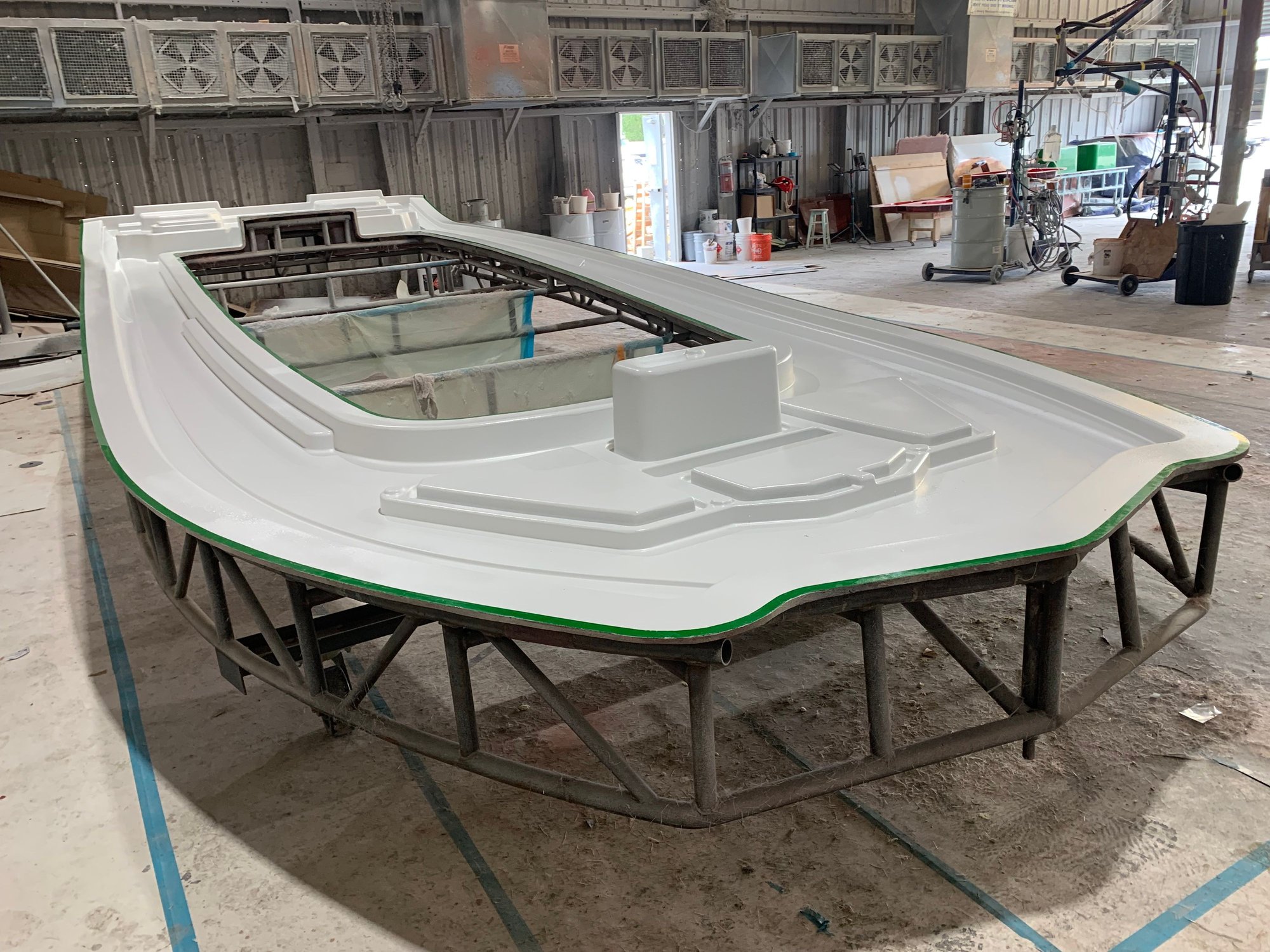

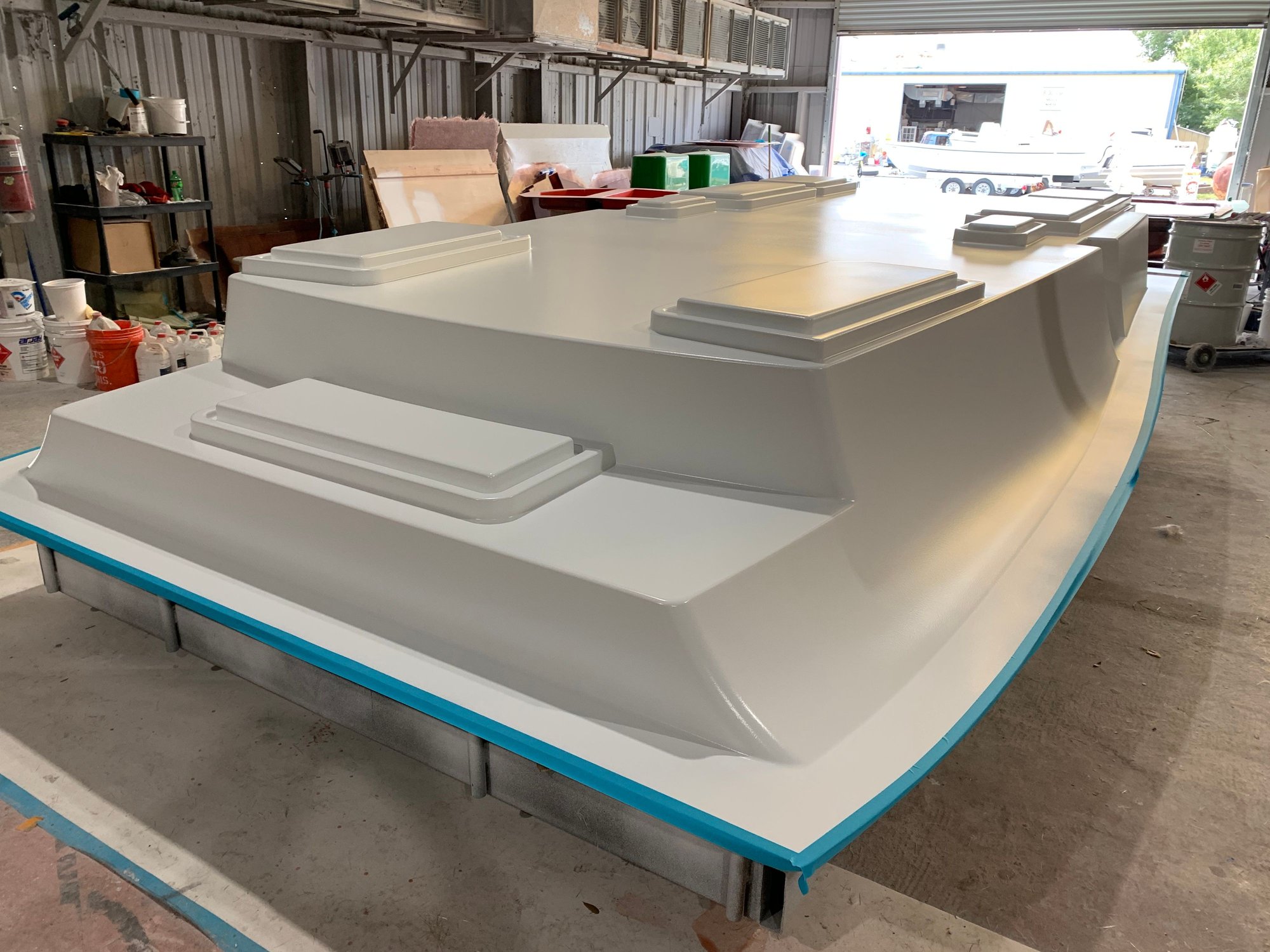

Gel Sprayed

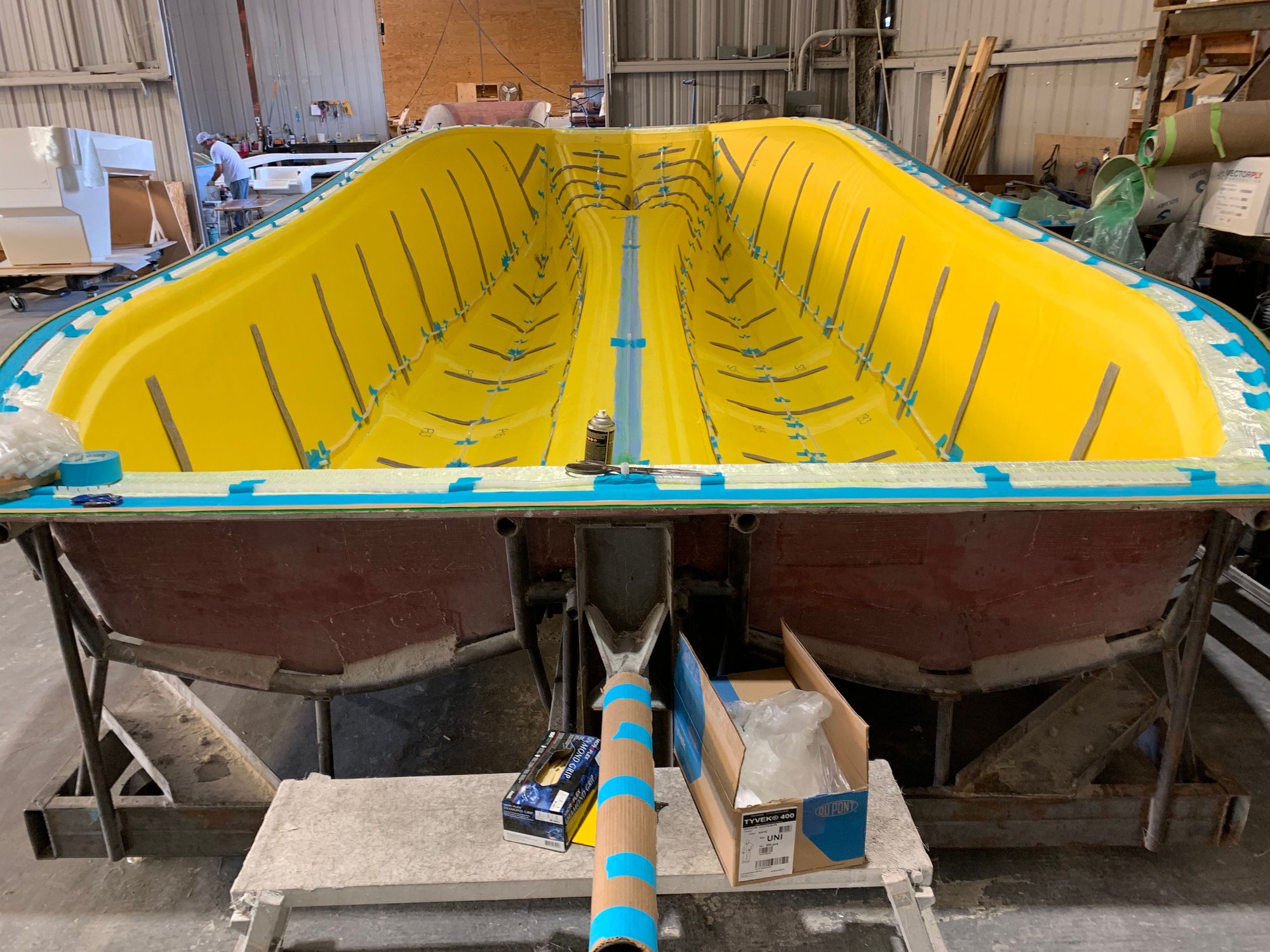

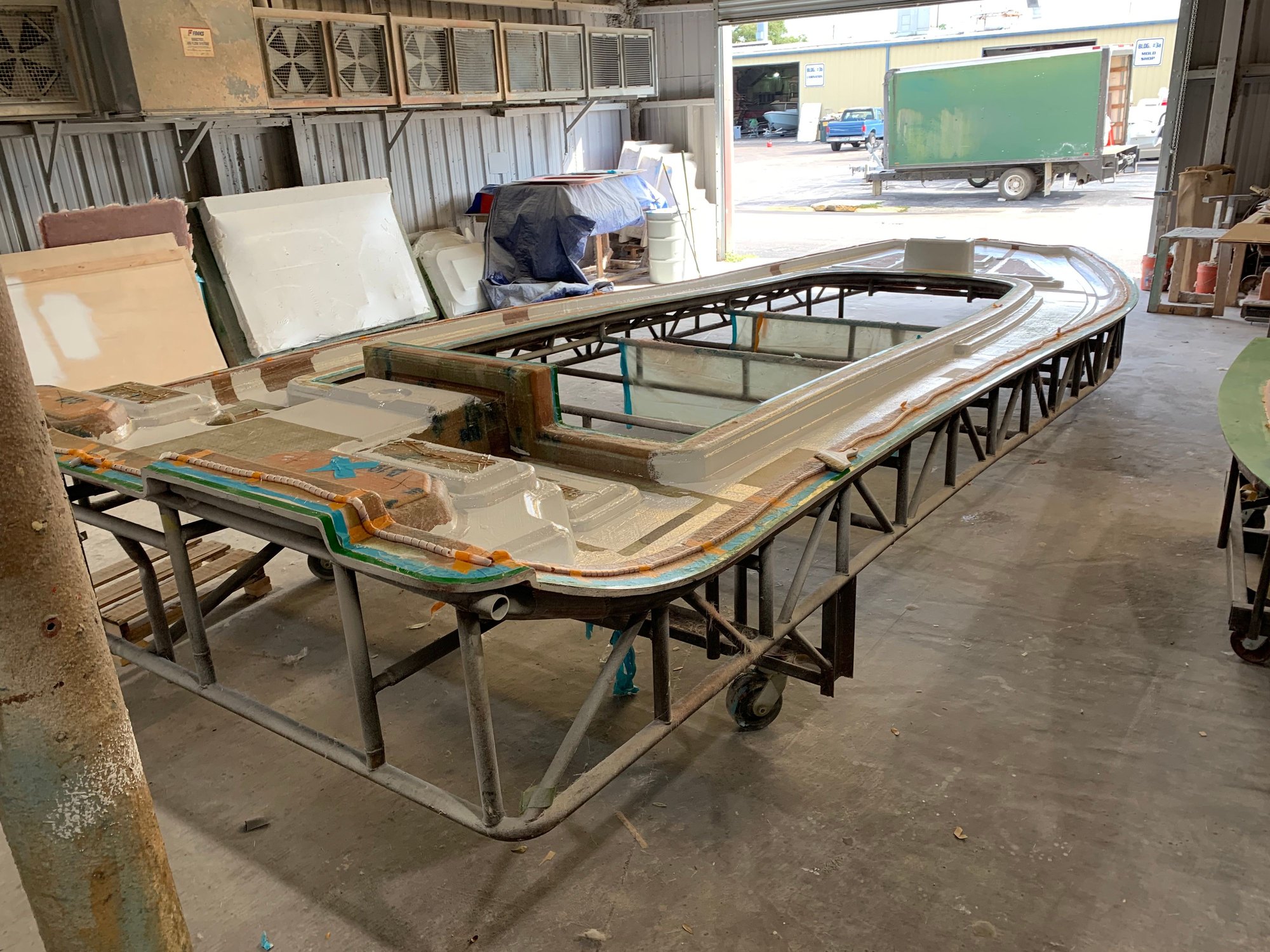

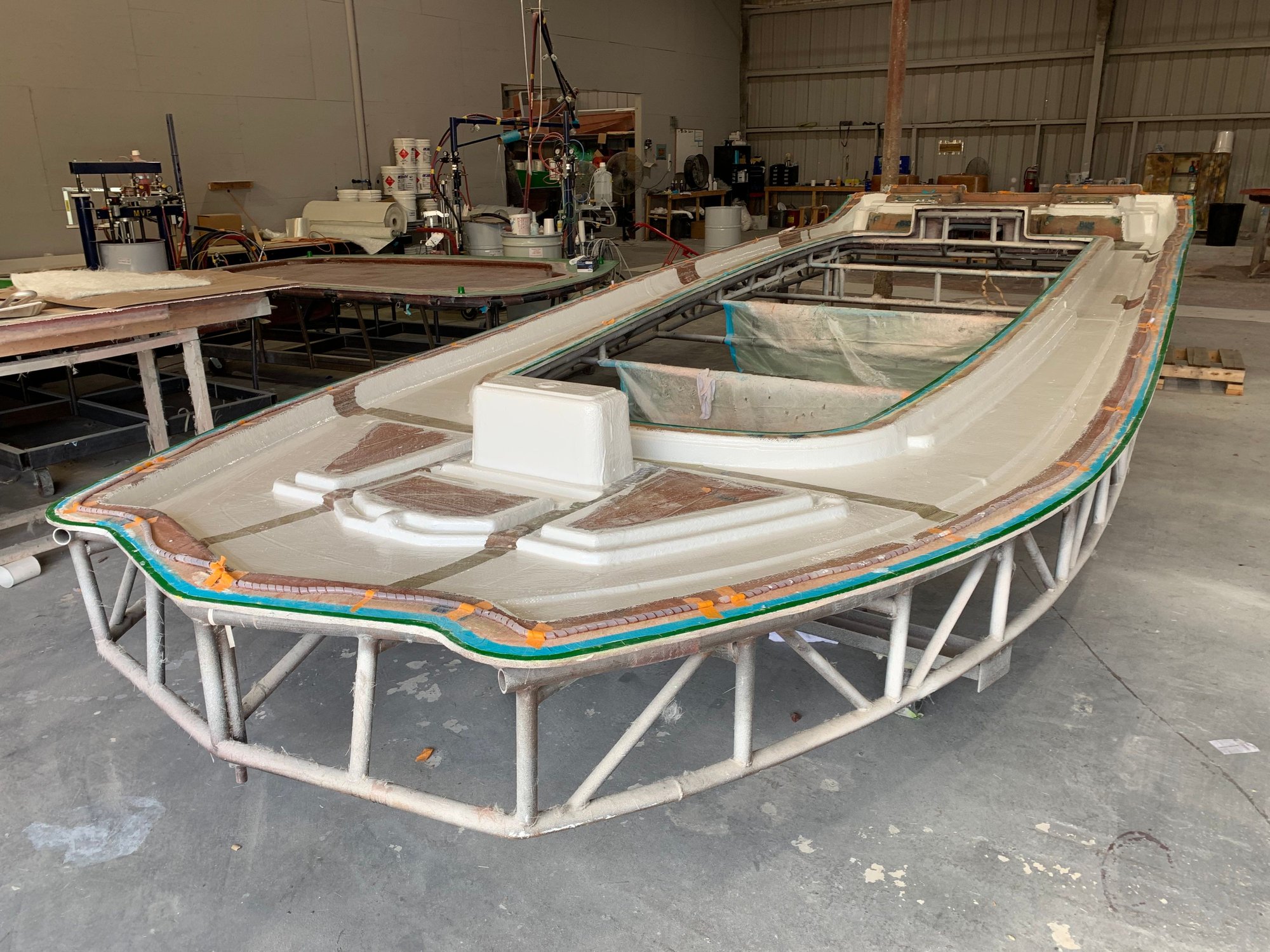

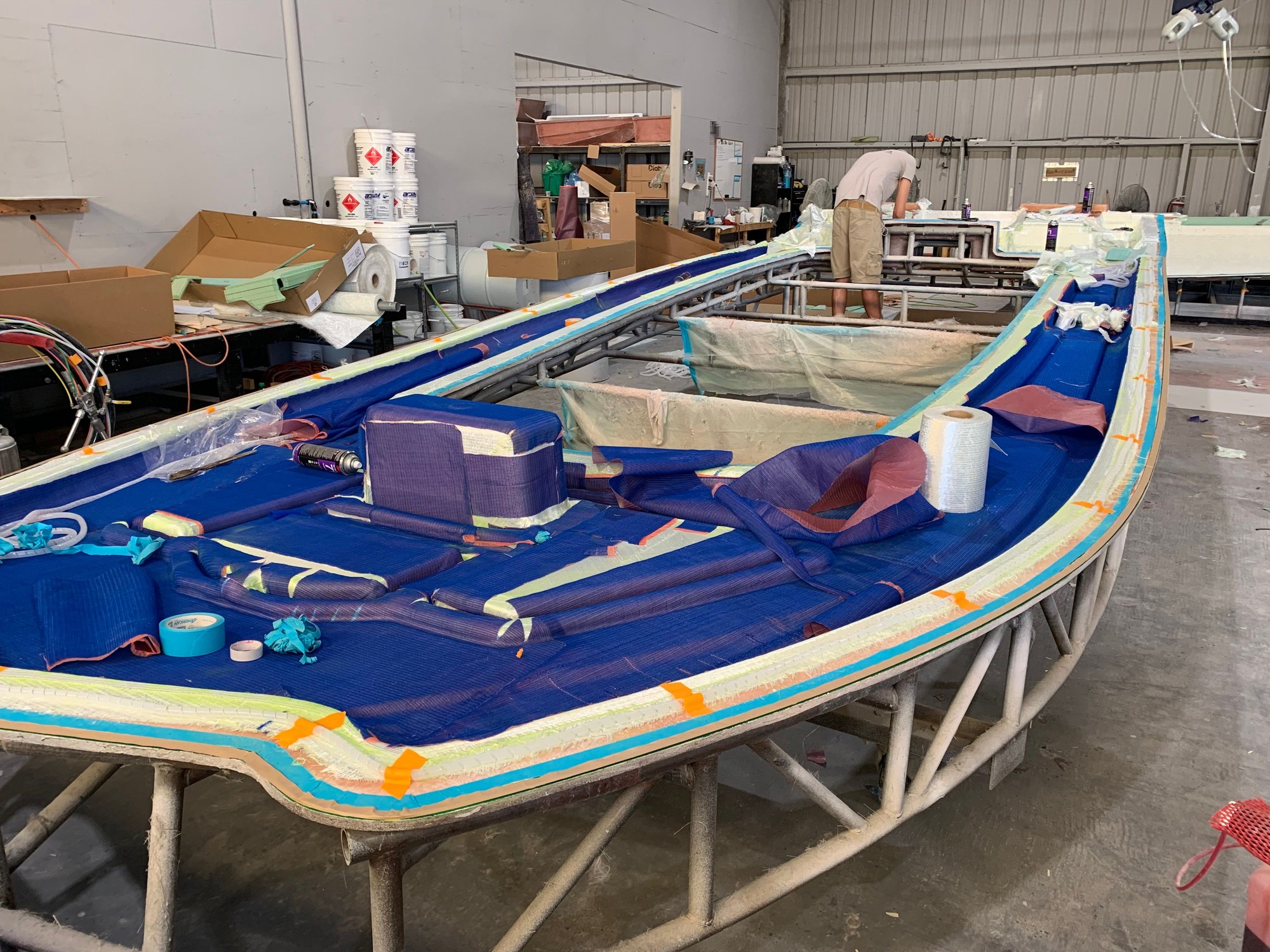

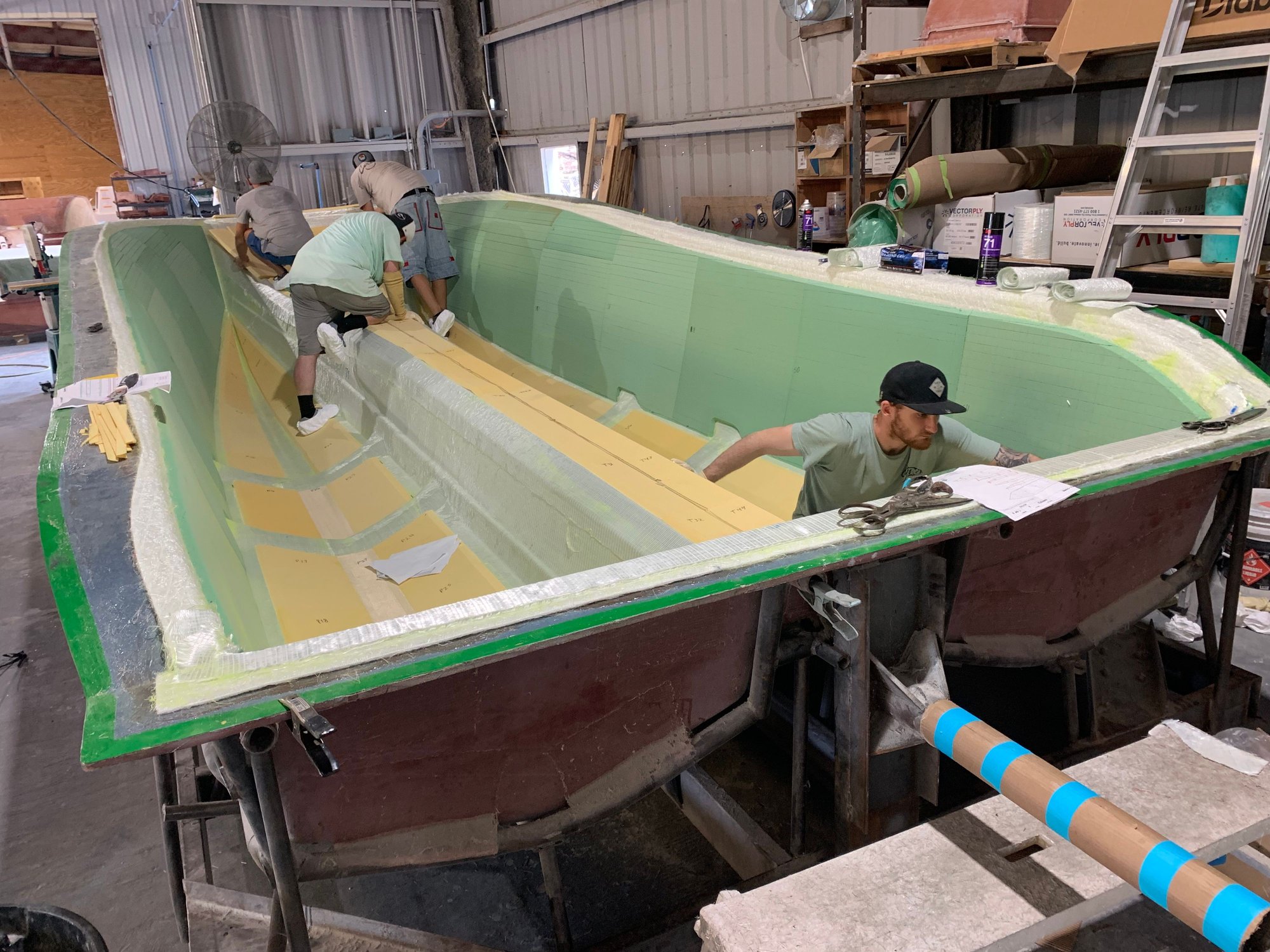

Layup to get ready for infusing

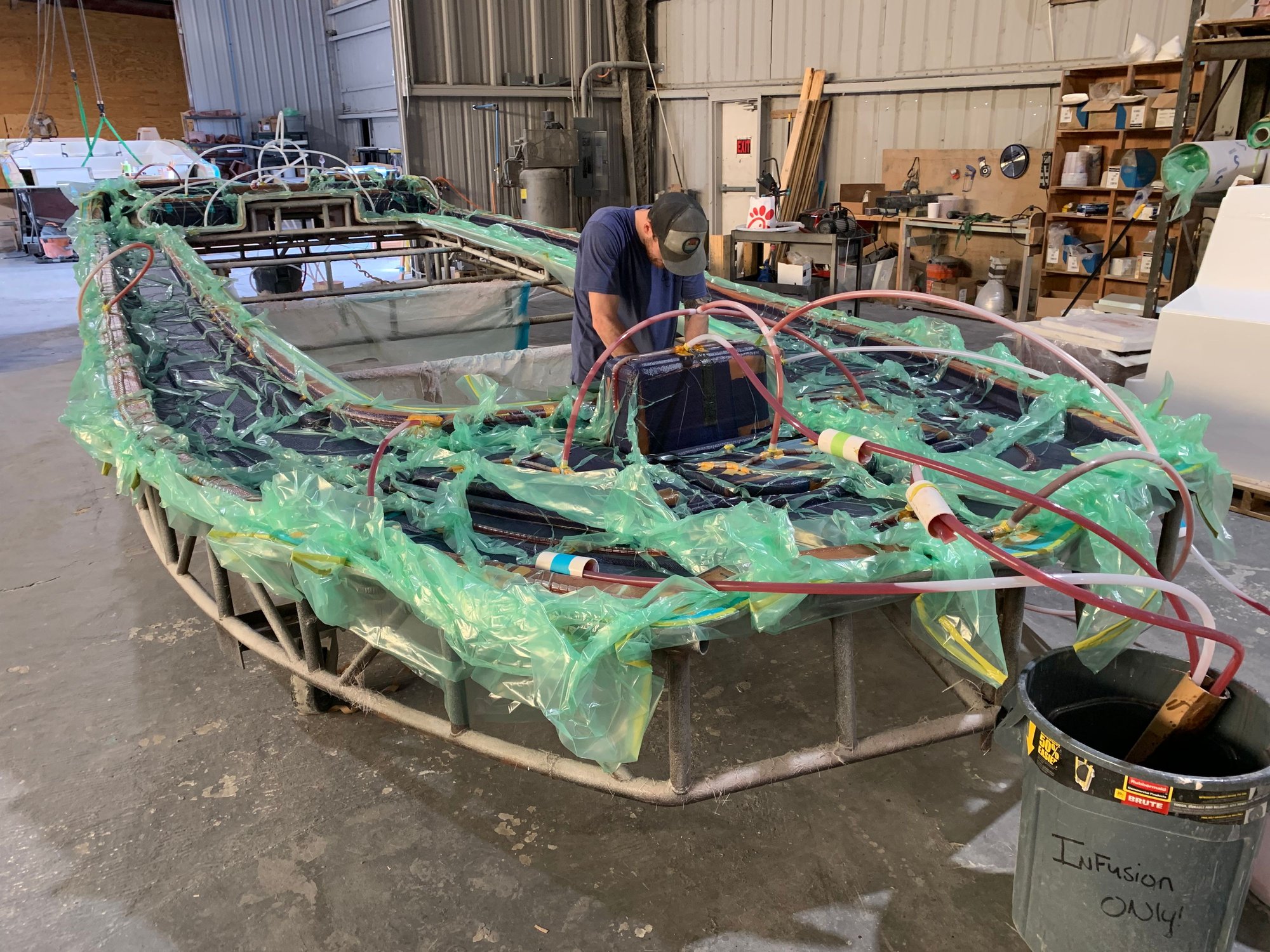

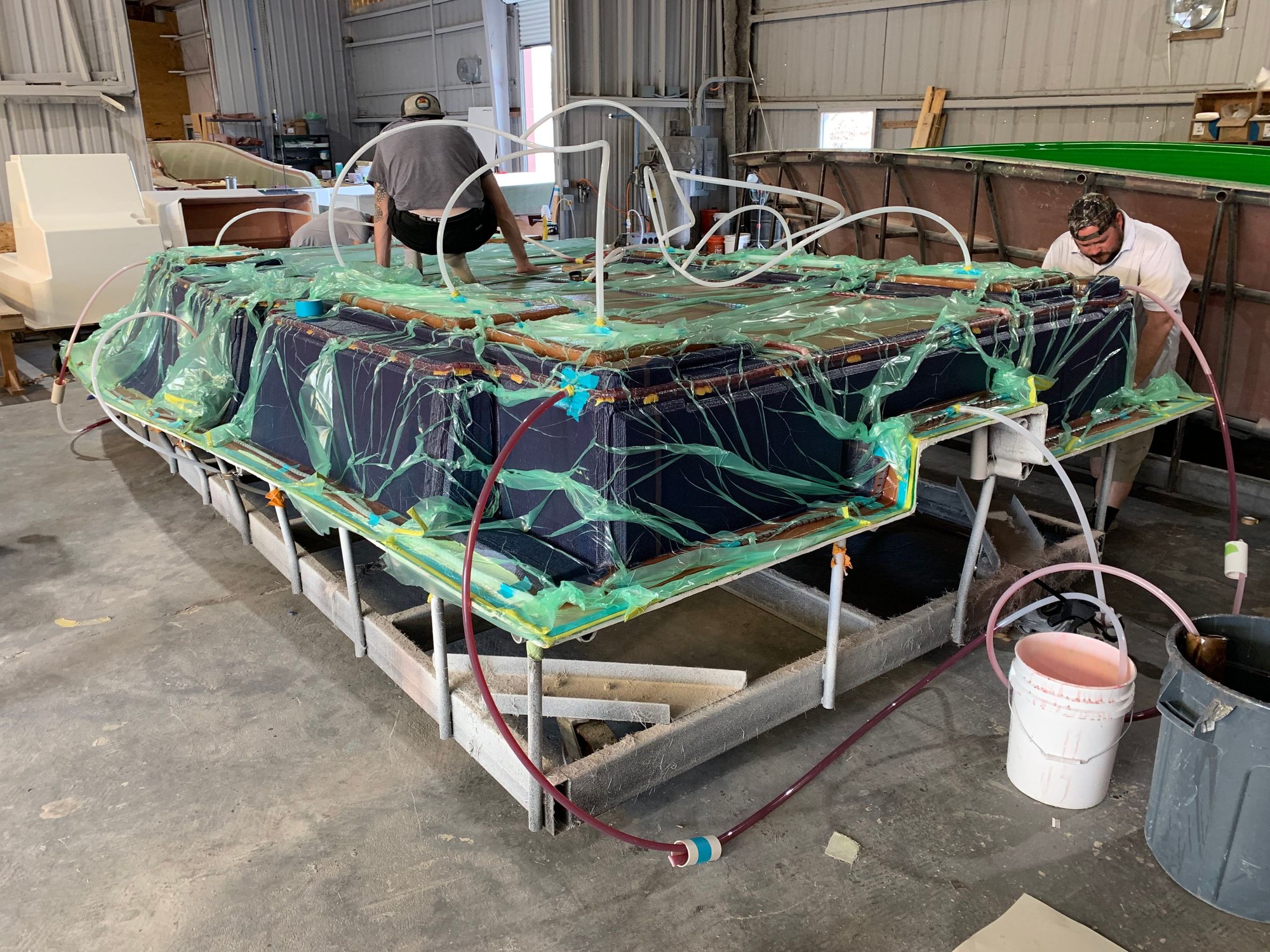

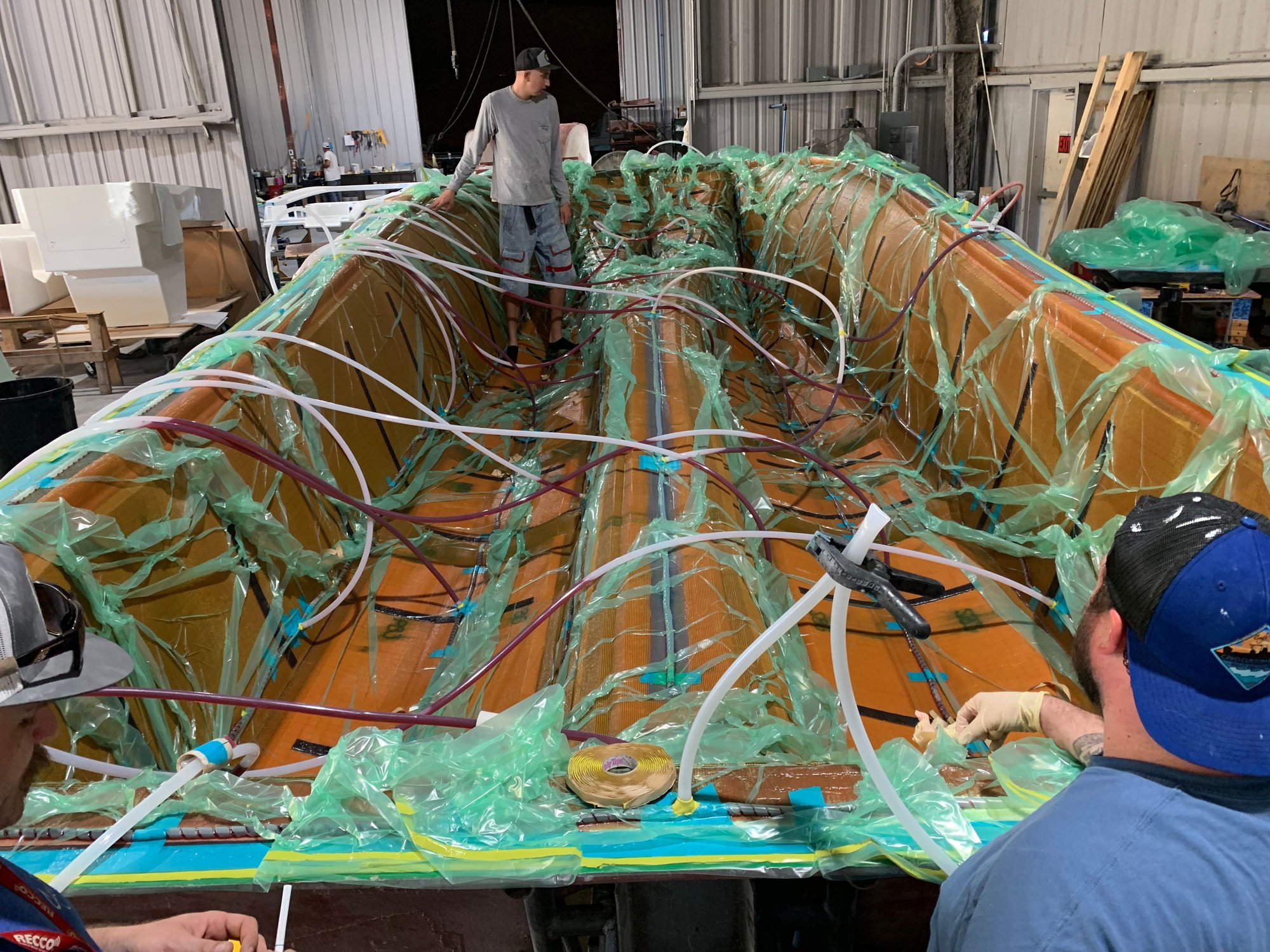

Vacuum Infusing

Last edited by savage25xtreme; 01-14-2020 at 07:27 AM.
Likes:
cjlukens, Diver87, Dufrsp31, Jassman, Lazy Bones, Sarasota Line X, Tokio,TX and 2 others liked this post. (Show less...)
Old 10-30-2019, 08:09 AM
  #2
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Dallas, TX
Posts: 1,673
Received 848 Likes on 419 Posts
Default

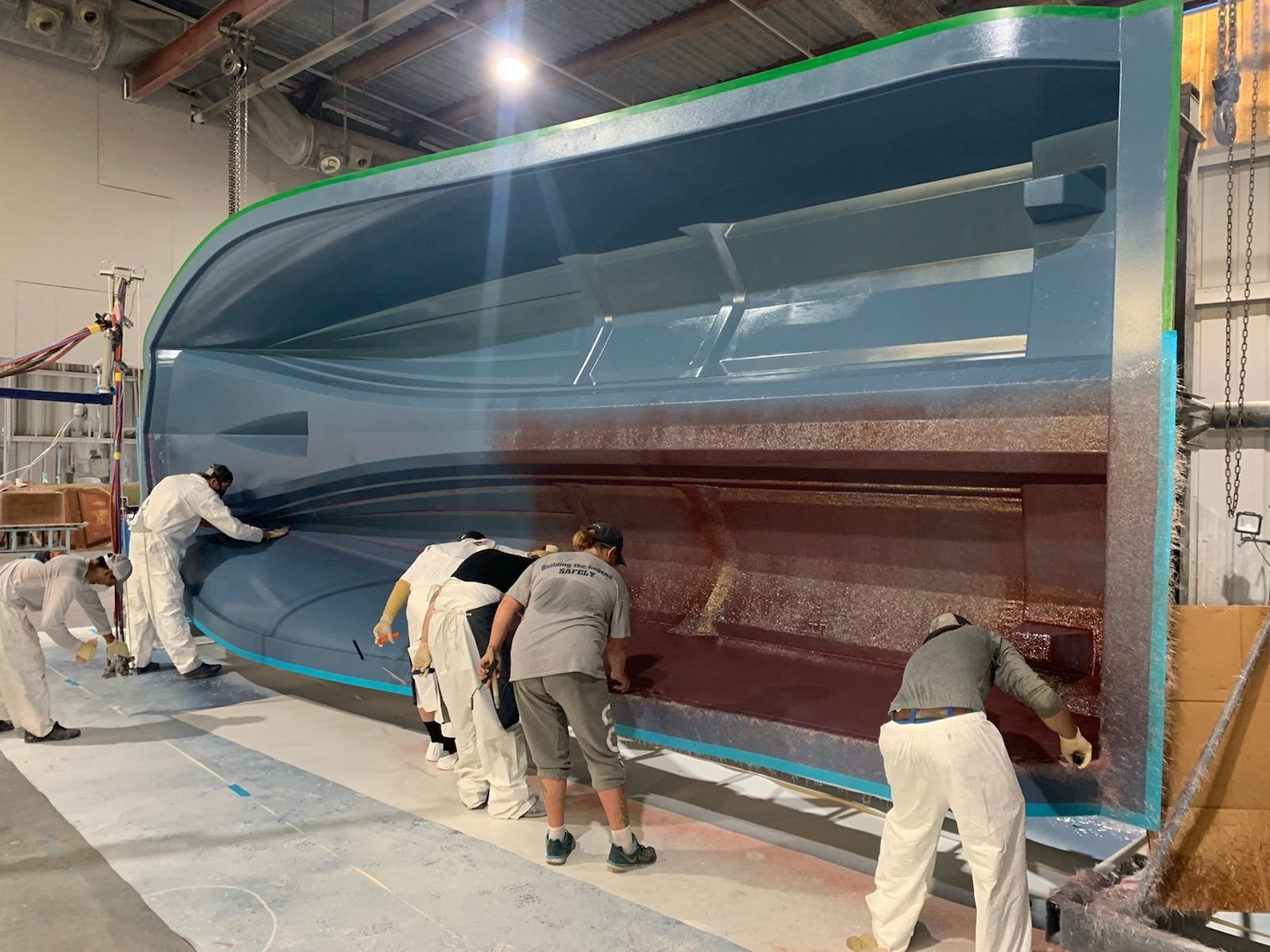

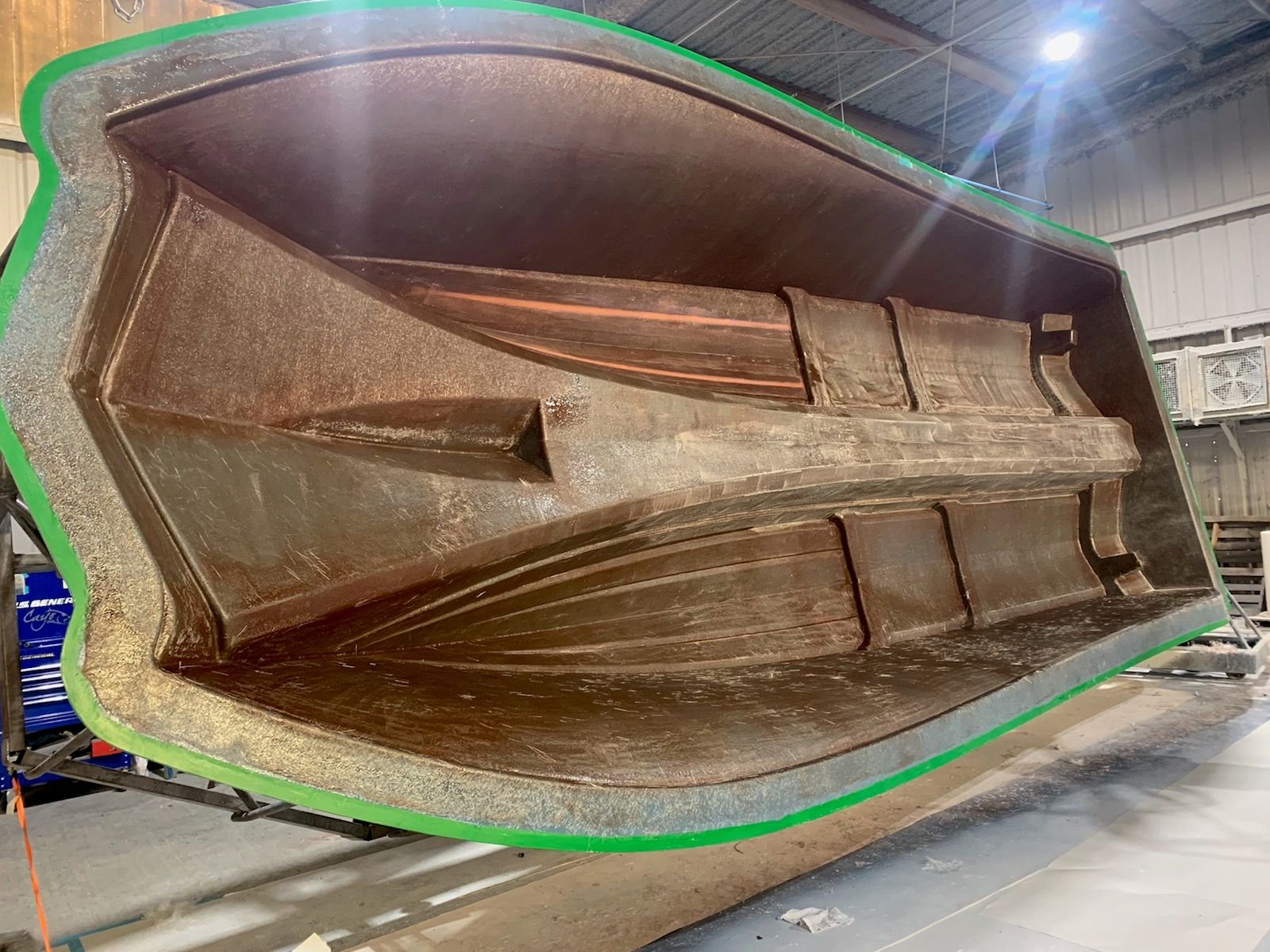

A few more pictures of the skin coat going on and the strakes being reinforced and filled.

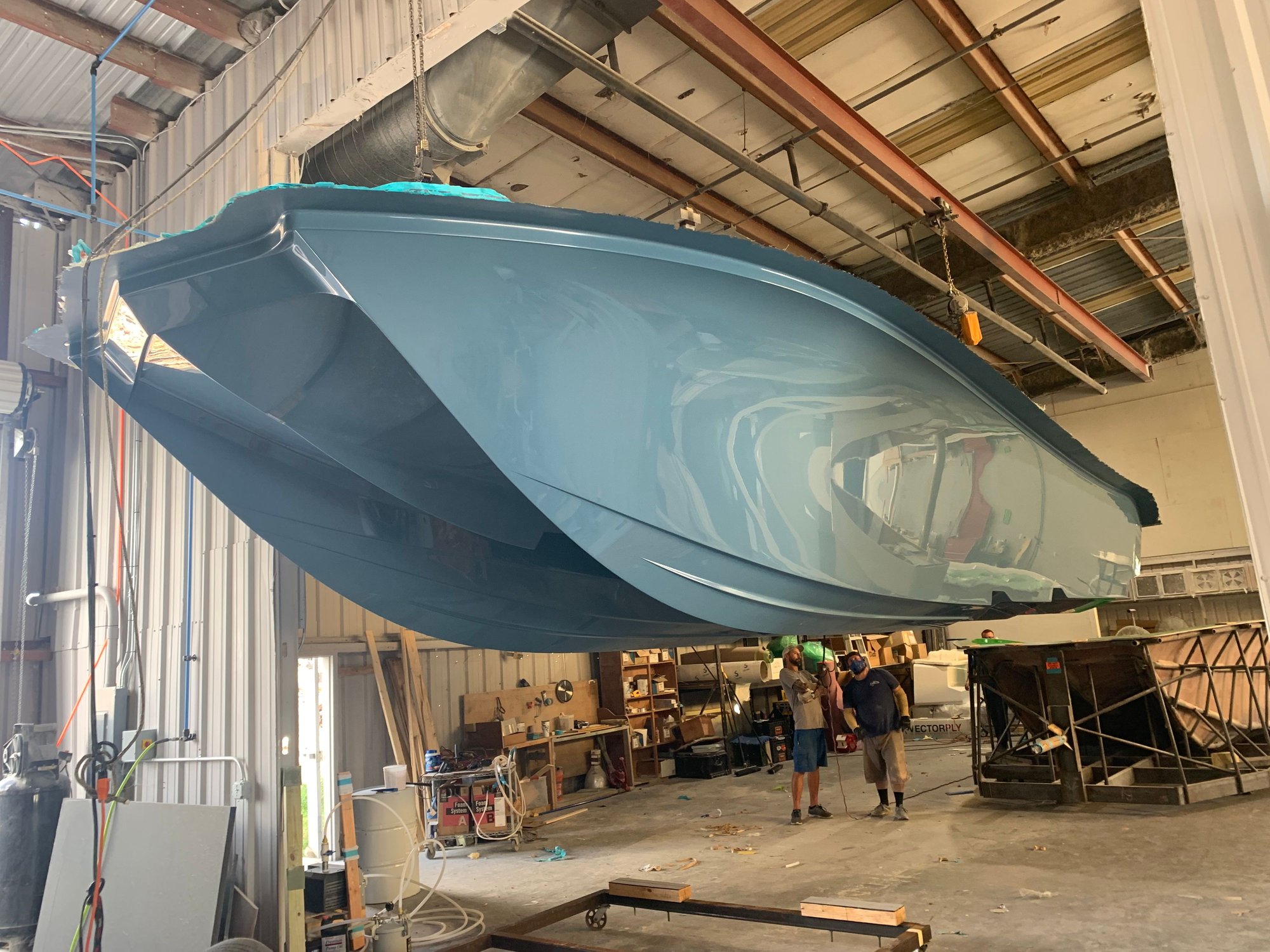

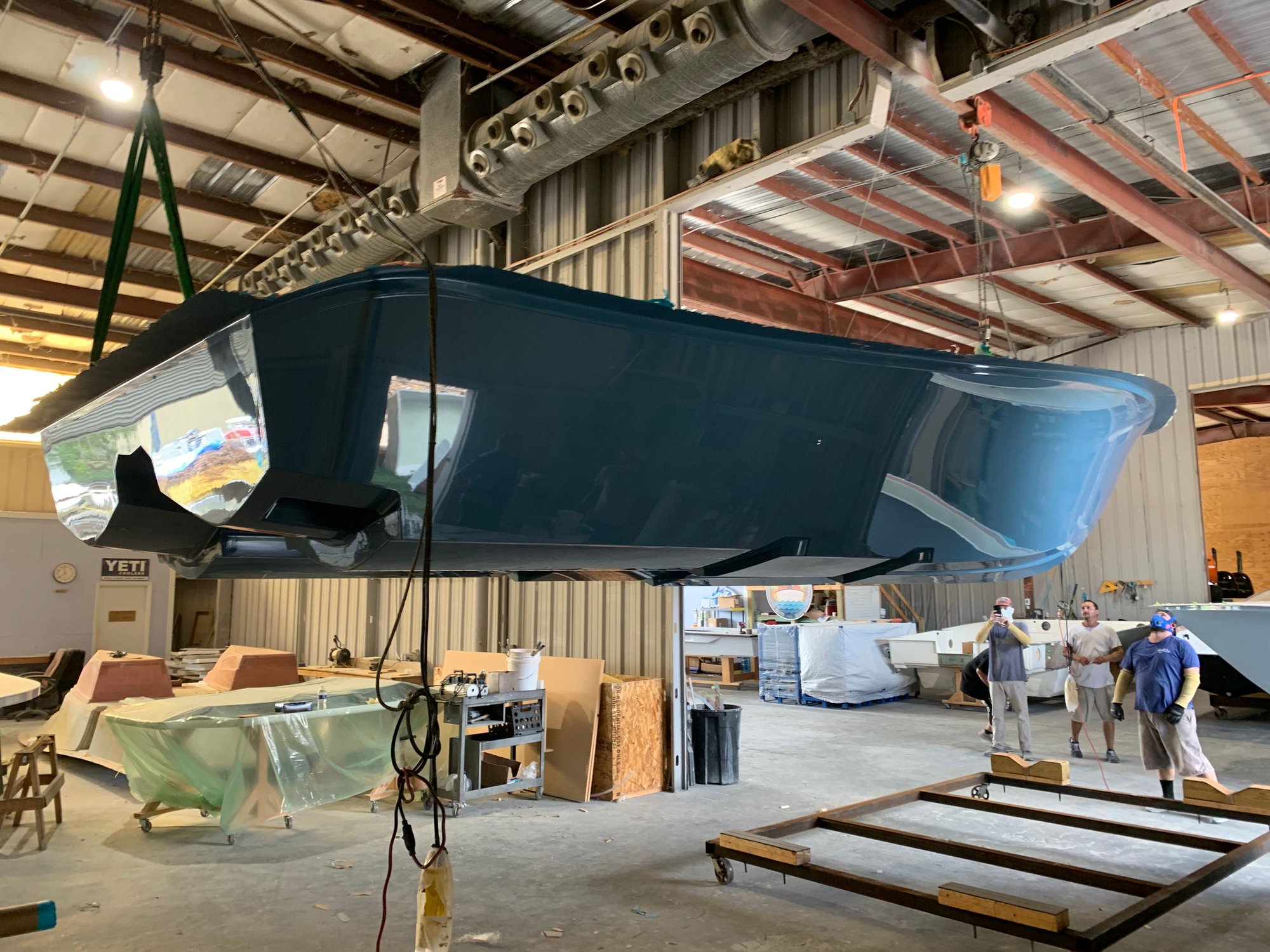

a new Cayo Baby is born!




Last edited by savage25xtreme; 10-30-2019 at 09:40 AM.
Likes:
Goalmon, Jassman, JDBer94, Roosty, SeaShot, Tokio,TX and 1 others liked this post. (Show less...)
Old 10-30-2019, 02:14 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Apr 2015
Location: Fort Myers, FL
Posts: 881
Received 97 Likes on 52 Posts
Default

Very nice!
Old 10-30-2019, 02:30 PM
  #4
Senior MemberCaptains Club Member

Join Date: Jul 2001
Location: Central West Coast, Fl.
Posts: 4,464
Received 137 Likes on 85 Posts
Default

Same color as my Barker 26. Love how it changes color in different lights. Will be watching this thread that's for sure!
Old 10-30-2019, 02:33 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Feb 2015
Location: Tampa bay
Posts: 2,093
Likes: 0
Received 552 Likes on 283 Posts
Default

These made in Pinellas Park FL? Was looking on their site but wasn't showing that model.

Cool looking boat. Congrats
Old 10-30-2019, 05:14 PM
  #6
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Dallas, TX
Posts: 1,673
Received 848 Likes on 419 Posts
Default

Originally Posted by DEBTICATED View Post
These made in Pinellas Park FL? Was looking on their site but wasn't showing that model.

Cool looking boat. Congrats
they are in Largo, FL
Old 10-30-2019, 05:52 PM
  #7
Senior MemberCaptains Club Member

Join Date: Nov 2007
Location:
Posts: 278
Received 103 Likes on 52 Posts
Default

Sounds bad ass, congratulations
Old 10-30-2019, 05:55 PM
  #8
Senior Member

Join Date: Apr 2015
Posts: 252
Received 104 Likes on 49 Posts
Default

That’s a beautiful color!
Old 10-30-2019, 06:52 PM
  #9
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Aug 2007
Posts: 455
Likes: 0
Received 15 Likes on 12 Posts
Default

Looks awesome. Congrats.
Old 10-30-2019, 07:17 PM
  #10
THT Sponsor
THT sponsor

Join Date: Dec 2017
Posts: 1,033
Received 832 Likes on 484 Posts
Default

Excellent work guys!
Likes:
Old 10-30-2019, 07:30 PM
  #11
Senior Member

Join Date: Jan 2005
Location: Jupiter/ Tequesta Fl.
Posts: 734
Received 73 Likes on 50 Posts
Default

Originally Posted by JDBer94 View Post
Same color as my Barker 26. Love how it changes color in different lights. Will be watching this thread that's for sure!
absolutely my favorite color combinations !
Likes:
Old 10-31-2019, 04:37 AM
  #12
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2001
Location: Arlington, VA
Posts: 4,290
Received 149 Likes on 56 Posts
Default

Originally Posted by savage25xtreme View Post
A few more pictures of the skin coat going on and the strakes being reinforced and filled.

a new Cayo Baby is born!

Definitely one of the most attractive hulls I've ever seen. Congrats!

Likes:
Old 10-31-2019, 06:02 AM
  #13
Admirals Club Admiral's Club Member

Join Date: Feb 2015
Location: Tampa bay
Posts: 2,093
Likes: 0
Received 552 Likes on 283 Posts
Default

Originally Posted by savage25xtreme View Post
they are in Largo, FL
Close enough. I'm not far from them. Do they have any finished pics of this model ?

Edit: Saw a couple on google. Badass boat. What's the beam?

They only have the skifs on their site.

Last edited by DEBTICATED; 10-31-2019 at 06:34 AM.
Old 10-31-2019, 06:09 AM
  #14
Senior Member

Join Date: Mar 2009
Posts: 9,525
Likes: 0
Received 2,116 Likes on 1,220 Posts
Default

Originally Posted by savage25xtreme View Post
A few more pictures of the skin coat going on and the strakes being reinforced and filled.
why do the strakes need to be reinforced and filled?
Old 10-31-2019, 06:21 AM
  #15
Senior MemberCaptains Club Member

Join Date: Aug 2004
Location: Baton Rouge, LA
Posts: 2,786
Received 302 Likes on 183 Posts
Default

That looks very nice. I can't wait to see it down in Venice.
Old 10-31-2019, 06:32 AM
  #16
Admirals Club Admiral's Club Member

Join Date: Jan 2010
Location: Oviedo, FL
Posts: 709
Received 49 Likes on 32 Posts
Default

love the color
Old 10-31-2019, 07:04 AM
  #17
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Dallas, TX
Posts: 1,673
Received 848 Likes on 419 Posts
Default

Originally Posted by Rod27 View Post


why do the strakes need to be reinforced and filled?
good question for the lamination engineer that designed the layup. No idea.
Old 10-31-2019, 07:13 AM
  #18
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Dallas, TX
Posts: 1,673
Received 848 Likes on 419 Posts
Default

Originally Posted by DEBTICATED View Post
Close enough. I'm not far from them. Do they have any finished pics of this model ?

Edit: Saw a couple on google. Badass boat. What's the beam?

They only have the skifs on their site.
beam is 9'10" at the widest point. There is another thread on here with the entire design process in it.
Old 10-31-2019, 07:21 AM
  #19
Senior MemberCaptains Club Member

Join Date: Aug 2004
Location: Baton Rouge, LA
Posts: 2,786
Received 302 Likes on 183 Posts
Default

The strakes are usually filled with putty(heavy) or foam(light). Don't have to worry about the fabric not laying in the strakes during glassing or something like that.
Old 10-31-2019, 07:42 AM
  #20
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Posts: 571
Received 53 Likes on 34 Posts
Default

great color
