Outrigger mounting wedge orientation

Notices
The Boating Forum

Outrigger mounting wedge orientation

Old 09-18-2019, 11:55 AM
  #1
Senior MemberCaptains Club Member
Thread Starter

Join Date: Sep 2001
Location: North Florida
Posts: 11,219
Likes: 0
Received 1,022 Likes on 492 Posts
Default Outrigger mounting wedge orientation

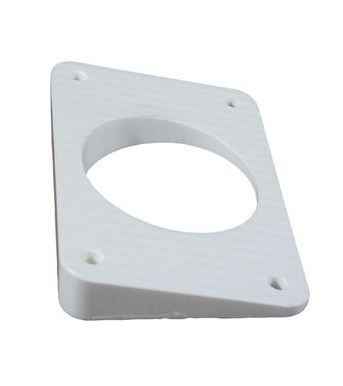

I am trying to get wedges made. I was quoted around $500 to do this which is utterly ridiculous. I have the wedges that Taco makes that you can see below. Using that photo, the high part is on the left and the low part is on the right. I need the high part to be on top sloping to the bottom. No way I can make that with normal tools. Suggestion?


Old 09-18-2019, 12:03 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 8,492
Received 4,021 Likes on 2,275 Posts
Default

Any decent machine shop with a CNC lathe can do that. I would expect to pay about $100.00 to $150.00 for set up time and probably about the same to make them.
Likes:
Old 09-18-2019, 01:38 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Aug 2012
Location: Marblehead, Ma
Posts: 802
Received 283 Likes on 162 Posts
Default

Why not make them out of starboard? A few standard power tools and you can make it any shape you want..
Old 09-18-2019, 01:48 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Posts: 8,232
Received 1,297 Likes on 719 Posts
Default

Originally Posted by OneMoreDay View Post
Why not make them out of starboard? A few standard power tools and you can make it any shape you want..
This.
Old 09-19-2019, 10:00 PM
  #5
Senior MemberCaptains Club Member
Thread Starter

Join Date: Sep 2001
Location: North Florida
Posts: 11,219
Likes: 0
Received 1,022 Likes on 492 Posts
Default

I'm handy but have no idea how I would make this. I have the starboard but simply don't know how I would cleanly cut the angle.
Old 09-20-2019, 12:49 AM
  #6
Senior MemberCaptains Club Member

Join Date: May 2002
Location: Ayaz Beach
Posts: 1,267
Received 302 Likes on 177 Posts
Default

Tablesaw.
Old 09-20-2019, 03:15 AM
  #7
Senior Member

Join Date: Nov 2012
Posts: 2,924
Received 124 Likes on 91 Posts
Default

Or

Miter box
Old 09-20-2019, 05:52 AM
  #8
Senior Member

Join Date: Jul 2013
Posts: 1,441
Received 200 Likes on 103 Posts
Default

I don't know how the base is configured but can you rotate it 90 degrees and use the base you have displayed?
Old 09-20-2019, 06:14 AM
  #9
Senior MemberCaptains Club Member
Thread Starter

Join Date: Sep 2001
Location: North Florida
Posts: 11,219
Likes: 0
Received 1,022 Likes on 492 Posts
Default

Originally Posted by jcassara View Post
I don't know how the base is configured but can you rotate it 90 degrees and use the base you have displayed?
If I could do that I wouldn't be asking the question.
Likes:
Old 09-20-2019, 08:47 AM
  #10
Senior MemberCaptains Club Member

Join Date: May 2002
Location: Ayaz Beach
Posts: 1,267
Received 302 Likes on 177 Posts
Default

Rip a piece of 2x4 to the shape you want.
Screw or clamp that 2x4 piece to your fence.

put your new piece of starboard against the 2x4 and push it through the blade.
Old 09-20-2019, 08:57 AM
  #11
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: GA
Posts: 5,335
Received 957 Likes on 490 Posts
Default

Try these guys,
FORGE 3D Printing Studio
1010 E Adams St #226, Jacksonville, FL 32202
(904) 274-1714
Old 09-20-2019, 09:06 AM
  #12
Junior Member

Join Date: Aug 2018
Location: Florida
Posts: 14
Likes: 0
Received 4 Likes on 3 Posts
Default

3D printer would be good for this
Old 09-20-2019, 09:09 AM
  #13
Admirals Club Admiral's Club Member

Join Date: Jun 2018
Location: Corpus Christi TX
Posts: 431
Received 82 Likes on 47 Posts
Default

The amount of stress put on these bases when running would wear out an plastic or starboard pretty fast i would think. Aluminum would be good to go.
Old 09-21-2019, 03:29 PM
  #14
Senior MemberCaptains Club Member
Thread Starter

Join Date: Sep 2001
Location: North Florida
Posts: 11,219
Likes: 0
Received 1,022 Likes on 492 Posts
Default

Funny, I thought about the 3D printer. A friend plays with it but we didn't know how to write the program to do it. I'll call the guys above to see if this is possible. I agree, that would be a great option.

I don't see these having hardly any stress on them at all. There is no movement, they are, in effect, a spacer that changes the angle of the mount. If you attempted, you would then need a block of aluminum and this process would be significantly more complex. These wedges have been used for years and years without failure.
Old 09-21-2019, 03:36 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Sep 2016
Location: Jacksonville Beach
Posts: 452
Received 135 Likes on 58 Posts
Default

I have a pair somewhere I think. I’ll send them to you if I can find them.

BTW. Amazon on is your friend.
Old 09-30-2019, 07:40 PM
  #16
Senior MemberCaptains Club Member
Thread Starter

Join Date: Sep 2001
Location: North Florida
Posts: 11,219
Likes: 0
Received 1,022 Likes on 492 Posts
Default

Originally Posted by JaxBch View Post
I have a pair somewhere I think. I’ll send them to you if I can find them.

BTW. Amazon on is your friend.

Thanks but I already have a pair. The issue is the orientation of the angle. Taco only makes them one way and my mounts are rotated 45 degrees so the ones they make don't work. The 3D place said they can do it no problem but now I have to figure out the angle degree.
Old 10-01-2019, 07:30 AM
  #17
Senior Member

Join Date: Nov 2012
Posts: 2,924
Received 124 Likes on 91 Posts
Default

Originally Posted by JAGSARE1 View Post
Thanks but I already have a pair. The issue is the orientation of the angle. Taco only makes them one way and my mounts are rotated 45 degrees so the ones they make don't work. The 3D place said they can do it no problem but now I have to figure out the angle degree.
Kids compass and protractor would do the trick.

Carpenters square, pocket level, piece of paper, pencil ought to be able to get you close enough. You should be able to create a wood block that fits perfectly. Then take your block to the 3d printer or water jet guy.
Old 10-01-2019, 08:20 AM
  #18
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: GA
Posts: 5,335
Received 957 Likes on 490 Posts
Default

Hold the bracket at the angle you want it and measure the distance from it too the hard top (or whatever you're mounting too), then measure the length of the bracket from the inside of the top to the outside.
Use this online calculator, https://www.calculator.net/triangle-...ts=d&x=88&y=18
A and B will be the bracket dimensions and C will be the distance from bracket to the top, then you'll get your angle.
Old 10-01-2019, 09:49 AM
  #19
Senior Member

Join Date: Nov 2012
Posts: 2,924
Received 124 Likes on 91 Posts
Default

Even easier. Take a 2' or pocket level, set one end at your high end of where the block goes, then tip the low end up until it's level, or shim it to level. Then measure between the t-top and level at the end of the block location. Whatever thickness you want at the thin end, just add it to both.

This is not rocket surgery.
Old 10-01-2019, 10:17 AM
  #20
Senior Member

Join Date: Apr 2014
Location: Atlanta / Islamorada
Posts: 1,809
Received 491 Likes on 301 Posts
Default

I used a clinometer app on my phone to measure my t top slope for wedges.
