Yamaha paint code

Old 06-15-2019, 07:14 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Dec 2009
Location: New Jersey Shore
Posts: 2,267
Likes: 0
Received 57 Likes on 35 Posts
Default Yamaha paint code

Is it possible to get the paint code for a Yamaha outboard from the serial number? I have some cowling damage.
L225TXRX 62K X 101332 U
Old 06-15-2019, 07:19 AM
  #2
Senior Member

Join Date: Jul 2016
Location: Perth WA
Posts: 2,488
Received 475 Likes on 297 Posts
Default

i`m in for a look ,i have been trying to get a paint code for ages, ended up getting a scan done to match.
Old 06-15-2019, 07:21 AM
  #3
Senior Member

Join Date: Jul 2011
Posts: 6,206
Received 858 Likes on 672 Posts
Default

link to paint source:

ColorRite Yamaha 4D


the last two digits of the Yamaha part number is the paint color code

Name:  yamaha-paint-code.jpg
Views: 724
Size:  81.0 KB
Likes:
Old 06-15-2019, 10:48 AM
  #4
Senior Member

Join Date: Jul 2016
Location: Perth WA
Posts: 2,488
Received 475 Likes on 297 Posts
Default

Originally Posted by Fwpratt View Post
link to paint source:

ColorRite Yamaha 4D


the last two digits of the Yamaha part number is the paint color code

Attachment 1100877
excuse my ignorance here ,
i took the part # to the paint matching place and they did not come up with anything on the computer that matched the code, the guy (older bloke) attempted to eye match it but it flopped off different once clear coat was applied.
he sent me to another place where they had a scanner , it was a close match ,however , i ended up painting the entire motor to get it to look decent..

i wish i knew that all i needed was the last 2 digests to get a coded match
Old 06-15-2019, 10:51 AM
  #5
Senior Member
THT sponsor

Parker Yacht's Avatar

Join Date: Jan 2009
Location: Ft Lauderdale
Posts: 8,020
Likes: 0
Received 985 Likes on 572 Posts
Default

Originally Posted by 1breakinit View Post
excuse my ignorance here ,
i took the part # to the paint matching place and they did not come up with anything on the computer that matched the code, the guy (older bloke) attempted to eye match it but it flopped off different once clear coat was applied.
he sent me to another place where they had a scanner , it was a close match ,however , i ended up painting the entire motor to get it to look decent..

i wish i knew that all i needed was the last 2 digests to get a coded match
It doesn't give you a code match.
It gives you the Colorrite Code for that engine.
Colorrite does not give out the code, even to Yamaha Dealers.
Old 06-15-2019, 11:10 AM
  #6
Senior Member

Join Date: Jul 2016
Location: Perth WA
Posts: 2,488
Received 475 Likes on 297 Posts
Default

Originally Posted by Parker Yacht View Post
It doesn't give you a code match.
It gives you the Colorrite Code for that engine.
Colorrite does not give out the code, even to Yamaha Dealers.
AHHHH ! that is why nothing come up to match.. thanks
Old 06-15-2019, 11:14 AM
  #7
Senior Member

Join Date: Dec 2014
Location: Land down under
Posts: 11,655
Received 2,171 Likes on 1,279 Posts
Default

I think what you are looking for is a particular paint supplier's colour code for a specific Yamaha paint colour code. A cross reference if you will.

Some suppliers have it and some don't.

As far as I know there is no world wide code for paint colours and finishes. It will be along shortly after world peace has been obtained.
Old 09-21-2019, 07:11 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,288
Received 2,195 Likes on 1,197 Posts
Default

Originally Posted by Parker Yacht View Post
It doesn't give you a code match.
It gives you the Colorrite Code for that engine.
Colorrite does not give out the code, even to Yamaha Dealers.
Bringing this back to the top! I started looking for the paint code this morning after one of my guys scratched my port side cowling After extensive search I found this thread. Mine are 2018 F300XCA and the last 2 digits are 00 which doesn't come up on Color Rite. I didn't realize it would be such a hassle to get a Yamaha paint code! I will have to get new decals as I will paint the whole cowling. I might just paint both cowlings using my Standox base and clear so they will be extra chiny! If I can't get a code, I can use our camera but I was hoping to get a code. Am I out of luck on a code?
Old 09-21-2019, 07:16 AM
  #9
Senior Member
THT sponsor

Join Date: Aug 2011
Location: Beaufort NC
Posts: 5,502
Received 2,108 Likes on 1,035 Posts
Default

Originally Posted by Vantaredoc View Post
Bringing this back to the top! I started looking for the paint code this morning after one of my guys scratched my port side cowling After extensive search I found this thread. Mine are 2018 F300XCA and the last 2 digits are 00 which doesn't come up on Color Rite. I didn't realize it would be such a hassle to get a Yamaha paint code! I will have to get new decals as I will paint the whole cowling. I might just paint both cowlings using my Standox base and clear so they will be extra chiny! If I can't get a code, I can use our camera but I was hoping to get a code. Am I out of luck on a code?
Alexseal has a metallic base/clear that will match. Look for "ahamay grey". Awlgrip also has it in their SE line. I've done newer cowlings with both and they matched just fine.
Old 09-21-2019, 07:29 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,288
Received 2,195 Likes on 1,197 Posts
Default

Originally Posted by bills106 View Post
Alexseal has a metallic base/clear that will match. Look for "ahamay grey". Awlgrip also has it in their SE line. I've done newer cowlings with both and they matched just fine.
Thank you! I just looked them up. What code do you use for Awlgrip? I found the SE in the Awlcraft, is that right? Is the Alexseal something that local shops carry or does it have to be ordered. I know I can get Awlgrip from my supplier. I just don't know what code to tell them.
Old 09-21-2019, 07:31 AM
  #11
Senior Member
THT sponsor

Parker Yacht's Avatar

Join Date: Jan 2009
Location: Ft Lauderdale
Posts: 8,020
Likes: 0
Received 985 Likes on 572 Posts
Default

Originally Posted by bills106 View Post
Alexseal has a metallic base/clear that will match. Look for "ahamay grey". Awlgrip also has it in their SE line. I've done newer cowlings with both and they matched just fine.
Match, as in match if you do the whole cowling or match to spot paint a cowling?
Old 09-21-2019, 07:35 AM
  #12
Senior Member

Join Date: Mar 2011
Location: St. Pete
Posts: 1,289
Received 321 Likes on 146 Posts
Default

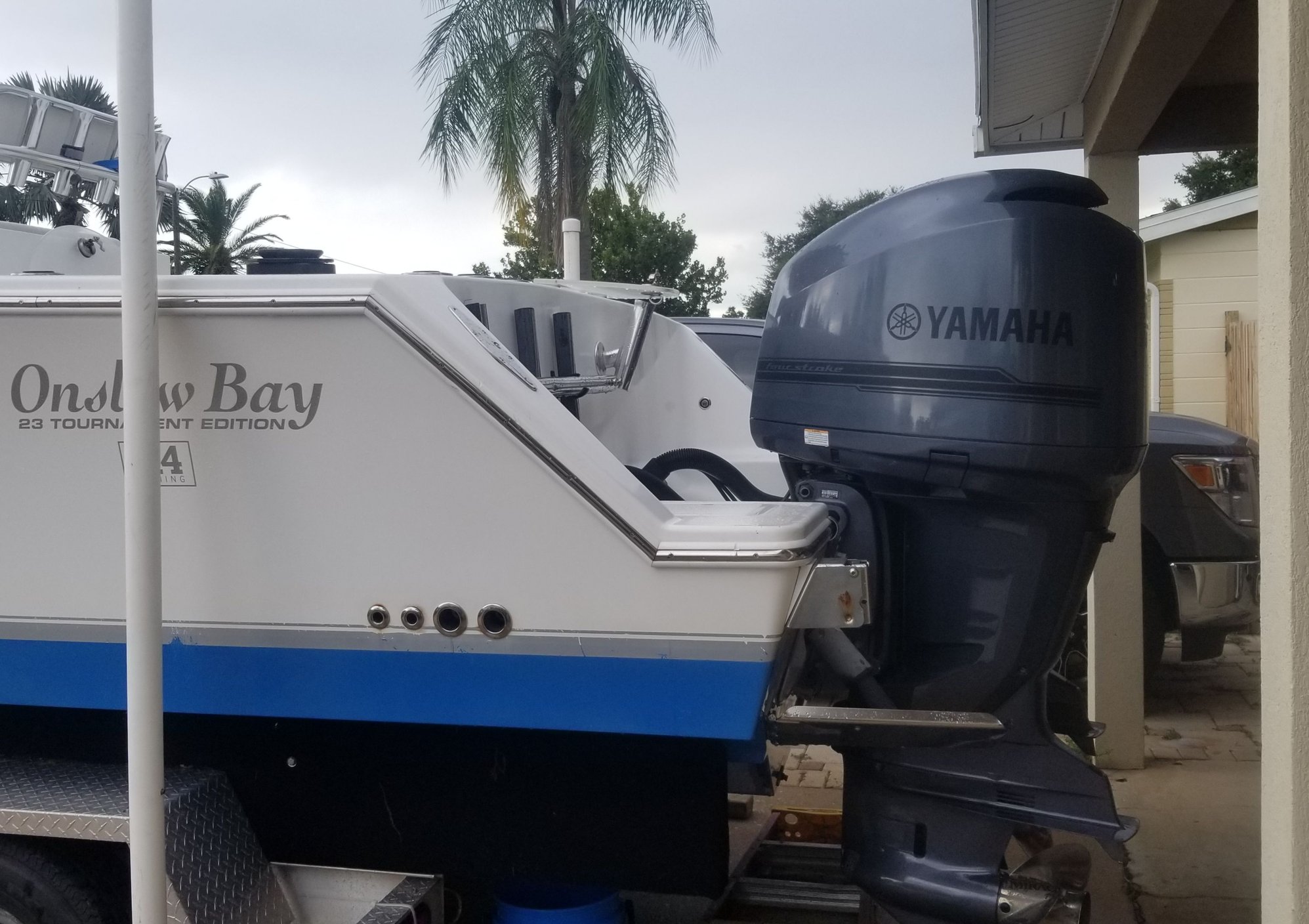

A local supplier to me has about 6 different shades of yamaha grey to pick from. Or they would custom match if you bring a part in. Did these 2 cowlings and it was very close just by picking the one swatch that looked closest.
Old 09-21-2019, 07:41 AM
  #13
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,288
Received 2,195 Likes on 1,197 Posts
Default

Originally Posted by Parker Yacht View Post
Match, as in match if you do the whole cowling or match to spot paint a cowling?
I will paint both cowlings if I have to but I would like them to be as close as possible to the rest of the motor. My supplier gave me all the materials a few months ago to paint them both white but I now think the Factory Yamaha color goes better on my boat. I’m not sure my camera would pick up the metallic and turn out close enough. I am having them try it now and will do a spray out card.
Old 09-21-2019, 07:43 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,288
Received 2,195 Likes on 1,197 Posts
Default

Originally Posted by 04keywest1720 View Post
A local supplier to me has about 6 different shades of yamaha grey to pick from. Or they would custom match if you bring a part in. Did these 2 cowlings and it was very close just by picking the one swatch that looked closest.
Looks real good. What year/model is the motor?
Old 09-21-2019, 07:52 AM
  #15
Senior Member
THT sponsor

Join Date: Aug 2011
Location: Beaufort NC
Posts: 5,502
Received 2,108 Likes on 1,035 Posts
Default

Originally Posted by Vantaredoc View Post
Thank you! I just looked them up. What code do you use for Awlgrip? I found the SE in the Awlcraft, is that right? Is the Alexseal something that local shops carry or does it have to be ordered. I know I can get Awlgrip from my supplier. I just don't know what code to tell them.
its E1114 Yamaha Outboard Grey Metallic. Available in quarts (plenty to do 3-4 cowlings). Same activator and reducer as the clear you have to overcoat with, get a quart of all three.

Originally Posted by Parker Yacht View Post
Match, as in match if you do the whole cowling or match to spot paint a cowling?
I've never known of anyone to get a decent blend with any metallic repair.
Likes:
Old 09-21-2019, 07:57 AM
  #16
Senior Member
THT sponsor

Parker Yacht's Avatar

Join Date: Jan 2009
Location: Ft Lauderdale
Posts: 8,020
Likes: 0
Received 985 Likes on 572 Posts
Default

Originally Posted by bills106 View Post

I've never known of anyone to get a decent blend with any metallic repair.
Good, was wondering if it was just us.
We won't "touch up" a cowling.

Old 09-21-2019, 07:57 AM
  #17
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,288
Received 2,195 Likes on 1,197 Posts
Default

Originally Posted by bills106 View Post
its E1114 Yamaha Outboard Grey Metallic. Available in quarts (plenty to do 3-4 cowlings). Same activator and reducer as the clear you have to overcoat with, get a quart of all three.

Thank you!

I've never known of anyone to get a decent blend with any metallic repair.
My guys are pretty good at spot repairs on jobs we painted to start with, but not so good on others.
Old 09-21-2019, 08:14 AM
  #18
Senior Member

Join Date: Mar 2011
Location: St. Pete
Posts: 1,289
Received 321 Likes on 146 Posts
Default

Originally Posted by Vantaredoc View Post

Looks real good. What year/model is the motor?
They are 08 model year 3.3's. I dont have the serial numbers in front of me.
Old 09-21-2019, 08:16 AM
  #19
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,288
Received 2,195 Likes on 1,197 Posts
Default

Originally Posted by 04keywest1720 View Post
They are 08 model year 3.3's. I dont have the serial numbers in front of me.
I thought so. The color is a little different on the new 4.2's I have a good code for the 3.3's. But I do like your decals. Since I have to order a new decal set I may look for something different. Thank you!
Old 09-21-2019, 08:25 AM
  #20
Senior Member
THT sponsor

Join Date: Aug 2011
Location: Beaufort NC
Posts: 5,502
Received 2,108 Likes on 1,035 Posts
Default

Originally Posted by Vantaredoc View Post
My guys are pretty good at spot repairs on jobs we painted to start with, but not so good on others.
Yeah but this time they've got a really picky "customer" to satisfy!
