1979 speedcraft flatdecking and restoration

Notices
Like Tree45Likes

1979 speedcraft flatdecking and restoration

Old 05-16-2019, 05:00 AM
  #61
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

I found Jim through Harvesttimes rebuild another great rebuild.
aquasportOX66 is offline
Old 05-16-2019, 05:59 AM
  #62
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Posts: 716
Default

Originally Posted by aquasportOX66 View Post
Thats so cool I just drove to Jims house and got some gutters from him. Jim is a killer dude.
Yeah he’s been a big help to me on my Mako build. He did a similar Mako build and met him through the classic Mako site. Great site for info on building even if your doing a non Mako hull.
2TDave is offline
Old 05-16-2019, 05:36 PM
  #63
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Well got some work done today my buddy came over any gave me a hand lifting a few things out of the boat and pulling out half the deck. Thanks George!!!!



aquasportOX66 is offline
Old 05-16-2019, 05:48 PM
  #64
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Few things I will say about "My Preticular Hull". This boat is a 1979 that has been tampered with so it is hard to tell what is factory and what isn't. First what is factory is all the underside of the core in this boat was covered with a single layer of chop strand leaving Alot of exposed wood. Many parts the wood is not covered at all. The fiberglass work is lousy at best.. But in 1979 that may have been the norm. Hull side are very thin. Old makos have in some cases in the 251 3/4 to an inch thick glass. I've found spots on this boat where there are thin as 1/8 or 1/4. I am very glad to have this boat and will be adding to the hull thickness and grinding lots of glass that were never rolled out. All of the weep holes in the stringers were never sealed and the wood is the consistency of mud now. When I was cut through the glass I found parts that never kicked and the mat and resin was soft/goofy in the center.
I am simply stating all of this to tell the readers my honest findings and move on.
aquasportOX66 is offline
Old 05-17-2019, 09:05 AM
  #65
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Got quite a few more bags out trash out today building a solid idea of how much mmaterial I will be needing.


aquasportOX66 is offline
Old 05-18-2019, 07:00 PM
  #66
Admirals Club Admiral's Club Member

Join Date: Feb 2017
Location: Miami FL
Posts: 187
Default

Man you’re chugging along!

everything looks awesome. Super pumped to see the finished product
aquasportOX66 likes this.
mhinkle90 is offline
Old 05-18-2019, 07:43 PM
  #67
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Thanks for the kind words I really appriate it. You guys help keep me motivated. This have been really fun so far. The end of the month I will be picking up a rather large load of fiberglass, core, and mat. Once I have the material I can hopefully start cruising.
aquasportOX66 is offline
Old 05-19-2019, 05:22 AM
  #68
Admirals Club Admiral's Club Member

Join Date: Oct 2015
Location: stuart fl
Posts: 1,156
Default

My hull, a 1966 , the sides are about 1/8in maybe more thick. But my hull bottom is an inch thick. The sides dont need to be thick, they only hold water out. As long as you've got a couple supports down the sides (many different ways to accomplish this) your fine. Anything else is just extra weight, unless you have a habit of dock smashing (not judging).
if you read the literature on the lamination schedule used by Albury they layup the bottom thick and taper to thin up by the gunnels because like I said it only keeps water out, plus you want to keep the weight down low and be light above the waterline.
HarvestTime is offline
Old 05-19-2019, 05:51 PM
  #69
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Thanks for the words Harvest time. I have viewed your build many times and becuase of you I found Jim and his Hatches so thank you. I do understand hullside only keep water out and with such high deadrise I want to keep the weight low. I believe a layer of 1708 would really help the hull and my mind for those hard pounding days on the ocean. Any more insight on your build I am all esrs you did a great job.
aquasportOX66 is offline
Old 05-23-2019, 09:23 AM
  #70
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Today is a good day friends!!!

Second gas tank is out!!

Feels so good!
aquasportOX66 is offline
Old 05-23-2019, 10:00 AM
  #71
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

It such a good feeling to remove all this dirt, foam, and trash I feel like I am getting somewhere.

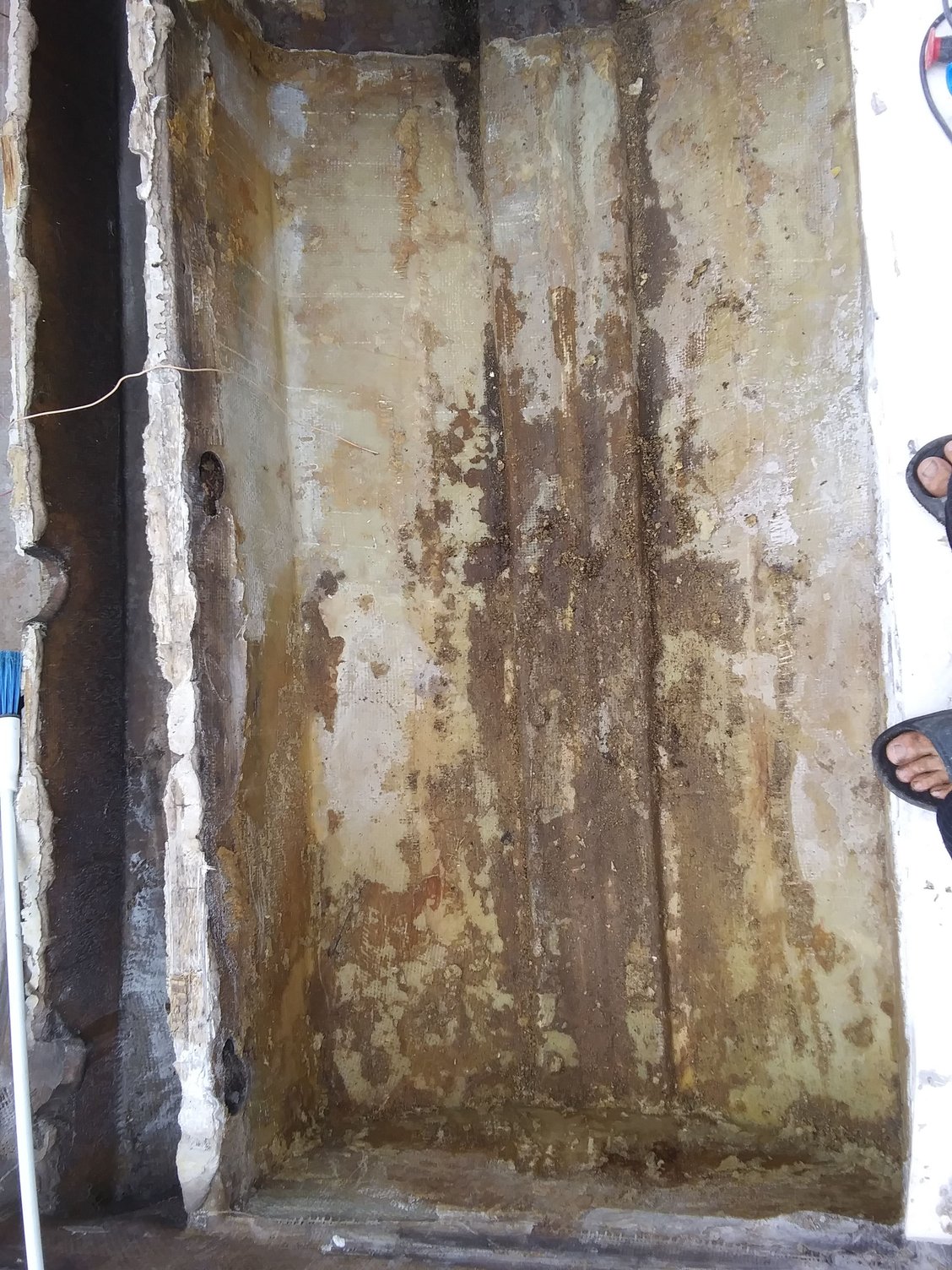

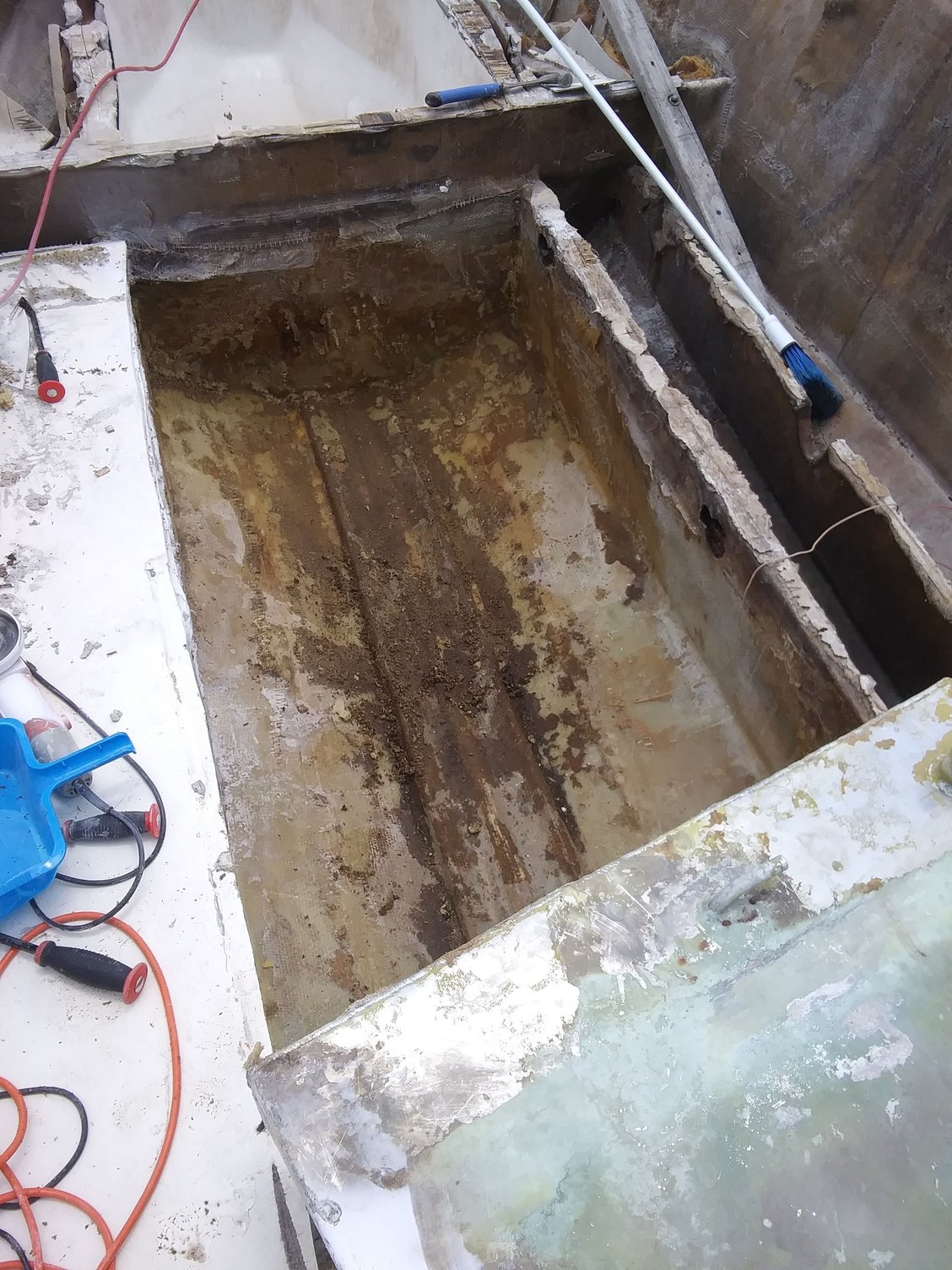

Foam cleaned out

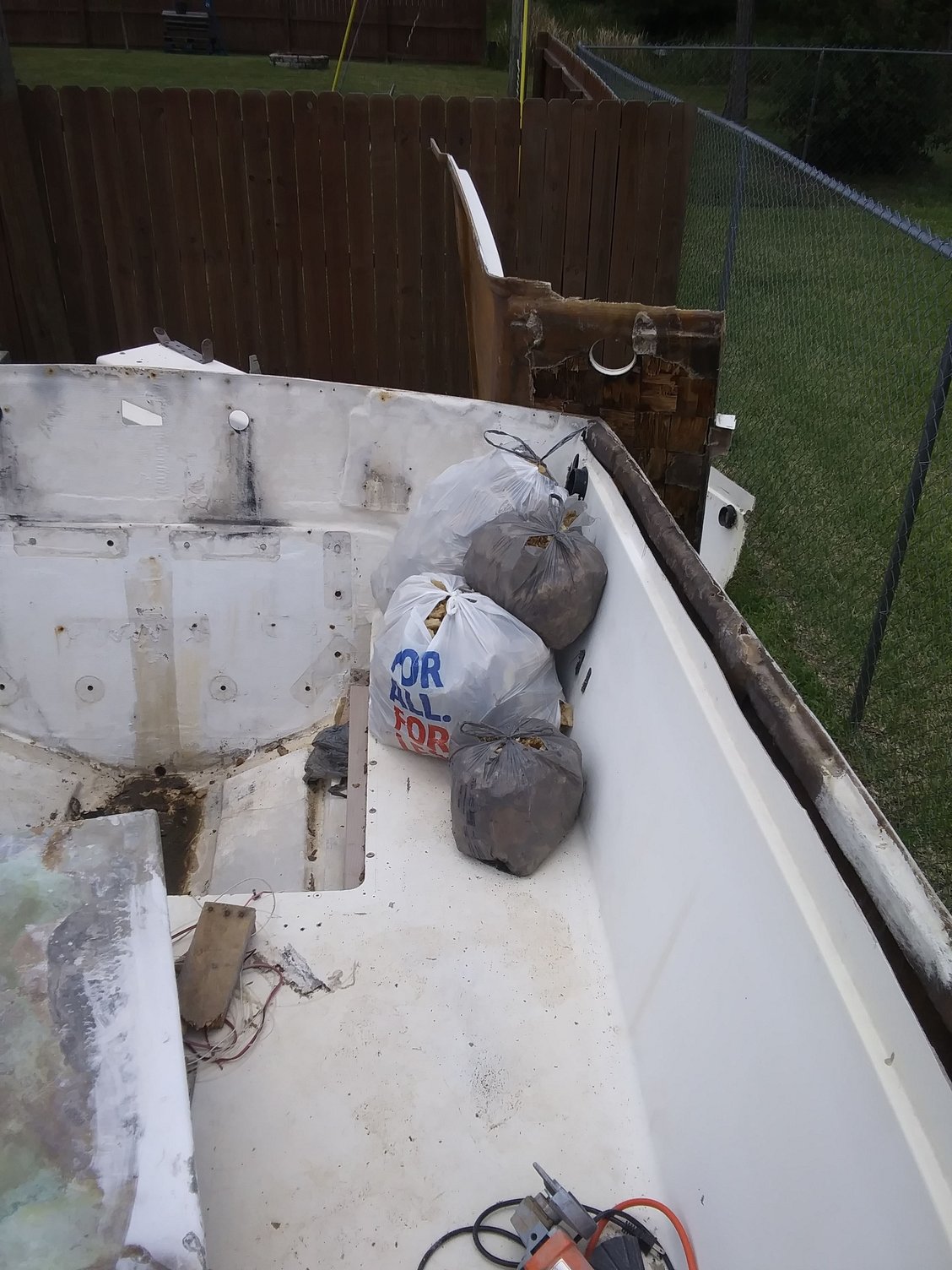

Bags of old soggy foam

Cleaned up.. Since the start of thus rebuild i have worn nothing but these sandles and i plan to build rhis whole boat only in sandles.. Well just because haha
aquasportOX66 is offline
Old 05-23-2019, 11:37 AM
  #72
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default


Removed cleat mount and scupper block area. Scupper wood was soaked

Wet

Transom was nice and dry except the bottom

Only wet square on starboard side of transom
aquasportOX66 is offline
Old 05-23-2019, 03:44 PM
  #73
Senior Member

Join Date: Mar 2016
Location: Calusa territory
Posts: 137
Default

Was the transom assembled that way, out of 4 x 4 in. blocks? The grains don’t line up so it appears so. Was this common back then?
Jeopardy954 is offline
Old 05-23-2019, 03:55 PM
  #74
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Originally Posted by Jeopardy954 View Post
Was the transom assembled that way, out of 4 x 4 in. blocks? The grains don’t line up so it appears so. Was this common back then?
Yep factory.. The floor and cap have the exact same thing except smaller blocks. My aquasport 200 Osprey has the same construction in the deck as well its a mid 80s boat I believe. The speedcraft is a 1979.
aquasportOX66 is offline
Old 05-25-2019, 07:53 AM
  #75
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

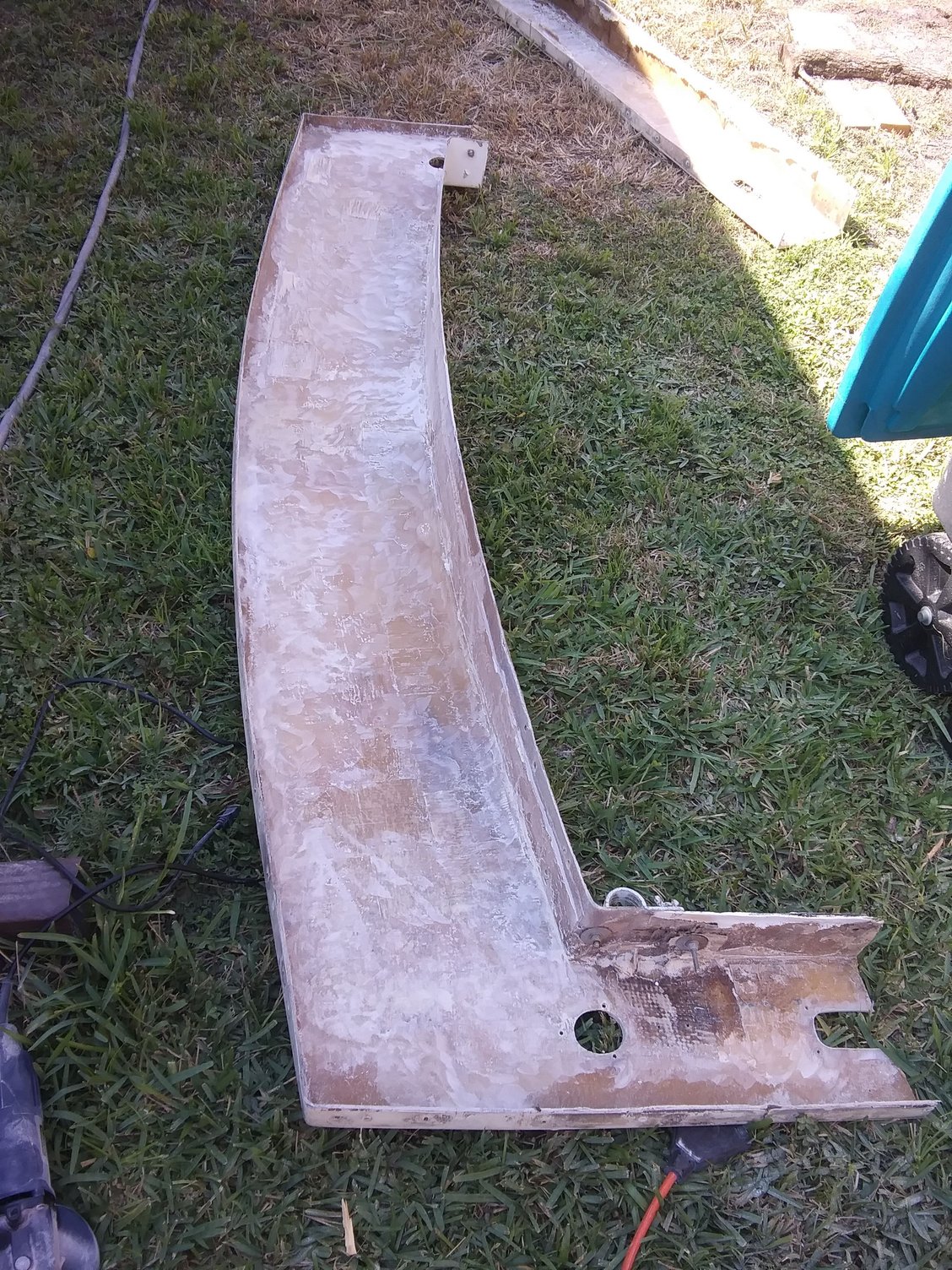

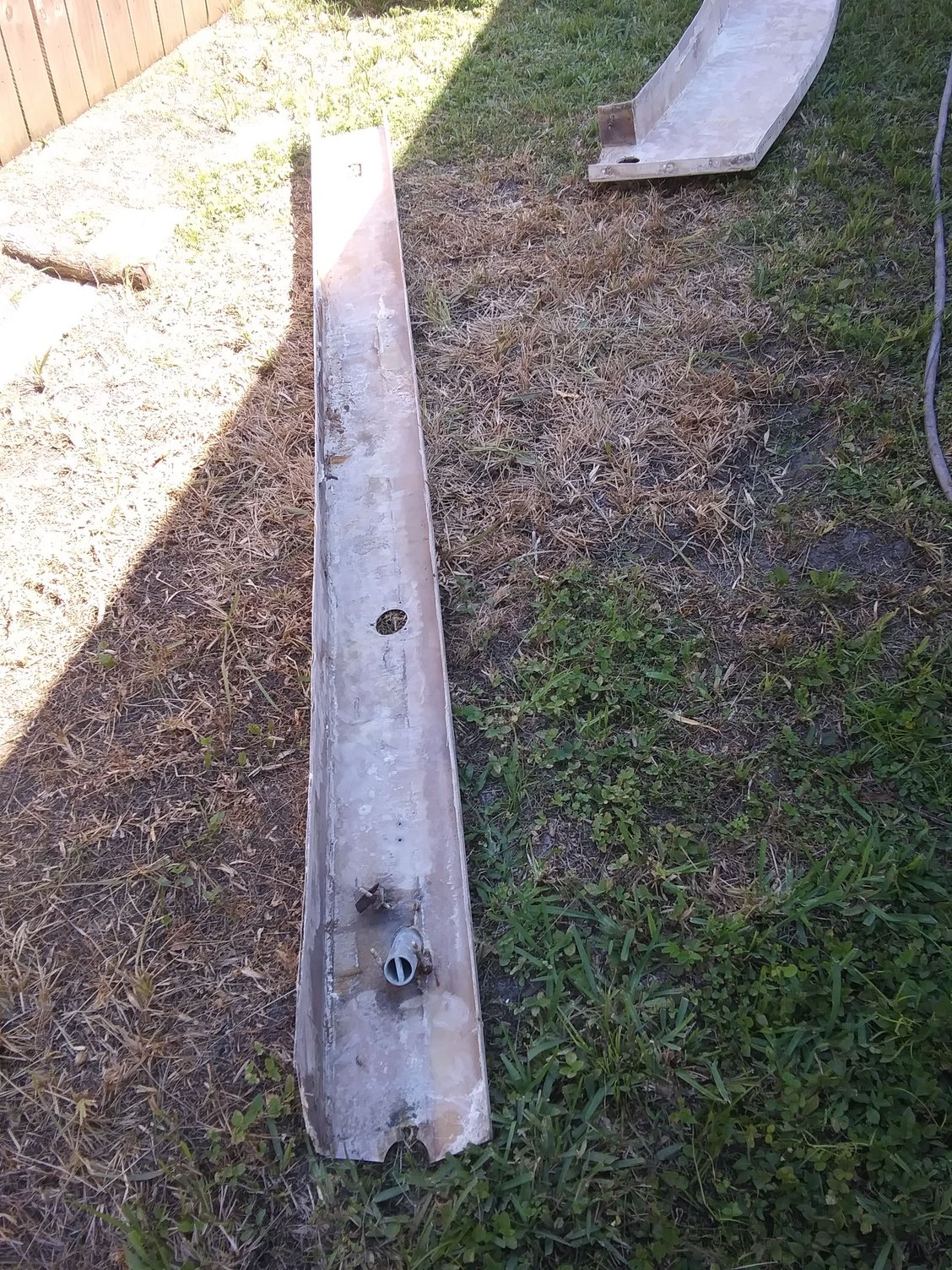

Hammered and chiseled all the core from the cap. Now grinding away fractured glass and remander of wood. I have a slamming headache from all the pounding and vibratations.

Once i fininsh up i can bring the cap without worry about unwanted guests in all the old wood coring


It snowed in florida lol.. I did a pretty good job of keeping the dust contained. After i hammer and chiseled i used a 60 grit flapper wheel. Having the right tools is making thos process fly.
aquasportOX66 is offline
Old 05-25-2019, 08:27 AM
  #76
THT Sponsor Admiral's Club Member
THT sponsor

Join Date: Feb 2018
Location: Boynton Beach FL
Posts: 721
Default

You are a beast and an inspiration, great and fast progress!
unobtanium is offline
Old 05-25-2019, 09:27 AM
  #77
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

Originally Posted by unobtanium View Post
You are a beast and an inspiration, great and fast progress!
Thank you very much I find post to this thread helps keep me motivated. Its also really nice to be able to ask wuestions to various people who have been there and done that.
aquasportOX66 is offline
Old 05-28-2019, 06:43 PM
  #78
Admirals Club Admiral's Club Member

Join Date: Oct 2015
Location: stuart fl
Posts: 1,156
Default

It never stops snowing at my house it seems, tyvek and a good mask are your best friend!
2TDave likes this.
HarvestTime is offline
Old 05-29-2019, 06:11 AM
  #79
Senior MemberCaptains Club Member

Join Date: Apr 2002
Location: Hagerstown MD/FT Myers FL
Posts: 2,276
Default

Wow keep up the good work. Looking forward to this one!!!!
Rickster is offline
Old 05-31-2019, 01:02 PM
  #80
Senior Member
Thread Starter

Join Date: Sep 2018
Posts: 231
Default

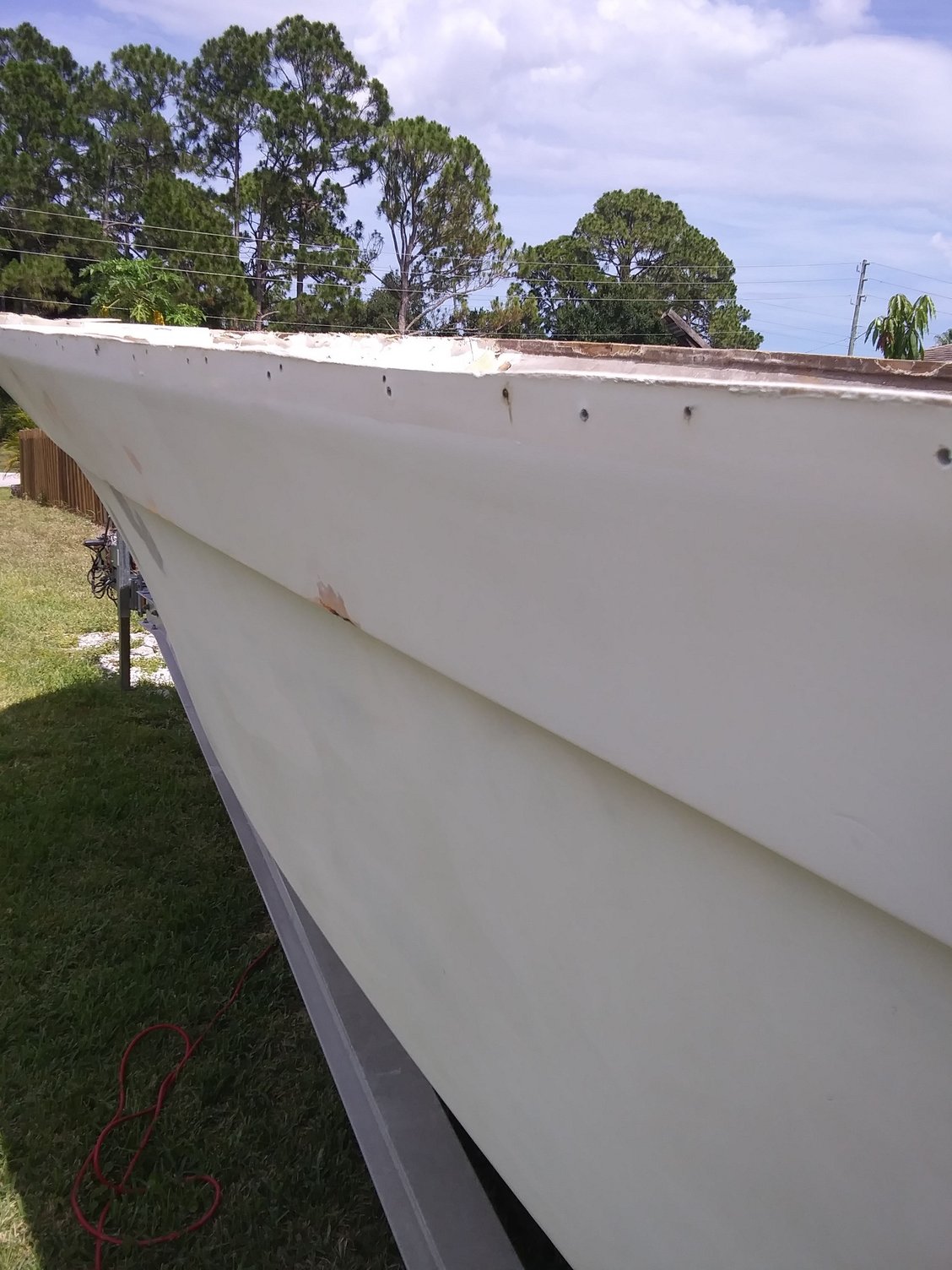

Not a whole lot to post. Been grinding and sanding on transom and hullsides.

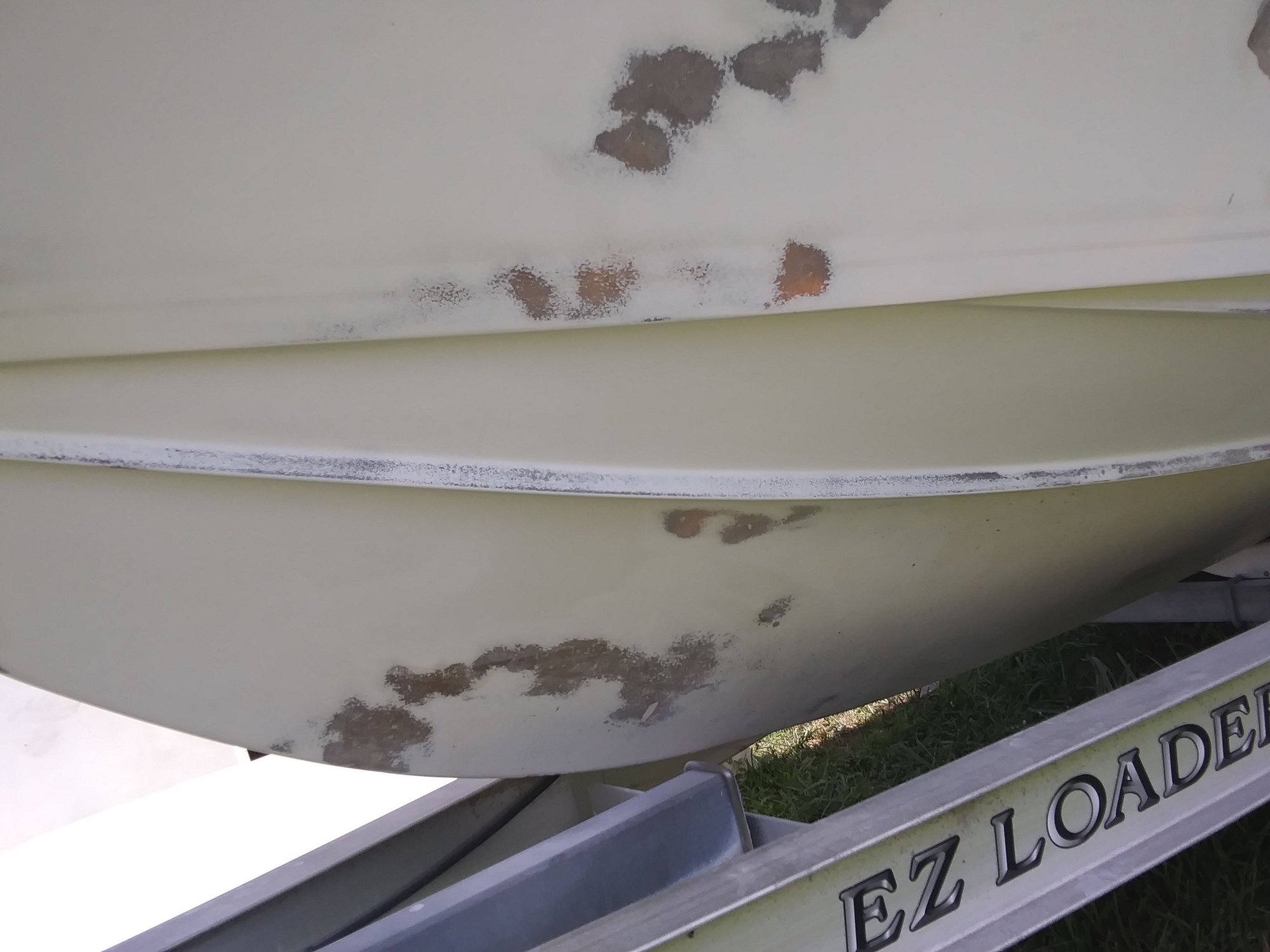

Removing blisters from transom where outdrive was fixed.. Some minor bubbles and delamination. I think this is a case of gelcoat over epoxy maybe?

99% of core out of cap now. Fitting up anchor locker door soon.

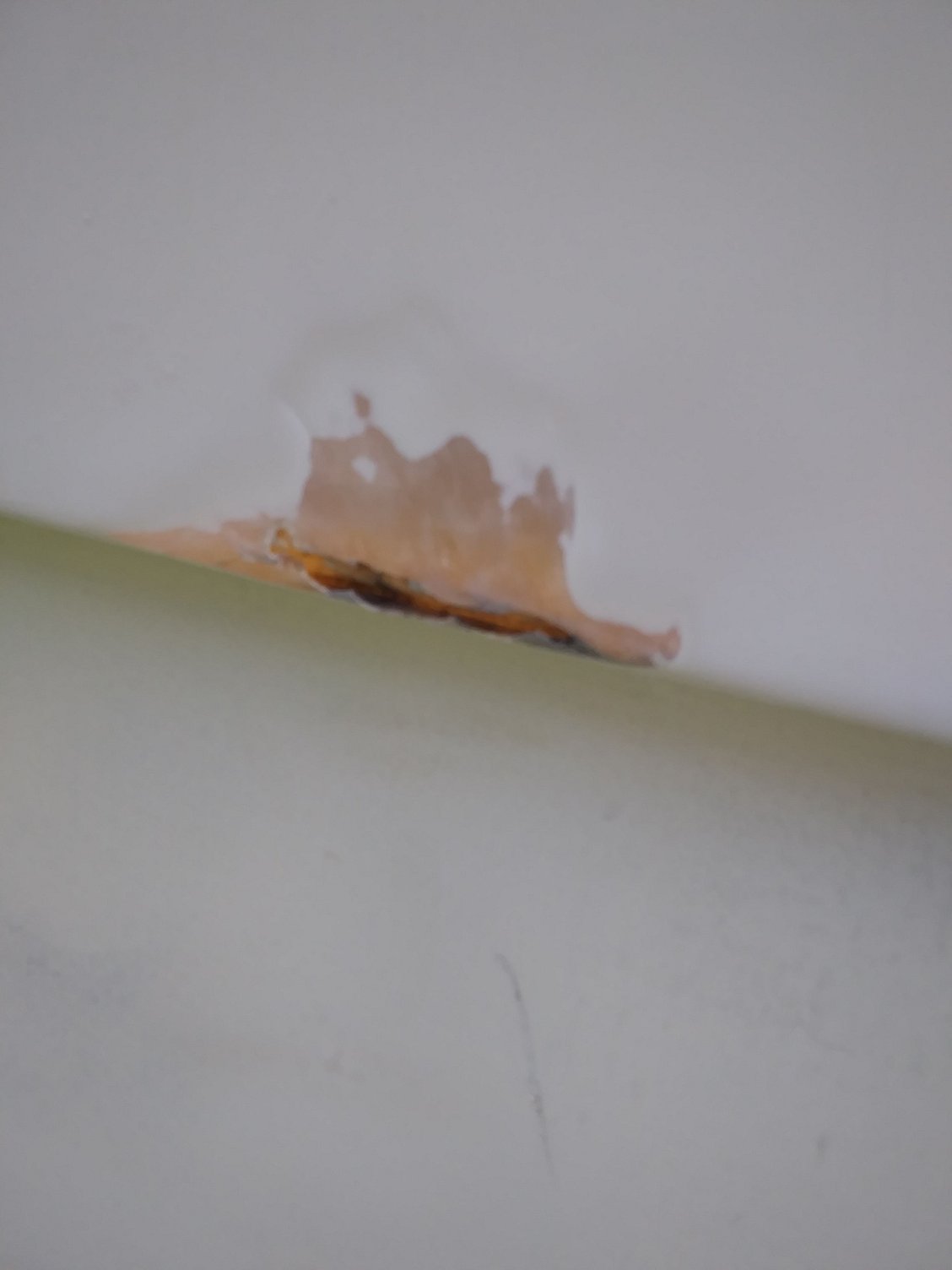

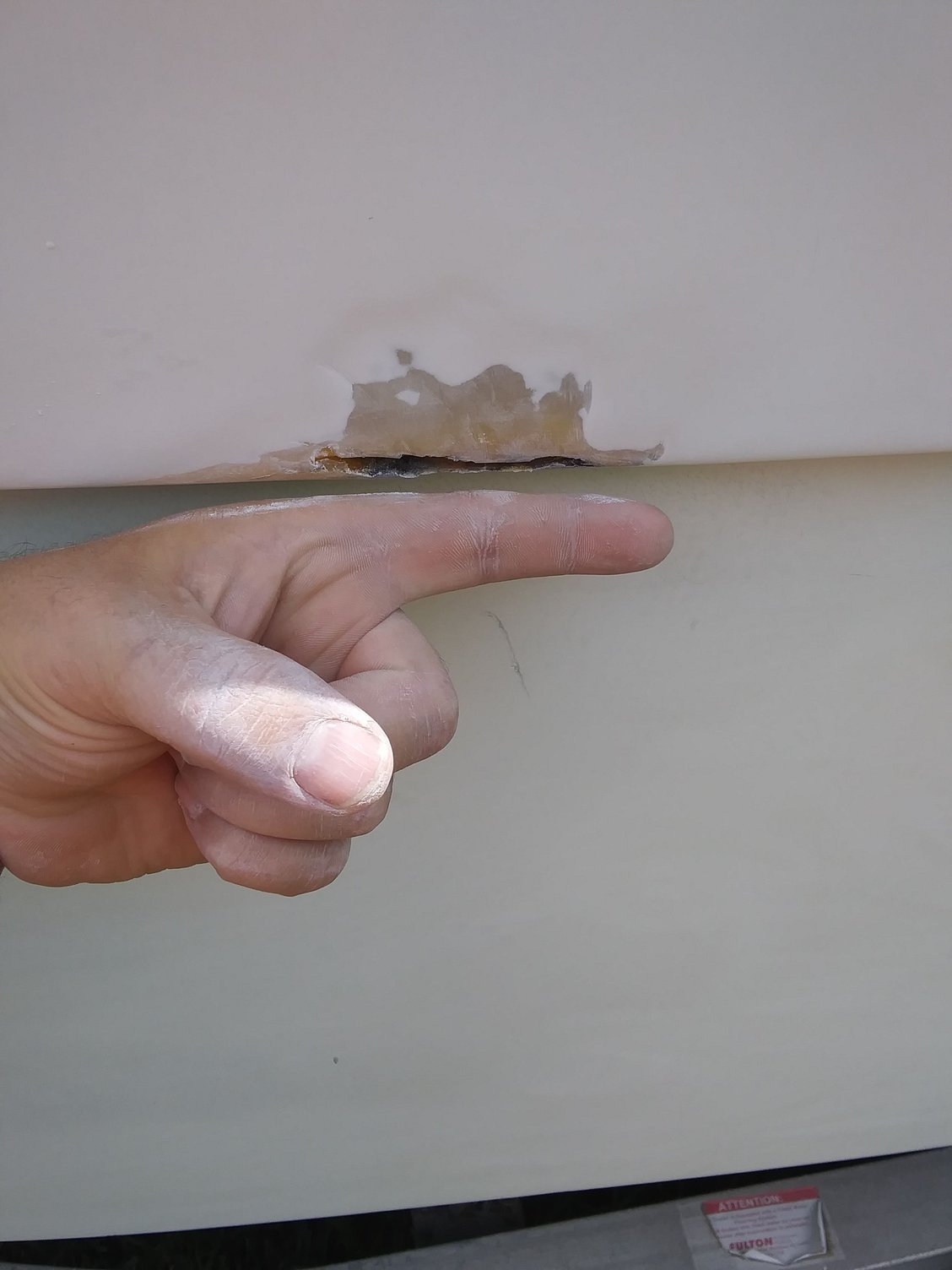

Large void in hullside

Void different angle

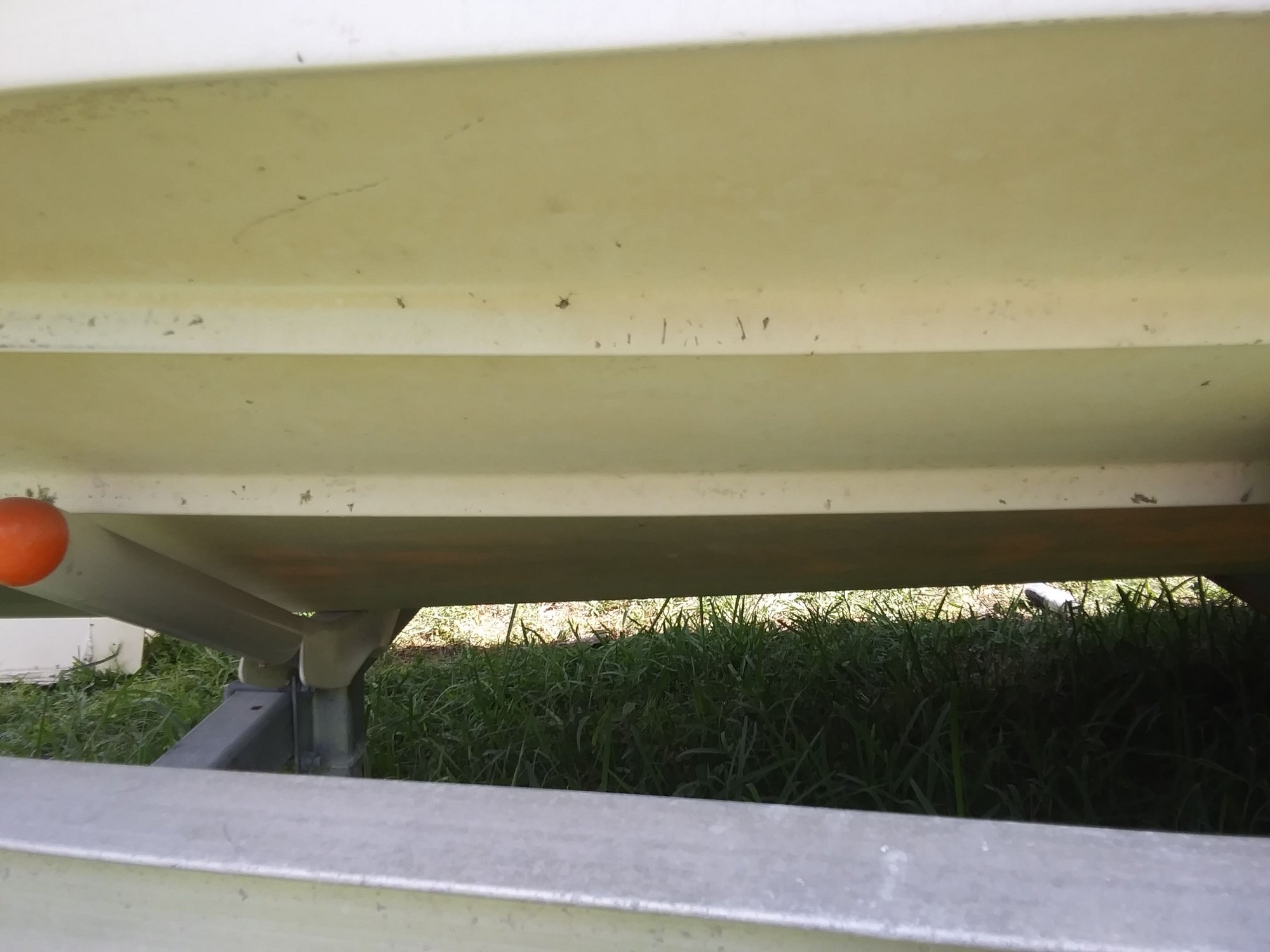

I believe the hull bottom had an old epoxy coat of some kind. It was very cracked and yellowed. Almost all sanded off now.


Void for size
aquasportOX66 is offline
