PICS - Is this electrolysis damage or something else?

Notices
The Boating Forum

PICS - Is this electrolysis damage or something else?

Old 04-24-2019, 07:43 AM
  #1
Member
Thread Starter

Join Date: Mar 2015
Posts: 36
Likes: 0
Received 8 Likes on 3 Posts
Default PICS - Is this electrolysis damage or something else?

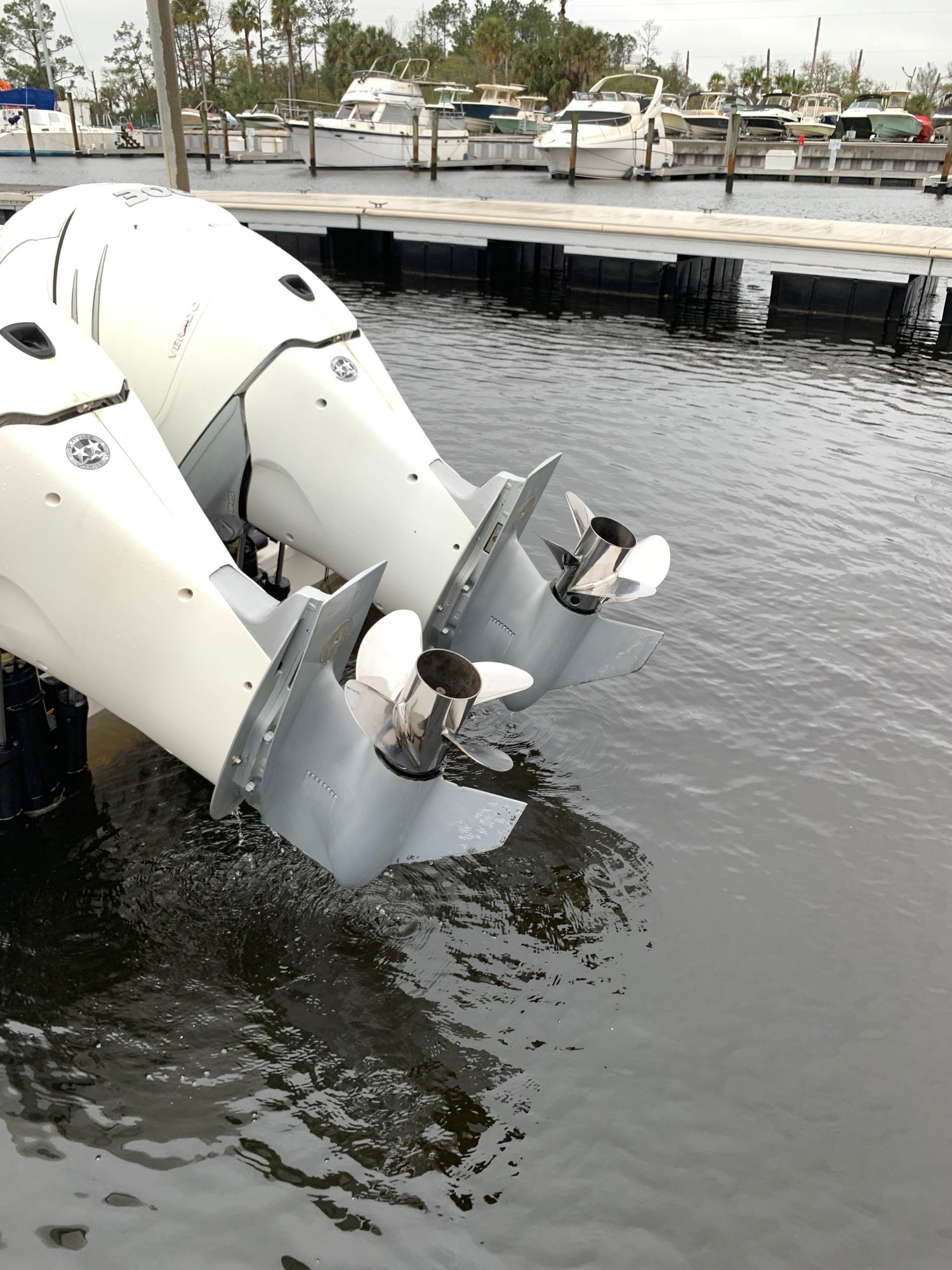

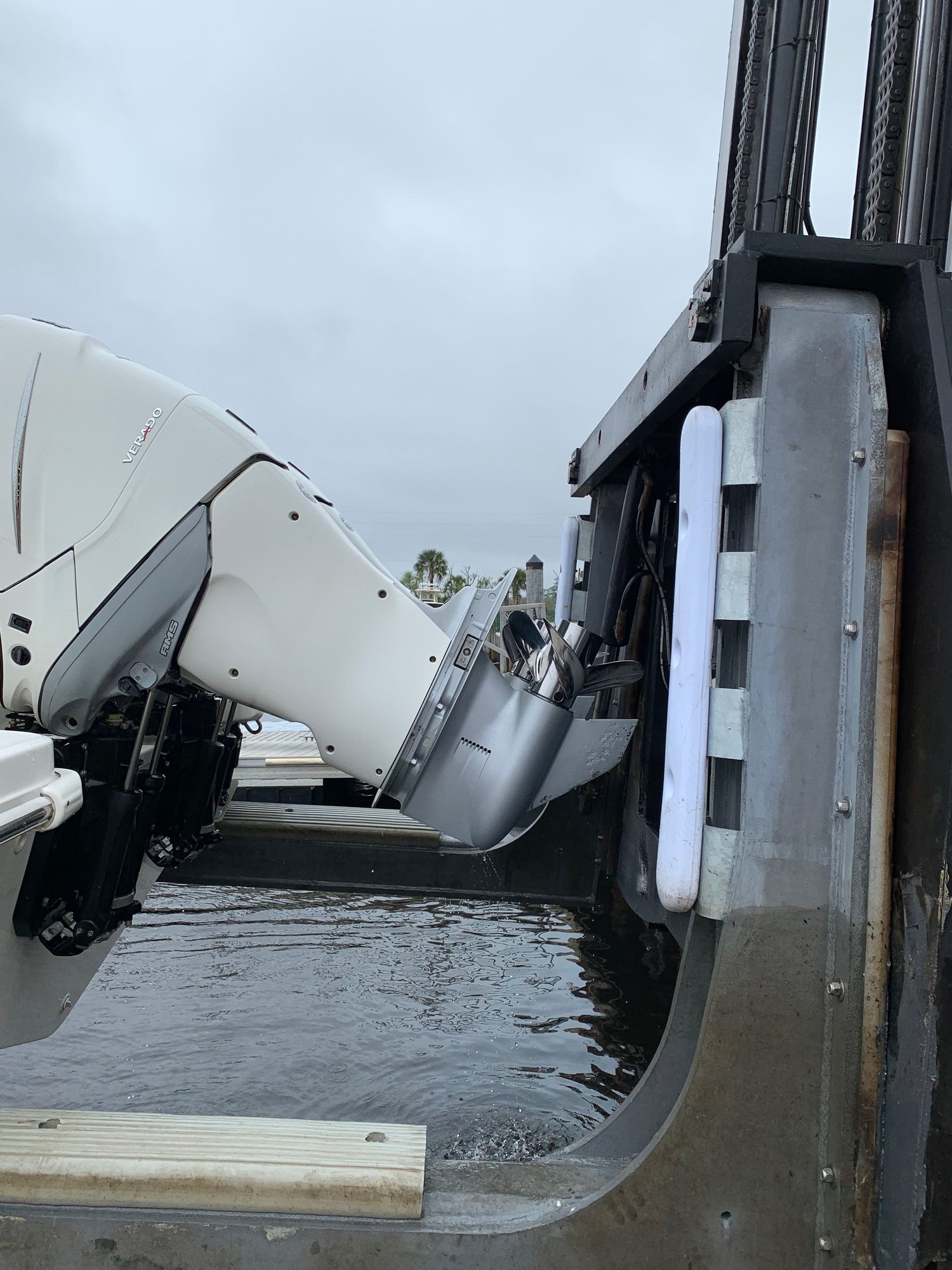

Looking for help from people more knowledgeable than me. Is this damage to the lower unit electrolysis damage or something else? If it's electrolysis, could there be more internal motor damage that I'm not seeing? Also, this boat was supposedly dry stack stored so how does this happen on a 2016 boat?




There is minor damage to the skegs that has been repainted. Would this scare anyone off?

Old 04-24-2019, 07:48 AM
  #2
Senior Member

Join Date: Nov 2015
Location: Jax FL
Posts: 2,743
Likes: 0
Received 784 Likes on 535 Posts
Default

That can be repaired. Your zincs okay? You do need to repaint any bare metal it safe.
Old 04-24-2019, 07:56 AM
  #3
Senior Member

Join Date: Nov 2015
Location: Jax FL
Posts: 2,743
Likes: 0
Received 784 Likes on 535 Posts
Default

That can be repaired via welding. Your zincs okay? You do need to repaint any bare metal to keep it from eroding due to just high speed running.
Old 04-24-2019, 08:09 AM
  #4
Senior Member

Join Date: Feb 2018
Location: St. Petersburg, FL
Posts: 684
Likes: 0
Received 193 Likes on 106 Posts
Default

Yup, looks like a 3 year old Mercury!
Old 04-24-2019, 09:08 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 16,675
Received 2,619 Likes on 1,876 Posts
Default

given the chip, it appears that these were run aground?

could be contact damage, paint issue, or electrolysis, hard to tell
Old 04-24-2019, 09:23 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Mar 2011
Posts: 963
Received 318 Likes on 168 Posts
Default

looks like they were run aground. the zincs look nearly new from what I can see in the pictures
Old 04-24-2019, 09:54 AM
  #7
Senior Member

Join Date: Mar 2006
Location:
Posts: 300
Received 5 Likes on 4 Posts
Default

Most definitely damage from electrolysis, the pocking on the skeg confirms it.
Old 04-24-2019, 10:01 AM
  #8
Senior Member

Join Date: May 2014
Location: Fort Myers, FL
Posts: 2,208
Received 382 Likes on 237 Posts
Default

Originally Posted by UncleLuke View Post
Yup, looks like a 3 year old Mercury!
Huh?? None of mine ever did that.
Old 04-24-2019, 10:02 AM
  #9
Senior Member

Join Date: May 2014
Location: Fort Myers, FL
Posts: 2,208
Received 382 Likes on 237 Posts
Default

Originally Posted by ziess21 View Post
Most definitely damage from electrolysis, the pocking on the skeg confirms it.
But then why only on the skeg?
Old 04-24-2019, 10:12 AM
  #10
Senior Member

Join Date: Aug 2018
Posts: 249
Received 95 Likes on 53 Posts
Default

I don't get it. There is a very fresh looking zinc visible in the top pic. That's not electrolysis.

Something is wrong with the paint or the application or the care. It shouldn't do that. Especially if this is rinsed and dry-stored.

What's going on?

I can only guess at things. I notice there is a cover on the sides of the lower leg. My old motor doesn't have that. Is salt water staying up in there and seeping down over time? It looks like it was never rinsed.

My 23 yo Merc doesn't look like that. All the paint is GONE off the skeg, never repainted, bare metal. It was like that when I got it. It's not advancing much at all. There isn't much corrosion around it. Maybe just a bit at the edge of the paint / bare metal border. From there on up, and certainly above the cav plate, all the paint is rock solid. Faded, but still doing it's job. None of that bubbling up blisters with corrosion under it.

Makes me wonder if that one is a factory mistake. Maybe they let the bare metal get exposed to the sea air before the paint got on it. Maybe it was built on a humid day. I can only guess. It should not do that. Certainly not in 3 years. That's crazy.

Is that your boat or one you are just looking at?

If it's yours and it's under warranty it's time to take it back. It should not do that with proper care.

If it's one you're looking at I can understand why it is for sale. That is advancing too quickly to get any kind of good feeling it's a keeper. And if that's what it looks like outside those white side covers, I wonder what it looks like inside. If it looks like that when it's three years old then what's it gonna look like after 6 years or 10?
Old 04-24-2019, 10:17 AM
  #11
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 9,745
Received 1,465 Likes on 898 Posts
Default

How high do you trim the motors when running? Cavitation or ventilation-related?
Old 04-24-2019, 10:55 AM
  #12
Senior Member

Join Date: Oct 2009
Posts: 450
Received 39 Likes on 34 Posts
Default

He is looking at a used boat. My best guess is electrolysis from being in a hot harbor or a wiring problem. The new zinc would have been replaced after the damage was found.
Old 04-24-2019, 10:59 AM
  #13
Member
Thread Starter

Join Date: Mar 2015
Posts: 36
Likes: 0
Received 8 Likes on 3 Posts
Default

Originally Posted by SaltBoater View Post
I don't get it. There is a very fresh looking zinc visible in the top pic. That's not electrolysis.

Something is wrong with the paint or the application or the care. It shouldn't do that. Especially if this is rinsed and dry-stored.

What's going on?

I can only guess at things. I notice there is a cover on the sides of the lower leg. My old motor doesn't have that. Is salt water staying up in there and seeping down over time? It looks like it was never rinsed.

My 23 yo Merc doesn't look like that. All the paint is GONE off the skeg, never repainted, bare metal. It was like that when I got it. It's not advancing much at all. There isn't much corrosion around it. Maybe just a bit at the edge of the paint / bare metal border. From there on up, and certainly above the cav plate, all the paint is rock solid. Faded, but still doing it's job. None of that bubbling up blisters with corrosion under it.

Makes me wonder if that one is a factory mistake. Maybe they let the bare metal get exposed to the sea air before the paint got on it. Maybe it was built on a humid day. I can only guess. It should not do that. Certainly not in 3 years. That's crazy.

Is that your boat or one you are just looking at?

If it's yours and it's under warranty it's time to take it back. It should not do that with proper care.

If it's one you're looking at I can understand why it is for sale. That is advancing too quickly to get any kind of good feeling it's a keeper. And if that's what it looks like outside those white side covers, I wonder what it looks like inside. If it looks like that when it's three years old then what's it gonna look like after 6 years or 10?
The zincs are new and were replaced when the dealer took the boat in trade. This is a boat I'm looking at buying. Is this something that can be fixed under warranty if it was not cared for properly? The dealer said it was dry stack stored but I'm not familiar with how those facilities work. Who flushes the motors? Who sprays the boat down before it's put on the shelf? The dealer says the boat was kept in a shallow marina and the skegs dragged in the sand. Maybe the skegs had the paint scraped off and there was also electrical damage? I don't know. Just trying to decide if this is a deal breaker or just cosmetic and can be repaired.
Old 04-24-2019, 11:06 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Mar 2016
Location: Miami Beach, FL
Posts: 494
Likes: 0
Received 21 Likes on 18 Posts
Default

This seems to be electrical damage. I scraped off the tips of mine and never painted, nothing like this happened.

I had an engine that the anodes were not correctly installed and electrolysis damaged like this, making holes. Perhaps the previous owner raised the engines enough for the zincs to be out of water but not the tips.

This is unlikely a warranty claim.
Old 04-24-2019, 11:11 AM
  #15
Member
Thread Starter

Join Date: Mar 2015
Posts: 36
Likes: 0
Received 8 Likes on 3 Posts
Default

Originally Posted by c1steve View Post
He is looking at a used boat. My best guess is electrolysis from being in a hot harbor or a wiring problem. The new zinc would have been replaced after the damage was found.
Yes, you're correct. Must be a wiring issue if the boat was dry stack stored though right? Not sure if it could be a hot harbor if the boat gets pulled for storage. The boat is in Jacksonville FL. I understand the corrosion on the skegs but the paint bubbling on the top of the LU is curious. Maybe from not rinsing the motors or anything. Someone repainted the skegs so I'm trying to find out if that was the dealer or someone else.
Old 04-24-2019, 11:18 AM
  #16
Admirals Club Admiral's Club Member

Join Date: Jun 2014
Location: Jupiter, FL
Posts: 1,292
Received 97 Likes on 74 Posts
Default

Looks Like Electrolysis to me - 12v grounding or bonding issue with the motor brackets. Surveyor will mention that. A good marine electrician can track that down for you.
Old 04-24-2019, 11:23 AM
  #17
Admirals Club Admiral's Club Member

Join Date: Mar 2016
Location: Miami Beach, FL
Posts: 494
Likes: 0
Received 21 Likes on 18 Posts
Default

Originally Posted by jfreedman View Post
Yes, you're correct. Must be a wiring issue if the boat was dry stack stored though right? Not sure if it could be a hot harbor if the boat gets pulled for storage. The boat is in Jacksonville FL. I understand the corrosion on the skegs but the paint bubbling on the top of the LU is curious. Maybe from not rinsing the motors or anything. Someone repainted the skegs so I'm trying to find out if that was the dealer or someone else.
When I experienced an electrolysis issue due to incorrect anode installation, the corrosion manifested as paint bubbling such as that one on the picture.
Likes:
Old 04-24-2019, 12:09 PM
  #18
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 16,675
Received 2,619 Likes on 1,876 Posts
Default

Originally Posted by SWF Pontoon Angler View Post
But then why only on the skeg?
electrolysis can happen only or be predominant only only one in a twin setup
Old 04-24-2019, 12:10 PM
  #19
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 16,675
Received 2,619 Likes on 1,876 Posts
Default

Originally Posted by SaltBoater View Post
I don't get it. There is a very fresh looking zinc visible in the top pic. That's not electrolysis.
a fresh looking zinc doesnt mean much

couldvbe been changed after the fact

could be the wrong type of anode (zinc v. aluminum etc)

or could not be properly bonded and not sacrificing itself

Last edited by mystery; 04-24-2019 at 12:43 PM.
Likes:
Old 04-24-2019, 12:28 PM
  #20
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Green Bay, WI
Posts: 678
Received 162 Likes on 106 Posts
Default

Looks like it sat for a period of time with the motors trimmed so that only the tip of the skeg was in the water and the anodes were not.
