Cobia Upgrades & Paint, full project. Plenty of Pics!

Notices
Like Tree3Likes

Cobia Upgrades & Paint, full project. Plenty of Pics!

Old 04-09-2019, 07:28 PM
  #1
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default Cobia Upgrades & Paint, full project. Plenty of Pics!

Started this project back in October 18' . Finally had some free time this month to finish everything up. This is the full project with a ton of pictures, for those who like seeing a project from start to complete!

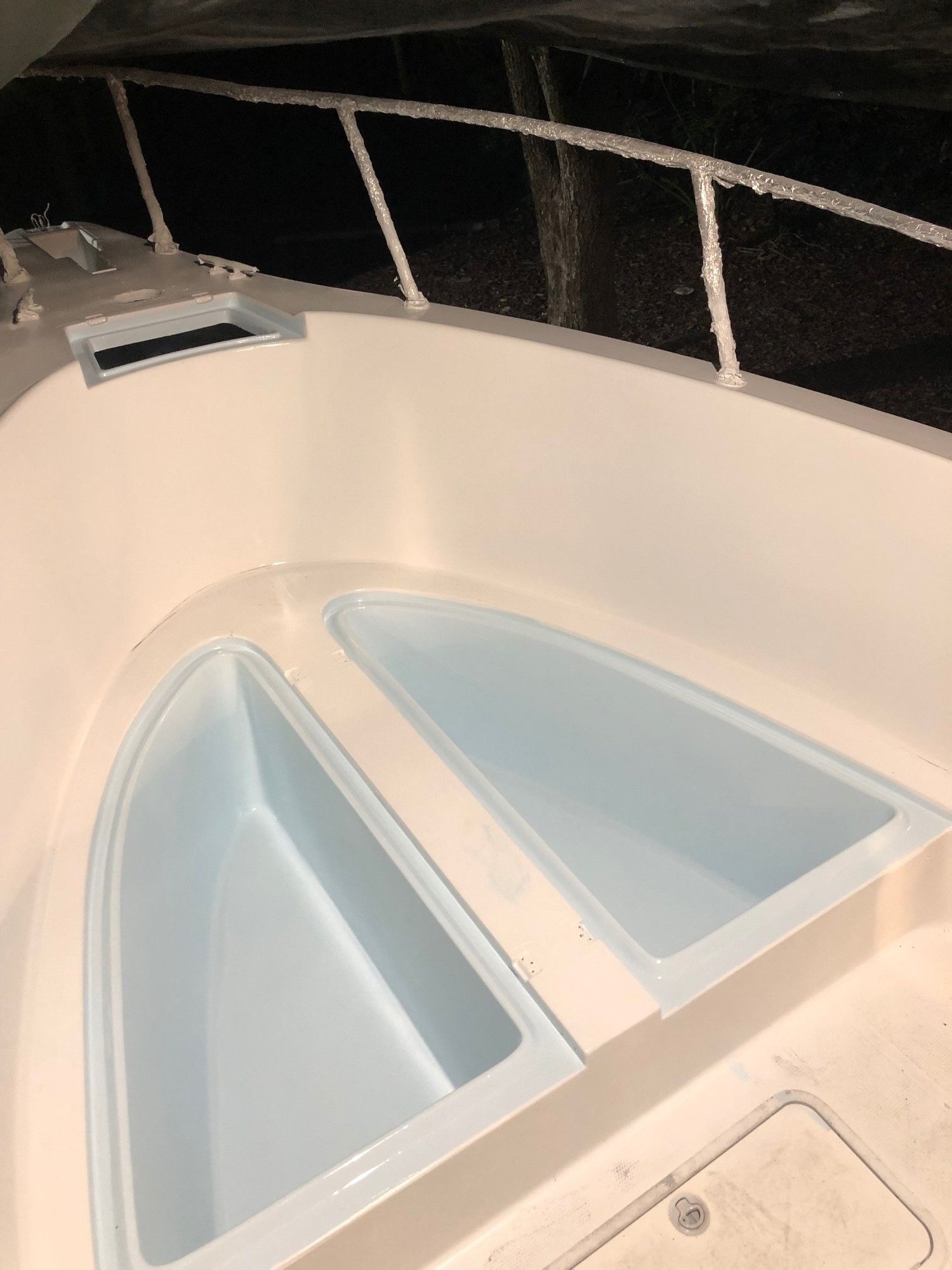

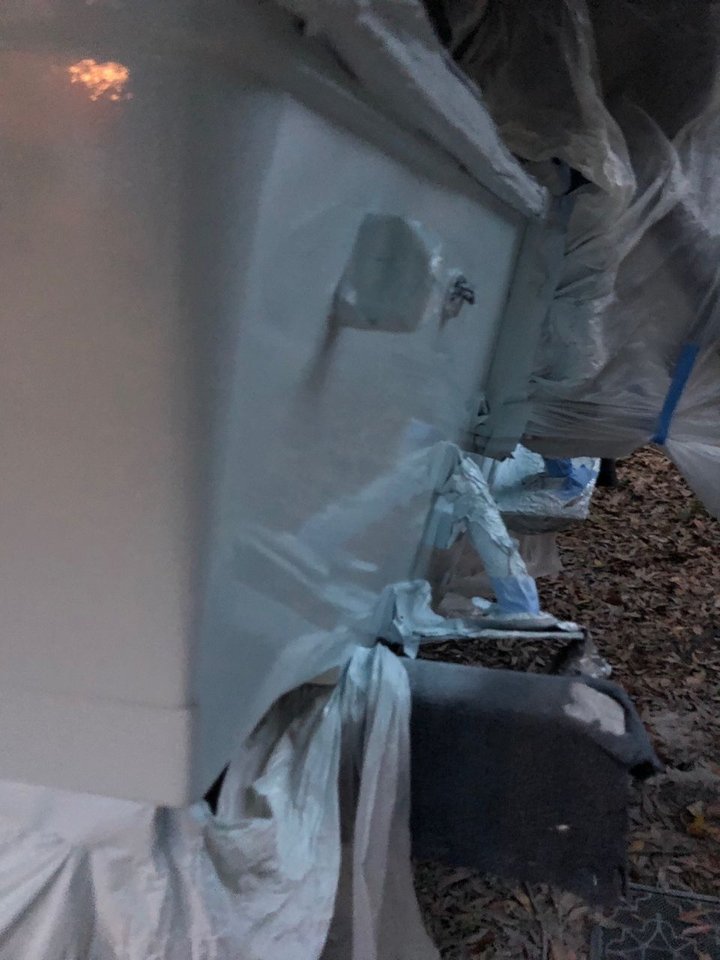

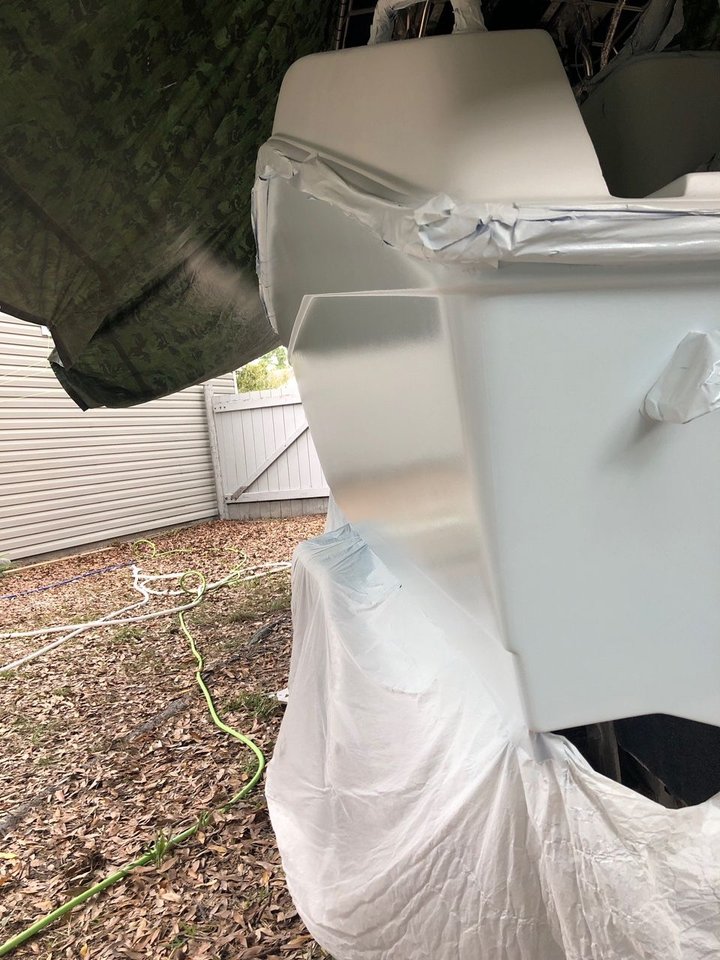

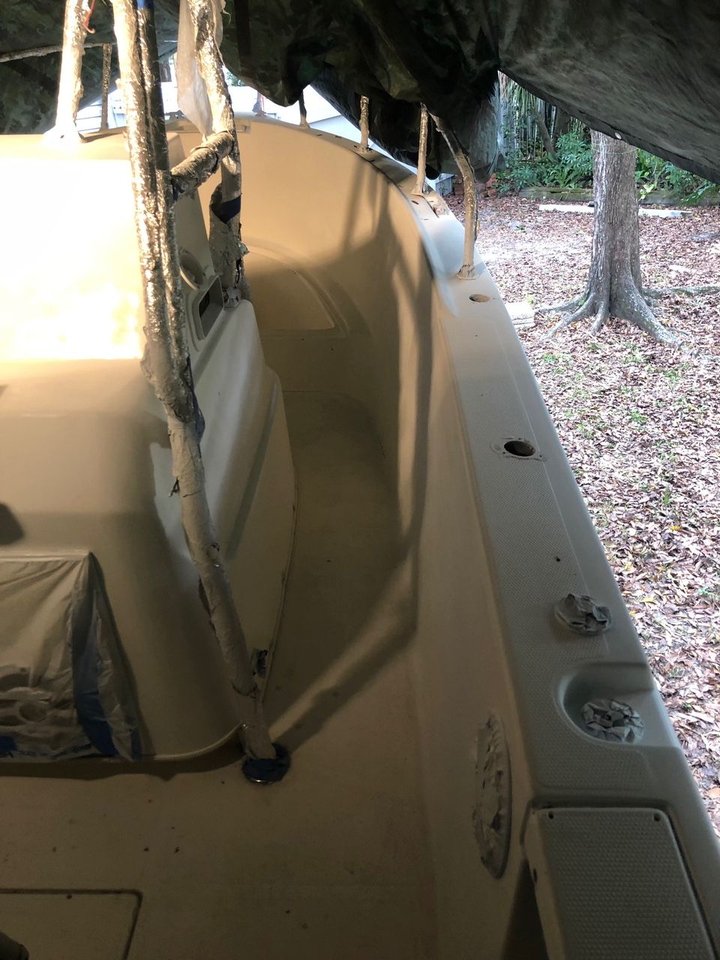

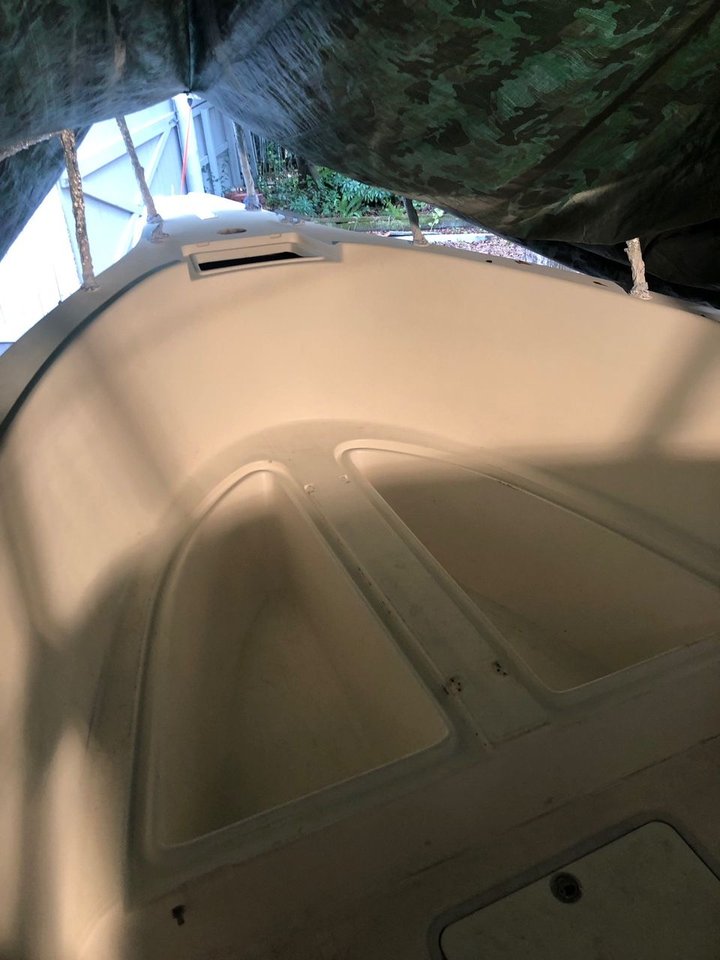

first coat of top coat

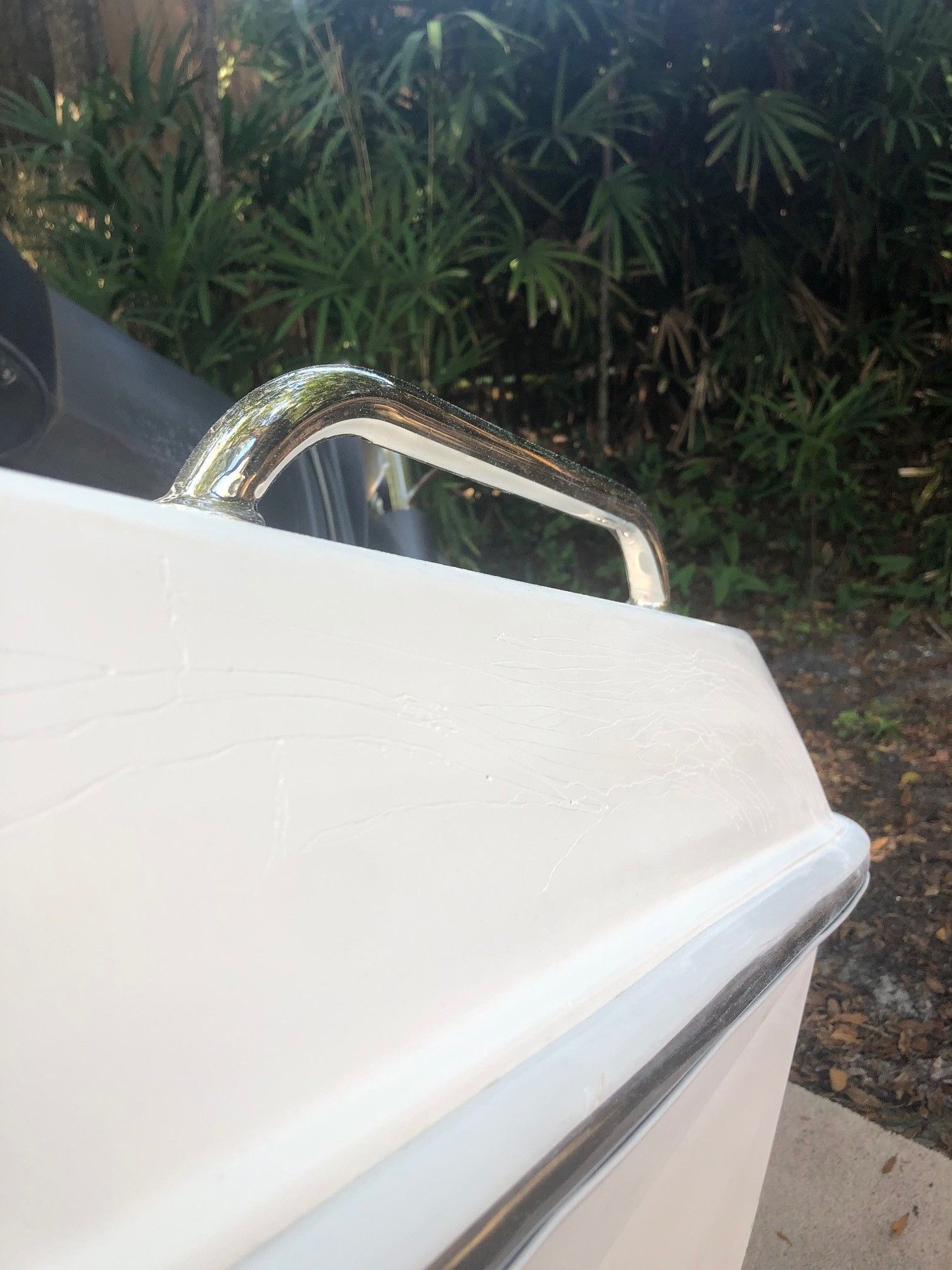

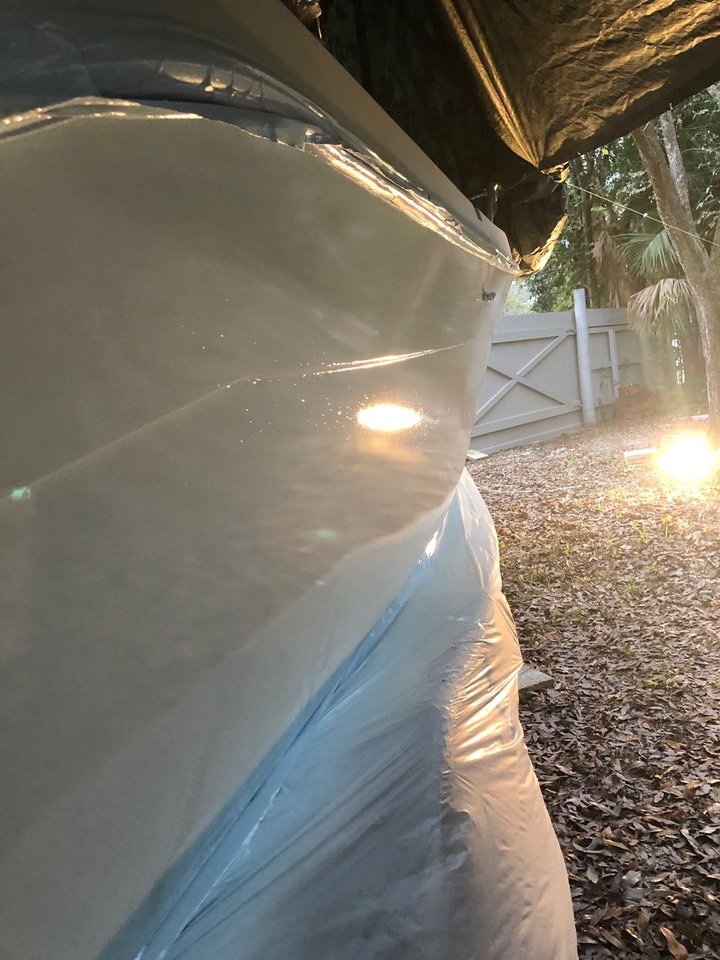

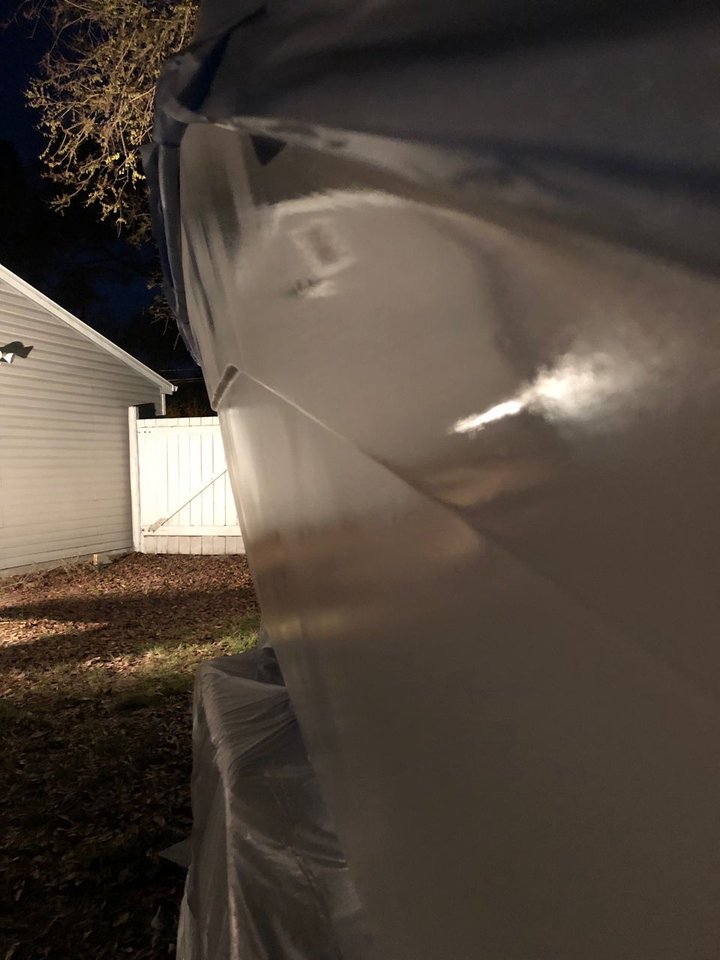

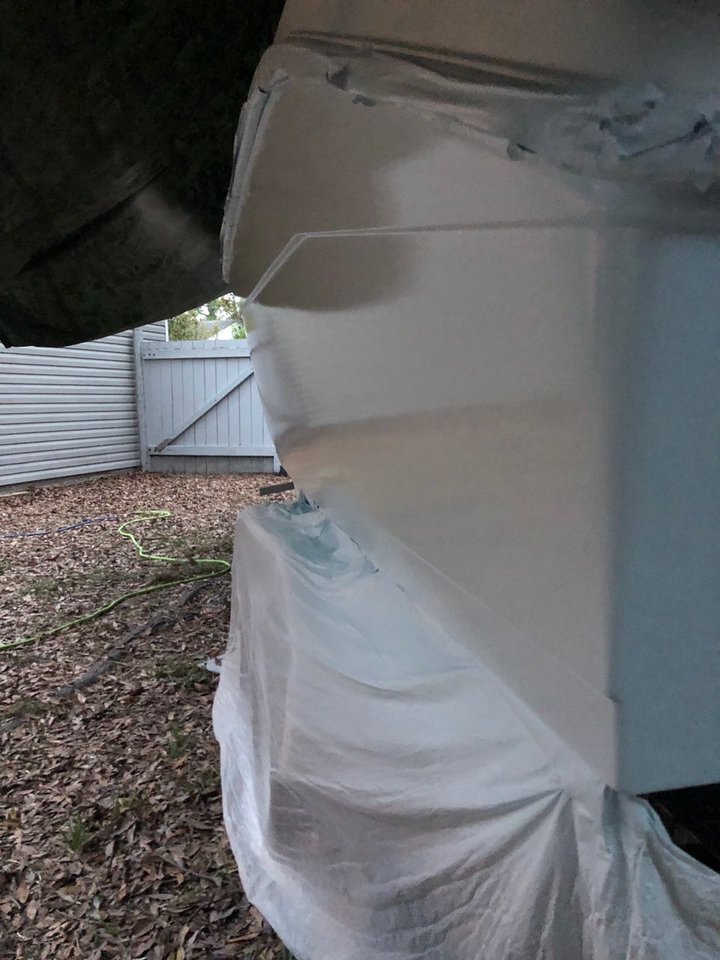

Paint lays down nice

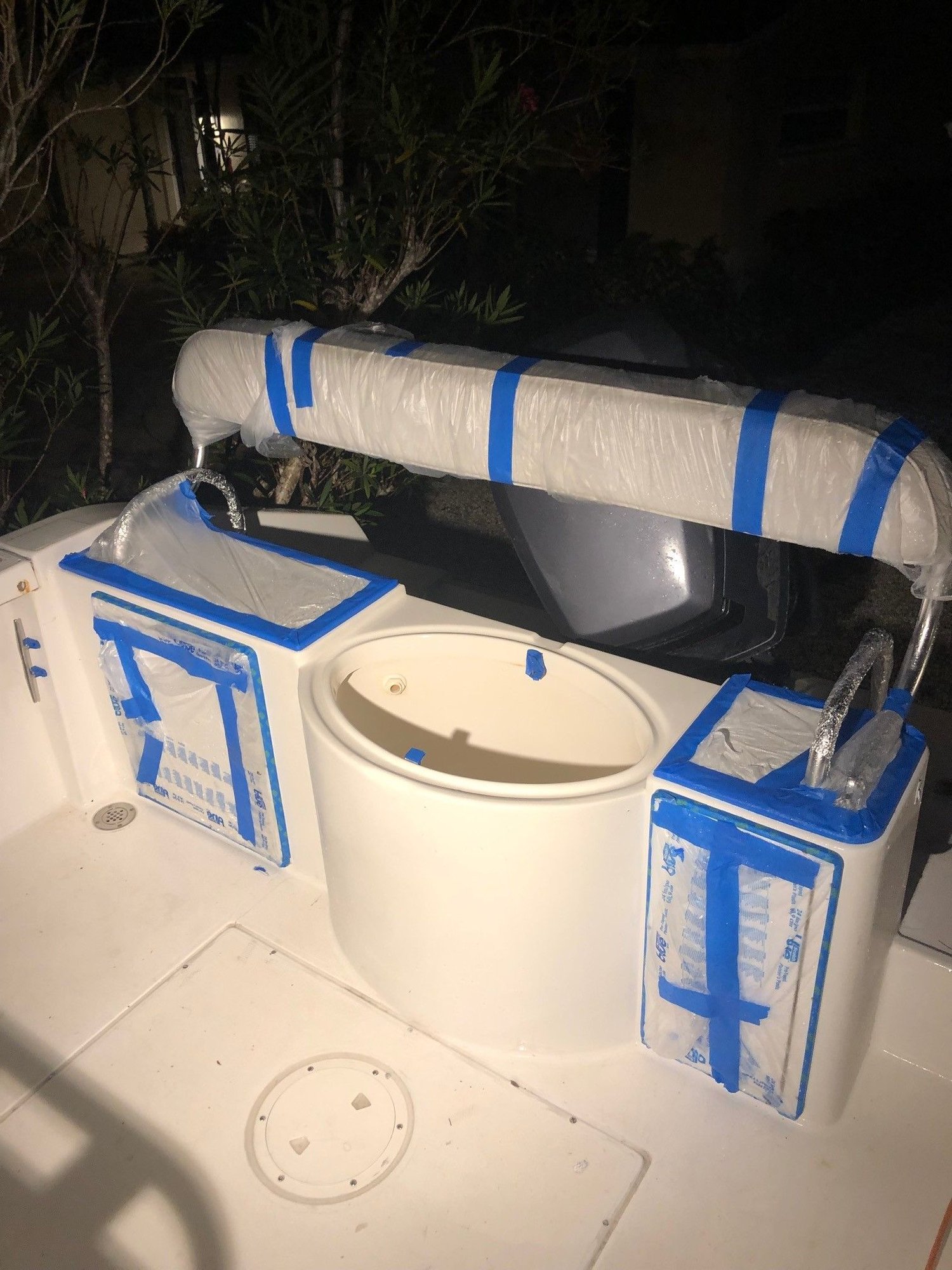

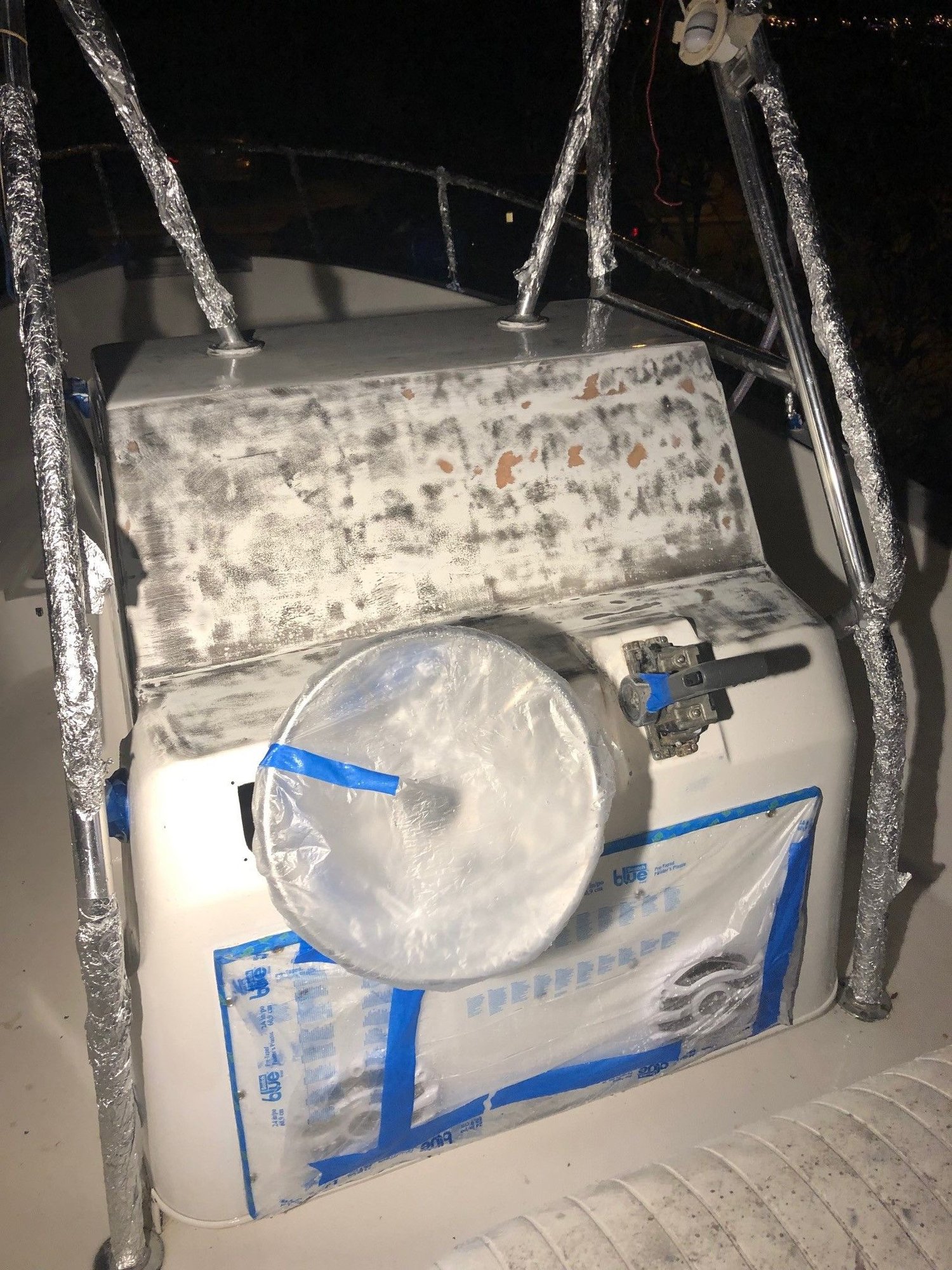

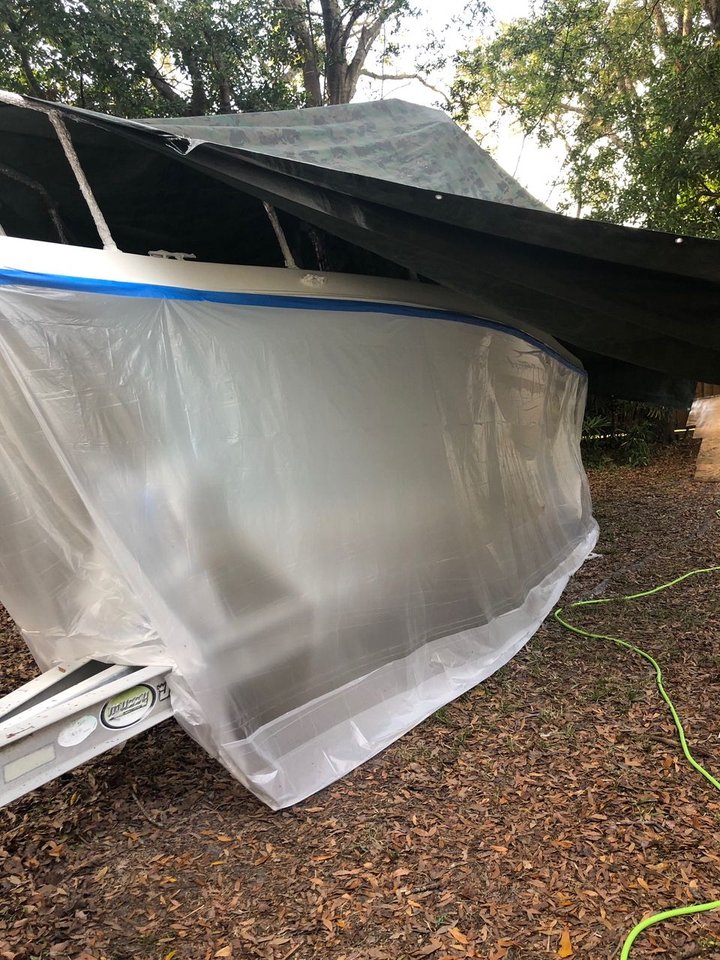

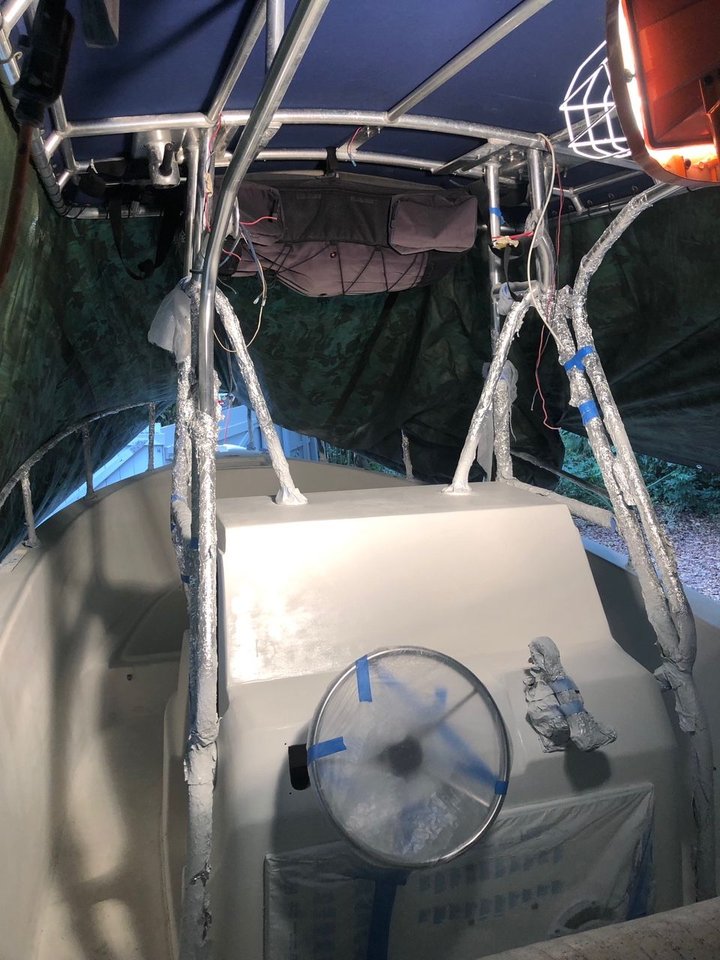

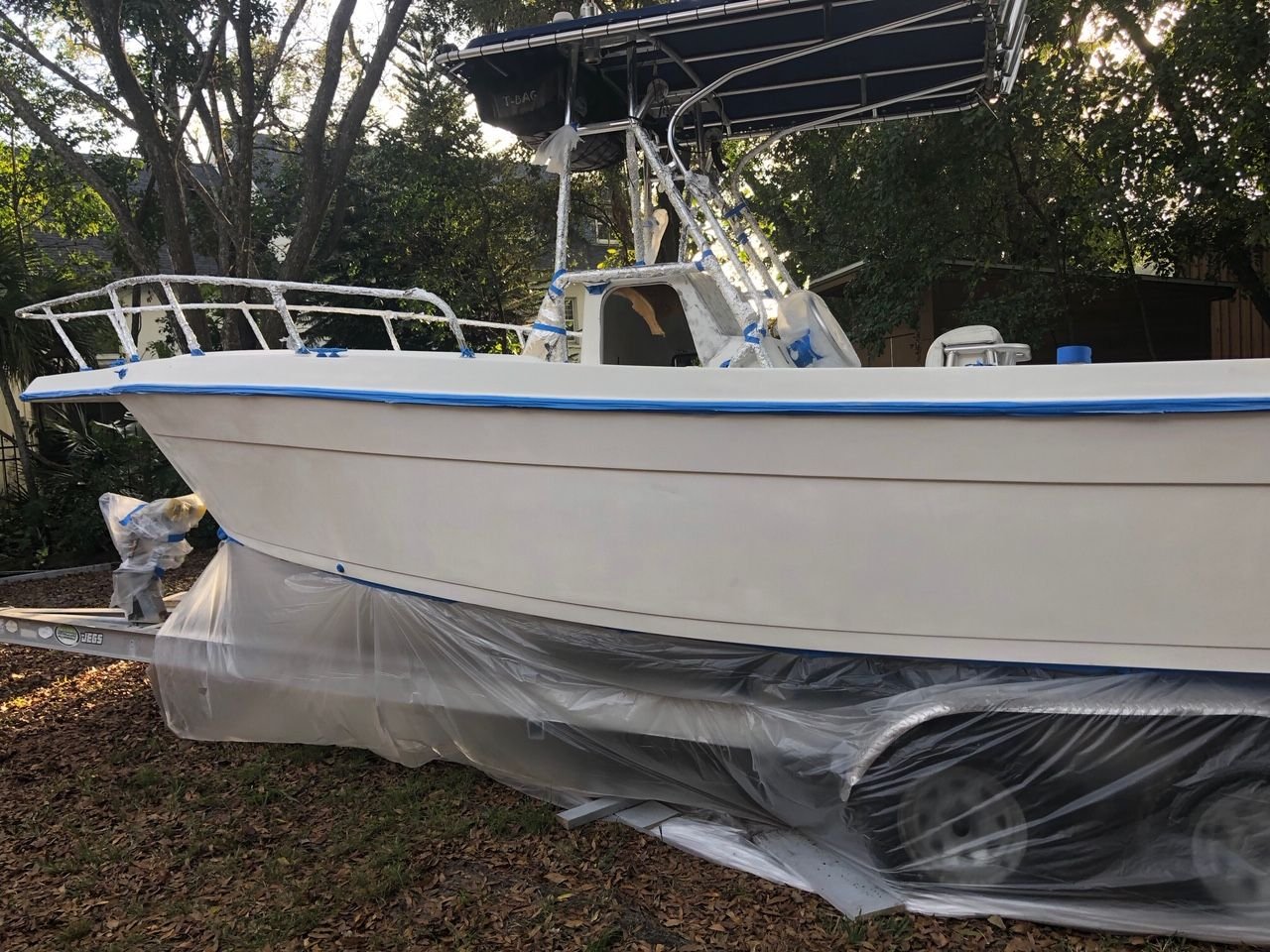

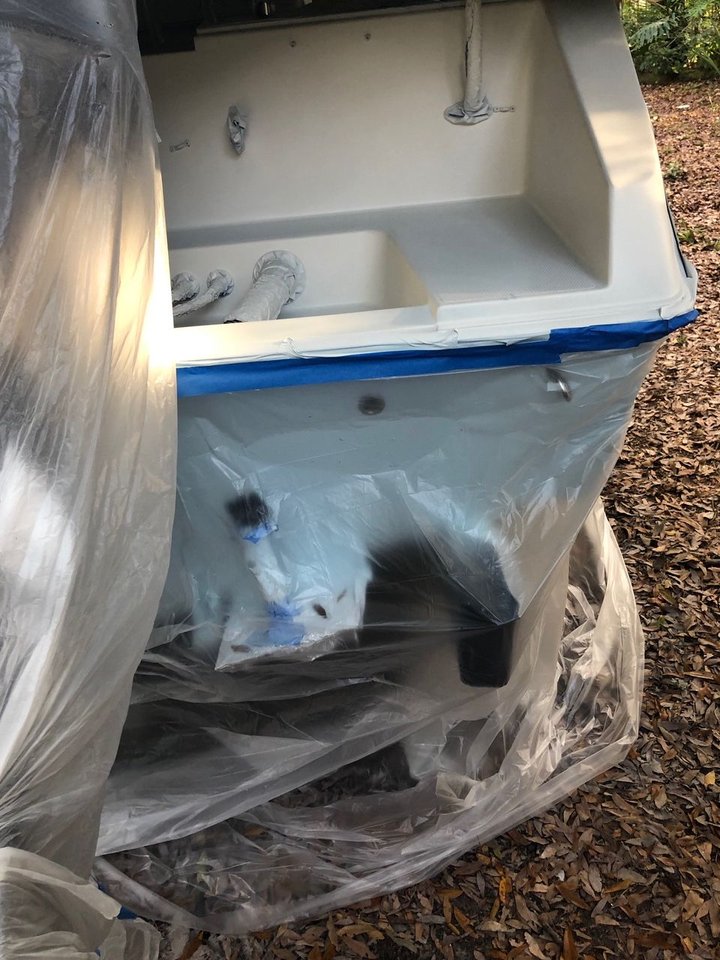

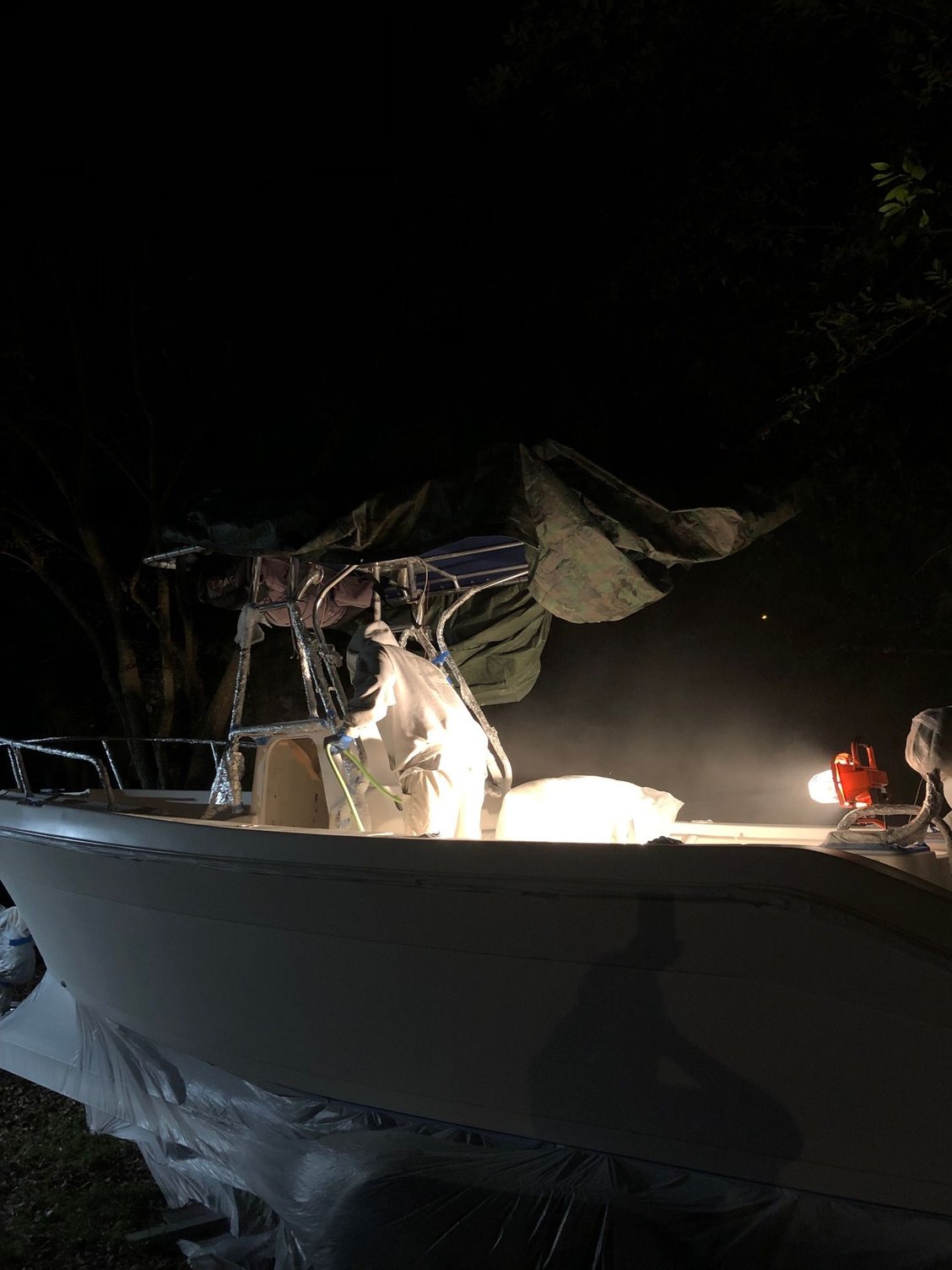

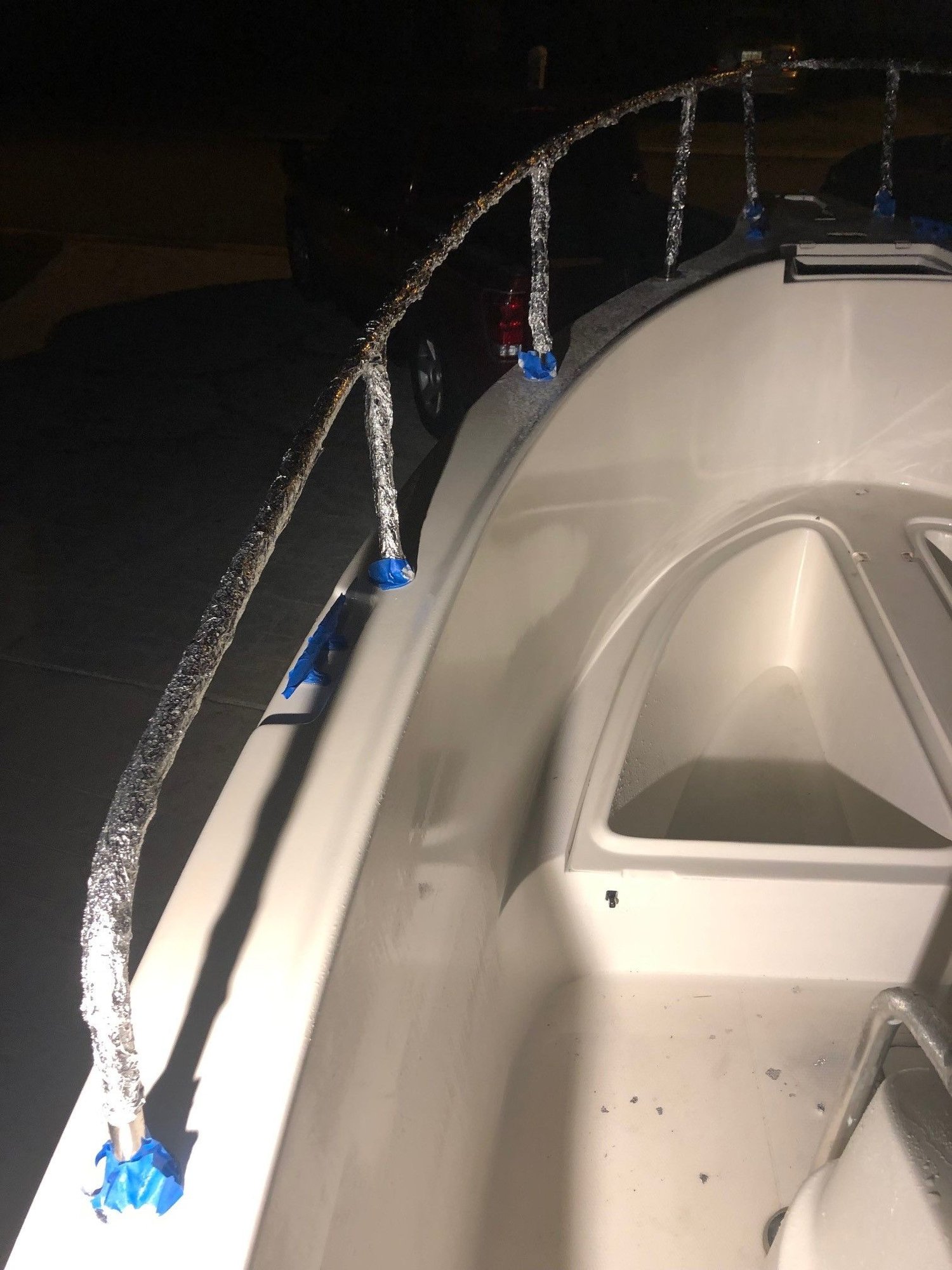

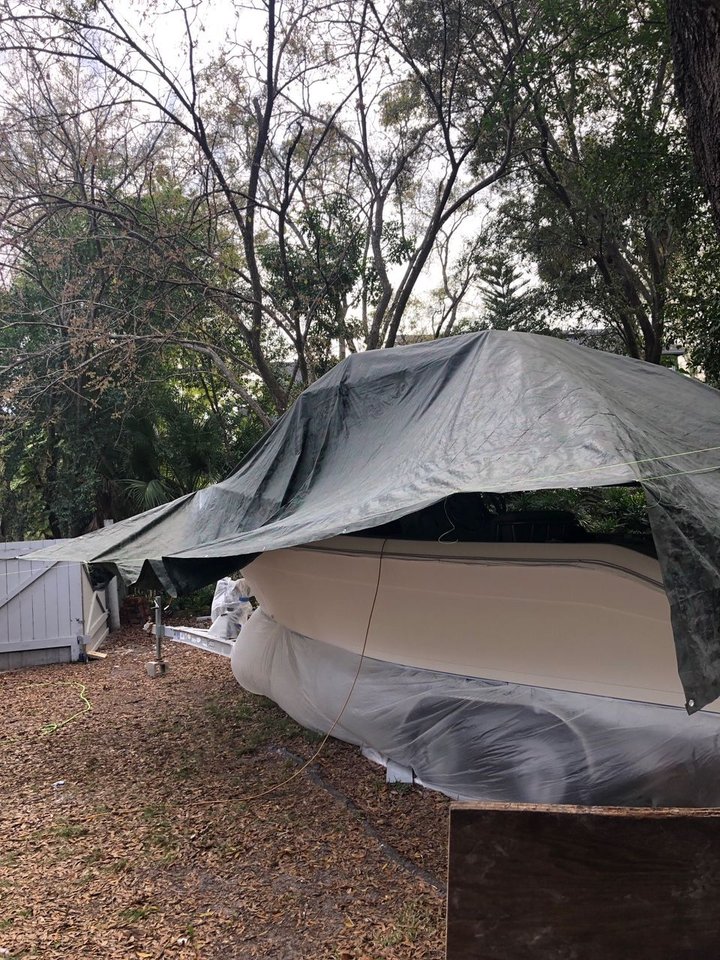

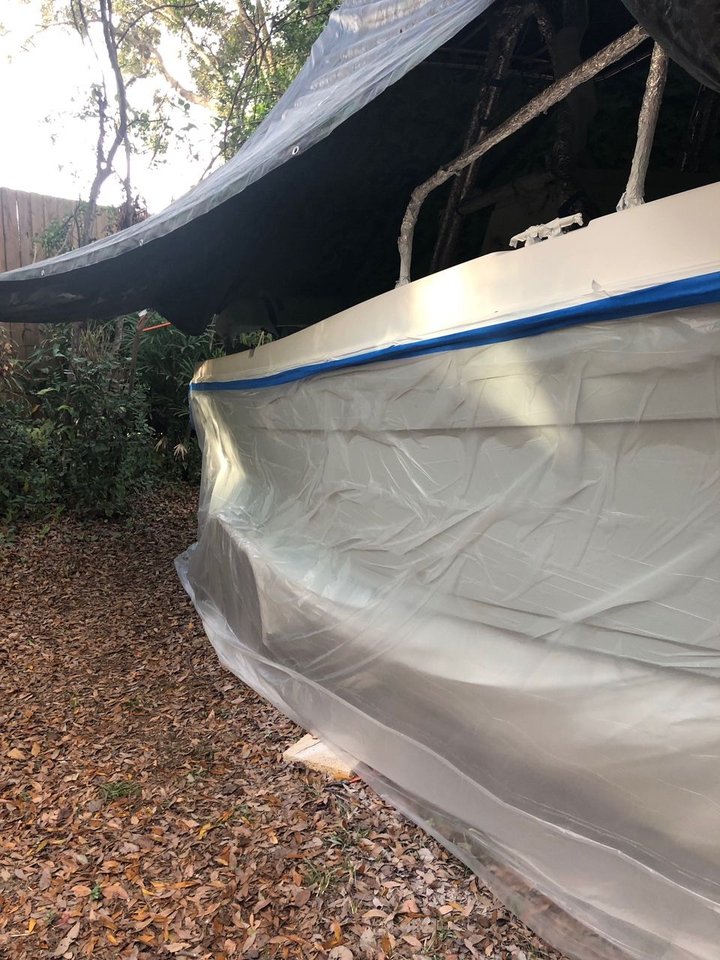

drape and tape hull, spraying the cap & topsides next

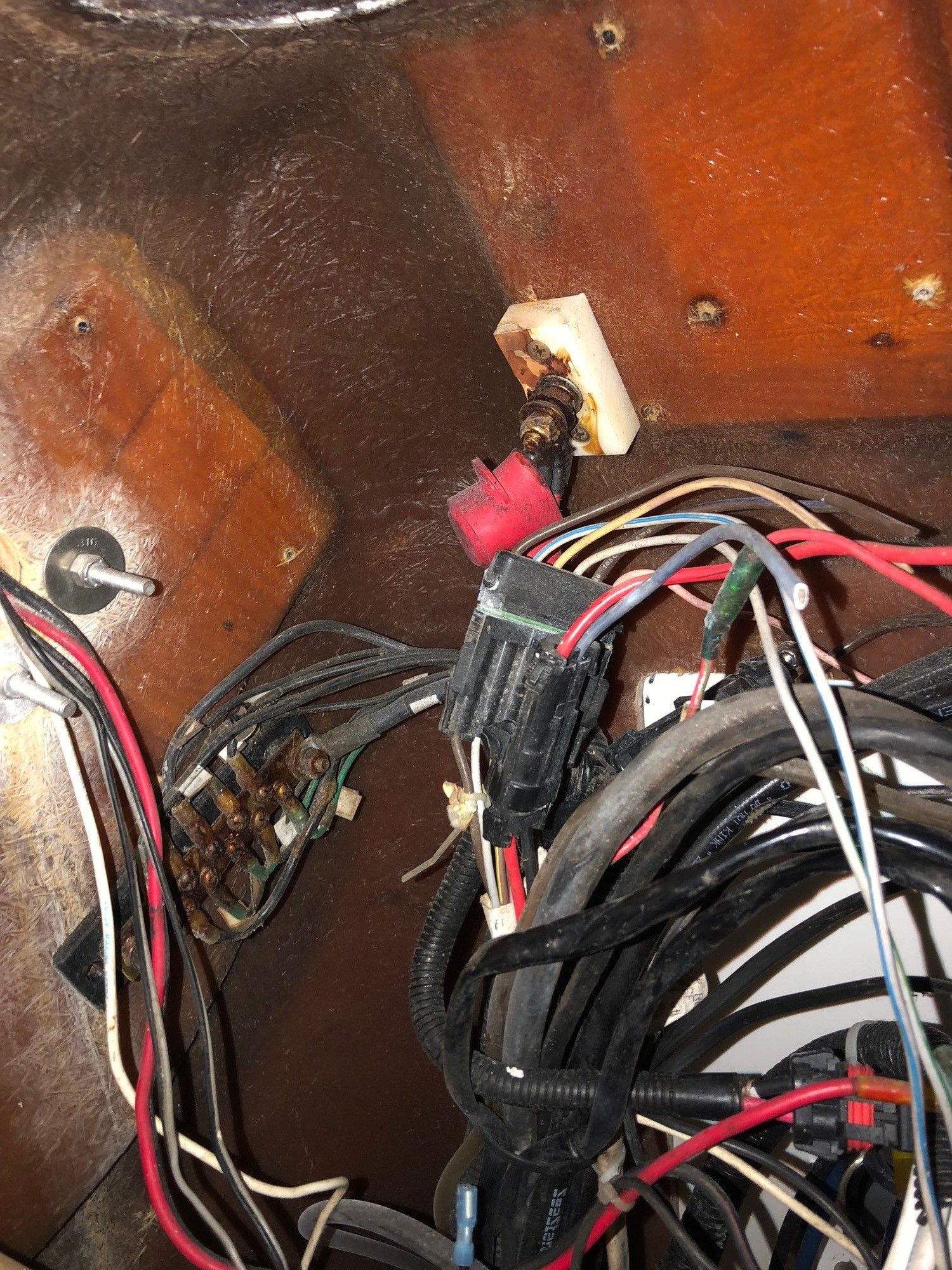

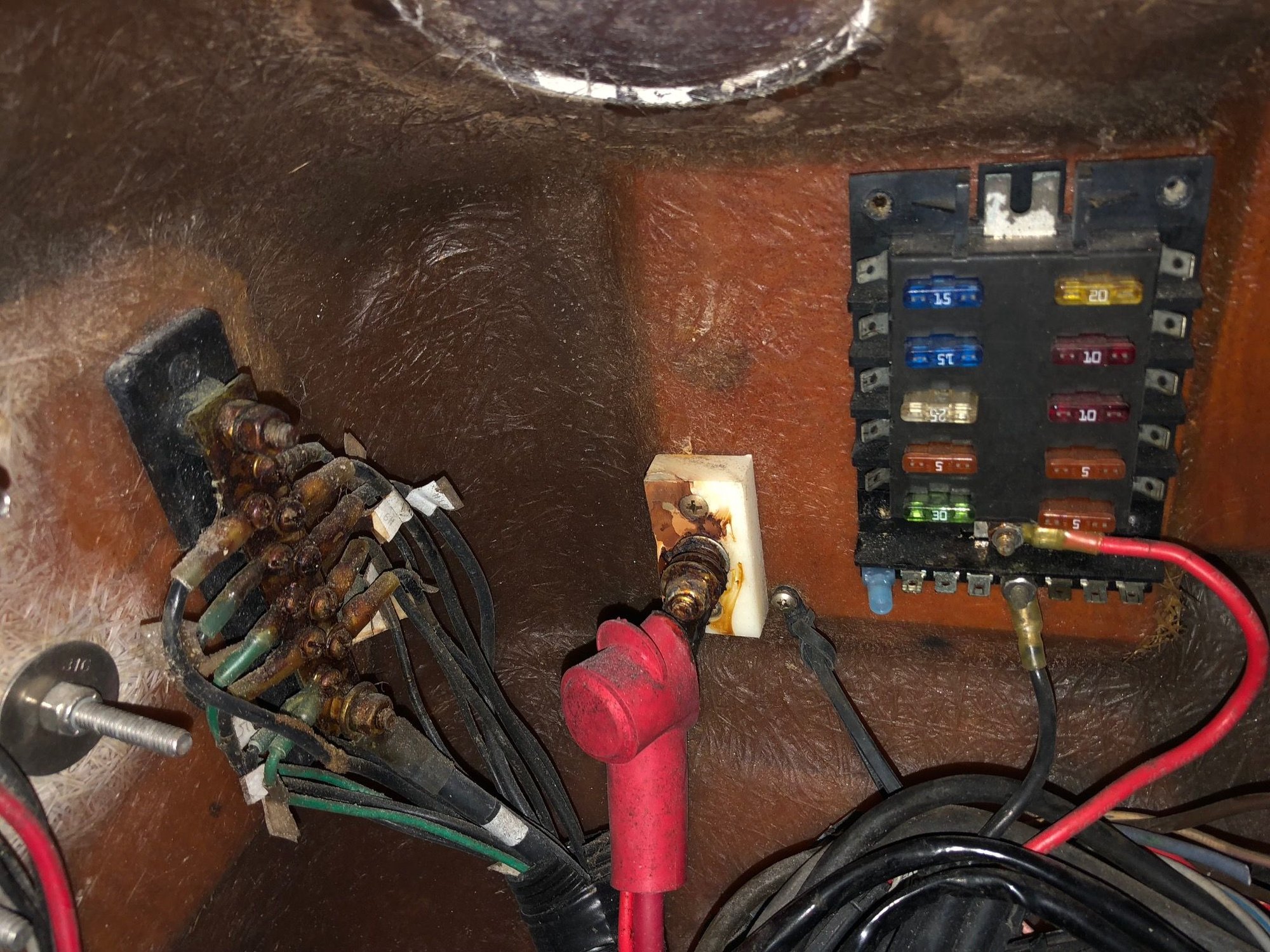

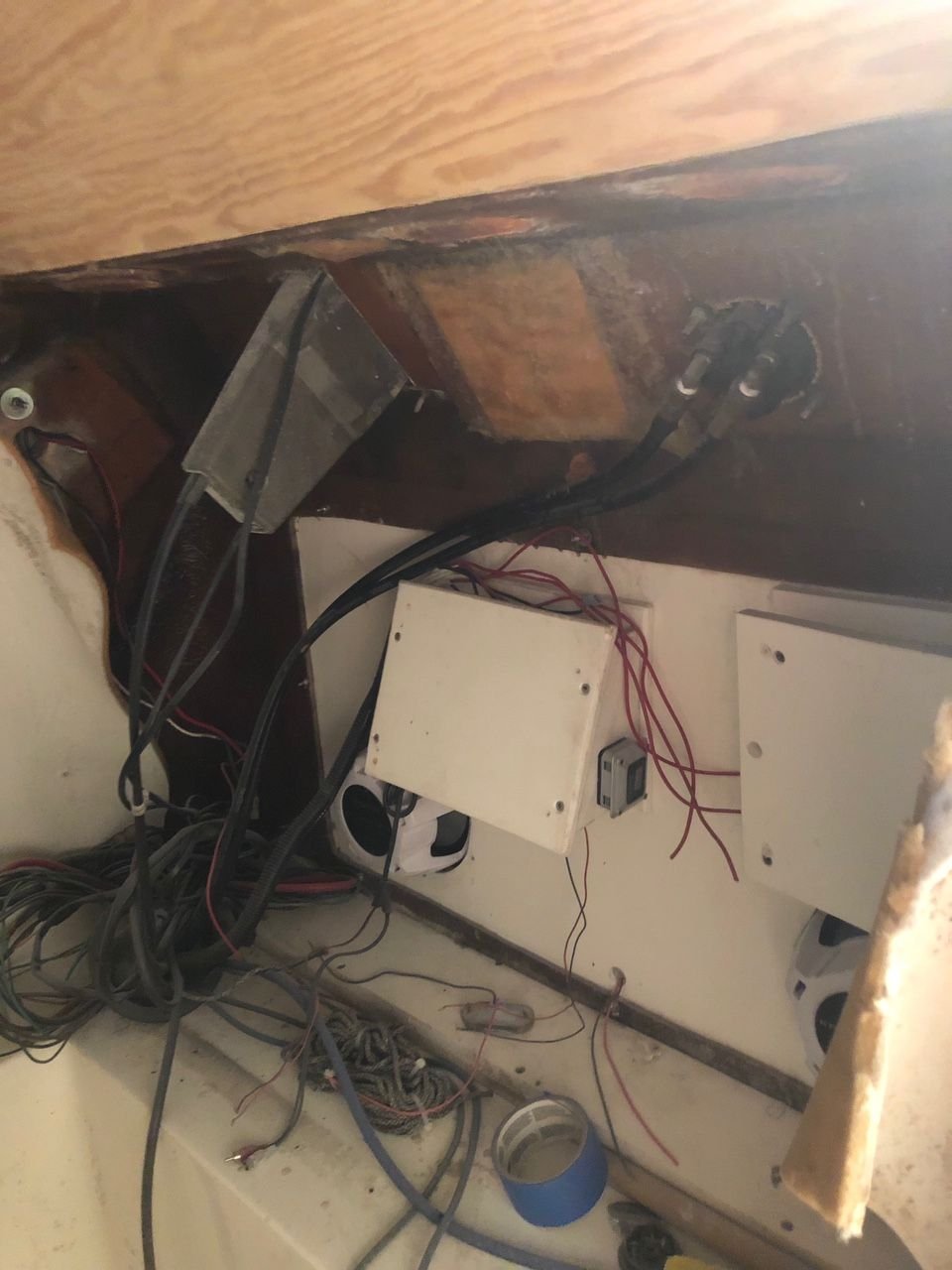

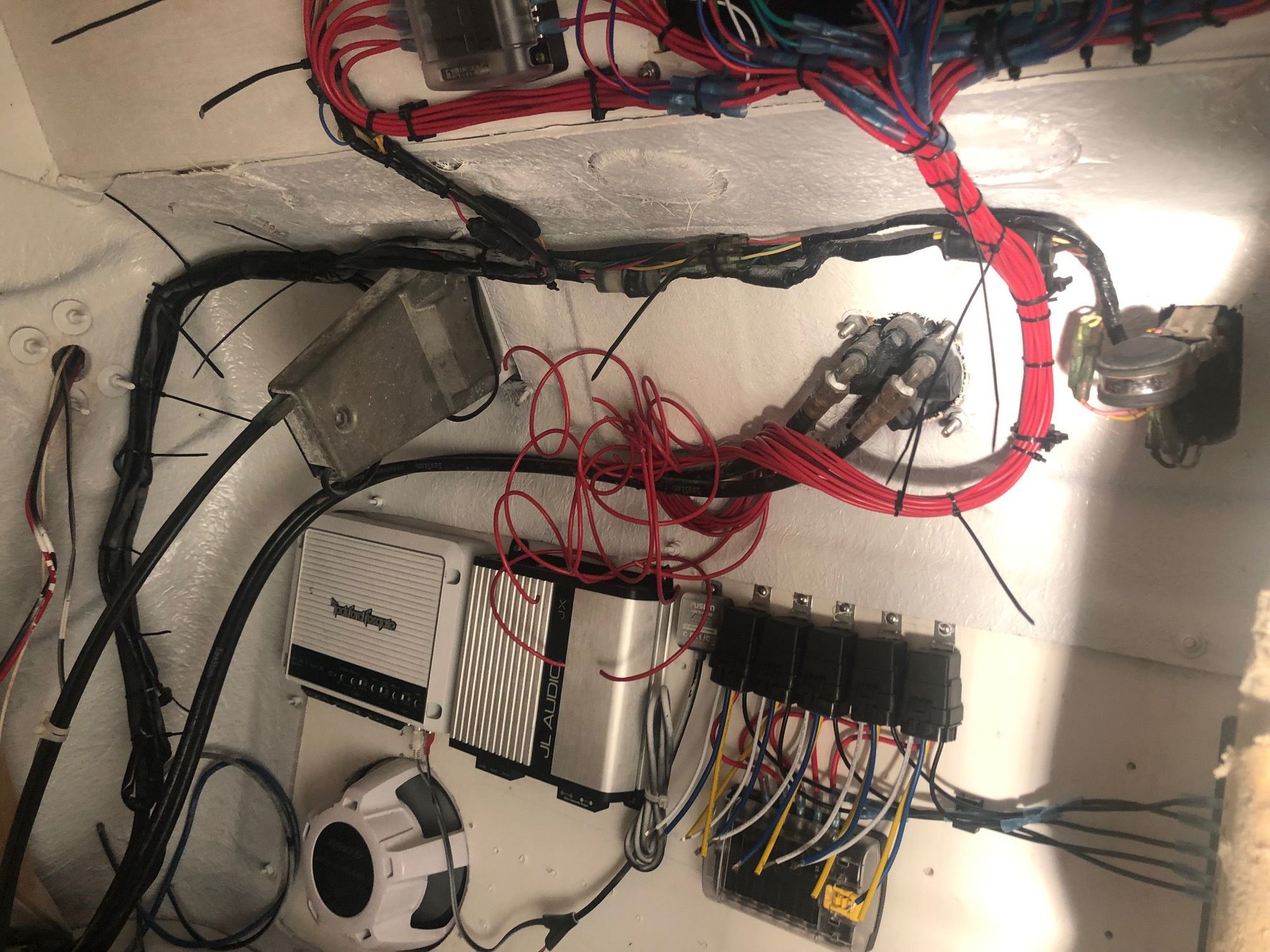

sorting out the rats nest

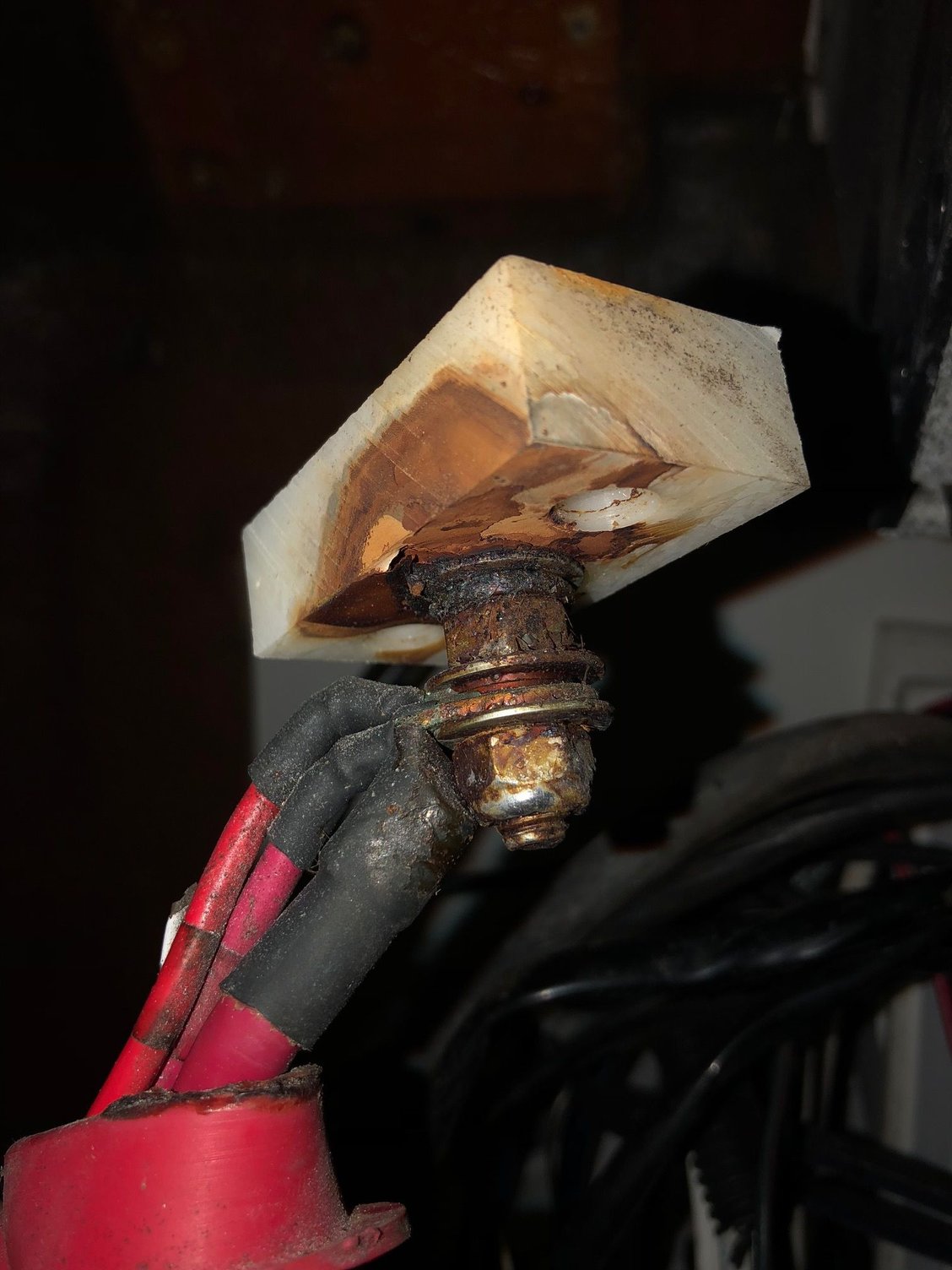

corroded wires replaced with all marine grade wire.

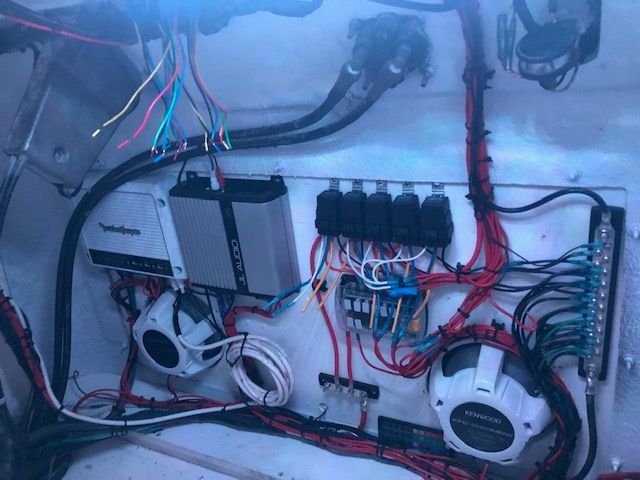

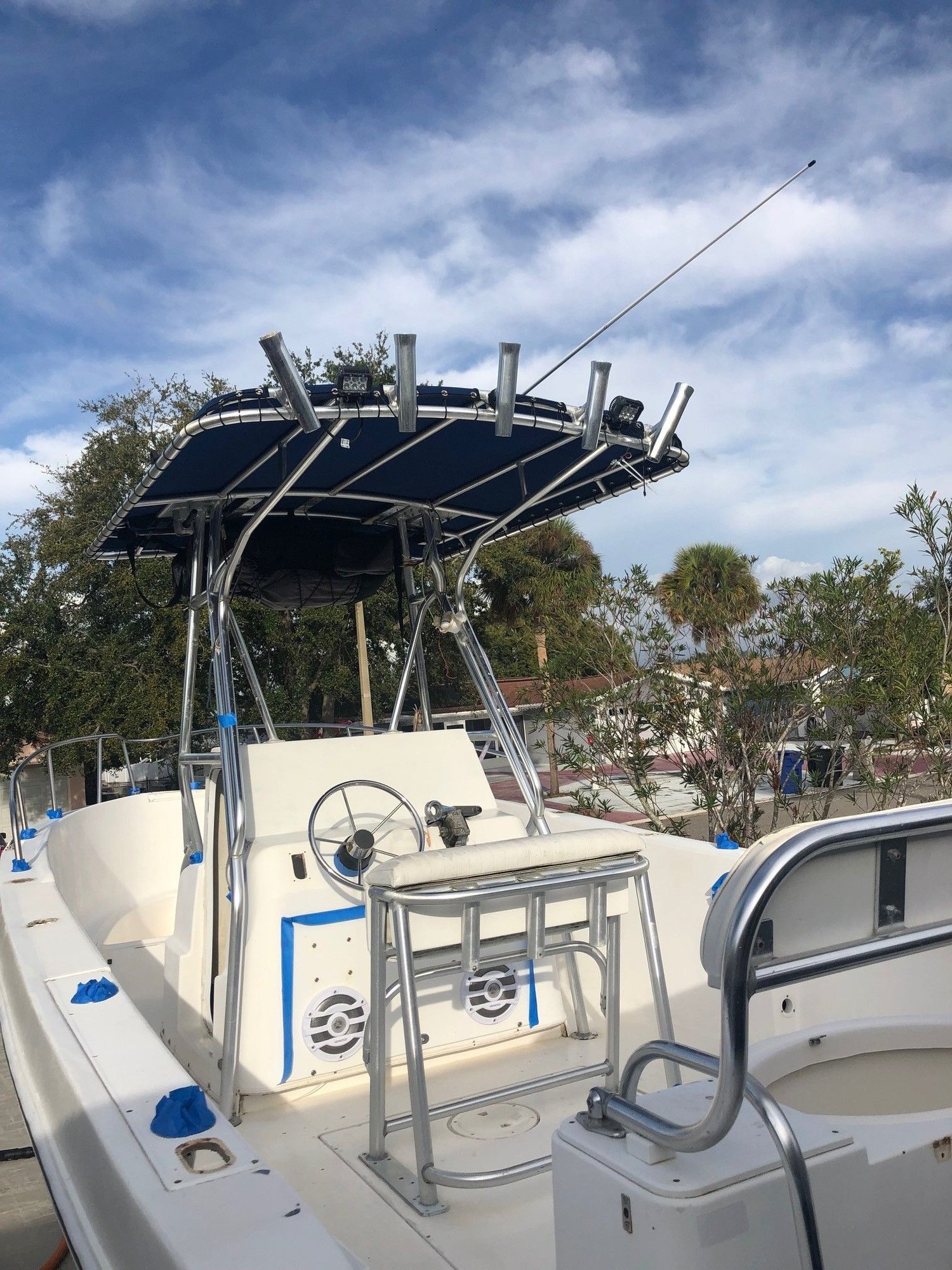

progress

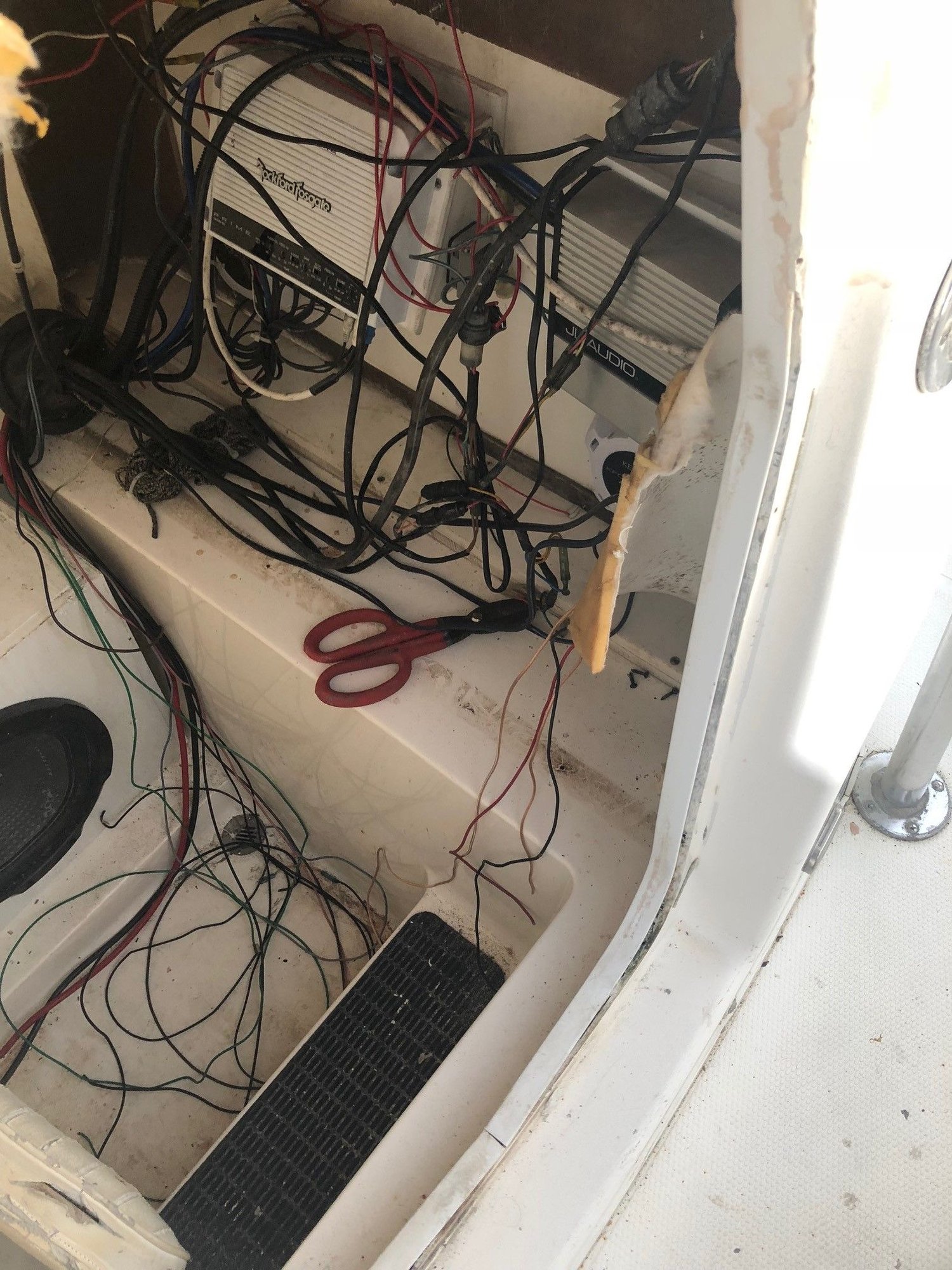

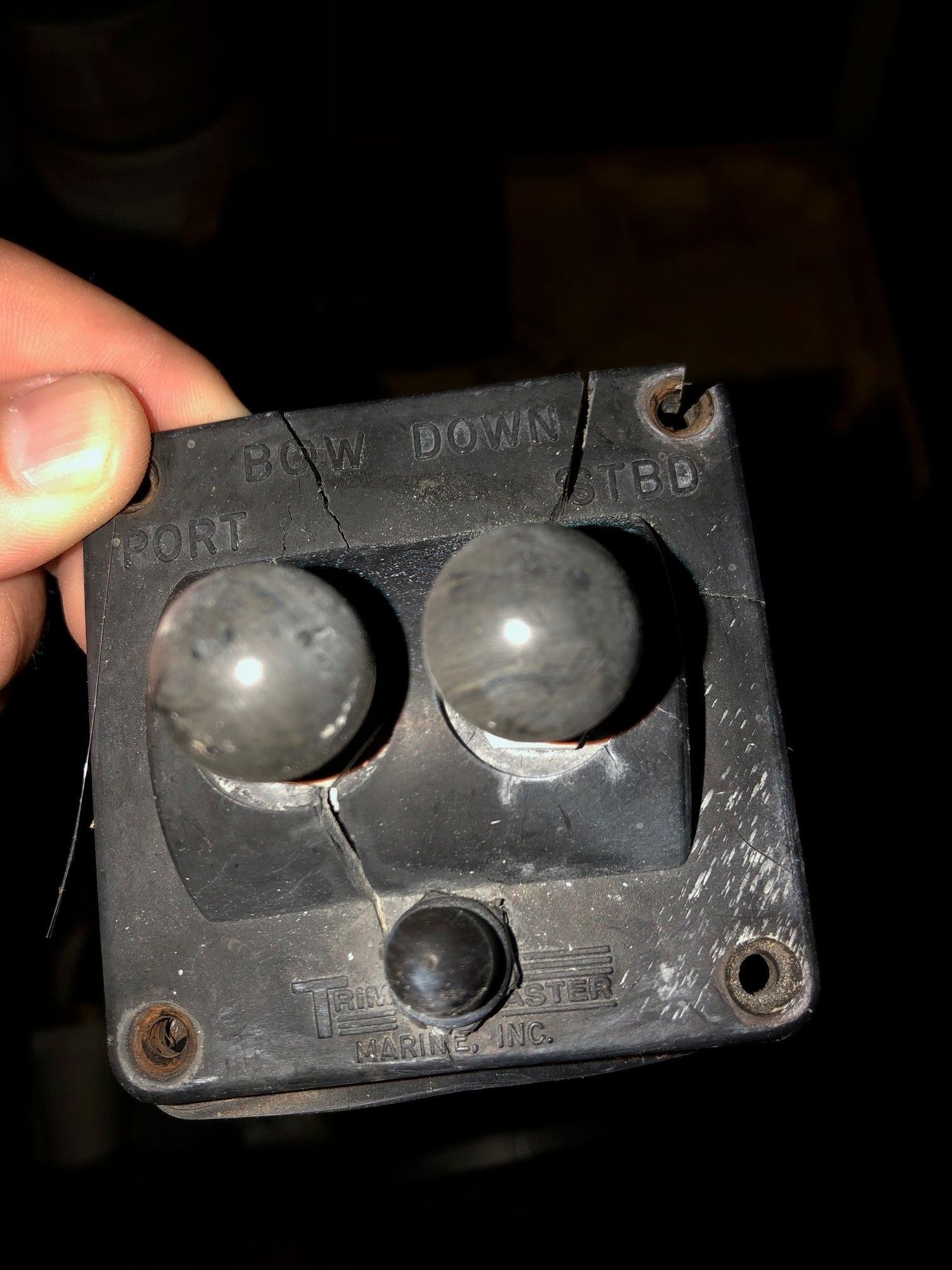

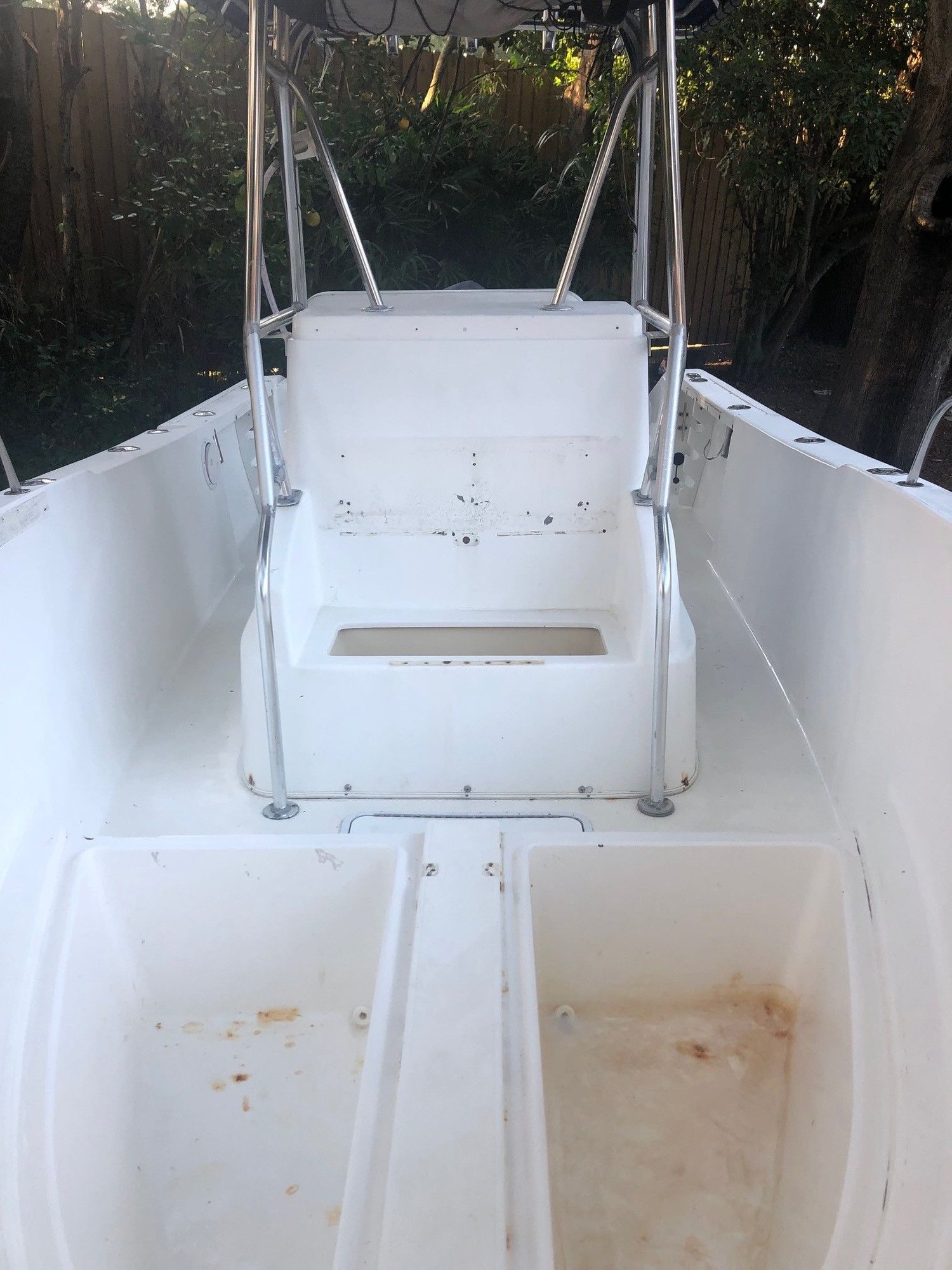

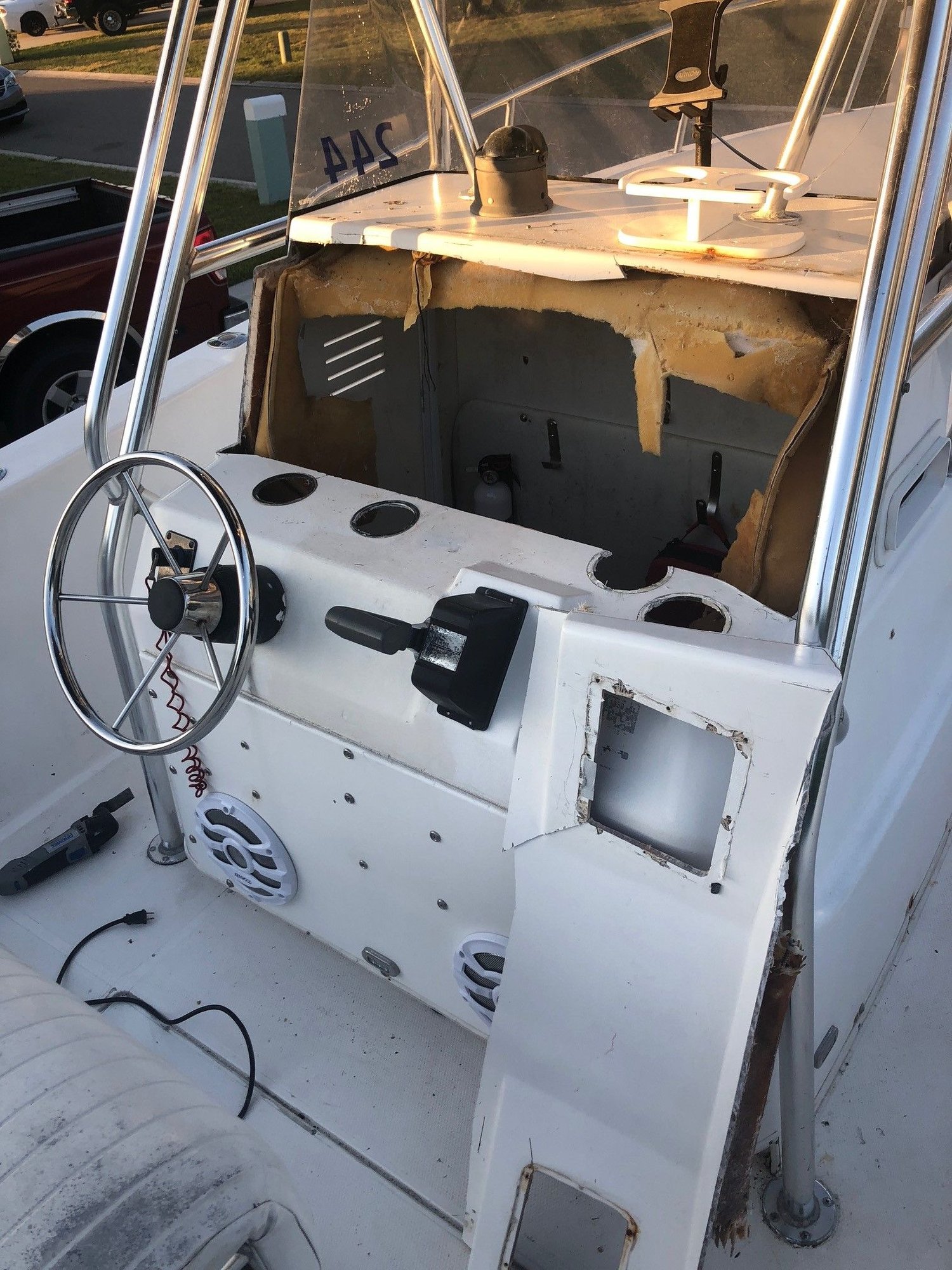

out with the old

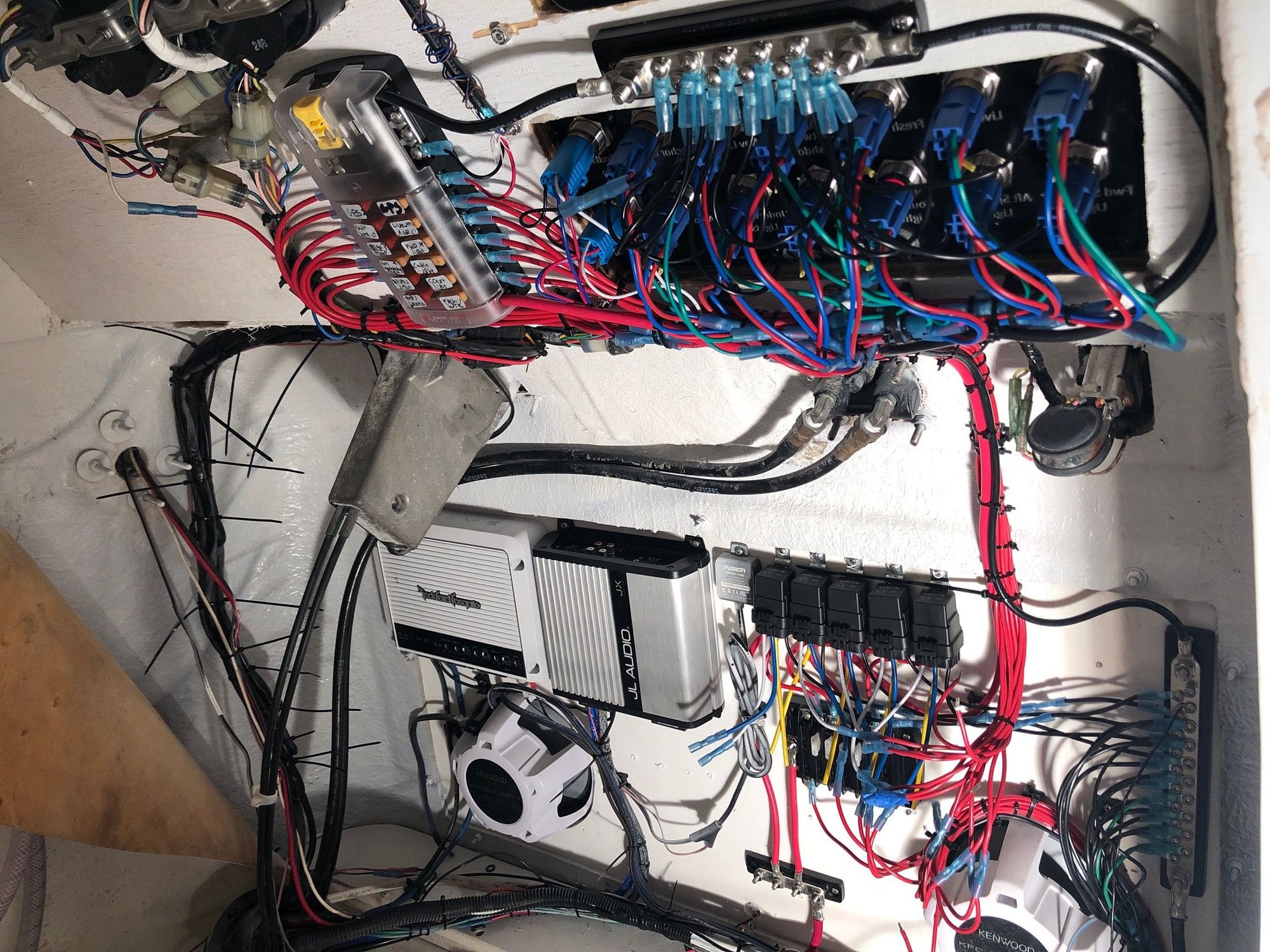

in with the new

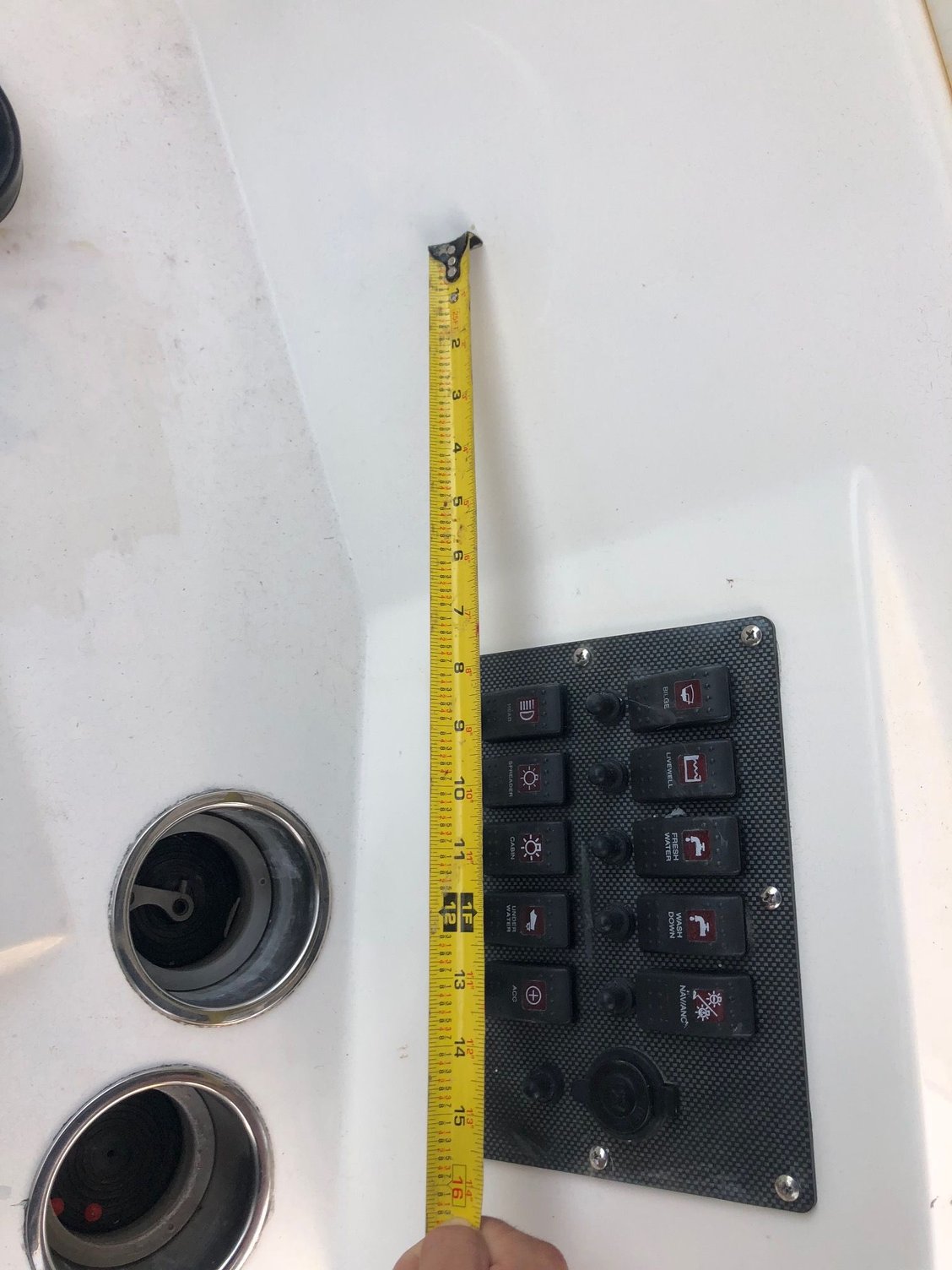

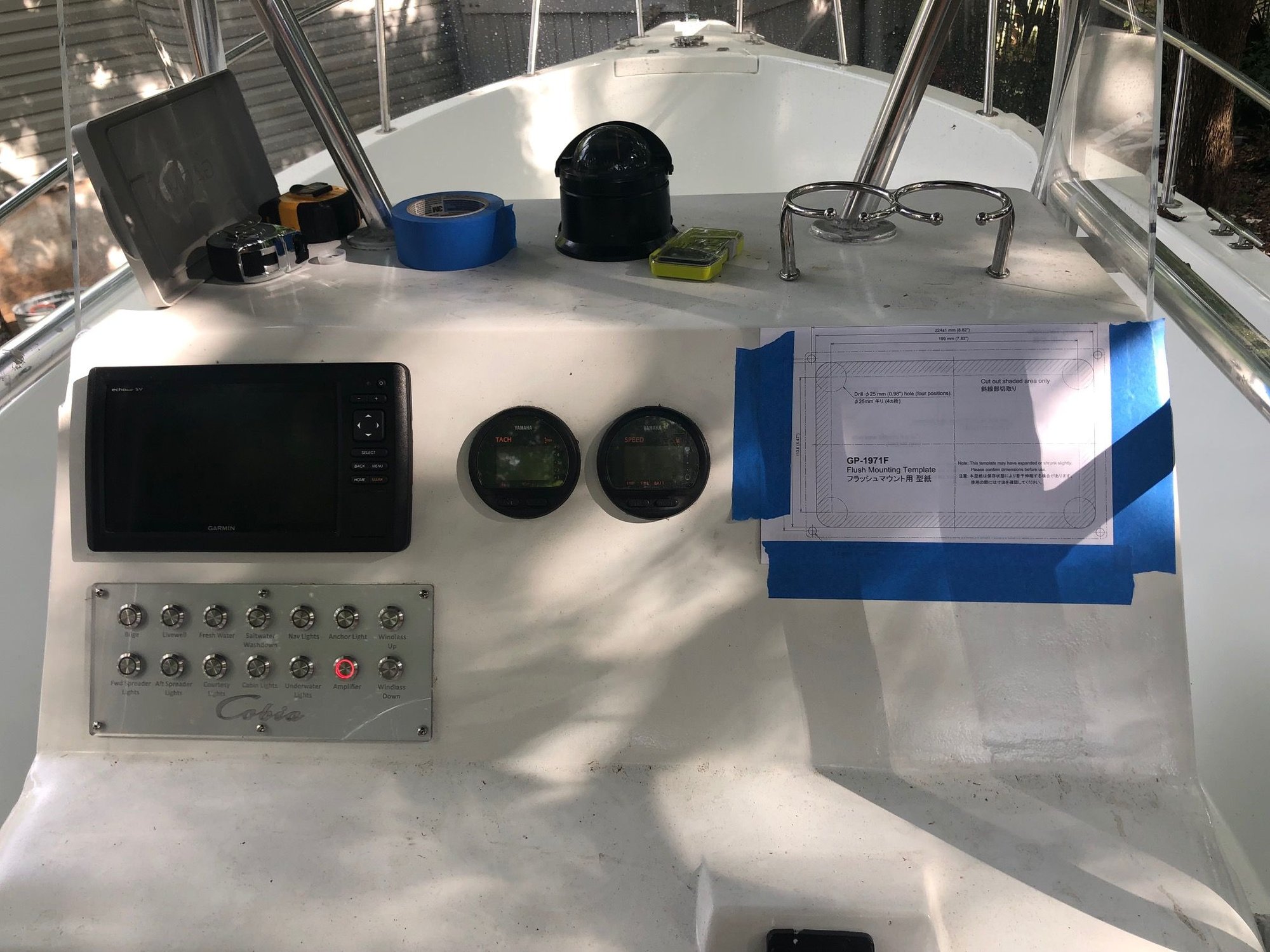

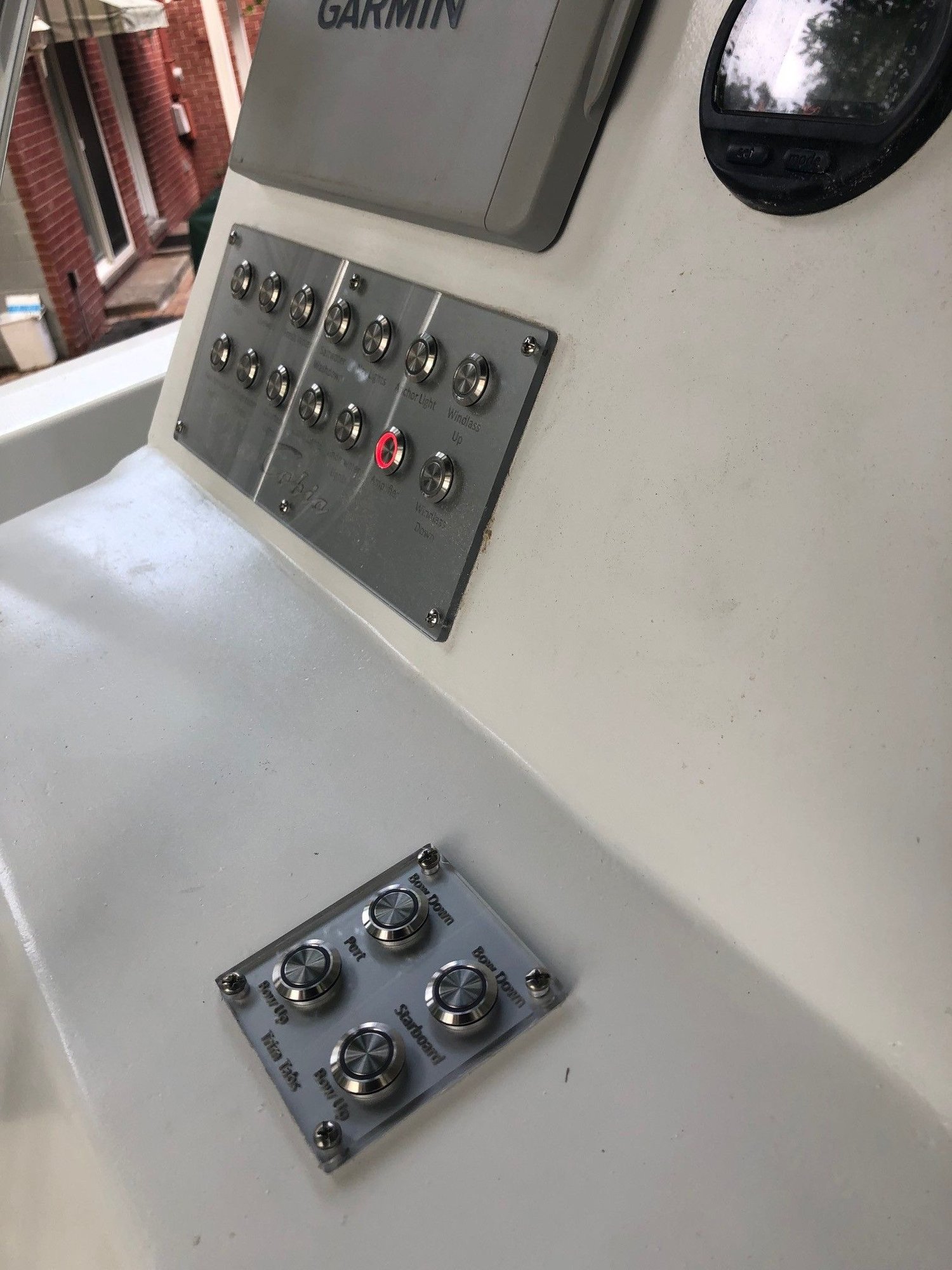

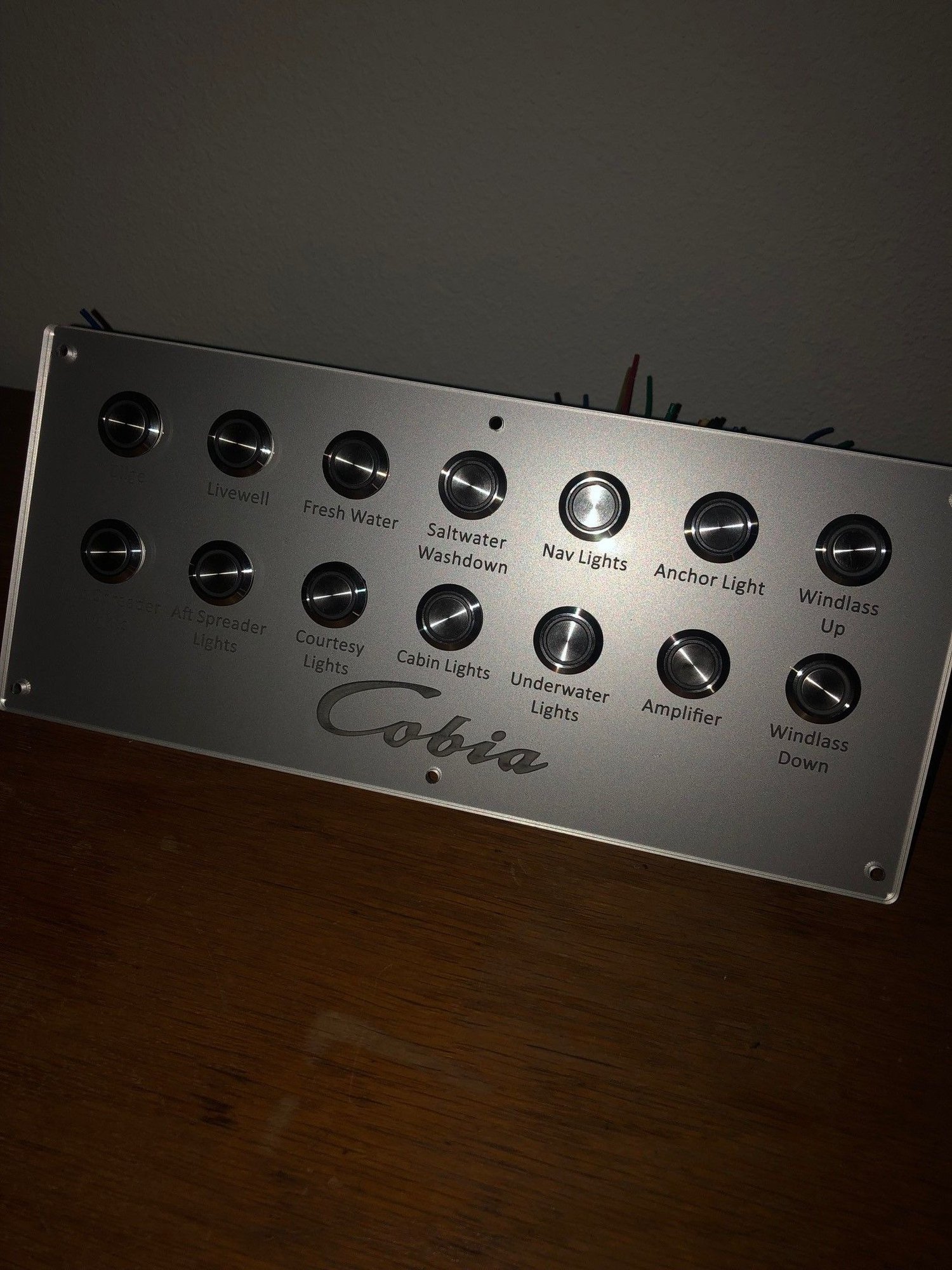

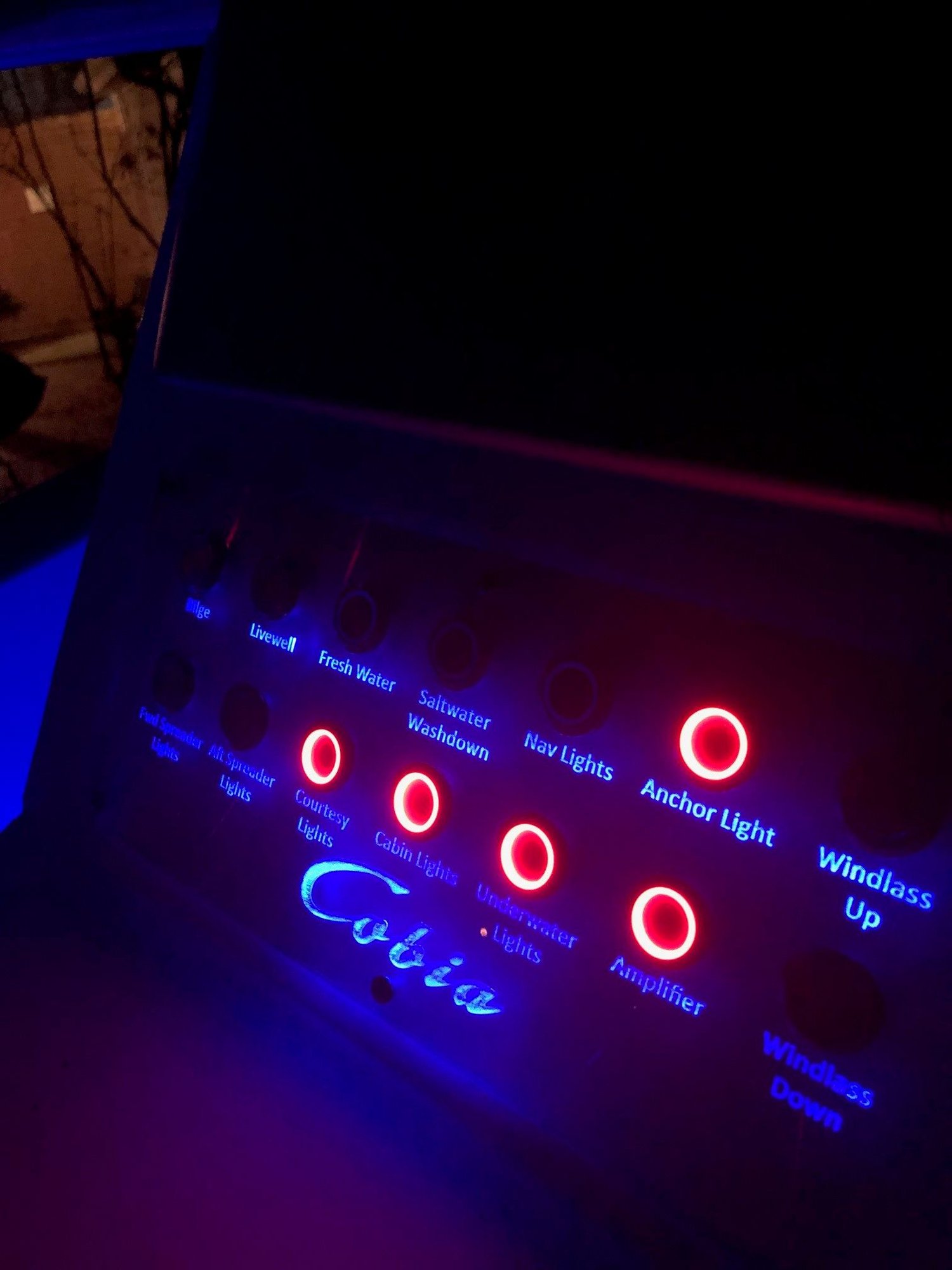

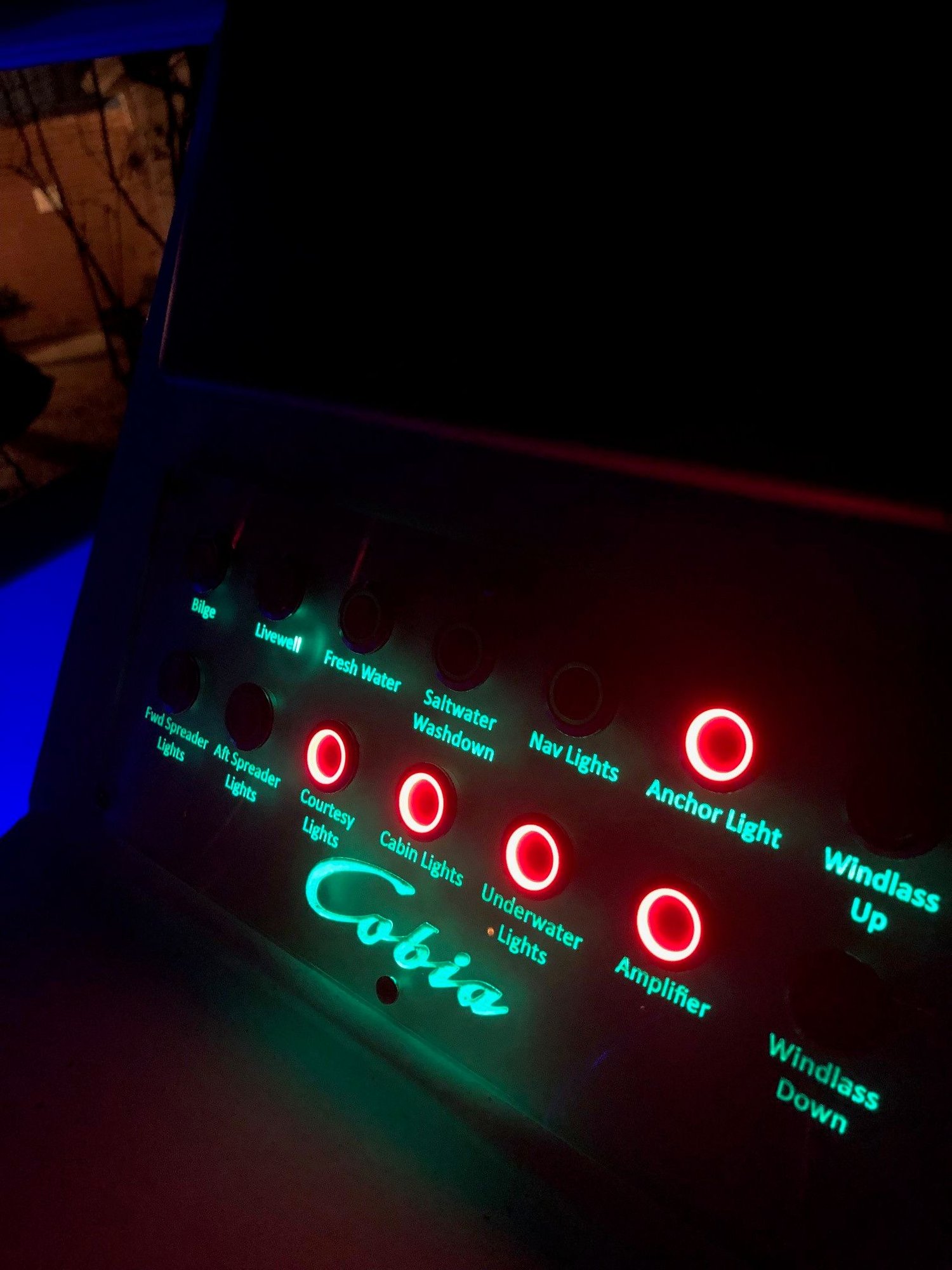

custom panel

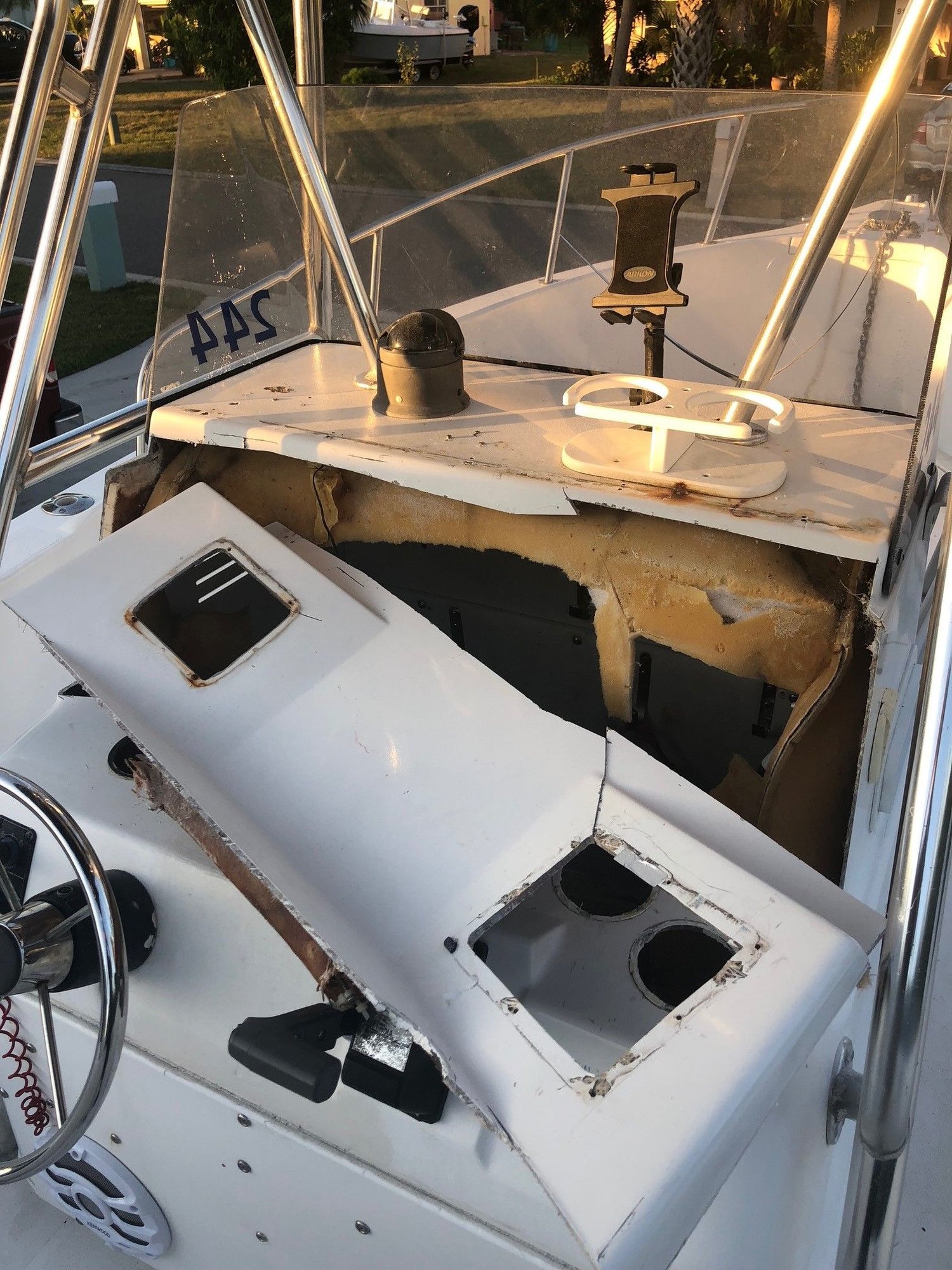

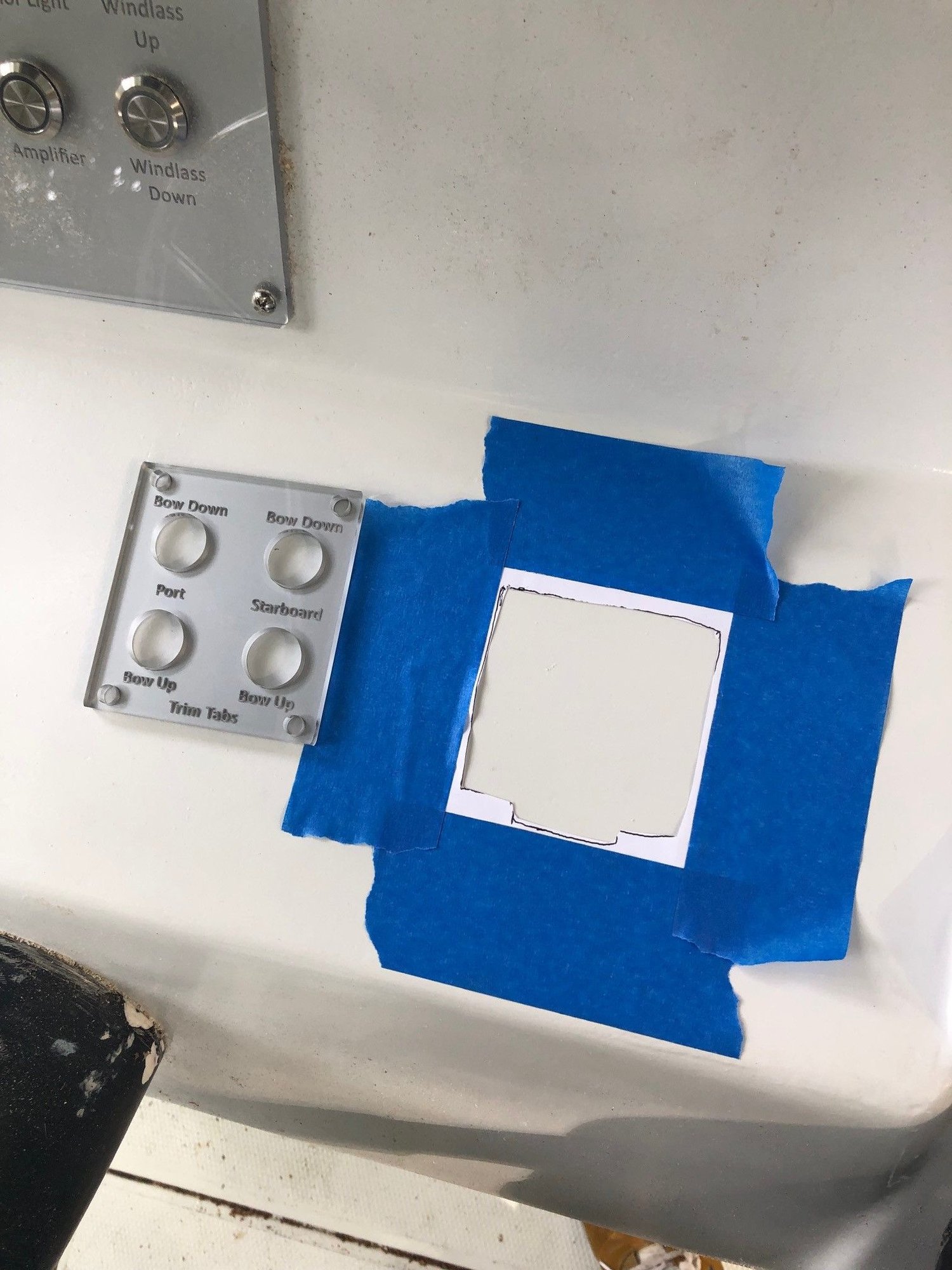

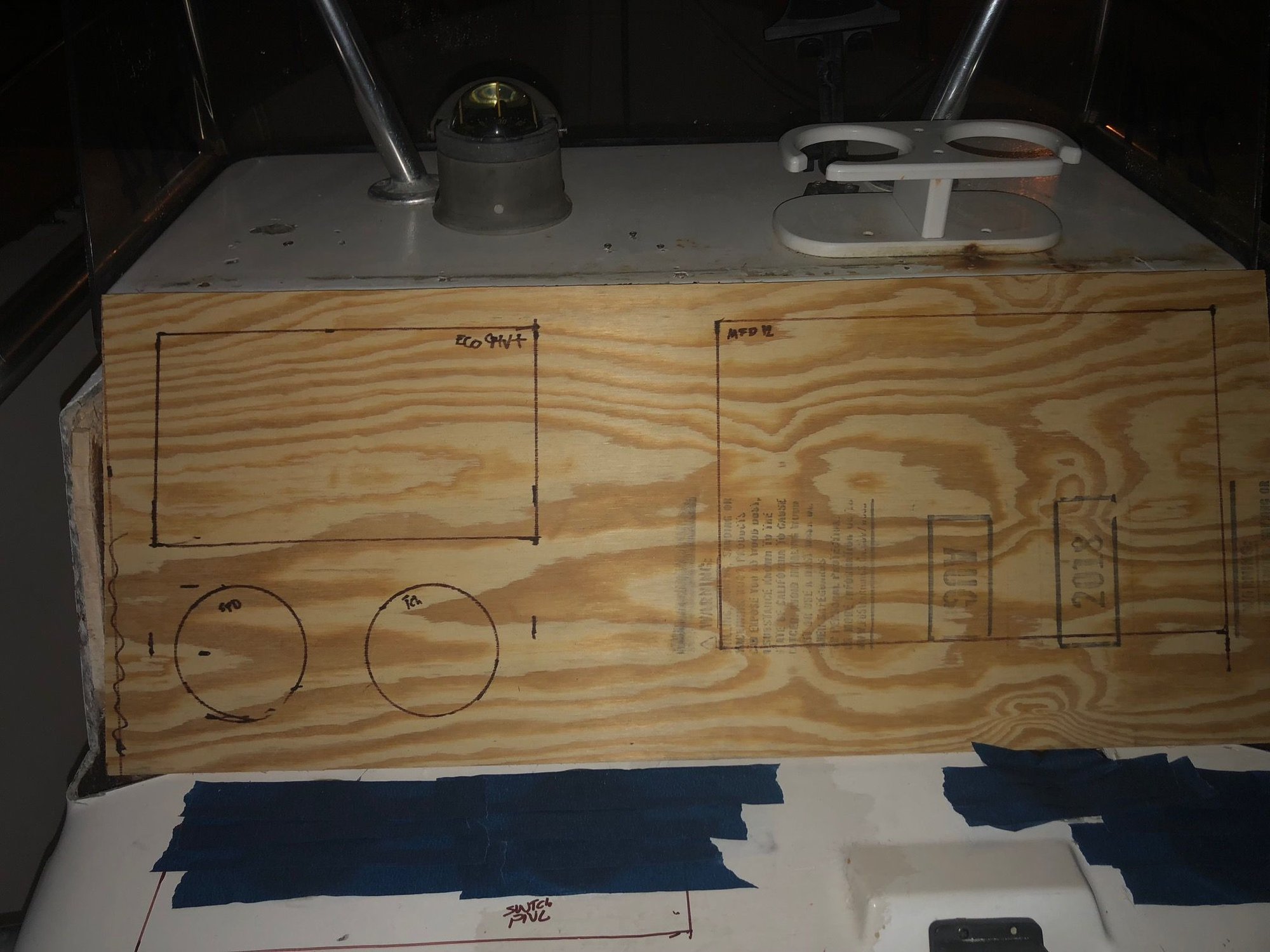

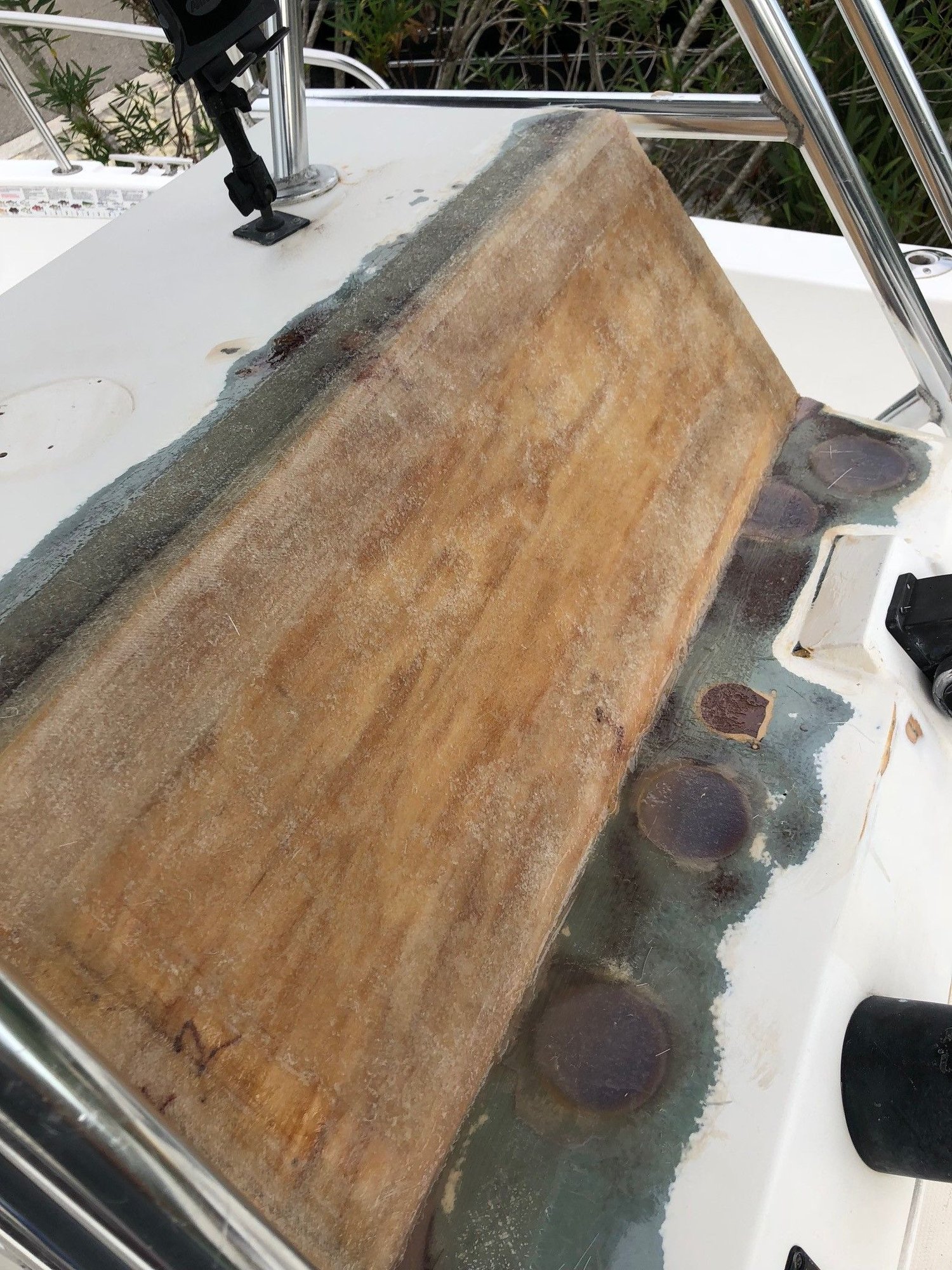

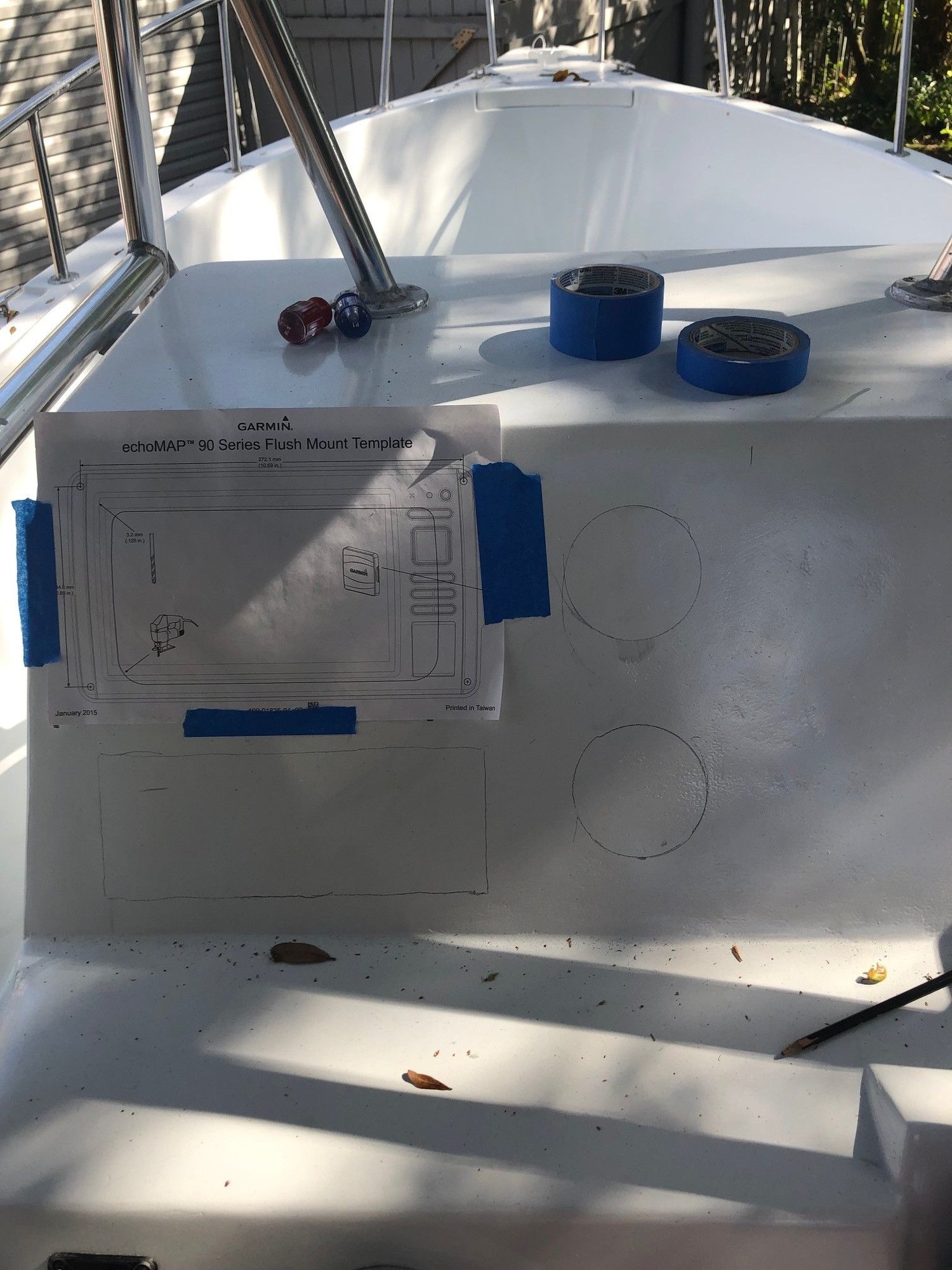

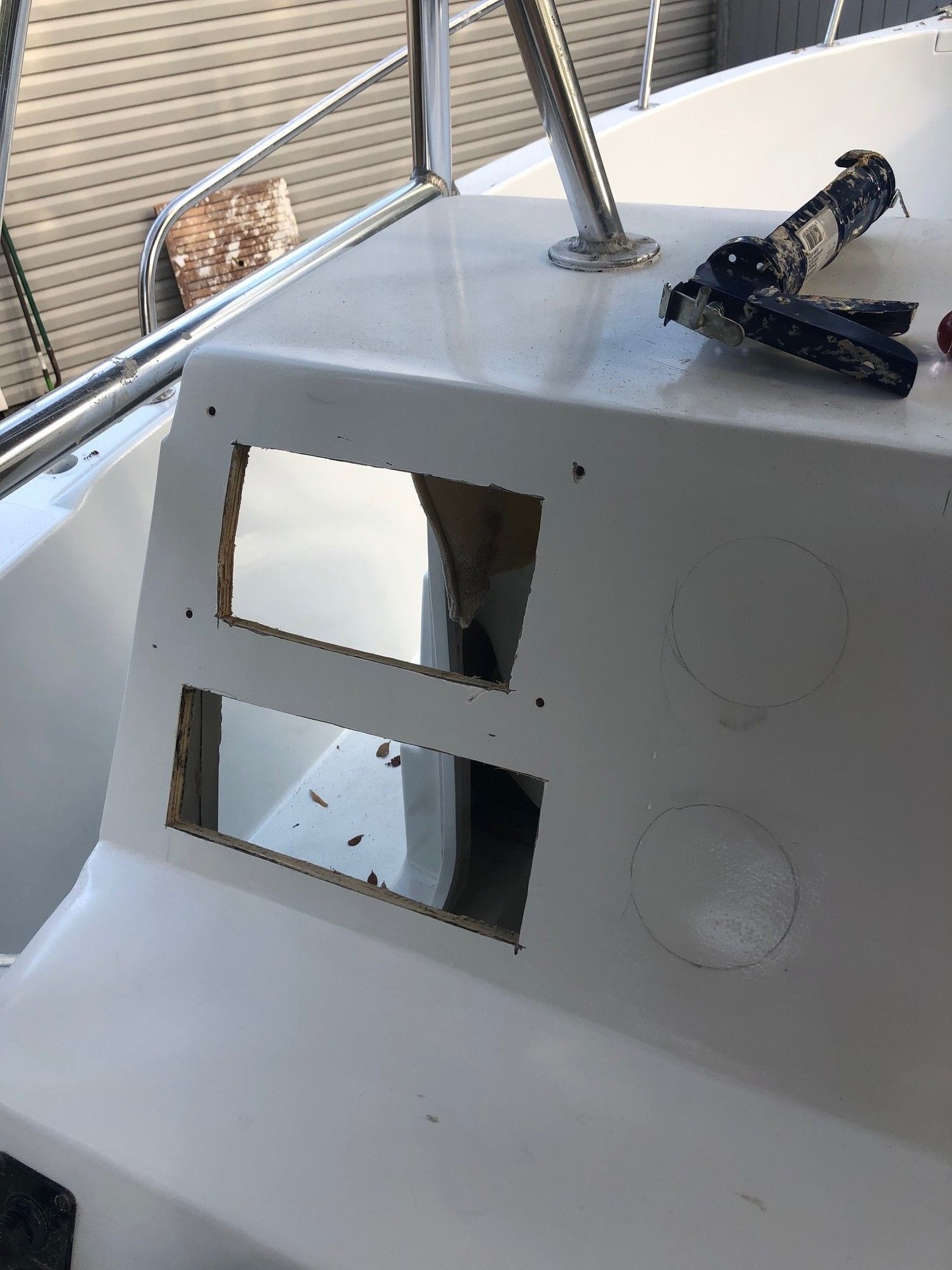

dash cutouts

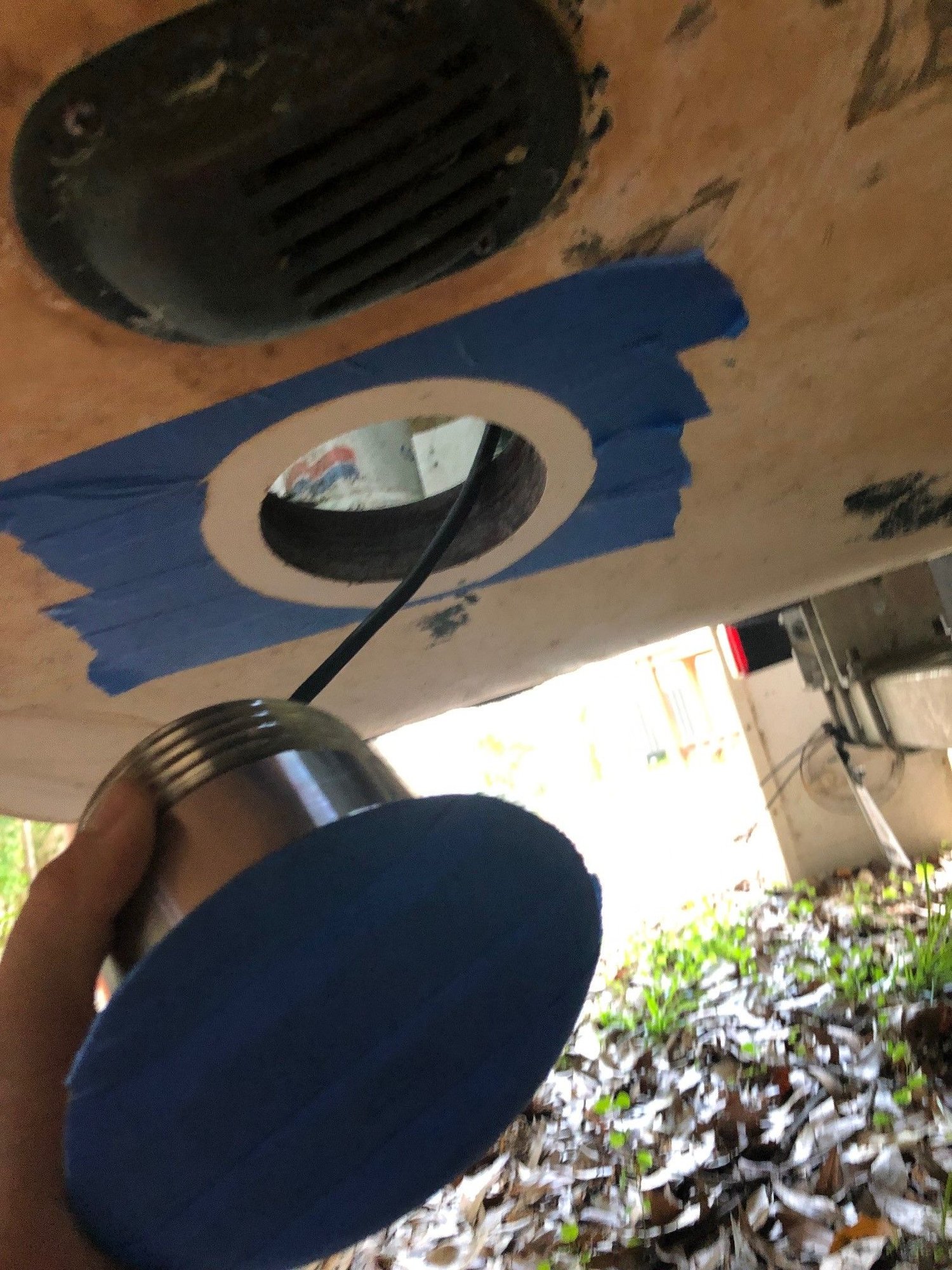

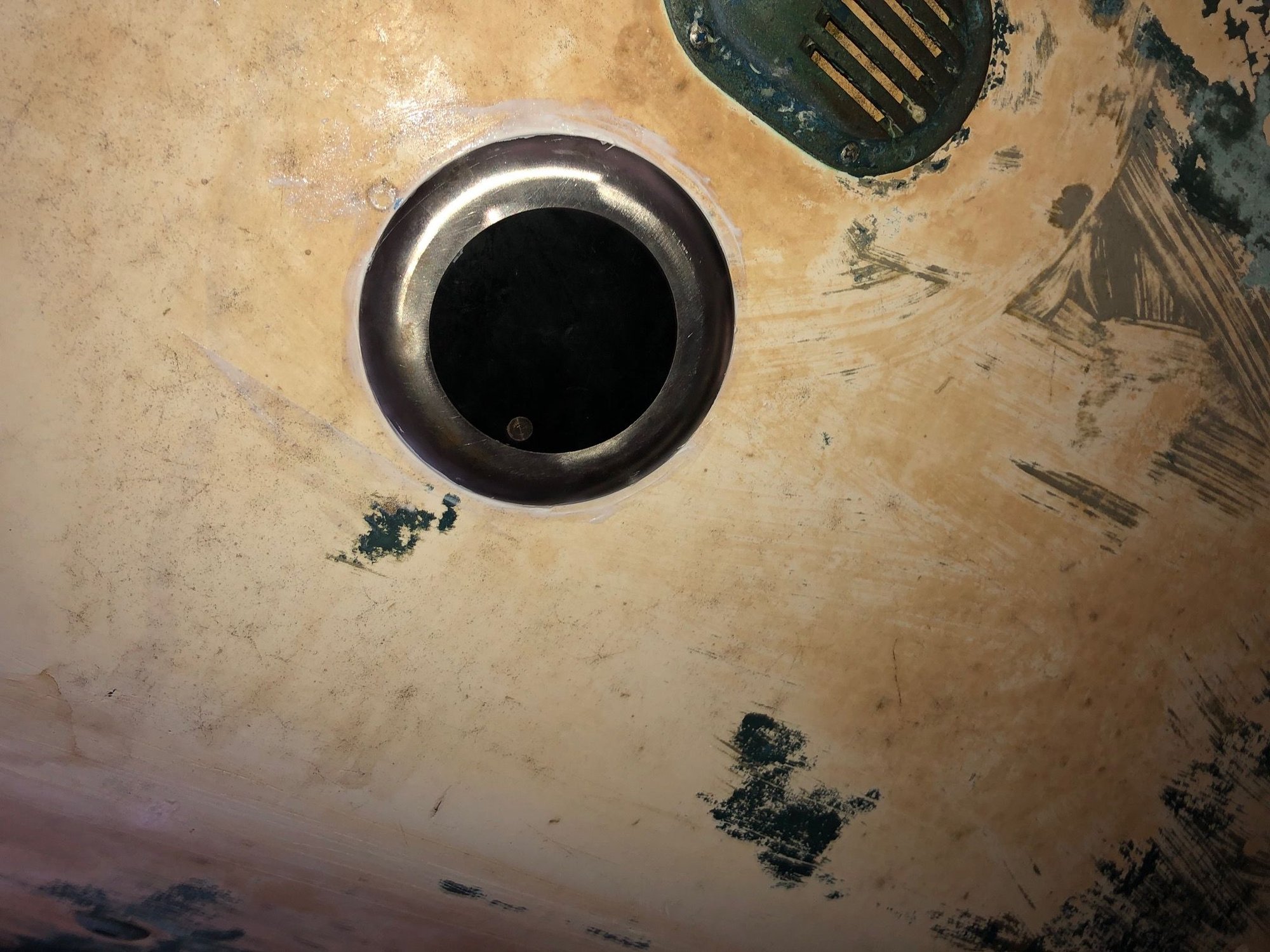

airmar install in bilge

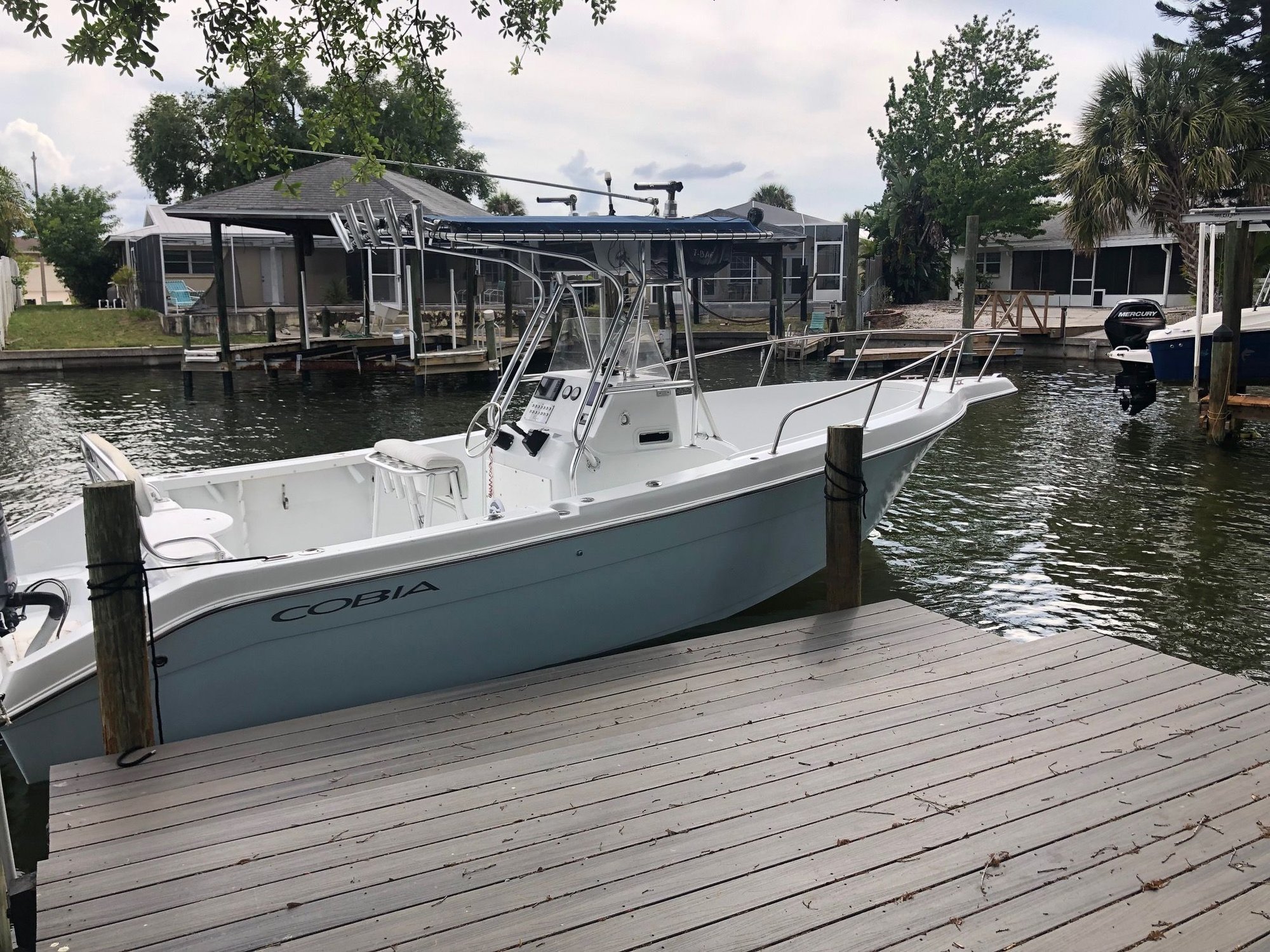

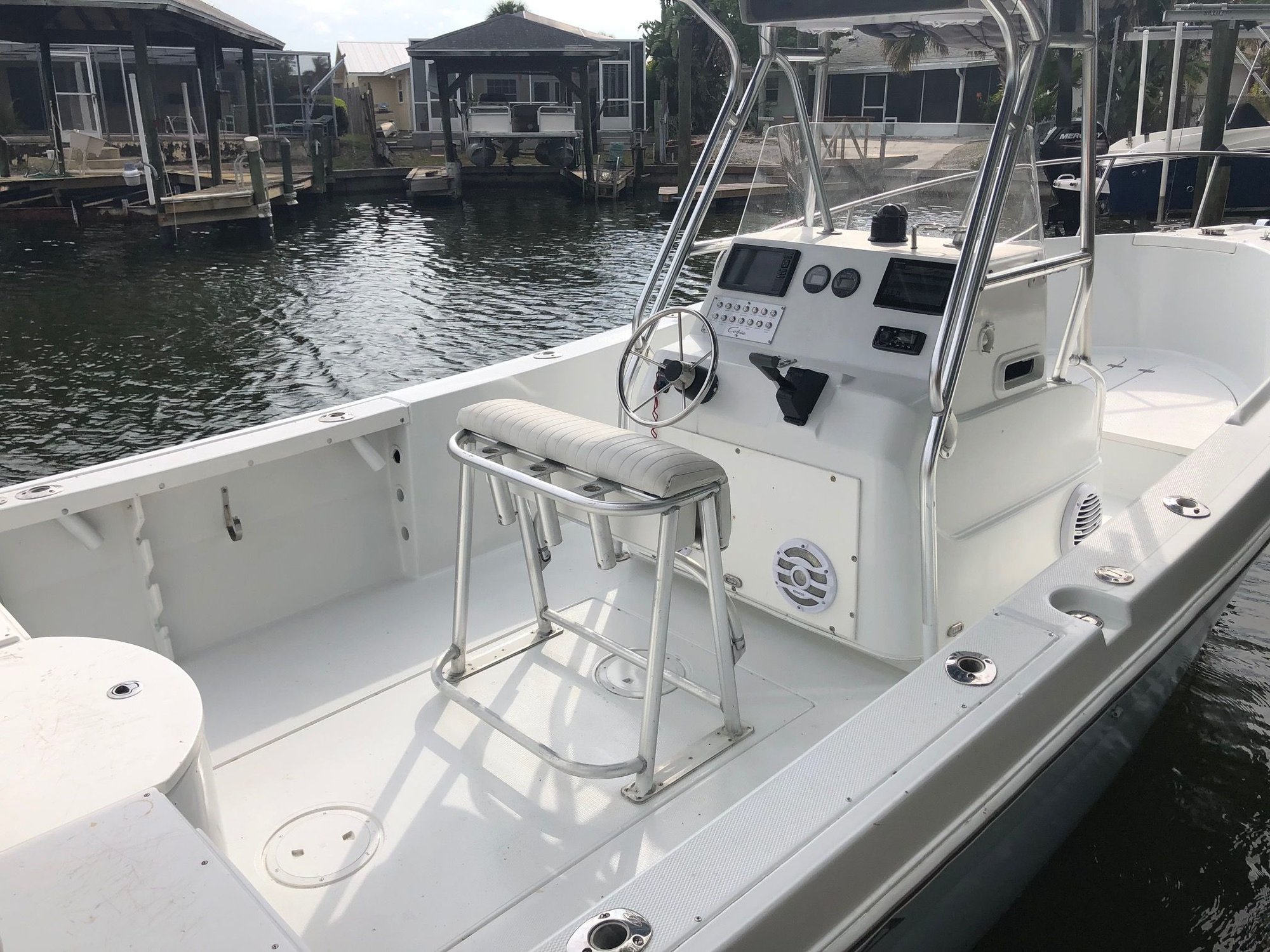

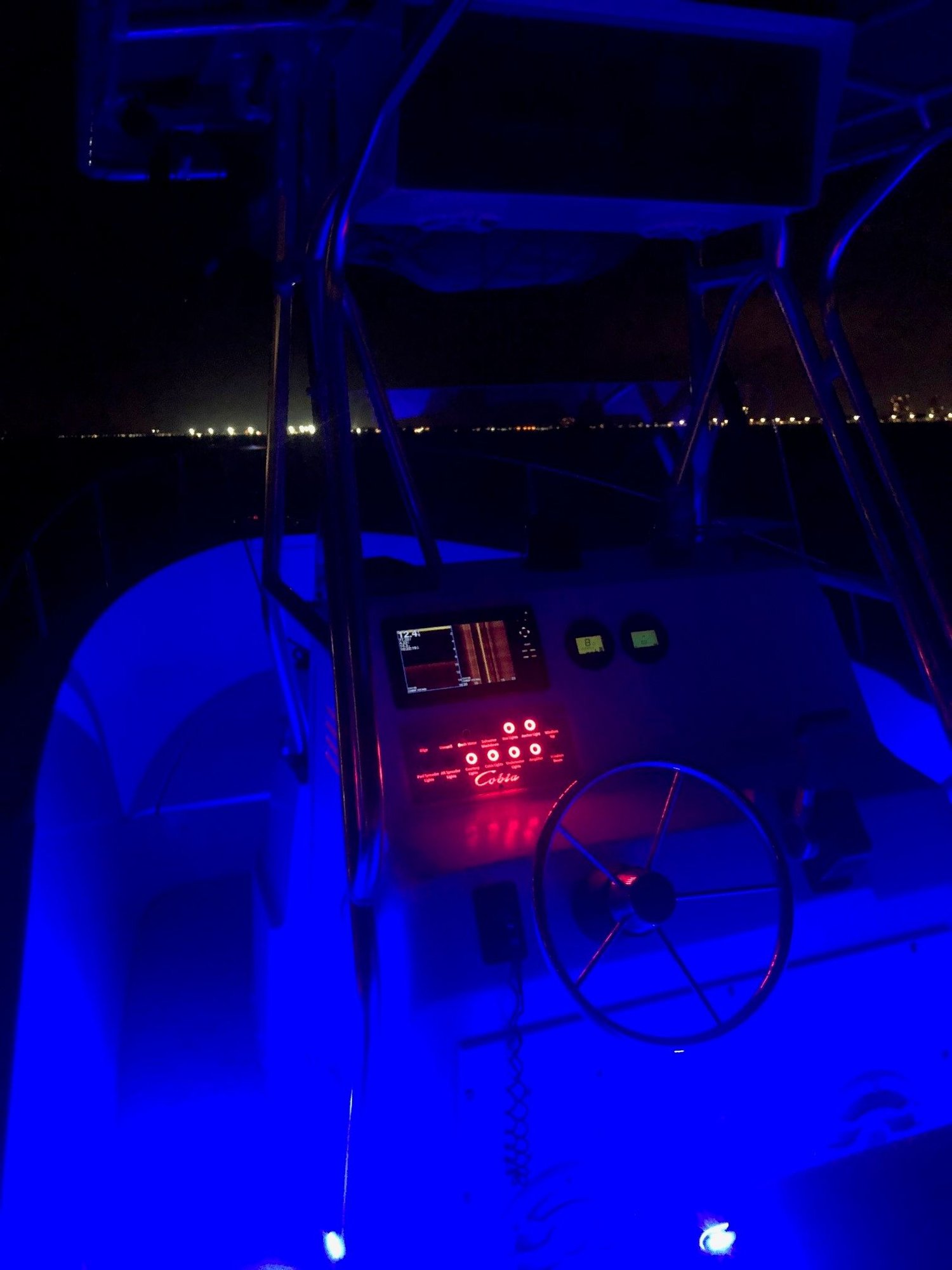

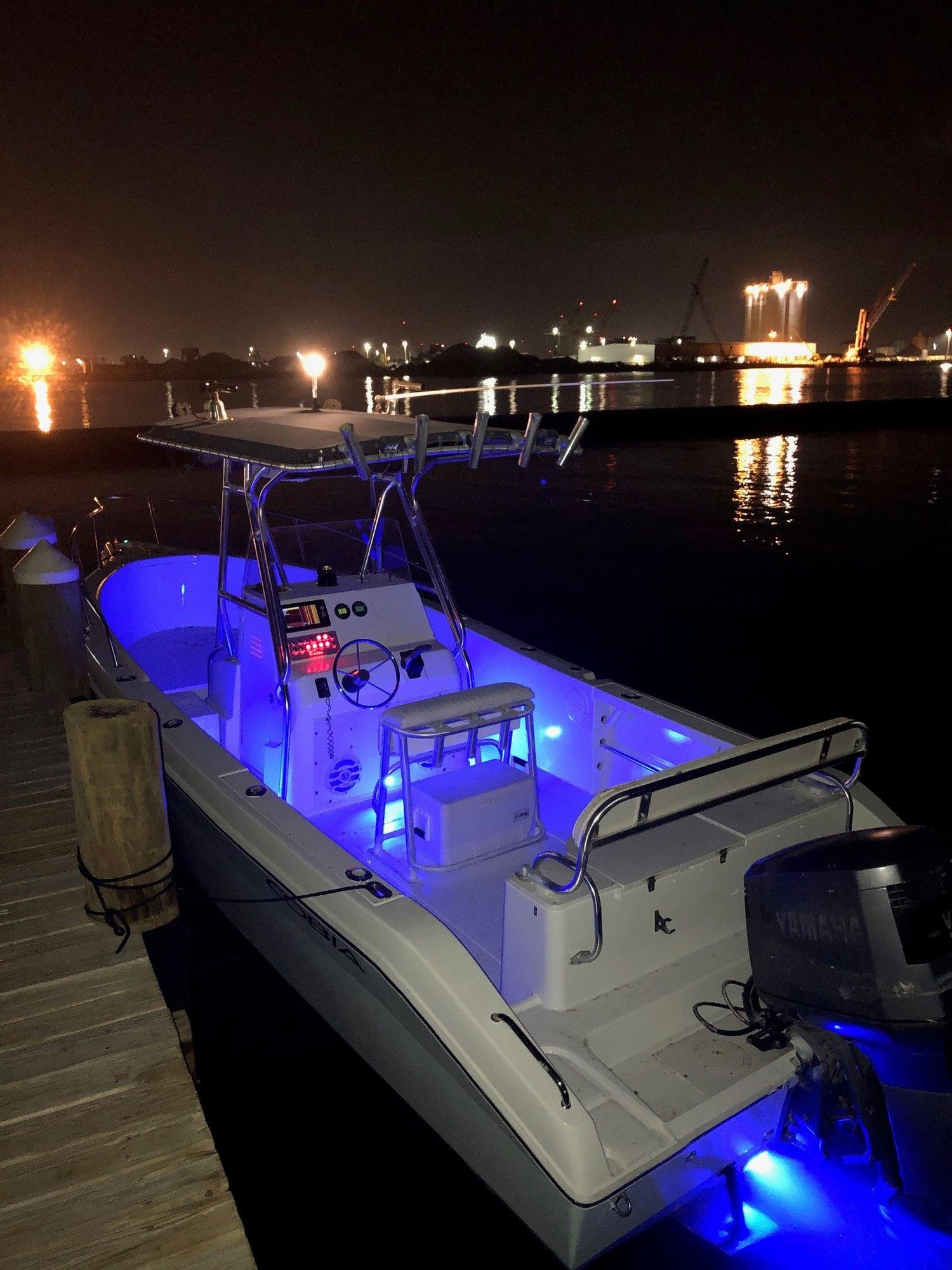

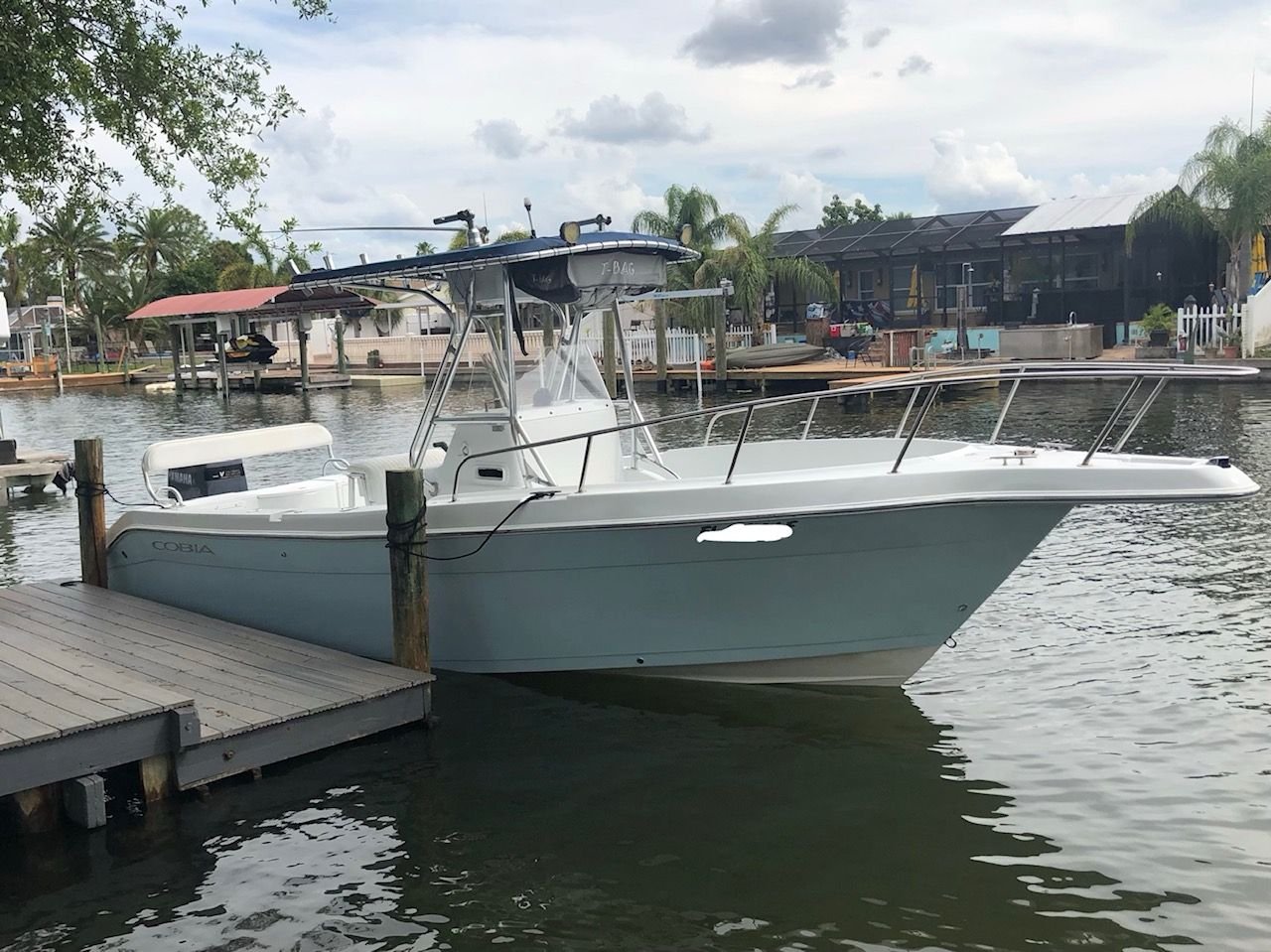

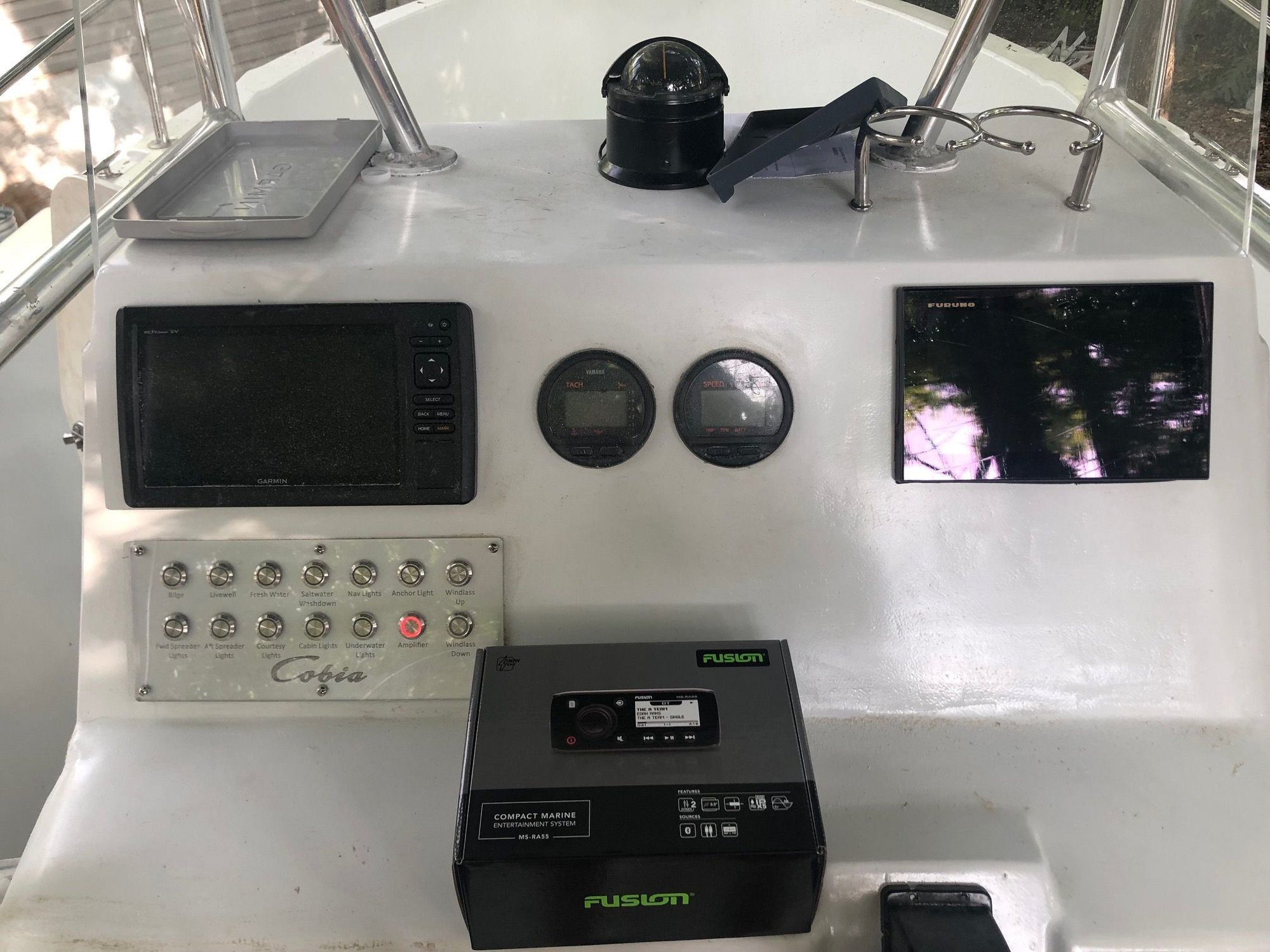

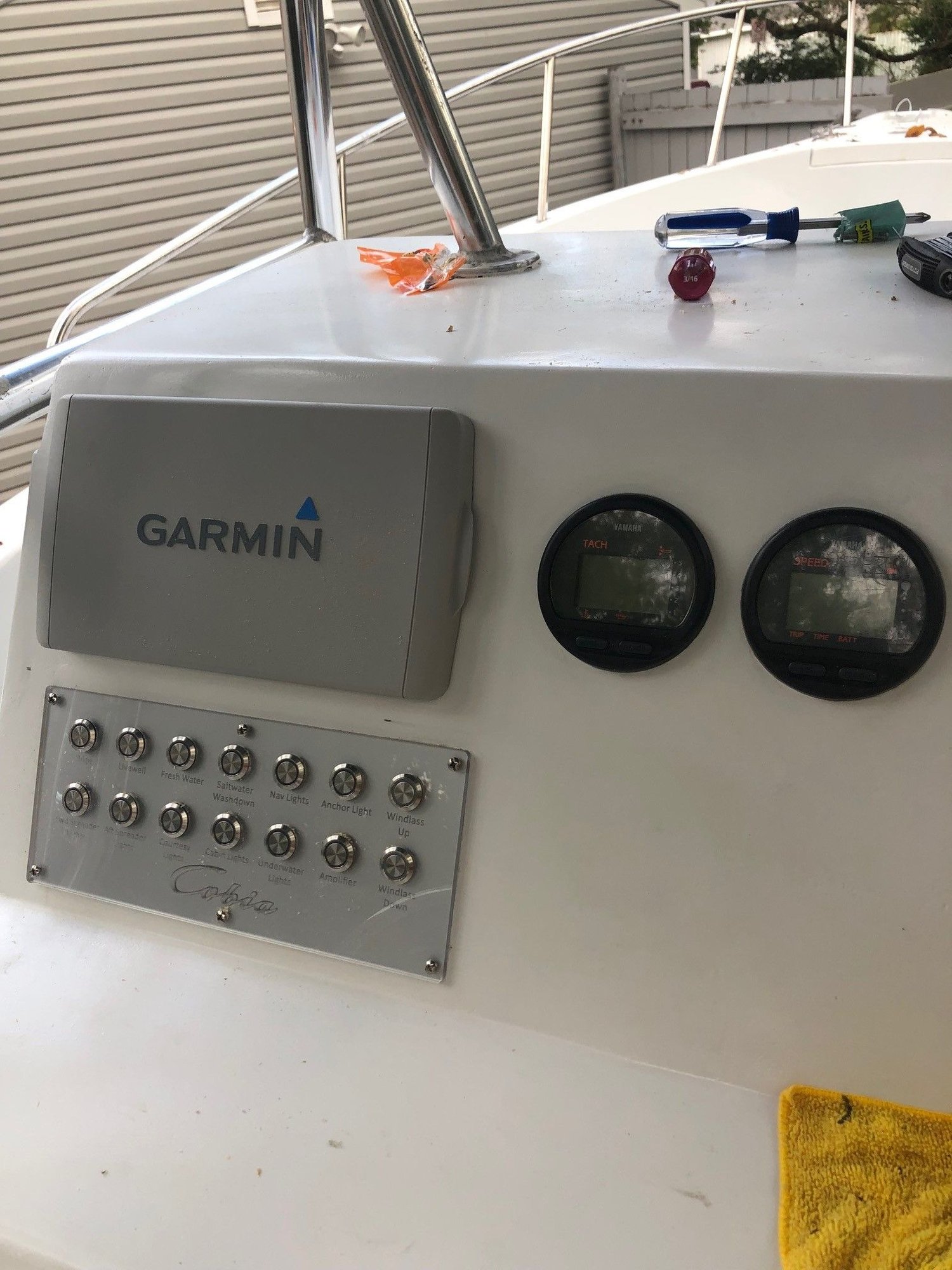

all finished up!


hookedonshenanigans is offline
Old 04-09-2019, 08:13 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Jul 2015
Posts: 722
Default

Wow man! Lots of work. Looks great!
VaporTrail1 is offline
Old 04-10-2019, 03:53 AM
  #3
gf
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2001
Location: North of Boston
Posts: 12,980
Default

I guess you've been busy!
gf is offline
Old 04-10-2019, 04:02 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: May 2003
Location: Brielle, NJ
Posts: 1,693
Default

Well done Sir!
Thanks for sharing.
JollyMonNJ is offline
Old 04-10-2019, 12:06 PM
  #5
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default

Now I need to take her fishing!
hookedonshenanigans is offline
Old 04-10-2019, 12:18 PM
  #6
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2001
Location: SE LA
Posts: 5,149
Default

Great job! It came out great.
Gary
Gmack is offline
Old 04-10-2019, 09:32 PM
  #7
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default

Originally Posted by Gmack View Post
Great job! It came out great.
Gary

thank you, lots of man hours put in. But the satisfaction of doing all the work yourself is worth it.
hookedonshenanigans is offline
Old 04-11-2019, 03:28 AM
  #8
Senior Member

Join Date: Jul 2017
Posts: 207
Default

Looks fantastic Love what you did with it , I have the same exact boat. I’ve done a ton of new stuff to mine, really like what you did with the Cobia switch panel, I need a new one who made it for you?
offsethooker is offline
Old 04-11-2019, 03:36 AM
  #9
Senior Member

Join Date: Aug 2012
Location: Savannah, Ga
Posts: 197
Default

Heck of a job sir! I love when people take the time to renew a perfectly good platform.
Playn Hooky is offline
Old 04-11-2019, 04:25 AM
  #10
Senior MemberCaptains Club Member

Join Date: Nov 2002
Location: Melbourne Bch, FL
Posts: 632
Default

Great job! I'm doing a lot of the same stuff right now - all started with my 20 year old trim tabs giving up... that led to rewire which led to a new switch panel which led to redoing the dash (I had some funky angles like your old dash did) which leads to paint...

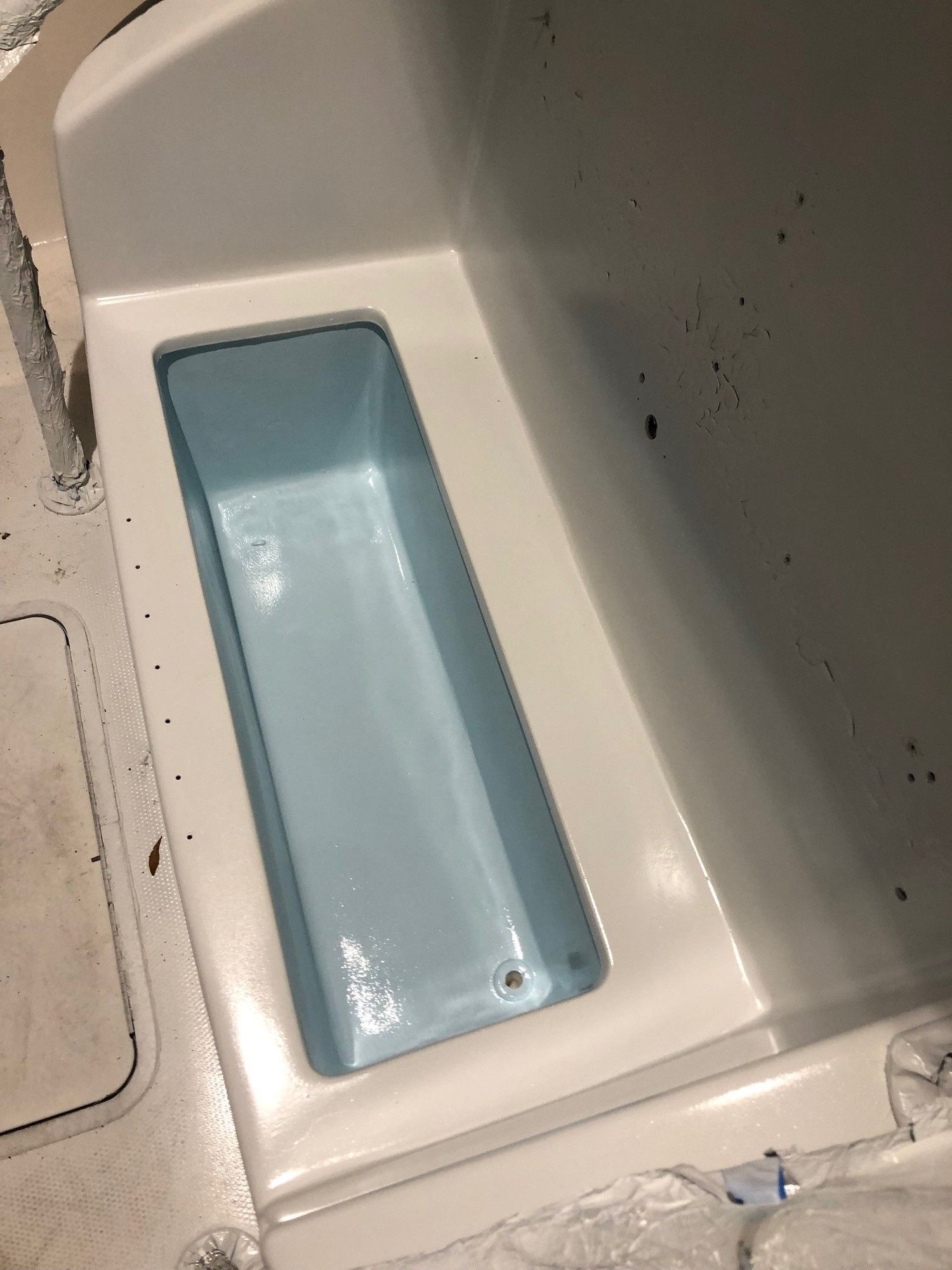

Speaking of paint, what did you use? I like how you did the storage boxes in blue.
baldy is offline
Old 04-11-2019, 05:16 AM
  #11
Senior MemberCaptains Club Member

Join Date: Aug 2006
Location: New Port Richey, Fl
Posts: 2,109
Default

Impressive! And in your backyard nonetheless.
jets is online now
Old 04-11-2019, 09:12 PM
  #12
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default

Originally Posted by offsethooker View Post
Looks fantastic Love what you did with it , I have the same exact boat. I’ve done a ton of new stuff to mine, really like what you did with the Cobia switch panel, I need a new one who made it for you?

Thanks! Its a great boat especially with trim tabs that work now. As for the panel, i have a friend who does. etching/engraving do it.
hookedonshenanigans is offline
Old 04-11-2019, 09:22 PM
  #13
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default

Originally Posted by baldy View Post
Speaking of paint, what did you use? I like how you did the storage boxes in blue.
yeah those dash angles on the older boats are tricky. All the new boats have flat dashes for the 15” displays. I couldn’t even fit a 7” screen before, so had to go flat.

The paint used was sherwin williams stuff. Primer was the yacht line epoxy 3000 2 coats. top coat was high solids polyurethane 3 coats. Honestly the stuff is just as good as awlgrip without the $$$. Think i paid around $100 a gallon. I also picked up a breathe cool system. The fumes from sprayingare no joke. The surface has a mirror finish except for some orange peel texture only because I originally rolled the wrong kind of primer on and was a bear to remove all the way. (dont do that )
hookedonshenanigans is offline
Old 04-12-2019, 06:19 AM
  #14
Senior Member

Join Date: Jul 2014
Location: JAX, FL
Posts: 462
Default

I liked it better before.


Just kidding! Turned out really, really nice. Planning on keeping the power that's on her?
briclark904 is offline
Old 04-12-2019, 07:16 AM
  #15
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2001
Location: SE LA
Posts: 5,149
Default

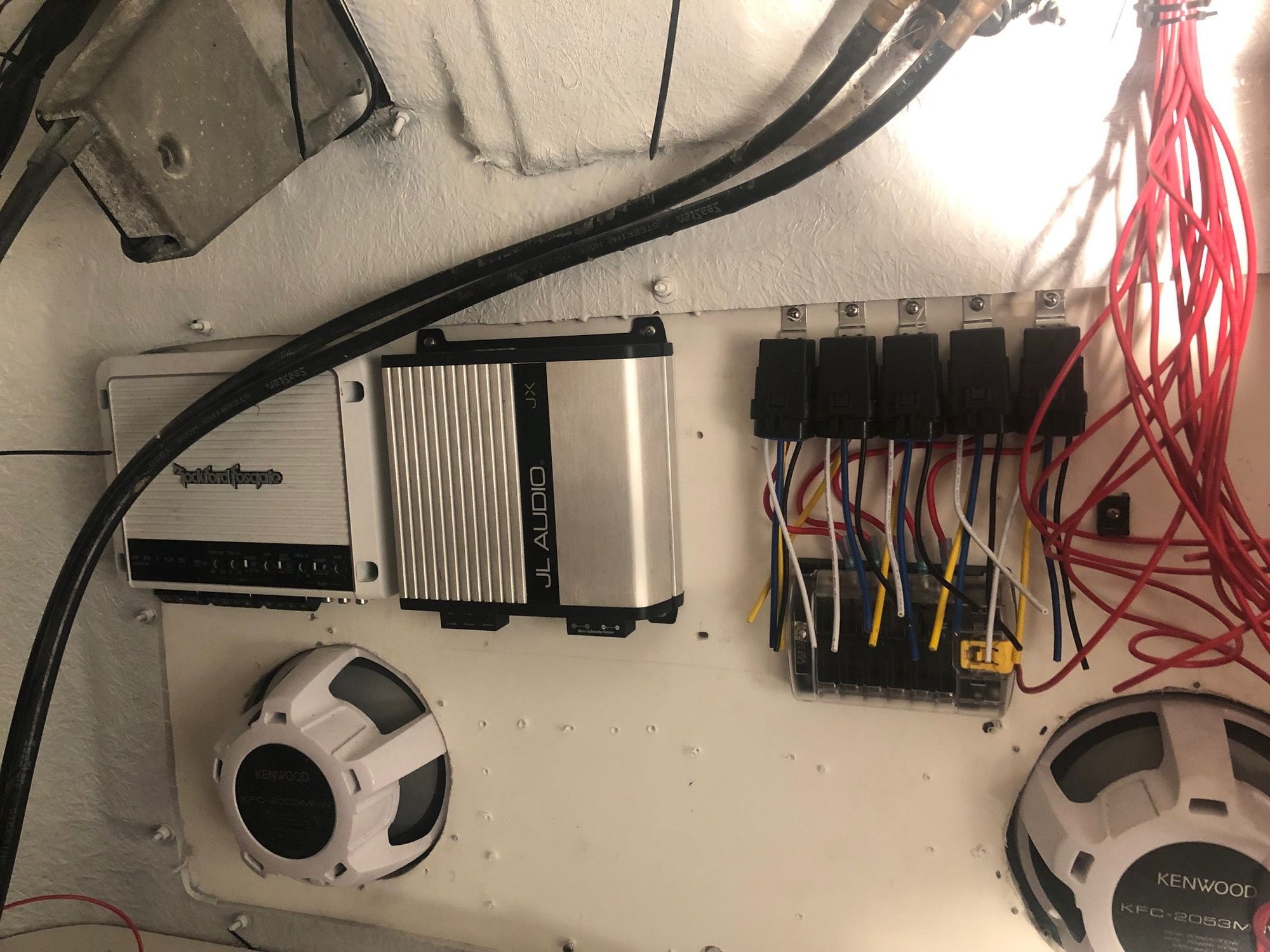

Curious ……. what are the 5 small boxes that look like relays above the fuse panel?
Gmack is offline
Old 04-12-2019, 09:39 PM
  #16
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default

Originally Posted by briclark904 View Post
I liked it better before.


Just kidding! Turned out really, really nice. Planning on keeping the power that's on her?

i am going to start chartering soon with her so that will be the next thing to be upgraded. Probably a mid 2010’s 300 verado which is affordable at the moment for me. I just love that ox66 though, plenty of power and you cant kill these things !
hookedonshenanigans is offline
Old 04-12-2019, 09:42 PM
  #17
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 185
Default

Originally Posted by Gmack View Post
Curious ……. what are the 5 small boxes that look like relays above the fuse panel?
Relays
amazon sells some nice ones. 5 pack with waterproof pigtails
hookedonshenanigans is offline
Old 04-13-2019, 09:09 AM
  #18
Senior Member

Join Date: May 2006
Location: Fort Pierce,FL
Posts: 5,059
Default

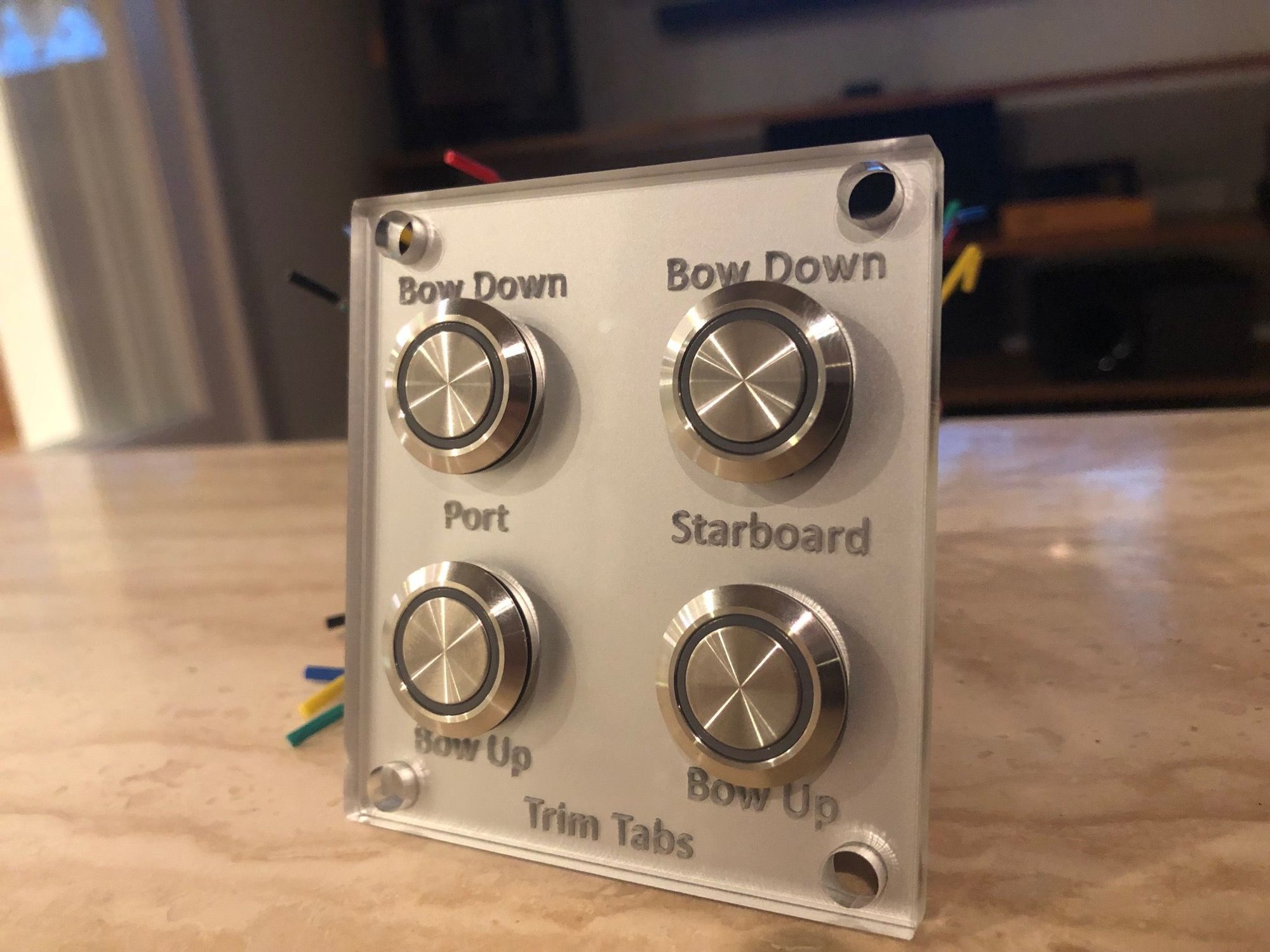

nice! Who made that trim tab controller?
barrell is offline
Old 04-13-2019, 10:18 AM
  #19
Senior Member

Join Date: Dec 2002
Location: Sarasota, FL
Posts: 3,221
Default

All that masking and taping makes me want to cringe! Turned out nicely. Did you paint the bottom?
redseacraft is offline
Old 04-13-2019, 03:18 PM
  #20
Senior Member

Join Date: Apr 2016
Posts: 1,466
Default

well done
Saltymiami is offline
