The Cold Mold Construction Fight Club

Old 04-10-2018, 07:35 AM
  #6101
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Posts: 2,351
Default

Originally Posted by kln View Post
Tunnels will have a stroke.... wood hull, wood stringers












Any more info on this one - Awesome boat
ed d is online now
Old 04-21-2018, 02:15 PM
  #6102
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 2,037
Default

Otseg is offline
Old 04-21-2018, 03:12 PM
  #6103
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Nov 2005
Location: Ocracoke, NC
Posts: 3,022
Default

Looks like an Uffa Fox design, that shape was his signature. I used to have a Jet 14 that was his design. Great fast boat.
Tarbaby is offline
Old 04-22-2018, 04:44 AM
  #6104
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 2,037
Default

What may not be clear in the hot molding video, is that the wood is coated with glue and allowed to dry. Then after assembly the steam heat and pressure activates the glue
This is the British book that turned me on to cold molding. Probably read it 20 times over the years when a teenager..


Last edited by Otseg; 04-22-2018 at 05:05 AM.
Otseg is offline
Old 04-22-2018, 08:17 AM
  #6105
Senior Member

Join Date: Feb 2015
Posts: 2,196
Default

Dinghy building
By Richard Creagh-Osborne

Can be read online for free at https://openlibrary.org/works/OL123742W/Dinghy_building for those so inclined.
smccormick is offline
Old 04-23-2018, 03:33 AM
  #6106
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 2,037
Default

Originally Posted by smccormick View Post
Dinghy building
By Richard Creagh-Osborne

Can be read online for free at https://openlibrary.org/works/OL123742W/Dinghy_building for those so inclined.
Thank You
I signed up but it wasn't having me yet. I will be persistent.
To a die hard bibliophile, there's nothing like the smell and feel of the real thing baby.
smccormick likes this.
Otseg is offline
Old 04-23-2018, 09:03 AM
  #6107
Senior Member

Join Date: Jan 2010
Posts: 4,244
Default

Its amazing how they could build a boat in less than 4 minutes back then......
maxie is offline
Old 05-25-2018, 09:05 AM
  #6109
Senior MemberCaptains Club Member

Join Date: Mar 2004
Location: Fayetteville/Gloucester, NC
Posts: 1,326
Default

Awesome video. I hope those guys were working on piece rates; they were hustling.
abfish is offline
Old 05-25-2018, 11:12 AM
  #6110
Senior Member

Join Date: Mar 2009
Posts: 1,514
Default

That is a really cool rescue story. How you builders have saved some classics is very cool.
I love where the builder says " even if I have to throw it away, I will know how it was built".
I envy the talent on this thread.
muskrattown is online now
Old 10-21-2018, 08:22 AM
  #6111
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 2,037
Default Boat Building Kept me from Being Incacerated Like the Rest of my Friends.

Kids can do much more than play on a device.

http://bit.ly/2x2C5an
ibewerik and tad117 like this.
Otseg is offline
Old 10-29-2018, 11:56 PM
  #6112
Senior MemberCaptains Club Member

Join Date: Jan 2006
Posts: 646
Default 17' River Boat

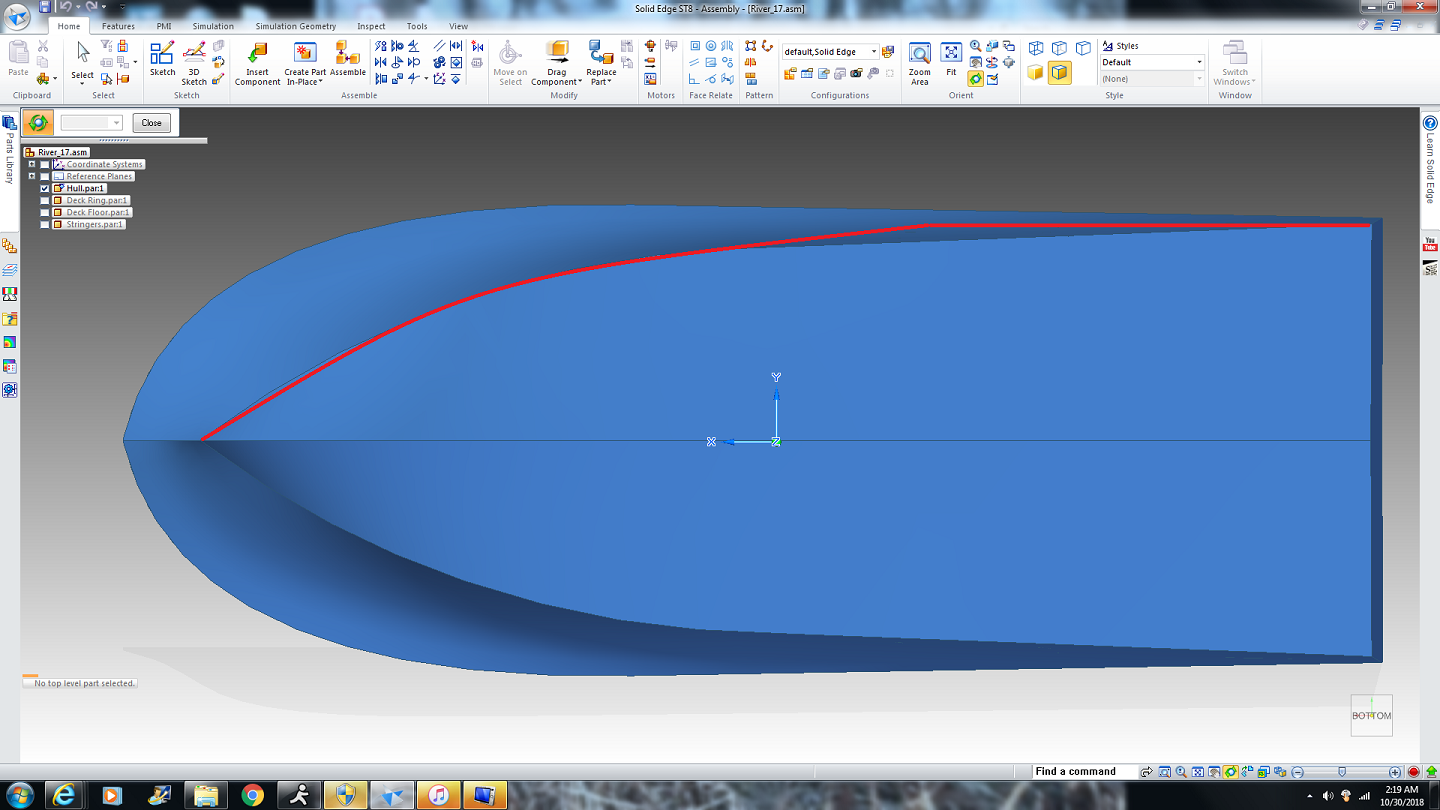

Guys, I have started working on a 17' boat that my dad and I are planning to build for the river. After reading through this thread I am pretty sure I have a bottom issue much like the one on the 17' ENVI boats that were discussed. Based on what I read, I will need to correct my bottom so that the chine doesn't start turning towards centerline immediately as it does now (more like the red line in the last picture). Any other feed back would be much appreciated before we start building.
NCBrewWater is offline
Old 10-29-2018, 11:59 PM
  #6113
Senior MemberCaptains Club Member

Join Date: Jan 2006
Posts: 646
Default

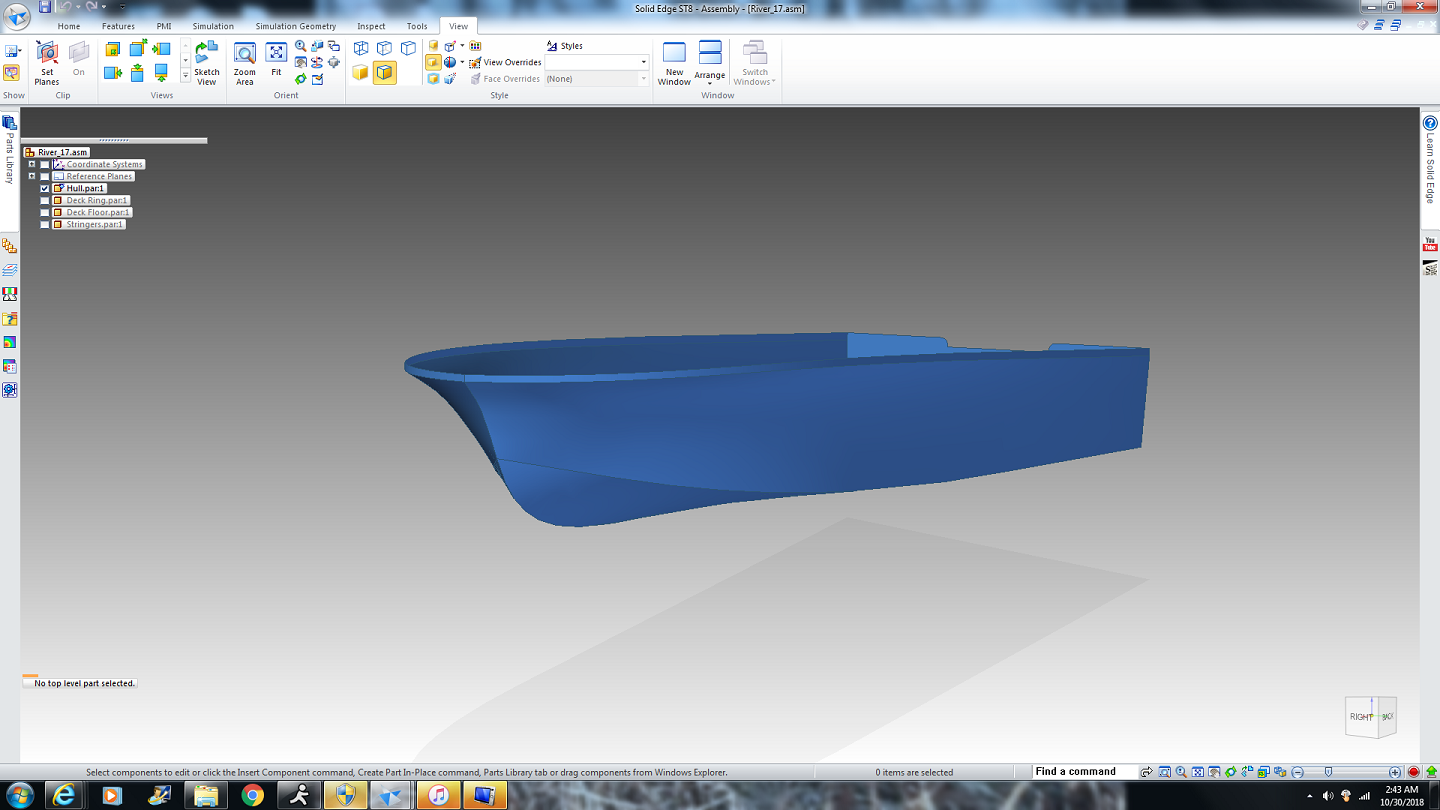

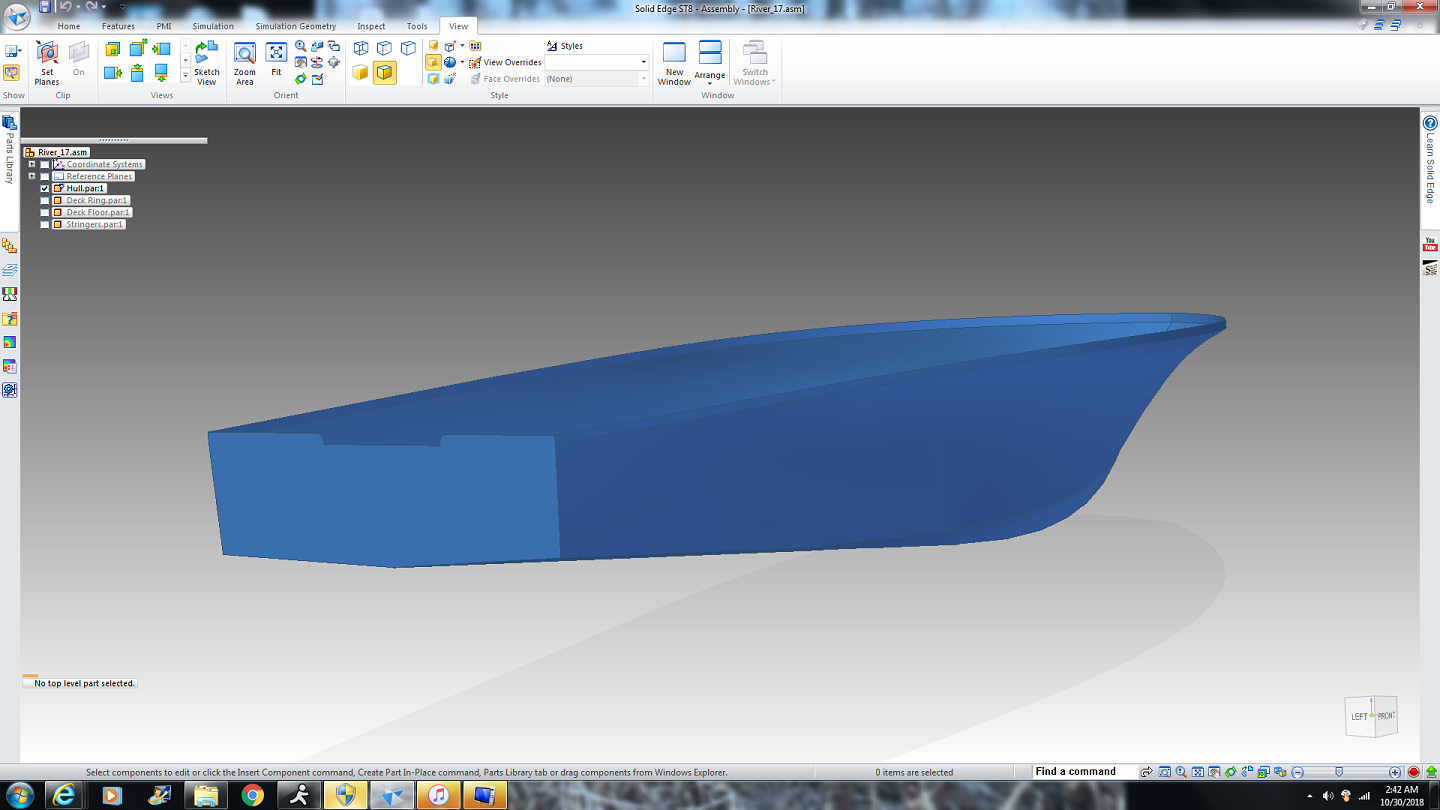

For whatever reason my profile shot did not get included in my previous post.
NCBrewWater is offline
Old 10-30-2018, 05:41 PM
  #6114
Senior Member

Join Date: Nov 2009
Location: Jax, Fl
Posts: 4,066
Default

that's weird. before I read your post, just looking at the pics, I thought, hmm reminds me of the gcc/envi thread. But looks to my very untrained eye, to have sufficiently whetted surface area (from the bottom view).

I look forward to the comments.

btw-is there no software that can predict a designs real world performance characteristics virtually?
fijon is offline
Old 10-31-2018, 12:46 AM
  #6115
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Aug 2011
Location: Beaufort NC
Posts: 4,945
Default

Originally Posted by fijon View Post
that's weird. before I read your post, just looking at the pics, I thought, hmm reminds me of the gcc/envi thread. But looks to my very untrained eye, to have sufficiently whetted surface area (from the bottom view).

I look forward to the comments.

btw-is there no software that can predict a designs real world performance characteristics virtually?
There are software suites that can do that but most are priced just slightly above the atmosphere and require some serious computing power to run. Far above even today's best desktop computer as good as they are.

I run the Nautilus package Pro Surf 3 which has come down a lot on cost since I bought my copy. It's good for the basics like static loading and stability but for the big jobs I pass it off to he folks at Donald Blount and associates. They do the full Monty and run the speed, ride and even vertical acceleration prediction (when running in various sea states). So far they have nailed it every time!

It's not exactly an inexpensive path bupawhen you're building a new design it's very reassuring to have a learned opinion that it will work.
bills106 is online now
Old 10-31-2018, 08:10 AM
  #6116
Senior Member

Join Date: Feb 2015
Location: CT
Posts: 1,896
Default

With such little deadrise, you might want to add an anti-trip chine.
Argon is offline
Old 11-02-2018, 04:58 PM
  #6117
Senior MemberCaptains Club Member

Join Date: Jan 2006
Posts: 646
Default

Originally Posted by Argon View Post
With such little deadrise, you might want to add an anti-trip chine.
The boat is going to have spray rails on it once completed.
NCBrewWater is offline
Old 11-02-2018, 05:02 PM
  #6118
Senior MemberCaptains Club Member

Join Date: Jan 2006
Posts: 646
Default







Here is what I have done so far.
NCBrewWater is offline
Old 11-05-2018, 09:34 AM
  #6119
Senior MemberCaptains Club Member

Join Date: Jan 2006
Posts: 646
Default

Why is it that some Carolina boats have chines, while others don’t? Both designs always have spray rails.
NCBrewWater is offline
Old 11-13-2018, 06:38 PM
  #6120
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2005
Location: Miami Fl / Washington NC
Posts: 2,037
Default

Originally Posted by bills106 View Post
There are software suites that can do that but most are priced just slightly above the atmosphere and require some serious computing power to run. Far above even today's best desktop computer as good as they are.

I run the Nautilus package Pro Surf 3 which has come down a lot on cost since I bought my copy. It's good for the basics like static loading and stability but for the big jobs I pass it off to he folks at Donald Blount and associates. They do the full Monty and run the speed, ride and even vertical acceleration prediction (when running in various sea states). So far they have nailed it every time!

It's not exactly an inexpensive path bupawhen you're building a new design it's very reassuring to have a learned opinion that it will work.
Funny story about CAD design. For 9 years I rented a shed from Bob Derecktor in Florida. He used MAD to design his boats. Model Aided Design. We built a 50' sailboat together and model tested the design. Anyone in the shop could make their own version during the design process. I would make a model, then a mold off the model, then a part, then tow test those.
Bob took one of the best of then all, slit the bottom, pushed it down on the bench to take out rocker, then we glassed it back. It was better, so the process was repeated, and better again.

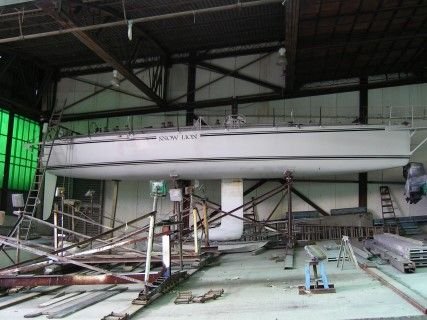

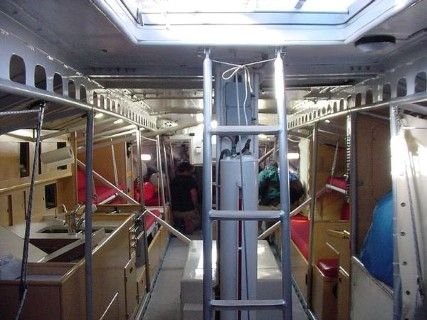

Since the hull was aluminum with a composite deck, I needed to get the lines into the computer for plasma cutting the frames. A boat designer Buddy produced a gorgeous set of lines from a CAD program of the day.

Bob looked at them, looked at me and said; "Do you think we should make one more model from these lines to be sure? I said Fk, I guess so. I did and the beautiful model that I used to make a beautiful mold which produced a beautiful hull was beautiful but slower. I guess there were no B Splines to match "cut bottom, flatten to bench and re-glass".

My Buddy pushed and pulled and tricked the program to exactly match the hull lines offsets I had given him. Another friggin model, another friggin mold and another friggin part and all good.

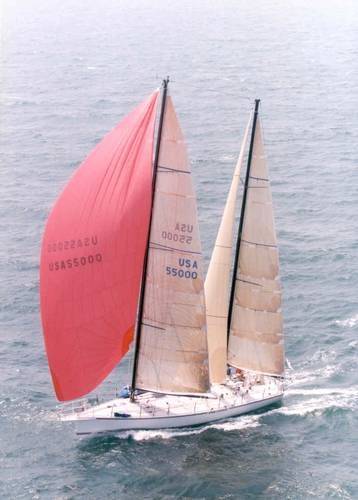

The boat won the Newport-Bermuda Race first time out of the box.


Otseg is offline
