Building a 24' plywood on frame Center Console

Notices

Building a 24' plywood on frame Center Console

Old 05-01-2020, 04:53 PM
  #1
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default Building a 24' plywood on frame Center Console

I've been working on this a little over a year and decided I would begin sharing the progress of my build. A little bit about the boat.

It's a plywood-on-frame build design called La Paz by naval architect Ken Hankinson, sold through Glen-L boats. The plans are for a 22' CC in either outboard (my choice) or I/O. I'm expanding it to 24' which is an option Ken gives. I wanted a trailered boat for fishing off the coast of SoCal and a number of others have built this and commend it's ride. It has a 18 1/2 degree deadrise at the transom and a 40+ degree forefoot, 8' 6" beam. You can see more about the boat design here (as well as a few pics if you search around the site) https://www.boatdesigns.com/La-Paz-22/products/747/ .

I'm building it using Sapele (a type of Mahogony) for the frames, battens, chine, sheer and more. The keel is Vertical Grain Douglas Fir w a plywood backing. I'm using Hydrotek marine ply (Meranti) for the stiff parts like the transom and Joubert Okoume for the hull. The hull is 3/8" ply on the side and 1/2" on the bottom.

It's been a very challenging experience. I've never built a boat, I've never even owned a boat. I bought a few books and been reading this forum for almost two years now trying to understand how it's done. So I bought a stack of Sapele and the boat plans, some plywood too and got started. Like I said, I've been working on it for a little over a year (first 6 months was still working, retired last June). I'll start adding some pics so you can see the progress.
Likes:
alfnator, chrisjb, crispy, HatchieLuvr, Milehog, MilesExpress, starbright55 and 2 others liked this post. (Show less...)
Old 05-01-2020, 04:58 PM
  #2
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default

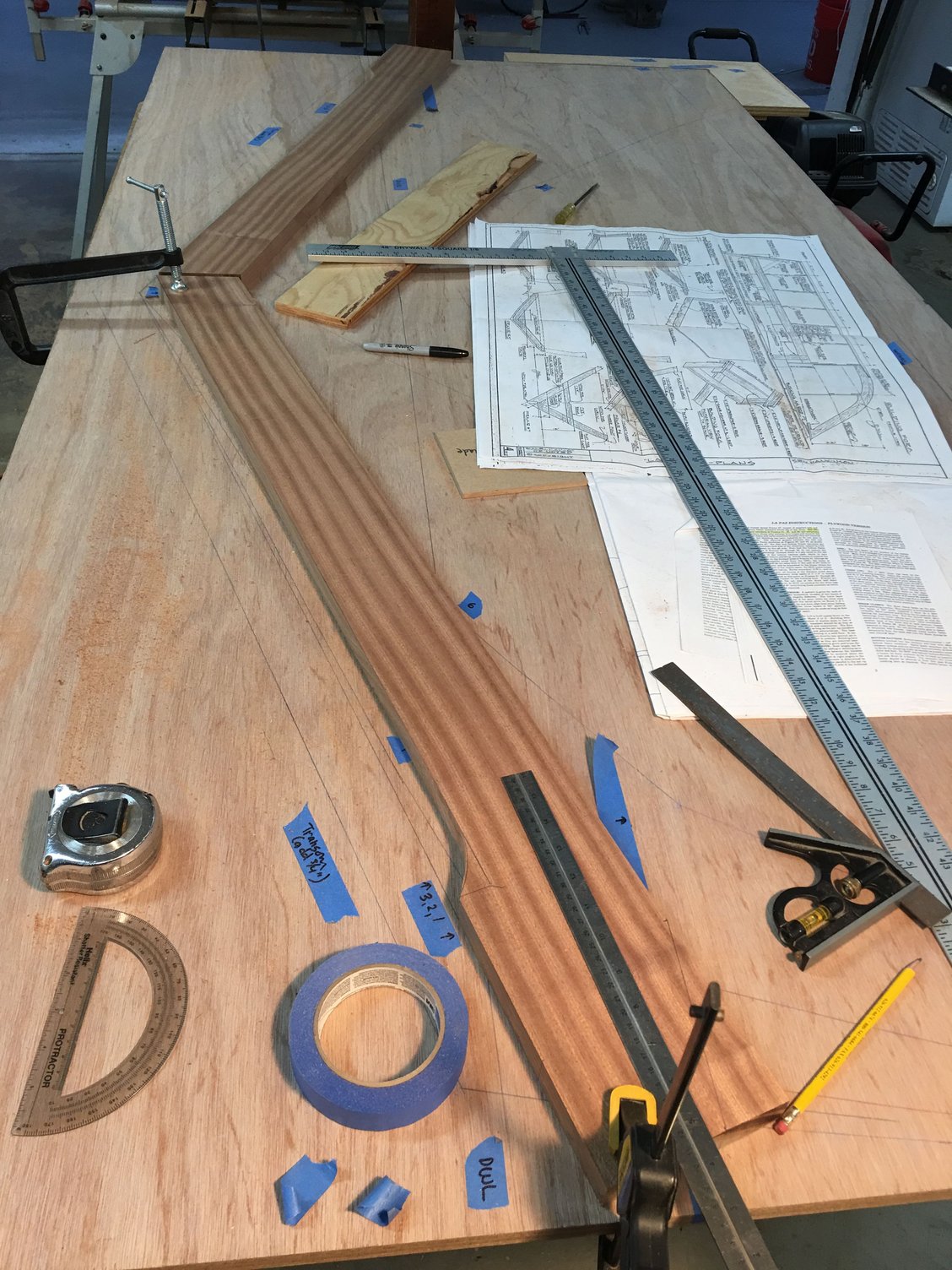

Full size plans, trace them onto plywood sheet and use for template.

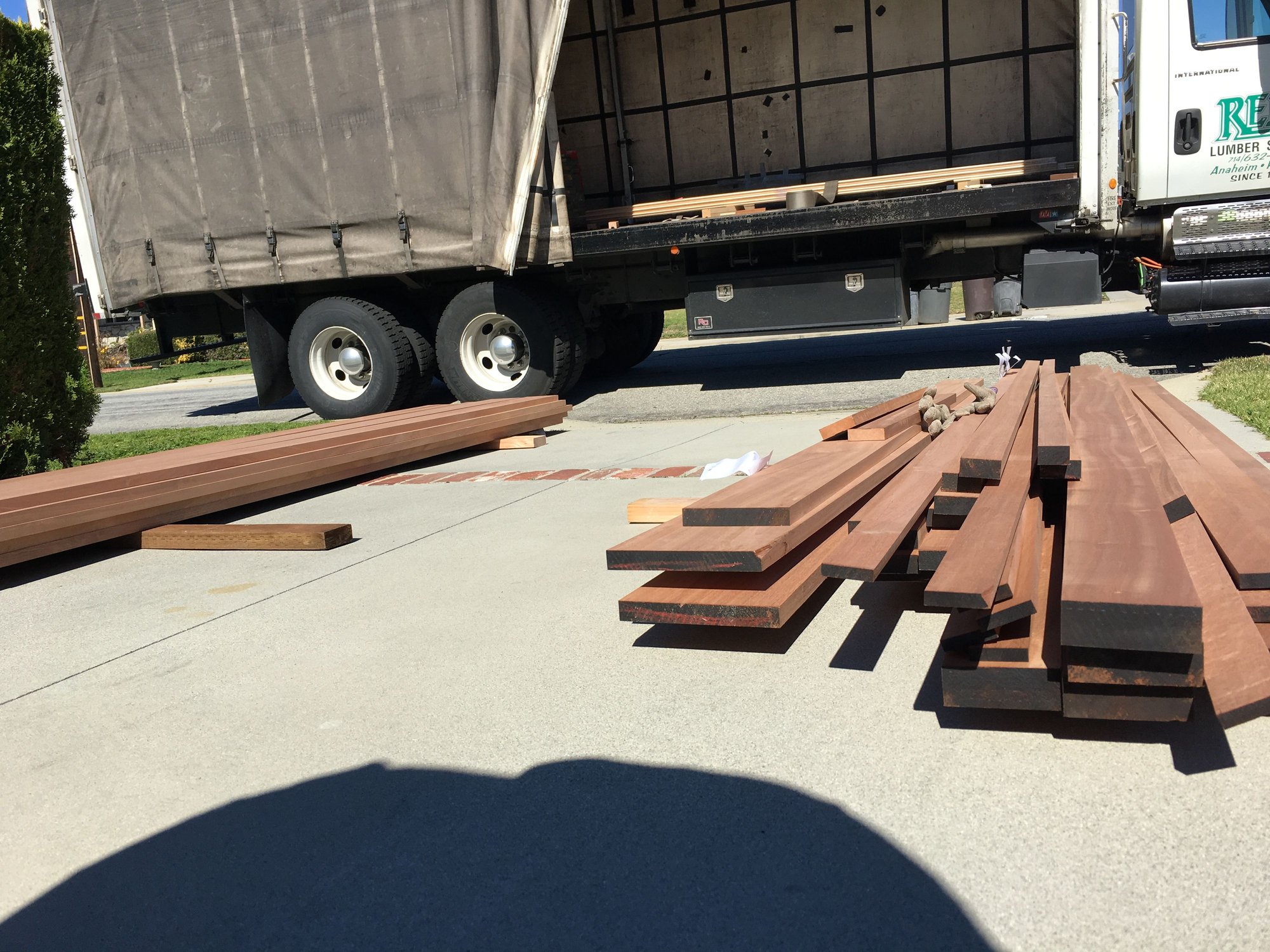

Sapele

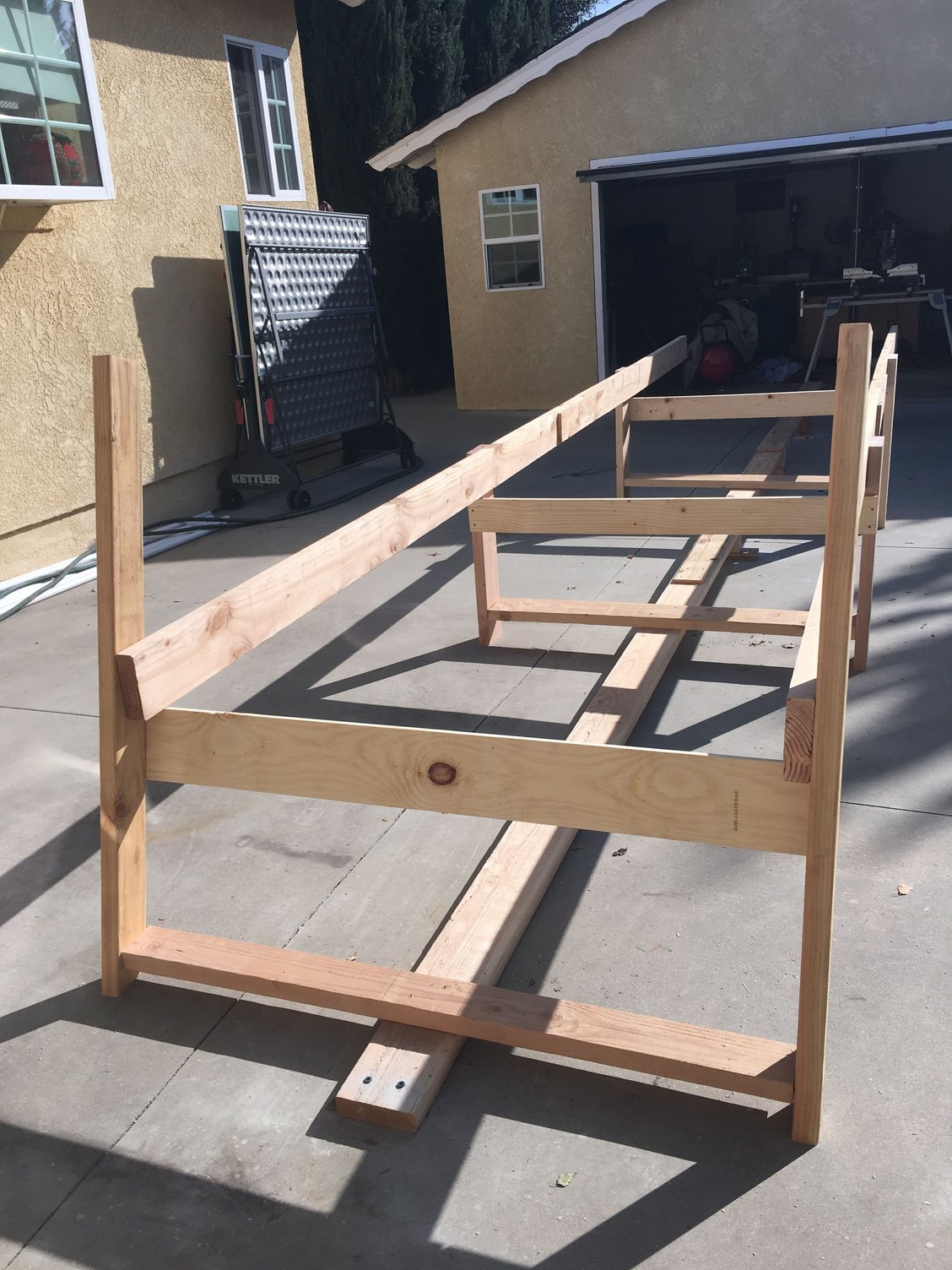

building frame
Likes:
Old 05-01-2020, 05:02 PM
  #3
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default


Building a frame

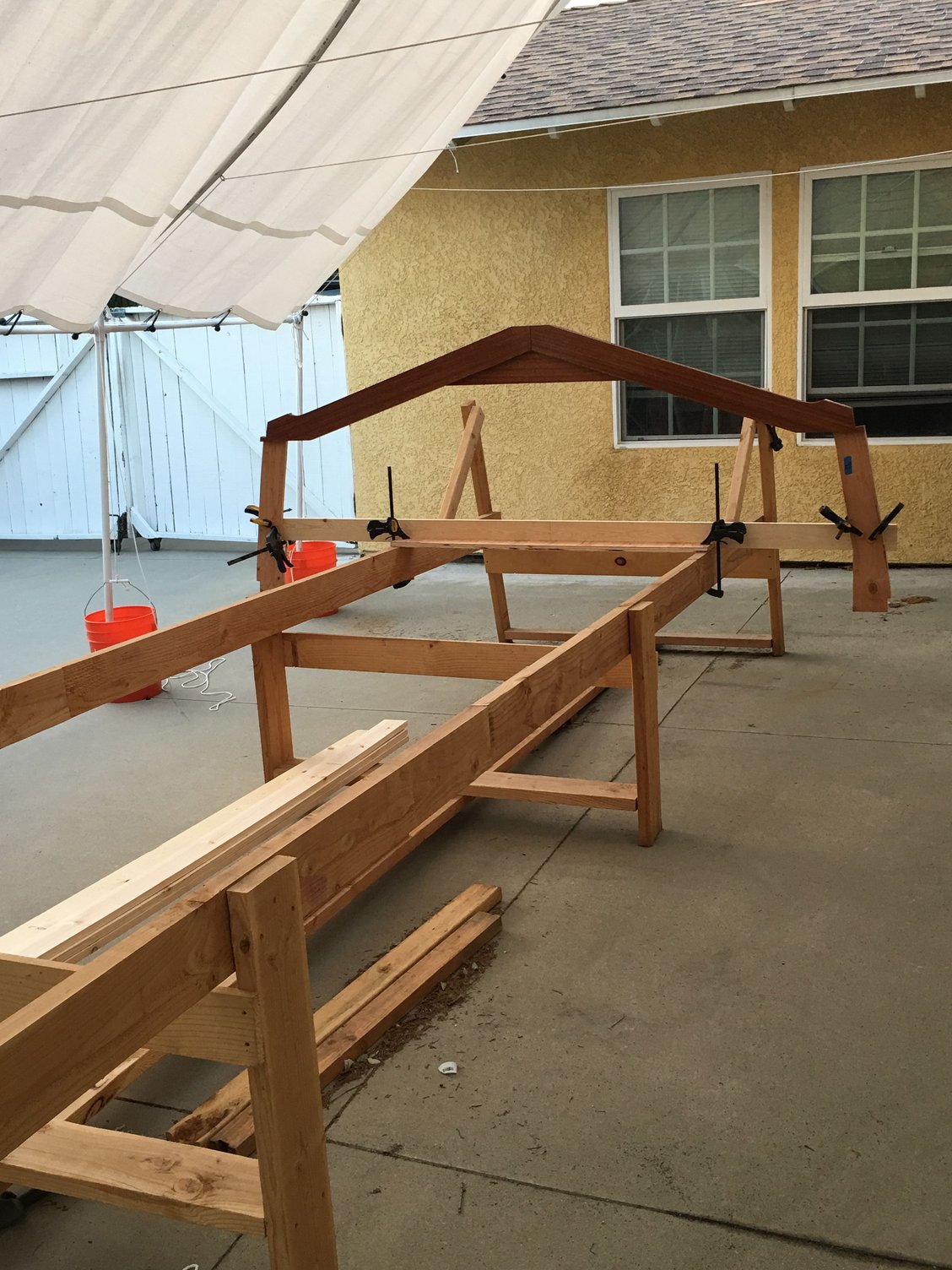

hanging the first frame

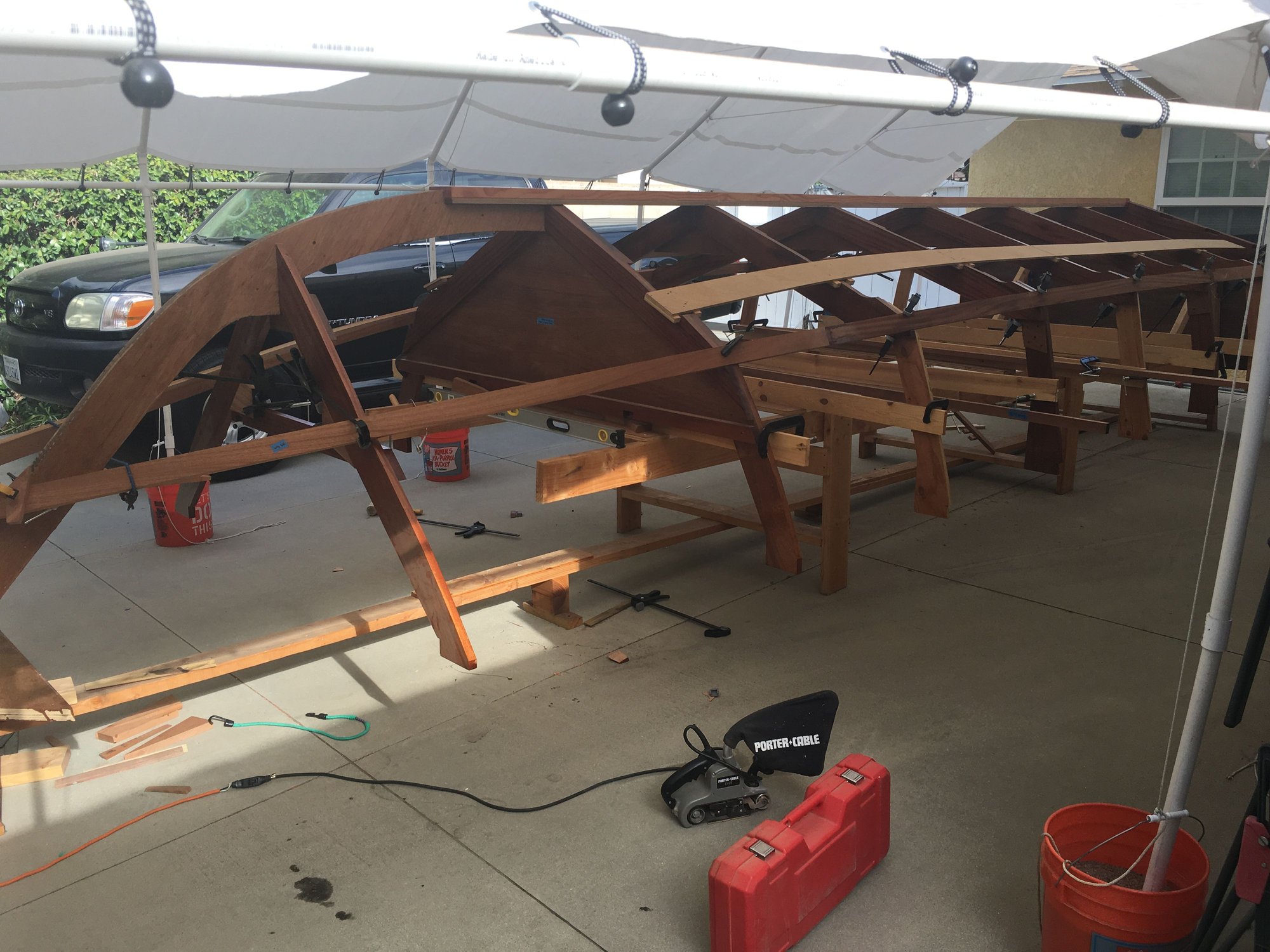

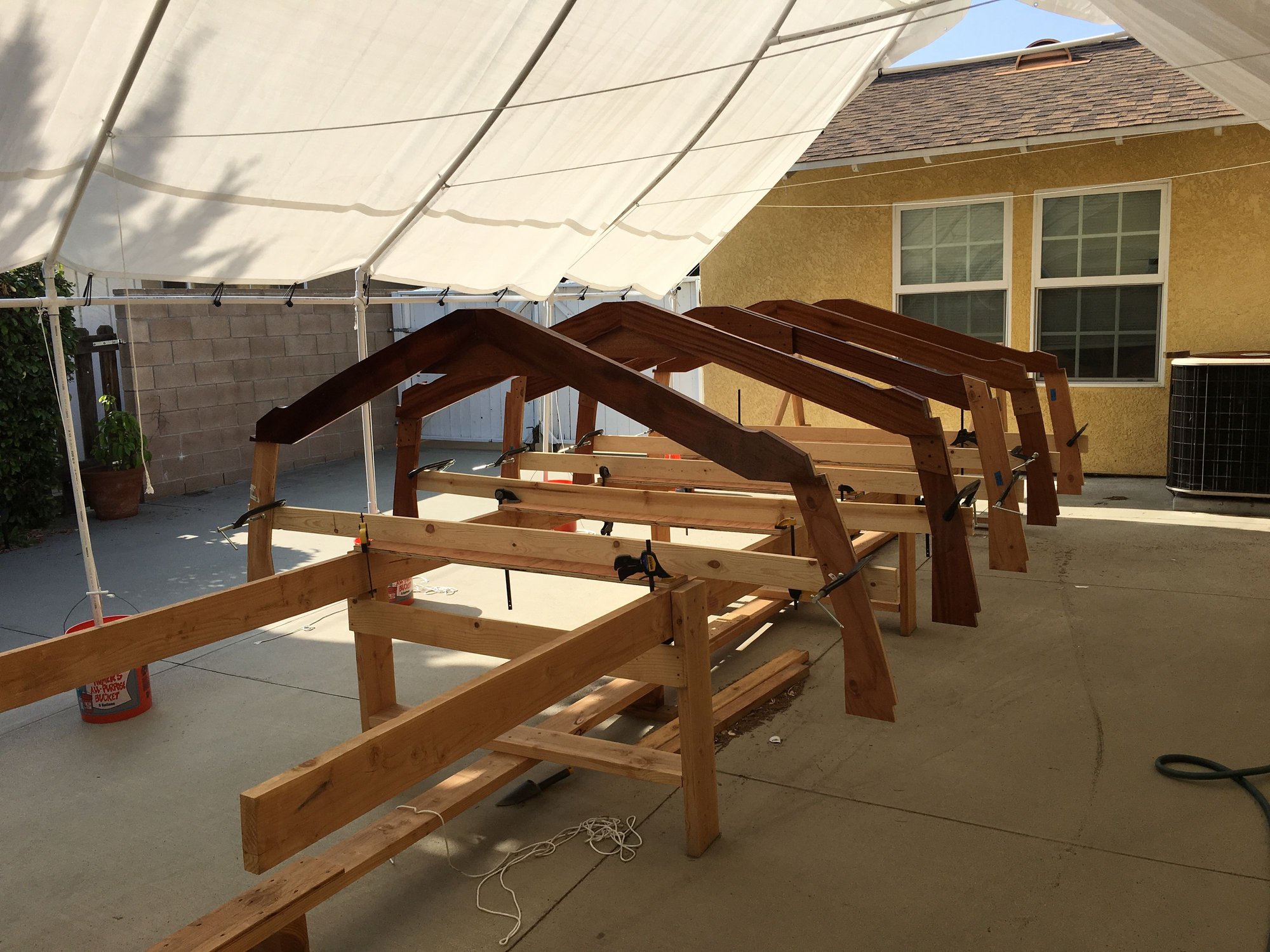

adding other frames (some of the frames have a plywood side element. These are just temporary to help line up the chine, sheer, and hull side. They get removed later)

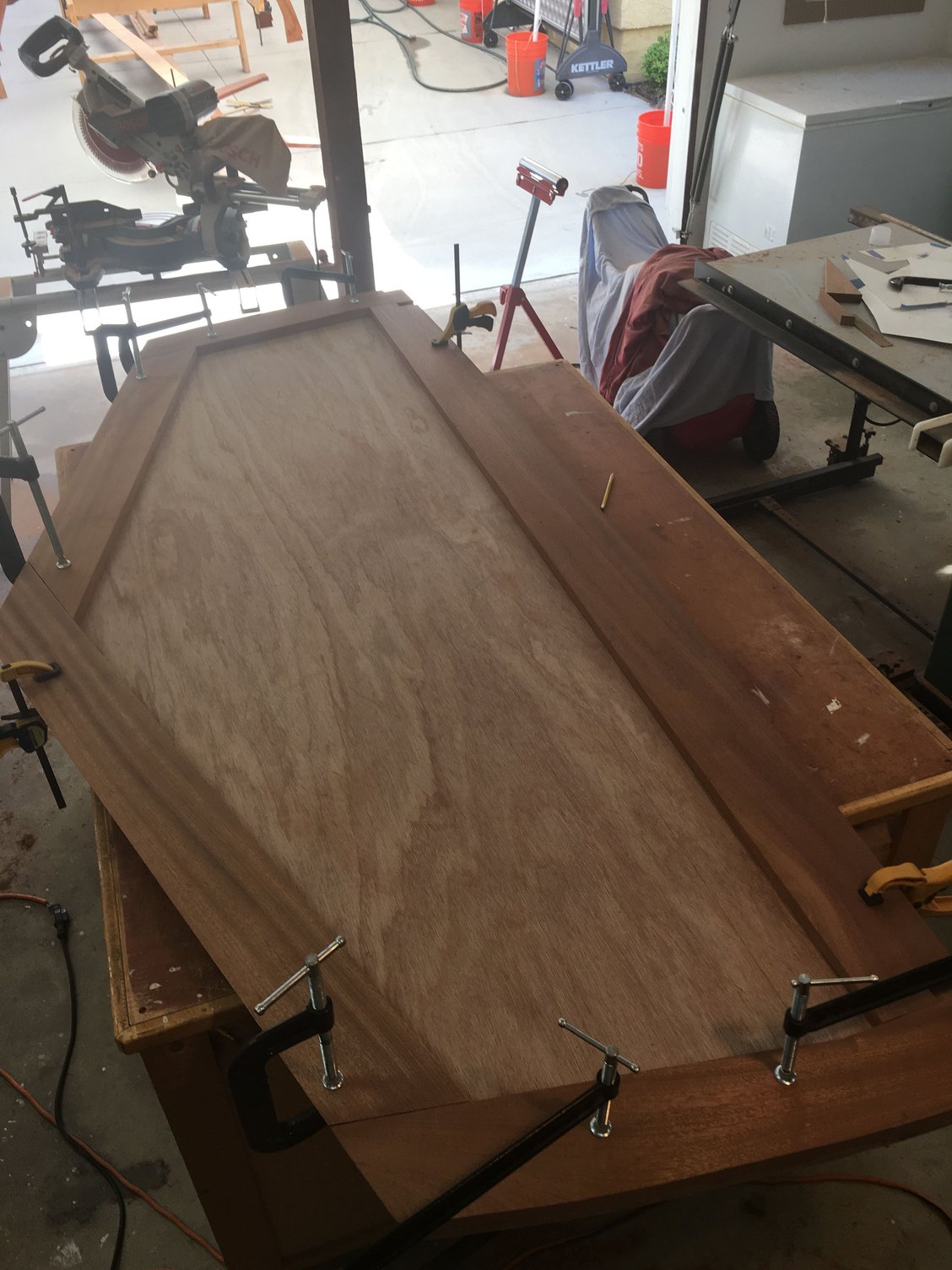

building the transom
Likes:
Old 05-01-2020, 05:16 PM
  #4
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default

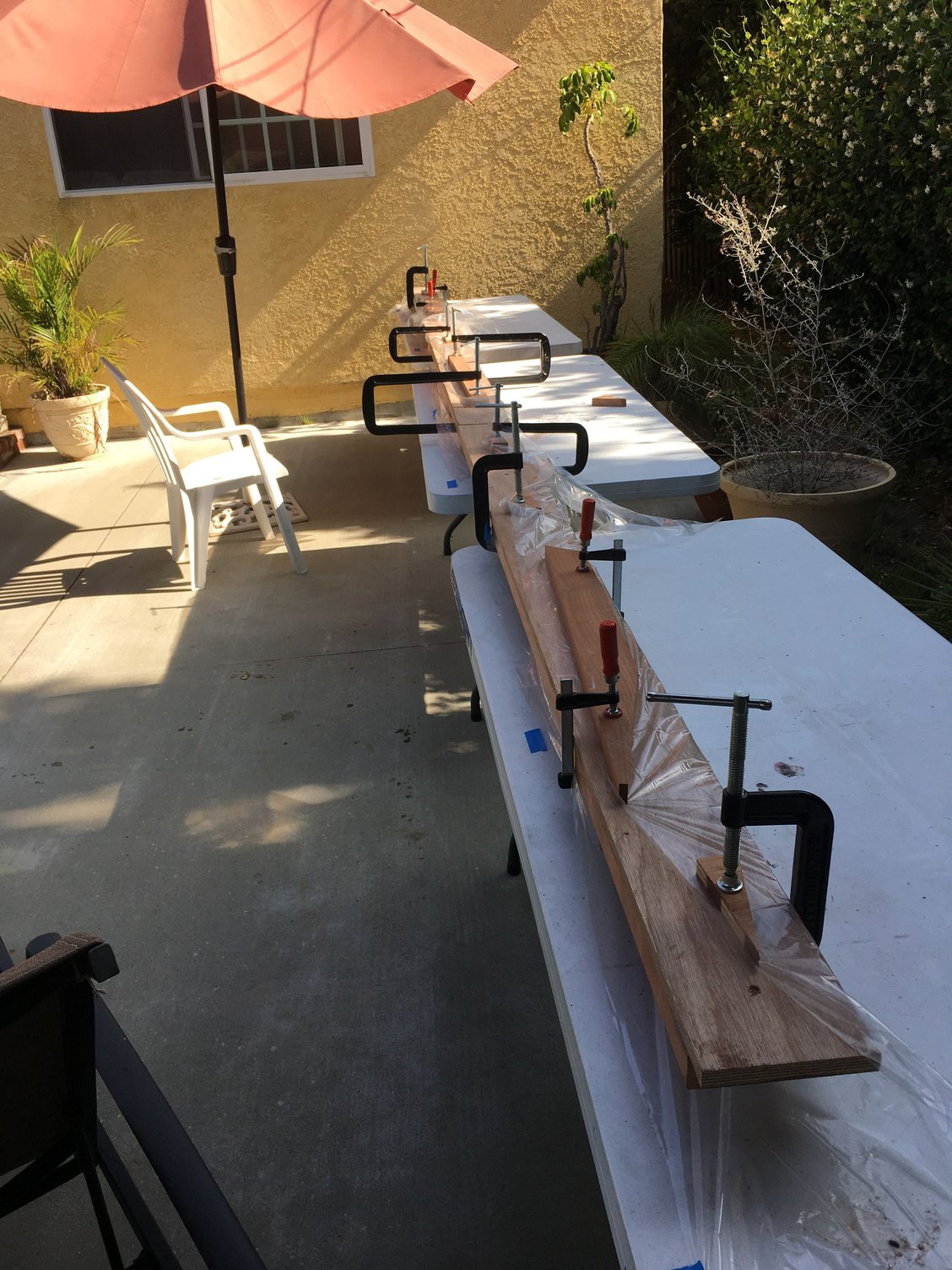

scarf joined 3/4" plywood, epoxied to back the keel

Keel set in place (2"x 6" VGDF w 3/4" ply backing). That piece of ply running the length of the boat is to hold the spacing of the frames at their designed location, just for a rough set up.

laying out the stem, 3 pieces of 3/4" ply laminated together w epoxy resin.

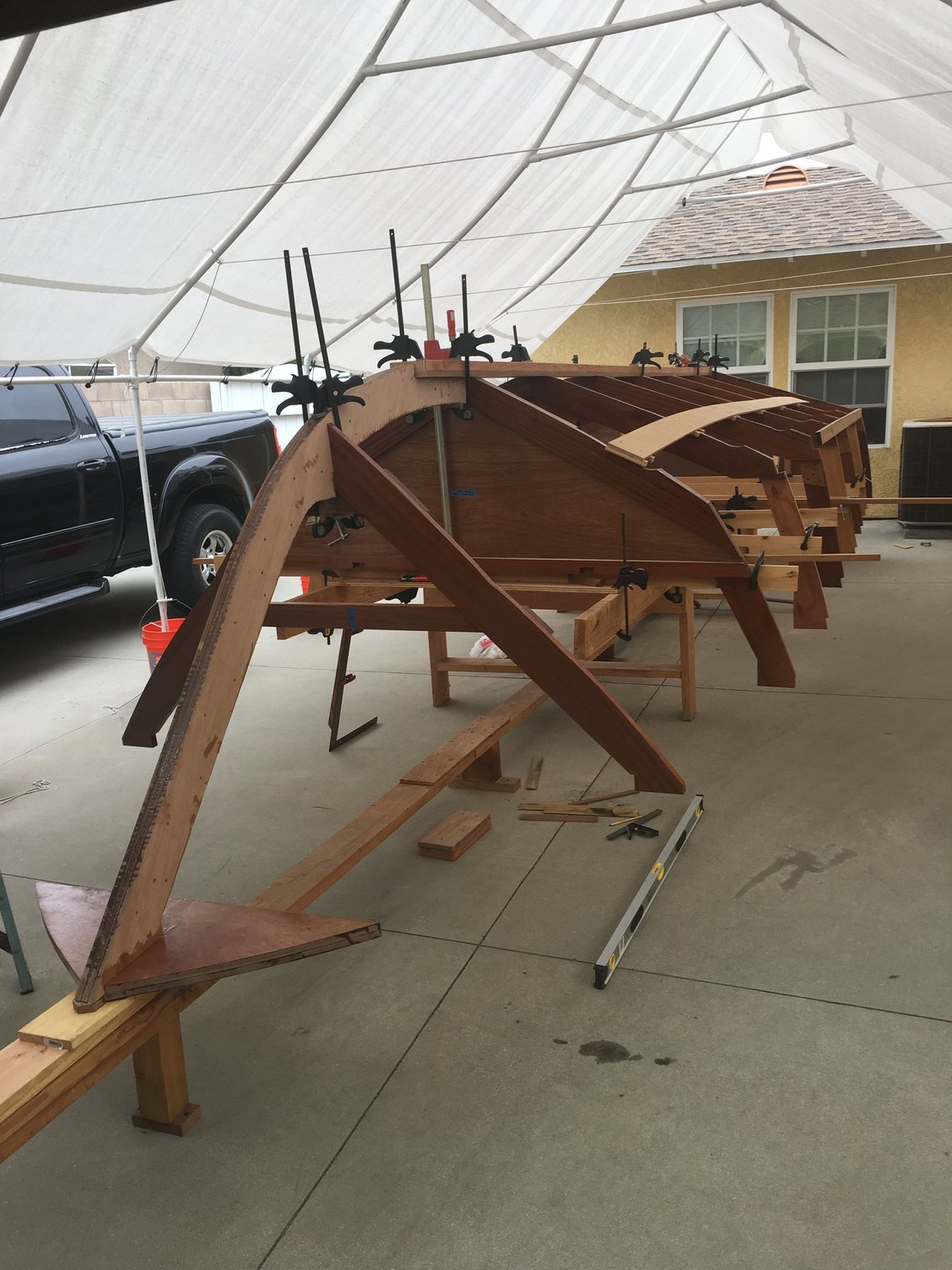

stem and breast hook clamped in place

Last edited by YeahYeah; 05-01-2020 at 05:46 PM.
Old 05-01-2020, 05:24 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Posts: 1,431
Received 324 Likes on 229 Posts
Default

Cool. Interested in seeing this come together.
Old 05-01-2020, 05:29 PM
  #6
Senior Member

Join Date: Feb 2013
Location: Michigan
Posts: 495
Received 240 Likes on 114 Posts
Default

Subscribed.
Old 05-01-2020, 05:33 PM
  #7
Senior Member

Join Date: Nov 2014
Location: Hammonton, NJ
Posts: 950
Likes: 0
Received 166 Likes on 127 Posts
Default

Wow!! Talk about jumping in with both feet, I love it! I'm guessing you have some experience working with wood other than boats. I thought my Dad was a badass when he built us a pair of Folbots back in the '70s, and he was an Insurance salesman that just loved us.
Oh and I thought I was cool installing a couple of rod holders today, I feel like a slacker now. Good luck! Do you have a name yet?

Last edited by Vitalsigns; 05-01-2020 at 05:39 PM.
Old 05-01-2020, 05:44 PM
  #8
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default

Yes, Vital, I've done some cabinetry and furniture work so I have a number of tools and a (hobbiest) workshop: table saw, miter saw, joiner, planer, and power tools.
Old 05-01-2020, 05:51 PM
  #9
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default

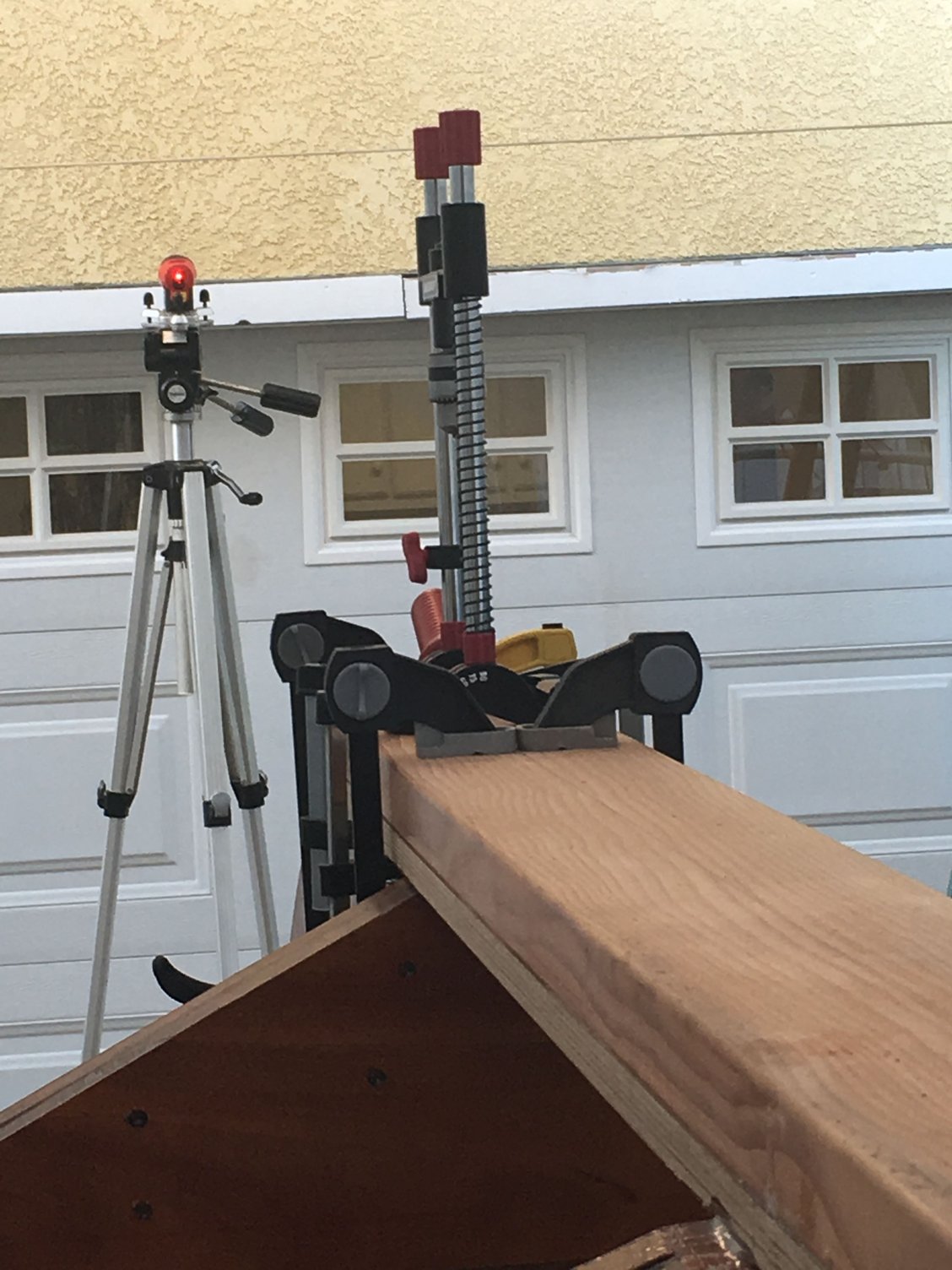

Using a line-laser level to make sure stem is aligned with the keel.

Stem is attached to the keel w 3, 3/8" x 6" silicon bronze bolts, and epoxied as well. Bolts are countersunk on both ends.
Old 05-01-2020, 06:16 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Apr 2019
Posts: 6
Received 1 Like on 1 Post
Default

Really excited to watch your project progress. I've been dreaming of Glen-L and Clarkcraft boats for years. Can remember back in the 80's seeing the ads in the back of my dad's copies of Wooden Boat magazine. Always wanted to build the L-Dorado with the cool Cadillac fins. Actually thinking of starting my own build soon. Ordered a set of plans from B&B designs for a boat called an Orcacoke 20. Still in the early stages trying to learn more before I jump in and do something crazy!. Keep up the good work!
Old 05-01-2020, 06:22 PM
  #11
HTJ
Admirals Club Admiral's Club Member

Join Date: Jun 2013
Location: Baytown, TX
Posts: 11,299
Received 3,204 Likes on 1,987 Posts
Default

I was gut hooked at building and plywood, press on sir
Old 05-01-2020, 06:47 PM
  #12
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default

Originally Posted by DannyP View Post
Really excited to watch your project progress. I've been dreaming of Glen-L and Clarkcraft boats for years. Can remember back in the 80's seeing the ads in the back of my dad's copies of Wooden Boat magazine. Always wanted to build the L-Dorado with the cool Cadillac fins. Actually thinking of starting my own build soon. Ordered a set of plans from B&B designs for a boat called an Orcacoke 20. Still in the early stages trying to learn more before I jump in and do something crazy!. Keep up the good work!
If I'm not mistaken that's Bill's boat design shop, If so, you're in good hands. In time I may find myself wanting more of a lake style fishing boat and that Marissa model really caught my attention.
Old 05-01-2020, 07:01 PM
  #13
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,538
Received 1,122 Likes on 582 Posts
Default

Nice work, keep it going.
Old 05-02-2020, 05:58 AM
  #14
Senior Member

Join Date: Mar 2010
Posts: 683
Likes: 0
Received 35 Likes on 21 Posts
Default

Great, keep pics coming.
Enjoy your venture
Old 05-02-2020, 06:03 AM
  #15
Senior Member

Join Date: Jul 2007
Location: SWFL
Posts: 2,414
Received 338 Likes on 204 Posts
Default

Great job so far, and I'm envious.
Old 05-02-2020, 06:28 AM
  #16
Member

Join Date: Oct 2019
Posts: 74
Received 10 Likes on 8 Posts
Default

Awesome project! Sub'd.
Old 05-02-2020, 09:14 AM
  #17
Senior Member

Join Date: Mar 2009
Posts: 1,906
Likes: 0
Received 478 Likes on 313 Posts
Default

Nice job,subed.
Old 05-02-2020, 02:38 PM
  #18
Senior Member

Join Date: Nov 2014
Location: Hammonton, NJ
Posts: 950
Likes: 0
Received 166 Likes on 127 Posts
Default

I'm not envious or that ambitious, I'll buy my boats pre built but great for you to undertake and for me to watch. Seems to me with that drill setup you may have been a safecracker as well!
Old 05-02-2020, 04:45 PM
  #19
Senior Member
Thread Starter

Join Date: Jun 2017
Location: SoCal
Posts: 145
Received 56 Likes on 35 Posts
Default

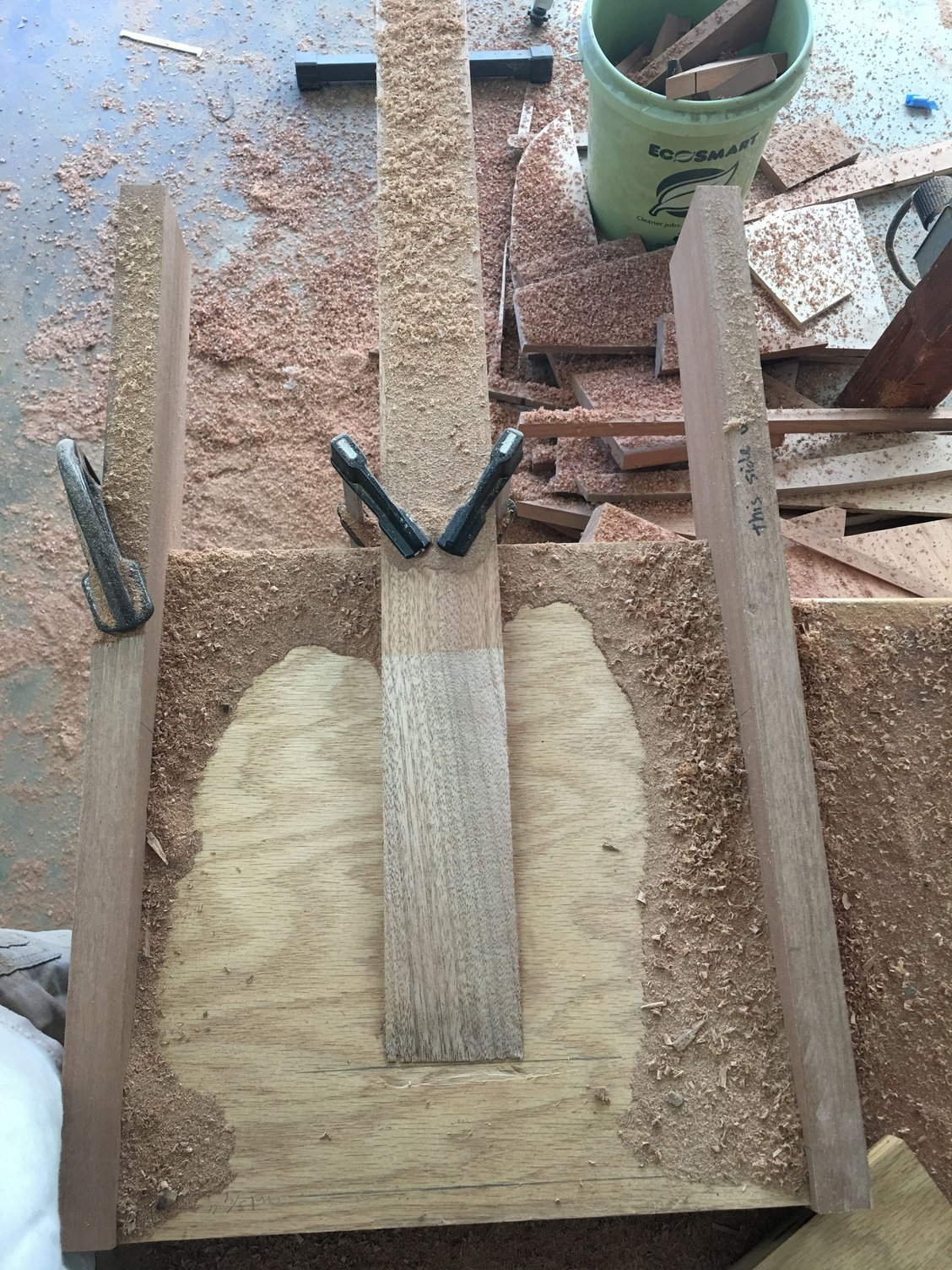

Making scarf joints for the chine logs

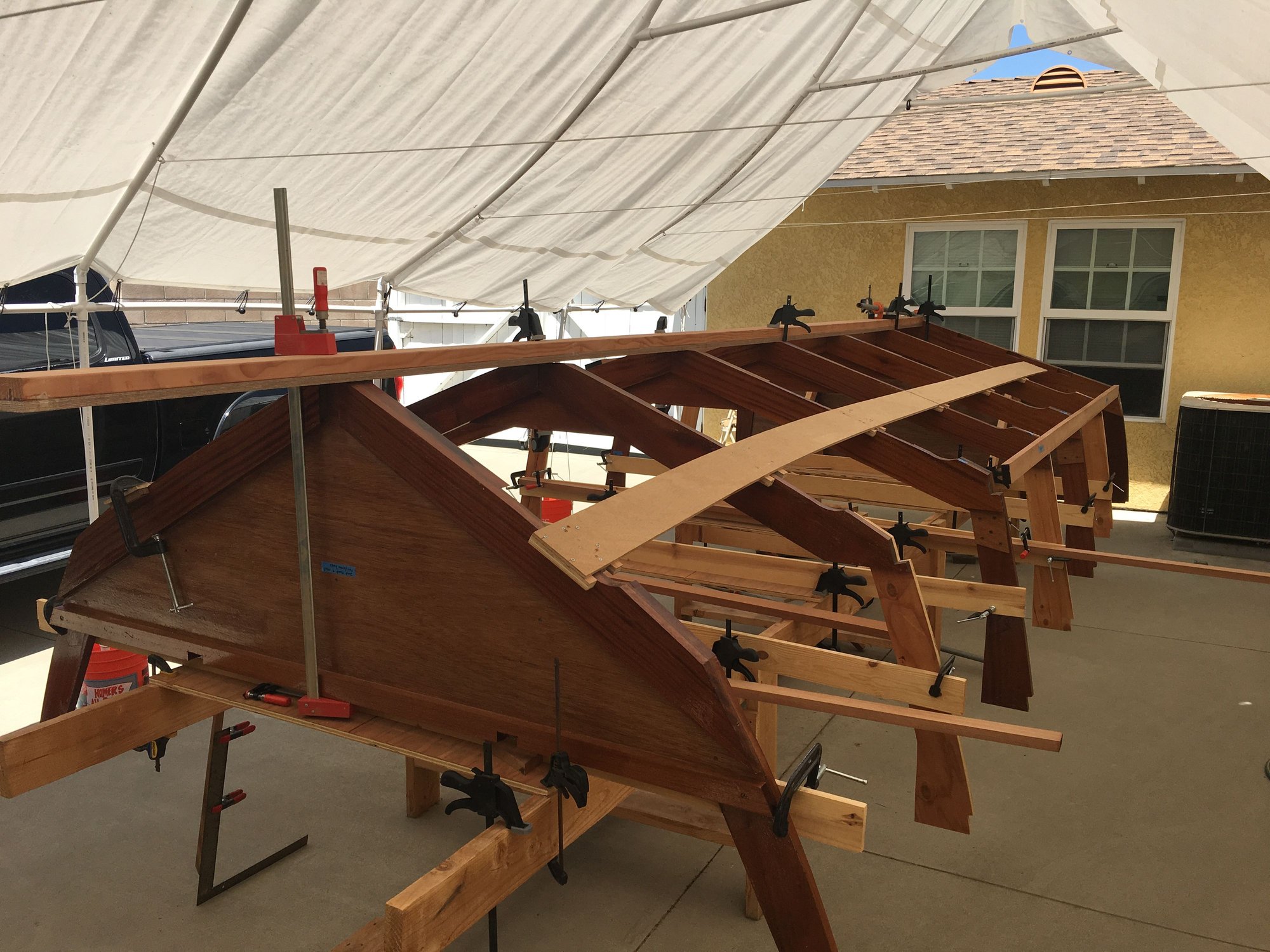

Chine logs in place and starting the bending process

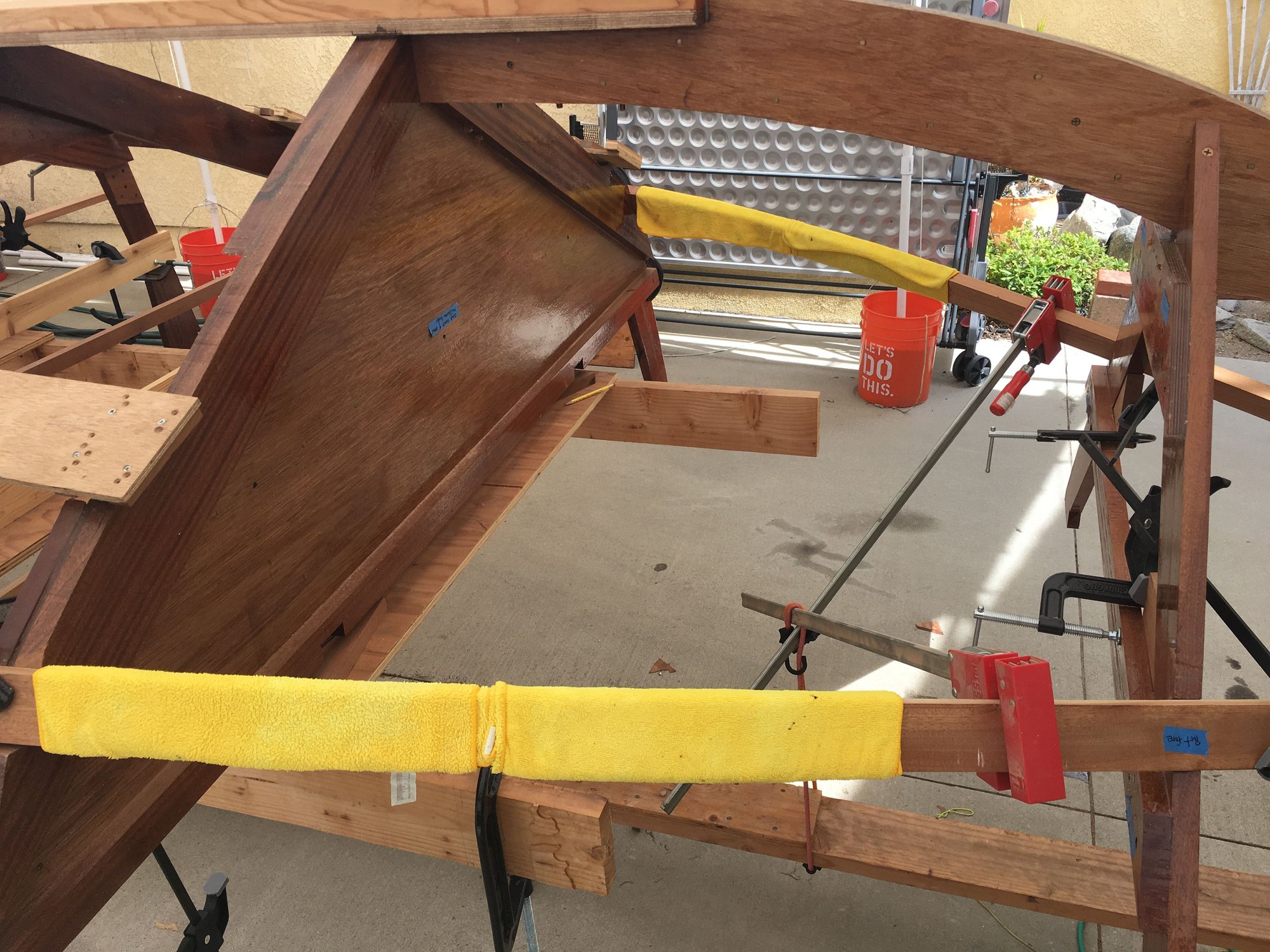

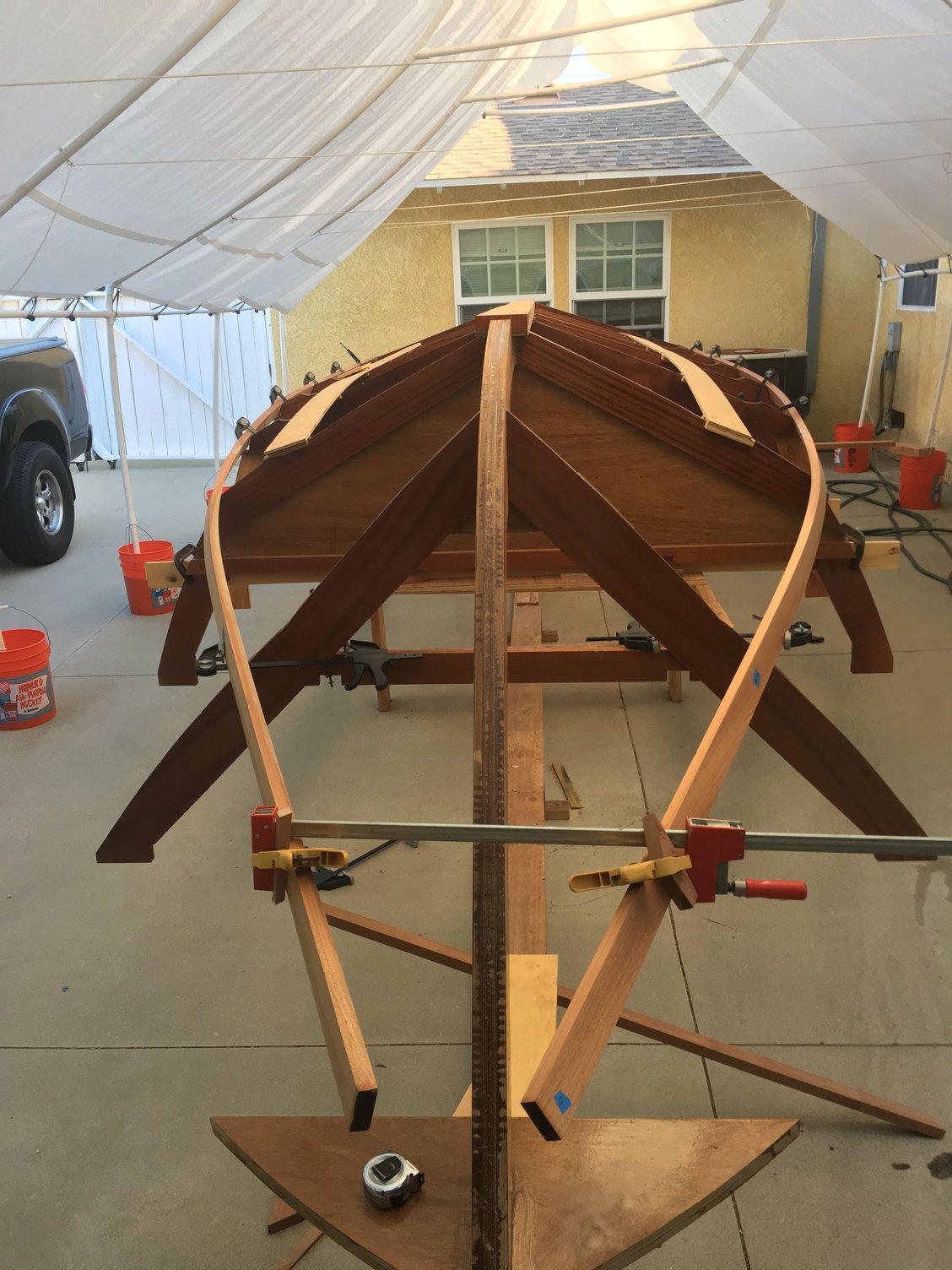

Up front here the chine logs needed to both bend and twist considerably, so I poured steaming hot water over the wet towels and jerry-rigged these clamps to twist them. Each day I would add a little more pressure for about 4-5 days until i got them to meet at the stem and sit fairly flat at the fore-most frame.

I took countless photos at this point looking at where the chine crossed frame 7 (the foremost) and landed on the stem as there's a fair amount discretion here. The plans advised "just make sure it forms a fair curve". So I'd shoot a picture and flip it 180 degrees (much easier to gauge right side up) and then push the intersection points maybe 1/2" one way or the other.
Likes:
jtburf, Milehog, MilesExpress, offshore3144, rmarsh, SouthpawHD and 1 others liked this post. (Show less...)
Old 05-03-2020, 04:45 AM
  #20
dev
Admirals Club Admiral's Club Member

dev's Avatar

Join Date: Mar 2017
Location: St. Pete
Posts: 756
Received 1,015 Likes on 458 Posts
Default

Great progress so far.
